NISSAN TIIDA 2007 Service Repair Manual

DLK-152
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
INTELLIGENT KEY UNIT
TERMINAL LAYOUT
PHYSICAL VALUES
JMKIA0415ZZ
Te r m i n a l N o .
Wire
colorDescription
ConditionVa l u e [ V ]
(Approx.)
Signal nameInput/
Output +–
1GroundRSteering lock unit power
supplyOutput — 5
2 Ground L CAN - HInput/
Output——
3 Ground P CAN - LInput/
Output——
4GroundOIntelligent Key warning
buzzerOutputIntelligent
Key warning
buzzerSounding 0
Not sounding Battery voltage
5GroundGFront door request
switch
(driver side)InputFront door
request
switch
(driver side)ON (Pressed) 0
OFF (Released) 5
6GroundYIgnition switch power
supplyInputIgnition
switchOFF or ACC 0
ON or START Battery voltage
7 Ground LG Key switch InputWhen ignition key is inserted into ig-
nition key cylinderBattery voltage
When ignition key is not inserted into
ignition key cylinder0
8GroundWImm- Input — —
9 Ground O Imm- Output — —
10 Ground V Battery power supply Input Ignition switch OFF Battery voltage
11 Ground SB Battery power supply Input Ignition switch OFF Battery voltage
12 Ground B Ground — Ignition switch ON 0

INTELLIGENT KEY UNIT
DLK-153
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
13 Ground RInside key antenna (+)
(rear floor)OutputIgnition knob
is pressed.When Intelligent Key
is in the antenna de-
tection area
When Intelligent Key
is not in the antenna
detection area
14 Ground GInside key antenna
(-) (rear floor)OutputIgnition knob
is pressed.When Intelligent Key
is in the antenna de-
tection area
When Intelligent Key
is not in the antenna
detection area
15 Ground LGInstrument panel anten-
na (+)OutputIgnition knob
is pressed.When Intelligent Key
is in the antenna de-
tection area
When Intelligent Key
is not in the antenna
detection area Te r m i n a l N o .
Wire
colorDescription
ConditionVa l u e [ V ]
(Approx.)
Signal nameInput/
Output +–
JMKIA0393ZZ
JMKIA0391ZZ
JMKIA0392ZZ
JMKIA0390ZZ
JMKIA0393ZZ
JMKIA0391ZZ

DLK-154
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
INTELLIGENT KEY UNIT
16 Ground VInstrument panel anten-
na (-)OutputIgnition knob
is pressed.When Intelligent Key
is in the antenna de-
tection area
When Intelligent Key
is not in the antenna
detection area
17 Ground WOutside key antenna (+)
(rear bumper)OutputWhen the
back door re-
quest switch
is operated
with ignition
switch OFFWhen Intelligent Key
is in the antenna de-
tection area
When Intelligent Key
is not in the antenna
detection area
18 Ground BOutside key antenna (-)
(rear bumper)OutputWhen the
back door re-
quest switch
is operated
with ignition
switch OFFWhen Intelligent Key
is in the antenna de-
tection area
When Intelligent Key
is not in the antenna
detection area Te r m i n a l N o .
Wire
colorDescription
ConditionVa l u e [ V ]
(Approx.)
Signal nameInput/
Output +–
JMKIA0392ZZ
JMKIA0390ZZ
JMKIA0397ZZ
JMKIA0514ZZ
JMKIA0395ZZ
JMKIA0515ZZ

INTELLIGENT KEY UNIT
DLK-155
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
19 Ground VOutside key antenna (+)
(driver side)OutputWhen the
front door re-
quest switch
(driver side)
is operated
with ignition
switch OFFWhen Intelligent Key
is in the antenna de-
tection area
When Intelligent Key
is not in the antenna
detection area
20 Ground POutside key antenna (-)
(driver side)OutputWhen the
front door re-
quest switch
(driver side)
is operated
with ignition
switch OFFWhen Intelligent Key
is in the antenna de-
tection area
When Intelligent Key
is not in the antenna
detection area
22
*1Ground BR Key lock solenoid OutputKey lock so-
lenoidLOCK
*2Battery voltage
UNLOCK
*20
25 Ground LFront door request
switch
(passenger side)InputFront door
request
switch
(passenger
side)ON (Pressed) 0
OFF (Released) 5
26 Ground SB Stop lamp switch InputDepress the brake pedal Battery voltage
Release the brake pedal 0
27 Ground W Ignition knob switch InputIgnition
switch OFFWhen ignition knob
switch is pressedBattery voltage
When ignition knob
switch is released0
28 Ground Y Door lock status switch InputLock (ON) 5
Unlock (OFF) 0
29
*2Ground V Back door request switch InputBack door re-
quest switchON (Pressed) 0
OFF (Released) 5 Te r m i n a l N o .
Wire
colorDescription
ConditionVa l u e [ V ]
(Approx.)
Signal nameInput/
Output +–
JMKIA0397ZZ
JMKIA0514ZZ
JMKIA0395ZZ
JMKIA0515ZZ

DLK-156
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
INTELLIGENT KEY UNIT
29*3Ground VTrunk opener request
switchInputTrunk opener
request
switchON (Pressed) 0
OFF (Released) 5
30 Ground GR Security indicator lamp OutputIgnition
switch OFFWhen security indi-
cator lamp is ON0
When security indi-
cator lamp is OFFBattery voltage
31 Ground BR Steering lock unit ground — — — 0
32 Ground GRSteering lock unit com-
municationInput/
OutputSteering lockLOCK status 5
LOCK or UNLOCK
35 Ground LFront console antenna
(+)OutputIgnition knob
is pressed.When Intelligent Key
is in the antenna de-
tection area
When Intelligent Key
is not in the antenna
detection area
36 Ground P Front console antenna (-) OutputIgnition knob
is pressed.When Intelligent Key
is in the antenna de-
tection area
When Intelligent Key
is not in the antenna
detection area Te r m i n a l N o .
Wire
colorDescription
ConditionVa l u e [ V ]
(Approx.)
Signal nameInput/
Output +–
JMKIA0433ZZ
JMKIA0393ZZ
JMKIA0391ZZ
JMKIA0392ZZ
JMKIA0390ZZ

INTELLIGENT KEY UNIT
DLK-157
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
*1:M/T models.
*2: Hatchback models.
*3: Sedan models.37 Ground BROutside key antenna (+)
(passenger side)OutputWhen the
front door re-
quest switch
(passenger
side) is oper-
ated with ig-
nition switch
OFFWhen Intelligent Key
is in the antenna de-
tection area
When Intelligent Key
is in the antenna de-
tection area
38 Ground YOutside key antenna (-)
(passenger side)OutputWhen the
front door re-
quest switch
(passenger
side) is oper-
ated with ig-
nition switch
OFFWhen Intelligent Key
is in the antenna de-
tection area
When Intelligent Key
is not in the antenna
detection area Te r m i n a l N o .
Wire
colorDescription
ConditionVa l u e [ V ]
(Approx.)
Signal nameInput/
Output +–
JMKIA0397ZZ
JMKIA0514ZZ
JMKIA0395ZZ
JMKIA0515ZZ

DLK-158
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
INTELLIGENT KEY UNIT

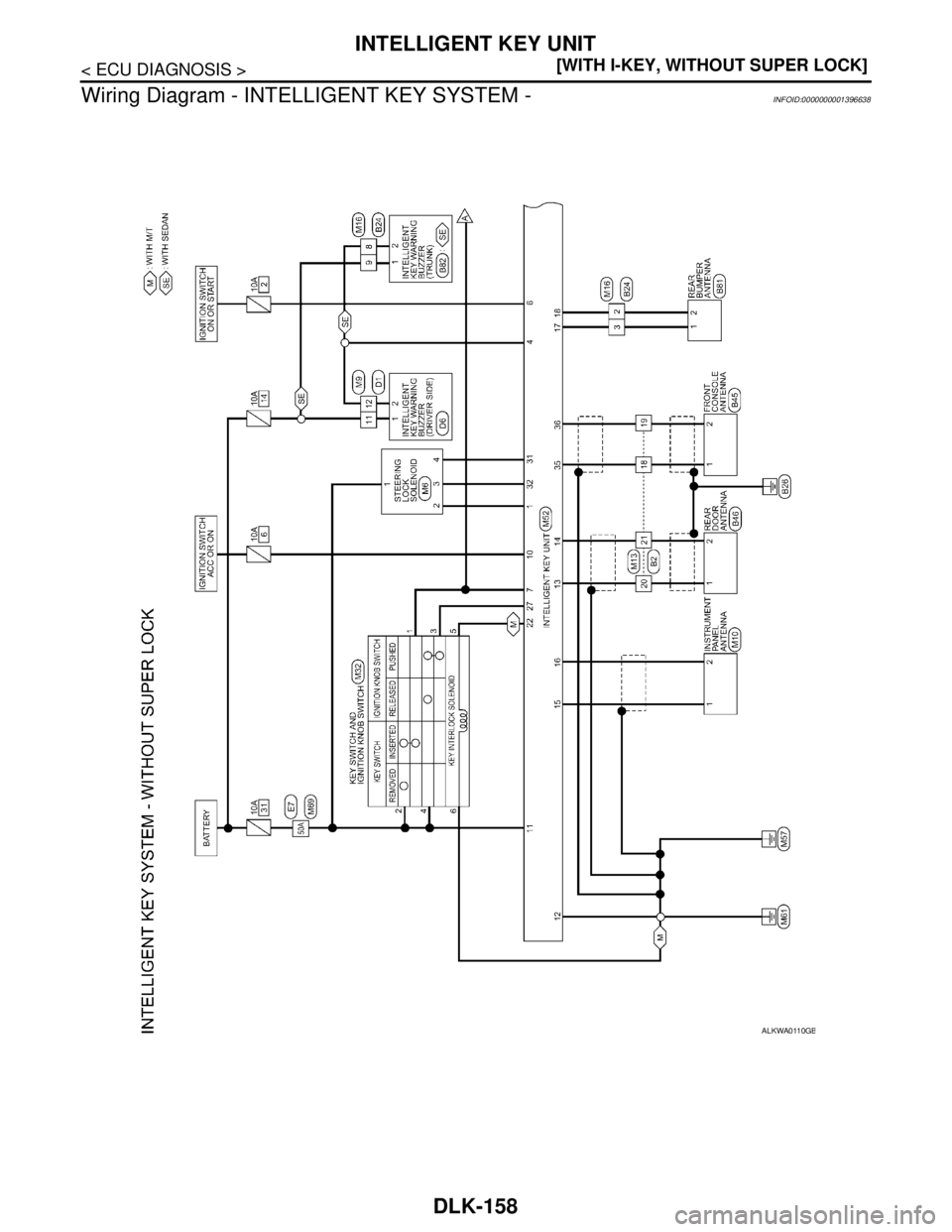

Wiring Diagram - INTELLIGENT KEY SYSTEM -
INFOID:0000000001396638
ALKWA0110GB

INTELLIGENT KEY UNIT
DLK-159
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
ALKWA0111GB

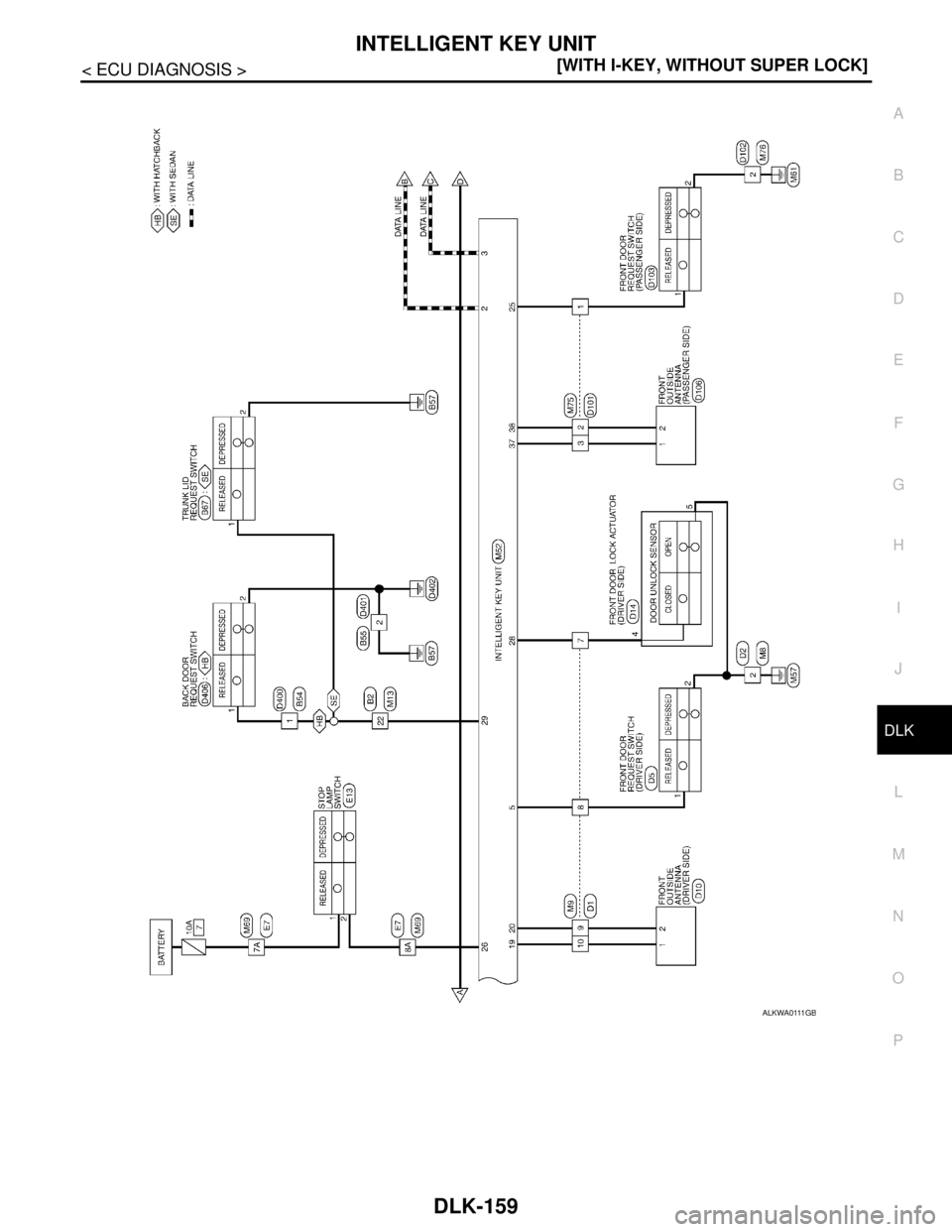

DLK-160
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
INTELLIGENT KEY UNIT
ALKWA0112GB

INTELLIGENT KEY UNIT

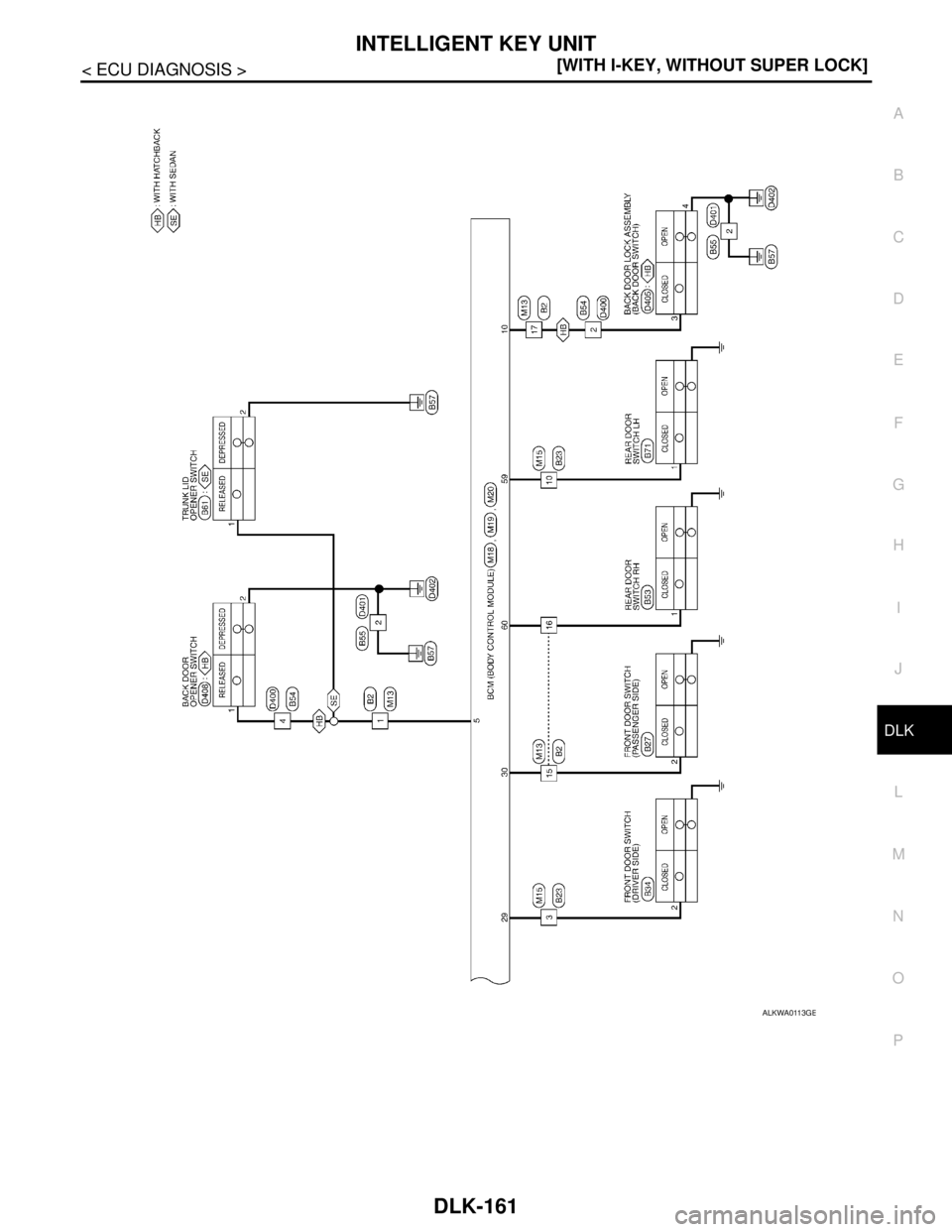

DLK-161
< ECU DIAGNOSIS >[WITH I-KEY, WITHOUT SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
ALKWA0113GB
