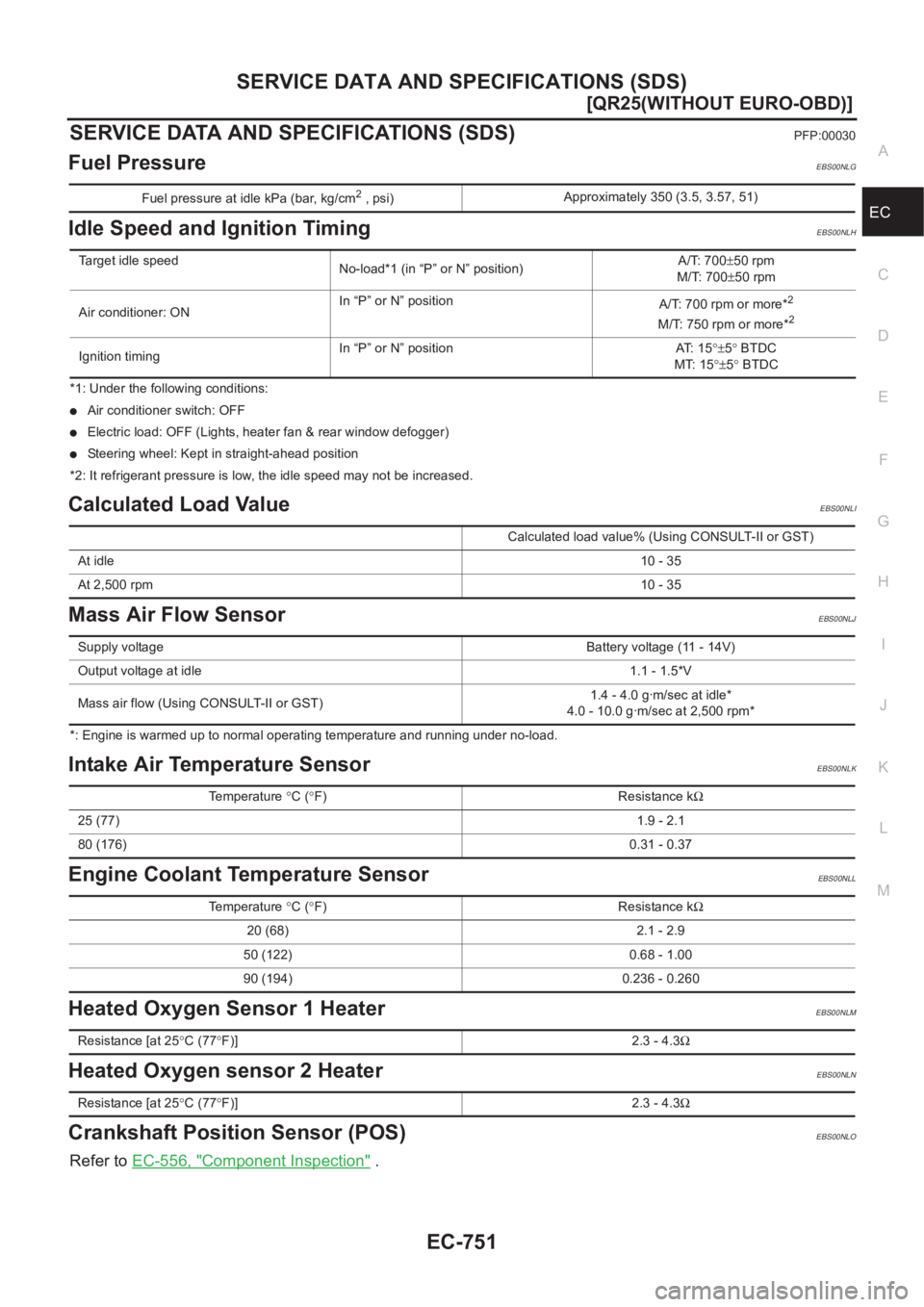

SERVICE DATA AND SPECIFICATIONS (SDS)
EC-751
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureEBS00NLG
Idle Speed and Ignition TimingEBS00NLH
*1: Under the following conditions:
●Air conditioner switch: OFF
●Electric load: OFF (Lights, heater fan & rear window defogger)
●Steering wheel: Kept in straight-ahead position
*2: It refrigerant pressure is low, the idle speed may not be increased.
Calculated Load ValueEBS00NLI
Mass Air Flow SensorEBS00NLJ
*: Engine is warmed up to normal operating temperature and running under no-load.
Intake Air Temperature SensorEBS00NLK
Engine Coolant Temperature SensorEBS00NLL
Heated Oxygen Sensor 1 HeaterEBS00NLM
Heated Oxygen sensor 2 HeaterEBS00NLN
Crankshaft Position Sensor (POS)EBS00NLO
Refer to EC-556, "Component Inspection" .
Fuel pressure at idle kPa (bar, kg/cm2 , psi)Approximately 350 (3.5, 3.57, 51)
Target idle speed
No-load*1 (in “P” or N” position)A/T: 700±50 rpm
M/T: 700±50 rpm
Air conditioner: ONIn “P” or N” position
A/T: 700 rpm or more*
2
M/T: 750 rpm or more*2
Ignition timingIn “P” or N” position AT: 15°±5° BTDC
MT: 15°±5° BTDC
Calculated load value% (Using CONSULT-II or GST)
At idle10 - 35
At 2,500 rpm10 - 35
Supply voltageBattery voltage (11 - 14V)
Output voltage at idle1.1 - 1.5*V
Mass air flow (Using CONSULT-II or GST)1.4 - 4.0 g·m/sec at idle*
4.0 - 10.0 g·m/sec at 2,500 rpm*
Temperature °C (°F) Resistance kΩ
25 (77)1.9 - 2.1
80 (176)0.31 - 0.37
Temperature °C (°F) Resistance kΩ
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
Resistance [at 25°C (77°F)] 2.3 - 4.3Ω
Resistance [at 25°C (77°F)] 2.3 - 4.3Ω

EC-752
[QR25(WITHOUT EURO-OBD)]
SERVICE DATA AND SPECIFICATIONS (SDS)
Camshaft Position Sensor (PHASE)
EBS00NLP
Refer to EC-562, "Component Inspection" .
Throttle Control MotorEBS00NLQ
InjectorEBS00NLR
Fuel PumpEBS00NLS
Resistance [at 25°C (77°F)] Approximately 1 - 15Ω
Resistance [at 20°C (68°F)] 13.5 - 17.5Ω
Resistance [at 25°C (77°F)] Approximately 1.0Ω

INDEX FOR DTC
