Page 2511 of 3833
DISASSEMBLY

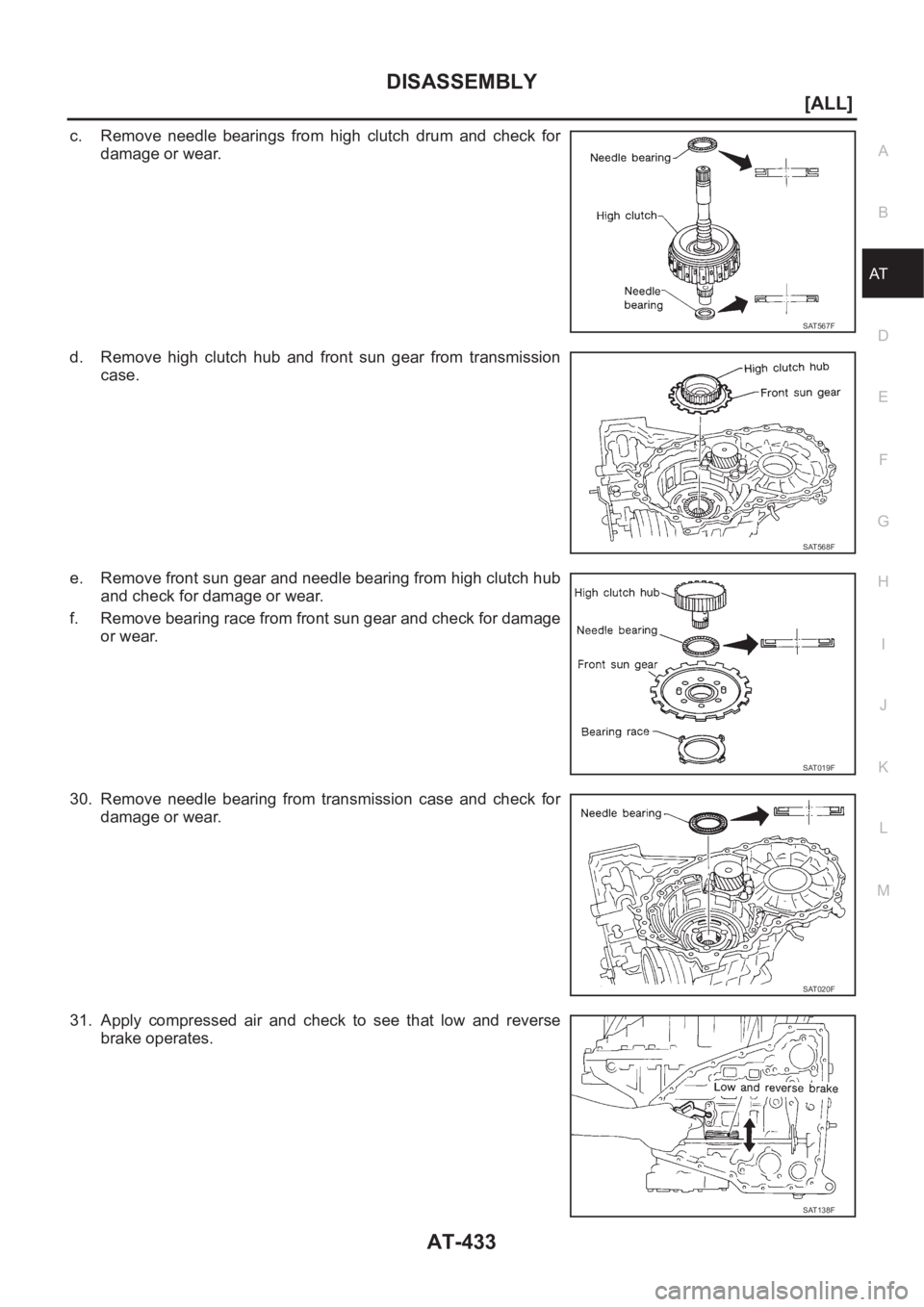

AT-433
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
c. Remove needle bearings from high clutch drum and check for
damage or wear.
d. Remove high clutch hub and front sun gear from transmission
case.
e. Remove front sun gear and needle bearing from high clutch hub
and check for damage or wear.
f. Remove bearing race from front sun gear and check for damage
or wear.
30. Remove needle bearing from transmission case and check for
damage or wear.
31. Apply compressed air and check to see that low and reverse
brake operates.
SAT567F
SAT568F
SAT019F
SAT020F
SAT138F
Page 2512 of 3833

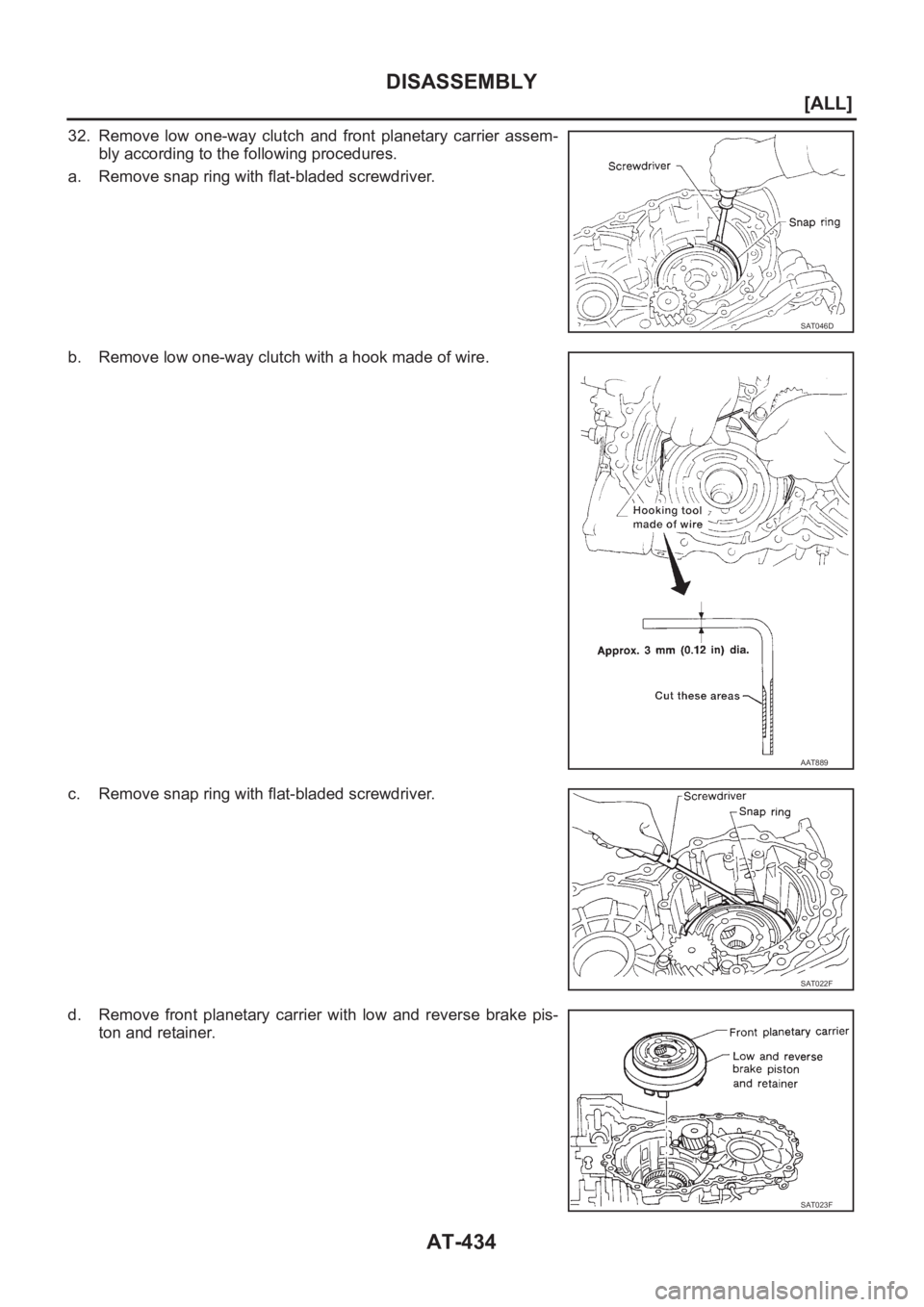

AT-434
[ALL]
DISASSEMBLY
32. Remove low one-way clutch and front planetary carrier assem-
bly according to the following procedures.
a. Remove snap ring with flat-bladed screwdriver.
b. Remove low one-way clutch with a hook made of wire.
c. Remove snap ring with flat-bladed screwdriver.
d. Remove front planetary carrier with low and reverse brake pis-
ton and retainer.
SAT046D
AAT889
SAT022F
SAT023F
Page 2513 of 3833
DISASSEMBLY

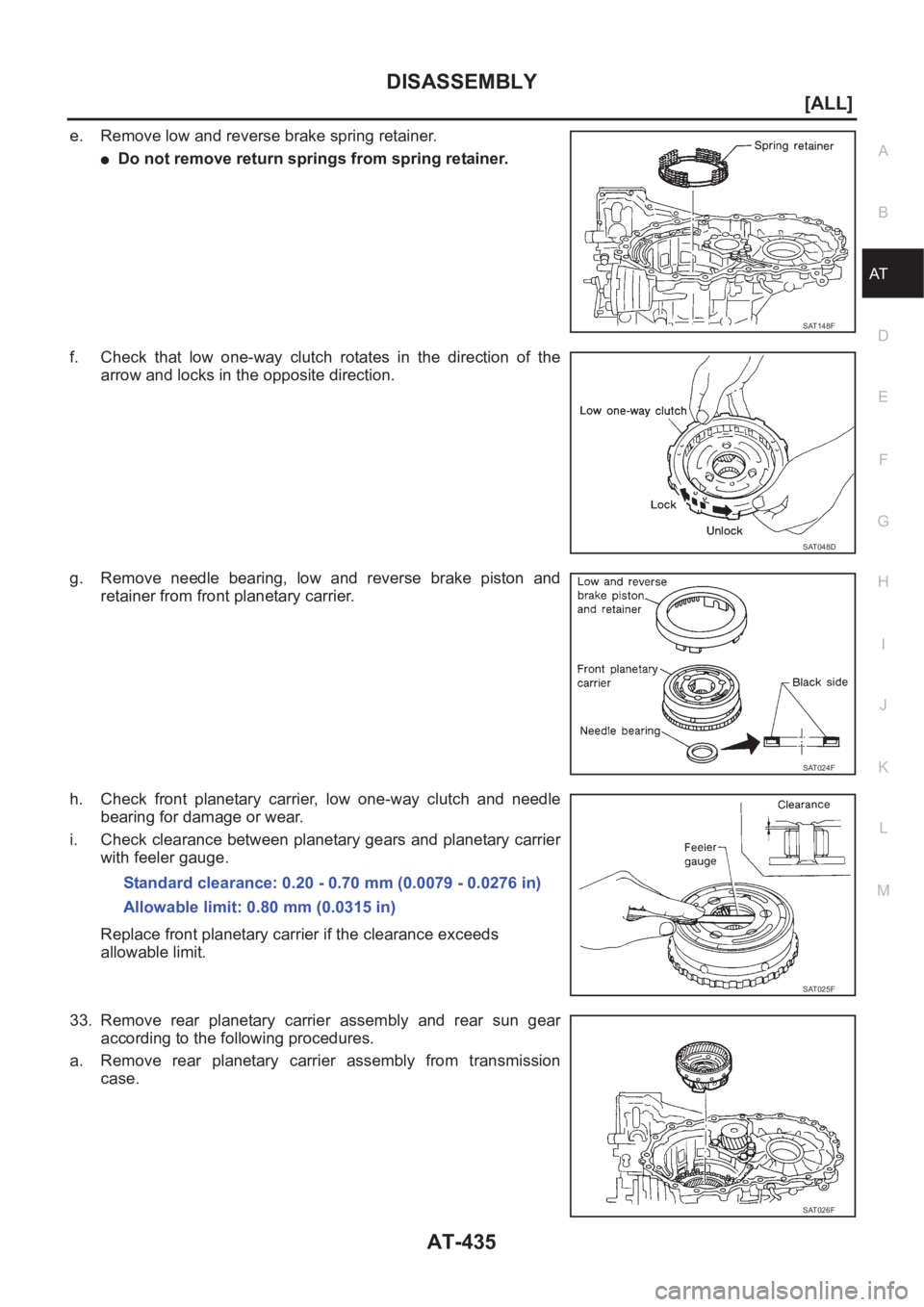

AT-435
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
e. Remove low and reverse brake spring retainer.
●Do not remove return springs from spring retainer.
f. Check that low one-way clutch rotates in the direction of the
arrow and locks in the opposite direction.
g. Remove needle bearing, low and reverse brake piston and
retainer from front planetary carrier.
h. Check front planetary carrier, low one-way clutch and needle
bearing for damage or wear.
i. Check clearance between planetary gears and planetary carrier
with feeler gauge.
Replace front planetary carrier if the clearance exceeds
allowable limit.
33. Remove rear planetary carrier assembly and rear sun gear
according to the following procedures.
a. Remove rear planetary carrier assembly from transmission
case.
SAT148F
SAT048D
SAT024F
Standard clearance: 0.20 - 0.70 mm (0.0079 - 0.0276 in)
Allowable limit: 0.80 mm (0.0315 in)
SAT025F
SAT026F
Page 2514 of 3833

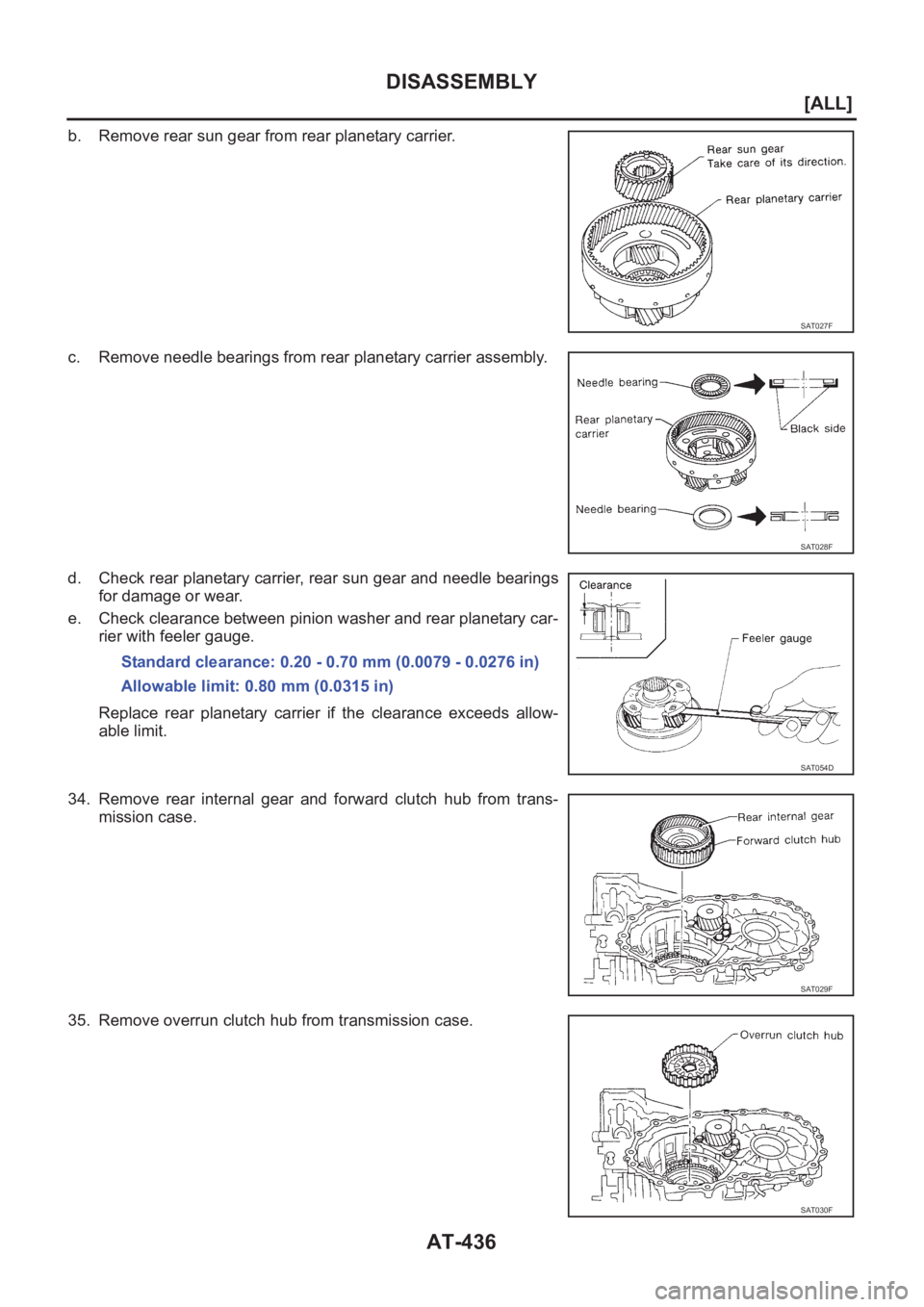

AT-436
[ALL]
DISASSEMBLY
b. Remove rear sun gear from rear planetary carrier.
c. Remove needle bearings from rear planetary carrier assembly.
d. Check rear planetary carrier, rear sun gear and needle bearings
for damage or wear.
e. Check clearance between pinion washer and rear planetary car-
rier with feeler gauge.
Replace rear planetary carrier if the clearance exceeds allow-
able limit.
34. Remove rear internal gear and forward clutch hub from trans-
mission case.
35. Remove overrun clutch hub from transmission case.
SAT027F
SAT028F
Standard clearance: 0.20 - 0.70 mm (0.0079 - 0.0276 in)
Allowable limit: 0.80 mm (0.0315 in)
SAT054D
SAT029F
SAT030F
Page 2515 of 3833
DISASSEMBLY
AT-437
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
36. Remove needle bearing from overrun clutch hub and check for
damage or wear.
37. Remove forward clutch assembly from transmission case.
38. Remove needle bearing from transmission case.
39. Remove output shaft assembly according to the following proce-
dures.
a. Remove side cover bolts.
●Do not mix bolts A and B.
●Always replace bolts A as they are self-sealing bolts.
b. Remove side cover by lightly tapping it with a soft hammer.
●Be careful not to drop output shaft assembly. It might
come out when removing side cover.
SAT031F
SAT032F
SAT033F
AAT850
SAT434D
Page 2516 of 3833

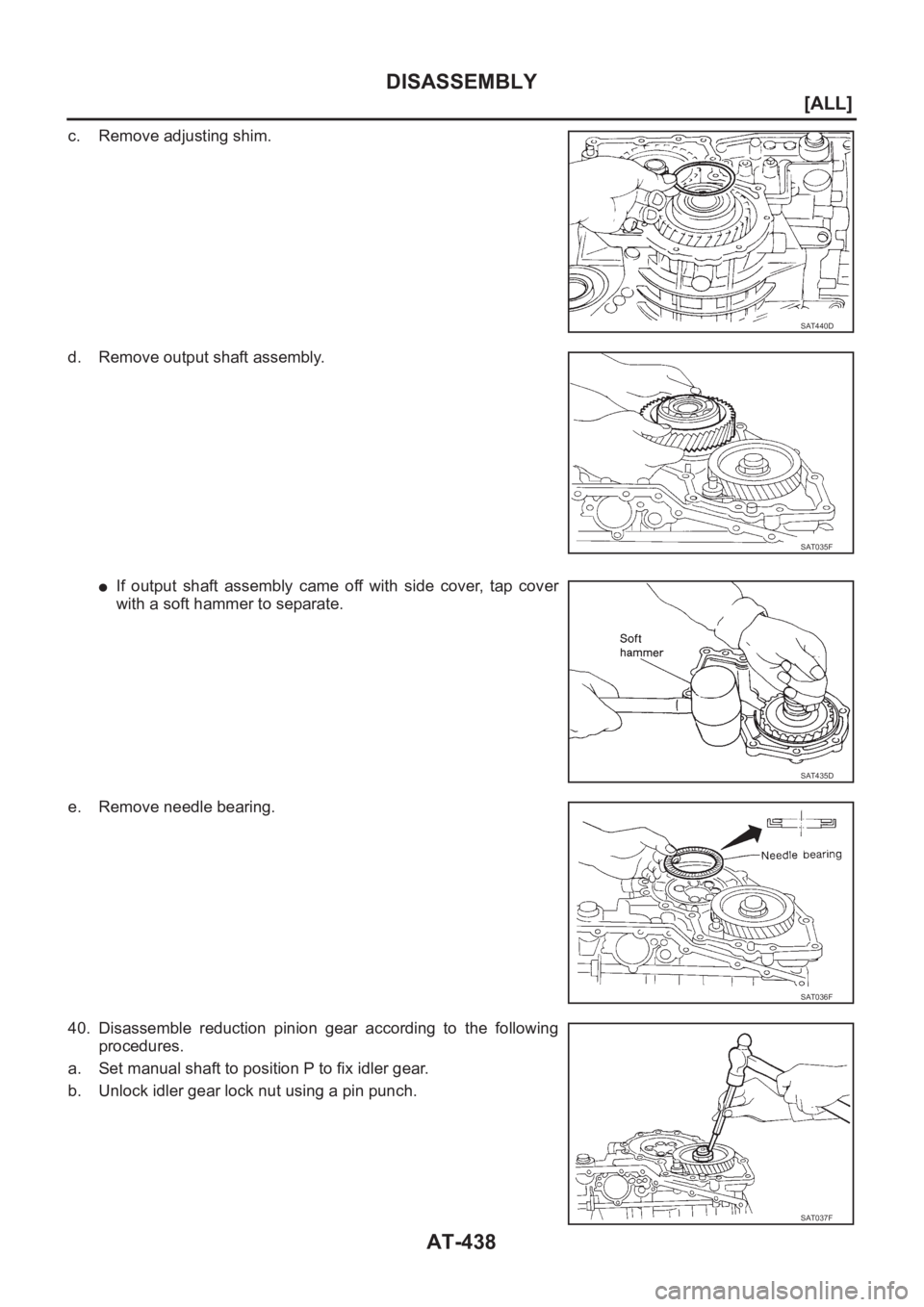

AT-438
[ALL]
DISASSEMBLY
c. Remove adjusting shim.
d. Remove output shaft assembly.
●If output shaft assembly came off with side cover, tap cover
with a soft hammer to separate.
e. Remove needle bearing.
40. Disassemble reduction pinion gear according to the following
procedures.
a. Set manual shaft to position P to fix idler gear.
b. Unlock idler gear lock nut using a pin punch.
SAT440D
SAT035F
SAT435D
SAT036F
SAT037F
Page 2517 of 3833
DISASSEMBLY

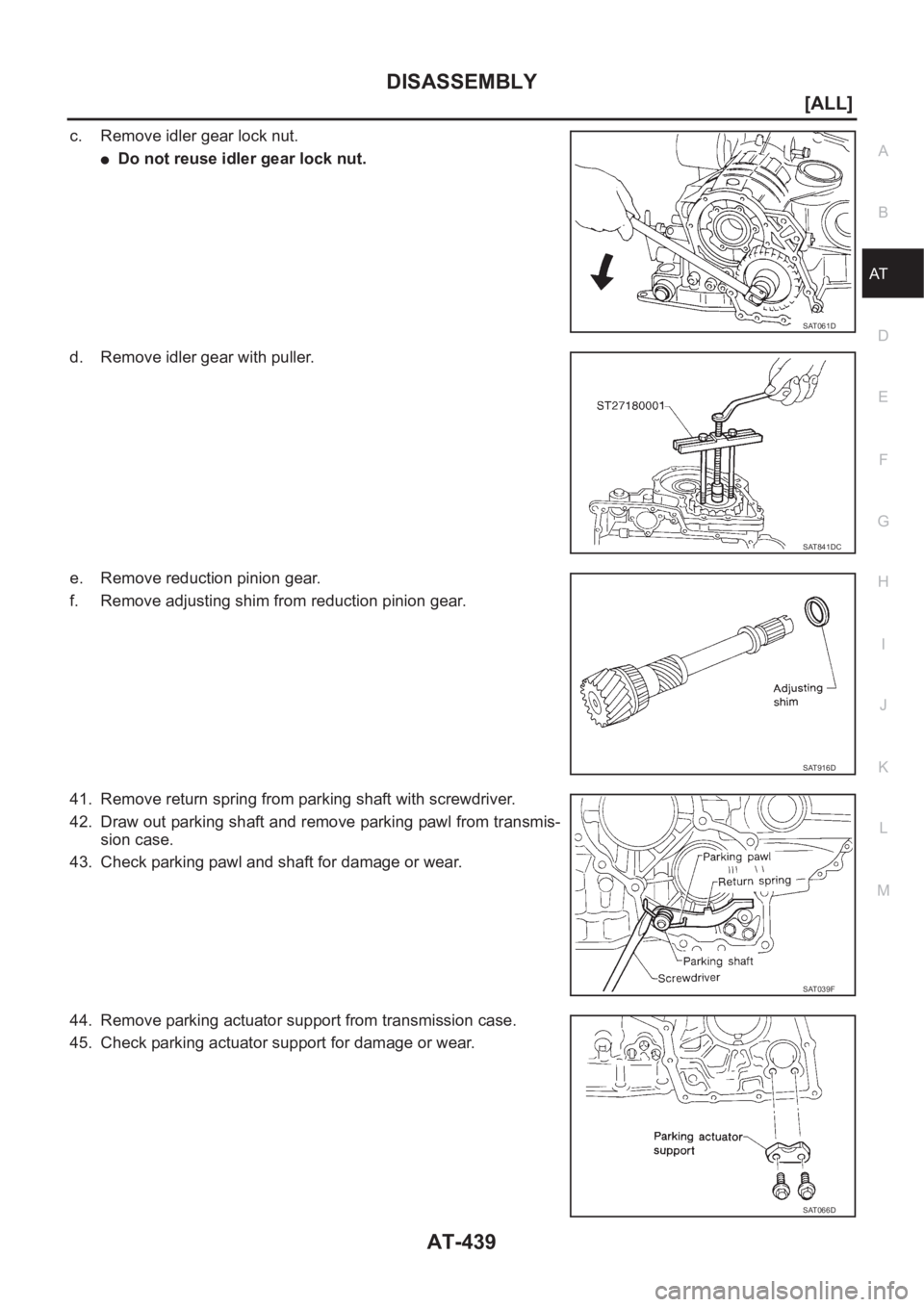

AT-439
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
c. Remove idler gear lock nut.
●Do not reuse idler gear lock nut.
d. Remove idler gear with puller.
e. Remove reduction pinion gear.
f. Remove adjusting shim from reduction pinion gear.
41. Remove return spring from parking shaft with screwdriver.
42. Draw out parking shaft and remove parking pawl from transmis-
sion case.
43. Check parking pawl and shaft for damage or wear.
44. Remove parking actuator support from transmission case.
45. Check parking actuator support for damage or wear.
SAT061D
SAT841DC
SAT916D
SAT039F
SAT066D
Page 2518 of 3833
AT-440
[ALL]
DISASSEMBLY
46. Remove side oil seal with screwdriver from transmission case.
SAT040F
Page 2519 of 3833
REPAIR FOR COMPONENT PARTS
AT-441
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
REPAIR FOR COMPONENT PARTSPFP:00000
Manual ShaftECS004M0
COMPONENTS
REMOVAL
1. Remove detent spring from transmission case.
2. Drive out manual plate retaining pin.
SAT769J
SAT042F
SAT842DC
Page 2520 of 3833
AT-442
[ALL]
REPAIR FOR COMPONENT PARTS
3. Drive and pull out parking rod plate retaining pin.
4. Remove parking rod plate from manual shaft.
5. Draw out parking rod from transmission case.
6. Pull out manual shaft retaining pin.
7. Remove manual shaft and manual plate from transmission case.
8. Remove manual shaft oil seal.
INSPECTION
●Check component parts for wear or damage. Replace if necessary.
INSTALLATION
1. Install manual shaft oil seal.
●Apply ATF to outer surface of oil seal.
SAT043FC
SAT049F
SAT080D
SAT081D
