INSTRUMENT PANEL
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions .............................................................. 2
INSTRUMENT PANEL ASSEMBLY ........................... 3
Component Parts Drawing ....................................... 3
Removal and Installation .......................................... 5
TABLE OF WORK ITEM ....................................... 5
FRONT SPEAKER GRILLE .................................. 6
INSTRUMENT FINISHER ..................................... 6
CUP HOLDER ....................................................... 6
CLUSTER LID A ................................................... 6
COMBINATION METER ....................................... 6
POCKET ............................................................... 6
STEERING COLUMN COVER ............................. 6
INSTRUMENT LOWER DRIVER PANEL ............. 7
MIRROR CONTROL SWITCH .............................. 7
GPS ANTENNA .................................................... 7
CLUSTER LID C ................................................... 7CLUSTER LID FINISHER ..................................... 7
AUDIO UNIT AND POCKET ................................. 7
HEATER CONTROL FINISHER ............................ 8
CD AUTO–CHANGER AND POCKET .................. 8
HEATER CONTROLLER ....................................... 8
A/T OR M/T FINISHER ......................................... 8
CONSOLE MASK AND CENTER CONSOLE ....... 8
LOWER INSTRUMENT COVER ........................... 8
INSTRUMENT LOWER CENTER PANEL ............ 8
GLOVE BOX ......................................................... 9
LOWER INSTRUMENT PANEL ............................ 9
GLOVE BOX COVER ............................................ 9
FRONT PASSENGER AIR BAG MODULE ........... 9
INSTRUMENT REINFORCEMENT ....................... 9
INSTRUMENT MASK ............................................ 9
FRONT PILLAR GARNISH ................................... 9
INSTRUMENT PANEL .......................................... 9
Disassembly and Assembly .................................... 10
CONSOLE BOX ASSEMBLY .............................. 10

IP-2

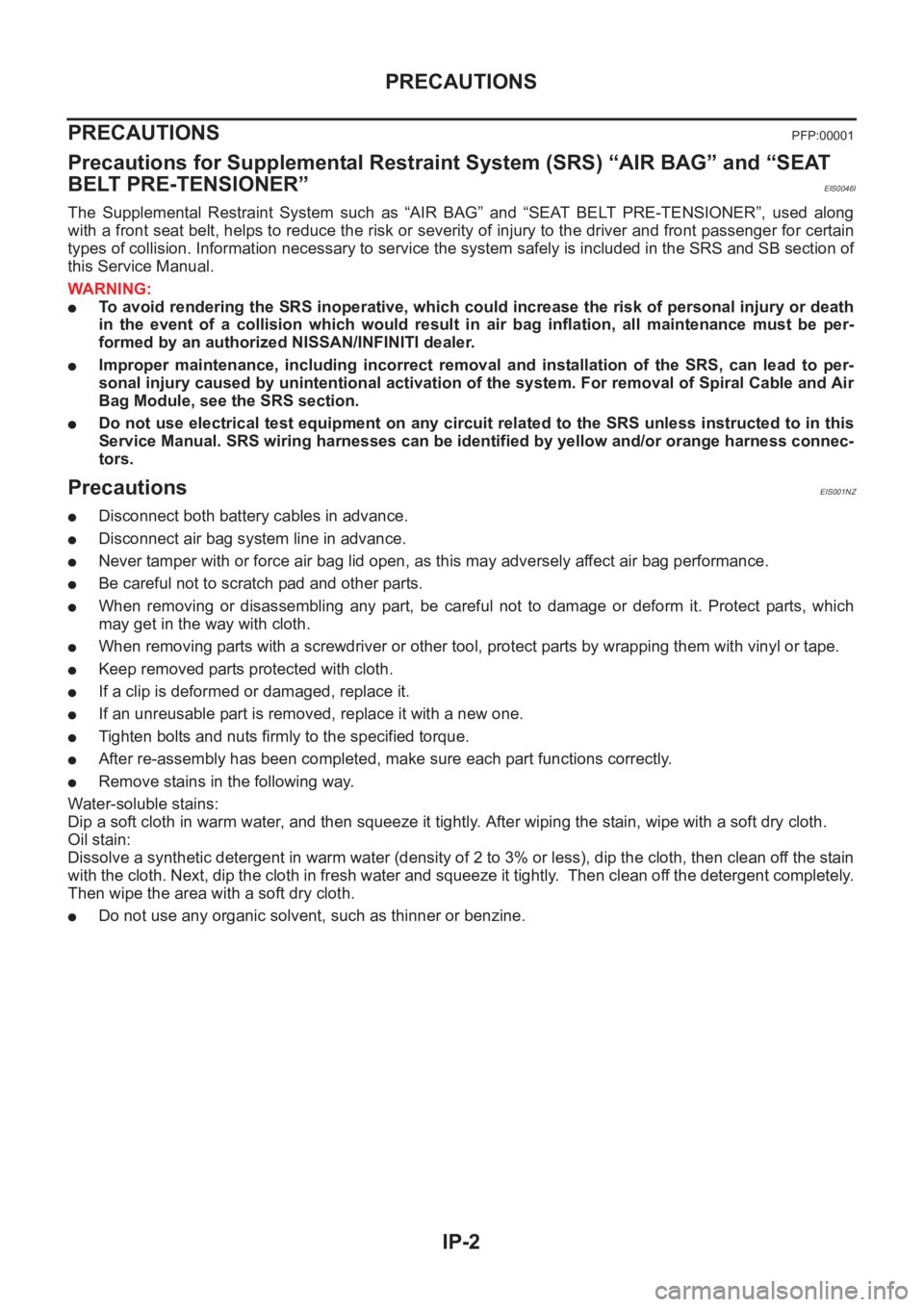

PRECAUTIONS
PRECAUTIONS
PFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS0046I
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
●To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
●Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
●Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harness connec-
tors.
Precautions EIS001NZ
●Disconnect both battery cables in advance.
●Disconnect air bag system line in advance.
●Never tamper with or force air bag lid open, as this may adversely affect air bag performance.
●Be careful not to scratch pad and other parts.
●When removing or disassembling any part, be careful not to damage or deform it. Protect parts, which
may get in the way with cloth.
●When removing parts with a screwdriver or other tool, protect parts by wrapping them with vinyl or tape.
●Keep removed parts protected with cloth.
●If a clip is deformed or damaged, replace it.
●If an unreusable part is removed, replace it with a new one.
●Tighten bolts and nuts firmly to the specified torque.
●After re-assembly has been completed, make sure each part functions correctly.
●Remove stains in the following way.
Water-soluble stains:
Dip a soft cloth in warm water, and then squeeze it tightly. After wiping the stain, wipe with a soft dry cloth.
Oil stain:
Dissolve a synthetic detergent in warm water (density of 2 to 3% or less), dip the cloth, then clean off the stain
with the cloth. Next, dip the cloth in fresh water and squeeze it tightly. Then clean off the detergent completely.
Then wipe the area with a soft dry cloth.
●Do not use any organic solvent, such as thinner or benzine.

INSTRUMENT PANEL ASSEMBLY
IP-3
C
D
E
F
G
H
J
K
L
MA
B
IP
INSTRUMENT PANEL ASSEMBLYPFP:68200

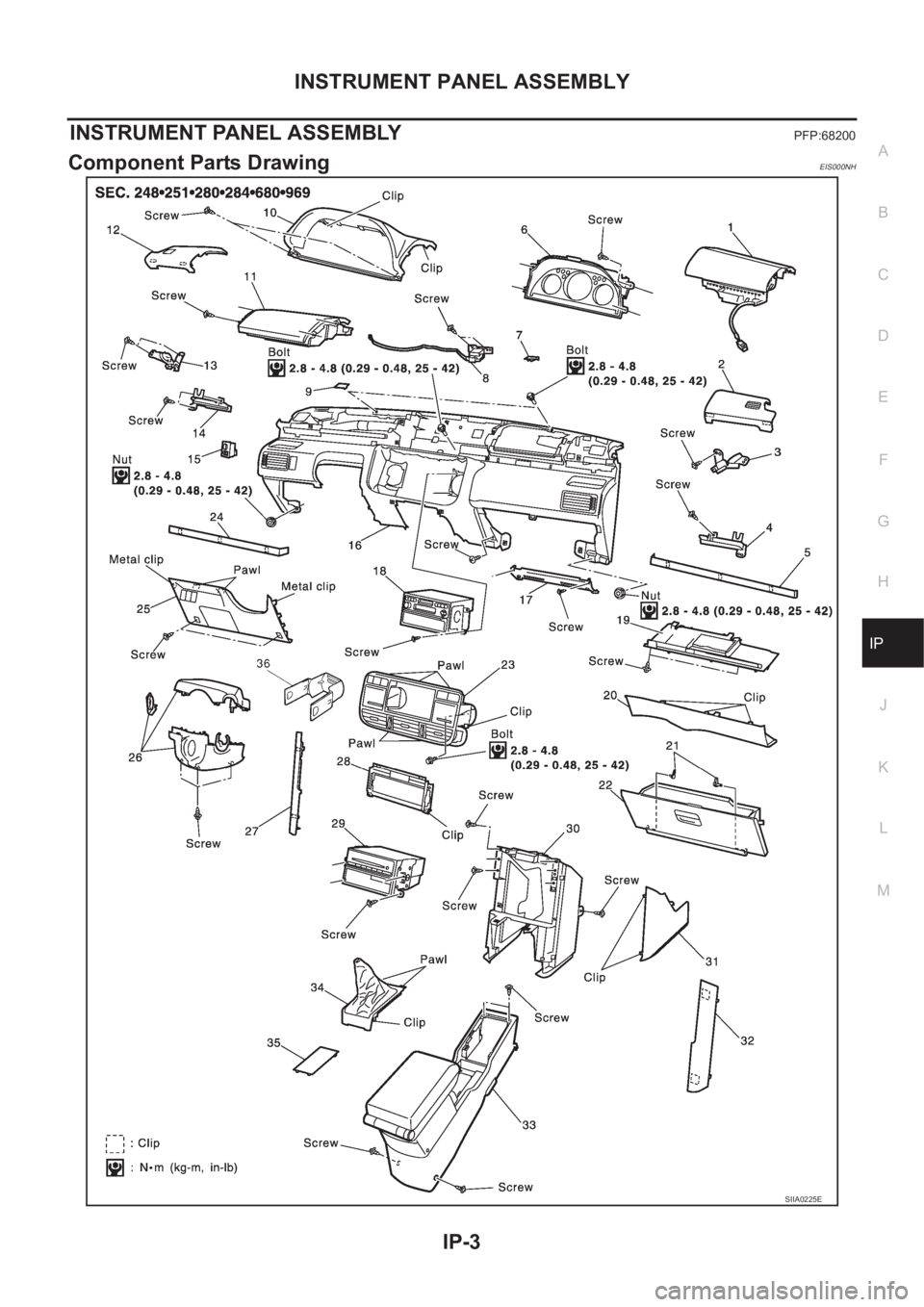

Component Parts DrawingEIS000NH
SIIA0225E

IP-4
INSTRUMENT PANEL ASSEMBLY

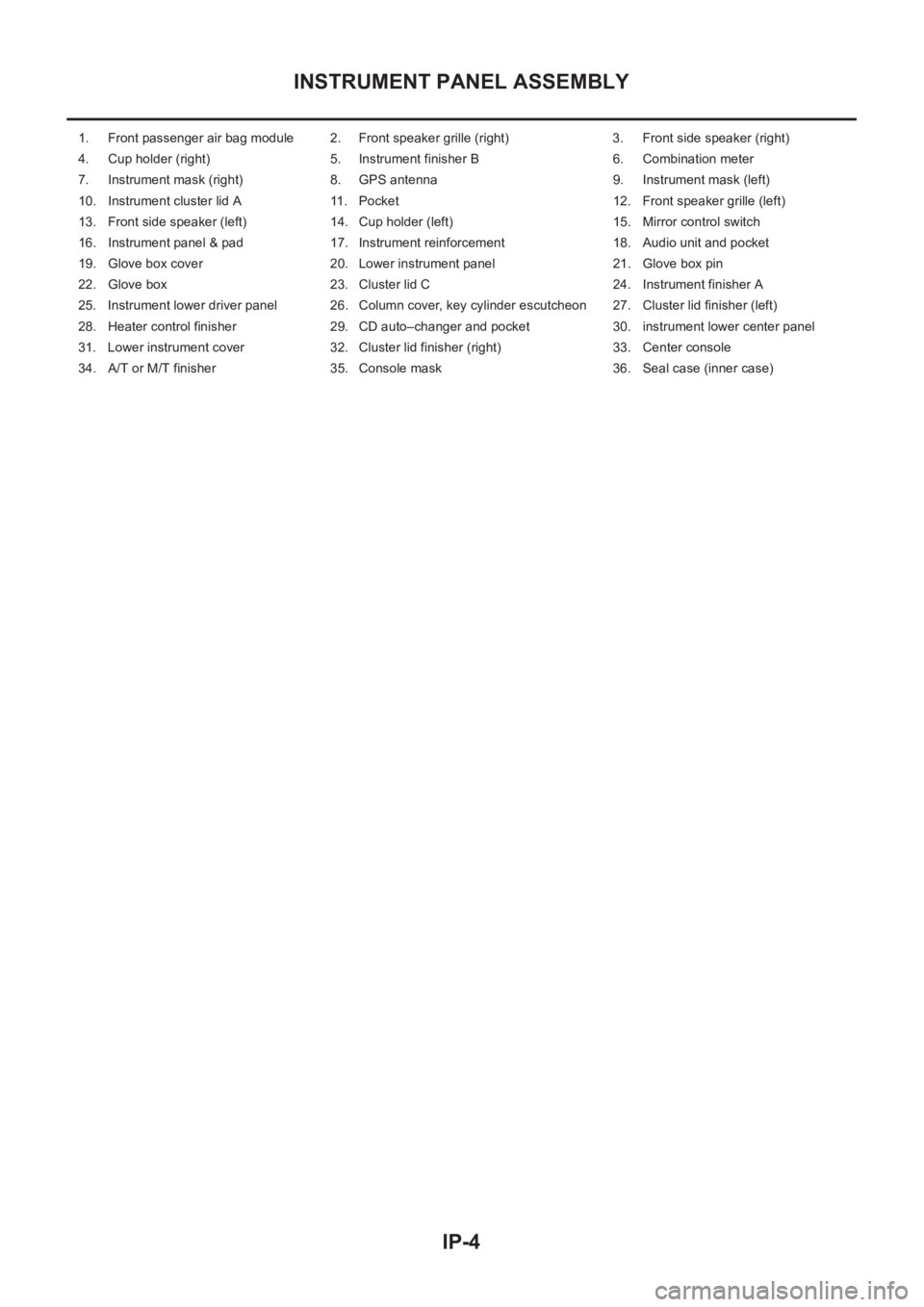

1. Front passenger air bag module 2. Front speaker grille (right) 3. Front side speaker (right)
4. Cup holder (right) 5. Instrument finisher B 6. Combination meter
7. Instrument mask (right) 8. GPS antenna 9. Instrument mask (left)
10. Instrument cluster lid A 11. Pocket 12. Front speaker grille (left)
13. Front side speaker (left) 14. Cup holder (left) 15. Mirror control switch
16. Instrument panel & pad 17. Instrument reinforcement 18. Audio unit and pocket
19. Glove box cover 20. Lower instrument panel 21. Glove box pin
22. Glove box 23. Cluster lid C 24. Instrument finisher A
25. Instrument lower driver panel 26. Column cover, key cylinder escutcheon 27. Cluster lid finisher (left)
28. Heater control finisher 29. CD auto–changer and pocket 30. instrument lower center panel
31. Lower instrument cover 32. Cluster lid finisher (right) 33. Center console
34. A/T or M/T finisher 35. Console mask 36. Seal case (inner case)

INSTRUMENT PANEL ASSEMBLY
IP-5
C
D
E
F
G
H
J
K
L
MA
B
IP
Removal and InstallationEIS000NI
TABLE OF WORK ITEM
[ ]: The number shows the removal order.
ComponentsInstrument
panelCombination
meterNavigation
DisplayAudio
Console
Up Down
Front speaker grille [1]
Instrument finisher A, B [2] [1]
Cup holder [3]
Instrument cluster lid A [4] [2]
Combination meter [5] [3]
Pocket [6]
Key cylinder escutcheon and steer-
ing column cover[7]
Instrument lower driver panel [8]
Mirror control switch [9]
GPS antenna [10]
Cluster lid C [11] [1] [1]
Cluster lid finisher [12] [1] [1]
Audio unit and pocket [13] [2] [2]
Heater control finisher [14] [2]
CD auto–changer and pocket [15] [3]
Heater controller [16]
A/T(M/T,CVT) finisher [17] [2]
Console mask [18] [3]
Center console [19] [4]
Lower instrument cover [20]
instrument lower center panel [21]
Glove box [22]
Lower instrument panel [23]
Glove box cover [24]
Front passenger air bag module [25]
Instrument reinforcement [26]
Instrument mask [27]
Front pillar garnish [28]
Instrument panel [29]

IP-6
INSTRUMENT PANEL ASSEMBLY

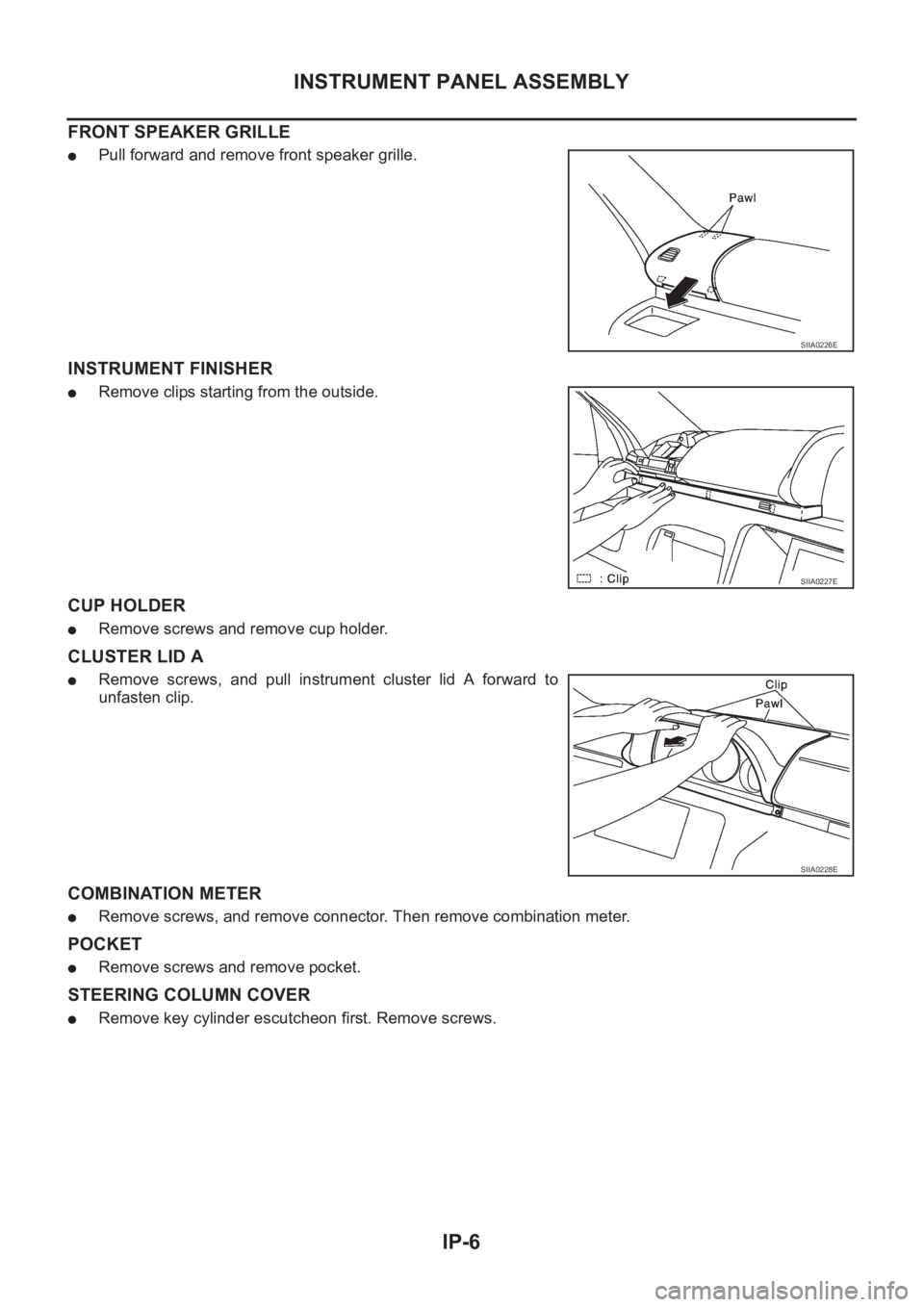

FRONT SPEAKER GRILLE
●Pull forward and remove front speaker grille.
INSTRUMENT FINISHER
●Remove clips starting from the outside.
CUP HOLDER
●Remove screws and remove cup holder.
CLUSTER LID A
●Remove screws, and pull instrument cluster lid A forward to
unfasten clip.
COMBINATION METER
●Remove screws, and remove connector. Then remove combination meter.
POCKET
●Remove screws and remove pocket.
STEERING COLUMN COVER
●Remove key cylinder escutcheon first. Remove screws.
SIIA0226E
SIIA0227E
SIIA0228E

INSTRUMENT PANEL ASSEMBLY
IP-7
C
D
E
F
G
H
J
K
L
MA
B
IP
INSTRUMENT LOWER DRIVER PANEL
●Remove screws, and pull driver-side instrument lower panel
straight forward to unfasten the clip.
MIRROR CONTROL SWITCH
1. From the back, press tab on mirror control switch to remove. Or insert a screwdriver, wrapped with a
cloth, into lower side of the switch to unfasten the lower clip.
2. Disconnect connector and then remove mirror control switch.
GPS ANTENNA
●Remove screws and Disconnect connector.
CLUSTER LID C
1. Insert a clip remover or similar tool into lower side of cluster lid C
and unfasten clip.
2. Unfasten resin tabs on upper and lower sides and remove clus-
ter lid C.
CLUSTER LID FINISHER
●Insert a clip clamp remover or similar tool into center panel gap
and unfasten clip.
AUDIO UNIT AND POCKET
Remove mounting screws on audio unit and pocket.Disconnect connector and remove audio unit and pocket.
NOTE:
During removal or installation, use cloth to protect surrounding area from damage.
SIIA0230E
SIIA0229E
PIIA3749E

IP-8
INSTRUMENT PANEL ASSEMBLY
HEATER CONTROL FINISHER
●Insert a screwdriver or similar tool, wrapped with a cloth,
into lower edge (clip position). Unfasten clip and remove heater
control finisher.
CD AUTO–CHANGER AND POCKET
●Remove screws. Disconnect connector and remove CD auto changer and pocket.
NOTE:
During removal or installation, use cloth to protect surrounding area from damage.
HEATER CONTROLLER
●Remove mounting screws on heater controller.Disconnect connector and remove heater controller.
A/T OR M/T FINISHER
1. Insert a screwdriver, wrapped with a cloth, into cutout on rear
edge of finisher, and lift up to unfasten clip on rear edge of side
face.
2. Pull forward and remove finisher.
CONSOLE MASK AND CENTER CONSOLE
1. Remove screws.
2. Remove console mask, and remove center console.
LOWER INSTRUMENT COVER
●Unfasten resin clips, and pull toward vehicle rear.
INSTRUMENT LOWER CENTER PANEL
●Remove screws and then remove instrument lower center panel.
SIIA0235E
PIIA3750E
SIIA0236E

INSTRUMENT PANEL ASSEMBLY
IP-9
C
D
E
F
G
H
J
K
L
MA
B
IP

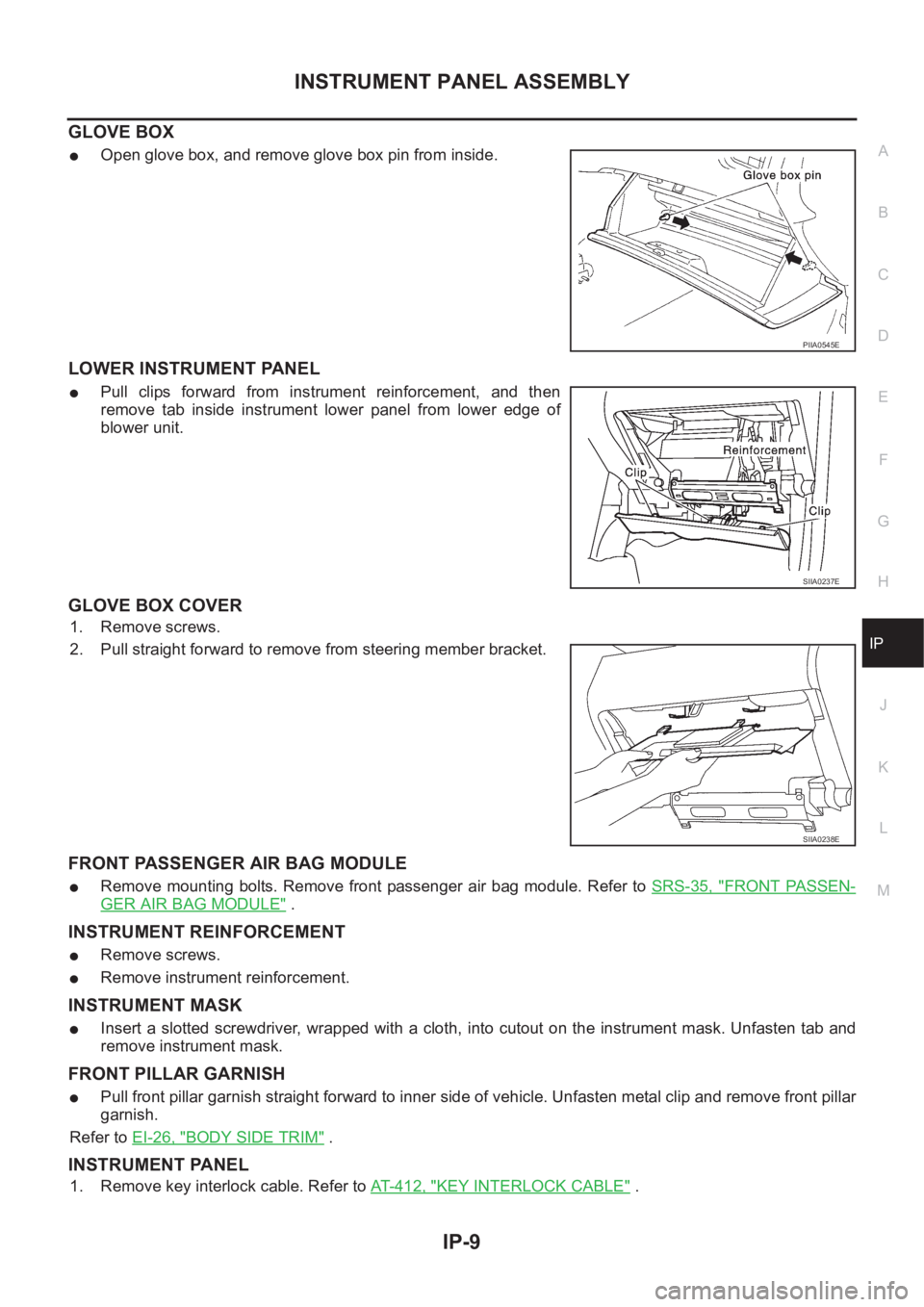

GLOVE BOX
●Open glove box, and remove glove box pin from inside.
LOWER INSTRUMENT PANEL
●Pull clips forward from instrument reinforcement, and then
remove tab inside instrument lower panel from lower edge of
blower unit.
GLOVE BOX COVER
1. Remove screws.
2. Pull straight forward to remove from steering member bracket.
FRONT PASSENGER AIR BAG MODULE
●Remove mounting bolts. Remove front passenger air bag module. Refer to SRS-35, "FRONT PASSEN-
GER AIR BAG MODULE" .
INSTRUMENT REINFORCEMENT
●Remove screws.
●Remove instrument reinforcement.
INSTRUMENT MASK
●Insert a slotted screwdriver, wrapped with a cloth, into cutout on the instrument mask. Unfasten tab and
remove instrument mask.
FRONT PILLAR GARNISH
●Pull front pillar garnish straight forward to inner side of vehicle. Unfasten metal clip and remove front pillar
garnish.
Refer to EI-26, "
BODY SIDE TRIM" .
INSTRUMENT PANEL
1. Remove key interlock cable. Refer to AT-412, "KEY INTERLOCK CABLE" .
PIIA0545E
SIIA0237E
SIIA0238E

IP-10
INSTRUMENT PANEL ASSEMBLY

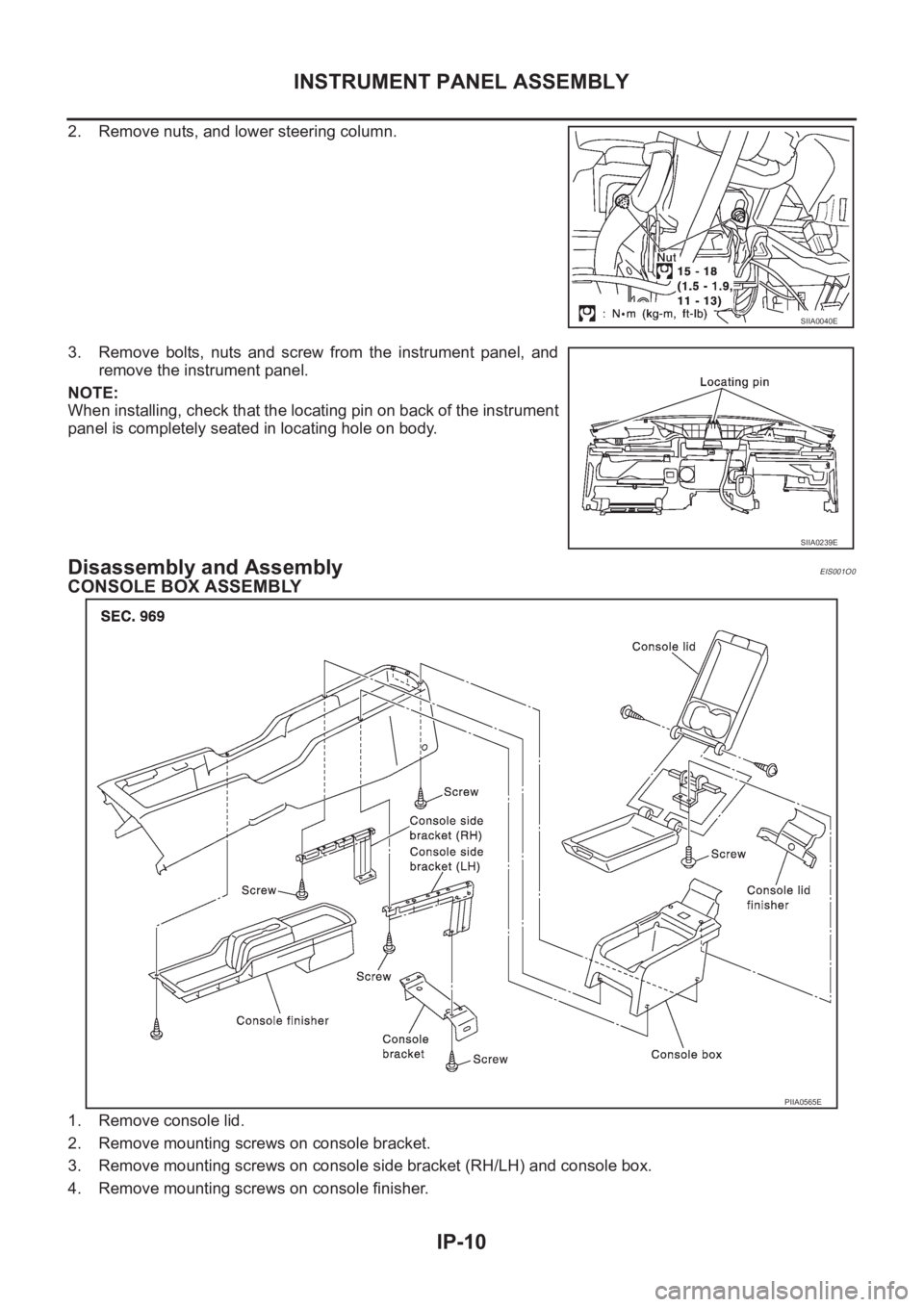

2. Remove nuts, and lower steering column.
3. Remove bolts, nuts and screw from the instrument panel, and
remove the instrument panel.
NOTE:
When installing, check that the locating pin on back of the instrument
panel is completely seated in locating hole on body.
Disassembly and AssemblyEIS001O0
CONSOLE BOX ASSEMBLY
1. Remove console lid.
2. Remove mounting screws on console bracket.
3. Remove mounting screws on console side bracket (RH/LH) and console box.
4. Remove mounting screws on console finisher.
SIIA0040E
SIIA0239E
PIIA0565E
