NISSAN X-TRAIL 2001 Service Repair Manual

REAR SEAT
SE-11
C
D
E
F
G
H
J
K
L
MA
B
SE
REAR SEATPFP:88300
Component Parts DrawingEIS000NR

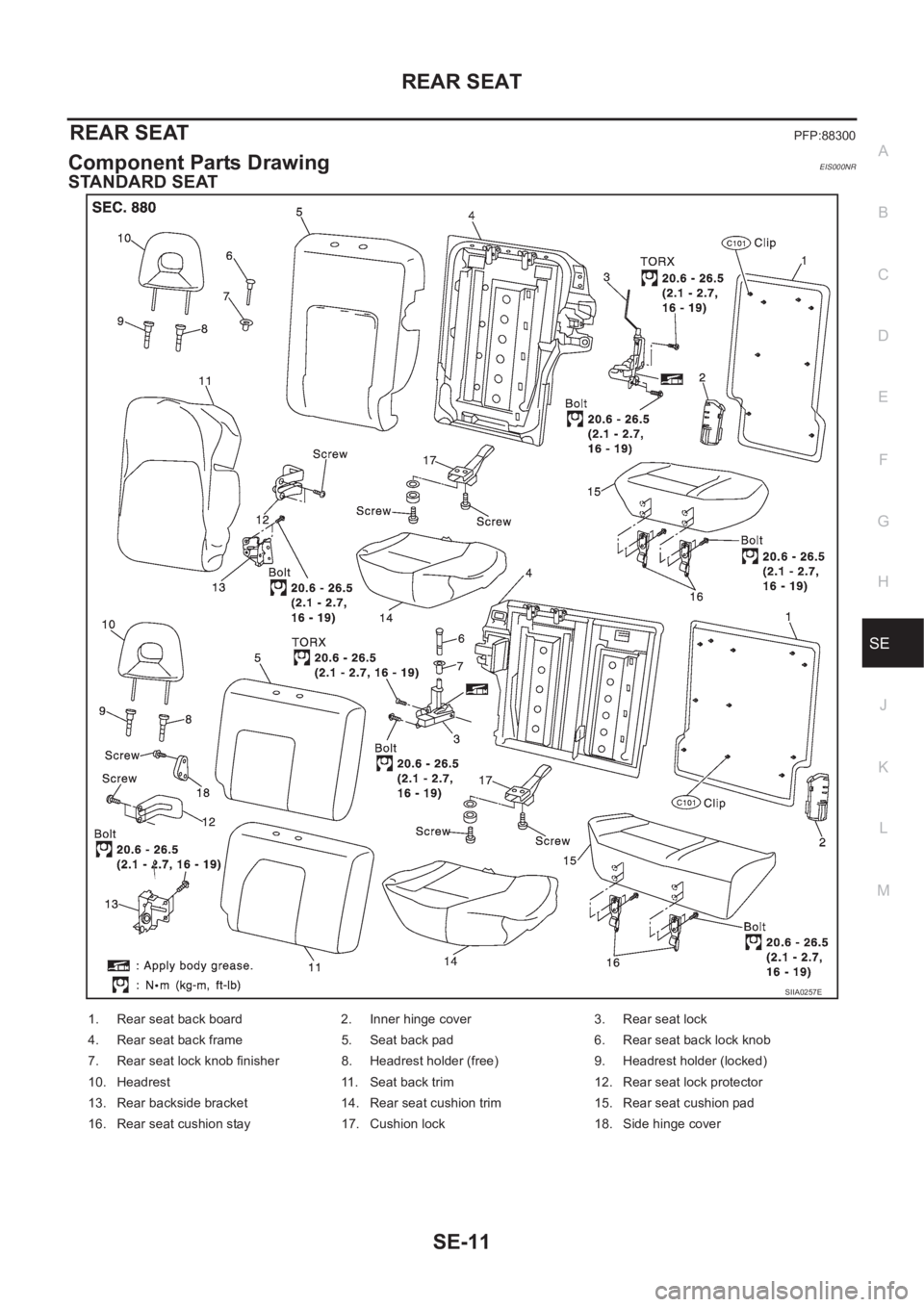

STANDARD SEAT
SIIA0257E
1. Rear seat back board 2. Inner hinge cover 3. Rear seat lock
4. Rear seat back frame 5. Seat back pad 6. Rear seat back lock knob
7. Rear seat lock knob finisher 8. Headrest holder (free) 9. Headrest holder (locked)
10. Headrest 11. Seat back trim 12. Rear seat lock protector
13. Rear backside bracket 14. Rear seat cushion trim 15. Rear seat cushion pad
16. Rear seat cushion stay 17. Cushion lock 18. Side hinge cover

SE-12
REAR SEAT

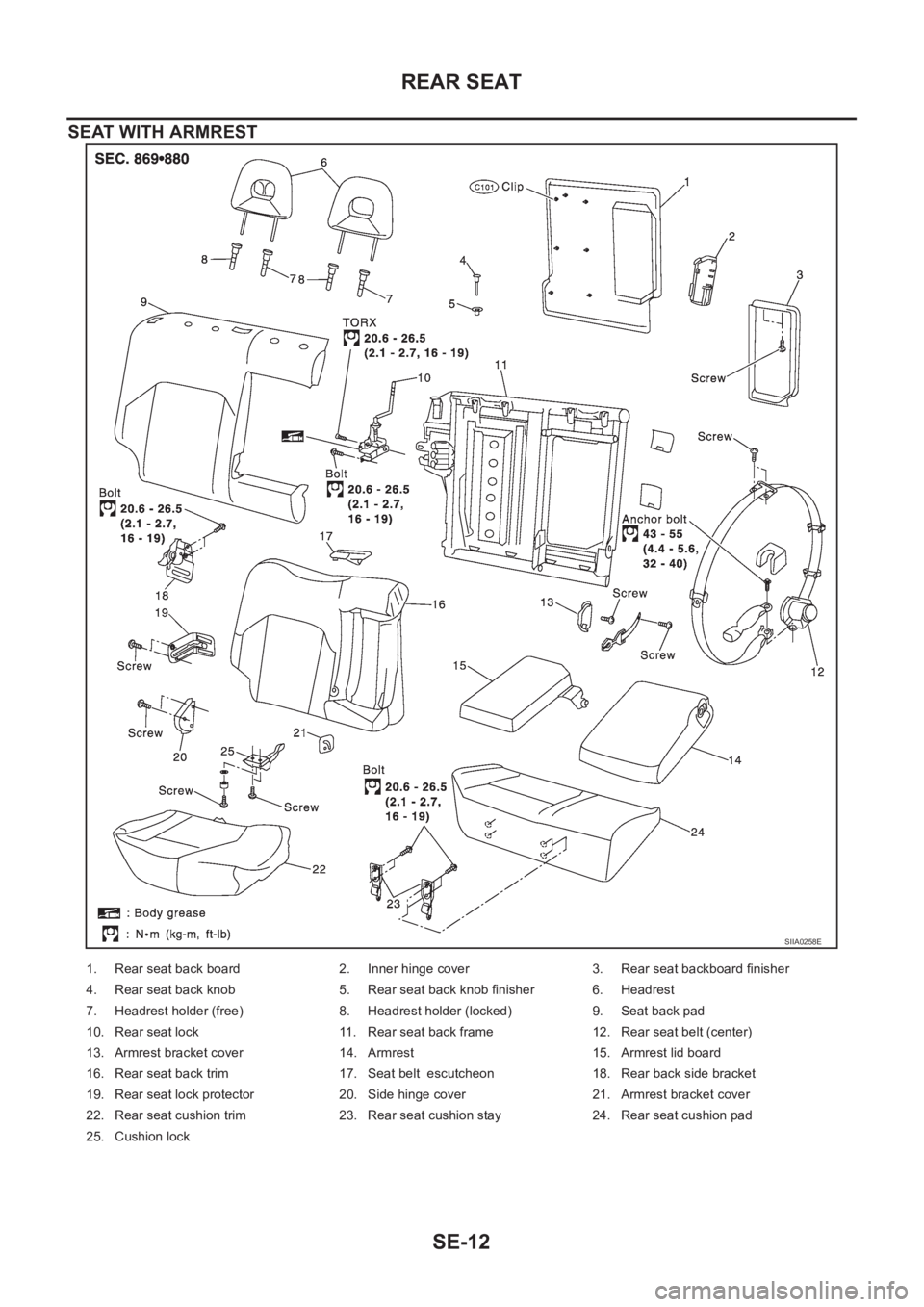

SEAT WITH ARMREST
SIIA0258E
1. Rear seat back board 2. Inner hinge cover 3. Rear seat backboard finisher
4. Rear seat back knob 5. Rear seat back knob finisher 6. Headrest
7. Headrest holder (free) 8. Headrest holder (locked) 9. Seat back pad
10. Rear seat lock 11. Rear seat back frame 12. Rear seat belt (center)
13. Armrest bracket cover 14. Armrest 15. Armrest lid board
16. Rear seat back trim 17. Seat belt escutcheon 18. Rear back side bracket
19. Rear seat lock protector 20. Side hinge cover 21. Armrest bracket cover
22. Rear seat cushion trim 23. Rear seat cushion stay 24. Rear seat cushion pad
25. Cushion lock

REAR SEAT
SE-13
C
D
E
F
G
H
J
K
L
MA
B
SE
Removal and InstallationEIS000NS

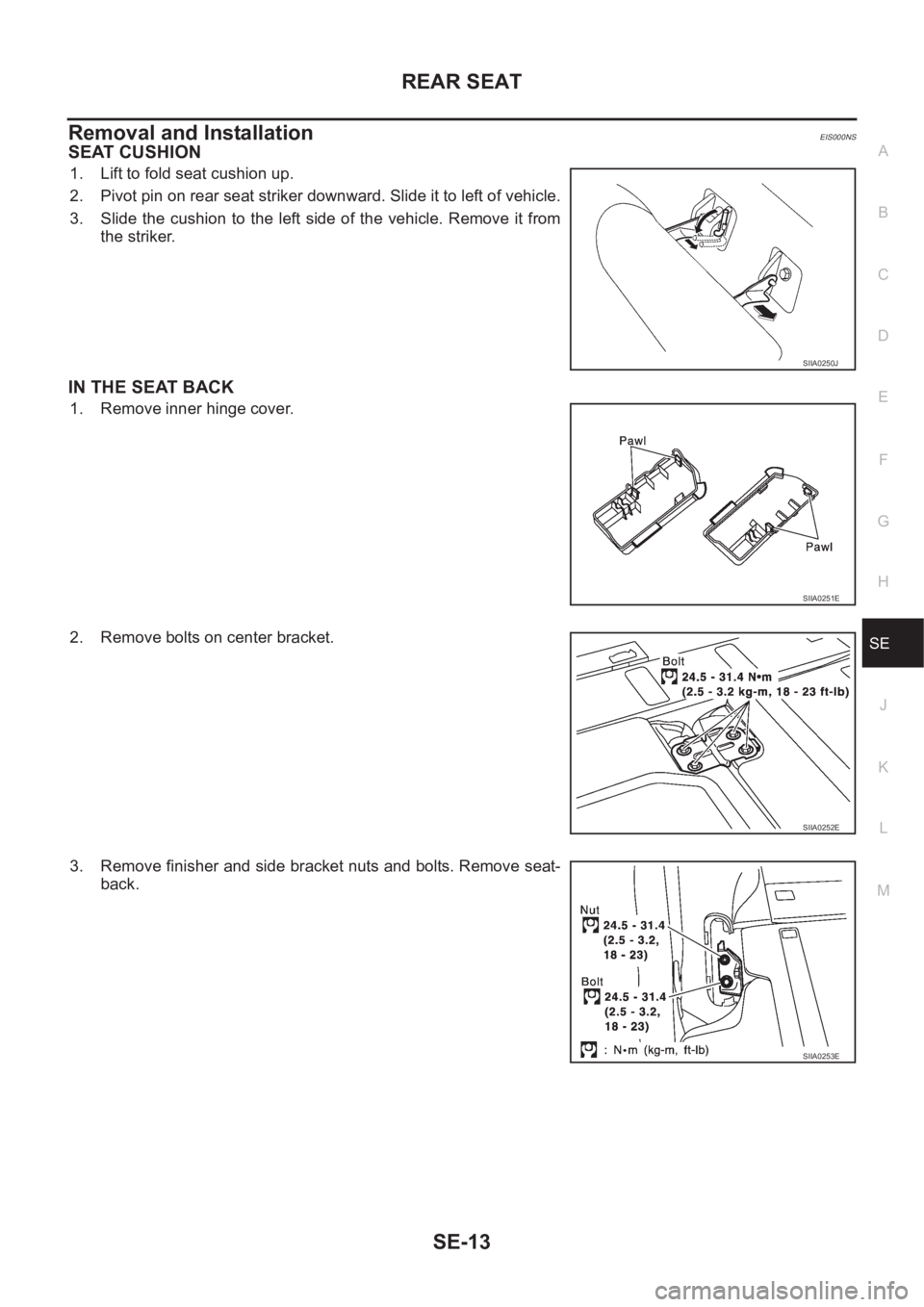

SEAT CUSHION
1. Lift to fold seat cushion up.
2. Pivot pin on rear seat striker downward. Slide it to left of vehicle.
3. Slide the cushion to the left side of the vehicle. Remove it from
the striker.
IN THE SEAT BACK
1. Remove inner hinge cover.
2. Remove bolts on center bracket.
3. Remove finisher and side bracket nuts and bolts. Remove seat-
back.
SIIA0250J
SIIA0251E
SIIA0252E
SIIA0253E

SE-14
REAR SEAT

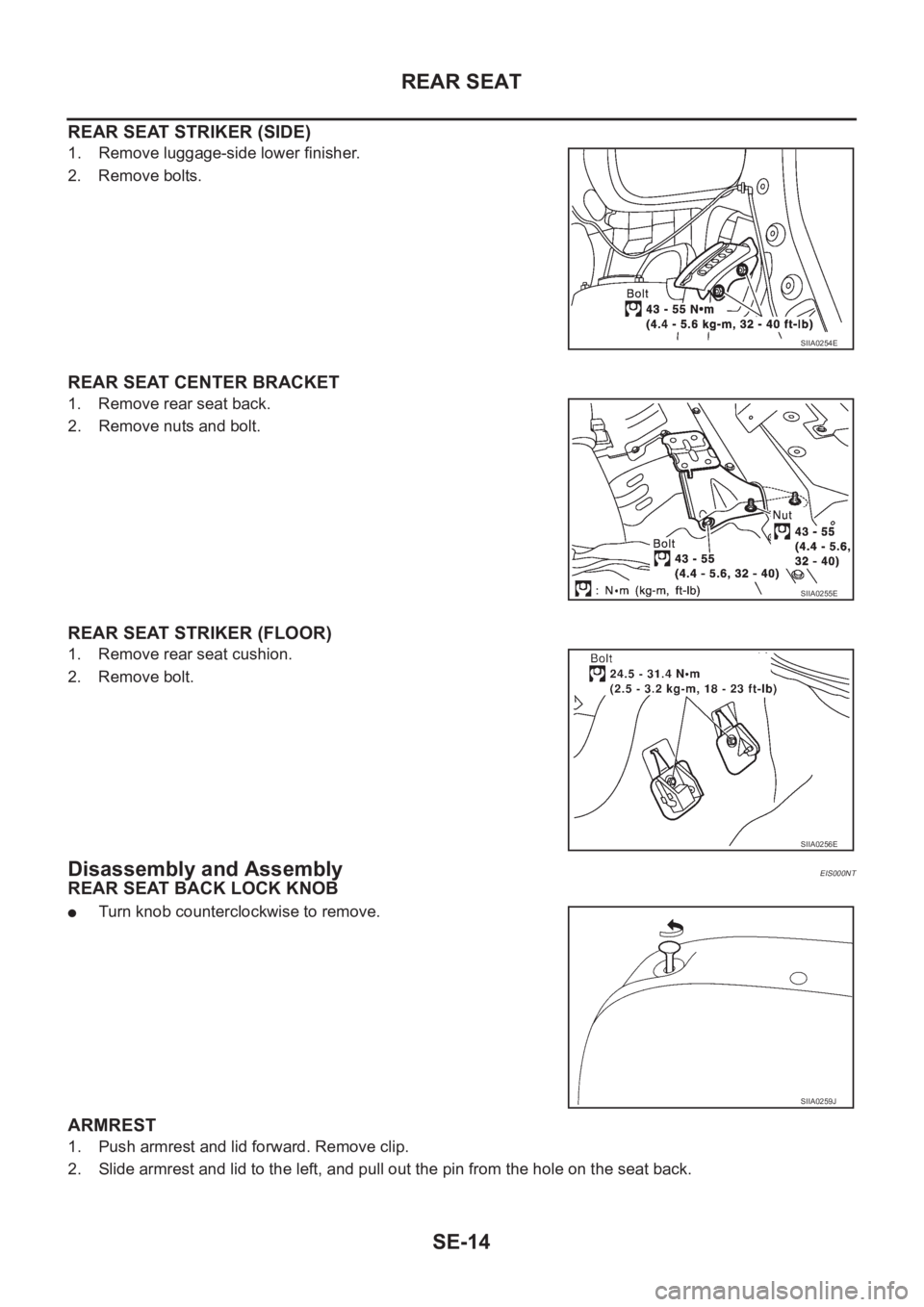

REAR SEAT STRIKER (SIDE)
1. Remove luggage-side lower finisher.
2. Remove bolts.
REAR SEAT CENTER BRACKET
1. Remove rear seat back.
2. Remove nuts and bolt.
REAR SEAT STRIKER (FLOOR)
1. Remove rear seat cushion.
2. Remove bolt.
Disassembly and AssemblyEIS000NT
REAR SEAT BACK LOCK KNOB
●Turn knob counterclockwise to remove.
ARMREST
1. Push armrest and lid forward. Remove clip.
2. Slide armrest and lid to the left, and pull out the pin from the hole on the seat back.
SIIA0254E
SIIA0255E
SIIA0256E
SIIA0259J

REAR SEAT
SE-15
C
D
E
F
G
H
J
K
L
MA
B
SE

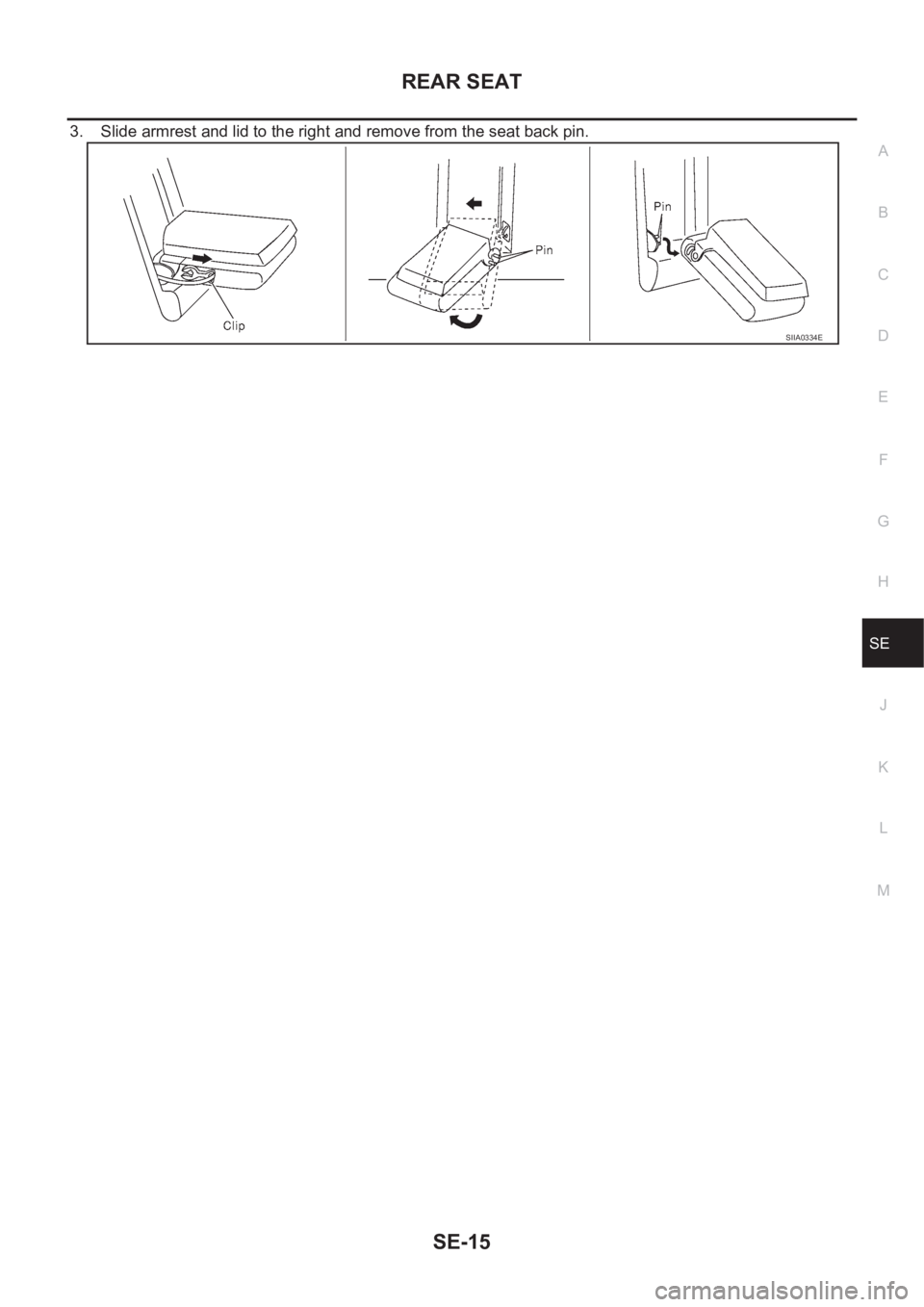

3. Slide armrest and lid to the right and remove from the seat back pin.
SIIA0334E
