NISSAN X-TRAIL 2001 Service Repair Manual

FRONT GRILLE
EI-11
C
D
E
F
G
H
J
K
L
MA
B
EI

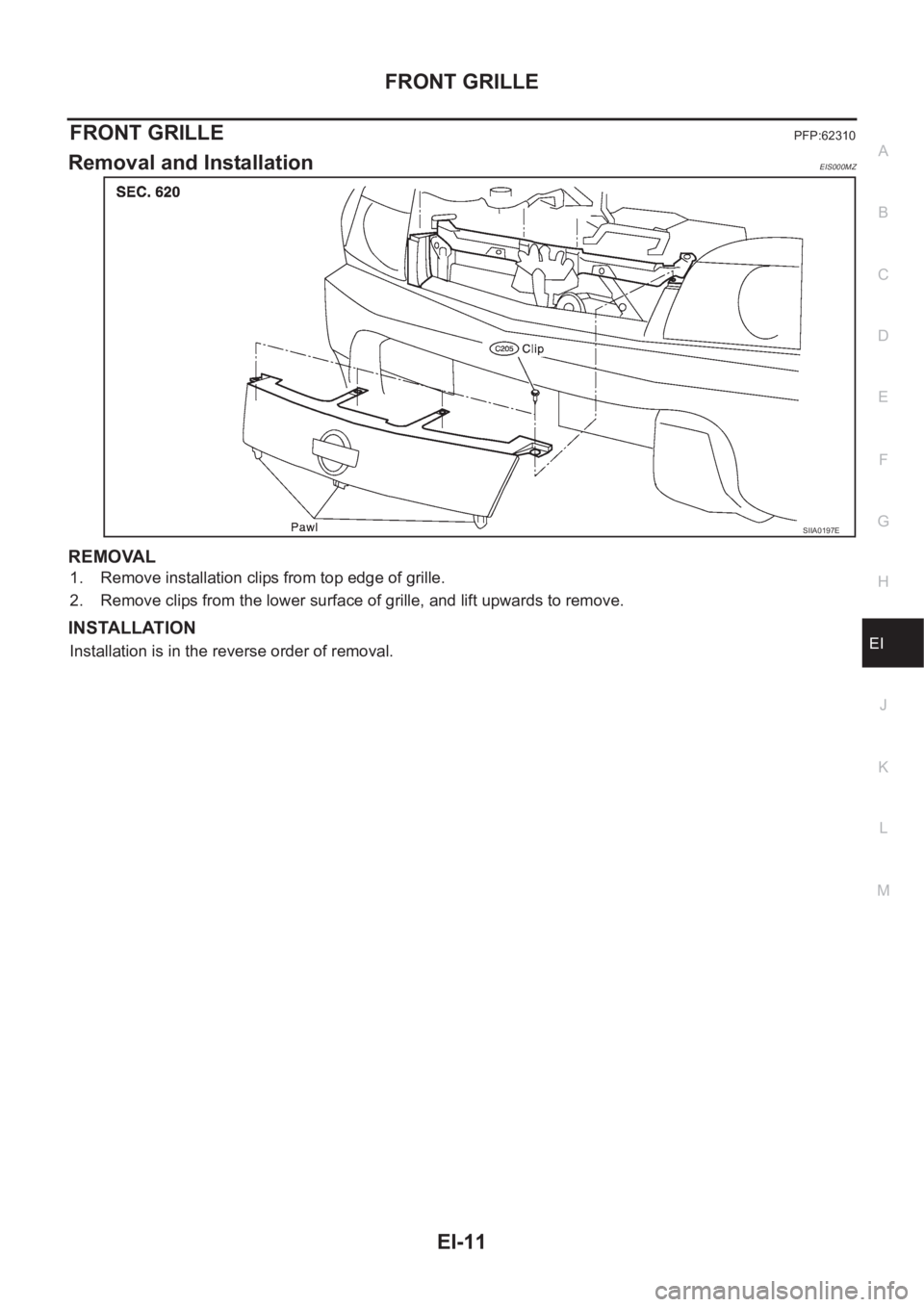

FRONT GRILLEPFP:62310
Removal and InstallationEIS000MZ
REMOVAL
1. Remove installation clips from top edge of grille.
2. Remove clips from the lower surface of grille, and lift upwards to remove.
INSTALLATION
Installation is in the reverse order of removal.
SIIA0197E

EI-12
COWL TOP
COWL TOP
PFP:66100
Removal and InstallationEIS000N0
REMOVAL
1. Remove wiper arms (left and right). Refer to WW-7, "Removal
and Installation for Front Wiper Arms, Adjustment for Wiper
Arms Stop Location" .
2. Remove cowl top seal rubber.
3. Remove cowl top rubber mounting clips. Then remove cowl top
cover.
INSTALLATION
Installation is in the reverse order of removal.
SIIA0198E

FENDER PROTECTOR
EI-13
C
D
E
F
G
H
J
K
L
MA
B
EI

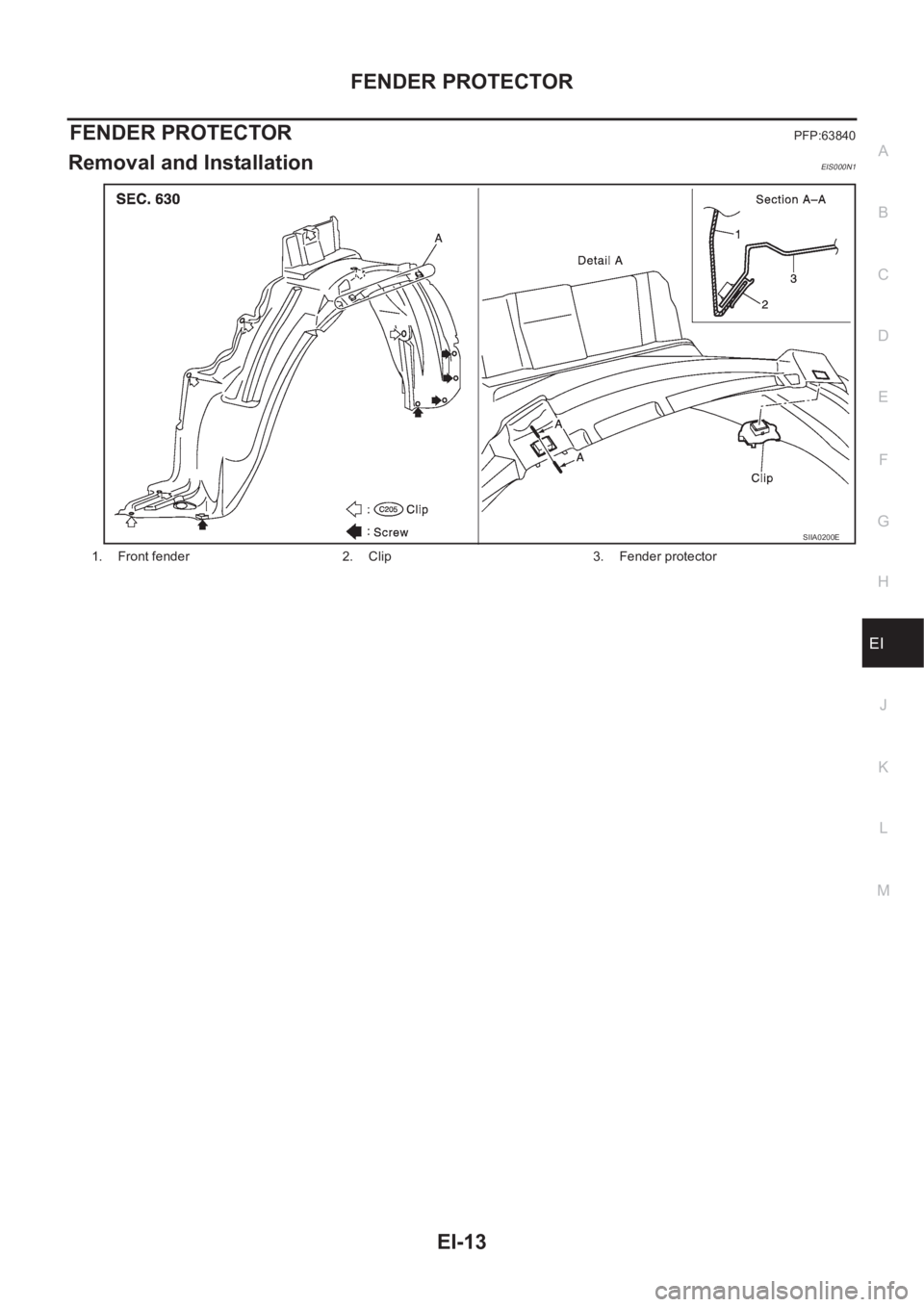

FENDER PROTECTORPFP:63840
Removal and InstallationEIS000N1
1. Front fender 2. Clip 3. Fender protector
SIIA0200E

EI-14
DOOR OUTSIDE MOLDING

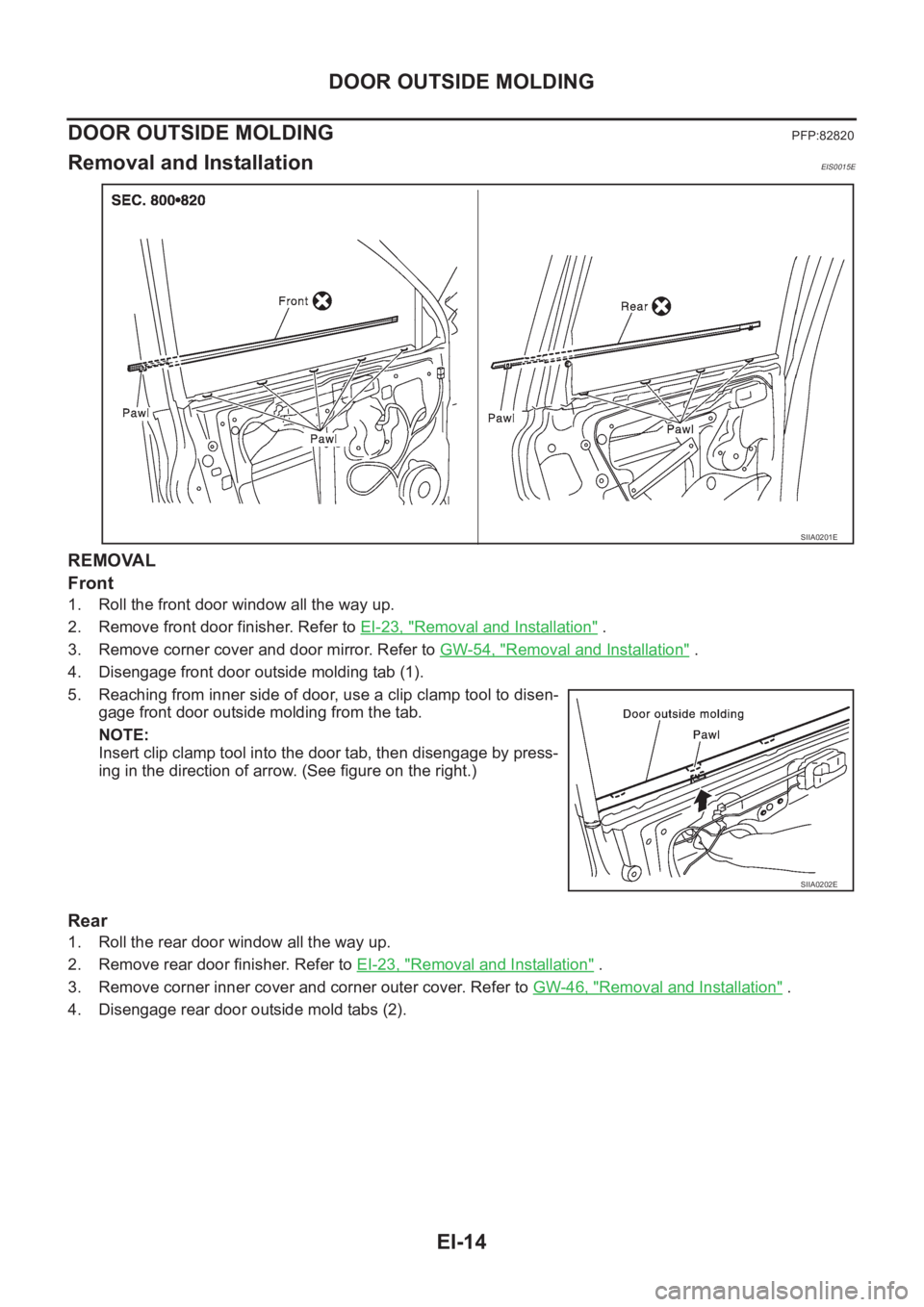

DOOR OUTSIDE MOLDING
PFP:82820
Removal and InstallationEIS0015E
REMOVAL
Front
1. Roll the front door window all the way up.
2. Remove front door finisher. Refer to EI-23, "
Removal and Installation" .
3. Remove corner cover and door mirror. Refer to GW-54, "
Removal and Installation" .
4. Disengage front door outside molding tab (1).
5. Reaching from inner side of door, use a clip clamp tool to disen-
gage front door outside molding from the tab.
NOTE:
Insert clip clamp tool into the door tab, then disengage by press-
ing in the direction of arrow. (See figure on the right.)
Rear
1. Roll the rear door window all the way up.
2. Remove rear door finisher. Refer to EI-23, "
Removal and Installation" .
3. Remove corner inner cover and corner outer cover. Refer to GW-46, "
Removal and Installation" .
4. Disengage rear door outside mold tabs (2).
SIIA0201E
SIIA0202E

DOOR OUTSIDE MOLDING
EI-15
C
D
E
F
G
H
J
K
L
MA
B
EI
5. Reaching from inner side of door, use a clip clamp tool to disen-
gage rear door outside molding from the tab.
NOTE:
Insert clip clamp tool into the door tab, then disengage by press-
ing in the direction of arrow. (See figure on the right.)
INSTALLATION
To install, press molding into the outer panel flange and engage the tabs.
SIIA0202E

EI-16
SIDE GUARD MOLDING

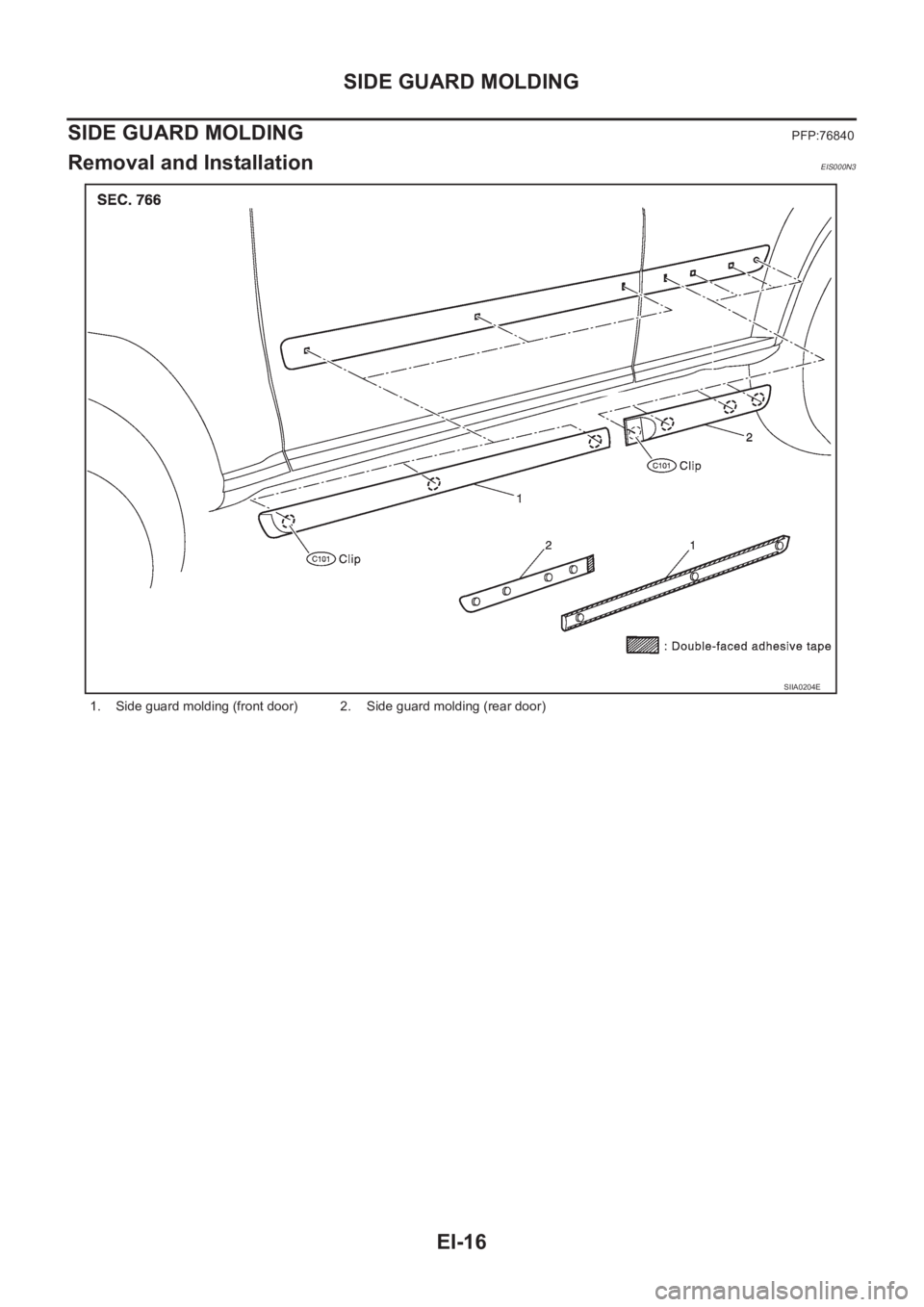

SIDE GUARD MOLDING
PFP:76840
Removal and InstallationEIS000N3
1. Side guard molding (front door) 2. Side guard molding (rear door)
SIIA0204E

DOOR OUTSIDE LOWER MOLDING
EI-17
C
D
E
F
G
H
J
K
L
MA
B
EI

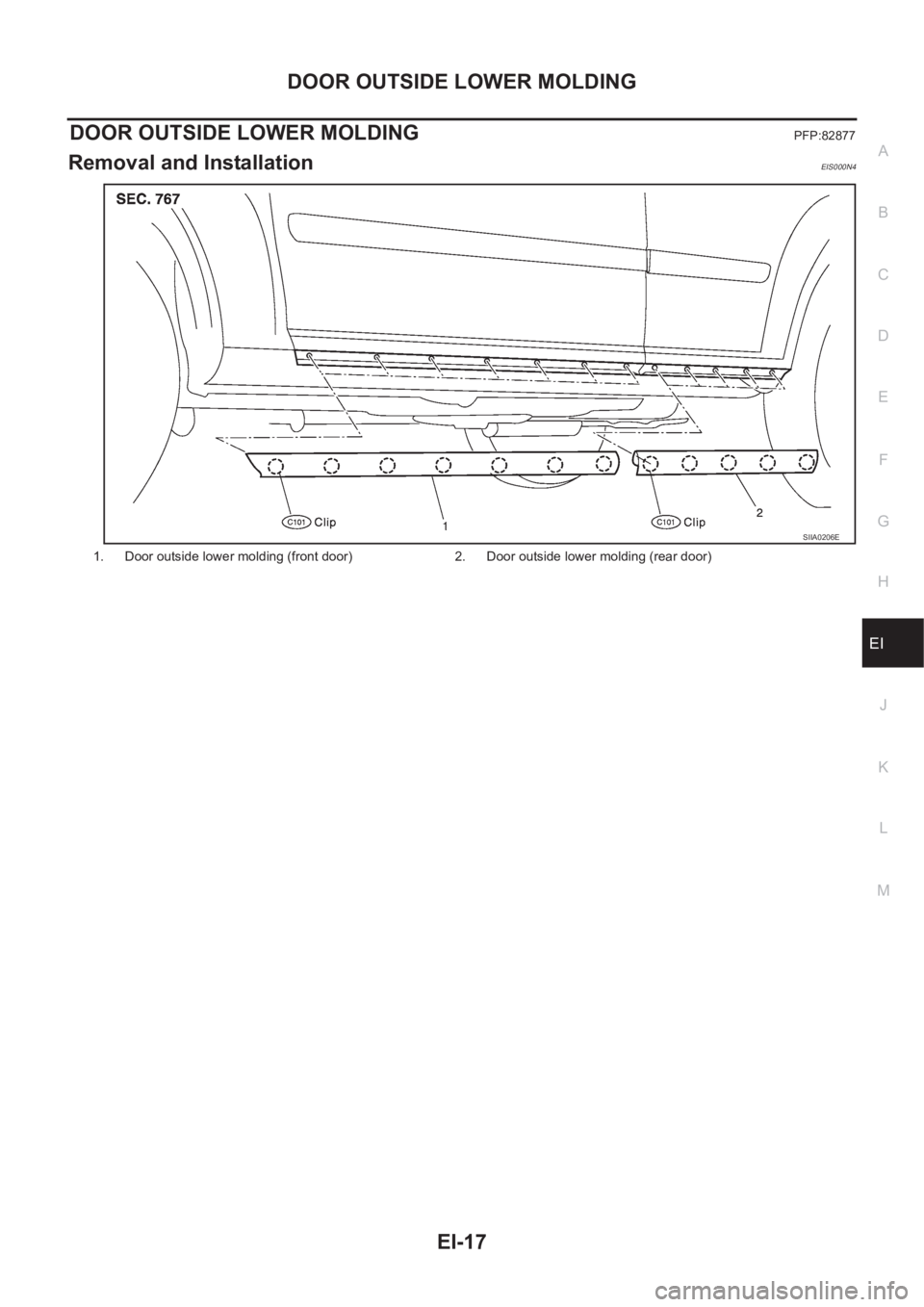

DOOR OUTSIDE LOWER MOLDINGPFP:82877
Removal and InstallationEIS000N4
1. Door outside lower molding (front door) 2. Door outside lower molding (rear door)
SIIA0206E

EI-18
SIDE SILL PROTECTOR
SIDE SILL PROTECTOR
PFP:86856
Removal and InstallationEIS000N5
SIIA0207E

ROOF RAIL
EI-19
C
D
E
F
G
H
J
K
L
MA
B
EI

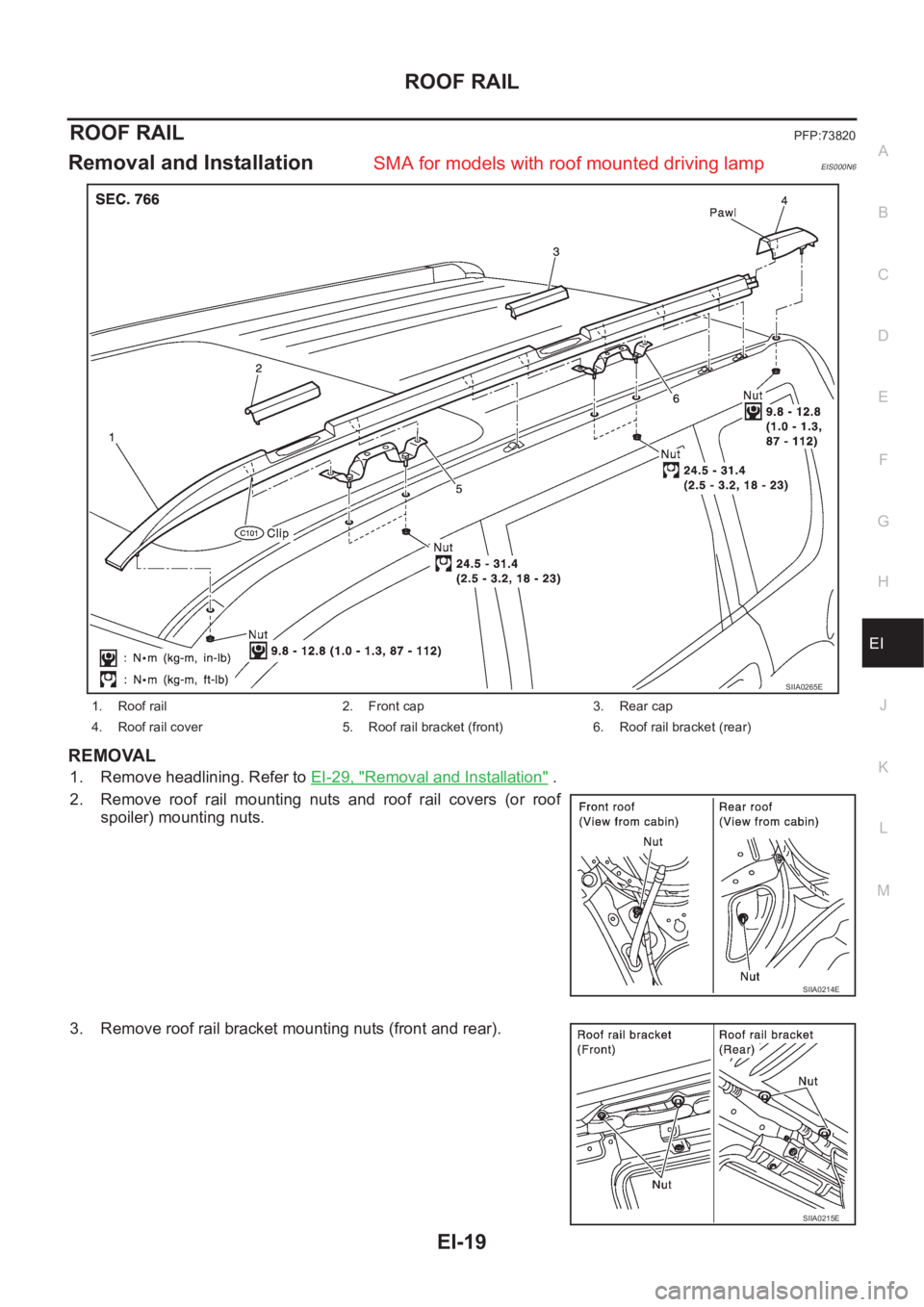

ROOF RAILPFP:73820
Removal and InstallationEIS000N6
REMOVAL
1. Remove headlining. Refer to EI-29, "Removal and Installation" .
2. Remove roof rail mounting nuts and roof rail covers (or roof
spoiler) mounting nuts.
3. Remove roof rail bracket mounting nuts (front and rear).
1. Roof rail 2. Front cap 3. Rear cap
4. Roof rail cover 5. Roof rail bracket (front) 6. Roof rail bracket (rear)
SIIA0265E
SIIA0214E
SIIA0215E
SMA for models with roof mounted driving lamp

EI-20
ROOF RAIL
4. Remove roof rail covers (or roof spoiler). For removal of roof spoiler, refer to EI-21, "Removal and Installa-
tion" .
5. Remove roof rail mounting clips, and remove roof rails.
INSTALLATION
Installation is in the reverse order of removal.
