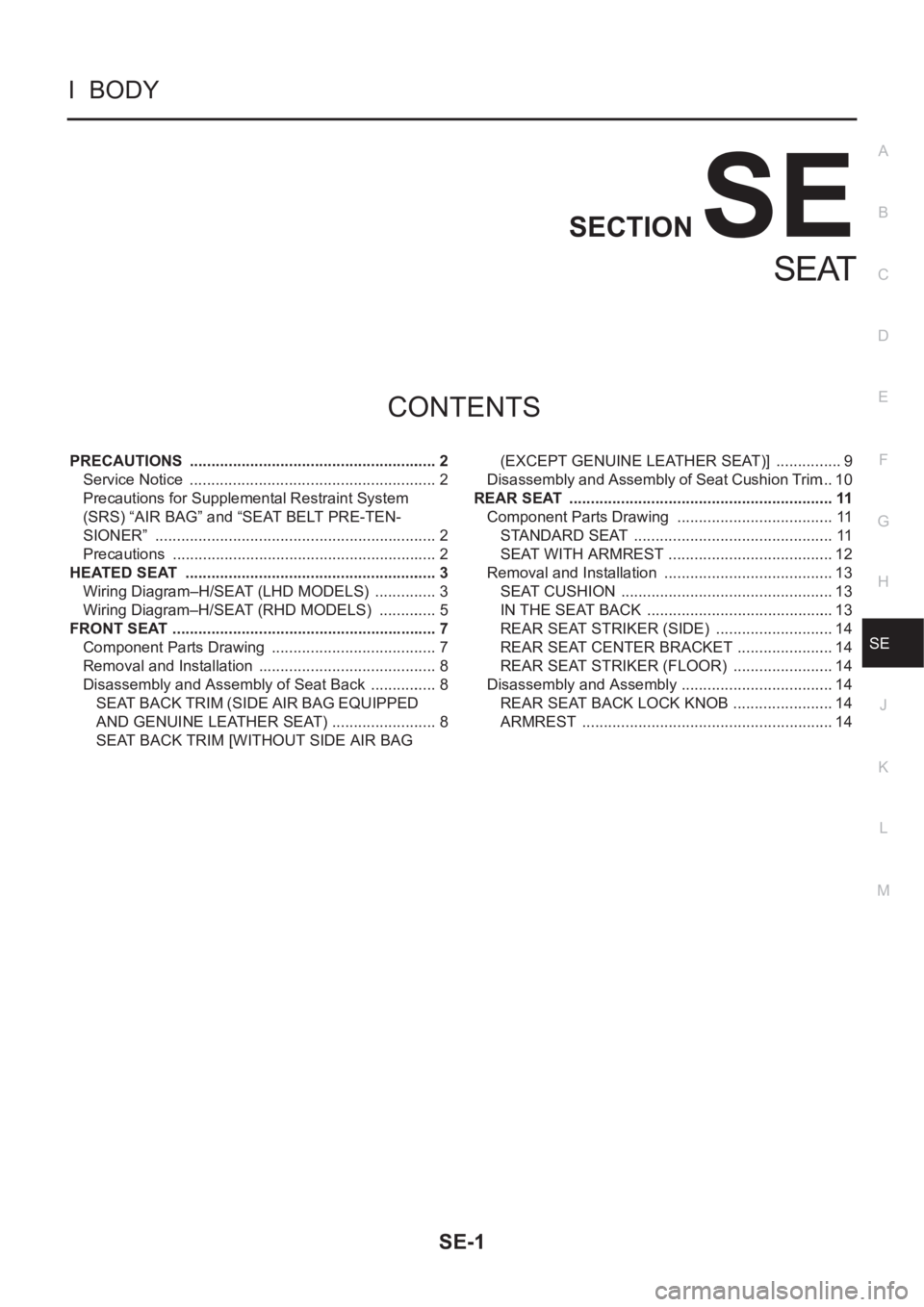

NISSAN X-TRAIL 2001 Service Repair Manual

SE-1
SEAT
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION
A
B
SE
SEAT
PRECAUTIONS .......................................................... 2
Service Notice .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions .............................................................. 2
HEATED SEAT ........................................................... 3
Wiring Diagram–H/SEAT (LHD MODELS) ............... 3
Wiring Diagram–H/SEAT (RHD MODELS) .............. 5
FRONT SEAT .............................................................. 7
Component Parts Drawing ....................................... 7
Removal and Installation .......................................... 8
Disassembly and Assembly of Seat Back ................ 8
SEAT BACK TRIM (SIDE AIR BAG EQUIPPED
AND GENUINE LEATHER SEAT) ......................... 8
SEAT BACK TRIM [WITHOUT SIDE AIR BAG (EXCEPT GENUINE LEATHER SEAT)] ................ 9
Disassembly and Assembly of Seat Cushion Trim ... 10
REAR SEAT .............................................................. 11
Component Parts Drawing ..................................... 11
STANDARD SEAT ............................................... 11
SEAT WITH ARMREST ....................................... 12
Removal and Installation ........................................ 13
SEAT CUSHION .................................................. 13
IN THE SEAT BACK ............................................ 13
REAR SEAT STRIKER (SIDE) ............................ 14
REAR SEAT CENTER BRACKET ....................... 14
REAR SEAT STRIKER (FLOOR) ........................ 14
Disassembly and Assembly .................................... 14
REAR SEAT BACK LOCK KNOB ........................ 14
ARMREST ........................................................ ... 14

SE-2

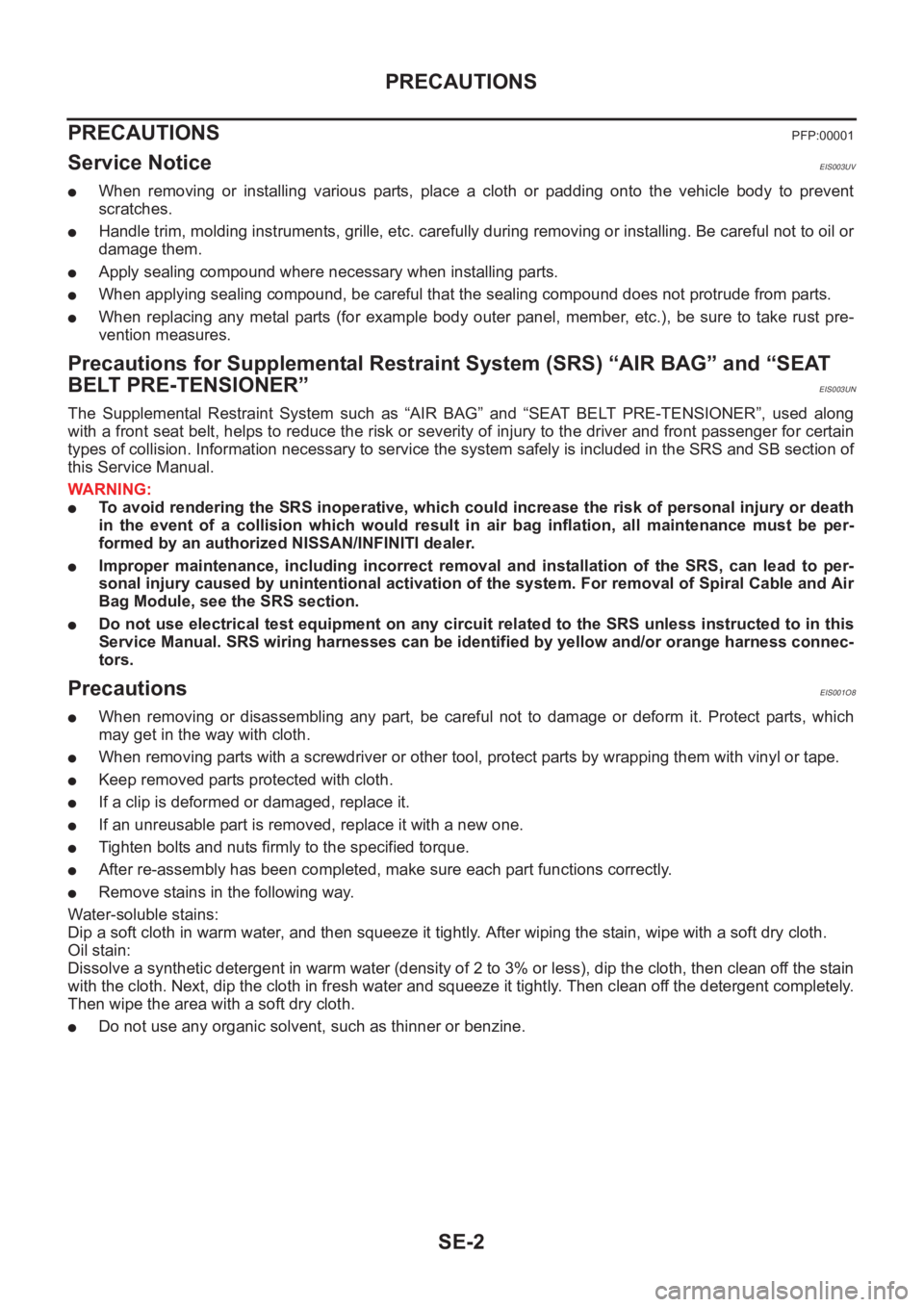

PRECAUTIONS
PRECAUTIONS
PFP:00001
Service NoticeEIS003UV
●When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent
scratches.
●Handle trim, molding instruments, grille, etc. carefully during removing or installing. Be careful not to oil or
damage them.
●Apply sealing compound where necessary when installing parts.
●When applying sealing compound, be careful that the sealing compound does not protrude from parts.
●When replacing any metal parts (for example body outer panel, member, etc.), be sure to take rust pre-
vention measures.
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS003UN
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
●To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
●Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
●Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harness connec-
tors.
Precautions EIS001O8
●When removing or disassembling any part, be careful not to damage or deform it. Protect parts, which
may get in the way with cloth.
●When removing parts with a screwdriver or other tool, protect parts by wrapping them with vinyl or tape.
●Keep removed parts protected with cloth.
●If a clip is deformed or damaged, replace it.
●If an unreusable part is removed, replace it with a new one.
●Tighten bolts and nuts firmly to the specified torque.
●After re-assembly has been completed, make sure each part functions correctly.
●Remove stains in the following way.
Water-soluble stains:
Dip a soft cloth in warm water, and then squeeze it tightly. After wiping the stain, wipe with a soft dry cloth.
Oil stain:
Dissolve a synthetic detergent in warm water (density of 2 to 3% or less), dip the cloth, then clean off the stain
with the cloth. Next, dip the cloth in fresh water and squeeze it tightly. Then clean off the detergent completely.
Then wipe the area with a soft dry cloth.
●Do not use any organic solvent, such as thinner or benzine.

HEATED SEAT
SE-3
C
D
E
F
G
H
J
K
L
MA
B
SE
HEATED SEATPFP:87335

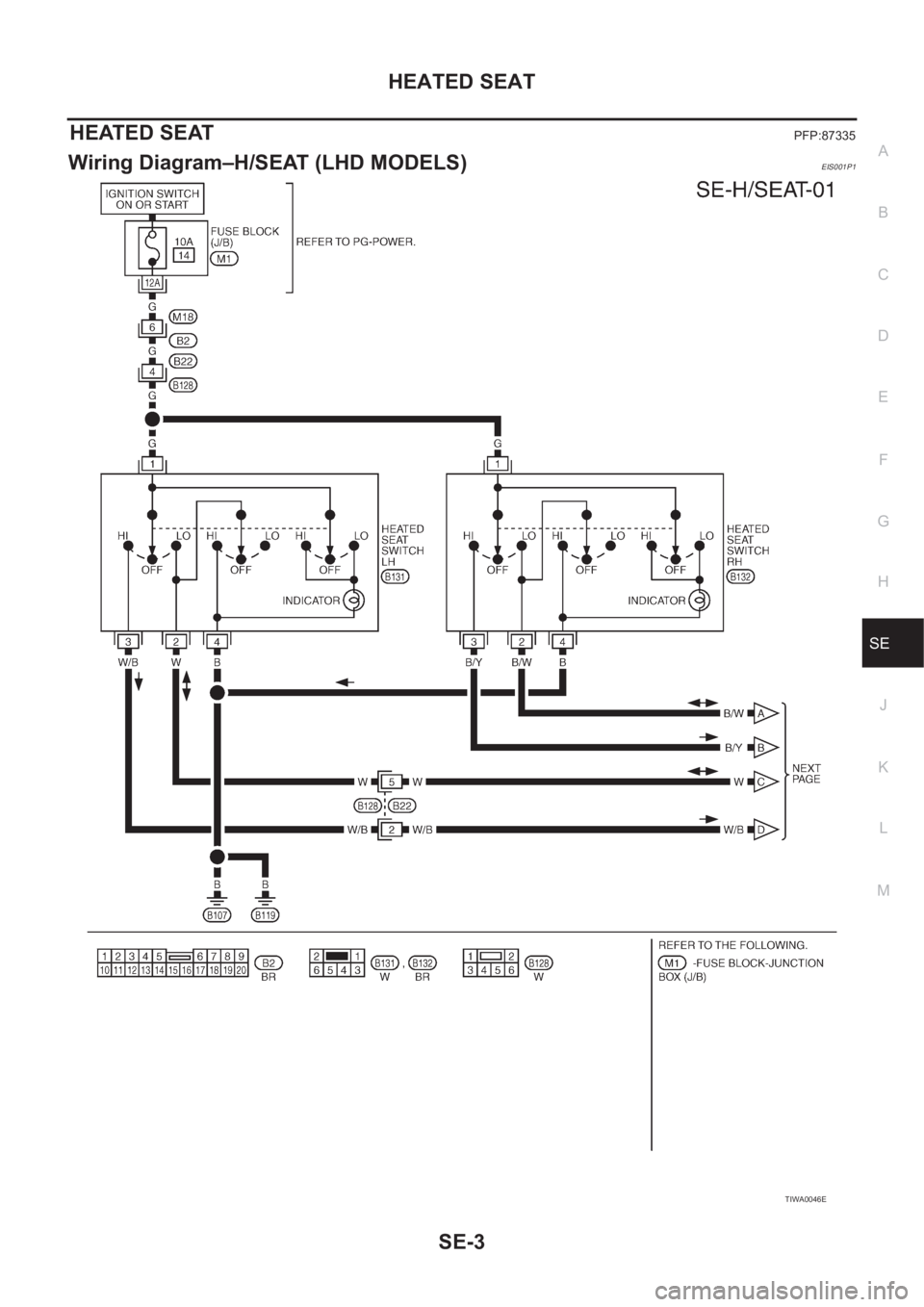

Wiring Diagram–H/SEAT (LHD MODELS)EIS001P1
TIWA0046E

SE-4
HEATED SEAT
TIWA0047E

HEATED SEAT
SE-5
C
D
E
F
G
H
J
K
L
MA
B
SE

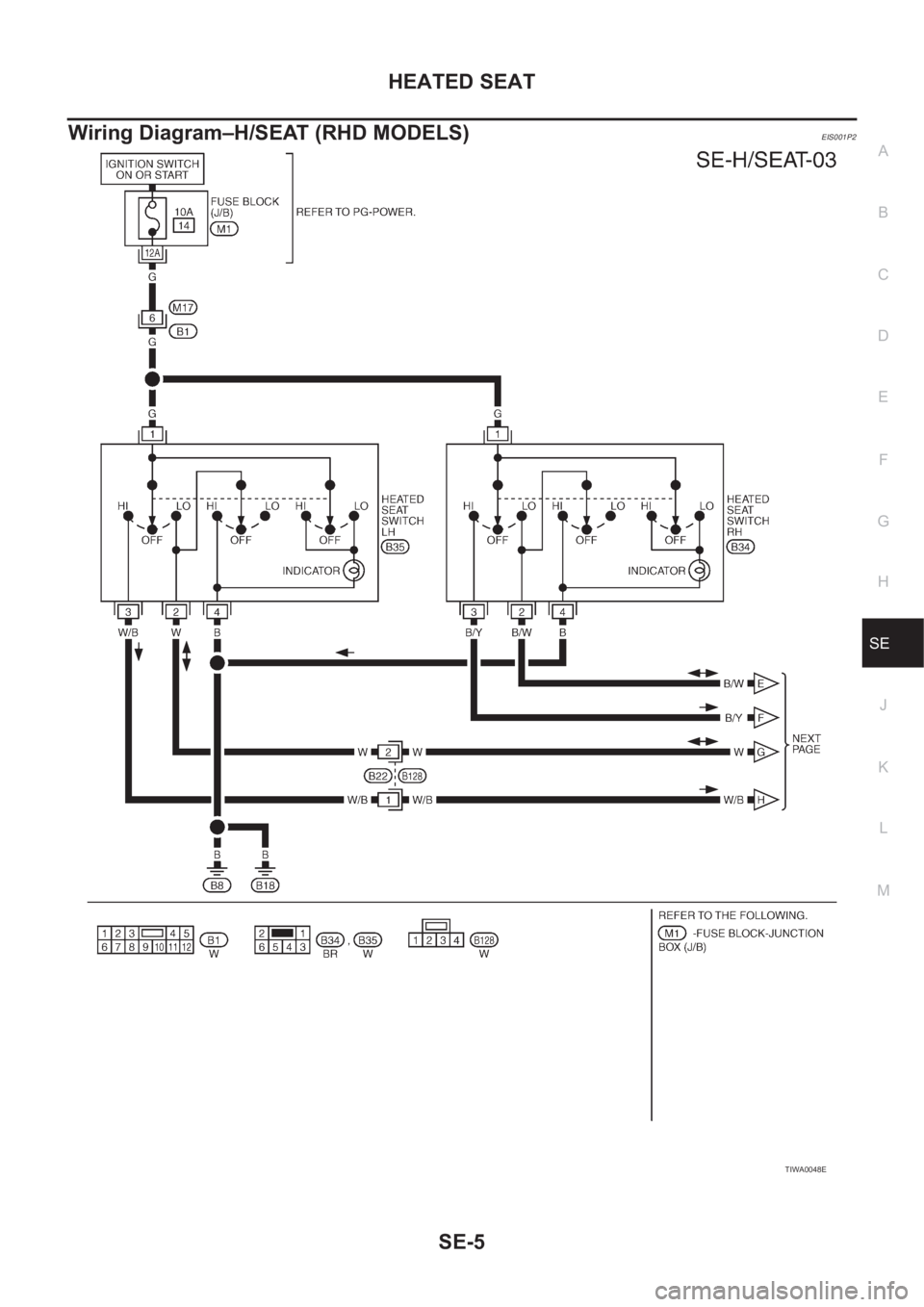

Wiring Diagram–H/SEAT (RHD MODELS)EIS001P2
TIWA0048E

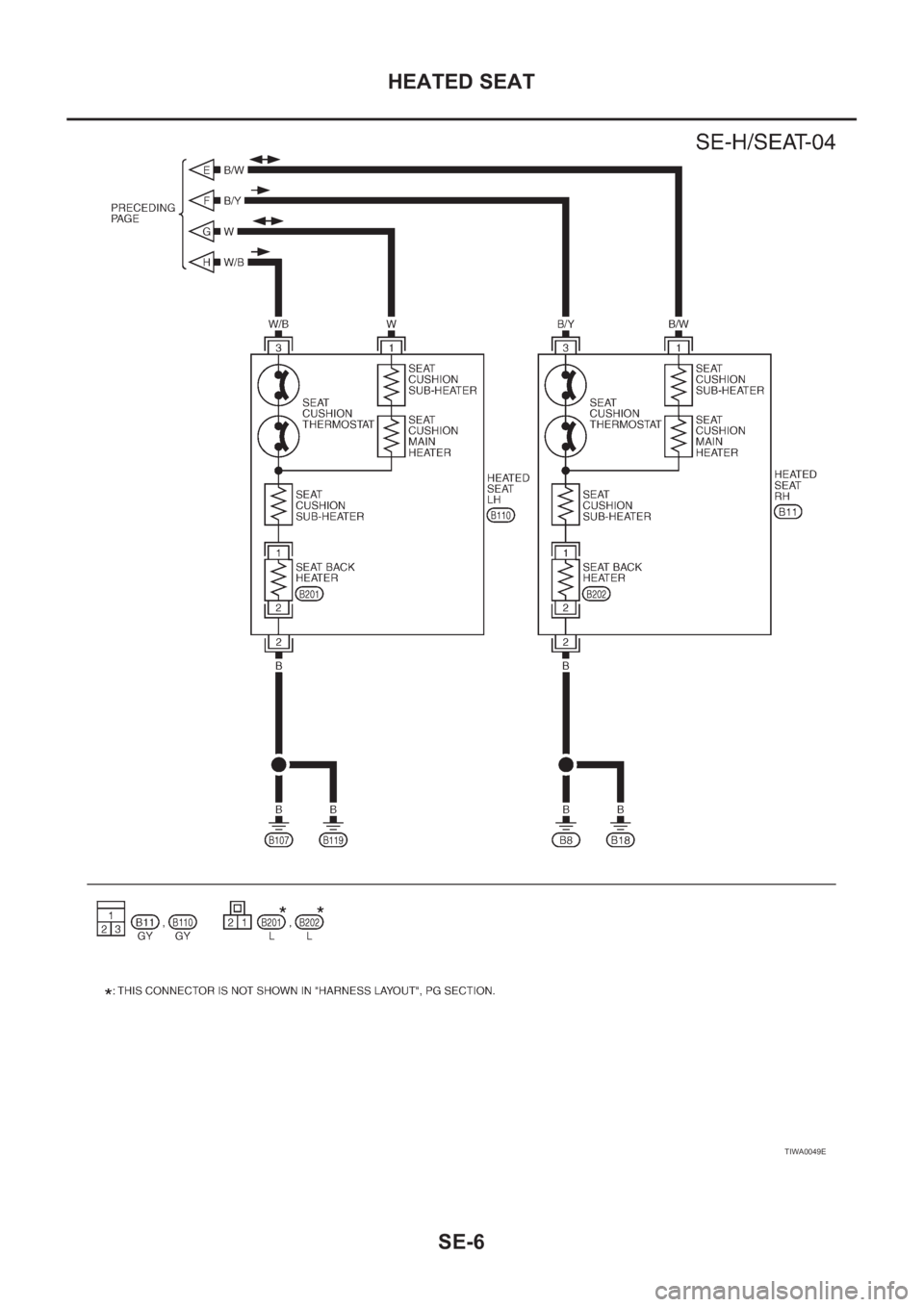

SE-6
HEATED SEAT
TIWA0049E

FRONT SEAT
SE-7
C
D
E
F
G
H
J
K
L
MA
B
SE

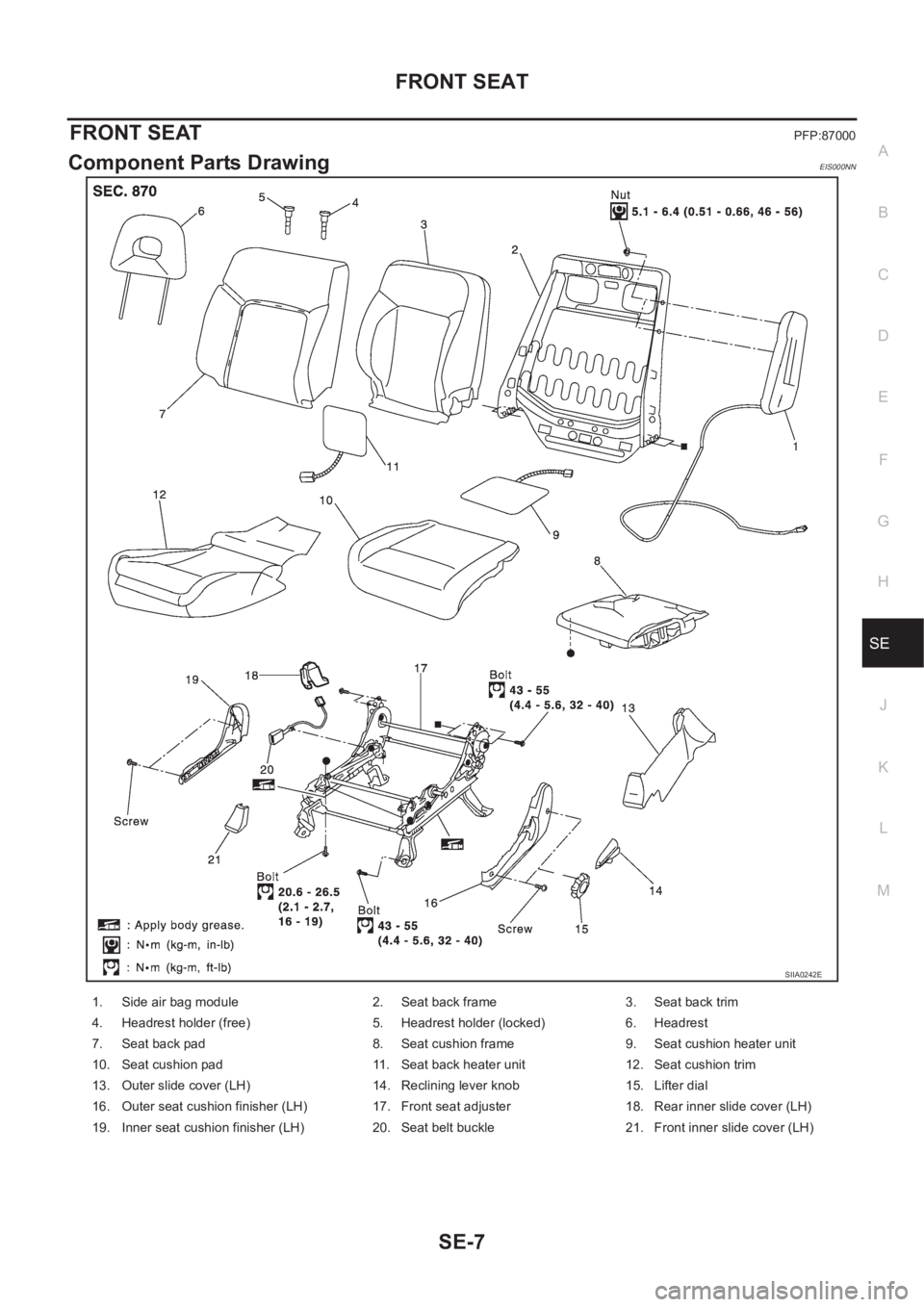

FRONT SEATPFP:87000
Component Parts DrawingEIS000NN
SIIA0242E
1. Side air bag module 2. Seat back frame 3. Seat back trim
4. Headrest holder (free) 5. Headrest holder (locked) 6. Headrest
7. Seat back pad 8. Seat cushion frame 9. Seat cushion heater unit
10. Seat cushion pad 11. Seat back heater unit 12. Seat cushion trim
13. Outer slide cover (LH) 14. Reclining lever knob 15. Lifter dial
16. Outer seat cushion finisher (LH) 17. Front seat adjuster 18. Rear inner slide cover (LH)
19. Inner seat cushion finisher (LH) 20. Seat belt buckle 21. Front inner slide cover (LH)

SE-8
FRONT SEAT

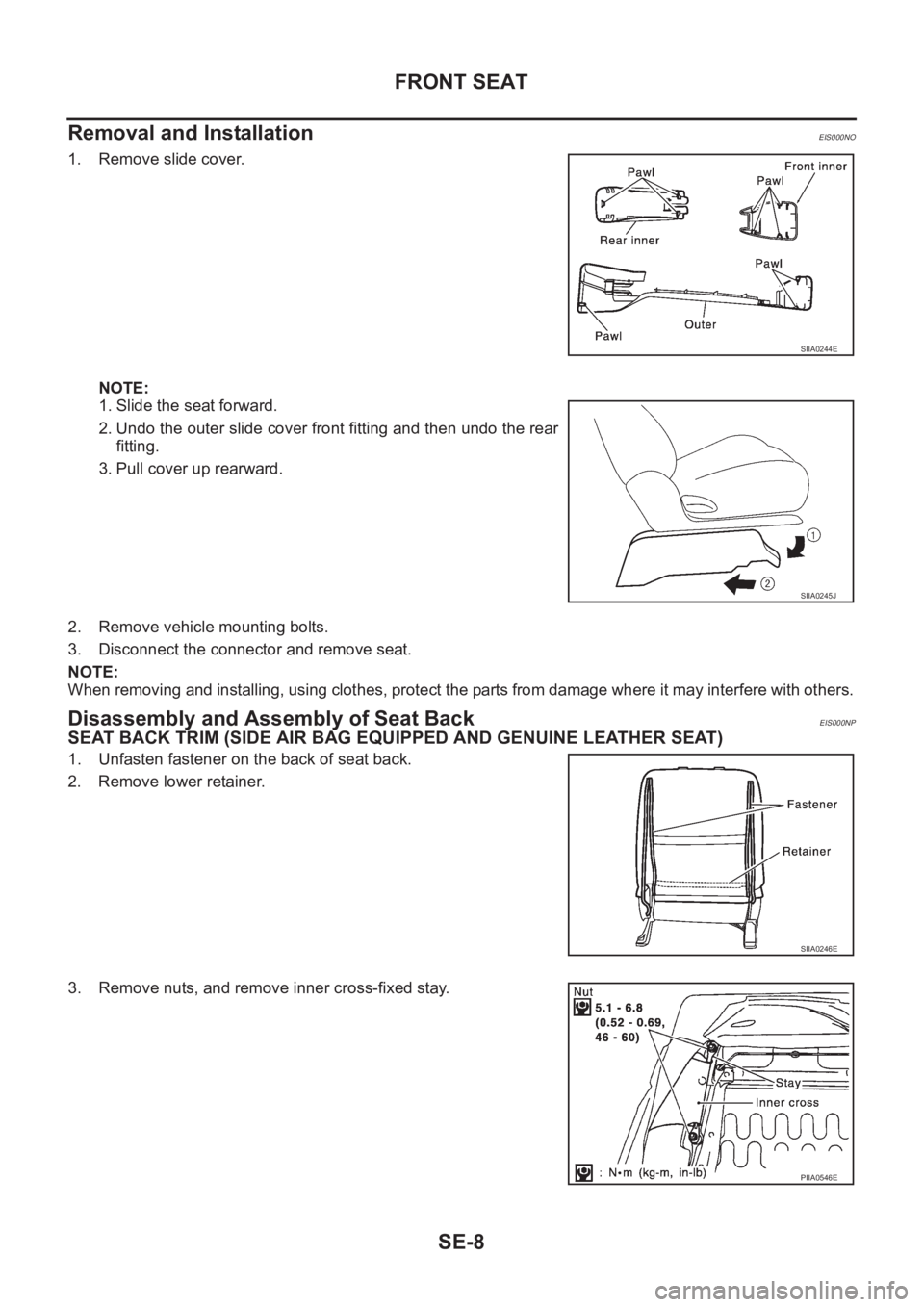

Removal and Installation
EIS000NO
1. Remove slide cover.
NOTE:
1. Slide the seat forward.
2. Undo the outer slide cover front fitting and then undo the rear
fitting.
3. Pull cover up rearward.
2. Remove vehicle mounting bolts.
3. Disconnect the connector and remove seat.
NOTE:
When removing and installing, using clothes, protect the parts from damage where it may interfere with others.
Disassembly and Assembly of Seat BackEIS000NP
SEAT BACK TRIM (SIDE AIR BAG EQUIPPED AND GENUINE LEATHER SEAT)
1. Unfasten fastener on the back of seat back.
2. Remove lower retainer.
3. Remove nuts, and remove inner cross-fixed stay.
SIIA0244E
SIIA0245J
SIIA0246E
PIIA0546E

FRONT SEAT
SE-9
C
D
E
F
G
H
J
K
L
MA
B
SE

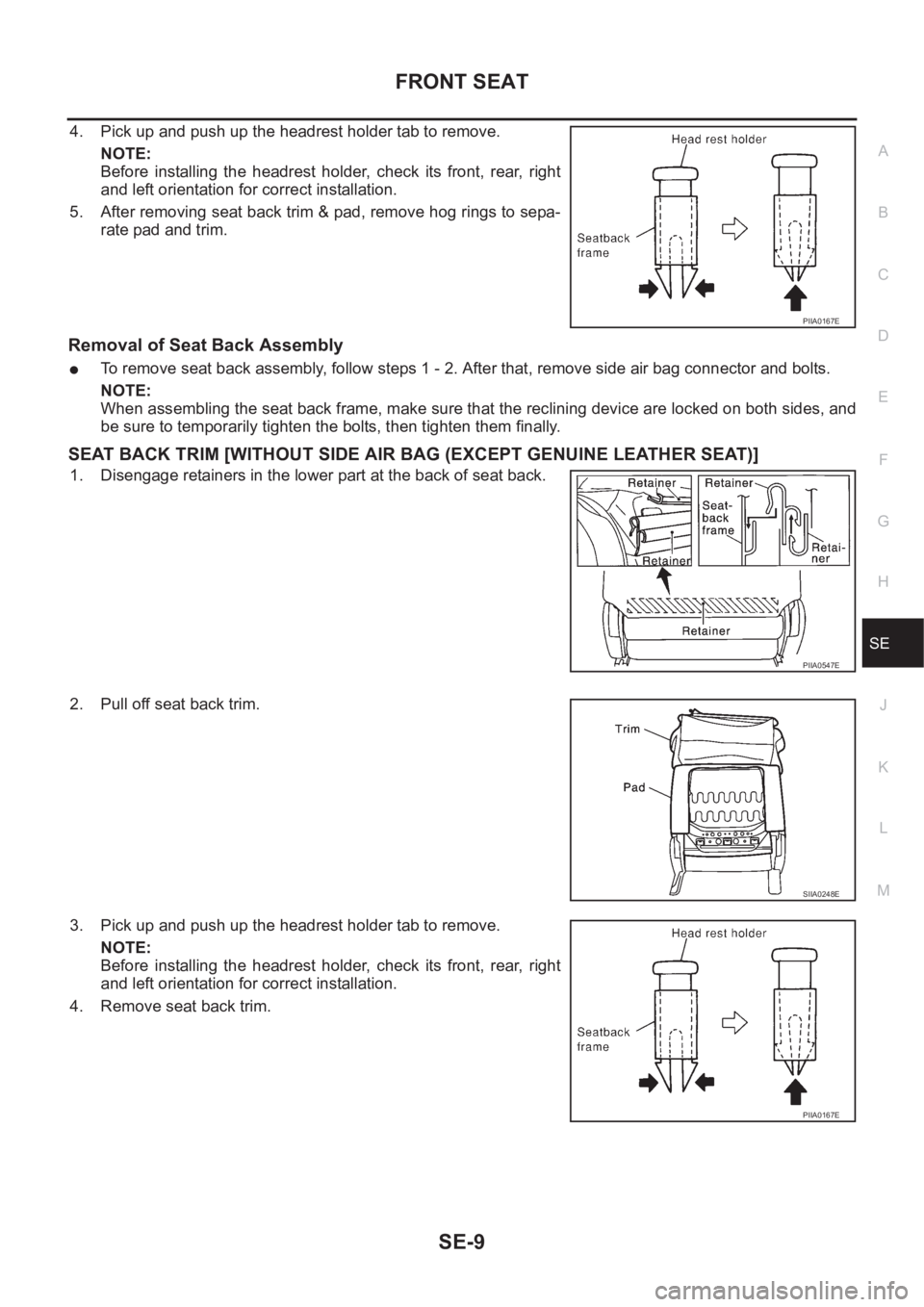

4. Pick up and push up the headrest holder tab to remove.
NOTE:
Before installing the headrest holder, check its front, rear, right
and left orientation for correct installation.
5. After removing seat back trim & pad, remove hog rings to sepa-
rate pad and trim.
Removal of Seat Back Assembly
●To remove seat back assembly, follow steps 1 - 2. After that, remove side air bag connector and bolts.
NOTE:
When assembling the seat back frame, make sure that the reclining device are locked on both sides, and
be sure to temporarily tighten the bolts, then tighten them finally.
SEAT BACK TRIM [WITHOUT SIDE AIR BAG (EXCEPT GENUINE LEATHER SEAT ) ]
1. Disengage retainers in the lower part at the back of seat back.
2. Pull off seat back trim.
3. Pick up and push up the headrest holder tab to remove.
NOTE:
Before installing the headrest holder, check its front, rear, right
and left orientation for correct installation.
4. Remove seat back trim.
PIIA0167E
PIIA0547E
SIIA0248E
PIIA0167E

SE-10
FRONT SEAT

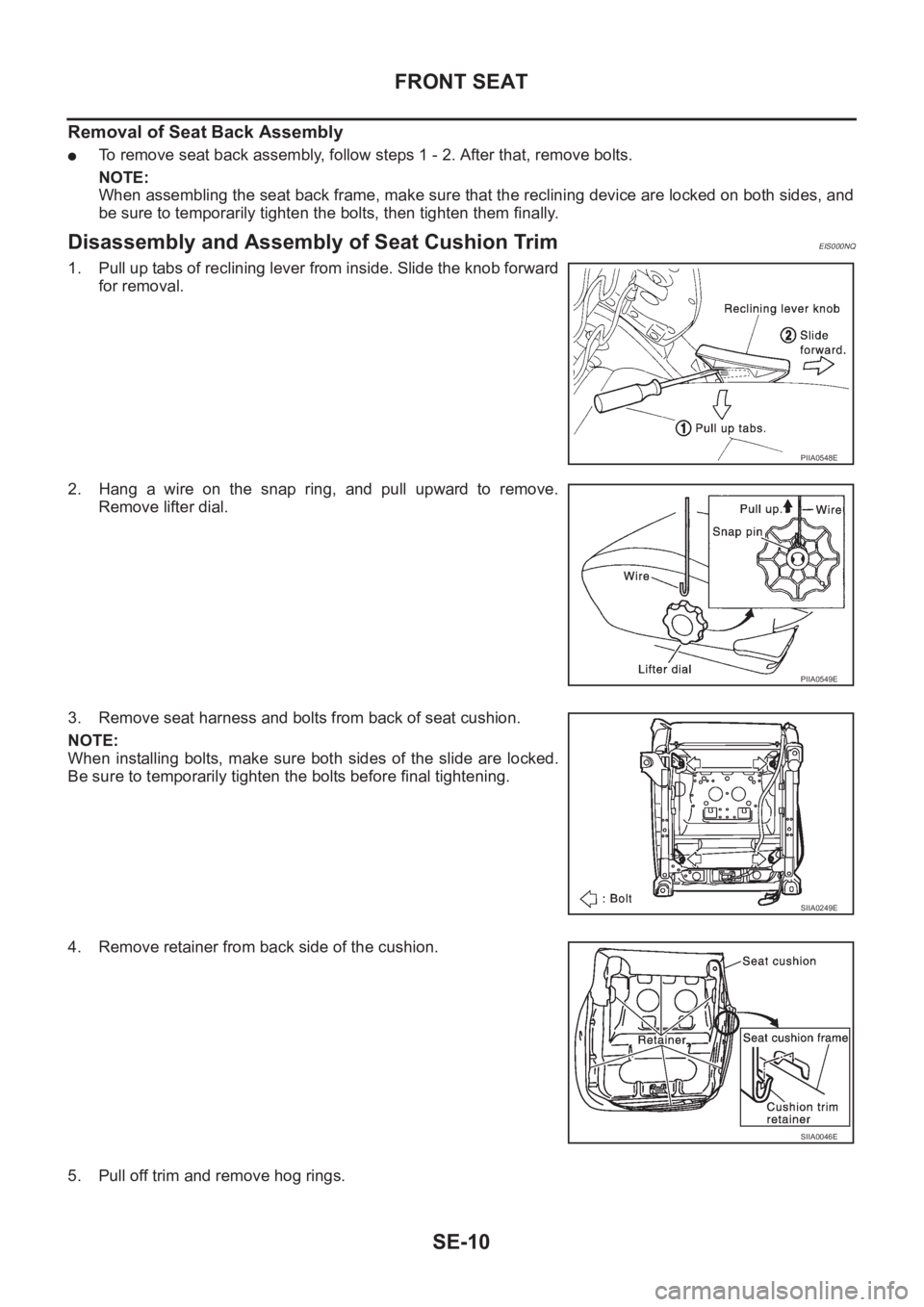

Removal of Seat Back Assembly
●To remove seat back assembly, follow steps 1 - 2. After that, remove bolts.
NOTE:
When assembling the seat back frame, make sure that the reclining device are locked on both sides, and
be sure to temporarily tighten the bolts, then tighten them finally.
Disassembly and Assembly of Seat Cushion TrimEIS000NQ
1. Pull up tabs of reclining lever from inside. Slide the knob forward
for removal.
2. Hang a wire on the snap ring, and pull upward to remove.
Remove lifter dial.
3. Remove seat harness and bolts from back of seat cushion.
NOTE:
When installing bolts, make sure both sides of the slide are locked.
Be sure to temporarily tighten the bolts before final tightening.
4. Remove retainer from back side of the cushion.
5. Pull off trim and remove hog rings.
PIIA0548E
PIIA0549E
SIIA0249E
SIIA0046E
