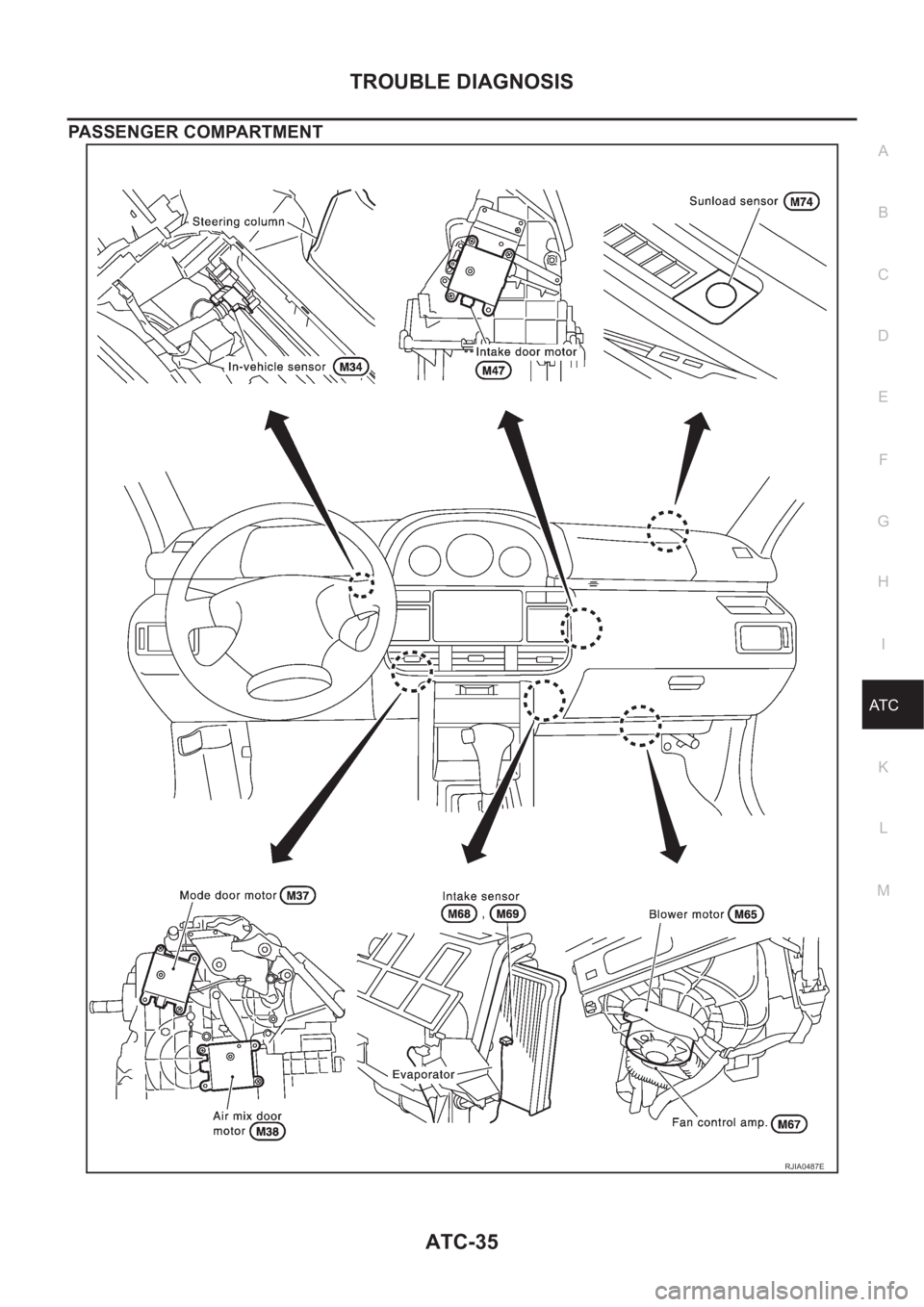

PASSENGER COMPARTMENT
RJIA0487E

ATC-36
TROUBLE DIAGNOSIS

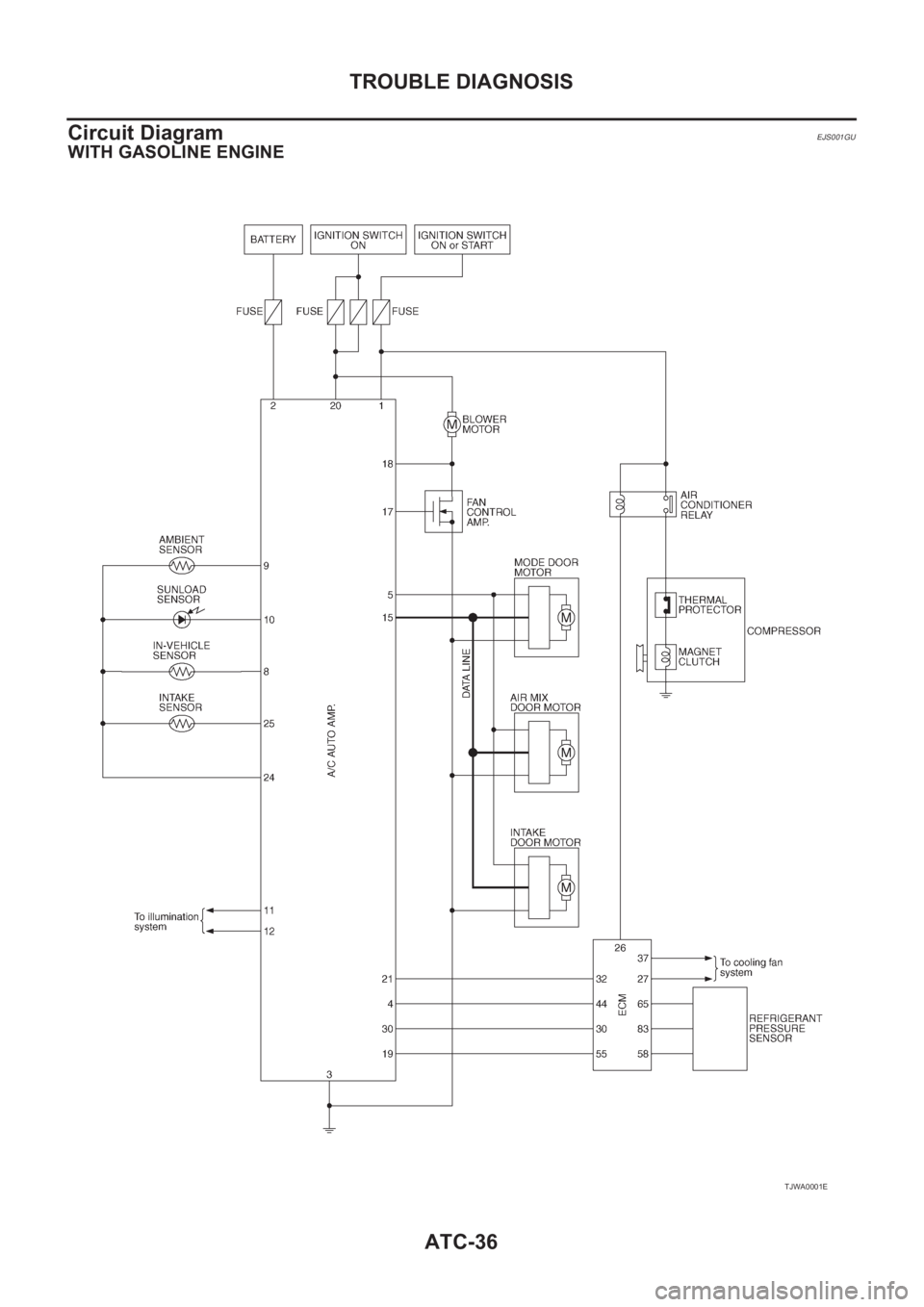

Circuit Diagram
EJS001GU
WITH GASOLINE ENGINE
TJWA0001E

TROUBLE DIAGNOSIS
ATC-37
C
D
E
F
G
H
I
K
L
MA
B
AT C
WITH DIESEL ENGINE
TJWA0005E

ATC-38
TROUBLE DIAGNOSIS

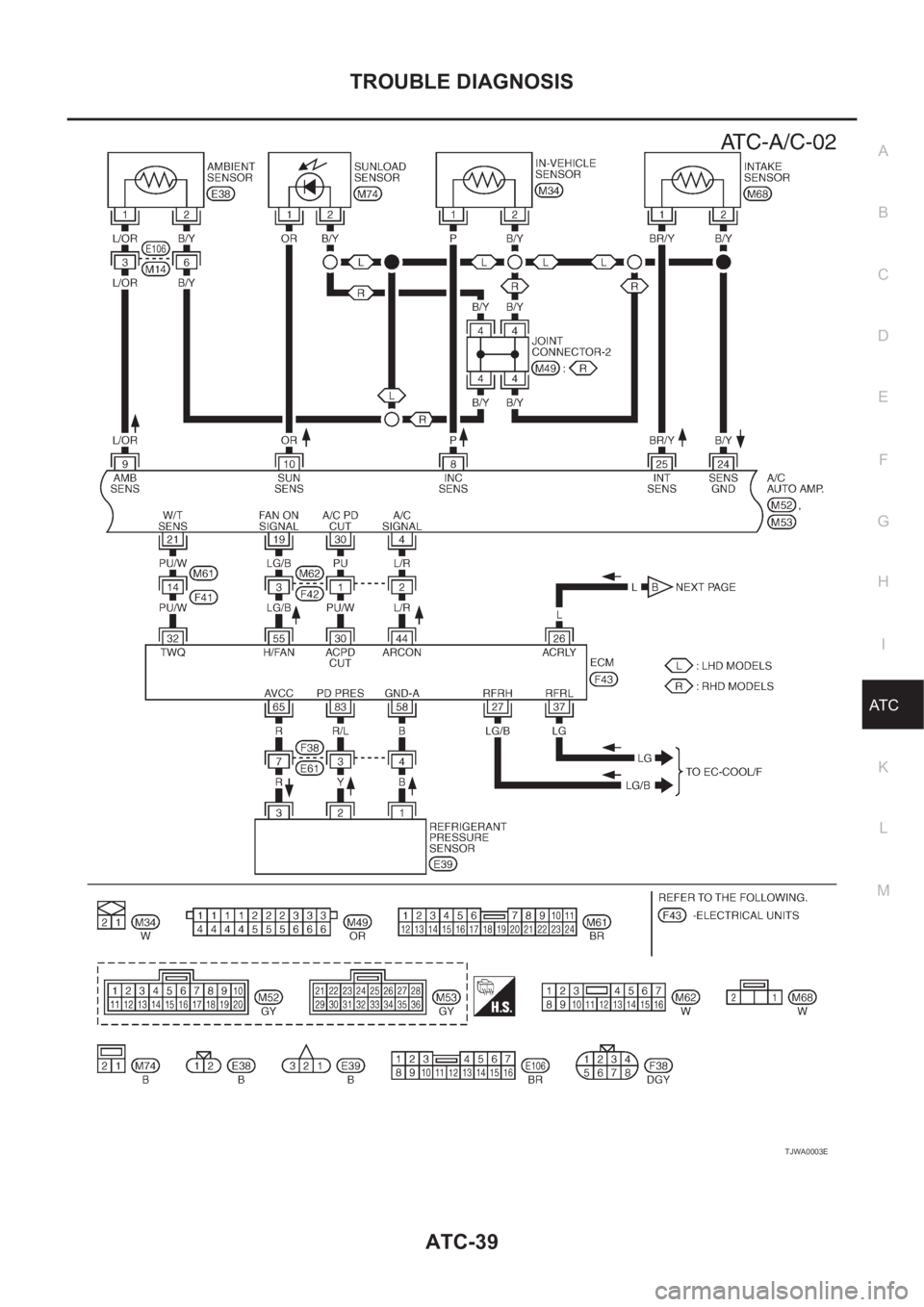

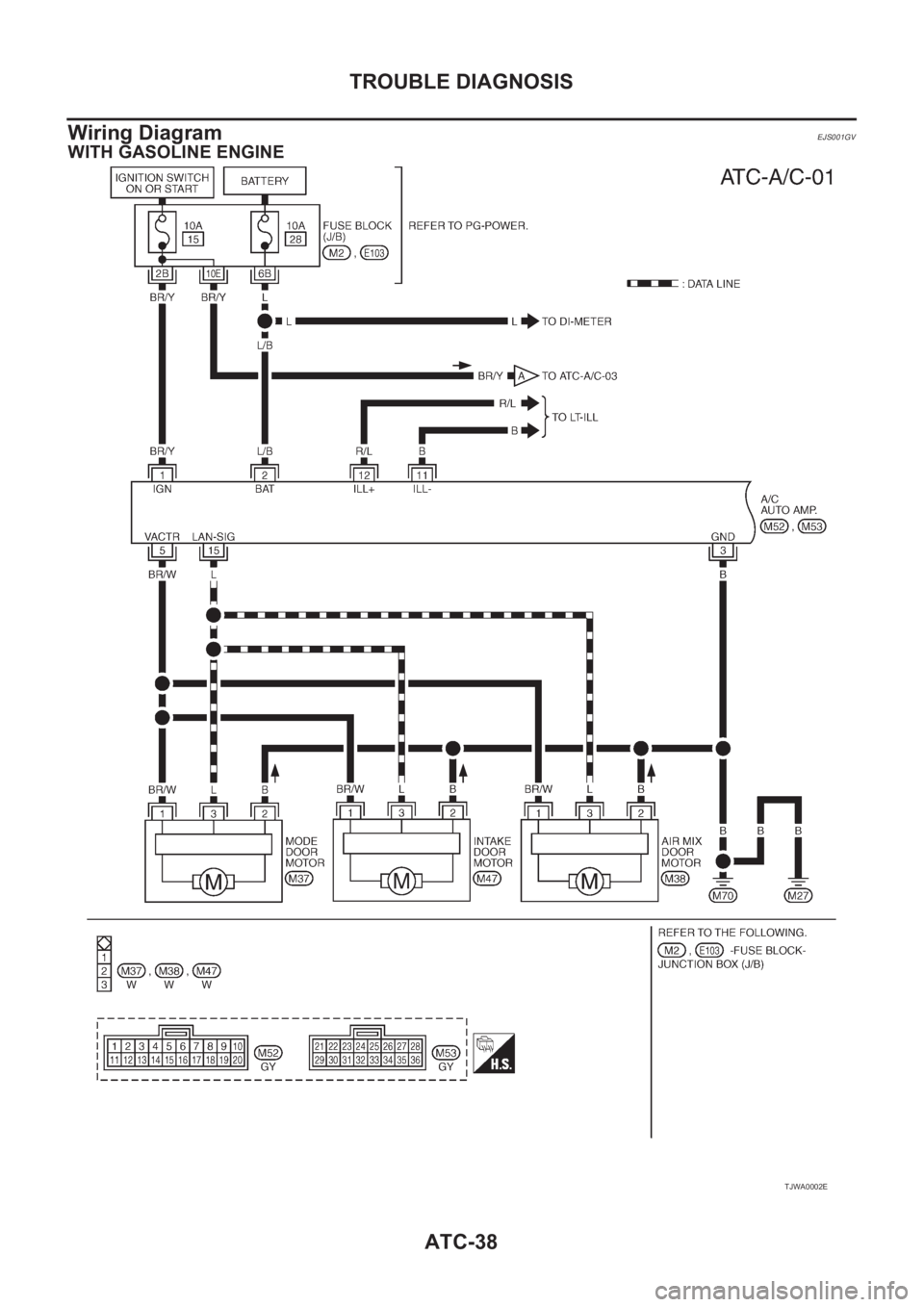

Wiring Diagram
EJS001GV

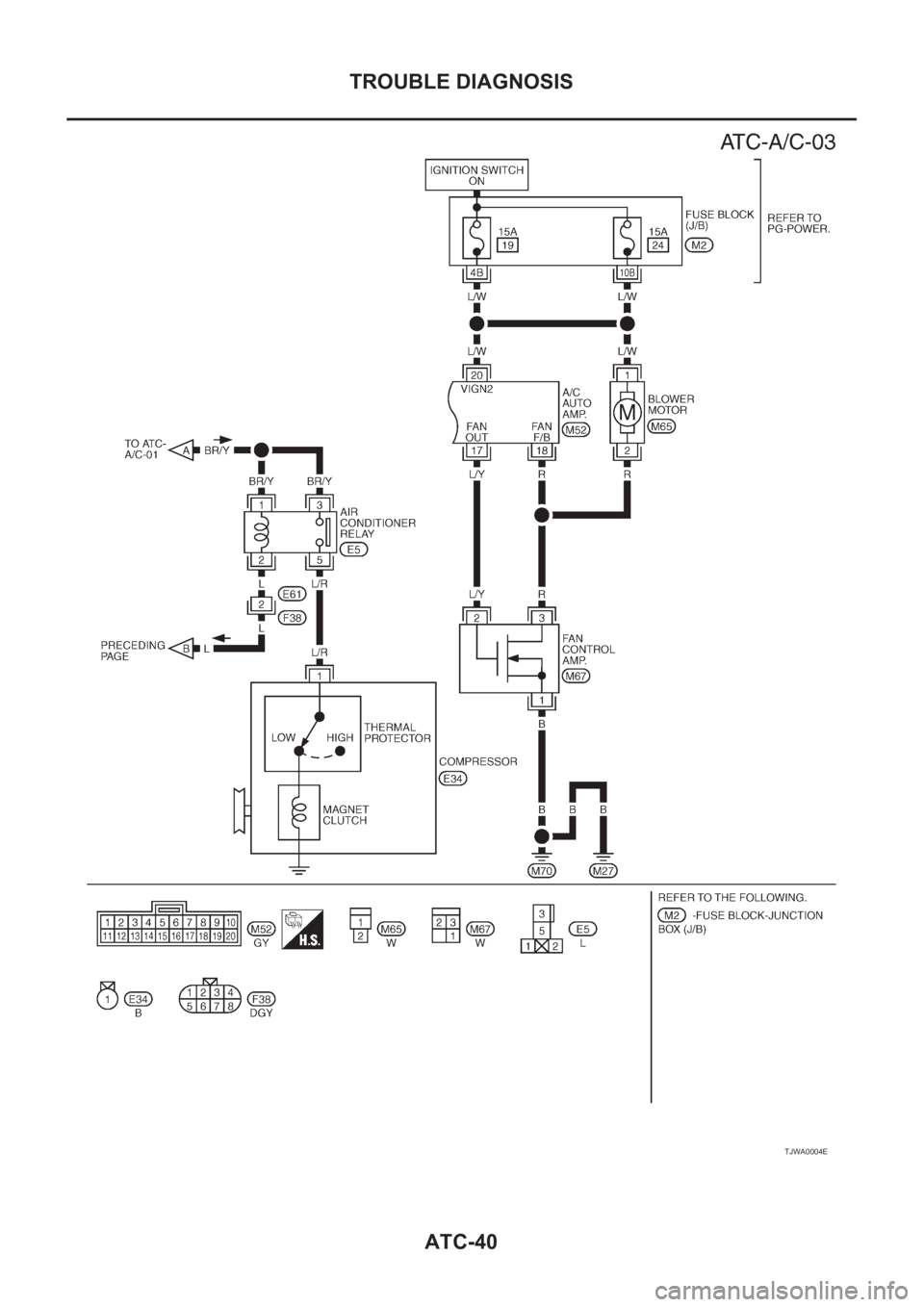

WITH GASOLINE ENGINE
TJWA0002E

TROUBLE DIAGNOSIS
ATC-39
C
D
E
F
G
H
I
K
L
MA
B
AT C
TJWA0003E

ATC-40
TROUBLE DIAGNOSIS
TJWA0004E

TROUBLE DIAGNOSIS
ATC-41
C
D
E
F
G
H
I
K
L
MA
B
AT C

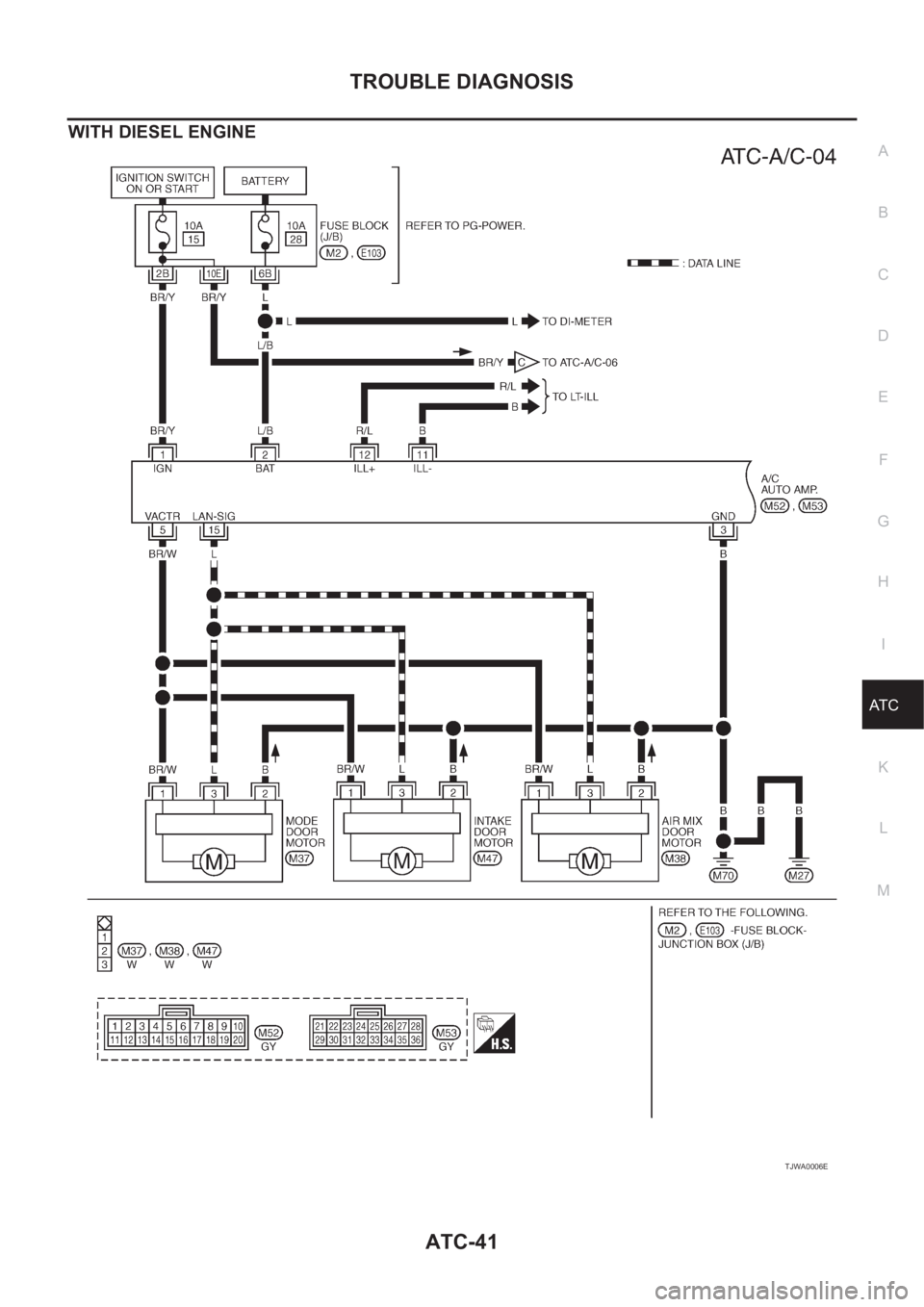

WITH DIESEL ENGINE
TJWA0006E

ATC-42
TROUBLE DIAGNOSIS
TJWA0007E
SMA for models with roof
mounted drivin
g lamp

TROUBLE DIAGNOSIS
ATC-43
C
D
E
F
G
H
I
K
L
MA
B
AT C
TJWA0008E

ATC-44
TROUBLE DIAGNOSIS

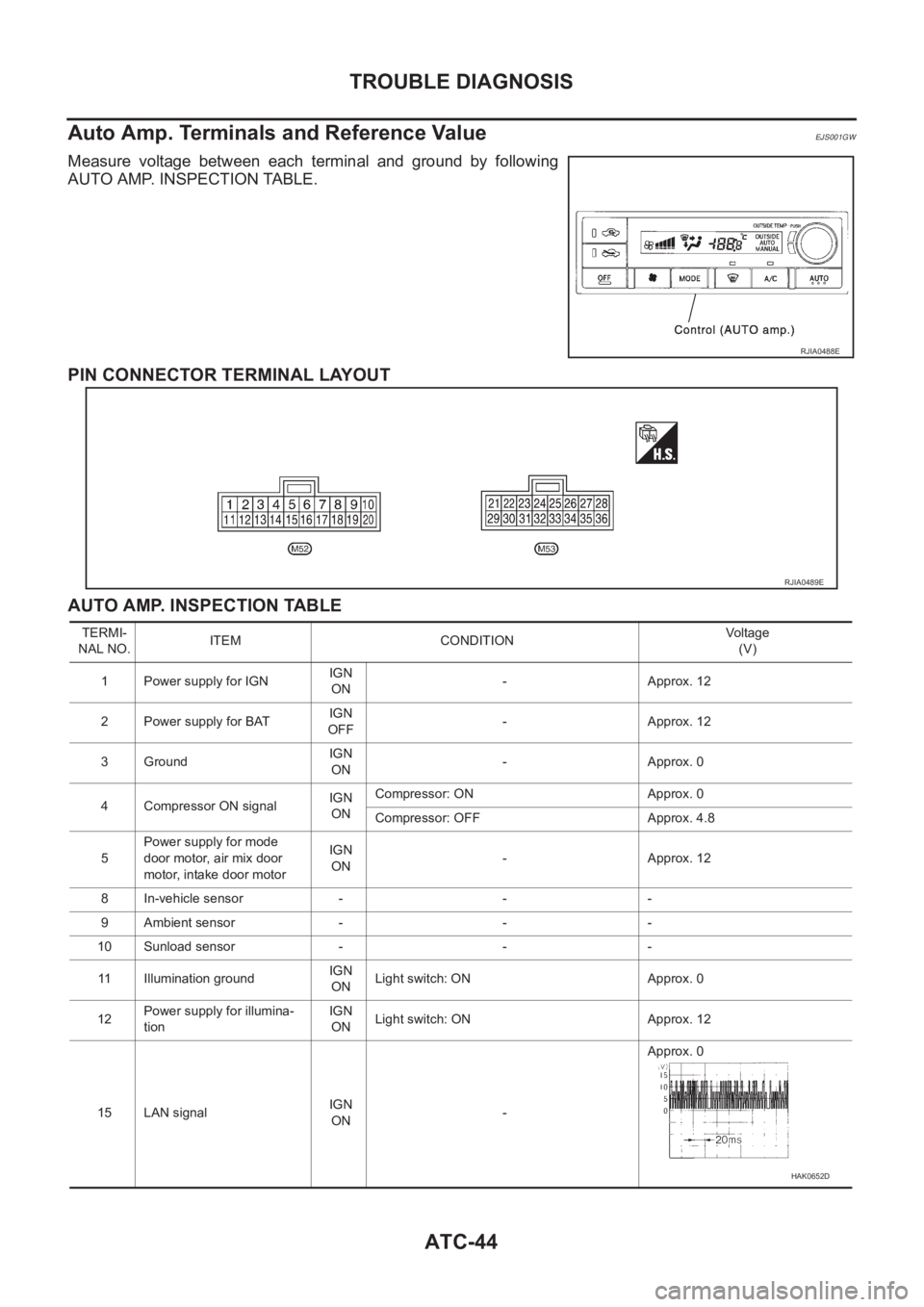

Auto Amp. Terminals and Reference Value
EJS001GW
Measure voltage between each terminal and ground by following
AUTO AMP. INSPECTION TABLE.
PIN CONNECTOR TERMINAL LAYOUT
AUTO AMP. INSPECTION TABLE
RJIA0488E
RJIA0489E
TERMI-
NAL NO.ITEM CONDITIONVo l ta g e
(V)
1 Power supply for IGNIGN
ON-Approx. 12
2 Power supply for BATIGN
OFF-Approx. 12
3GroundIGN
ON-Approx. 0
4 Compressor ON signalIGN
ONCompressor: ON Approx. 0
Compressor: OFF Approx. 4.8
5Power supply for mode
door motor, air mix door
motor, intake door motorIGN
ON-Approx. 12
8 In-vehicle sensor - - -
9Ambient sensor - - -
10 Sunload sensor - - -
11 Illumination ground IGN
ONLight switch: ON Approx. 0
12Power supply for illumina-
tionIGN
ONLight switch: ON Approx. 12
15 LAN signalIGN
ON-Approx. 0
HAK0652D
