NISSAN X-TRAIL 2001 Service Repair Manual

STARTING SYSTEM
SC-25
C
D
E
F
G
H
I
J
L
MA
B
SC

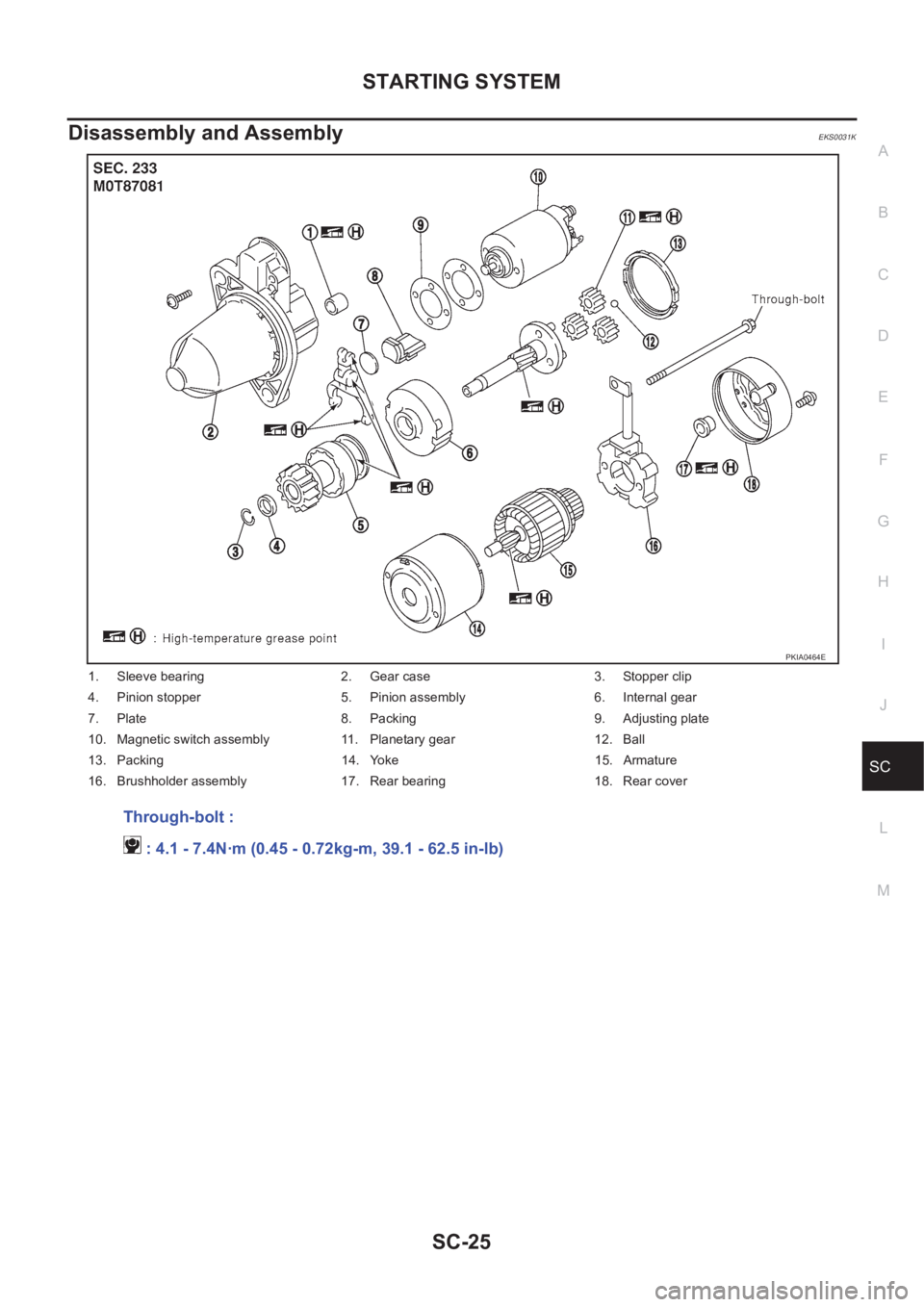

Disassembly and Assembly EKS0031K
1. Sleeve bearing 2. Gear case 3. Stopper clip
4. Pinion stopper 5. Pinion assembly 6. Internal gear
7. Plate 8. Packing 9. Adjusting plate
10. Magnetic switch assembly 11. Planetary gear 12. Ball
13. Packing 14. Yoke 15. Armature
16. Brushholder assembly 17. Rear bearing 18. Rear cover
Through-bolt :
: 4.1 - 7.4N·m (0.45 - 0.72kg-m, 39.1 - 62.5 in-lb)
PKIA0464E

SC-26
STARTING SYSTEM

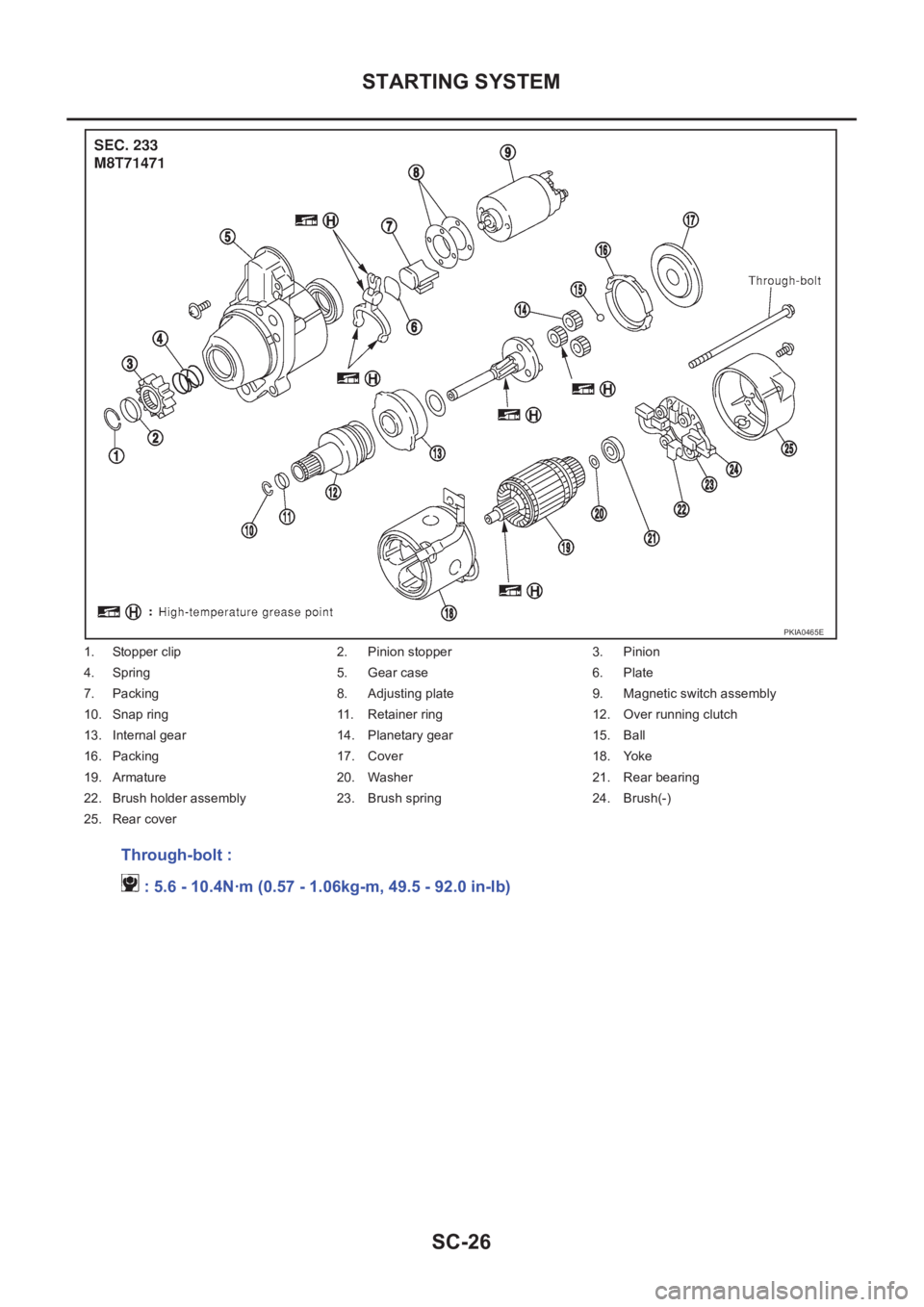

1. Stopper clip 2. Pinion stopper 3. Pinion
4. Spring 5. Gear case 6. Plate
7. Packing 8. Adjusting plate 9. Magnetic switch assembly
10. Snap ring 11. Retainer ring 12. Over running clutch
13. Internal gear 14. Planetary gear 15. Ball
16. Packing 17. Cover 18. Yoke
19. Armature 20. Washer 21. Rear bearing
22. Brush holder assembly 23. Brush spring 24. Brush(-)
25. Rear cover
Through-bolt :
: 5.6 - 10.4N·m (0.57 - 1.06kg-m, 49.5 - 92.0 in-lb)
PKIA0465E

STARTING SYSTEM
SC-27
C
D
E
F
G
H
I
J
L
MA
B
SC

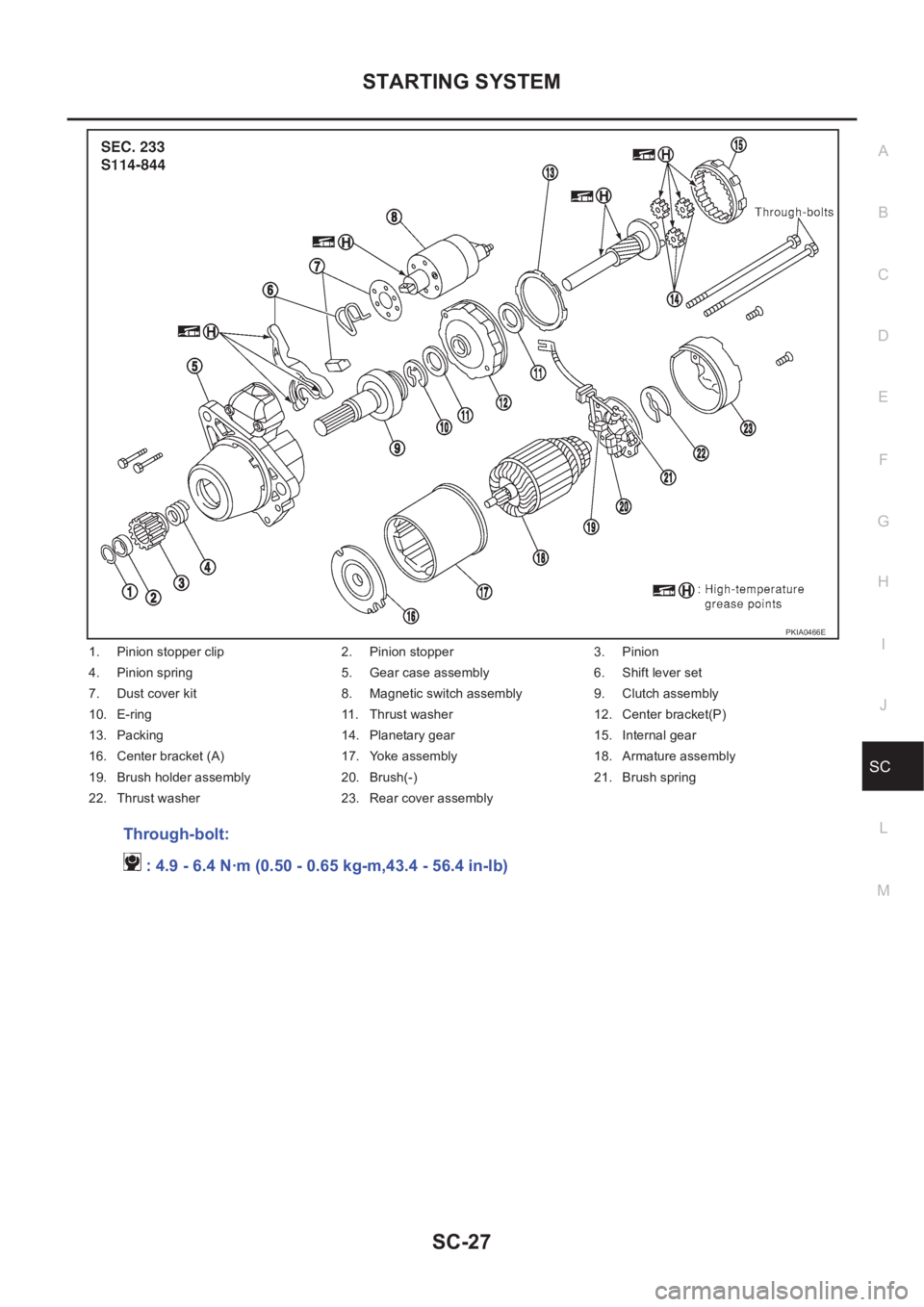

1. Pinion stopper clip 2. Pinion stopper 3. Pinion
4. Pinion spring 5. Gear case assembly 6. Shift lever set
7. Dust cover kit 8. Magnetic switch assembly 9. Clutch assembly
10. E-ring 11. Thrust washer 12. Center bracket(P)
13. Packing 14. Planetary gear 15. Internal gear
16. Center bracket (A) 17. Yoke assembly 18. Armature assembly
19. Brush holder assembly 20. Brush(-) 21. Brush spring
22. Thrust washer 23. Rear cover assembly
Through-bolt:
: 4.9 - 6.4 N·m (0.50 - 0.65 kg-m,43.4 - 56.4 in-lb)
PKIA0466E

SC-28
STARTING SYSTEM

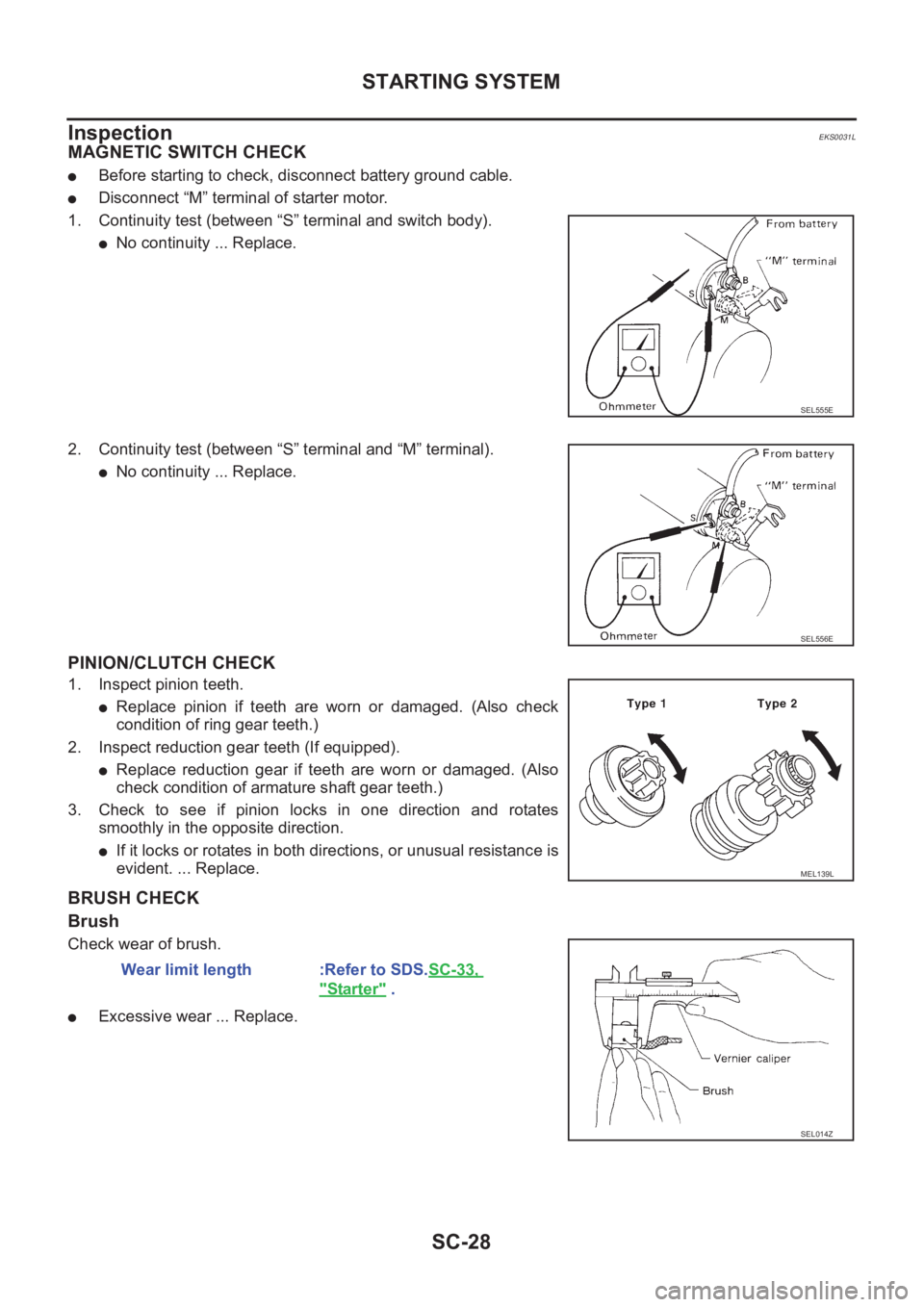

Inspection
EKS0031L
MAGNETIC SWITCH CHECK
●Before starting to check, disconnect battery ground cable.
●Disconnect “M” terminal of starter motor.
1. Continuity test (between “S” terminal and switch body).
●No continuity ... Replace.
2. Continuity test (between “S” terminal and “M” terminal).
●No continuity ... Replace.
PINION/CLUTCH CHECK
1. Inspect pinion teeth.
●Replace pinion if teeth are worn or damaged. (Also check
condition of ring gear teeth.)
2. Inspect reduction gear teeth (If equipped).
●Replace reduction gear if teeth are worn or damaged. (Also
check condition of armature shaft gear teeth.)
3. Check to see if pinion locks in one direction and rotates
smoothly in the opposite direction.
●If it locks or rotates in both directions, or unusual resistance is
evident. ... Replace.
BRUSH CHECK
Brush
Check wear of brush.
●Excessive wear ... Replace.
SEL555E
SEL556E
MEL139L
Wear limit length :Refer to SDS.SC-33,
"Starter" .
SEL014Z

STARTING SYSTEM
SC-29
C
D
E
F
G
H
I
J
L
MA
B
SC

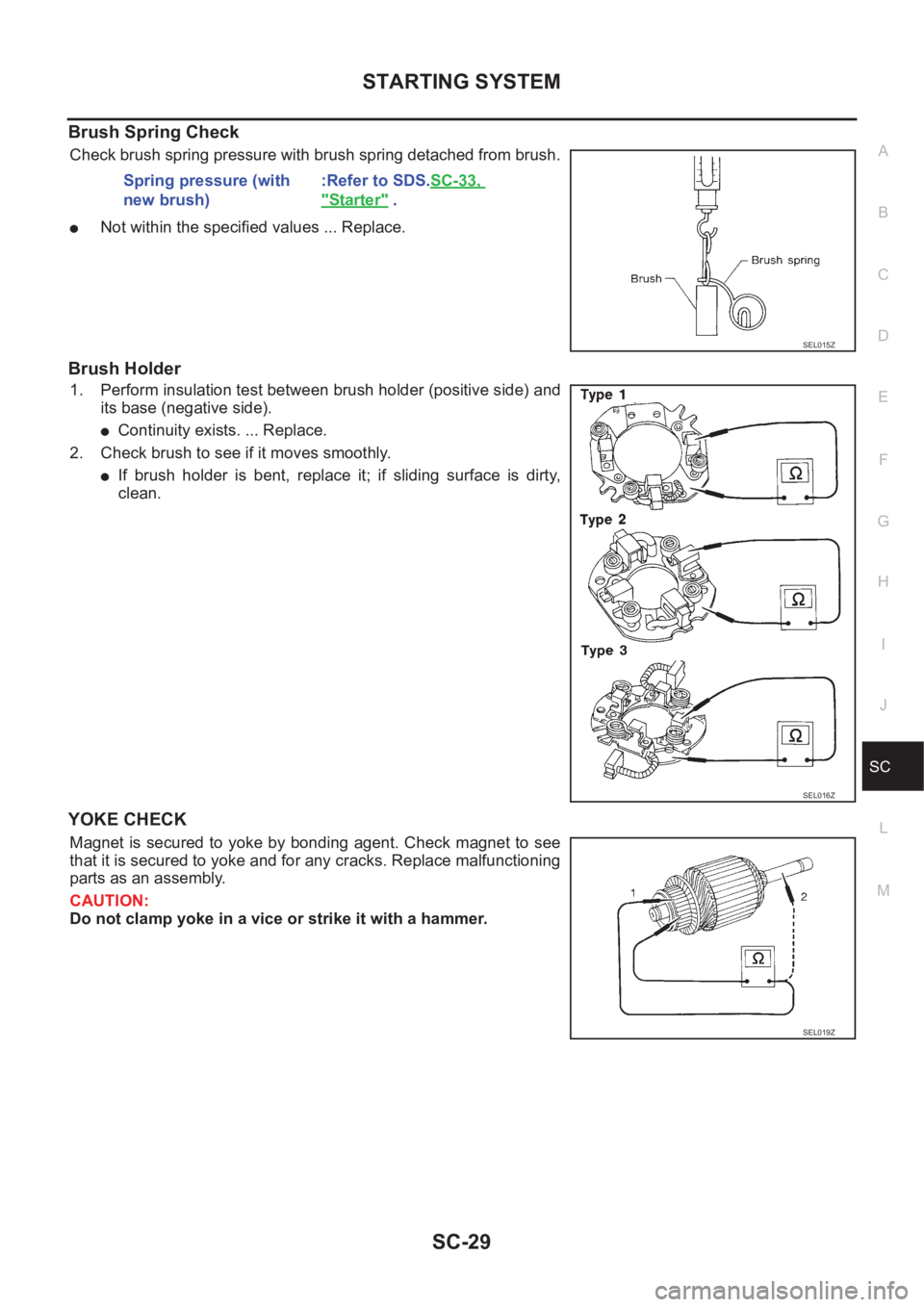

Brush Spring Check
Check brush spring pressure with brush spring detached from brush.
●Not within the specified values ... Replace.
Brush Holder
1. Perform insulation test between brush holder (positive side) and
its base (negative side).
●Continuity exists. ... Replace.
2. Check brush to see if it moves smoothly.
●If brush holder is bent, replace it; if sliding surface is dirty,
clean.
YOKE CHECK
Magnet is secured to yoke by bonding agent. Check magnet to see
that it is secured to yoke and for any cracks. Replace malfunctioning
parts as an assembly.
CAUTION:
Do not clamp yoke in a vice or strike it with a hammer.Spring pressure (with
new brush):Refer to SDS.SC-33,
"Starter" .
SEL015Z
SEL016Z
SEL019Z

SC-30
STARTING SYSTEM

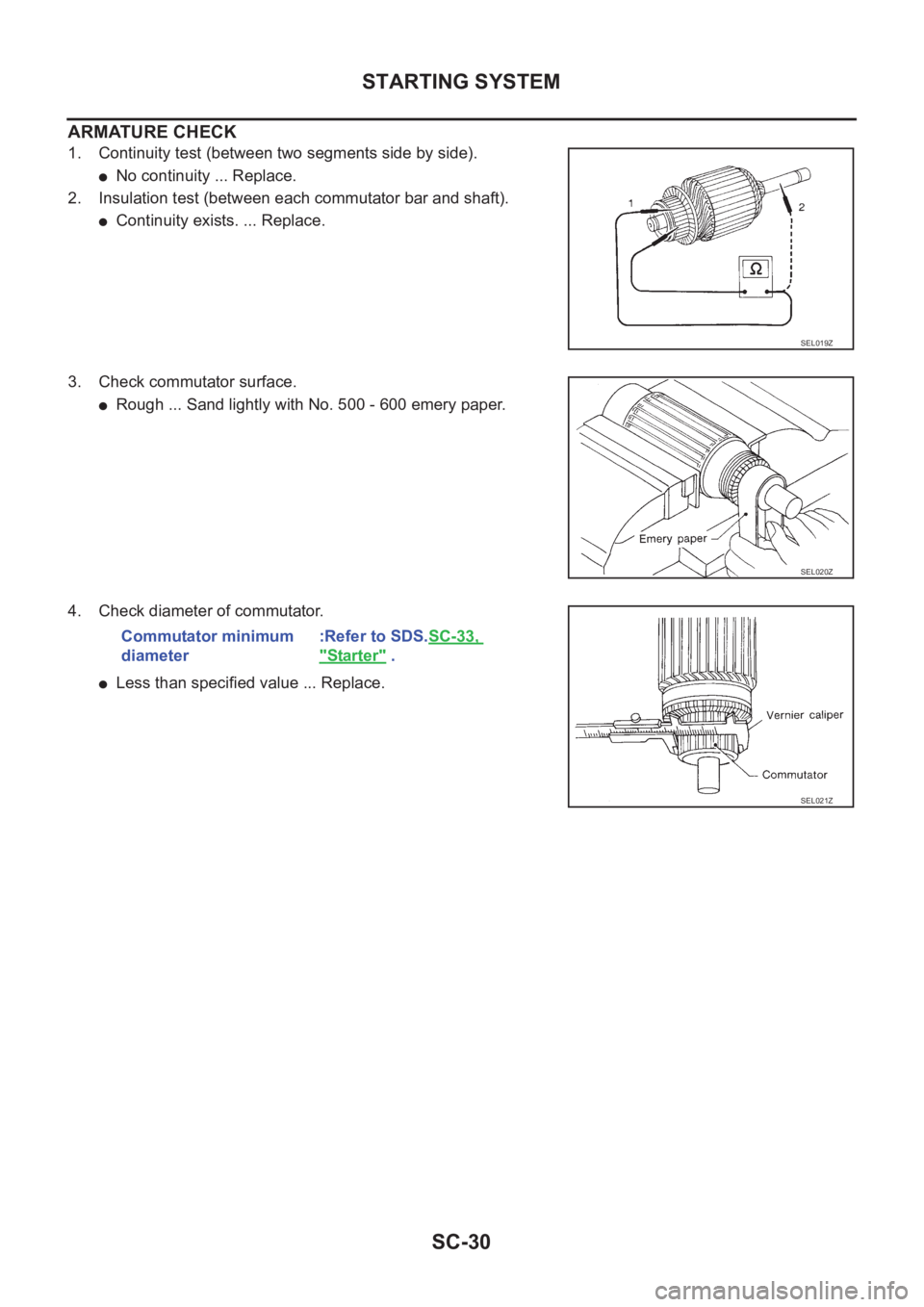

ARMATURE CHECK
1. Continuity test (between two segments side by side).
●No continuity ... Replace.
2. Insulation test (between each commutator bar and shaft).
●Continuity exists. ... Replace.
3. Check commutator surface.
●Rough ... Sand lightly with No. 500 - 600 emery paper.
4. Check diameter of commutator.
●Less than specified value ... Replace.
SEL019Z
SEL020Z
Commutator minimum
diameter:Refer to SDS.SC-33,
"Starter" .
SEL021Z

STARTING SYSTEM
SC-31
C
D
E
F
G
H
I
J
L
MA
B
SC

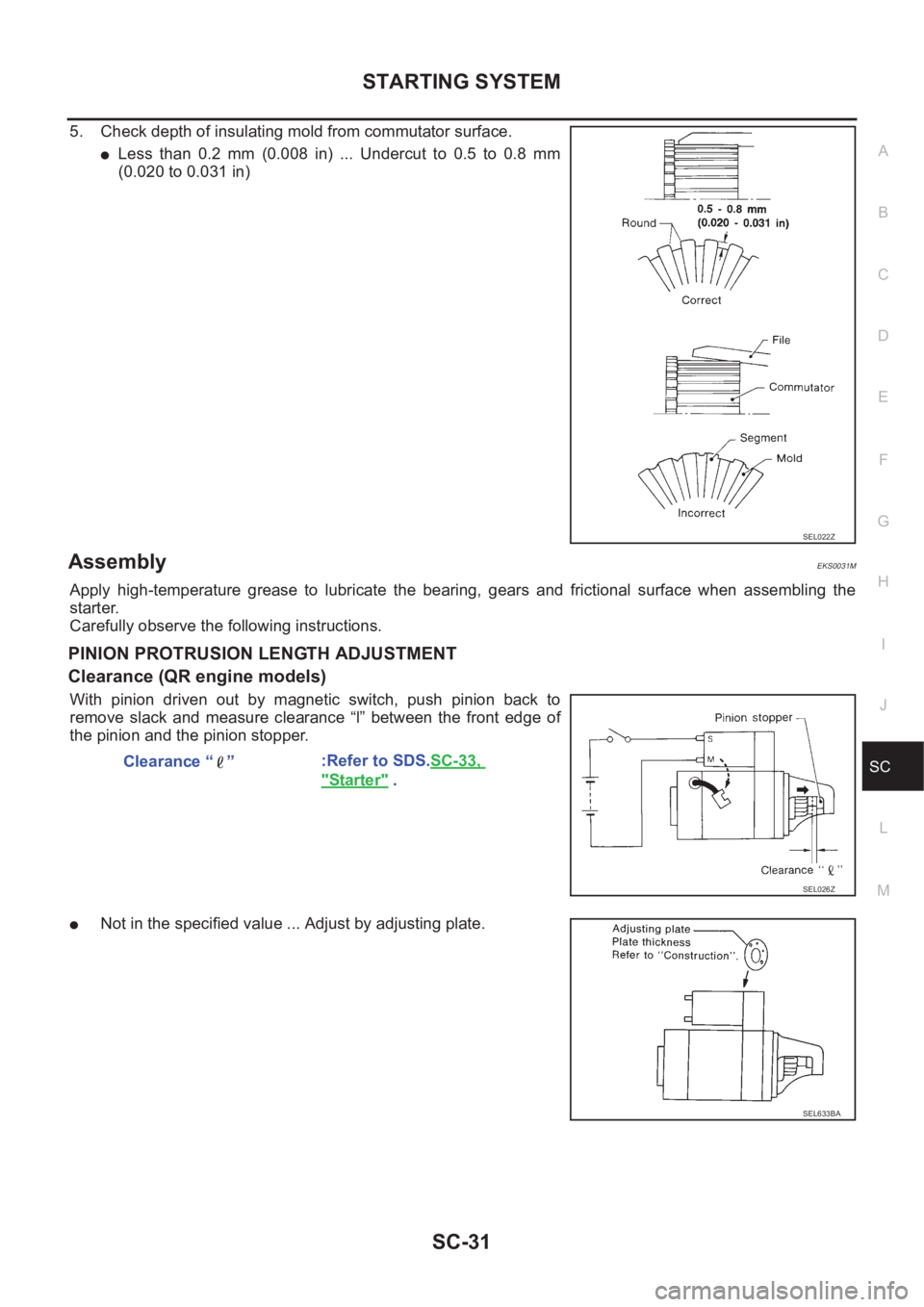

5. Check depth of insulating mold from commutator surface.
●Less than 0.2 mm (0.008 in) ... Undercut to 0.5 to 0.8 mm
(0.020 to 0.031 in)
AssemblyEKS0031M
Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling the
starter.
Carefully observe the following instructions.
PINION PROTRUSION LENGTH ADJUSTMENT
Clearance (QR engine models)
With pinion driven out by magnetic switch, push pinion back to
remove slack and measure clearance “l” between the front edge of
the pinion and the pinion stopper.
●Not in the specified value ... Adjust by adjusting plate.
SEL022Z
Clearance “ ”:Refer to SDS.SC-33,
"Starter" .
SEL026Z
SEL633BA

SC-32
STARTING SYSTEM

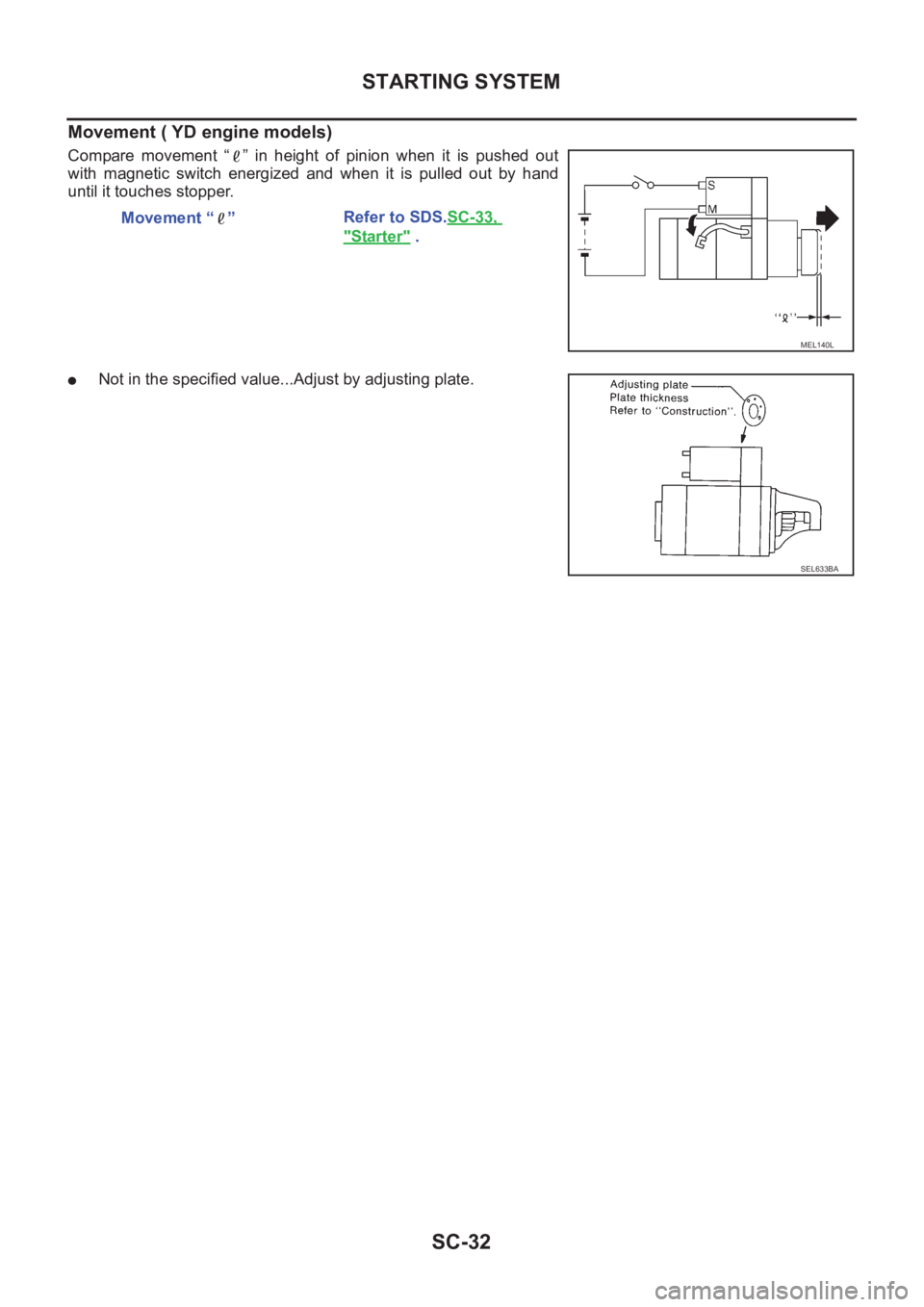

Movement ( YD engine models)
Compare movement “ ” in height of pinion when it is pushed out
with magnetic switch energized and when it is pulled out by hand
until it touches stopper.
●Not in the specified value...Adjust by adjusting plate.Movement “ ”Refer to SDS.SC-33,
"Starter" .
MEL140L
SEL633BA

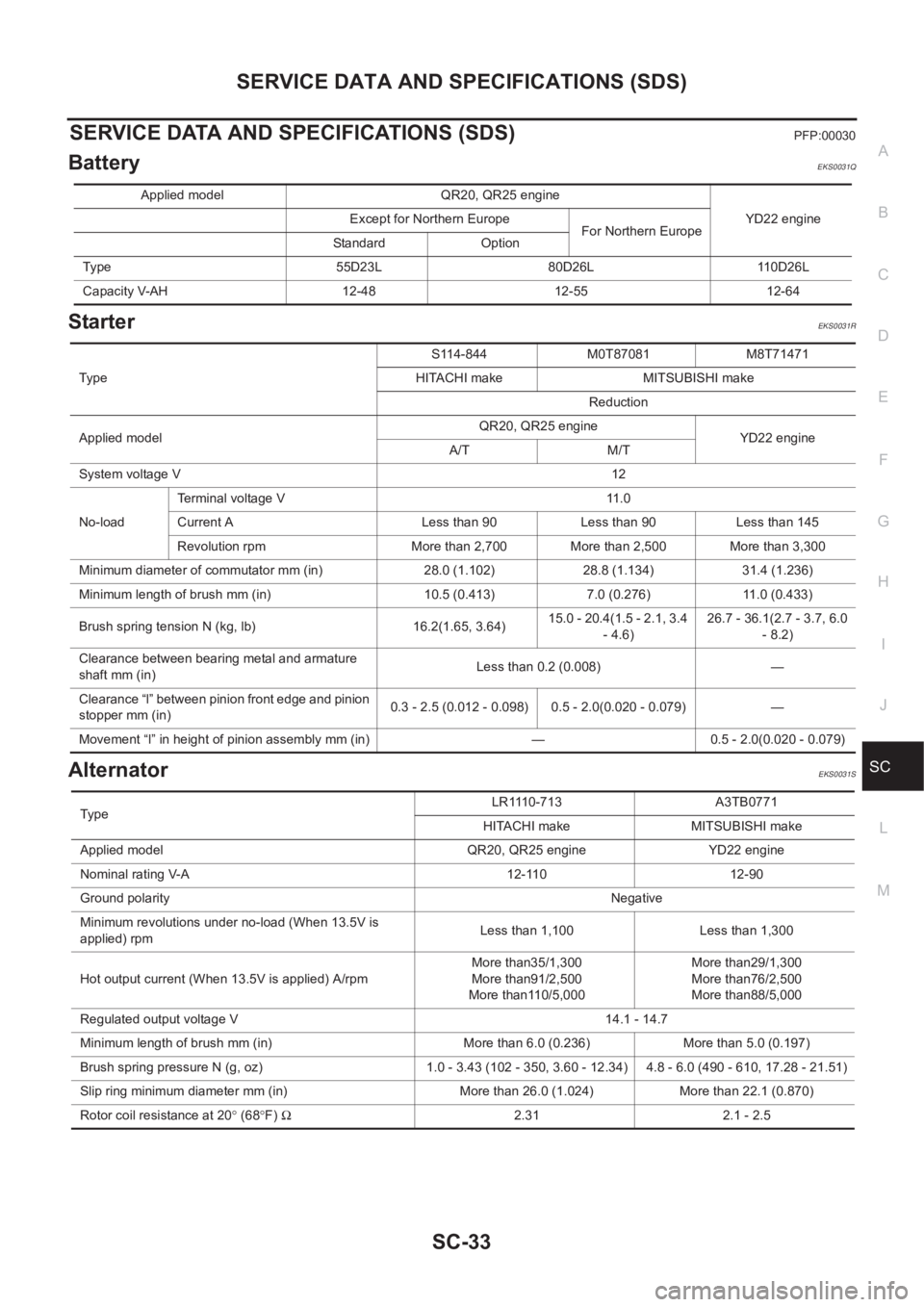

SERVICE DATA AND SPECIFICATIONS (SDS)
SC-33
C
D
E
F
G
H
I
J
L
MA
B
SC
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
BatteryEKS0031Q
StarterEKS0031R
AlternatorEKS0031S
Applied model QR20, QR25 engine
YD22 engine Except for Northern Europe
For Northern Europe
Standard Option
Type 55D23L 80D26L 110D26L
Capacity V-AH 12-48 12-55 12-64
TypeS114-844 M0T87081 M8T71471
HITACHI make MITSUBISHI make
Reduction
Applied modelQR20, QR25 engine
YD22 engine
A/T M/T
System voltage V12
No-loadTerminal voltage V 11.0
Current A Less than 90 Less than 90 Less than 145
Revolution rpm More than 2,700 More than 2,500 More than 3,300
Minimum diameter of commutator mm (in) 28.0 (1.102) 28.8 (1.134) 31.4 (1.236)
Minimum length of brush mm (in) 10.5 (0.413) 7.0 (0.276) 11.0 (0.433)
Brush spring tension N (kg, lb) 16.2(1.65, 3.64)15.0 - 20.4(1.5 - 2.1, 3.4
- 4.6)26.7 - 36.1(2.7 - 3.7, 6.0
- 8.2)
Clearance between bearing metal and armature
shaft mm (in)Less than 0.2 (0.008) —
Clearance “l” between pinion front edge and pinion
stopper mm (in)0.3 - 2.5 (0.012 - 0.098) 0.5 - 2.0(0.020 - 0.079) —
Movement “l” in height of pinion assembly mm (in) — 0.5 - 2.0(0.020 - 0.079)
TypeLR1110-713 A3TB0771
HITACHI make MITSUBISHI make
Applied model QR20, QR25 engine YD22 engine
Nominal rating V-A 12-110 12-90
Ground polarityNegative
Minimum revolutions under no-load (When 13.5V is
applied) rpmLess than 1,100 Less than 1,300
Hot output current (When 13.5V is applied) A/rpmMore than35/1,300
More than91/2,500
More than110/5,000More than29/1,300
More than76/2,500
More than88/5,000
Regulated output voltage V 14.1 - 14.7
Minimum length of brush mm (in) More than 6.0 (0.236) More than 5.0 (0.197)
Brush spring pressure N (g, oz) 1.0 - 3.43 (102 - 350, 3.60 - 12.34) 4.8 - 6.0 (490 - 610, 17.28 - 21.51)
Slip ring minimum diameter mm (in) More than 26.0 (1.024) More than 22.1 (0.870)
Rotor coil resistance at 20° (68°F) Ω2.31 2.1 - 2.5

SC-34
SERVICE DATA AND SPECIFICATIONS (SDS)
