DTC P0222, P0223 TP SENSOR
EC-541
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

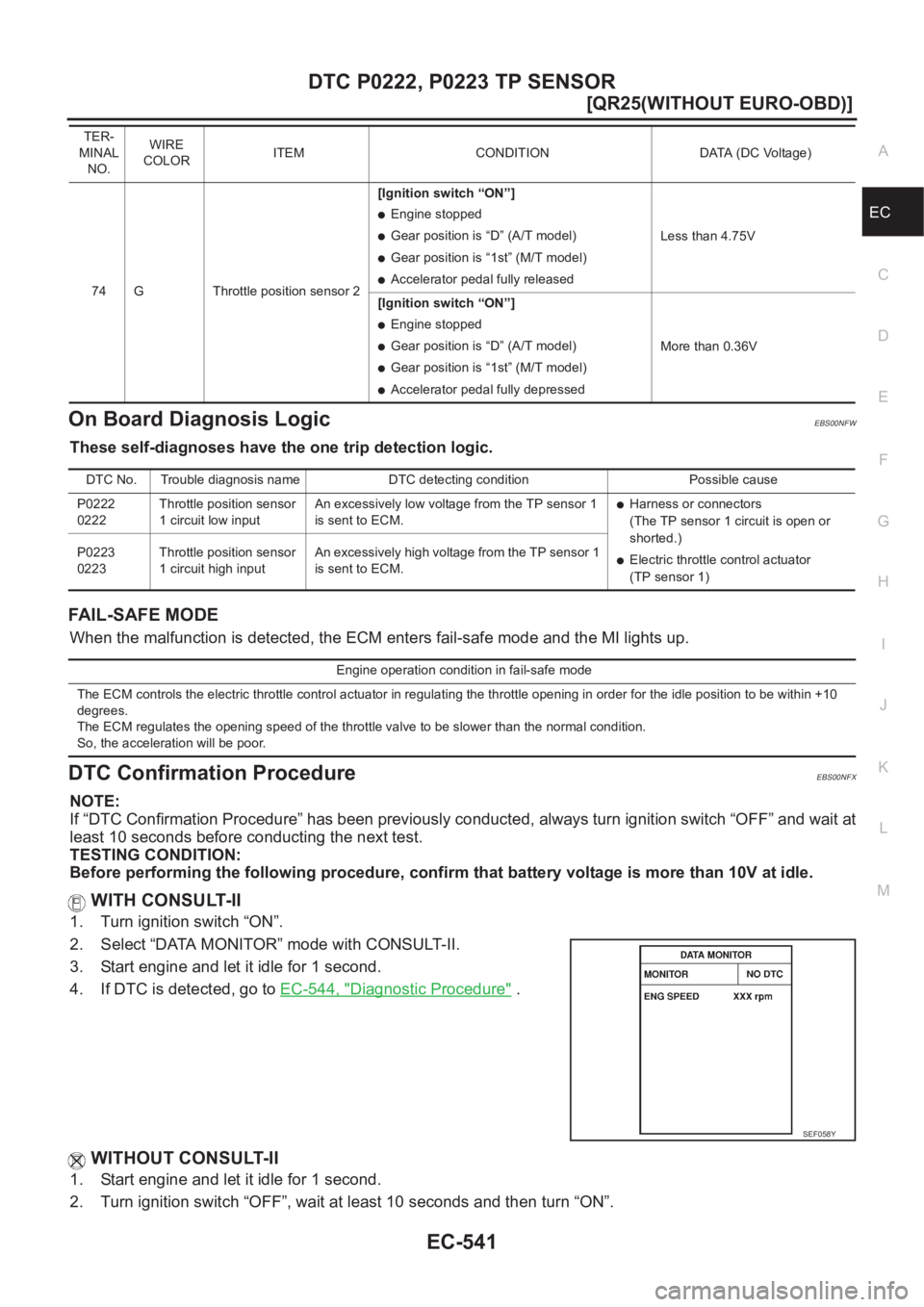

On Board Diagnosis LogicEBS00NFW
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00NFX
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-544, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and let it idle for 1 second.
2. Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.
74 G Throttle position sensor 2[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal fully releasedLess than 4.75V
[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal fully depressedMore than 0.36V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0222
0222Throttle position sensor
1 circuit low inputAn excessively low voltage from the TP sensor 1
is sent to ECM.
●Harness or connectors
(The TP sensor 1 circuit is open or
shorted.)
●Electric throttle control actuator
(TP sensor 1) P0223
0223Throttle position sensor
1 circuit high inputAn excessively high voltage from the TP sensor 1
is sent to ECM.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
SEF058Y

EC-542
[QR25(WITHOUT EURO-OBD)]
DTC P0222, P0223 TP SENSOR

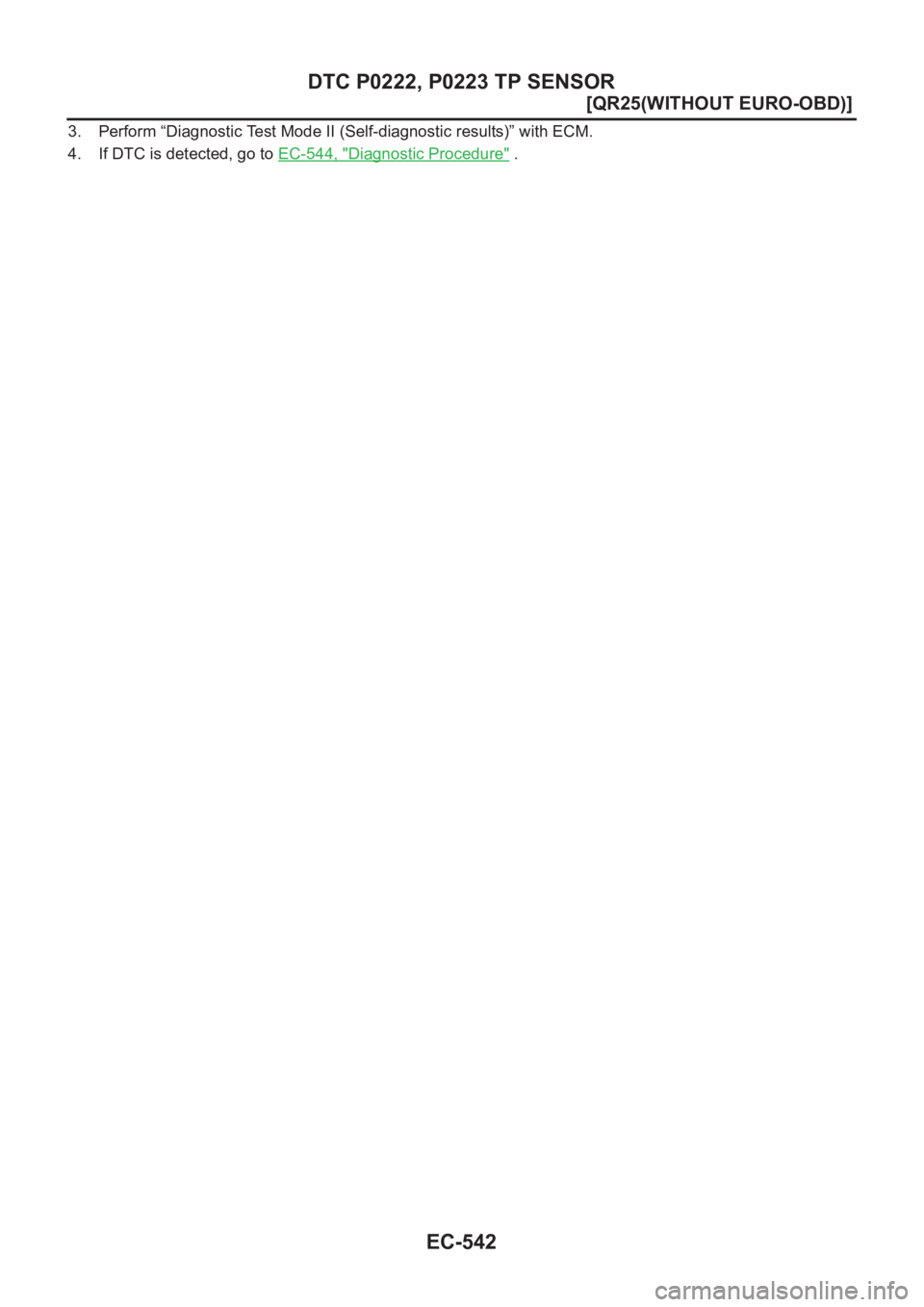

3. Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.
4. If DTC is detected, go to EC-544, "
Diagnostic Procedure" .

DTC P0222, P0223 TP SENSOR
EC-543
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

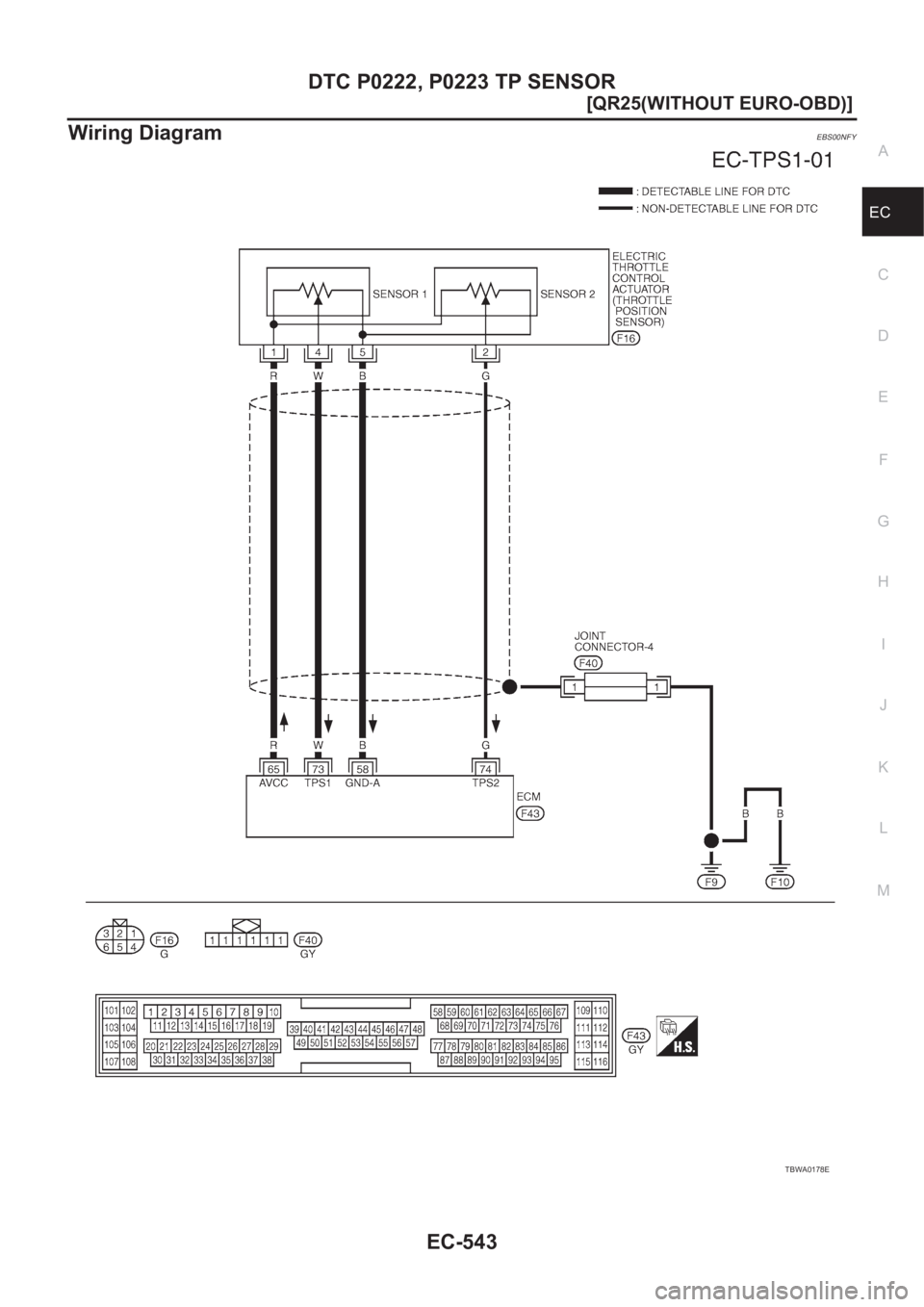

Wiring DiagramEBS00NFY
TBWA0178E

EC-544
[QR25(WITHOUT EURO-OBD)]
DTC P0222, P0223 TP SENSOR

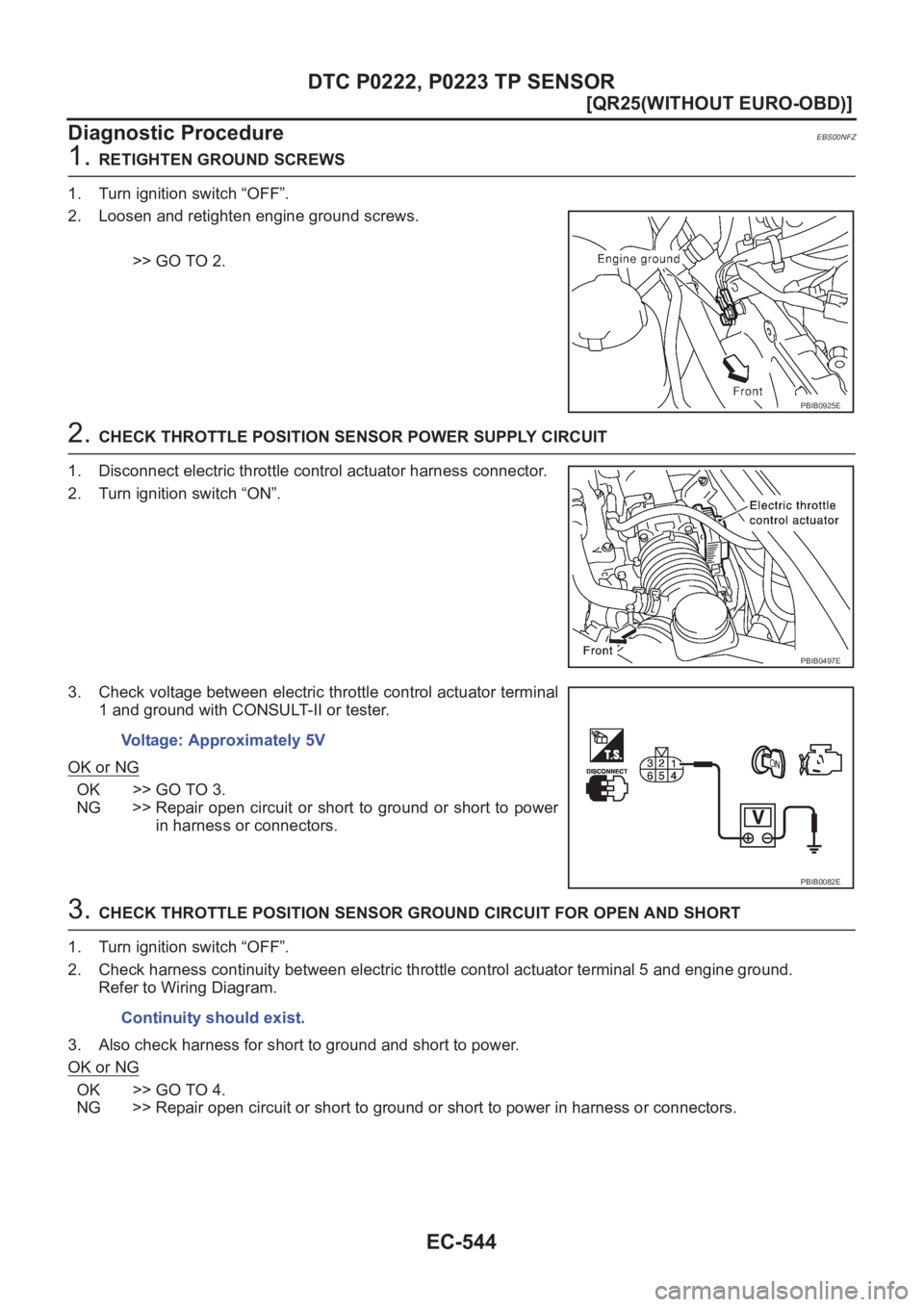

Diagnostic Procedure
EBS00NFZ
1. RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 2.
2. CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch “ON”.
3. Check voltage between electric throttle control actuator terminal
1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between electric throttle control actuator terminal 5 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB0925E
PBIB0497E
Voltage: Approximately 5V
PBIB0082E
Continuity should exist.

DTC P0222, P0223 TP SENSOR
EC-545
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

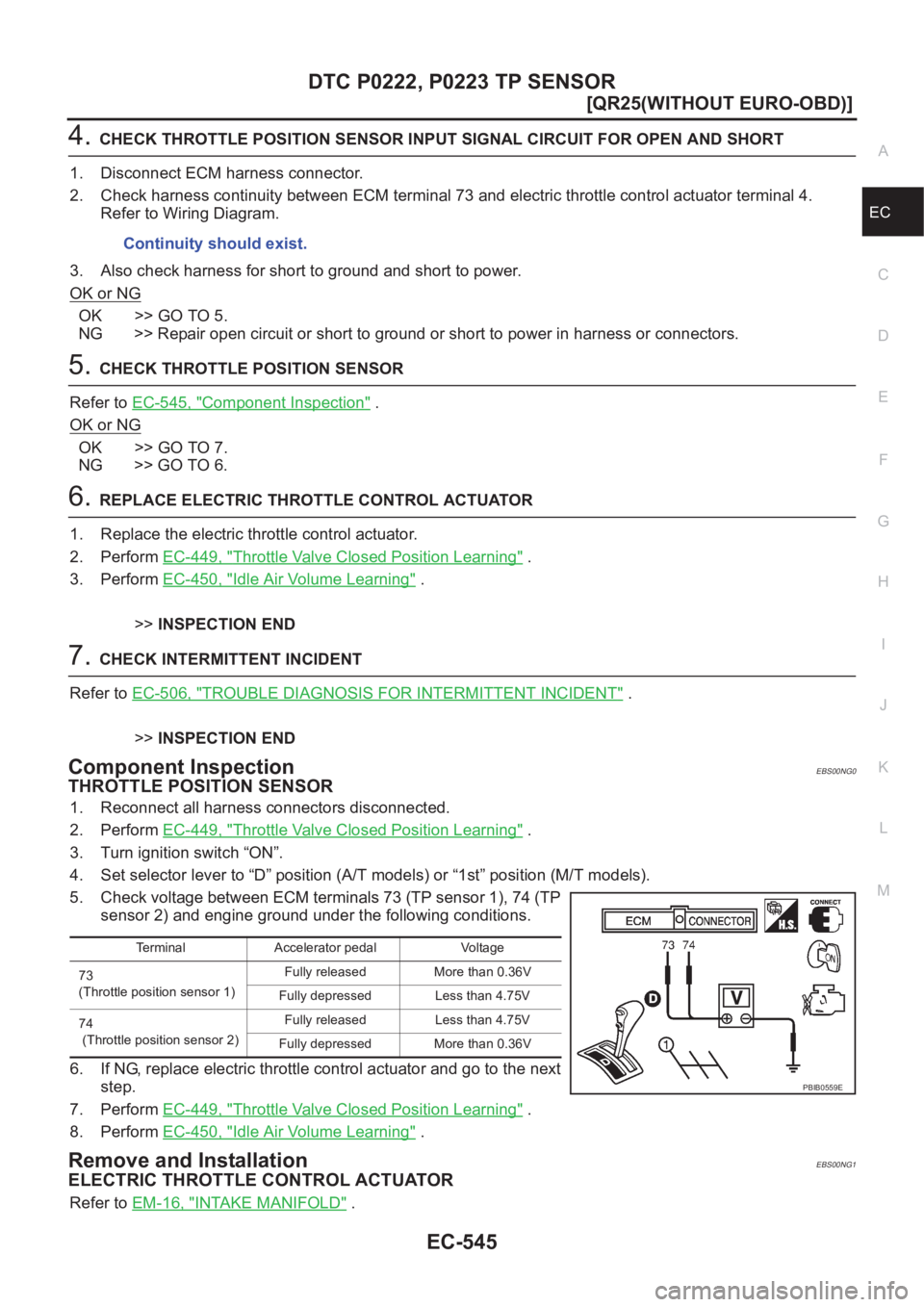

4.CHECK THROTTLE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 73 and electric throttle control actuator terminal 4.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK THROTTLE POSITION SENSOR
Refer to EC-545, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-449, "
Throttle Valve Closed Position Learning" .
3. Perform EC-450, "
Idle Air Volume Learning" .
>>INSPECTION END
7.CHECK INTERMITTENT INCIDENT
Refer to EC-506, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00NG0
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-449, "
Throttle Valve Closed Position Learning" .
3. Turn ignition switch “ON”.
4. Set selector lever to “D” position (A/T models) or “1st” position (M/T models).
5. Check voltage between ECM terminals 73 (TP sensor 1), 74 (TP
sensor 2) and engine ground under the following conditions.
6. If NG, replace electric throttle control actuator and go to the next
step.
7. Perform EC-449, "
Throttle Valve Closed Position Learning" .
8. Perform EC-450, "
Idle Air Volume Learning" .
Remove and InstallationEBS00NG1
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-16, "INTAKE MANIFOLD" . Continuity should exist.
Terminal Accelerator pedal Voltage
73
(Throttle position sensor 1)Fully released More than 0.36V
Fully depressed Less than 4.75V
74
(Throttle position sensor 2)Fully released Less than 4.75V
Fully depressed More than 0.36V
PBIB0559E

EC-546
[QR25(WITHOUT EURO-OBD)]
DTC P0327, P0328 KS
DTC P0327, P0328 KS
PFP:22060
Component DescriptionEBS00NG2
The knock sensor is attached to the cylinder block. It senses engine knocking using a piezoelectric element. A
knocking vibration from the cylinder block is sensed as vibrational pressure. This pressure is converted into a
voltage signal and sent to the ECM.
ECM Terminals and Reference ValueEBS00NG3
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00NG4
The MI will not light up for these diagnosis.
DTC Confirmation ProcedureEBS00NG5
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode with CONSULT-II.
PBIB0512E
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
82 W Knock sensor[Engine is running]
●Idle speedApproximately 2.5V
DTC No.Trouble Diagnosis
NameDTC Detected Condition Possible Cause
P0327
0327Knock sensor circuit
low inputAn excessively low voltage from the sensor is
sent to ECM.
●Harness or connectors
(The sensor circuit is open or shorted.)
●Knock sensor P0328
0328Knock sensor circuit
high inputAn excessively high voltage from the sensor is
sent to ECM.

DTC P0327, P0328 KS
EC-547
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. Start engine and run it for at least 5 seconds at idle speed.
3. If 1st trip DTC is detected, go to EC-549, "
Diagnostic Procedure"
.
WITHOUT CONSULT-II
1. Start engine and run it for at least 5 seconds at idle speed.
2. Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.
3. Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.
4. If 1st trip DTC is detected, go to EC-549, "
Diagnostic Procedure" .
SEF058Y

EC-548
[QR25(WITHOUT EURO-OBD)]
DTC P0327, P0328 KS

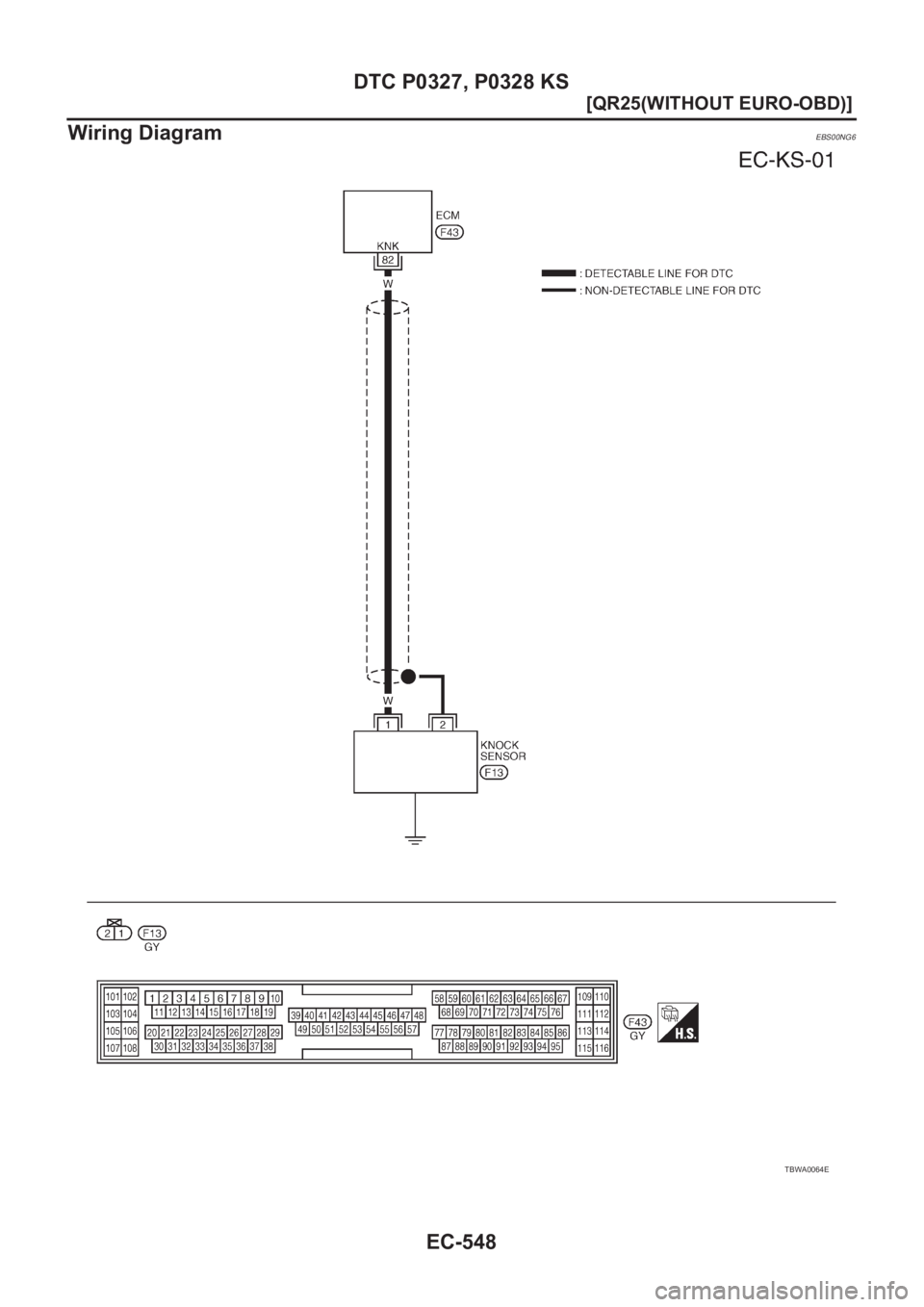

Wiring Diagram
EBS00NG6
TBWA0064E

DTC P0327, P0328 KS
EC-549
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

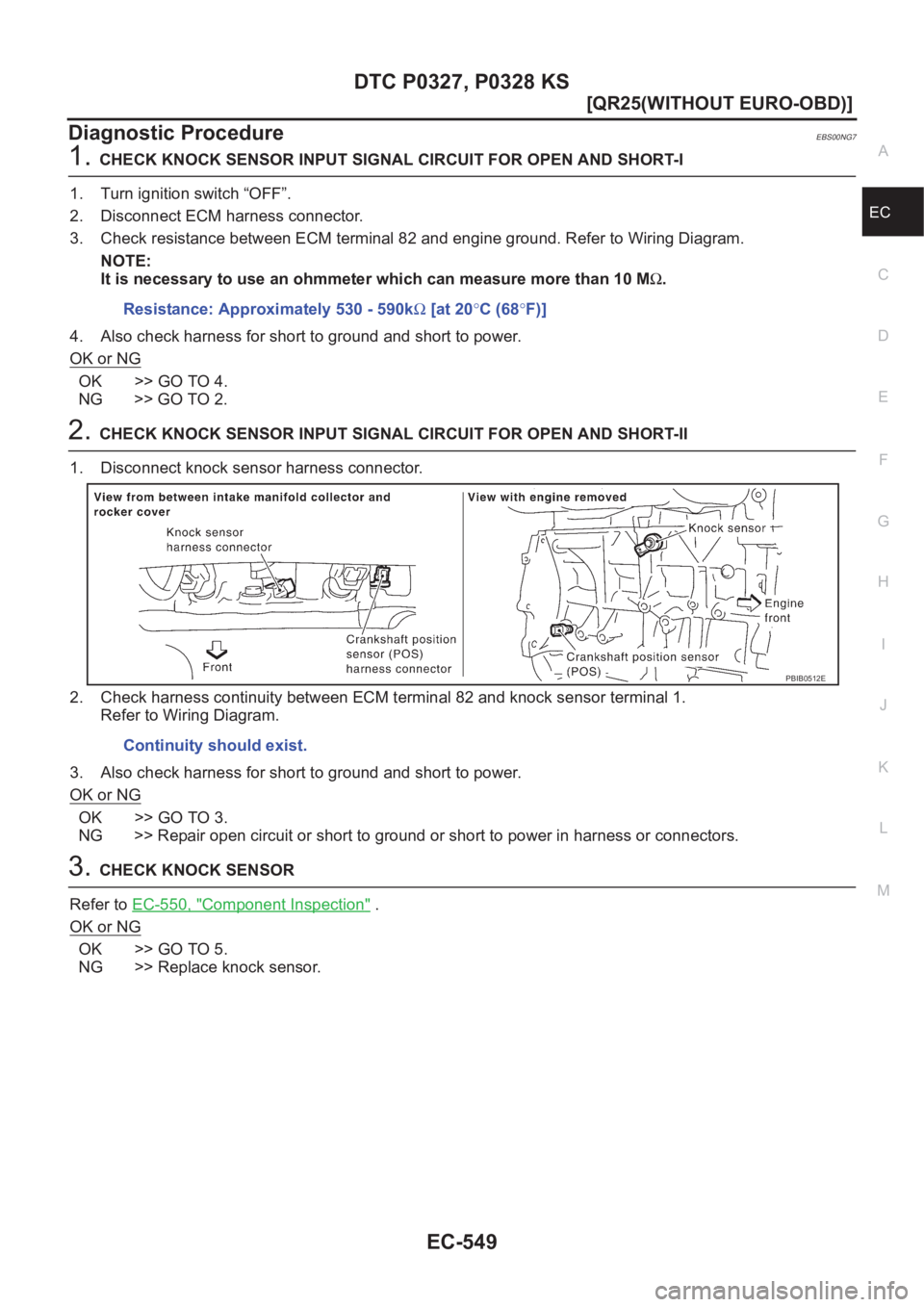

Diagnostic ProcedureEBS00NG7
1.CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check resistance between ECM terminal 82 and engine ground. Refer to Wiring Diagram.
NOTE:
It is necessary to use an ohmmeter which can measure more than 10 MΩ.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2.CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect knock sensor harness connector.
2. Check harness continuity between ECM terminal 82 and knock sensor terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK KNOCK SENSOR
Refer to EC-550, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace knock sensor.Resistance: Approximately 530 - 590kΩ [at 20°C (68°F)]
Continuity should exist.
PBIB0512E

EC-550
[QR25(WITHOUT EURO-OBD)]
DTC P0327, P0328 KS
4. RETIGHTEN GROUND SCREWS
Loosen and retighten engine ground screws.
>> GO TO 5.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00NG8
KNOCK SENSOR
Check resistance between knock sensor terminal 1 and ground.
NOTE:
It is necessary to use an ohmmeter which can measure more
than 10 MΩ.
CAUTION:
Do not use any knock sensors that have been dropped or phys-
ically damaged. Use only new ones.
Removal and InstallationEBS00NG9
KNOCK SENSOR
Refer to EM-73, "CYLINDER BLOCK" .
PBIB0494E
Resistance: Approximately 530 - 590kΩ [at 20°C (68°F)]
SEF478Y
