80 Instruments and Controls
Vehicle Messages
Messages are indicated mainly in
the Driver Information Centre (DIC),
in some cases together with a
warning and signal buzzer.
PressSET/CLR, MENUor turn the
adjuster wheel to confirm a
message.
The vehicle messages are
displayed as code numbers.
No. Vehicle message
2 No remote detected, Press clutch
to restart
3 Coolant level low add coolant 4 A/C Off due to high engine temp
5 Steering column is locked
6 Step on brake to release park
brake
7 Turn steering wheel, Turn key Off,
Then On
8 Turn key Off, Then On
–repeat
breath test
9 Turn steering wheel, Start vehicle
again
11 Brakes worn
12 Vehicle overloaded
13 Compressor overheated
15 Check high mounted brake lamp
16 Check brake lamps
17 Headlight levelling malfunction
18 Left dipped beam failure
19 Check rear fog lamp
20 Check right dipped beam lamp
21 Check left position lamp
22 Check right position lamp
23 Reversing light failure
24 Number plate light failure 25 Check left front indicator lamp
26 Left rear turn indicator failure
27 Check right front indicator lamp
28 Check right rear indicator lamp
29 Check trailer brake lamp
30 Check trailer reversing lamp
31 Check left trailer indicator lamp
32 Check right trailer indicator lamp
33 Check trailer rear fog lamp
34 Check trailer rear lamp
35 Replace Battery In Remote Key
36 Stabilitrak Initialising
38 Take steering (text approval still
pending)
48 Side detection system
unavailable
49 Lane departure warning
unavailable
50 Reset bonnet
–see owner's
manual
52 Change timing belt
53 Tighten fuel cap / Electric
vehicles
Page 82 of 217

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Instruments and Controls 81

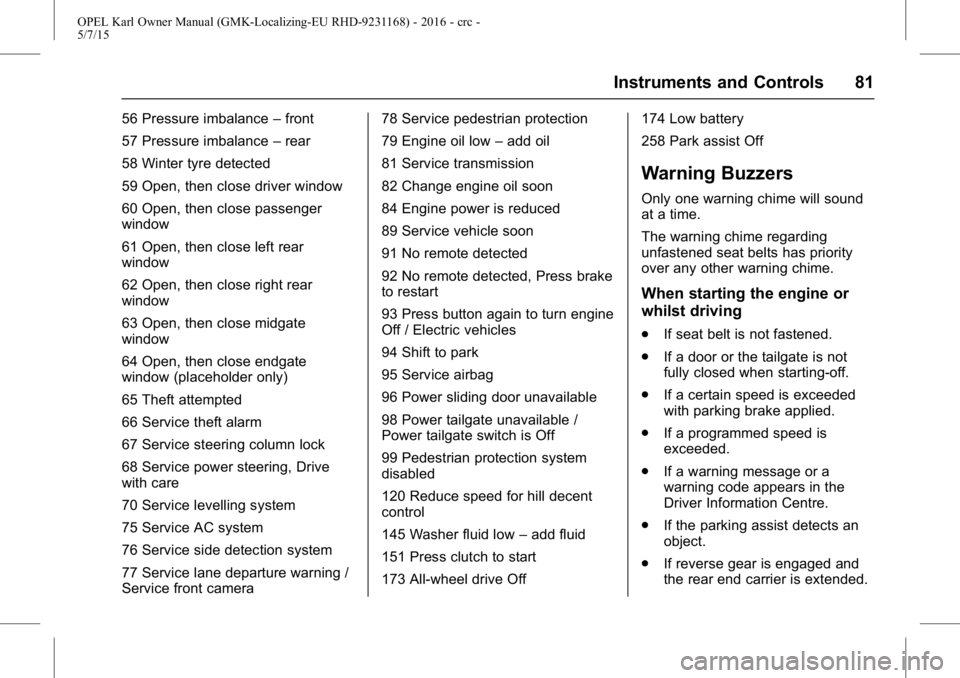

56 Pressure imbalance–front
57 Pressure imbalance –rear
58 Winter tyre detected
59 Open, then close driver window
60 Open, then close passenger
window
61 Open, then close left rear
window
62 Open, then close right rear
window
63 Open, then close midgate
window
64 Open, then close endgate
window (placeholder only)
65 Theft attempted
66 Service theft alarm
67 Service steering column lock
68 Service power steering, Drive
with care
70 Service levelling system
75 Service AC system
76 Service side detection system
77 Service lane departure warning /
Service front camera 78 Service pedestrian protection
79 Engine oil low
–add oil
81 Service transmission
82 Change engine oil soon
84 Engine power is reduced
89 Service vehicle soon
91 No remote detected
92 No remote detected, Press brake
to restart
93 Press button again to turn engine
Off / Electric vehicles
94 Shift to park
95 Service airbag
96 Power sliding door unavailable
98 Power tailgate unavailable /
Power tailgate switch is Off
99 Pedestrian protection system
disabled
120 Reduce speed for hill decent
control
145 Washer fluid low –add fluid
151 Press clutch to start
173 All-wheel drive Off 174 Low battery
258 Park assist Off
Warning Buzzers
Only one warning chime will sound
at a time.
The warning chime regarding
unfastened seat belts has priority
over any other warning chime.
When starting the engine or
whilst driving
.
If seat belt is not fastened.
. If a door or the tailgate is not
fully closed when starting-off.
. If a certain speed is exceeded
with parking brake applied.
. If a programmed speed is
exceeded.
. If a warning message or a
warning code appears in the
Driver Information Centre.
. If the parking assist detects an
object.
. If reverse gear is engaged and
the rear end carrier is extended.
Page 83 of 217

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
82 Instruments and Controls
.If a fault in the automatic locking
system is detected.
When the vehicle is parked
and / or the driver's door is
opened
.With exterior lights on.
During an Autostop
.If the driver's door is opened.
Battery voltage
When the vehicle battery voltage is
running low, a warning message or
warning code 174 will appear in the
Driver Information Centre.
1. Switch off immediately any electrical consumers which are
not required for a safe ride, e.g.
seat heating, heated rear
window or other main
consumers.
2. Charge the vehicle battery by driving continuously for a while
or by using a charging device. The warning message or warning
code will disappear after the engine
has been started twice
consecutively without a
voltage drop.
If the vehicle battery cannot be
recharged, have the cause of the
fault remedied by a workshop.
Vehicle
Personalisation
The vehicle can be personalised by
changing the settings in the
infotainment display.
Depending on vehicle equipment
some of the functions described
below might not be available.
Press
MENU, when ignition is ON
and infotainment system is
activated.
Setting menus displayed.
To switch the Settings menu turn the
MENU knob.
Page 84 of 217

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Instruments and Controls 83
To select the Settings menu,
pressMENU.
To close or back to previous,
press BACK.
Select the "Vehicle settings".
Vehicle Settings
. Park assist / Collision detection
Park assist: Activate or
deactivate the ultrasonic
sensors.
. Comfort settings
Chime volume: Change the
volume of warning chime.
Personalisation by driver:
Activate or deactivate the
personalisation.
Rear auto wipe in reverse:
Activate or deactivate the rear
wipe in reverse gear.
. Language
Select the Language menu item.
Scroll through the list and select
the desired language. .
Exterior ambient lighting
Exterior lighting by unlocking:
Activate or deactivate the entry
lighting.
Duration upon exit of vehicle:
Activate or deactivate of exit
lighting and change the lighting
duration.
. Stop door lock if door open:
Activate or deactivate the
driver's door lock when the door
is open.
If deactivated is selected, the
Delayed door lock menu is
available.
Delayed door lock: Activate or
deactivate the delayed
door lock.
When pressing the central
locking button, three chimes are
sounds to signal delayed locking
is in use. This function will delay
the locking of the doors until
five seconds after the last door
is closed. .
Remote locking, unlocking,
starting
Remote unlock feedback:
Activate or deactivate the light
feedback while unlocking.
Remote door unlock: Change
the configuration to unlock only
the driver's door or the all doors
while unlocking.
Auto relock doors: Activate or
deactivate the door automatically
locking when door is not opened
after unlocking.
. Restore factory settings
All settings are restored to initial
settings.
. Valet mode
if valet mode is activated, all
vehicle displays are locked and
no changes may be performed
within the system.
Note
Vehicle-related messages remain
enabled. Locking the system: Press
MENU and then select the
SETTINGS Menu.
Page 85 of 217

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
84 Instruments and Controls
Scroll through the list and select
the Valet Mode menu item.
Enter a four-digit code and
select theENTER.
To confirm the first input,
re-enter the four-digit code and
select the LOCK. The system is
locked.
Unlocking the system: Turn the
Infotainment system on.
Enter the respective four-digit
code and select the UNLOCK.
The system is unlocked.
Forgotten PIN code: To reset the
PIN code to the default setting,
contact your Opel Service
Partner.
Page 86 of 217

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Lighting 85
Lighting
Exterior Lighting
Exterior Lamp Controls . . . . . . . . 85
Headlamp Main/Dipped-BeamChanger . . . . . . . . . . . . . . . . . . . . . . 86
Headlamp Range Adjustment . . . . . . . . . . . . . . . . . . . 86
Headlights When Driving Abroad . . . . . . . . . . . . . . . . . . . . . . . 86
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . 86
Hazard Lights . . . . . . . . . . . . . . . . . . 87
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . 87
Front Fog Lamps . . . . . . . . . . . . . . 87
Rear Fog Lamps . . . . . . . . . . . . . . . 88
Cornering Lights . . . . . . . . . . . . . . . 88
Position Lamps . . . . . . . . . . . . . . . . 88
Reversing Lamps . . . . . . . . . . . . . . 89
Misted Lamp Covers . . . . . . . . . . . 89
Interior Lighting
Instrument Panel Illumination Control . . . . . . . . . . . . . . . . . . . . . . . 89
Interior Lamps . . . . . . . . . . . . . . . . . 89
Lighting Features
Centre Console Lighting . . . . . . . 90
Entry Lighting . . . . . . . . . . . . . . . . . . 90 Exit Lighting . . . . . . . . . . . . . . . . . . . 91
Battery Power Protection . . . . . . 91
Exterior Lighting
Exterior Lamp Controls
Light Switch
Turn light switch:
O
: Lights off
;: Sidelights
2: Dipped beam
Control indicator
; 0Tail light
Indicator Light 074.
When dipped beam is on,
;
illuminates. Control indicator; 0
Tail light Indicator Light 074.
Page 87 of 217

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
86 Lighting
Tail lights
Tail lights are illuminated together
with dipped beam and sidelights.
Headlamp Main/
Dipped-Beam Changer
To switch from low to main beam,
push lever.
To switch to dipped beam, push
lever again or pull.
Headlight flash
To activate the headlight flash, pull
lever.
Headlamp Range
Adjustment
Manual headlight range
adjustment
To adapt headlight range to the
vehicle load to prevent dazzling:
turn thumb wheel
9to required
position.
0 : Front seats occupied
1 : All seats occupied
2 : All seats occupied and load
compartment laden
3 : Driver's seat occupied and load
compartment laden
Headlights When Driving
Abroad
The asymmetrical headlight beam
extends visibility at the edge of the
road on the front passenger side.
However, when driving in countries
where traffic drives on the opposite
side of the road, adjust the
headlights to prevent dazzling of
oncoming traffic.
Have the headlights adjusted by a
workshop.
Daytime Running
Lamps (DRL)
Daytime running light increases
visibility of the vehicle during
daylight.
They are switched on automatically
when ignition is on.
Page 88 of 217

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Lighting 87

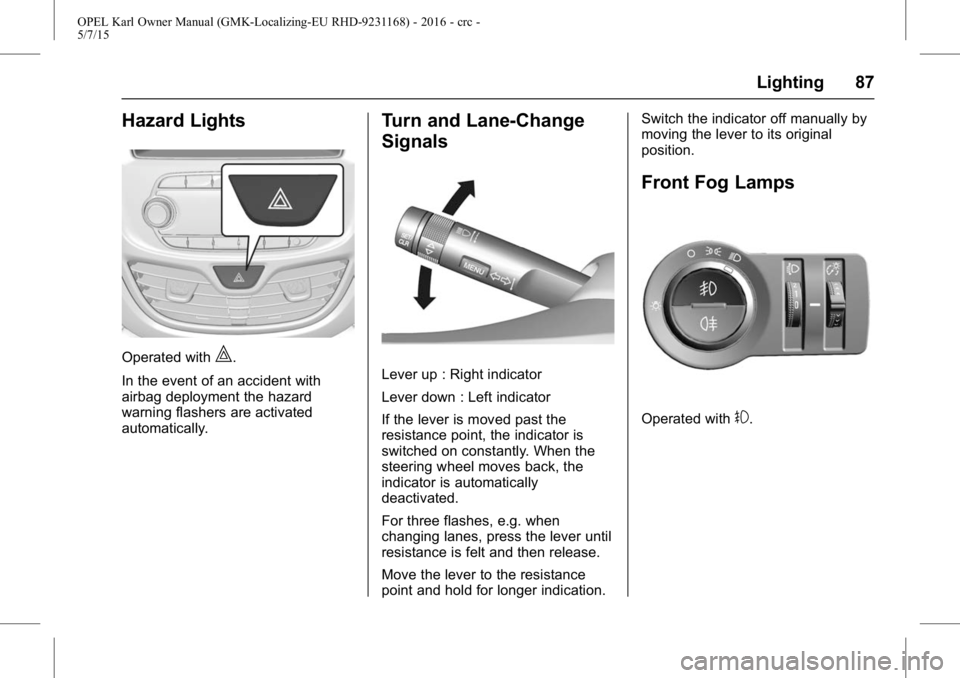

Hazard Lights
Operated with|.
In the event of an accident with
airbag deployment the hazard
warning flashers are activated
automatically.
Turn and Lane-Change
Signals
Lever up : Right indicator
Lever down : Left indicator
If the lever is moved past the
resistance point, the indicator is
switched on constantly. When the
steering wheel moves back, the
indicator is automatically
deactivated.
For three flashes, e.g. when
changing lanes, press the lever until
resistance is felt and then release.
Move the lever to the resistance
point and hold for longer indication. Switch the indicator off manually by
moving the lever to its original
position.
Front Fog Lamps
Operated with#.
Page 89 of 217

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15

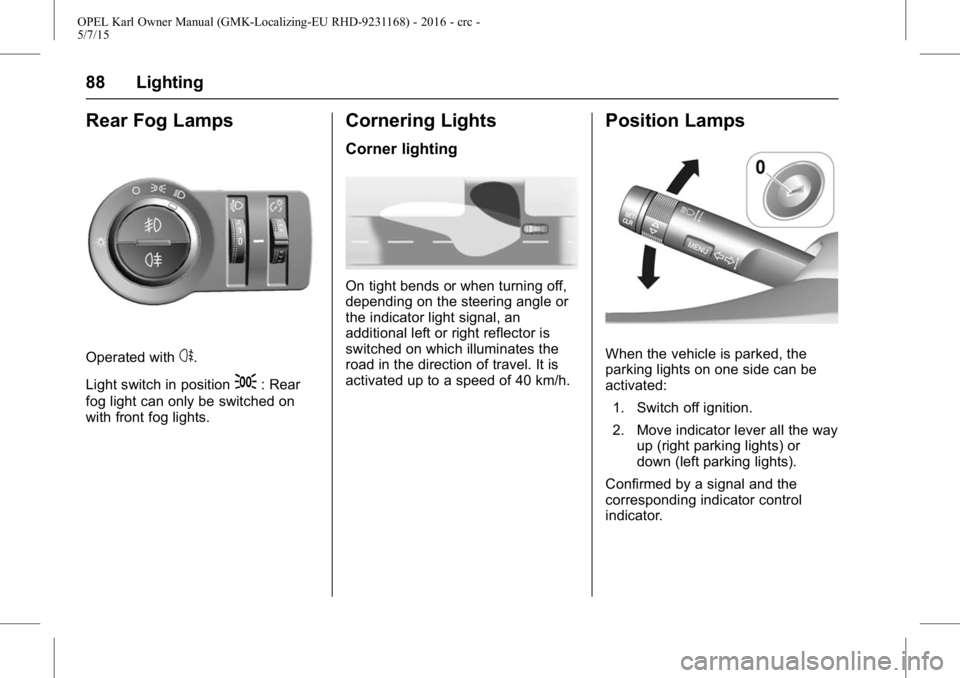

88 Lighting
Rear Fog Lamps
Operated withs.
Light switch in position
;: Rear
fog light can only be switched on
with front fog lights.
Cornering Lights
Corner lighting
On tight bends or when turning off,
depending on the steering angle or
the indicator light signal, an
additional left or right reflector is
switched on which illuminates the
road in the direction of travel. It is
activated up to a speed of 40 km/h.
Position Lamps
When the vehicle is parked, the
parking lights on one side can be
activated:
1. Switch off ignition.
2. Move indicator lever all the way up (right parking lights) or
down (left parking lights).
Confirmed by a signal and the
corresponding indicator control
indicator.
Page 90 of 217

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Lighting 89
Reversing Lamps
The reversing light comes on when
the ignition is on and reverse gear is
selected.
Misted Lamp Covers
The inside of the light housing may
mist up briefly in poor, wet and cold
weather conditions, in heavy rain or
after washing. The mist disappears
quickly by itself; to help switch on
the exterior lights.
Interior Lighting
Instrument Panel
Illumination Control
Brightness of the following lights
can be adjusted when the exterior
lights are on :
.instrument panel illumination
. info-Display
. illuminated switches and
operation elements
Turn thumb wheel
Duntil the
required brightness is obtained. On vehicles with light sensor the
brightness can only be adjusted
when the exterior lights are on and
the light sensor detects night
conditions.
Interior Lamps
During entry and exit of the vehicle,
the front courtesy lights
automatically switch on and then off
after a delay.
Note
In the event of an accident with
airbag deployment the courtesy
lights are turned on automatically.
