PEUGEOT 108 2015 Owners Manual

149
108_en_Chap09_info-pratiques_ed01-2015

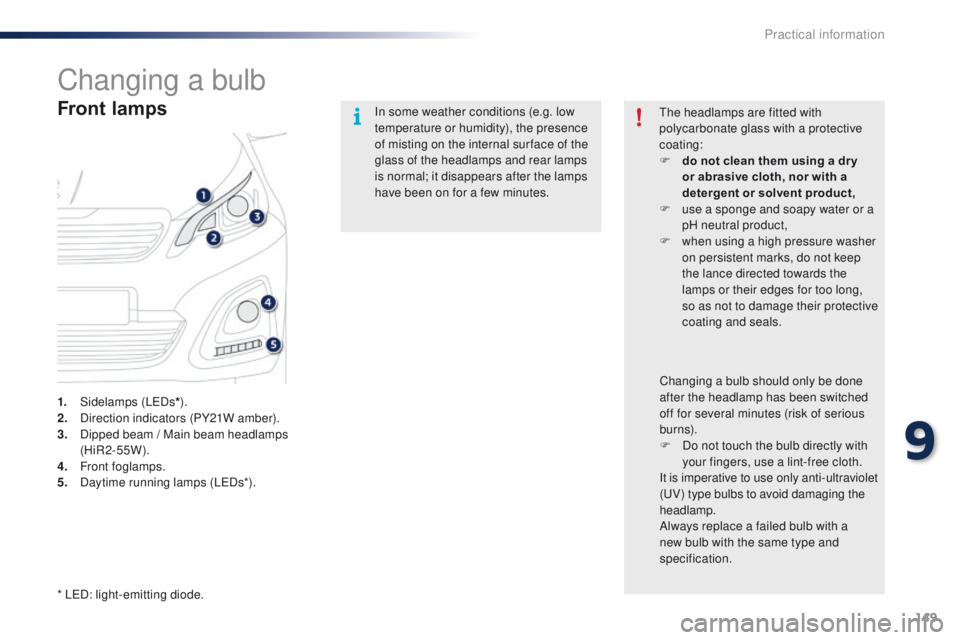

Changing a bulb
Front lamps
1. Sidelamps (LeDs*).
2. D irection indicators (PY21W amber).
3.
D

ipped beam / Main beam headlamps
(HiR2-55W).
4.
F

ront foglamps.
5.
D

aytime running lamps (L e
D
s*).In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
th

e headlamps are fitted with
polycarbonate glass with a protective
coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
u
se a sponge and soapy water or a
pH neutral product,
F
w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-ultraviolet
(
uV

) type bulbs to avoid damaging the
headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
* L
eD

: light-emitting diode.
9
Practical information

150
108_en_Chap09_info-pratiques_ed01-2015

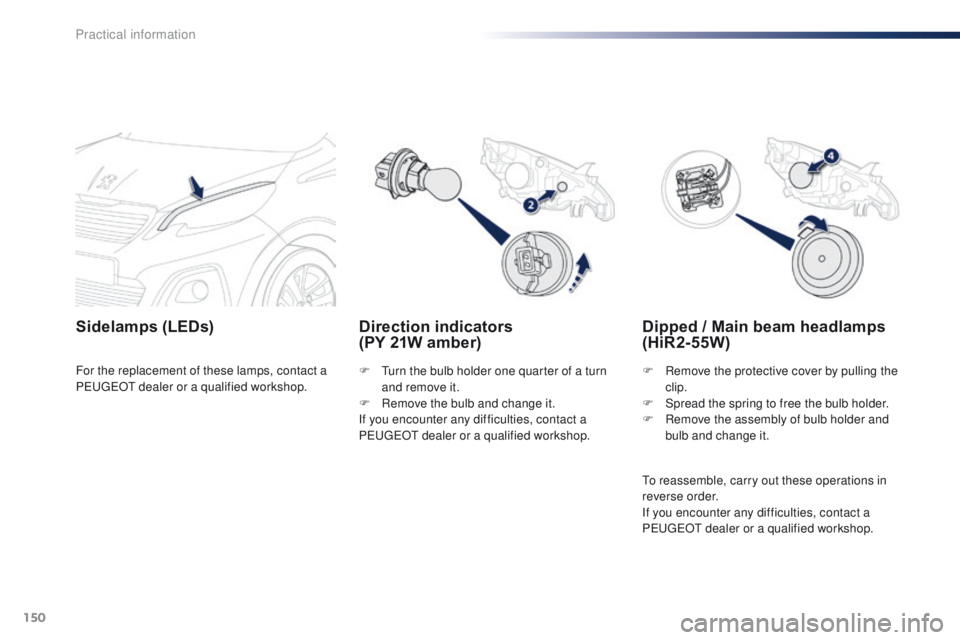

Direction indicators
(PY 21W amber)
Sidelamps (LEDs)
F turn the bulb holder one quarter of a turn
and remove it.
F

R
emove the bulb and change it.
If you encounter any difficulties, contact a
P
e

uge
Ot
dealer or a qualified workshop.
For the replacement of these lamps, contact a
Pe
ugeOt
dealer or a qualified workshop.
Dipped / Main beam headlamps
(HiR2-55W)
F Remove the protective cover by pulling the
clip.
F

S
pread the spring to free the bulb holder.
F

R
emove the assembly of bulb holder and
bulb and change it.
to r

eassemble, carry out these operations in
reverse order.
If you encounter any difficulties, contact a
P
e

uge
Ot
dealer or a qualified workshop.
Practical information

151
108_en_Chap09_info-pratiques_ed01-2015

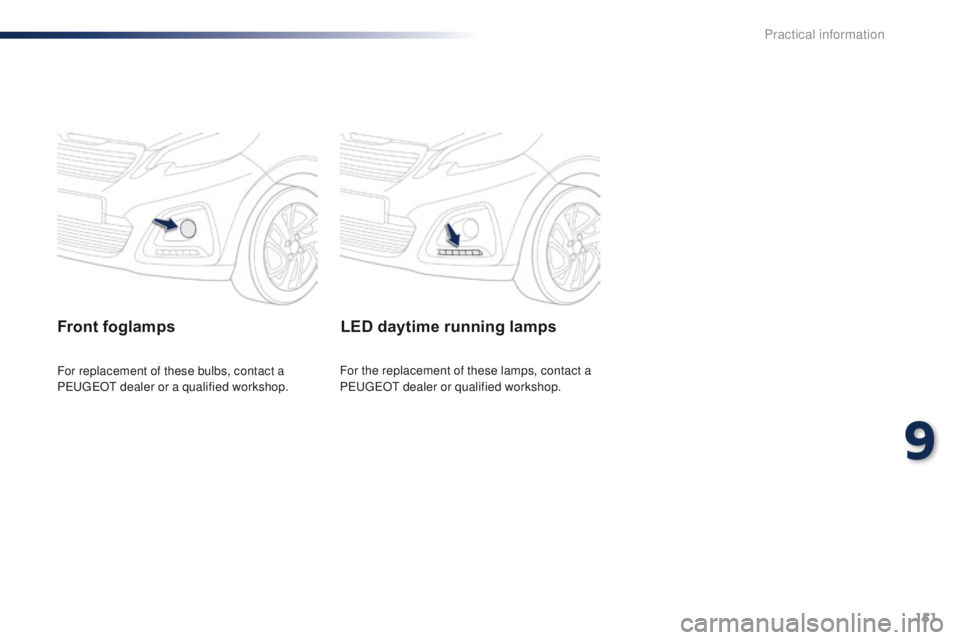

Front foglamps
For replacement of these bulbs, contact a
PeugeOt dealer or a qualified workshop.
LED daytime running lamps
For the replacement of these lamps, contact a
PeugeOt dealer or qualified workshop.
9
Practical information

152
108_en_Chap09_info-pratiques_ed01-2015

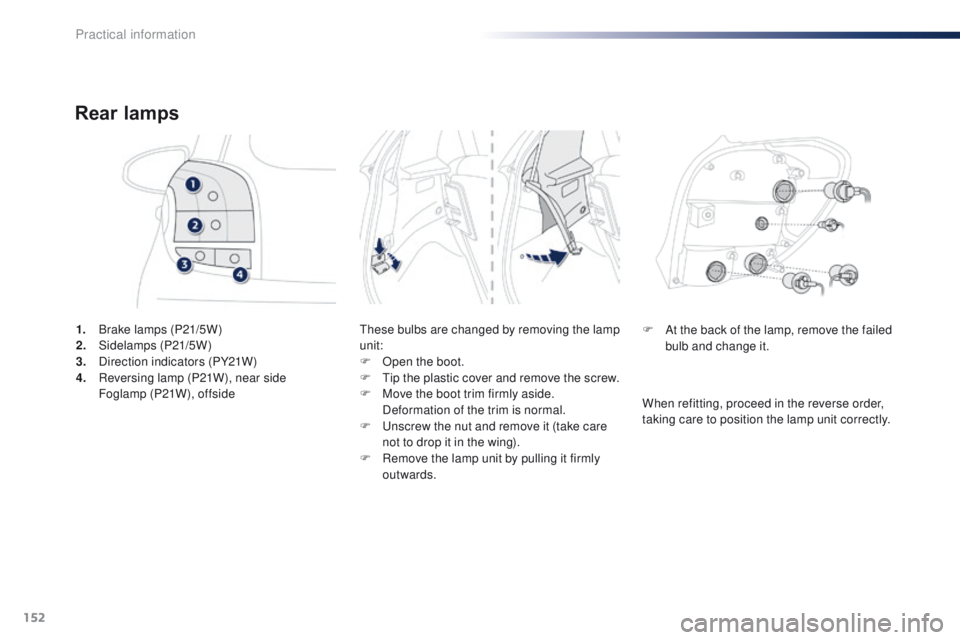

1. Brake lamps (P21/5W)
2. Sidelamps (P21/5W)
3.
D

irection indicators (PY21W)
4.
R

eversing lamp (P21W), near side
F

oglamp (P21W), offside
Rear lamps
these bulbs are changed by removing the lamp
unit:
F
O
pen the boot.
F
t
i
p the plastic cover and remove the screw.
F

M
ove the boot trim firmly aside.
D

eformation of the trim is normal.
F
u
n
screw the nut and remove it (take care
not to drop it in the wing).
F

R
emove the lamp unit by pulling it firmly
outwards. F
A t the back of the lamp, remove the failed
bulb and change it.
When refitting, proceed in the reverse order,
taking care to position the lamp unit correctly.
Practical information

153
108_en_Chap09_info-pratiques_ed01-2015

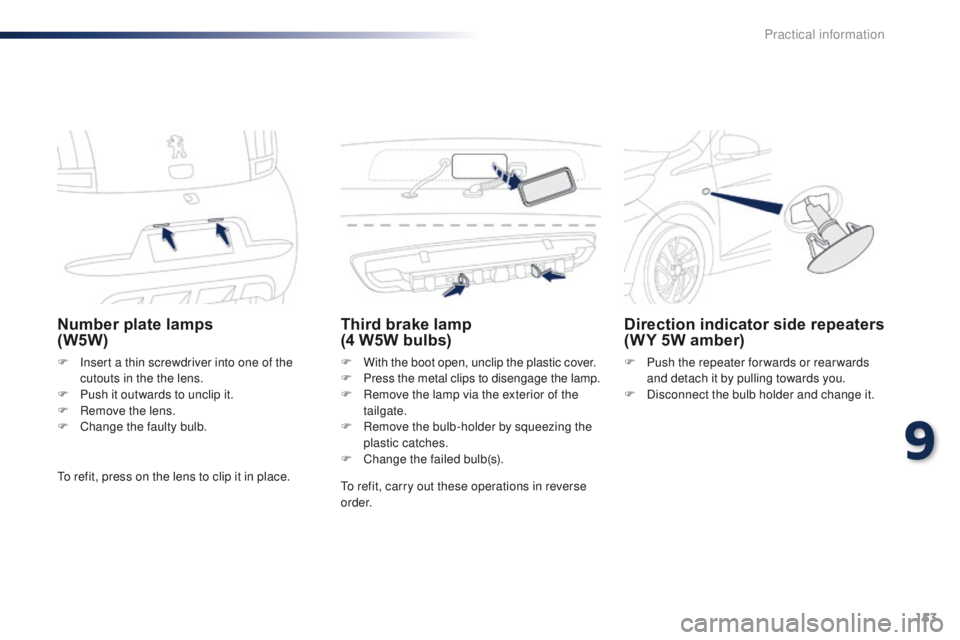

Number plate lamps
(W5W)
F Insert a thin screwdriver into one of the cutouts in the the lens.
F

P
ush it outwards to unclip it.
F

R
emove the lens.
F

C
hange the faulty bulb.
Third brake lamp
(4 W5W bulbs)
F With the boot open, unclip the plastic cover.
F P ress the metal clips to disengage the lamp.
F

R
emove the lamp via the exterior of the
tailgate.
F

R
emove the bulb-holder by squeezing the
plastic catches.
F

C
hange the failed bulb(s).
Direction indicator side repeaters
(WY 5W amber)
F Push the repeater for wards or rear wards and detach it by pulling towards you.
F

D
isconnect the bulb holder and change it.
to r

efit, press on the lens to clip it in place.
to r

efit, carry out these operations in reverse
o r d e r.
9
Practical information

154
108_en_Chap09_info-pratiques_ed01-2015

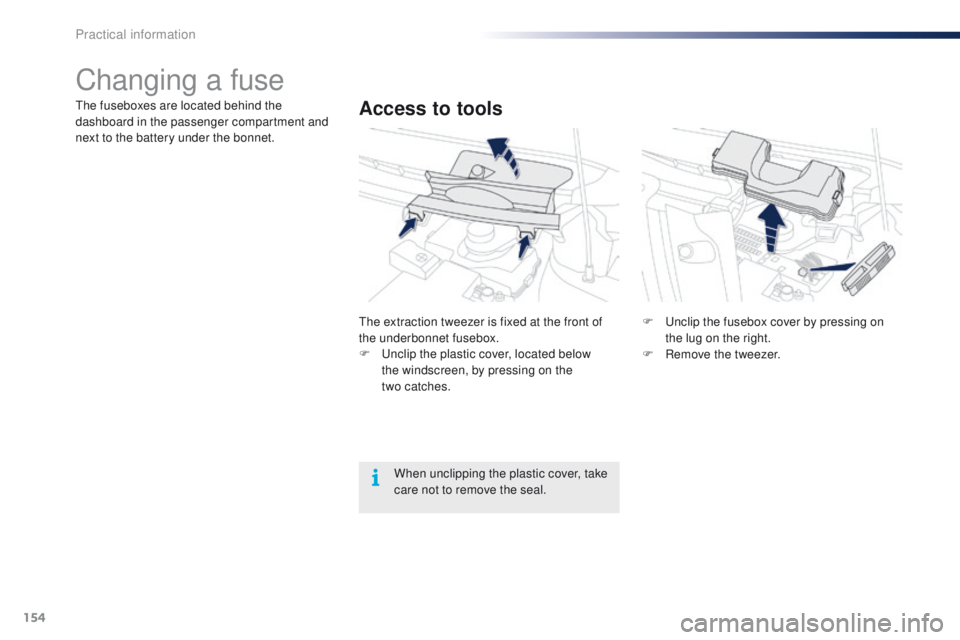

Changing a fuse
Access to toolsthe fuseboxes are located behind the
dashboard in the passenger compartment and
next to the battery under the bonnet.
th
e extraction tweezer is fixed at the front of
the underbonnet fusebox.
F
u
n
clip the plastic cover, located below
the windscreen, by pressing on the
two


catches.F
u
n
clip the fusebox cover by pressing on
the lug on the right.
F

R
emove the tweezer.
When unclipping the plastic cover, take
care not to remove the seal.
Practical information

155
108_en_Chap09_info-pratiques_ed01-2015
Before changing a fuse, it is necessary to:
F i mmobilise the vehicle and switch off the
ignition,
F

s
witch off all electrical consumers,
F

i
dentify the failed fuse using the fuse
allocation tables and diagrams in the
following pages,
F

i
dentify and correct the cause of the
problem.

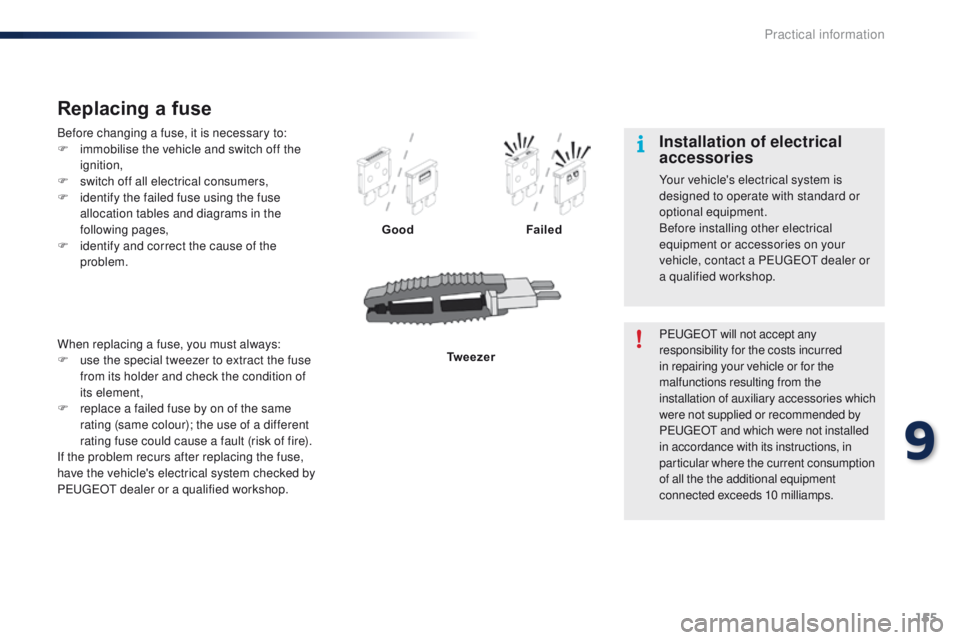

Replacing a fuse
Good Failed
Tw e e z e r
When replacing a fuse, you must always:
F

u

se the special tweezer to extract the fuse
from its holder and check the condition of
its element,
F

r

eplace a failed fuse by on of the same
rating (same colour); the use of a different
rating fuse could cause a fault (risk of fire).
If the problem recurs after replacing the fuse,
have the vehicle's electrical system checked by
P
e

uge
Ot

dealer or a qualified workshop. P
e

uge
Ot
will not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the
installation of auxiliary accessories which
were not supplied or recommended by
P
e

uge
Ot
and which were not installed
in accordance with its instructions, in
particular where the current consumption
of all the the additional equipment
connected exceeds 10 milliamps.
Installation of electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a P
e

uge
Ot
dealer or
a qualified workshop.
9
Practical information

156
108_en_Chap09_info-pratiques_ed01-2015

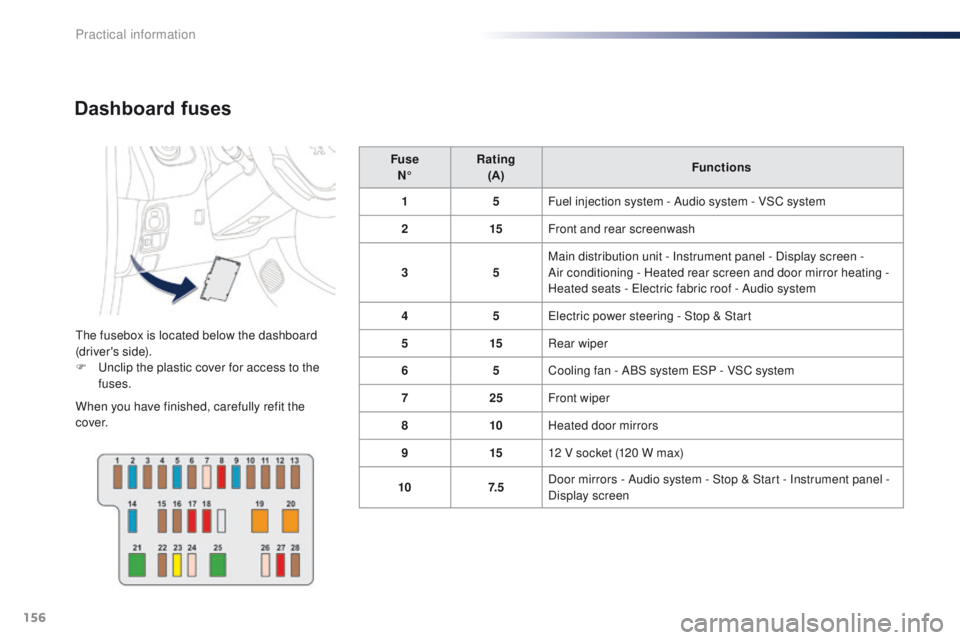

Dashboard fuses
the fusebox is located below the dashboard
(driver's side).
F u
n
clip the plastic cover for access to the
fuses.
When you have finished, carefully refit the
c ove r. Fuse

N° Rating

(A) Functions
1 5Fuel injection system - Audio system - VSC system
2 15Front and rear screenwash
3 5Main distribution unit - Instrument panel - Display screen -
Air conditioning - Heated rear screen and door mirror heating -
Heated seats - e
l
ectric fabric roof - Audio system
4 5
el
ectric power steering - Stop & Start
5 15Rear wiper
6 5Cooling fan - ABS system
e
S
P - VSC system
7 25Front wiper
8 10Heated door mirrors
9 1512 V socket (120 W max)
10 7. 5Door mirrors - Audio system - Stop & Start - Instrument panel -
Display screen
Practical information

157
108_en_Chap09_info-pratiques_ed01-2015

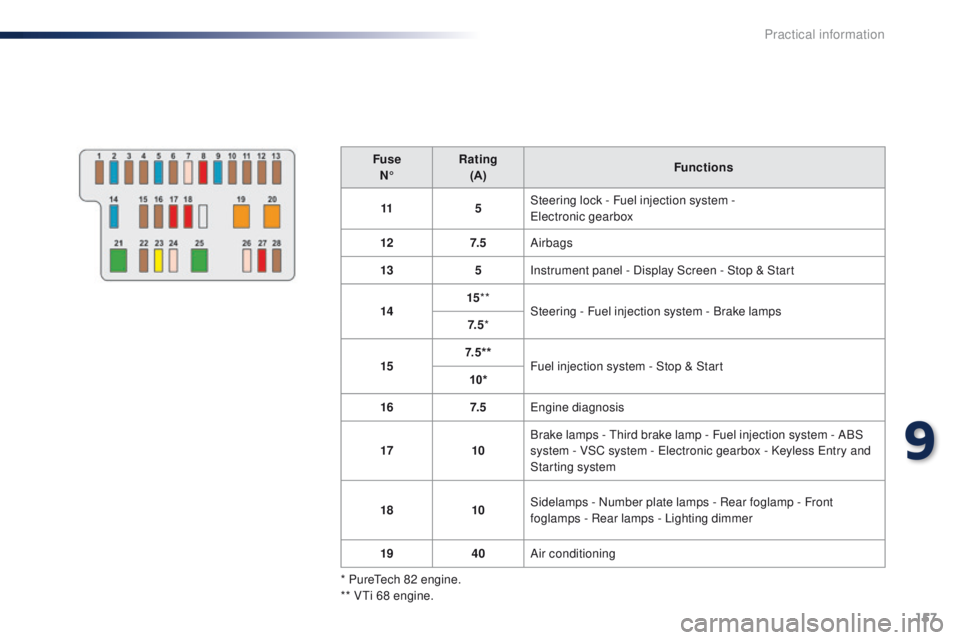

FuseN° Rating
(A) Functions
11 5Steering lock - Fuel injection system -
ele

ctronic gearbox
12 7. 5Airbags
13 5Instrument panel - Display Screen - Stop & Start
14 15
**
Steering - Fuel injection system - Brake lamps
7. 5 *
15 7. 5 * *
Fuel injection system - Stop & Start
10*
16 7. 5
en

gine diagnosis
17 10Brake lamps -
t
h
ird brake lamp - Fuel injection system - ABS
system - VSC system -
e
l
ectronic gearbox - Keyless e
n
try and
Starting system
18 10Sidelamps - Number plate lamps - Rear foglamp - Front
foglamps - Rear lamps - Lighting dimmer
19 40Air conditioning
* Pure
te

ch 82 engine.
** V
ti 6

8 engine.
9
Practical information

158
108_en_Chap09_info-pratiques_ed01-2015

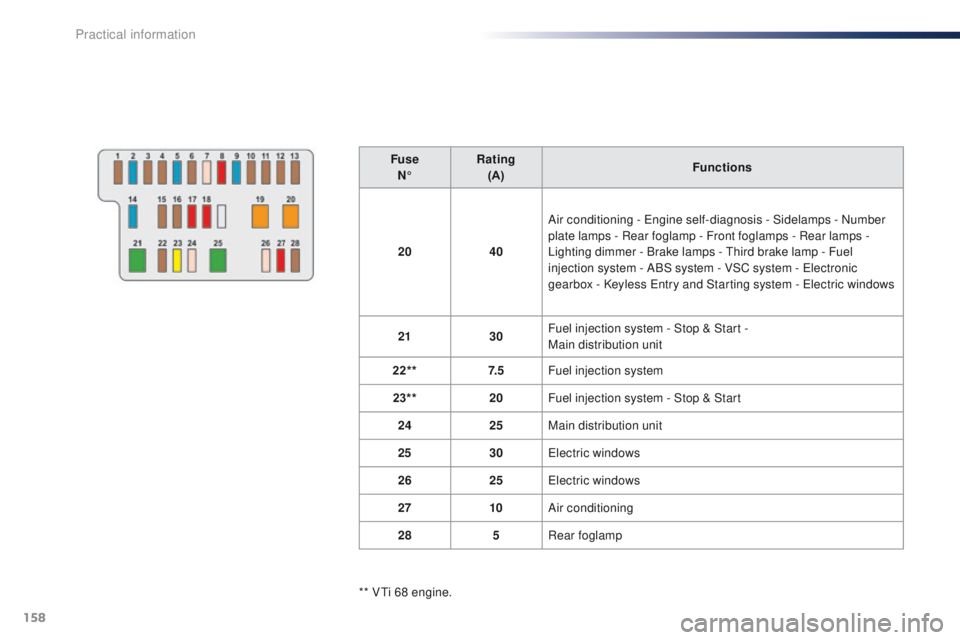

FuseN° Rating
(A) Functions
20 40Air conditioning -
e
n
gine self-diagnosis - Sidelamps - Number
plate lamps - Rear foglamp - Front foglamps - Rear lamps


-
Lighting dimmer - Brake lamps -
t
h
ird brake lamp - Fuel
injection system - ABS system - VSC system -
e
l
ectronic
gearbox - Keyless
e
n
try and Starting system - e
l
ectric windows
21 30Fuel injection system - Stop & Start -
Main distribution unit
22** 7. 5Fuel injection system
23** 20Fuel injection system - Stop & Start
24 25Main distribution unit
25 30
el

ectric windows
26 25
el

ectric windows
27 10Air conditioning
28 5Rear foglamp
** V
ti 6

8 engine.
Practical information
