PEUGEOT 108 2015 Owners Manual

189
108_en_Chap12a_Autoradio-Toyota-tactile-1_ed01-2015

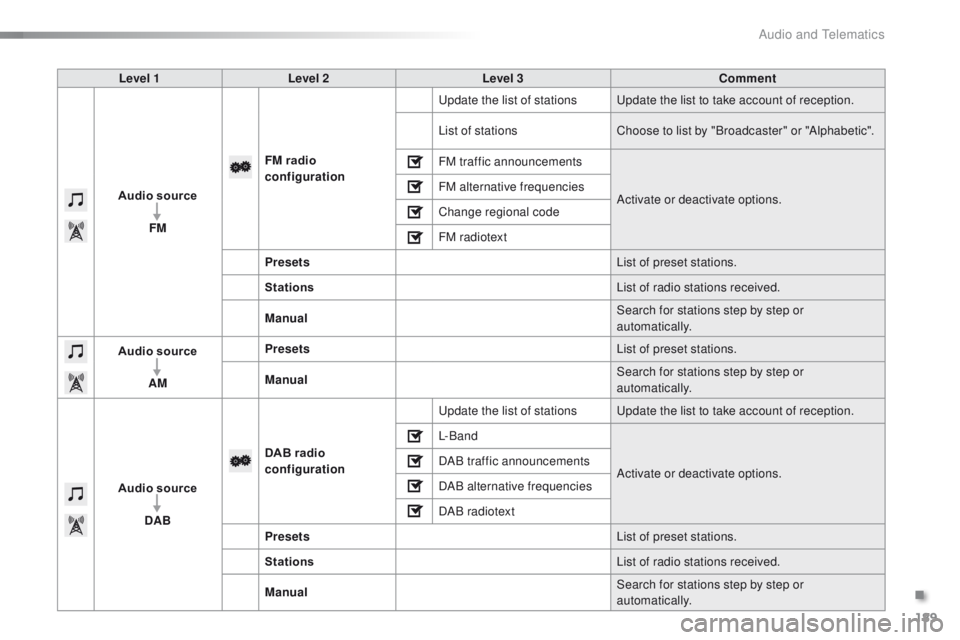

Level 1Level 2 Level 3 Comment
Audio source FM FM
radio
configuration
up

date the list of stations
up
date the list to take account of reception.
List of stations Choose to list by "Broadcaster" or "Alphabetic".
FM traffic announcements
Activate or deactivate options.
FM alternative frequencies
Change regional code
FM radiotext
Presets List of preset stations.
Stations List of radio stations received.
Manual Search for stations step by step or
automatically.
Audio source
AM Presets
List of preset stations.
Manual Search for stations step by step or
automatically.
Audio source DAB DAB radio
configuration
up

date the list of stations
up
date the list to take account of reception.
L- B a n d
Activate or deactivate options.
DAB traffic announcements
DAB alternative frequencies
DAB radiotext
Presets List of preset stations.
Stations List of radio stations received.
Manual Search for stations step by step or
automatically.
.
Audio and Telematics

190
108_en_Chap12a_Autoradio-Toyota-tactile-1_ed01-2015
Level 1Level 2Level 3
Audio and Telematics

191
108_en_Chap12a_Autoradio-Toyota-tactile-1_ed01-2015

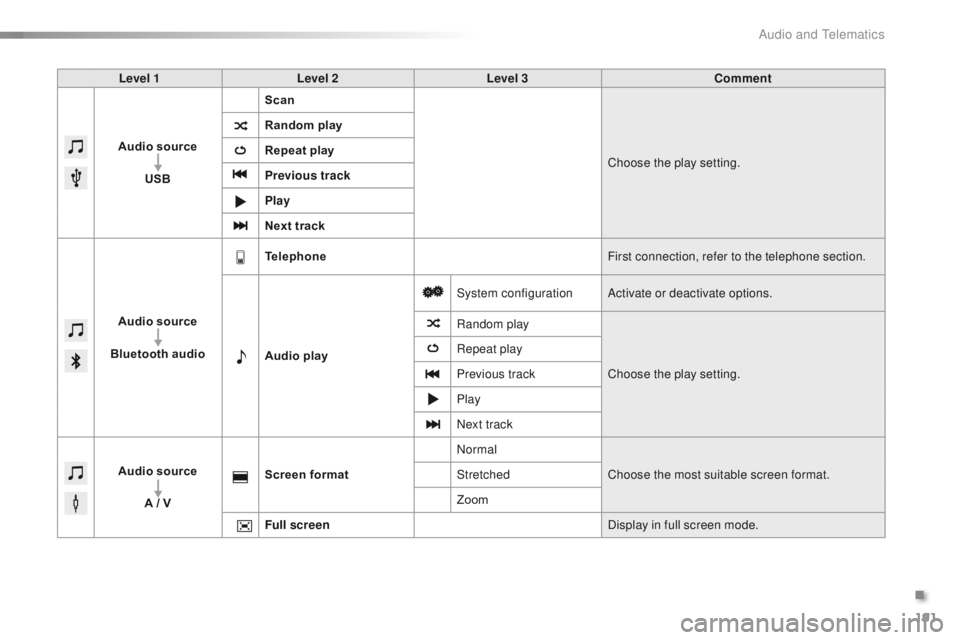

Level 1Level 2 Level 3 Comment
Audio source USB Scan
Choose the play setting.
Random play
Repeat play
Previous track
Play
Next track
Audio source
Bluetooth audio Telephone
First connection, refer to the telephone section.
Audio play System configuration
Activate or deactivate options.
Random play
Choose the play setting.
Repeat play
Previous track
Play
Next track
Audio source A / V Screen format
Normal
Choose the most suitable screen format.
Stretched
Zoom
Full screen Display in full screen mode.
.
Audio and Telematics

192
108_en_Chap12a_Autoradio-Toyota-tactile-1_ed01-2015

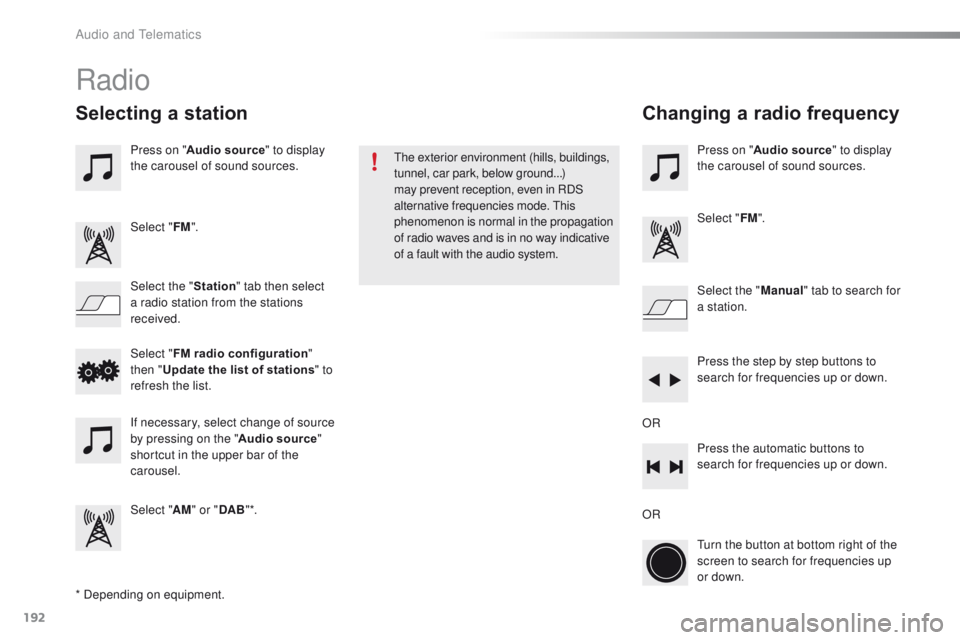

Radio
* Depending on equipment.
Selecting a station
Press on "Audio source " to display
the carousel of sound sources.
Select " FM".
Select the " Station" tab then select
a radio station from the stations
received. Select the "
Manual" tab to search for
a station.
Select " FM radio configuration "
then " Update the list of stations " to
refresh the list.
If necessary, select change of source
by pressing on the " Audio source"
shortcut in the upper bar of the
carousel.
Select " AM" or " DAB" *. Press on "
Audio source " to display
the carousel of sound sources.
Select " FM".
Press the step by step buttons to
search for frequencies up or down.
Press the automatic buttons to
search for frequencies up or down.
tu

rn the button at bottom right of the
screen to search for frequencies up
or down.
OR ORthe
exterior environment (hills, buildings,
tunnel, car park, below ground...)
may prevent reception, even in RDS
alternative frequencies mode.
t
h
is
phenomenon is normal in the propagation
of radio waves and is in no way indicative
of a fault with the audio system.
Changing a radio frequency
Audio and telematics

193
108_en_Chap12a_Autoradio-Toyota-tactile-1_ed01-2015

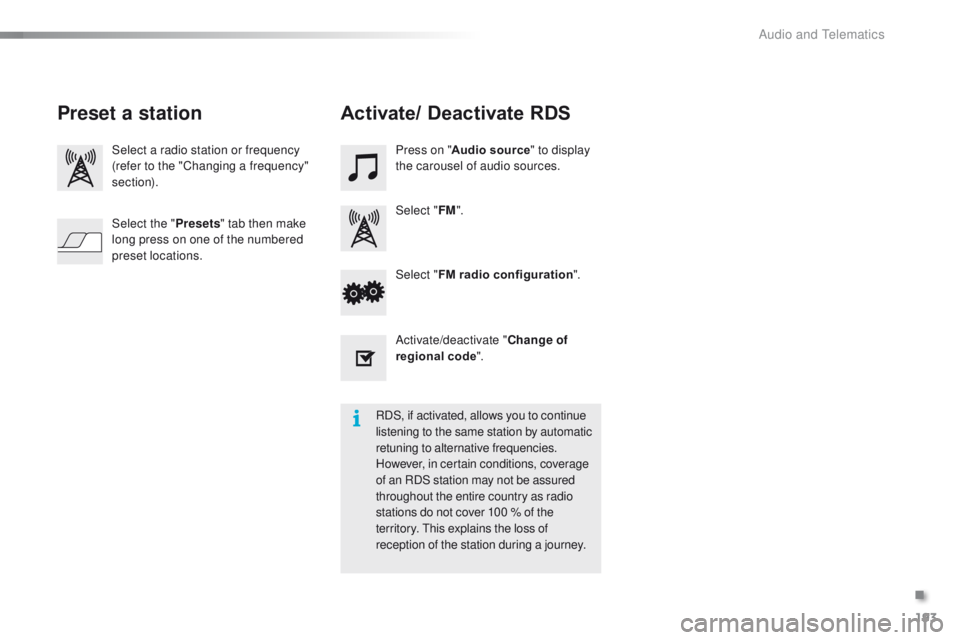

Select a radio station or frequency
(refer to the "Changing a frequency"
section).Press on "
Audio source " to display
the carousel of audio sources.
Select " FM".
Select " FM radio configuration ".
Activate/deactivate " Change of
regional code ".
Select the "
Presets" tab then make
long press on one of the numbered
preset locations.
Preset a station Activate/ Deactivate RDS
RDS, if activated, allows you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the entire country as radio
stations do not cover 100 % of the
territory.
t
h
is explains the loss of
reception of the station during a journey.
.
Audio and telematics

194
108_en_Chap12a_Autoradio-Toyota-tactile-1_ed01-2015
DAB (Digital Audio Broadcasting) radio
Display "DAB" waveband.Display the name and "Radiotext" for
the current station.
Short-cut: access to the choice of
audio source, telephone functions and
SmartphoneLink
® mode.
Select the radio station.
Preset stations.
Short press: select the preset
radio station.
Long press: preset a radio
station.
"Next multiplex".
Next radio station.
Display the name and number of the
"Multiplex" service being used.
"Previous multiplex". "DAB radio configuration".
Previous radio station. If the "DAB" radio station being listened
to is not available, the "FM" waveband
appears in the screen.
Audio and telematics

195
108_en_Chap12a_Autoradio-Toyota-tactile-1_ed01-2015

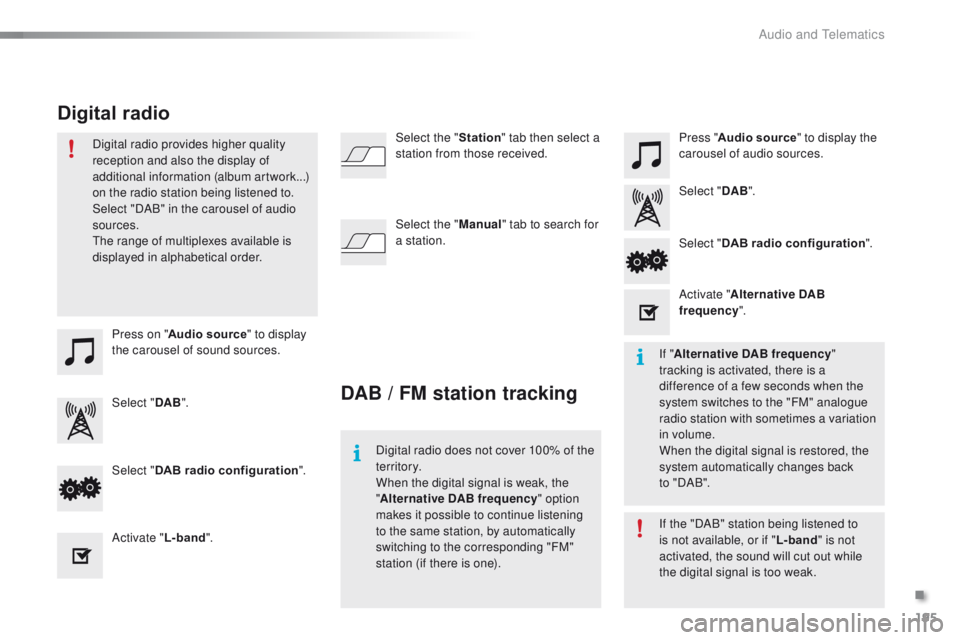

Press on "Audio source " to display
the carousel of sound sources. Press "
Audio source " to display the
carousel of audio sources.
Select " DAB". Select "
DAB".
Select " DAB radio configuration ".
Activate " L-band". Select "
DAB radio configuration ".
Activate " Alternative DAB
frequency ".
Select the "
Station" tab then select a
station from those received.
Select the " Manual" tab to search for
a station.
Digital radio provides higher quality
reception and also the display of
additional information (album artwork...)
on the radio station being listened to.
Select "DAB" in the carousel of audio
sources.
th

e range of multiplexes available is
displayed in alphabetical order.
Digital radio does not cover 100% of the
te r r i to r y.
When the digital signal is weak, the
"Alternative DAB frequency " option
makes it possible to continue listening
to the same station, by automatically
switching to the corresponding "FM"
station (if there is one). If the "DAB" station being listened to
is not available, or if "
L-band" is not
activated, the sound will cut out while
the digital signal is too weak. If " Alternative DAB frequency "
tracking is activated, there is a
difference of a few seconds when the
system switches to the "FM" analogue
radio station with sometimes a variation
in volume.
When the digital signal is restored, the
system automatically changes back
to


" DA B ".
DAB / FM station tracking
Digital radio
.
Audio and telematics

196
108_en_Chap12a_Autoradio-Toyota-tactile-1_ed01-2015

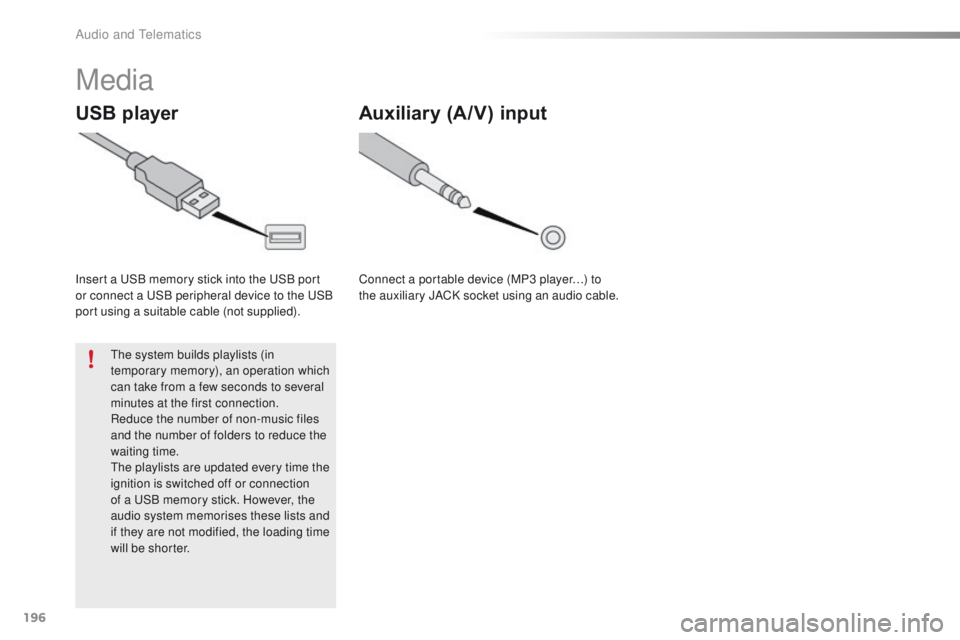

Media
USB player
Insert a uSB memory stick into the uS B port
or connect a uS B peripheral device to the uS B
port using a suitable cable (not supplied).
th

e system builds playlists (in
temporary memory), an operation which
can take from a few seconds to several
minutes at the first connection.
Reduce the number of non-music files
and the number of folders to reduce the
waiting time.
th

e playlists are updated every time the
ignition is switched off or connection
of a
u
S
B memory stick. However, the
audio system memorises these lists and
if they are not modified, the loading time
will be shorter.
Auxiliary (A/V) input
Connect a portable device (MP3 player…) to
the auxiliary JACK socket using an audio cable.
Audio and telematics

197
108_en_Chap12a_Autoradio-Toyota-tactile-1_ed01-2015
Press on "Audio source " to display
the carousel of audio sources.
Select the " USB" auxiliary source.
Select the " A/V" auxiliary source.
us

e the play settings at the bottom of the
screen.
Selection of source
OR Pressing the "
MODE" button at the
steering mounted controls changes to
the next media, available if the source
is active.
.
Audio and telematics

198
108_en_Chap12a_Autoradio-Toyota-tactile-1_ed01-2015

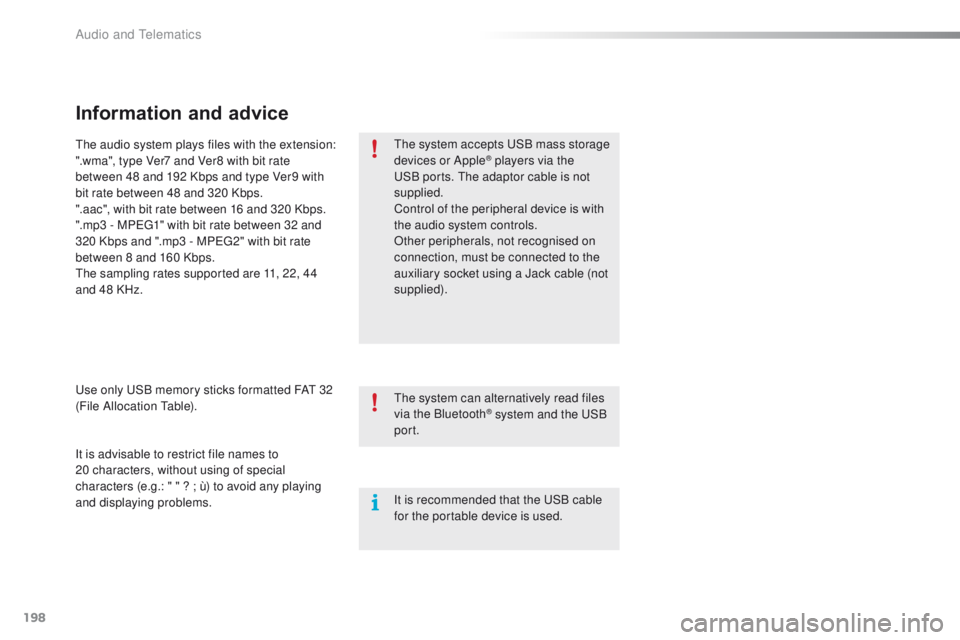

Information and advice
the system accepts uS B mass storage
devices or Apple® players via the uS
B ports.
th
e adaptor cable is not
supplied.
Control of the peripheral device is with
the audio system controls.
Other peripherals, not recognised on
connection, must be connected to the
auxiliary socket using a Jack cable (not
supplied).
It is advisable to restrict file names to
20


characters, without using of special
characters (e.g.: " " ? ; ù) to avoid any playing
and displaying problems.
us

e only
u
S

B memory sticks formatted FA
t

32
(File Allocation
t
a

ble).th
e audio system plays files with the extension:
".wma", type Ver7 and Ver8 with bit rate
between 48 and 192 Kbps and type Ver9 with
bit rate between 48 and 320 Kbps.
".aac", with bit rate between 16 and 320 Kbps.
".mp3 - MP
e

g
1

" with bit rate between 32 and
320 Kbps and ".mp3 - MP
e

g
2

" with bit rate
between 8 and 160 Kbps.
th

e sampling rates supported are 11, 22, 44
and 48 KHz.
th

e system can alternatively read files
via the Bluetooth
® system and the uS B
port.
It is recommended that the
u
S
B cable
for the portable device is used.
Audio and telematics
