TYPES OF SERVICE Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating two types of service, A and C, intermediate visits and a few additional operations depending on your vehicle; these correspond to key stages in the life of your 206.
Type B services are designed for less recent vehicles.When the first service is carried out and at each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
22
THE MAINTENANCE CYCLE FOR YOUR 206 PETROL
Service every 20,000 miles (30,000 km) or 2 years.
1st service at 6,000
miles (10,000 km) or 6 months*.
This is necessary in
order to benefit from the warranty.
Automatic gearbox oil level every 40,000 miles (60,000 km). Brake fluid replacement every 2 years or every 40,000 miles (60,000 km).
These services are carried out with synthetic based oil; Fuel Economy oil or
synthetic oil may also be used. * Whichever comes first.
Intermediate visit.

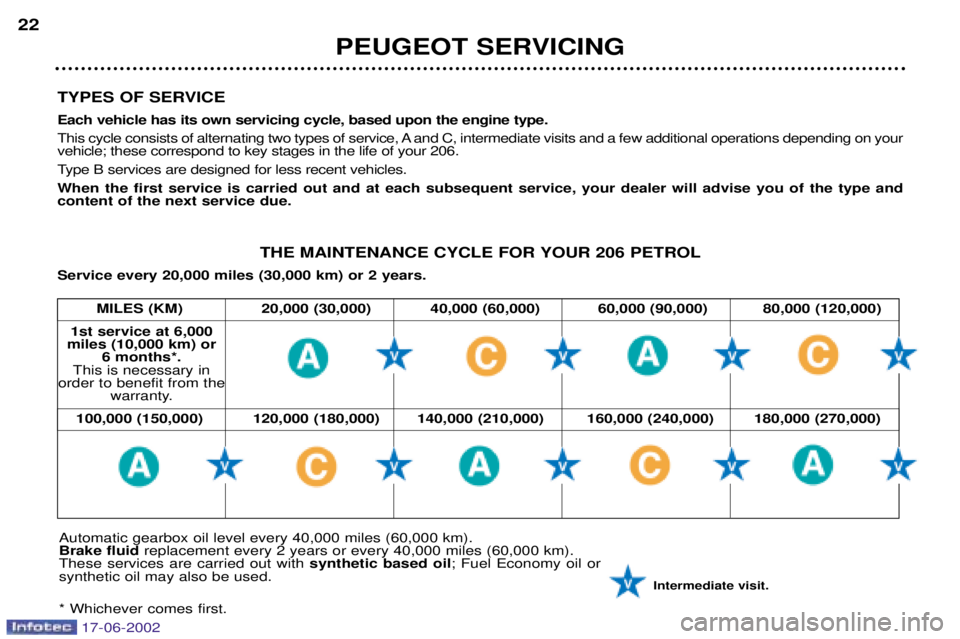

MILES (KM) 20,000 (30,000) 40,000 (60,000) 60,000 (90,000) 80,000 (120,000)
100,000 (150,000) 120,000 (180,000) 140,000 (210,000) 160,000 (240,000) 180,000 (270,000)
17-06-2002

PEUGEOT SERVICING
24
Intermediate visit.
THE MAINTENANCE CYCLE FOR YOUR 206 INDIRECT INJECTION DIESEL
Service every 10,000 miles (15,000 km) or 2 years.
1st Service at
6,000 miles (10,000 km)6 months*
This is necessary
in order to benefit
from the warranty.
Brake fluid replacement every 2 years or every 40,000 miles (60,000 km).
These services are carried out with synthetic based oil; Fuel Economy oil or
synthetic oil may also be used. * Whichever comes first.
MILES (KM) 10,000 (15,000) 20,000 (30,000) 30,000 (45,000) 40,000 (60,000) 50,000 (75,000)
60,000 (90,000) 70,000 (105,000) 80,000 (120,000) 90,000 (135,000) 100,000 (150,000) 110,000 (165,000)
17-06-2002

PEUGEOT SERVICING23
Intermediate visit.
THE MAINTENANCE CYCLE FOR YOUR 206 TURBO DIESEL HDI
Service every 12,000 miles (20,000 km) or 2 years.
1st Service at 6,000 miles
(10,000 km) or 6 months*.
This is necessary in order to benefit from the warranty.
Brake fluid replacement every 2 years or every 36,000 miles (60,000 km).
These services are carried out with synthetic based oil; Fuel Economy oil or
synthetic oil may also be used. * Whichever comes first.
MILES (KM) 12,000 (20,000) 24,000 (40,000) 36,000 (60,000) 48,000 (80,000) 60,000 (100,000)
72,000 (120,000) 84,000 (140,000) 96,000 (160,000) 108,000 (180,000) 120,000 (200,000) 132,000 (220,000) 144,000 (240,000)
17-06-2002

PEUGEOT SERVICING25
PEUGEOT SERVICING
Level
Operations Description of operations1st serviceACIntermediate visit
DRAIN AND REFILL- Engine oil.- Bleed fuel filter (diesel only).- Oil filter.- Fuel filter (petrol).REPLACE- Fuel filter (diesel).- Air filter element.- Spark plugs (petrol).- Engine oil (check + top up).- Manual gearbox oil (check + top up).- Battery (check + top up) if cap is removable.LEVELS- Front/rear screen-wash.- Coolant (check + top up).- Brake fluid (check + top up).- Power steering fluid (check + top up, according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of the ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers) and check for leaks.CHECK- Condition of rubber boots and gaiters.- Brake pad wear. - Play in hubs, link rods, ball joints, flexible mountings.- Shock absorbers for leaks.- Rear drum brake lining wear.- Condition and pressure of tyres (including spare wheel).- Emission control check according to current legislation (petrol).- Smoke opacity (diesel).- Pollen filter (according to specification). - Memory of autodiagnostic control units.- Visual check of the whole vehicle by a PEUGEOT technician.
ROAD TEST
: All driving conditions: Arduous conditions * According to country.17-06-2002

(1) Minimum quality standard: Petrol engines ACEA A3 and API SH/SJ; Diesel engines ACEA B3 and API CF/CD. ACEA= Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers).
API = American Petroleum Institute. If oil is used which does not conform to the ACEA A3-B3 standards, this requires the "Arduous Conditions" servicing schedule to be followed, which involves shorter intervals between services.
*This Fuel Economy oil can only be used in engines designed for its use.
26TRADE NAMES OF APPROVED AND RECOMMENDED ENGINE LUBRICANTS IN EUROPE (1)
PETROL DIESEL DIESEL PETROL
17-06-2002

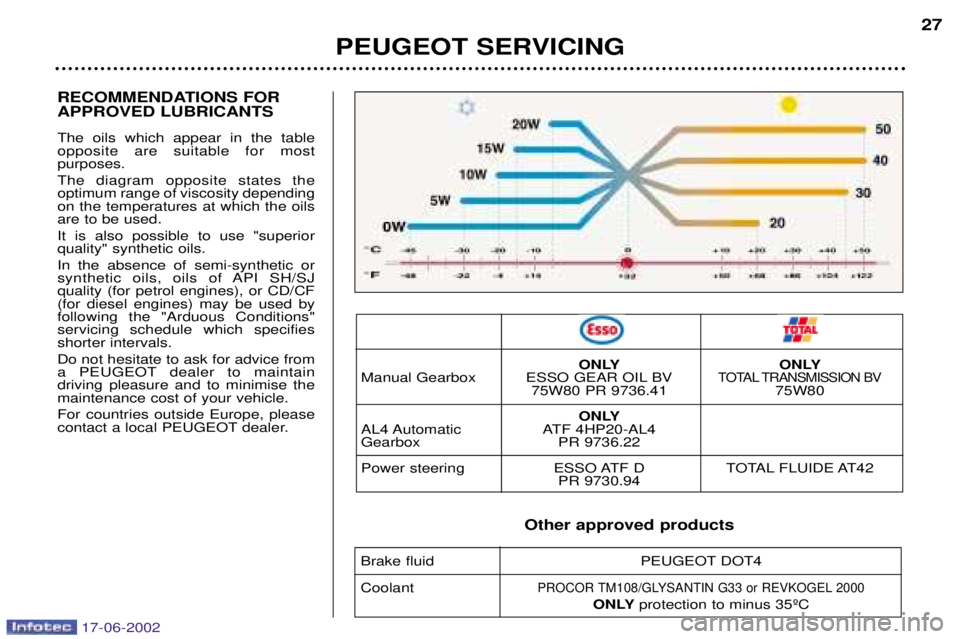

RECOMMENDATIONS FOR APPROVED LUBRICANTS The oils which appear in the table opposite are suitable for most purposes. The diagram opposite states the optimum range of viscosity dependingon the temperatures at which the oilsare to be used. It is also possible to use "superior quality" synthetic oils. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ quality (for petrol engines), or CD/CF(for diesel engines) may be used byfollowing the "Arduous Conditions"servicing schedule which specifiesshorter intervals. Do not hesitate to ask for advice from
a PEUGEOT dealer to maintain driving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
PEUGEOT SERVICING27
ONLY ONLY
Manual Gearbox ESSO GEAR OIL BVTOTAL TRANSMISSION BV75W80 PR 9736.41 75W80
ONLY
AL4 Automatic ATF 4HP20-AL4
Gearbox PR 9736.22
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Other approved products
Brake fluid PEUGEOT DOT4 Coolant
PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000
ONLY protection to minus 35¼C
17-06-2002

INSTRUMENTS AND CONTROLS
28

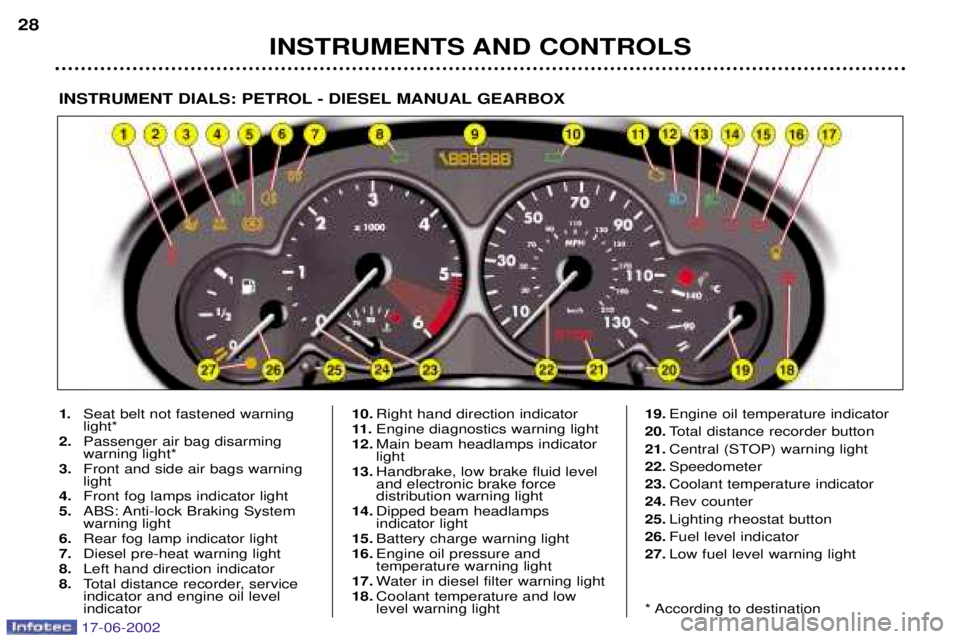

INSTRUMENT DIALS: PETROL - DIESEL MANUAL GEARBOX
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. ABS: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Diesel pre-heat warning light
8. Left hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator 10.
Right hand direction indicator
11 . Engine diagnostics warning light
12. Main beam headlamps indicatorlight
13. Handbrake, low brake fluid leveland electronic brake force distribution warning light
14. Dipped beam headlamps indicator light
15. Battery charge warning light
16. Engine oil pressure and temperature warning light
17. Water in diesel filter warning light
18. Coolant temperature and lowlevel warning light 19.
Engine oil temperature indicator
20. Total distance recorder button
21. Central (STOP) warning light
22. Speedometer
23. Coolant temperature indicator
24. Rev counter
25. Lighting rheostat button
26. Fuel level indicator
27. Low fuel level warning light
* According to destination
17-06-2002

INSTRUMENTS AND CONTROLS29
INSTRUMENT DIALS: PETROL AUTOMATIC GEARBOX
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. ABS: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Left hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator 9.
Right hand direction indicator
10. Engine diagnostics warning light
11 . Main beam headlamps indicatorlight
12. Handbrake, low brake fluid leveland electronic brake force distribution warning light
13. Dipped beam headlamps indica-tor light
14. Battery charge warning light
15. Engine oil pressure and temperature warning light
16. Coolant temperature and lowlevel warning light 17.
Operating programmes
18. Gear indicator
19. Total distance recorder button
20. Central (STOP) warning light
21. Speedometer
22. Coolant temperature indicator
23. Rev counter
24. Lighting rheostat button
25. Fuel level indicator
26. Low fuel level warning light
* According to destination
17-06-2002

INSTRUMENTS AND CONTROLS
30
Handbrake, low brake fluid and ElectronicBrake Force Distributionsystem fault warninglight
Linked to the central (STOP) warninglight. This indicates one of the following:
Ð that the handbrake is applied or not fully released,
Ð an excessive drop in brake fluid level (if the warning light remains on even when the handbrake isreleased).
Ð a fault in the Electronic Brake Force Distribution system, if lit at
the same time as the ABS warninglight.
You must stop.
Consult a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS
A permanently lit warning light or one flashing, with the engine run-ning, indicates an operating faultof the unit concerned. The illumi-nation of certain warning lightsmay be accompanied by anaudible signal and a message on
the multi-function display. Do notignore this warning: consult aPEUGEOT dealer as soon as pos-sible.
If the central (STOP) warning light comes on when you are driving,
stop your vehicle immediately,where it is safe to do so.
Anti-lock Braking System (ABS) warninglight
If this warning light is permanentlyon, it indicates a malfunction of theABS.
However, the vehicle retains conventional servo-assisted bra-king.
Consult a PEUGEOT dealer.
Coolant temperature and low coolant level warninglight
Linked to the central (STOP) warninglight.You must stop.
Wait for the engine to cool before top-ping up the level. The cooling circuit is pressurised.In the event of breakdown and to prevent any risk of burns , unscrew
the cap by two turns to allow thepressure to drop. When the pressure has dropped, remove the cap and top up the level.
Consult a PEUGEOT dealer.
Central (STOP) warning light Linked to the "engine
oil pressure", "coolant temperature and low coolant level", "handbrake","low brake fluid level" and "electronicbrake force distribution system fault"warning lights.You must stop if the light flasheswith the engine running.
Consult a PEUGEOT dealer.
Engine oil pressure and temperaturewarning light
Linked to the central (STOP) warninglight.
You must stop.
This warning light indicates one ofthe following:
Ð insufficient oil pressure,
Ð a lack of oil in the lubrication cir- cuit. Top up the level.
Ð an oil temperature which is too high. The warning light is acompa-
nied by an audible signal. To lowerthe oil temperature, reduce yourspeed.
Consult a PEUGEOT dealer.
17-06-2002

INSTRUMENTS AND CONTROLS31
Seat belt not fastened warning light*
When the ignition is switched on, thisindicator light comes on if the driverhas not fastened his seat belt. Air bag warning light
The light will come on for a few secondswhen the ignition is switched on. With the engine running, illumination of this warning light is accompaniedby an audible signal and a messageon the multi-function display indica-ting a fault in the air bags.
Consult a PEUGEOT dealer.
Battery charge warning light
This indicates one of the following:
Ð faulty operation of the charging cir- cuit,
Ð slack battery or starter terminals,
Ð a cut or slack alternator belt,
Ð an alternator failure.
Consult a PEUGEOT dealer.
Engine diagnostics warning light
This comes on each time the ignitionis switched on. If it comes on with the engine run- ning, this indicates incorrect opera-tion of the injection, ignition or emis-
sion control system. There is a risk ofdamage to the catalytic converter(petrol engine only).
Consult a PEUGEOT dealer.
* According to destination.
Water in diesel filter warning light*
Consult a PEUGEOT dealer as soonas possible. There is a risk of damage to the injection system.
Passenger air bag disarming warning light*
Illumination of this warning light is accompanied by an audible signal and
the message "Passenger air bagdisarmed" on the multi-function display.
If the passenger air bag is disarmed, thewarning light comes on when the ignitionis switched on and it remains on.
Always consult a PEUGEOT dealer if the warning light flashes. Low fuel level warning light
When this light first comes on, youhave enough fuel to drive at least 30miles (50 km). The tank capacity is approximately 50 litres.
Diesel engine pre-heatwarning light
Wait until the warning light goes outbefore starting the engine. If the temperature is high enough, the warning light comes on for less
than one second. You can start theengine without waiting.
Coolant temperature indicator
Ð needle in zone (A), the temperatu-
re is correct,
Ð needle in zone (B), the temperatu-
re is too high. The central STOP
warning light flashes.
You must stop.
Consult a PEUGEOT dealer.
