30-06-2003
PRACTICAL INFORMATION123

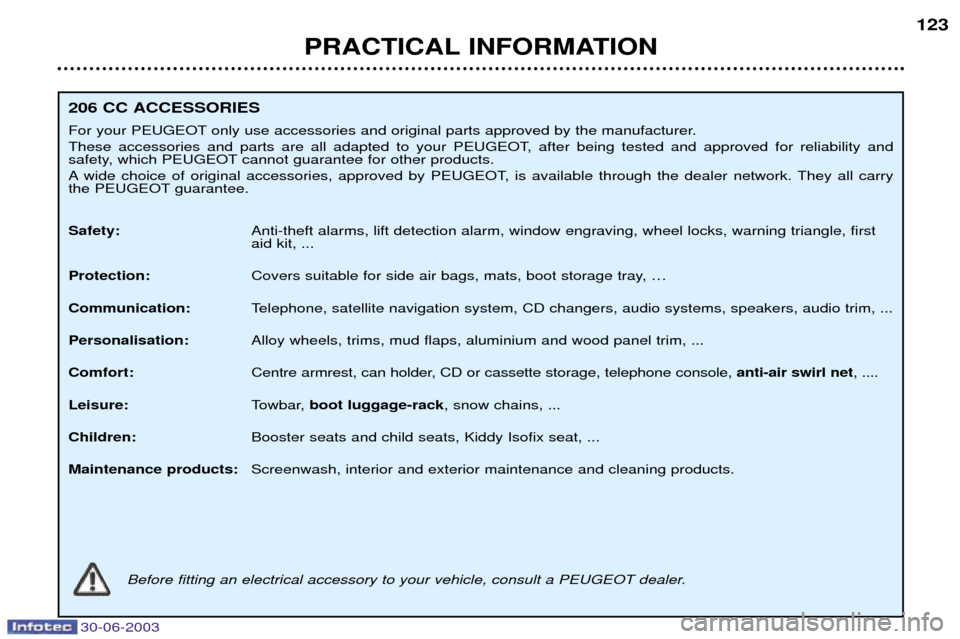

206 CC ACCESSORIES
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and
safety, which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry
the PEUGEOT guarantee. Safety:
Anti-theft alarms, lift detection alarm, window engraving, wheel locks, warning triangle, first aid kit, ...
Protection: Covers suitable for side air bags, mats, boot storage tray, É
Communication: Telephone, satellite navigation system, CD changers, audio systems, speakers, audio trim, ...
Personalisation: Alloy wheels, trims, mud flaps, aluminium and wood panel trim, ...
Comfort: Centre armrest, can holder, CD or cassette storage, telephone console, anti-air swirl net, ....
Leisure: Towbar, boot luggage-rack , snow chains, ...
Children: Booster seats and child seats, Kiddy Isofix seat, ...
Maintenance products: Screenwash, interior and exterior maintenance and cleaning products.
Before fitting an electrical accessory to your vehicle, consult a PEUGEOT dealer.
30-06-2003
TECHNICAL DATA
124

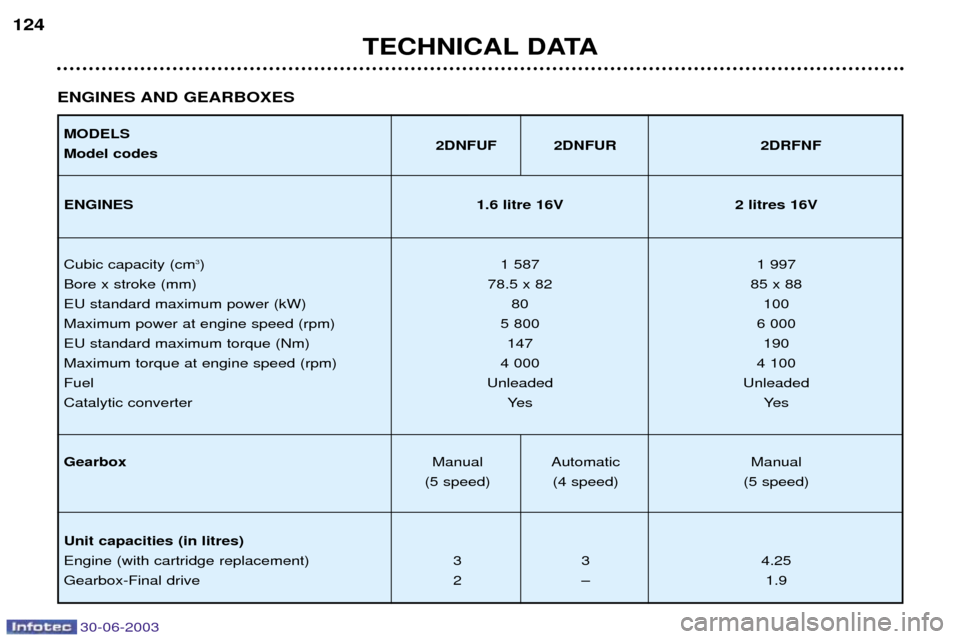

ENGINES AND GEARBOXES
MODELS Model codes 2DNFUF 2DNFUR 2DRFNF
ENGINES 1.6 litre 16V 2 litres 16V
Cubic capacity (cm 3
) 1 587 1 997
Bore x stroke (mm) 78.5 x 82 85 x 88
EU standard maximum power (kW) 80 100
Maximum power at engine speed (rpm) 5 800 6 000
EU standard maximum torque (Nm) 147 190
Maximum torque at engine speed (rpm) 4 000 4 100 Fuel Unleaded Unleaded
Catalytic converter Yes Yes
Gearbox Manual Automatic Manual
(5 speed) (4 speed) (5 speed)
Unit capacities (in litres)
Engine (with cartridge replacement) 3 3 4.25Gearbox-Final drive 2 Ð 1.9
30-06-2003
TECHNICAL DATA125

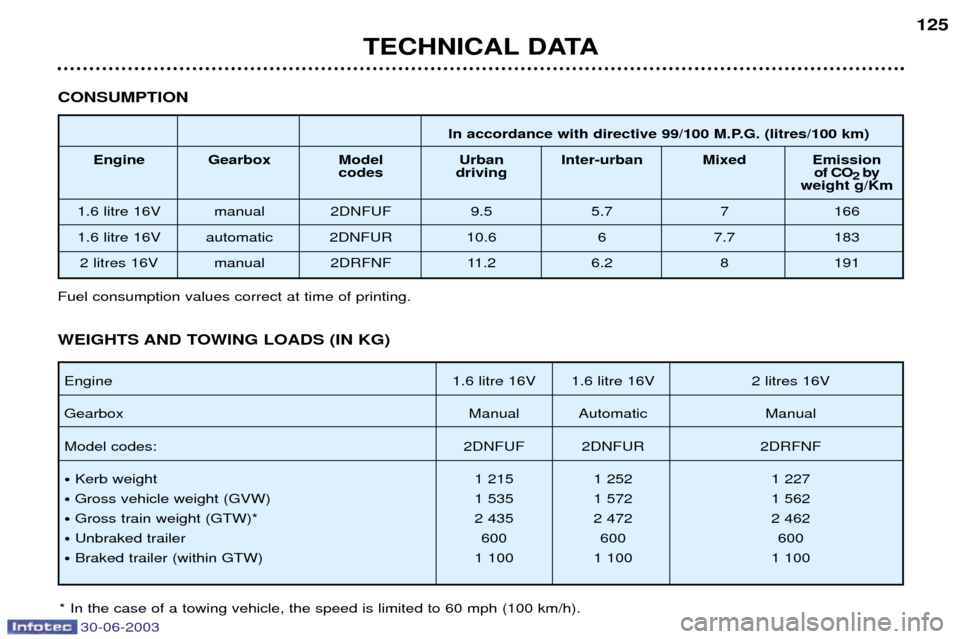

CONSUMPTION
In accordance with directive 99/100 M.P.G. (litres/100 km)
Engine Gearbox Model Urban Inter-urban Mixed Emission codes driving of CO
2 by
weight g/Km
1.6 litre 16V manual 2DNFUF 9.5 5.7 7 166
1.6 litre 16V automatic 2DNFUR 10.6 6 7.7 183 2 litres 16V manual 2DRFNF 11.2 6.2 8 191
Fuel consumption values correct at time of printing.
Engine 1.6 litre 16V 1.6 litre 16V 2 litres 16V
Gearbox Manual Automatic Manual
Model codes: 2DNFUF 2DNFUR 2DRFNF
¥ Kerb weight
1 215 1 252 1 227
¥ Gross vehicle weight (GVW) 1 535 1 572 1 562
¥ Gross train weight (GTW)* 2 435 2 472 2 462
¥ Unbraked trailer
600 600 600
¥ Braked trailer (within GTW) 1 100 1 100 1 100
WEIGHTS AND TOWING LOADS (IN KG)
* In the case of a towing vehicle, the speed is limited to 60 mph (100 km/h).
30-06-2003
TECHNICAL DATA127

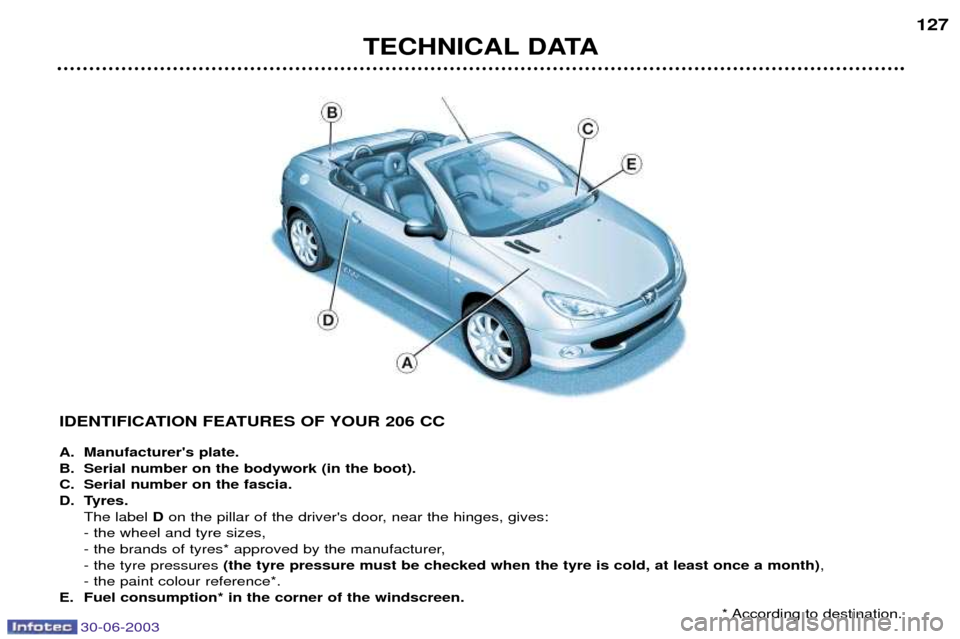

IDENTIFICATION FEATURES OF YOUR 206 CC
A. Manufacturer's plate.
B. Serial number on the bodywork (in the boot).
C. Serial number on the fascia.
D. Tyres.
The label Don the pillar of the driver's door, near the hinges, gives:
- the wheel and tyre sizes,
- the brands of tyres* approved by the manufacturer,- the tyre pressures (the tyre pressure must be checked when the tyre is cold, at least once a month) ,
- the paint colour reference*.
E. Fuel consumption* in the corner of the windscreen. * According to destination.
