PEUGEOT 206 CC DAG 2002 Repair Manual

07-10-2002
YOUR 206 CC IN DETAIL
62

YOUR 206 CC IN DETAIL63

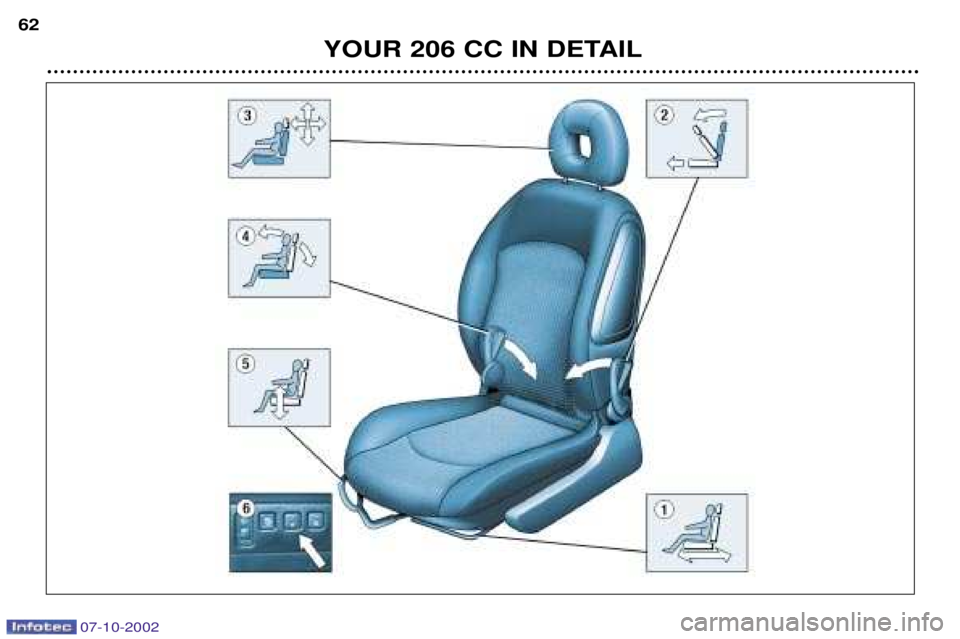

THE FRONT SEATS
1 - Forwards/backwards adjustment
Lift the lever and slide the seat for- wards or backwards.
2 - Access to the rear seats Pull one of the two handles to folddown the seat back and move theseat forwards. On repositioning, theseat returns to its initial position.
It is not possible to gain accessto the rear seats if the front seatis in a reclining position.
No person nor object mustprevent the seat from returning toits initial position. Returning to thisposition is necessary for it to belocked.
3 - Adjusting the height and angle of the head restraint
To raise the head restraint, pull it upwards.
The setting is correct whenthe upper edge of the headrestraint is level with the topof the head.
The head restraint has a frame withnotches which prevents it fromdropping down (safety device incase of impact). To lower the head restraint youmust simultaneously:
Ð press the knob on the left-hand
side at its base,
Ð press downwards.
To remove the head restraint, press the lug.
4 - Adjusting the seat back angle Push one of the two controls
towards the rear.
5 - DriverÕs seat height adjustment Pull the handle upwards. Remove your weight from the seat to raise, or press on the seat
to lower.
6 - Heated seats control Press the switch. The temperature
is controlled automatically. Pressing the switch again stops operation.
Never drive with the head restraints removed. Theseshould be correctly fittedand adjusted.
07-10-2002

07-10-2002
YOUR 206 CC IN DETAIL
64
ISOFIX MOUNTINGS
Available on the front passenger seat, the Isofix mountings allow for fitting of aspecial child seat
, sold by PEUGEOT
dealers. The locks incorporated in the child seat fit onto the Isofix mountings and ensuresafe, reliable and fast assembly
.
In the front ,the child seat must be fit-
ted in the "rear facing" position for chil-dren from birth to 29lbs (13 kg): front
seat as far forward as possible so
that the body of the child seat is in con-tact with or as close as possible to theinstrument panel. In this case, it is essential to disarm the passenger air bag. The child would risk being killed or seriously injured if the air bag wereto inflate. In exceptional cases, the child seat may be fitted in the "forwards facing"position if the rear seats are alreadyoccupied by other children. In thiscase, use the Isofix mountings, thechild seat strap and the seat belt andadjust the passenger seat to the most
rearward position. The passenger airbag may be left active. The special approved child seat is the
Isofix KIDDY seat. It can be used inthe "rear facing" position from birth to29 lbs (13 kg) and "forwards facing"from 20 to 40 lbs (9 to 18 kg). This seat can also be used on seats not fitted with Isofix mountings: it isthen compulsory to attach it to thevehicle's seat using the three-pointseat belt. Follow the instructions for fitting the child seat given in the instruc-tion booklet.

07-10-2002
YOUR 206 CC IN DETAIL65
CHILD SEATS Although one of PEUGEOT's main concerns when designing your vehicle, the safety of your children also depends on you.
For maximum safety, please follow these precautions:
Ð All children under the age of 10 must travel in a special approved child seat*, adapted to their weight, in a seat fitted with
a
seat belt.
Ð Front passenger seat*: children under the age of 10 must not travel in the forwards facing position**.The rearwards facing position is permitted. In this position, it is compulsory to disarm the passenger air bag.
After carrying out numerous tests, PEUGEOT recommends the following systems: Up to 18 months (to 29 lbs or 13 kg) "Britax Babysure": is installed with its back to the engine in the front or in the rear using a three-point seat belt. In the front, the passenger seat must be in the "mid-way"position on the slide.
From 9 months to 3 or 4 years (20 to 40 lbs or 9 to 18 kg) "Ršmer Prince": is fitted to the rear using a three-point seat belt. For the safety of your child, the seat and the restraining cushion must never be separated.
From 3 to 6 years (33 to 55 lbs or 15 to 25 kg) "Ršmer Vario": is fitted to the rear with a three-point seat belt.
1
2
3

07-10-2002
YOUR 206 CC IN DETAIL
66
From 3 to 10 years (33 to 80 lbs or 15 to 36 kg)
''Recaro Start'': is fitted to the rear with a three-point seat belt. The height and width of the seat back must be adjusted according to the ageand build of your child. "Klippan Optima": is fitted to the rear with a three-point seat belt. From the age of 6 years (approximately 49 lbs or 22 kg), the booster is used on its own.
Remember, even for short journeys, to fasten the three-point seat belts or the childseat straps, keeping the slack in relation to the child's body to a minimum.
* According to current legislation in the country of destination.
** Unless the rear seats are already occupied by other children. In this case, adjust the front passenger seat to the rear-most position and leave the air bag active.
Never leave a child or an animal in a vehicleexposed to the sun, withthe windows closed.
Never leave the keys within
reach of children inside the car. Disarm the passenger air bag when installing a rearwards-facingchild seat in the front. The child would risk being killed or seriously injured if the air bag were toinflate. Observe strictly the recommenda- tions for fitting the child seat asdetailed the instructions.
4
5

07-10-2002
YOUR 206 CC IN DETAIL67
In accordance with the European regulation (Directive 2000/3), the table below indicates the extent to which each seat in your vehicle may be fitted with a child seat:
U : universal category
X : no child restraint. According to destination:
L1 : BRITAX Babysure E11 0344117 Universal (birth to 29 lbs or 13 kg).
L2 : ROMER Prince E1 03301058 Universal (20 to 40 lbs or 9 to18 kg).
L3 : ROMER Vario E1 03301120 Universal (33 to 55 lbs or 15 to 25 kg).
L4 : RECARO Start E1 03301108 Universal (33 to 80 lbs or 15 to 36 kg).
L5 : KLIPPAN Optima E17 030007 Universal (33 to 80 lbs or 15 to 36 kg).
L6 : KIDDY Isofix Rearwards facingE1 03301123 andUniversal (birth to 29 lbs or 13 kg)*.
L7 : KIDDY Isofix Forwards facingE2 030011 Universal (20 to 40 lbs or 9 to 18 kg)*.
* See section "Seats - Isofix mountings" for use of the KIDDY child seat on the vehicle's Isofix mountings. Weight
Seat < 13 kg 9-18 kg 15-25 kg 22-36 kg
Front passenger UUUU
Fixed seat, Height adjustable seat L1, L6 L2, L7 L3, L4, L5 L4, L5
Rear passenger XL2 L3, L4, L5 L4, L5
Side

07-10-2002
YOUR 206 CC IN DETAIL
68
SEAT BELTS
To lock the seat belts Pull the strap, then insert the buckle into the stalk. Pre-tensioning and force-limitingfront seat belts Safety in the event of a frontal impact has been improved by the introductionof pre-tensioning and force-limitingfront seat belts. Depending on the seri-ousness of the impact, the pre-ten-sioning system instantly tightens theseat belts firmly against the body ofthe occupant. The pre-tensioning seat belts are armed when the ignition is on. The force-limiting device reduces the pressure of the seat belt against theoccupant's body in the event of anaccident. Rear seat belts The rear seats are fitted with two three-point inertia reel seat belts.
To be effective, a seat belt must be tightened asclose to the body as possi-ble.
Depending on the nature and theseriousness of the impact, the pre-tensioners may be triggeredbefore and independently of trig-gering of the air bags. In all cases, the air bag warning light on the instrument panelcomes on. Following a collision, have the sys- tem checked by a PEUGEOT deal-
er. The system has been designed to be fully operational for ten years.
For greater safety, have it checked by a PEUGEOT dealer within tenyears following the initial purchaseof the vehicle.

07-10-2002
YOUR 206 CC IN DETAIL69
Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompanied bythe message
''Remote control bat-
tery low'' on the multifunction display.
To replace the battery, remove thescrew then unclip the casing using acoin at the ring (CR 2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
THE KEYS The keys allow you to
independently
operate the locks on the doors, the tailgate (opening), the fuel filler cap,the steering lock, the glove box andthe passenger air bag disarming con-trol and to switch on the ignition. Central locking From the driver's door the keys allow you:
Ðto lock or unlock the doors and tail-
gate simultaneously,
Ð to unlock simultaneously just thedoors.
Unlocking the boot is possible only
by using the boot key. If one of the doors is open, the central locking does not work. The remote control This fulfils the same functions as the
key, at a distance. Locking Pressing button
Alocks the vehicle by
remote control. This is displayed by the continuouslighting of the direction indicators forapproximately two seconds. Unlocking Pressing button Bunlocks just the
doors. This is shown by the rapid flashing ofthe direction indicators. Notes: if the vehicle is locked and the
unlocking control is pressed inadver- tently without the doors being openedwithin 30 seconds, the vehicle will lock
again automatically.
Avoid pressing the buttons of your remote control out of range of your
vehicle. You risk causing it not to workand the remote control would have tobe reprogrammed. Locating your car
To locate your car in a car park, if you have locked it:
press button A, the courtesy light
comes on and the direction indica- tors flash for a few seconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.
Programming the remote control  Switch off the ignition.
 Switch the ignition on again.
 Press button A.
 Switch off the ignition and remove the remote control key from the
ignition lock. The remote control isnow working again.

07-10-2002
YOUR 206 CC IN DETAIL
70
Make a careful note of the
number on each key. Thekey number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT deal-er can rapidly supply you with new keys. The high frequency remote control is a high-performance system which has apowerful beam. Do not operate it while it is in your pocket as there is a possibility that itmay unlock your vehicle, without you
being aware of it. The remote control does not operate when the key is in the ignition, evenwhen the ignition is switched off,except for reprogramming. As a safety precaution (with children on board), remove the ignition key when youleave the vehicle, even for a short time. Do not repeatedly press the button of your remote control out of range of
your vehicle. You risk causing it not towork and the remote control wouldhave to be reprogrammed. When purchasing a second-hand vehi- cle:
Ð ensure that you are given the confi- dential card;
Ð have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the onlyones which can start the vehicle.
Do not make any modifications to theelectronic engine immobiliser system.
Confidential card The confidential card contains the identification code necessary for any
work carried out by a PEUGEOT dealer
on the system. This code is hidden bya film, which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle.ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code. When theignition is switched on, the code isrecognised and starting is possible. If the system does not function
correctly,
you are warned by an audi-
ble signal and a message on the mul-
tifunction display. In this case, the vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
