Peugeot 207 CC 2014 Owner's Manual

169
04
1
2
3
5
6
4
207CC_EN_CHAP11B_RNEG_ED01-2014
NAVIGATION - GUIDANCE

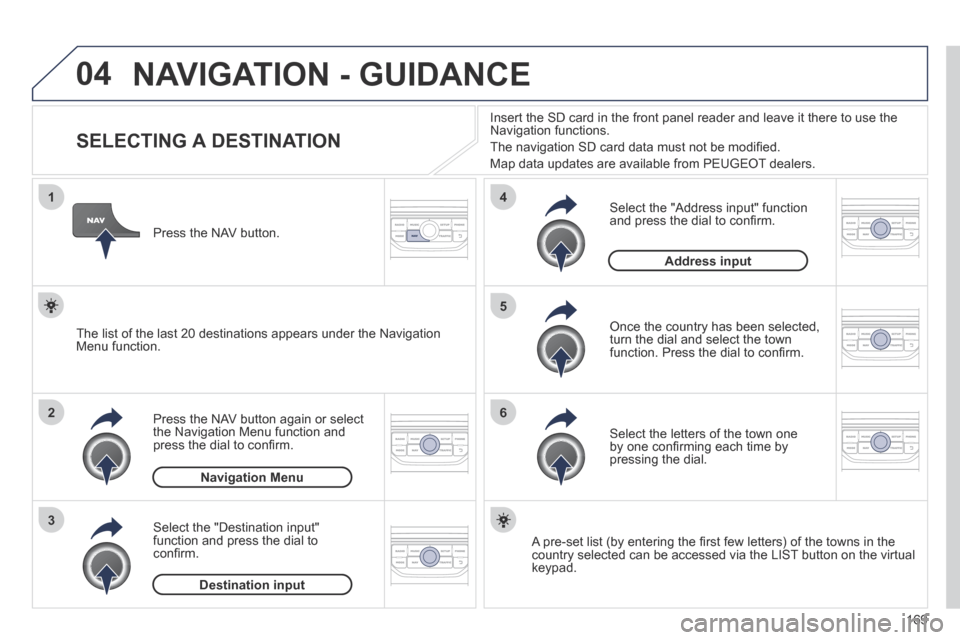

SELECTING A DESTINATION
Press the NAV button again or select the Navigation Menu function and press the dial to confi rm.
Select the "Destination input" function and press the dial to confi rm.
Press the NAV button.
Select the letters of the town one by one confi rming each time by pressing the dial.
Once the country has been selected, turn the dial and select the town function. Press the dial to confi rm.
Insert the SD card in the front panel reader and leave it there to use t\
he Navigation functions.
The navigation SD card data must not be modifi ed.
Map data updates are available from PEUGEOT dealers.
A pre-set list (by entering the fi rst few letters) of the towns in the country selected can be accessed via the LIST button on the virtual keypad.
Select the "Address input" function and press the dial to confi rm.
The list of the last 20 destinations appears under the Navigation Menu function.
Navigation Menu
Destination input
Address input

170
04
7
8
9
207CC_EN_CHAP11B_RNEG_ED01-2014

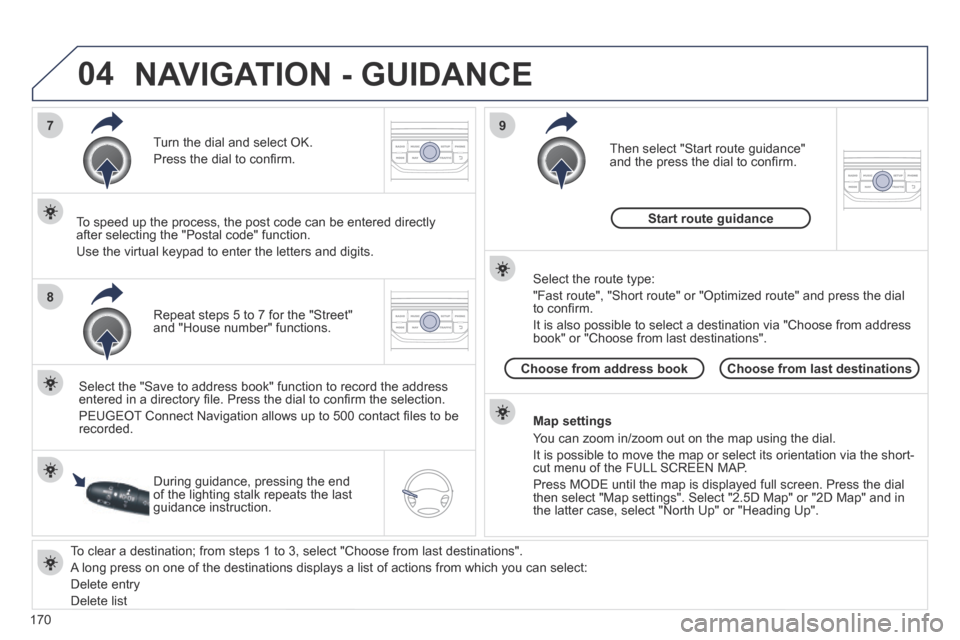

To clear a destination; from steps 1 to 3, select "Choose from last desti\
nations".
A long press on one of the destinations displays a list of actions from w\
hich you can select:
Delete entry
Delete list
Repeat steps 5 to 7 for the "Street" and "House number" functions.
Turn the dial and select OK.
Press the dial to confi rm.
Select the "Save to address book" function to record the address entered in a directory fi le. Press the dial to confi rm the selection.
PEUGEOT Connect Navigation allows up to 500 contact fi les to be recorded.
To speed up the process, the post code can be entered directly after selecting the "Postal code" function.
Use the virtual keypad to enter the letters and digits.
Then select "Start route guidance" and the press the dial to confi rm.
During guidance, pressing the end of the lighting stalk repeats the last guidance instruction.
Map settings
You can zoom in/zoom out on the map using the dial.
It is possible to move the map or select its orientation via the short-cut menu of the FULL SCREEN MAP.
Press MODE until the map is displayed full screen. Press the dial then select "Map settings". Select "2.5D Map" or "2D Map" and in the latter case, select "North Up" or "Heading Up".
Select the route type:
"Fast route", "Short route" or "Optimized route" and press the dial to confi rm.
It is also possible to select a destination via "Choose from address book" or "Choose from last destinations".
Choose from last destinationsChoose from address book
Start route guidance
NAVIGATION - GUIDANCE

171
04
1
2
3
5
4
207CC_EN_CHAP11B_RNEG_ED01-2014
NAVIGATION - GUIDANCE

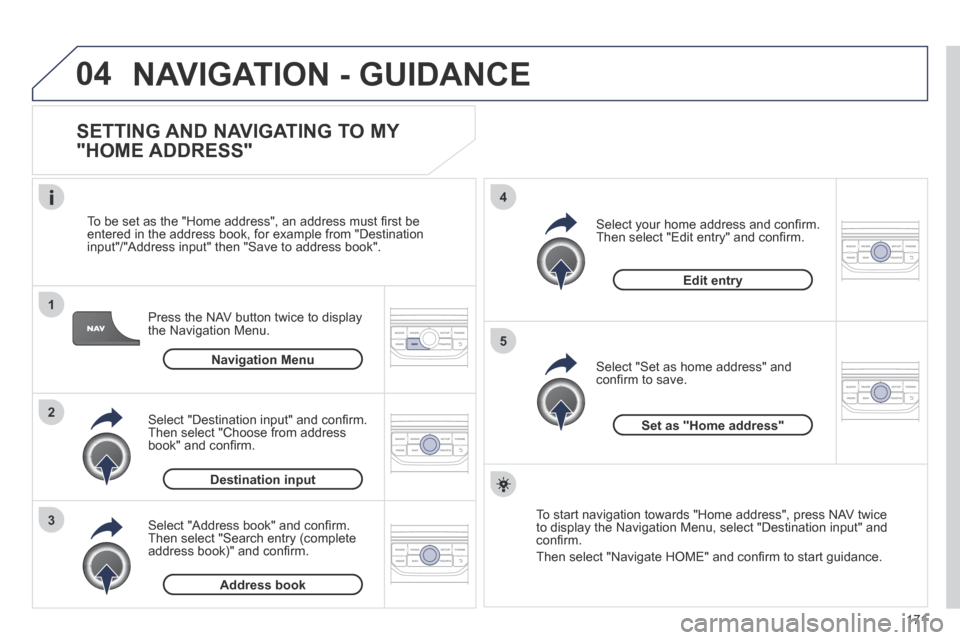

SETTING AND NAVIGATING TO MY
"HOME ADDRESS"
Press the NAV button twice to display the Navigation Menu.
To be set as the "Home address", an address must fi rst be entered in the address book, for example from "Destination input"/"Address input" then "Save to address book".
Select "Address book" and confi rm. Then select "Search entry (complete address book)" and confi rm.
Select "Destination input" and confi rm. Then select "Choose from address book" and confi rm.
Select "Set as home address" and confi rm to save.
Select your home address and confi rm. Then select "Edit entry" and confi rm.
To start navigation towards "Home address", press NAV twice to display the Navigation Menu, select "Destination input" and confi rm.
Then select "Navigate HOME" and confi rm to start guidance.
Navigation Menu
Destination input
Address book
Edit entry
Set as "Home address"

172
04
4
3
2
1
7
6
5
207CC_EN_CHAP11B_RNEG_ED01-2014
NAVIGATION - GUIDANCE

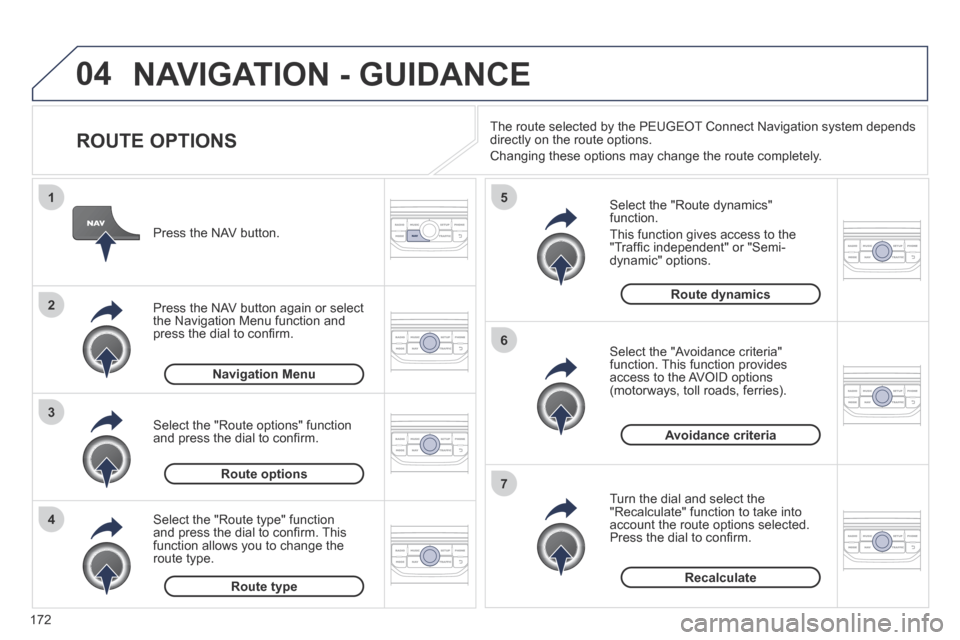

ROUTE OPTIONS
Select the "Route dynamics" function.
This function gives access to the "Traffi c independent" or "Semi-dynamic" options.
Select the "Avoidance criteria" function. This function provides access to the AVOID options (motorways, toll roads, ferries).
Turn the dial and select the "Recalculate" function to take into account the route options selected. Press the dial to confi rm.
Press the NAV button.
Press the NAV button again or select the Navigation Menu function and press the dial to confi rm.
Select the "Route type" function and press the dial to confi rm. This function allows you to change the route type.
Select the "Route options" function and press the dial to confi rm.
Recalculate
Avoidance criteria
Route dynamics
Route type
Route options
Navigation Menu
The route selected by the PEUGEOT Connect Navigation system depends directly on the route options.
Changing these options may change the route completely.

173
04
7
6
5
4
3
2
1
207CC_EN_CHAP11B_RNEG_ED01-2014

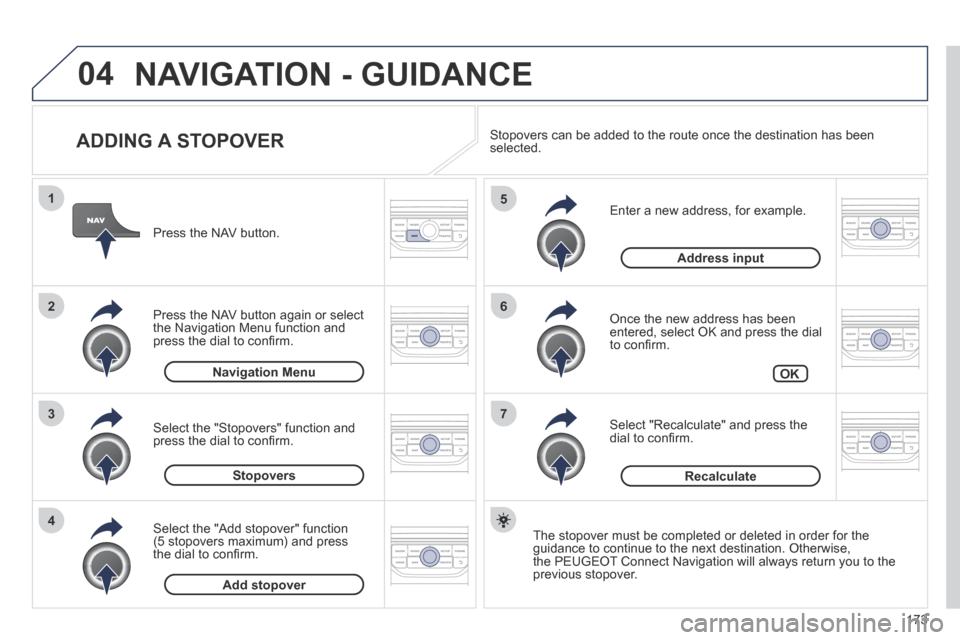

ADDING A STOPOVER
Enter a new address, for example.
Once the new address has been entered, select OK and press the dial to confi rm.
Select "Recalculate" and press the dial to confi rm.
Press the NAV button.
Press the NAV button again or select the Navigation Menu function and press the dial to confi rm.
Select the "Add stopover" function (5 stopovers maximum) and press the dial to confi rm.
Select the "Stopovers" function and press the dial to confi rm.
OK
Address input
Add stopover
Stopovers
Navigation Menu
Recalculate
The stopover must be completed or deleted in order for the guidance to continue to the next destination. Otherwise, the PEUGEOT Connect Navigation will always return you to the previous stopover.
Stopovers can be added to the route once the destination has been selected.
NAVIGATION - GUIDANCE

174
04
8
6
7
4
3
5
2
1
207CC_EN_CHAP11B_RNEG_ED01-2014
NAVIGATION - GUIDANCE

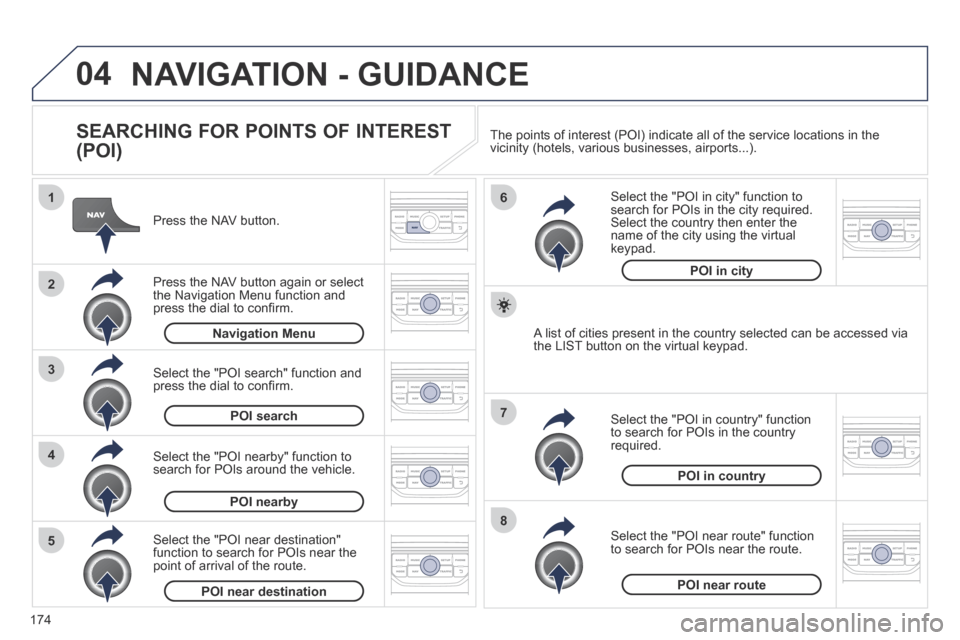

SEARCHING FOR POINTS OF INTEREST
(POI)
Press the NAV button.
Press the NAV button again or select the Navigation Menu function and press the dial to confi rm.
Select the "POI nearby" function to search for POIs around the vehicle.
Select the "POI search" function and press the dial to confi rm.
Navigation Menu
POI search
POI nearby
Select the "POI in city" function to search for POIs in the city required. Select the country then enter the name of the city using the virtual keypad.
Select the "POI near route" function to search for POIs near the route.
Select the "POI in country" function to search for POIs in the country required.
Select the "POI near destination" function to search for POIs near the point of arrival of the route.
POI near destinationPOI near route
POI in country
POI in city
A list of cities present in the country selected can be accessed via the LIST button on the virtual keypad.
The points of interest (POI) indicate all of the service locations in \
the vicinity (hotels, various businesses, airports...).

175
04
207CC_EN_CHAP11B_RNEG_ED01-2014
NAVIGATION - GUIDANCE
LIST OF PRINCIPAL POINTS OF INTEREST (POI)
* According to availability in the country.
This icon appears when several POIs are grouped together in the same area. Zooming in on this icon shows details of the POIs.
Service station
LPG station
Garage
PEUGEOT
Motor racing circuit
Covered car park
Car park
Rest area
Hotel
Restaurant
Refreshment area
Picnic area
Cafeteria
Railway station
Bus station
Port
Industrial estate
Supermarket
Bank
Vending machine
Tennis court
Swimming pool
Golf course
Winter sports resort
Theatre
Airport
Theme parks
Hospital
Pharmacy
Police station
School
Post offi ce
Museum
Tourist information
Risk area *
Cinema

176
04
5
6
3 2 1
4
207CC_EN_CHAP11B_RNEG_ED01-2014

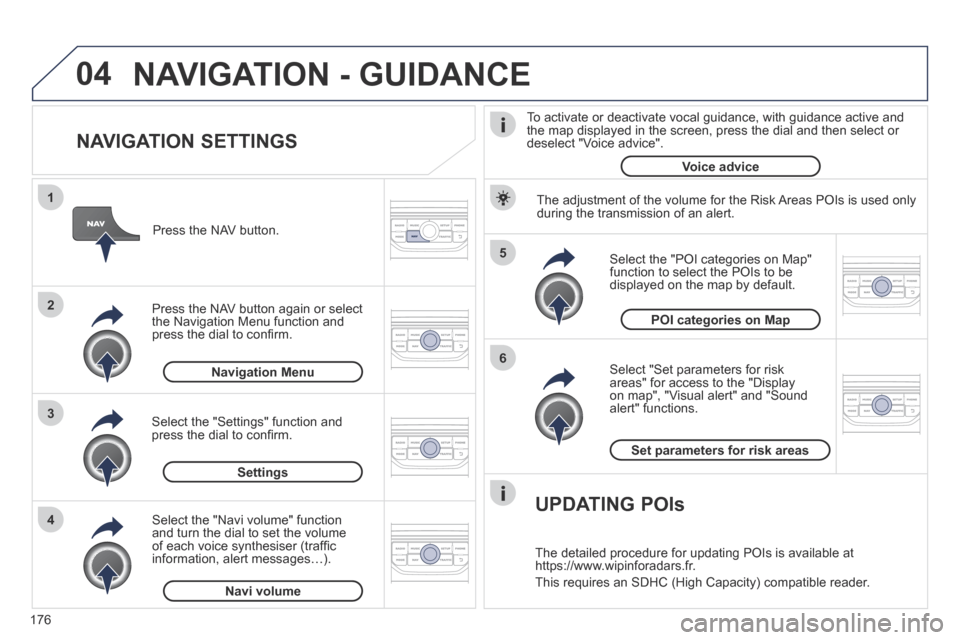

NAVIGATION SETTINGS
Select "Set parameters for risk areas" for access to the "Display on map", "Visual alert" and "Sound alert" functions.
Select the "POI categories on Map" function to select the POIs to be displayed on the map by default.
Press the NAV button.
Press the NAV button again or select the Navigation Menu function and press the dial to confi rm.
Select the "Settings" function and press the dial to confi rm.
POI categories on Map
Settings
Set parameters for risk areas
Navigation Menu
NAVIGATION - GUIDANCE
Select the "Navi volume" function and turn the dial to set the volume of each voice synthesiser (traffi c information, alert messages…).
Navi volume
The adjustment of the volume for the Risk Areas POIs is used only during the transmission of an alert.
UPDATING POIs
The detailed procedure for updating POIs is available at https://www.wipinforadars.fr.
This requires an SDHC (High Capacity) compatible reader.
To activate or deactivate vocal guidance, with guidance active and the map displayed in the screen, press the dial and then select or deselect "Voice advice".
Voice advice

177
05
2 1
3
4
5
207CC_EN_CHAP11B_RNEG_ED01-2014

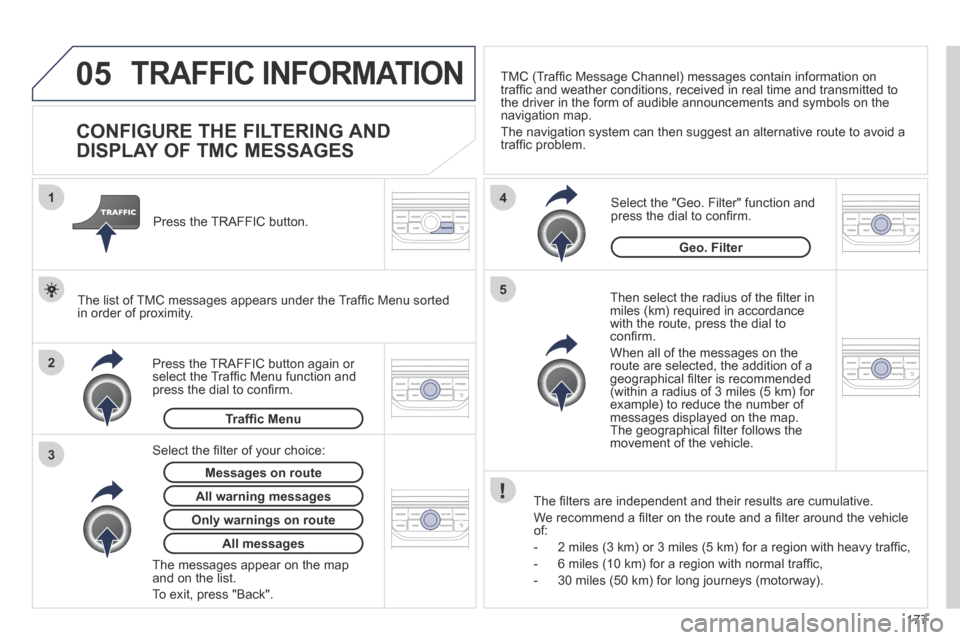

TRAFFIC INFORMATION
CONFIGURE THE FILTERING AND
DISPLAY OF TMC MESSAGES
Then select the radius of the fi lter in miles (km) required in accordance with the route, press the dial to confi rm.
When all of the messages on the route are selected, the addition of a geographical fi lter is recommended (within a radius of 3 miles (5 km) for example) to reduce the number of messages displayed on the map. The geographical fi lter follows the movement of the vehicle.
The fi lters are independent and their results are cumulative.
We recommend a fi lter on the route and a fi lter around the vehicle of:
- 2 miles (3 km) or 3 miles (5 km) for a region with heavy traffi c,
- 6 miles (10 km) for a region with normal traffi c,
- 30 miles (50 km) for long journeys (motorway).
Press the TRAFFIC button again or select the Traffi c Menu function and press the dial to confi rm.
Press the TRAFFIC button.
TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the driver in the form of audible announcements and symbols on the navigation map.
The navigation system can then suggest an alternative route to avoid a traffi c problem.
Select the "Geo. Filter" function and press the dial to confi rm.
Messages on route
The list of TMC messages appears under the Traffi c Menu sorted in order of proximity.
All warning messages
Traffi c Menu
Select the fi lter of your choice:
Only warnings on route
All messages
The messages appear on the map and on the list.
To exit, press "Back".
Geo. Filter

178
05
2 1
3
2
1
207CC_EN_CHAP11B_RNEG_ED01-2014

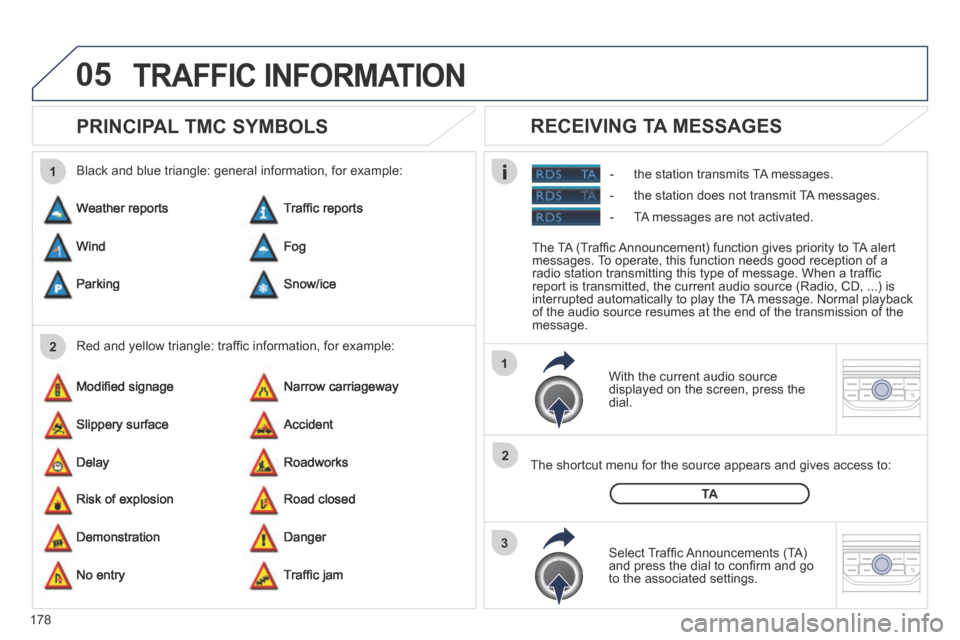

PRINCIPAL TMC SYMBOLS
With the current audio source displayed on the screen, press the dial.
The shortcut menu for the source appears and gives access to:
Select Traffi c Announcements (TA) and press the dial to confi rm and go to the associated settings.
TA
- the station transmits TA messages.

RECEIVING TA MESSAGES
Red and yellow triangle: traffi c information, for example:
Black and blue triangle: general information, for example:
Weather reports
Modifi ed signage
Risk of explosion
Traffi c reports
Narrow carriageway
Road closed
Wind
Slippery surface
Demonstration
Fog
Accident
Danger
Parking
Delay
No entry
Snow/ice
Roadworks
Traffi c jam
TRAFFIC INFORMATION
The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traffi c report is transmitted, the current audio source (Radio, CD, ...) is interrupted automatically to play the TA message. Normal playback of the audio source resumes at the end of the transmission of the message.
- the station does not transmit TA messages.
- TA messages are not activated.
