Peugeot 207 CC 2014 Owner's Manual

10
i
TECHNICAL DATA
159
207CC_EN_CHAP10_CARACTERISTIQUES_ED01-2014
IDENTIFICATION MARKINGS
Low pressures increase fuel con-
sumption. The tyre pressures must be
checked when the tyres are cold,
at least once a month.
A. Vehicle identifi cation (VIN) number under the bonnet.
This number is etched on the bodywork
near the passenger compartment fi lter. B. Visible VIN on the dashboard.
This number is indicated on a self-
adhesive label which is visible through
the windscreen. C. Tyre/paint label.
This number is indicated on a self-de-
stroying label affi xed to the centre pillar,
near the driver's door striker.
It bears the following information:
- the tyre pressures, unladen and laden,
- the tyre sizes (including the load in-
dex and speed rating),
- the paint colour code.
Various visible markings for the identifi cation of your vehicle.

10
160
TECHNICAL DATA
207CC_EN_CHAP10_CARACTERISTIQUES_ED01-2014

161
207CC_EN_CHAP11A_BTA_ED01-2014
EMERGENCY OR ASSISTANCE CALL

162
207CC_EN_CHAP11A_BTA_ED01-2014

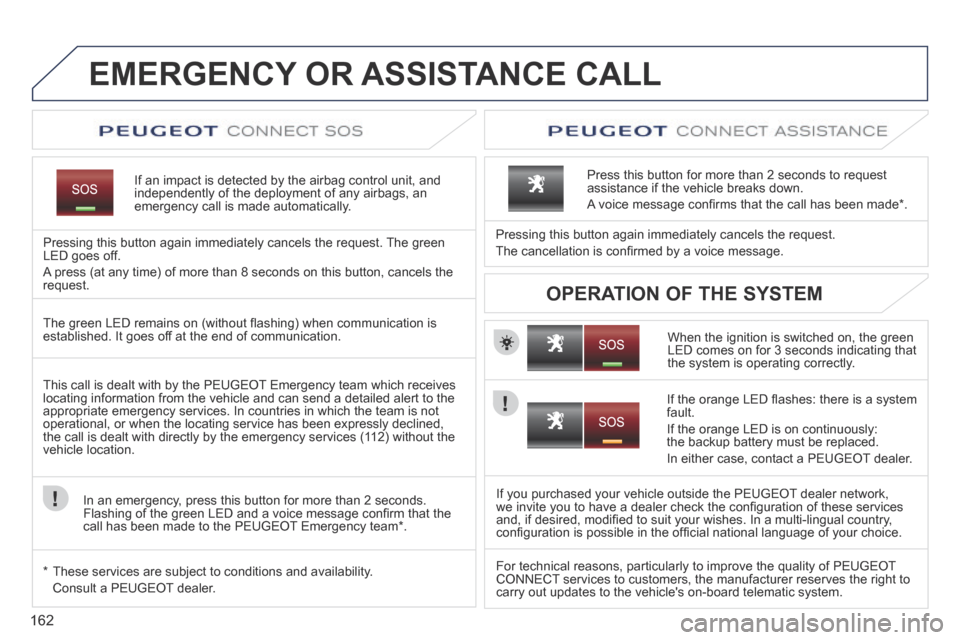

EMERGENCY OR ASSISTANCE CALL
If an impact is detected by the airbag control unit, and independently of the deployment of any airbags, an emergency call is made automatically.
Pressing this button again immediately cancels the request. The green LED goes off.
A press (at any time) of more than 8 seconds on this button, cancels th\
e request.
When the ignition is switched on, the green LED comes on for 3 seconds indicating that the system is operating correctly.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.
Press this button for more than 2 seconds to request assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .
OPERATION OF THE SYSTEM
The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
This call is dealt with by the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to t\
he appropriate emergency services. In countries in which the team is not operational, or when the locating service has been expressly declined, the call is dealt with directly by the emergency services (112) without the vehicle location.
In an emergency, press this button for more than 2 seconds. Flashing of the green LED and a voice message confi rm that the call has been made to the PEUGEOT Emergency team * .
* These services are subject to conditions and availability.
Consult a PEUGEOT dealer.
If the orange LED fl ashes: there is a system fault.
If the orange LED is on continuously: the backup battery must be replaced.
In either case, contact a PEUGEOT dealer.
If you purchased your vehicle outside the PEUGEOT dealer network, we invite you to have a dealer check the confi guration of these services and, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.
For technical reasons, particularly to improve the quality of PEUGEOT CONNECT services to customers, the manufacturer reserves the right to carry out updates to the vehicle's on-board telematic system.

163
207CC_EN_CHAP11B_RNEG_ED01-2014
The PEUGEOT Connect Navigation (RNEG) is protected in such a way that it will only operate in your vehicle.
PEUGEOT Connect Nonnect Nonnectavigation (RNEG)
For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the PEUGEOT Connect Navigation (RNEG) switches off following the activation of the Energy Economy mode.
MULTIMEDIA AUDIO SYSTEM / BLUETOOTH ® TELEPHONE
SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD
01 First steps CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Radio
07 Music media players
08 Bluetooth
® telephone
09 Screen menu map
Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
164
165
166
169
177
179
180
183
186
190

164
01
207CC_EN_CHAP11B_RNEG_ED01-2014
FIRST STEPS
Engine not running:
- Short press: on/off.
- Long press: pause with CD play, mute for radio.
Engine running:
- Short press: pause with CD play, mute for radio.
- Long press: reinitialise the system.
Access to the Radio Menu. Display the list of stations.
Access to the Music Menu. Display tracks.
Long press: audio settings: front/rear fader, left/right balance, bass/treble, musical ambience, loudness, automatic volume, reinitialise settings.
Selection dial for the screen display and according to the menu.
Short press: contextual menu or confi rm.
Long press: contextual menu specifi c to the list displayed.
Access to the "SETUP" menu.
Long press: GPS coverage and demonstration mode.
Access to the Phone Menu. Display the list of calls.
Eject CD.
Select previous/next radio station.
Select previous CD or MP3 track.
Select previous/next line in a list.
Select previous/next radio station in the list.
Select previous/next MP3 folder.
Select previous/next page in a list.
Abandon current operation. Access to the Traffi c Menu. Display the current traffi c alerts.
Reader for navigation SD card only.
Access to the Navigation Menu. Display recent destinations.
Access to the "MODE" menu.
Select successive display of:
Radio, Map, NAV (if navigation in progress), Telephone (if conversation in progress), Trip computer.
Long press: Black screen (DARK).
Buttons 1 to 6:
Select a pre-set radio station.
Long press: pre-set the current station.
Adjust volume (each source is independent, including navigation messages and alerts).

165
02
207CC_EN_CHAP11B_RNEG_ED01-2014
STEERING MOUNTED CONTROLS
RADIO: select the previous/next pre-set station.
Select the next entry in the address book.
RADIO: change to the next radio station in the list.
Long press: automatic search for a higher frequency.
CD: select the next track.
CD: continuous press: fast forward play.
Volume increase.
Change the audio source.
Start a call from the address book.
Call/End call on the telephone.
Press for more than 2 seconds: access to the address book.
Volume decrease.
RADIO: change to the previous radio station in the List.
Long press: automatic search for a lower frequency.
CD: select the previous track.
CD: continuous press: fast reverse.
Mute: press the volume increase and decrease buttons simultaneously.
Restore the sound by pressing one of the two volume buttons.

166
03
207CC_EN_CHAP11B_RNEG_ED01-2014
GENERAL OPERATION
For a detailed global view of the menus available, refer to the "Screen menu map" section.
Press the MODE button several times in succession for access to the foll\
owing menus:
For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product.
RADIO / MUSIC MEDIA PLAYERS / MUSIC MEDIA PLAYERS
TELEPHONE
(If a conversation is in progress)
FULL SCREEN MAP
NAVIGATION
(If guidance is in progress)
SETUP: system language * , date and time * , display,
vehicle settings * , unit and system settings, "Demo mode".
TRAFFIC:
TMC information and messages.
* Available according to model.
TRIP COMPUTER

167
03
207CC_EN_CHAP11B_RNEG_ED01-2014
GENERAL OPERATION
A press on the OK dial gives access to short-cut menus according to the display on the screen.

DISPLAY ACCORDING TO THE CONTEXT
NAVIGATION (IF GUIDANCE IS IN PROGRESS): TRIP COMPUTER:
Abort guidance
Repeat advice
Block road
Route info
Show destination
Trip info
Route type
Avoid
Satellites
Zoom/Scroll
Voice advice
Route options
Alert log
Status of functions
1
2
3
3
2
1
1
1
3
1
1
1
1
2
TELEPHONE:
End call
Hold call
Dial
DTMF-Tones
Private mode
Micro off
1
1
1
1
1
1

168
03
207CC_EN_CHAP11B_RNEG_ED01-2014

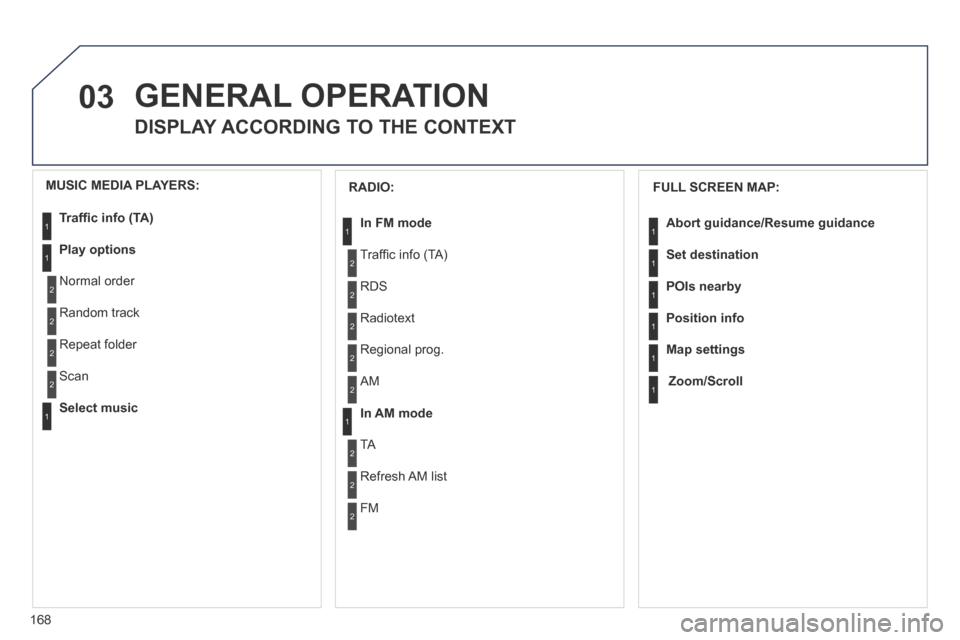

GENERAL OPERATION
DISPLAY ACCORDING TO THE CONTEXT
FULL SCREEN MAP:
Abort guidance /Resume guidance
Set destination
POIs nearby
Position info
Map settings
Zoom/Scroll
1
1
1
1
1
1
RADIO:
In FM mode
Traffi c info (TA)
RDS
Radiotext
Regional prog.
In AM mode
AM
TA
Refresh AM list
FM
1
2
1
2
2
2
2
2
2
2
MUSIC MEDIA PLAYERS:
Traffi c info (TA)
Play options
Normal order
Random track
Repeat folder
Select music
Scan
1
1
2
2
2
2
1
