Peugeot 3008 Hybrid 4 2012 - RHD (UK. Australia) Owner's Guide

HY
B
29
How to start your vehicle


- Ensure that the gear lever is in posi-
tion N
.

- Switch the ignition on by turning the
key to position 2
.
If the Diesel pre-heating warning
lamp comes on (ambient tempera-
ture below freezing), wait unit it goes
off before starting.

- Press fi rmly on the brake pedal, turn
the ignition key to position 3
to start
up the hybrid system, then release
the key.


- The instrument panel and the Ready

lamp come on. The power meter
needle sweeps through its travel in-
dicating that the hybrid system is
active, confi rmed by a message
;
the dial in the centre console is in AUTO

mode (default mode for starting).

- The hybrid system determines
whether it is necessary to start the
Diesel engine.


- With the brake still applied, move
the gear lever to position A
to go
forwards or R
(by lifting the lever
slightly) for reverse.

- Lift your foot off the brake pedal, you
can move off.

- The parking brake is released au-
tomatically as you move off, if con-
fi gured to do so (otherwise, release
the parking brake manually).

How to stop your vehicle andthe hybrid system



- Apply the brake until the vehicle
comes to a complete stop.

- Place the gear lever in position N
.

- Turn the ignition key to position 1
,
the parking brake is applied auto-
matically if confi gured to do so.

- Otherwise apply the parking brake
manually, the P
warning lamp must
be on.

For more information, refer to the
"Underbonnet precautions / warnings"
section. When stationary, switch off the
ignition and ensure that the
Ready
lamp is off before you
leave the vehicle, otherwise the
hybrid system will still be active.

When your vehicle starts in
electric mode, this means
that it makes no noise. Be
very careful of pedestrians
as they will not hear you coming.

HY
B
30

With the gear selector in position N
,
press the brake pedal and start the hy-
brid system.
This lamp comes on when the vehicle is
ready to move off ("Auto" mode is on by
default) and so the driver can press the
accelerator.
This lamp comes on more or less in-
stantly but may take a few seconds
in some cases (in particular, the time
needed for pre-heating the Diesel en-
gine in cold weather).

READY LAMP


When stationary, switch off the
hybrid system and check that
the Ready
lamp is off when
you leave the vehicle, other-
wise the hybrid system will remain
active.

For more information, refer to the
"Underbonnet precautions / warnings"
section.

HY
B
31

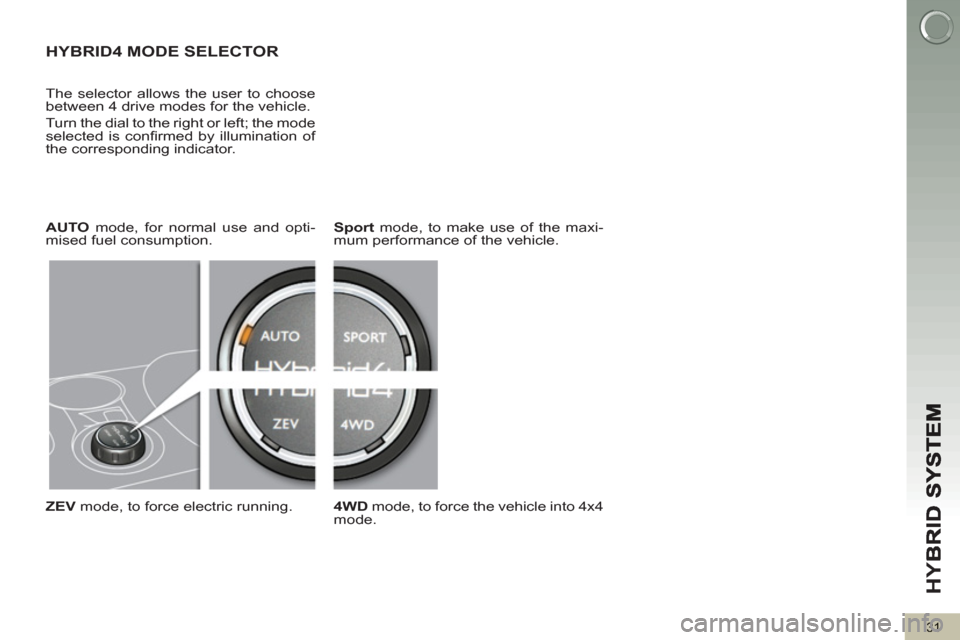

HYBRID4 MODE SELECTOR

The selector allows the user to choose
between 4 drive modes for the vehicle.
Turn the dial to the right or left; the mode
selected is confi rmed by illumination of
the corresponding indicator.


ZEV
mode, to force electric running.

Sport
mode, to make use of the maxi-
mum performance of the vehicle.


4WD
mode, to force the vehicle into 4x4
mode.


AUTO
mode, for normal use and opti-
mised fuel consumption.

HY
B
32

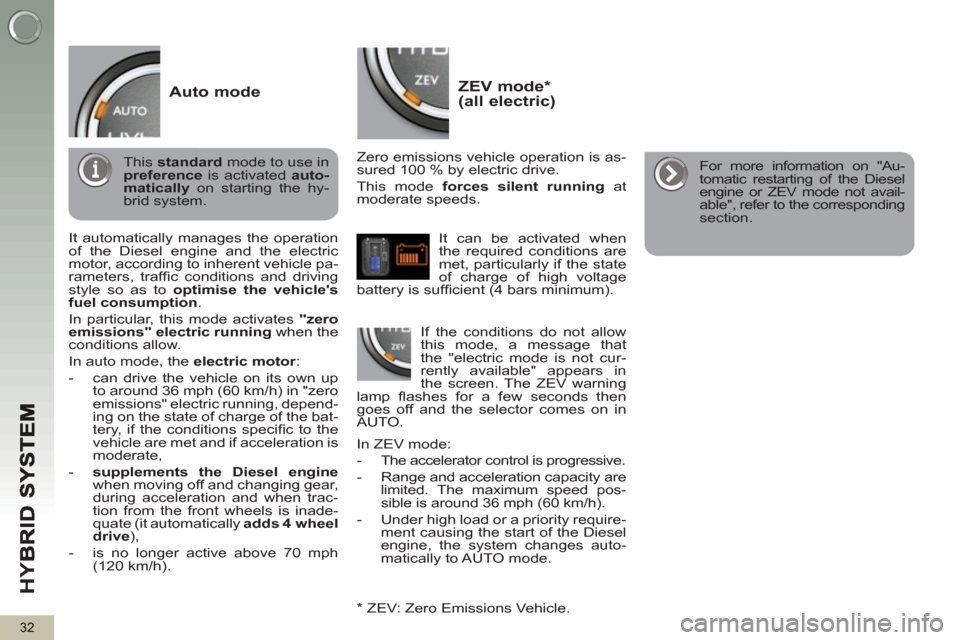

ZEV mode * (all electric)


Zero emissions vehicle operation is as-
sured 100 % by electric drive.
This mode forces silent running
at
moderate speeds.

* ZEV: Zero Emissions Vehicle. In ZEV mode:


- The accelerator control is progressive.

- Range and acceleration capacity are
limited. The maximum speed pos-
sible is around 36 mph (60 km/h).

- Under high load or a priority require-
ment causing the start of the Diesel
engine, the system changes auto-
matically to AUTO mode.
It can be activated when
the required conditions are
met, particularly if the state
of charge of high voltage
battery is suffi cient (4 bars minimum).

If the conditions do not allow
this mode, a message that
the "electric mode is not cur-
rently available" appears in
the screen. The ZEV warning
lamp fl ashes for a few seconds then
goes off and the selector comes on in
AUTO.
Auto mode

It automatically manages the operation
of the Diesel engine and the electric
motor, according to inherent vehicle pa-
rameters, traffi c conditions and driving
style so as to optimise the vehicle's
fuel consumption
.
In particular, this mode activates "zero
emissions" electric running
when the
conditions allow.
In auto mode, the electric motor
:


- can drive the vehicle on its own up
to around 36 mph (60 km/h) in "zero
emissions" electric running, depend-
ing on the state of charge of the bat-
tery, if the conditions specifi c to the
vehicle are met and if acceleration is
moderate,

- supplements the Diesel engine

when moving off and changing gear,
during acceleration and when trac-
tion from the front wheels is inade-
quate (it automatically adds
4 wheel
drive
),

- is no longer active above 70 mph
(120 km/h).


This standard
mode to use in
preference
is activated auto-
matically
on starting the hy-
brid system.
For more information on "Au-
tomatic restarting of the Diesel
engine or ZEV mode not avail-
able", refer to the corresponding
section.

HY
B
33

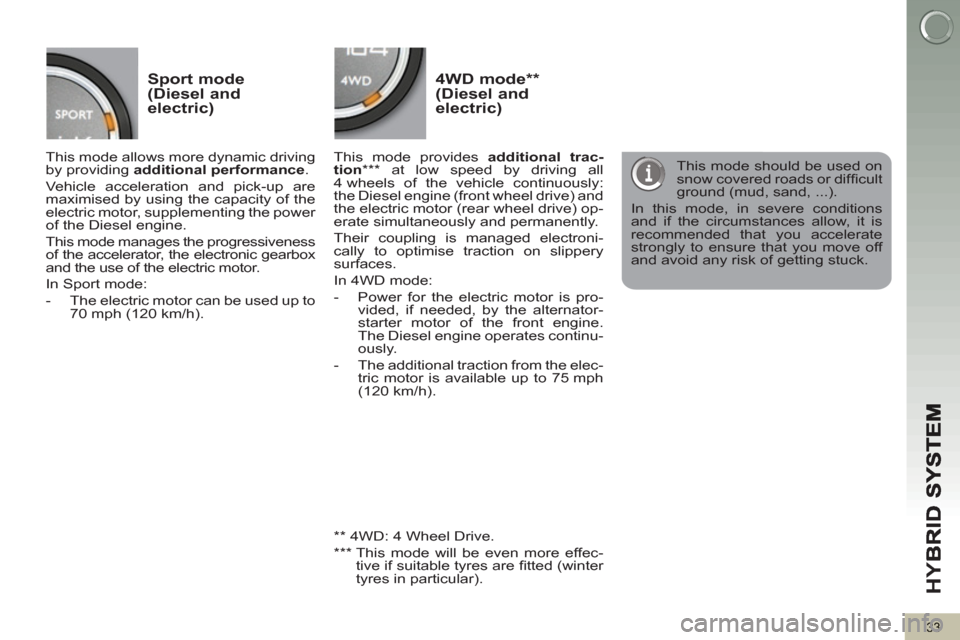

Sport mode (Diesel and electric)


4WD mode ** (Diesel and
electric)

This mode allows more dynamic driving
by providing additional performance
.
Vehicle acceleration and pick-up are
maximised by using the capacity of the
electric motor, supplementing the power
of the Diesel engine.
This mode manages the progressiveness
of the accelerator, the electronic gearbox
and the use of the electric motor.
In Sport mode:


- The electric motor can be used up to
70 mph (120 km/h).


This mode provides additional trac-
tion

*** at low speed by driving all
4 wheels of the vehicle continuously:
the Diesel engine (front wheel drive) and
the electric motor (rear wheel drive) op-
erate simultaneously and permanently.
Their coupling is managed electroni-
cally to optimise traction on slippery
surfaces.
In 4WD mode:


- Power for the electric motor is pro-
vided, if needed, by the alternator-
starter motor of the front engine.
The Diesel engine operates continu-
ously.

- The additional traction from the elec-
tric motor is available up to 75 mph
(120 km/h).

This mode should be used on
snow covered roads or diffi cult
ground (mud, sand, ...).
In this mode, in severe conditions
and if the circumstances allow, it is
recommended that you accelerate
strongly to ensure that you move off
and avoid any risk of getting stuck.




** 4WD: 4 Wheel Drive.

***
This mode will be even more effec-
tive if suitable tyres are fi tted (winter
tyres in particular).

HY
B
34

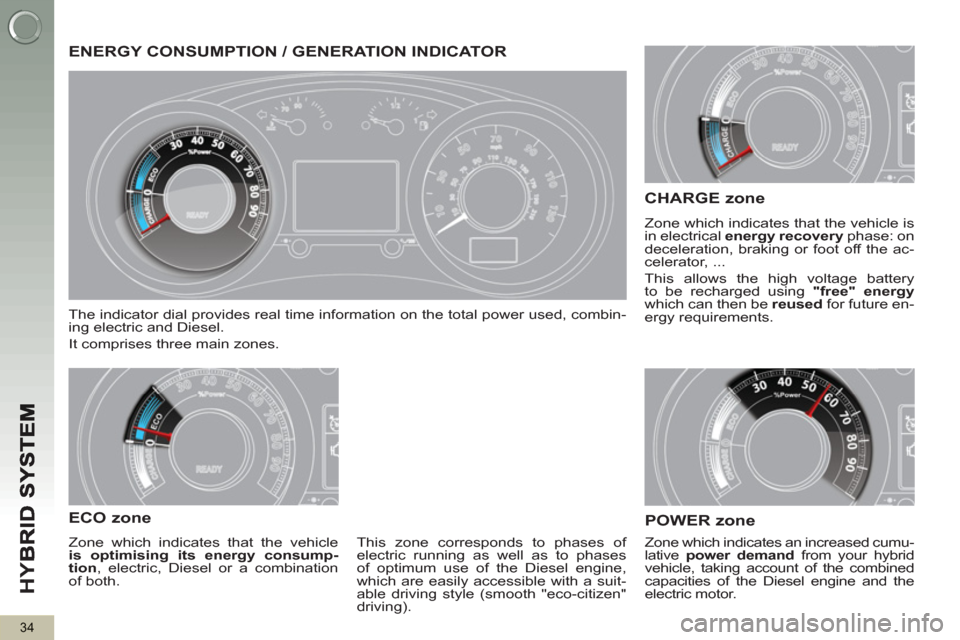

ENERGY CONSUMPTION / GENERATION INDICATOR
The indicator dial provides real time information on the total power used, combin-
ing electric and Diesel.
It comprises three main zones.


ECO zone

POWER zone
CHARGE zone

Zone which indicates that the vehicle is
in electrical energy recovery
phase: on
deceleration, braking or foot off the ac-
celerator, ...
This allows the high voltage battery
to be recharged using "free" energy

which can then be reused
for future en-
ergy requirements.
This zone corresponds to phases of
electric running as well as to phases
of optimum use of the Diesel engine,
which are easily accessible with a suit-
able driving style (smooth "eco-citizen"
driving). Zone which indicates that the vehicle
is optimising its energy consump-
tion
, electric, Diesel or a combination
of both. Zone which indicates an increased cumu-
lative power demand
from your hybrid
vehicle, taking account of the combined
capacities of the Diesel engine and the
electric motor.

HY
B
35

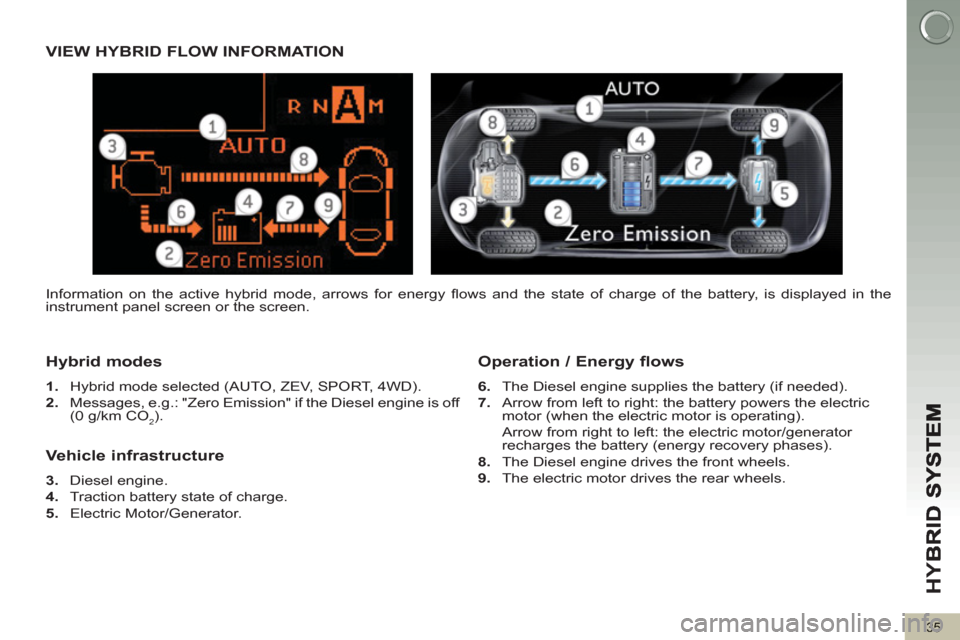

VIEW HYBRID FLOW INFORMATION
H
ybrid modes

1.
Hybrid mode selected (AUTO, ZEV, SPORT, 4WD).

2.
Messages, e.g.: "Zero Emission" if the Diesel engine is off
(0 g/km CO
2).


Operation / Energy flows


6.
The Diesel engine supplies the battery (if needed).

7.
Arrow from left to right: the battery powers the electric
motor (when the electric motor is operating).
Arrow from right to left: the electric motor/generator
recharges the battery (energy recovery phases).

8.
The Diesel engine drives the front wheels.

9.
The electric motor drives the rear wheels.
Vehicle infrastructure


3.
Diesel engine.

4.
Traction battery state of charge.

5.
Electric Motor/Generator. Information on the active hybrid mode, arrows for energy fl ows and the state of charge of the battery, is displayed in the
instrument panel screen or the screen.

HY
B
36

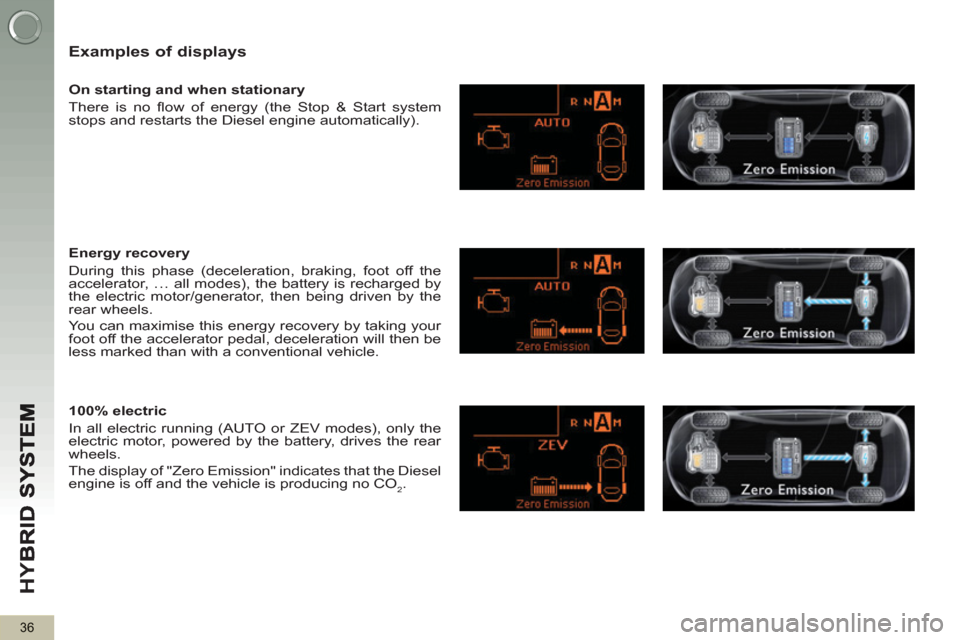

Examples of displays


On starting and when stationary
There is no fl ow of energy (the Stop & Start system
stops and restarts the Diesel engine automatically).

Energy recovery
During this phase (deceleration, braking, foot off the
accelerator, … all modes), the battery is recharged by
the electric motor/generator, then being driven by the
rear wheels.
You can maximise this energy recovery by taking your
foot off the accelerator pedal, deceleration will then be
less marked than with a conventional vehicle.

100% electric
In all electric running (AUTO or ZEV modes), only the
electric motor, powered by the battery, drives the rear
wheels.
The display of "Zero Emission" indicates that the Diesel
engine is off and the vehicle is producing no CO
2.

HY
B
37

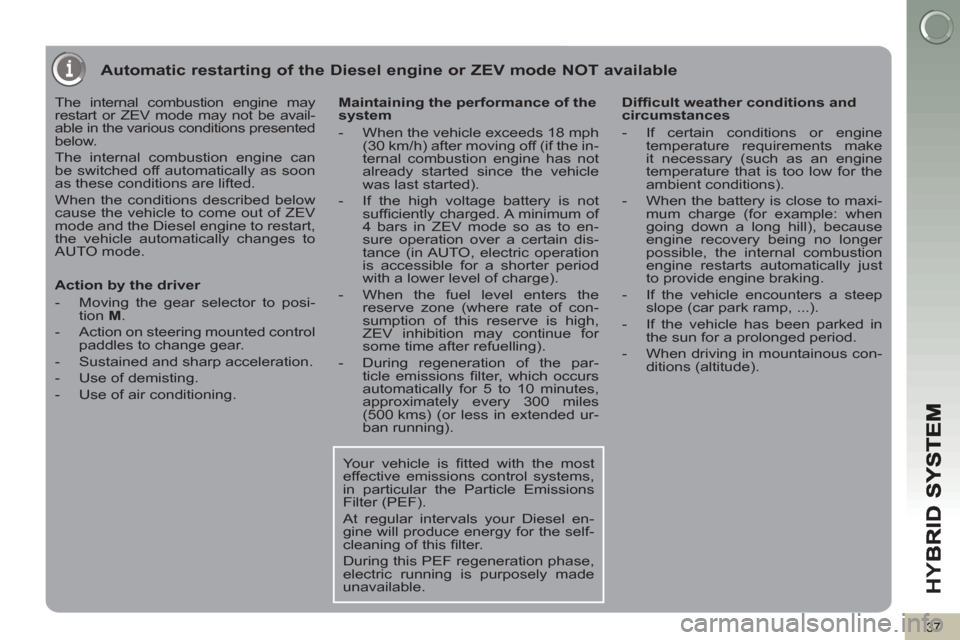

Automatic restarting of the Diesel engine or ZEV mode NOT available

The internal combustion engine may
restart or ZEV mode may not be avail-
able in the various conditions presented
below.
The internal combustion engine can
be switched off automatically as soon
as these conditions are lifted.
When the conditions described below
cause the vehicle to come out of ZEV
mode and the Diesel engine to restart,
the vehicle automatically changes to
AUTO mode.

Action by the driver


- Moving the gear selector to posi-
tion M
.

- Action on steering mounted control
paddles to change gear.

- Sustained and sharp acceleration.

- Use of demisting.

- Use of air conditioning.

Maintaining the performance of the
system


- When the vehicle exceeds 18 mph
(30 km/h) after moving off (if the in-
ternal combustion engine has not
already started since the vehicle
was last started).

- If the high voltage battery is not
suffi ciently charged. A minimum of
4 bars in ZEV mode so as to en-
sure operation over a certain dis-
tance (in AUTO, electric operation
is accessible for a shorter period
with a lower level of charge).

- When the fuel level enters the
reserve zone (where rate of con-
sumption of this reserve is high,
ZEV inhibition may continue for
some time after refuelling).

- During regeneration of the par-
ticle emissions fi lter, which occurs
automatically for 5 to 10 minutes,
approximately every 300 miles
(500 kms) (or less in extended ur-
ban running).

Diffi cult weather conditions and
circumstances


- If certain conditions or engine
temperature requirements make
it necessary (such as an engine
temperature that is too low for the
ambient conditions).

- When the battery is close to maxi-
mum charge (for example: when
going down a long hill), because
engine recovery being no longer
possible, the internal combustion
engine restarts automatically just
to provide engine braking.

- If the vehicle encounters a steep
slope (car park ramp, ...).

- If the vehicle has been parked in
the sun for a prolonged period.

- When driving in mountainous con-
ditions (altitude).



Your vehicle is fi tted with the most
effective emissions control systems,
in particular the Particle Emissions
Filter (PEF).
At regular intervals your Diesel en-
gine will produce energy for the self-
cleaning of this fi lter.
During this PEF regeneration phase,
electric running is purposely made
unavailable.

HY
B
38

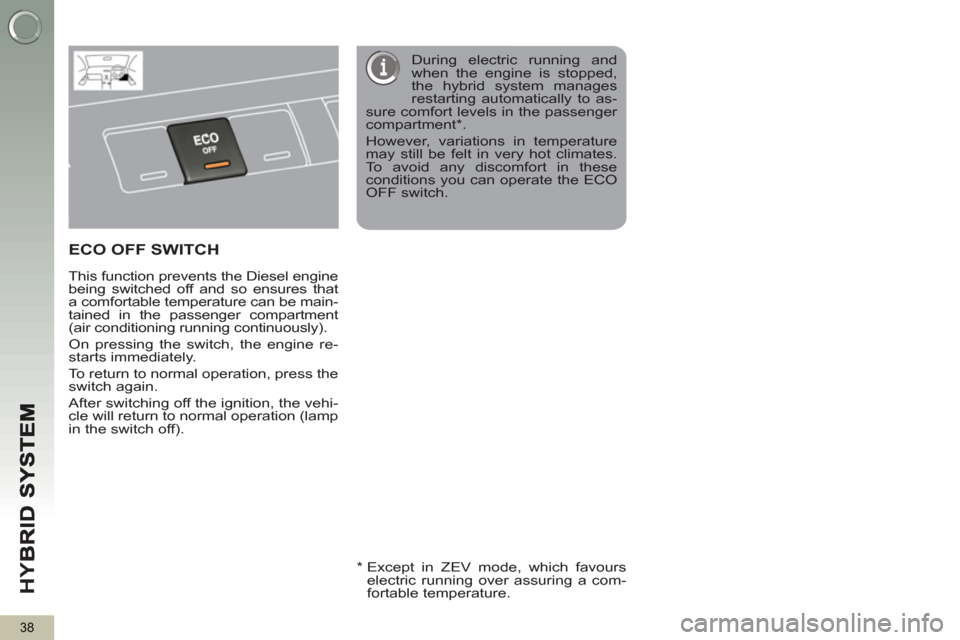

ECO OFF SWITCH


This function prevents the Diesel engine
being switched off and so ensures that
a comfortable temperature can be main-
tained in the passenger compartment
(air conditioning running continuously).
On pressing the switch, the engine re-
starts immediately.
To return to normal operation, press the
switch again.
After switching off the ignition, the vehi-
cle will return to normal operation (lamp
in the switch off).
During electric running and
when the engine is stopped,
the hybrid system manages
restarting automatically to as-
sure comfort levels in the passenger
compartment * .
However, variations in temperature
may still be felt in very hot climates.
To avoid any discomfort in these
conditions you can operate the ECO
OFF switch.




*
Except in ZEV mode, which favours
electric running over assuring a com-
fortable temperature.
