Peugeot 3008 Hybrid 4 2012 Owner's Manual - RHD (UK. Australia)
Manufacturer: PEUGEOT, Model Year: 2012, Model line: 3008 Hybrid 4, Model: Peugeot 3008 Hybrid 4 2012Pages: 284, PDF Size: 14.08 MB
Page 1 of 284
Page 2 of 284
You can find your user guide on thePEUGEOTwebsite, under theheading "Personal space".
Referring to the user guide on-line also gives you access to thelatest information available, easily identified by the bookmarks, associated with this pictogram:
If the heading "Personal space" is not available on the public websitefor your country, you can find your user guide at the following address:http://public.servicebox.peugeot.com
the link in "Private customer access",
the language,
the model,
the edition date appropriate for the date of registration of your vehicle.
Please note the following point:
The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle's electronic system. Please note this specific warning.It is advisable to contact a PEUGEOT dealer to be shown the recommended equipment and accessories.
Select:
You will find your user guide, presented in the same way as the paper version.
Page 3 of 284
Page reference:
this symbol invites you to refer
to the pages which provide de-
tails of the function.
Key
Protection of the
environment:
this symbol accompanies advice
relating to protection of the environment.
Information:
this symbol draws your atten-
tion to additional information
for better use of your vehicle.
Warning:
this symbol marks warnings
which it is essential to observe
for your own safety, for the safety of
others or to avoid any risk of damaging
your vehicle.
WELCOME
Thank you for choosing a 3008 HYbrid4,
a symbol of pleasure and innovation.
This handbook has been designed to
enable you to make the most of your
3008 HYbrid4.
On the fi rst few pages, you will fi nd a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your vehicle.
All of the details specifi c to your 3008
HYbrid4, comfort, safety, driving, are
then presented in this handbook, to in-
crease your appreciation of the vehicle
and help you make the most of it.
At the end of the handbook, illustrations
of the interior and exterior of the vehicle
will assist you in locating information on
equipment or a function in the book.
Each model will be fi tted with only
some of the equipment mentioned in
this handbook, depending on its trim
level, model, version and the specifi ca-
tion for the country in which it is sold.
Page 4 of 284
CONTENTS
FAMILIARISATION 4-25
IN
STRUMENTS and
CONTROLS 47-61
CHILD SAFETY 122-132
MULTIFUNCTION
SCREEN
S62-70
SAFETY 133-142 COMFORT 71-8
4
ACCESS 85-99
VISIBILITY 100-110FITTINGS 111-12
1
Instrument panels...........................47Indicator and warning lamps..........49Indicators........................................57Adjustment buttons.........................61
Child seats....................................122ISOFIX child seats........................129Child lock ......................................132
Screen C (Peugeot ConnectSound (RD5))...............................6216/9 high definition retractable colour
screen (Peugeot Connect Media).....65
Direction indicators.......................133Hazard warning lamps..................133Horn ..............................................133ESC system..................................134Front seat belts.............................136Airbags .........................................139
Heating and Ventilation ..................71Rear screen demist - defrost..........72Dual-zone digital air conditioning......73Front seats .....................................76Rear seats......................................80Steering wheel adjustment.............82Mirrors............................................83
Remote control key........................85Alarm ..............................................90Electric windows.............................92Doors..............................................94Boot................................................96Lower tailgate.................................97Fuel tank.........................................98Misfuel prevention (Diesel) .............99
Lighting controls...........................100LED lamps ....................................102Daytime running lamps.................102Automatic illumination
of headlamps..............................103Headlamp adjustment..................104Wiper controls ..............................105Automatic rain sensitive wipers .....107Courtesy lamps............................108Interior mood lighting....................109Boot lamp......................................110
Interior fittings................................111Front armrest.................................113Rear multimedia............................115Panoramic sunroof........................f117Boot fittings....................................118HYBRID SYSTEM 26-46
Presentation...................................26Ready lamp....................................30HYbrid4 mode selector...................r31Energy consumption / generationindicator........................................r34Display of hybrid power flow..........35Eco off............................................f38Eco-driving......................................39Consumption ..................................41High voltage battery.......................42Vehicle recovery.............................46
Page 5 of 284
CONTENTS
ALPHABETICALINDEX 271-274
DRIVING 143-162
CHECK
S 163-169
PRACTICAL
INFORMATION 170-199
TECHNICAL DATA 200-204
AUDIO EQUIPMENTand TELEMATICS 205-270
Electric parking brake...................143Hill start assist..............................148Head-up display...........................151Speed limiter................................r153Cruise control...............................1556-speed electronic gear control gearbox......................................157Parking sensors ............................161
Bonnet..........................................164Running out of fuel (Diesel)..........165Diesel engine................................166Checking levels............................167Checks..........................................168
Temporary puncture repair kit......170Changing a wheel.........................176Changing a bulb...........................179Changing a fuse ...........................18312 V Battery..................................190Energy economy mode................193Changing a wiper blade...............194Recovering the vehicle.................194Vehicle recovery ...........................195Towing a trailer.............................r196Fitting roof bars............................197Very cold climate screen..............197Accessories..................................198
Electric motor...............................r200Diesel engine................................201Diesel weights ..............................202Dimensions ...................................203Identification markings..................204
VISUAL SEARCH 275-279
Emergency or assistance.............205Peugeot Connect Media Navigation(NG4 3D)....................................209Peugeot Connect Sound (RD5)....253
Page 6 of 284
4
FA
M

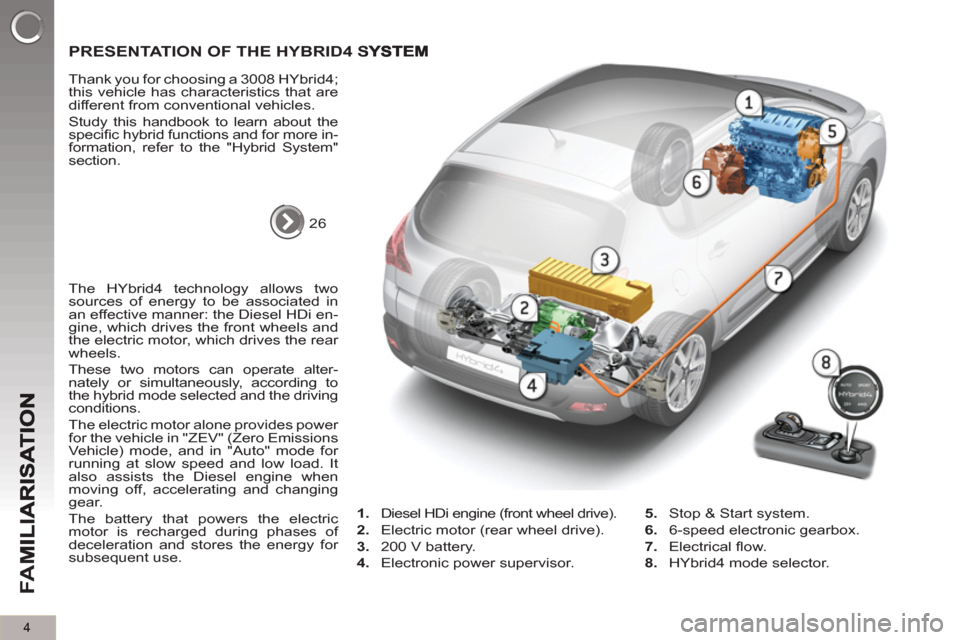

PRESENTATION OF THE HYBRID4 SYSTEM
26
Thank you for choosing a 3008 HYbrid4;
this vehicle has characteristics that are
different from conventional vehicles.
Study this handbook to learn about the
specifi c hybrid functions and for more in-
formation, refer to the "Hybrid System"
section.
The HYbrid4 technology allows two
sources of energy to be associated in
an effective manner: the Diesel HDi en-
gine, which drives the front wheels and
the electric motor, which drives the rear
wheels.
These two motors can operate alter-
nately or simultaneously, according to
the hybrid mode selected and the driving
conditions.
The electric motor alone provides power
for the vehicle in "ZEV" (Zero Emissions
Vehicle) mode, and in "Auto" mode for
running at slow speed and low load. It
also assists the Diesel engine when
moving off, accelerating and changing
gear.
The battery that powers the electric
motor is recharged during phases of
deceleration and stores the energy for
subsequent use.
1.
Diesel HDi engine (front wheel drive).
2.
Electric motor (rear wheel drive).
3.
200 V battery.
4.
Electronic power supervisor.
5.
Stop & Start system.
6.
6-speed electronic gearbox.
7.
Electrical fl ow.
8.
HYbrid4 mode selector.
Page 7 of 284
5
FA
M

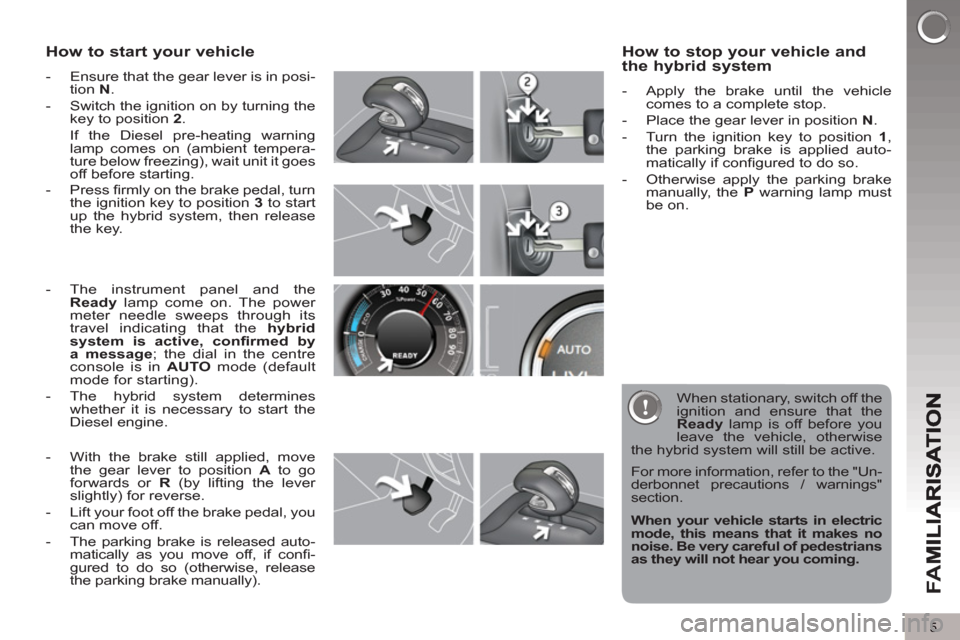

How to start your vehicle
- Ensure that the gear lever is in posi-
tion N
.
- Switch the ignition on by turning the
key to position 2
.
If the Diesel pre-heating warning
lamp comes on (ambient tempera-
ture below freezing), wait unit it goes
off before starting.
- The instrument panel and the
Ready
lamp come on. The power
meter needle sweeps through its
travel indicating that the hybrid
system is active, confi rmed by
a message
; the dial in the centre
console is in AUTO
mode (default
mode for starting).
- The hybrid system determines
whether it is necessary to start the
Diesel engine.
- With the brake still applied, move
the gear lever to position A
to go
forwards or R
(by lifting the lever
slightly) for reverse.
- Lift your foot off the brake pedal, you
can move off.
- The parking brake is released auto-
matically as you move off, if confi -
gured to do so (otherwise, release
the parking brake manually).
How to stop your vehicle andthe hybrid system
- Apply the brake until the vehicle
comes to a complete stop.
- Place the gear lever in position N
.
- Turn the ignition key to position 1
,
the parking brake is applied auto-
matically if confi gured to do so.
- Otherwise apply the parking brake
manually, the P
warning lamp must
be on.
- Press fi rmly on the brake pedal, turn
the ignition key to position 3
to start
up the hybrid system, then release
the key.
When stationary, switch off the
ignition and ensure that the
Ready
lamp is off before you
leave the vehicle, otherwise
the hybrid system will still be active.
For more information, refer to the "Un-
derbonnet precautions / warnings"
section.
When your vehicle starts in electric
mode, this means that it makes no
noise. Be very careful of pedestrians
as they will not hear you coming.
Page 8 of 284
6
FA
M

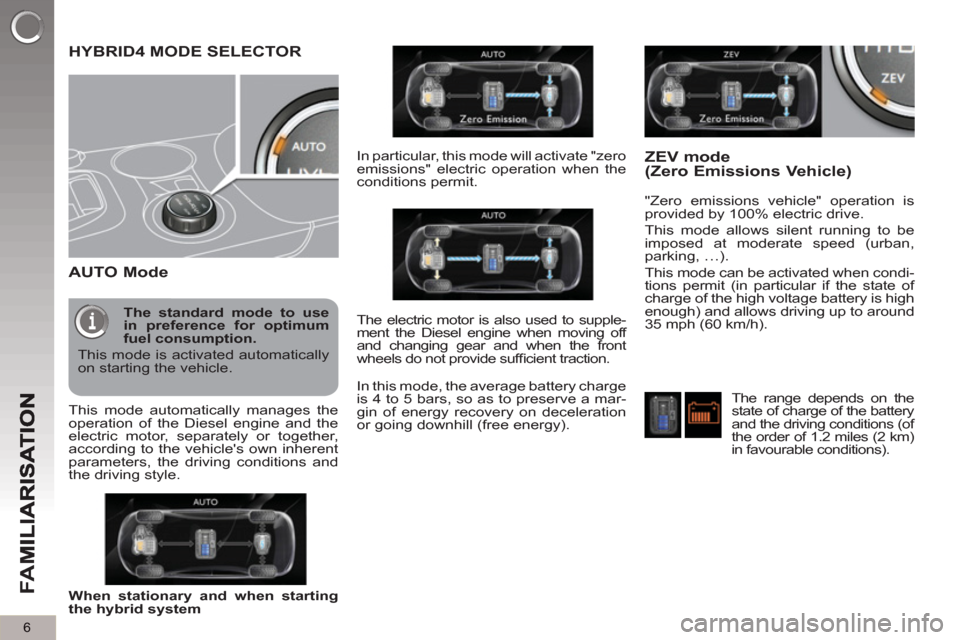

HYBRID4 MODE SELECTOR
AUTO Mode
"Zero emissions vehicle" operation is
provided by 100% electric drive.
This mode allows silent running to be
imposed at moderate speed (urban,
parking, …).
This mode can be activated when condi-
tions permit (in particular if the state of
charge of the high voltage battery is high
enough) and allows driving up to around
35 mph (60 km/h).
ZEV mode(Zero Emissions Vehicle)
When stationary and when starting
the hybrid system
This mode automatically manages the
operation of the Diesel engine and the
electric motor, separately or together,
according to the vehicle's own inherent
parameters, the driving conditions and
the driving style.
The standard mode to use
in preference for optimum
fuel consumption.
This mode is activated automatically
on starting the vehicle.
In particular, this mode will activate "zero
emissions" electric operation when the
conditions permit.
The electric motor is also used to supple-
ment the Diesel engine when moving off
and changing gear and when the front
wheels do not provide suffi cient traction.
The range depends on the
state of charge of the battery
and the driving conditions (of
the order of 1.2 miles (2 km)
in favourable conditions).
In this mode, the average battery charge
is 4 to 5 bars, so as to preserve a mar-
gin of energy recovery on deceleration
or going downhill (free energy).
Page 9 of 284
7
FA
M
Displays according to version in the
instrument panel screen or the main
screen.
This mode allows a more dynamic driving
style providing increased performance.
Acceleration and pickup are maximised
using the full capacity of the electric mo-
tor to supplement the Diesel engine.
The Stop & Start system also operates
in this mode.
This mode provides improved traction.
The Diesel engine drives the front
wheels continuously and the electric
motor drives the rear wheels.
Their coupling is managed automati-
cally to optimise traction on slippery
surfaces. This mode should be used on
snow covered roads and diffi cult ground
(mud, sand, …).
Sport mode
4WD mode (4 wheel drive)
Page 10 of 284
8
FA
M

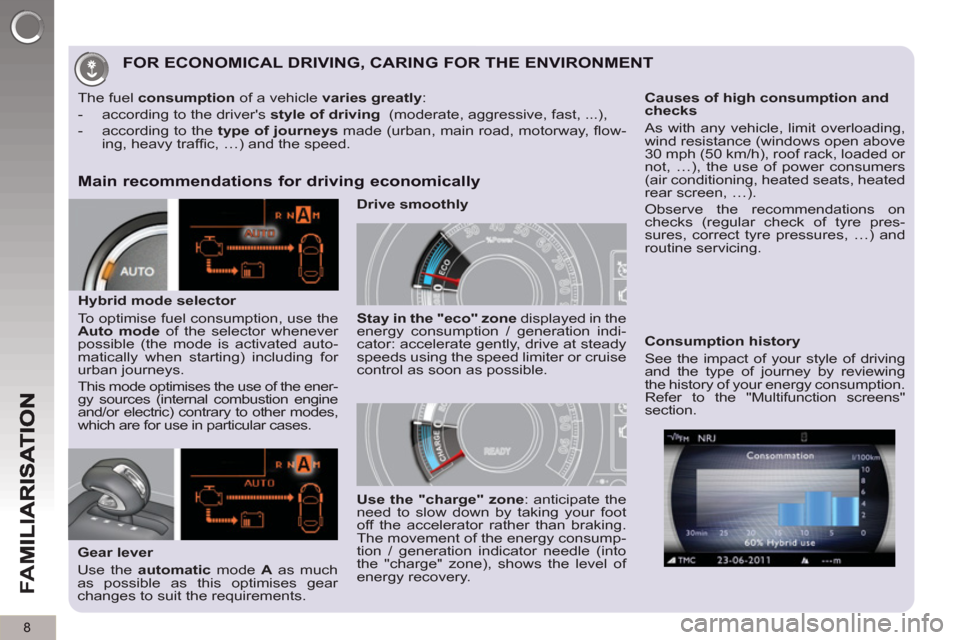

FOR ECONOMICAL DRIVING, CARING FOR THE ENVIRONMENT
Main recommendations for driving economically
Gear lever
Use the automatic
mode A
as much
as possible as this optimises gear
changes to suit the requirements.
The fuel consumption
of a vehicle varies greatly
:
- according to the driver's style of driving
(moderate, aggressive, fast, ...),
- according to the type of journeys
made (urban, main road, motorway, fl ow-
ing, heavy traffi c, …) and the speed.
Hybrid mode selector
To optimise fuel consumption, use the
Auto
mode
of the selector whenever
possible (the mode is activated auto-
matically when starting) including for
urban journeys.
This mode optimises the use of the ener-
gy sources (internal combustion engine
and/or electric) contrary to other modes,
which are for use in particular cases.
Stay in the "eco" zone
displayed in the
energy consumption / generation indi-
cator: accelerate gently, drive at steady
speeds using the speed limiter or cruise
control as soon as possible.
Causes of high consumption and
checks
As with any vehicle, limit overloading,
wind resistance (windows open above
30 mph (50 km/h), roof rack, loaded or
not, …), the use of power consumers
(air conditioning, heated seats, heated
rear screen, …).
Observe the recommendations on
checks (regular check of tyre pres-
sures, correct tyre pressures, …) and
routine servicing.
Consumption history
See the impact of your style of driving
and the type of journey by reviewing
the history of your energy consumption.
Refer to the "Multifunction screens"
section.
Use the "charge"
zone: anticipate the
need to slow down by taking your foot
off the accelerator rather than braking.
The movement of the energy consump-
tion / generation indicator needle (into
the "charge" zone), shows the level of
energy recovery.
Drive smoothly
