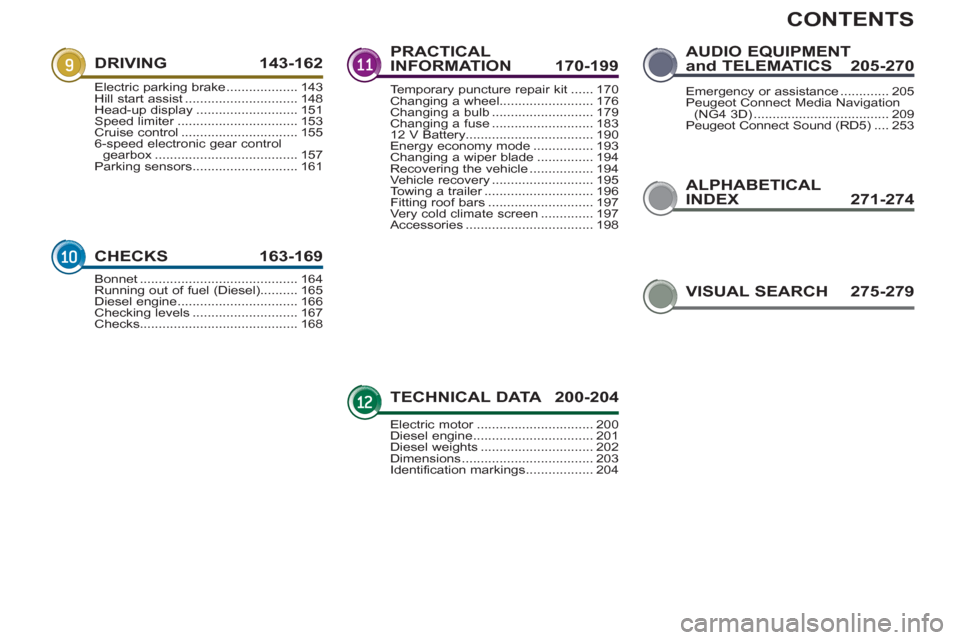

CONTENTS
ALPHABETICALINDEX 271-274
DRIVING 143-162
CHECK
S 163-169
PRACTICAL
INFORMATION 170-199
TECHNICAL DATA 200-204
AUDIO EQUIPMENTand TELEMATICS 205-270
Electric parking brake...................143Hill start assist..............................148Head-up display...........................151Speed limiter................................r153Cruise control...............................1556-speed electronic gear control gearbox......................................157Parking sensors ............................161
Bonnet..........................................164Running out of fuel (Diesel)..........165Diesel engine................................166Checking levels............................167Checks..........................................168
Temporary puncture repair kit......170Changing a wheel.........................176Changing a bulb...........................179Changing a fuse ...........................18312 V Battery..................................190Energy economy mode................193Changing a wiper blade...............194Recovering the vehicle.................194Vehicle recovery ...........................195Towing a trailer.............................r196Fitting roof bars............................197Very cold climate screen..............197Accessories..................................198
Electric motor...............................r200Diesel engine................................201Diesel weights ..............................202Dimensions ...................................203Identification markings..................204
VISUAL SEARCH 275-279
Emergency or assistance.............205Peugeot Connect Media Navigation(NG4 3D)....................................209Peugeot Connect Sound (RD5)....253

22
FA
M

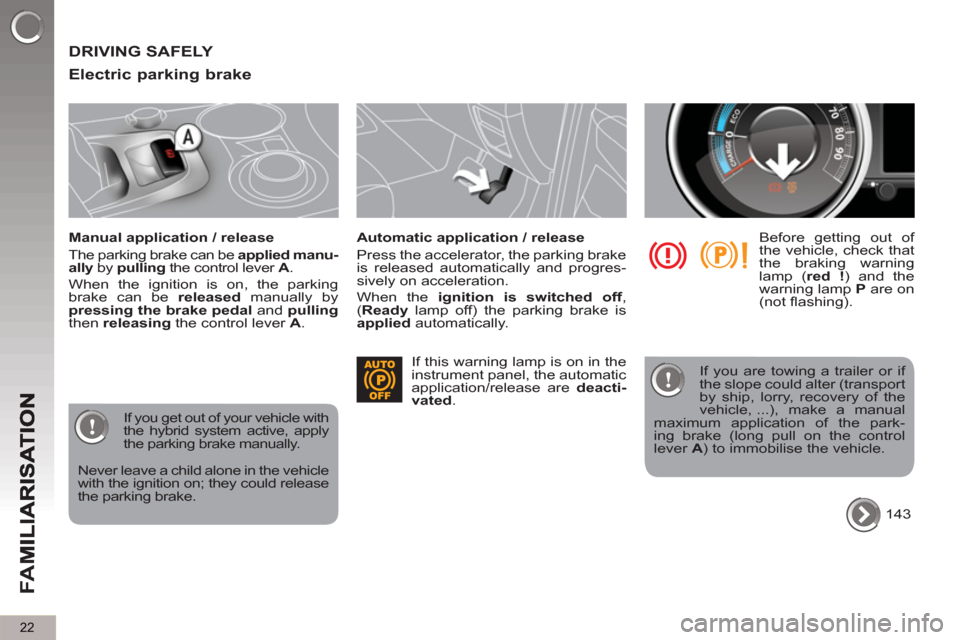

DRIVING SAFELY

Electric parkin
g brake


Manual application / release
The parking brake can be applied manu-
ally
by pulling
the control lever A
.
When the ignition is on, the parking
brake can be released
manually by
pressing the brake pedal
and pulling

then releasing
the control lever A
.
Automatic application / release
Press the accelerator, the parking brake
is released automatically and progres-
sively on acceleration.
When the ignition is switched off
,
( Ready
lamp off) the parking brake is
applied
automatically.

If you get out of your vehicle with
the hybrid system active, apply
the parking brake manually.

Before getting out of
the vehicle, check that
the braking warning
lamp ( red !
) and the
warning lamp P
are on
(not fl ashing).
Never leave a child alone in the vehicle
with the ignition on; they could release
the parking brake.
143 If this warning lamp is on in the
instrument panel, the automatic
application/release are deacti-
vated
.
If you are towing a trailer or if
the slope could alter (transport
by ship, lorry, recovery of the
vehicle, ...), make a manual
maximum application of the park-
ing brake (long pull on the control
lever A
) to immobilise the vehicle.

HY
B
40

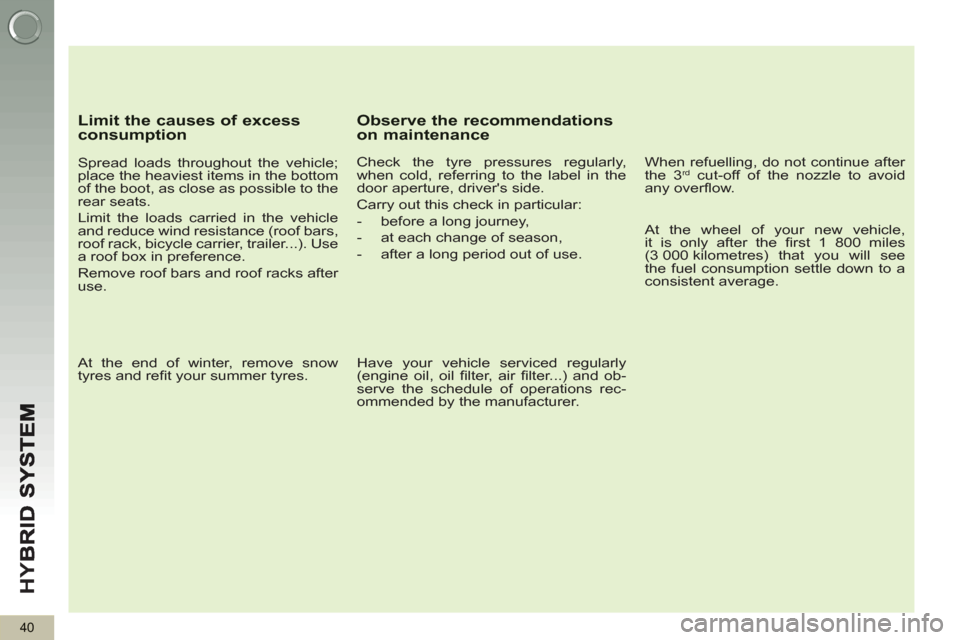

Limit the causes of excess consumption


Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow
tyres and refi t your summer tyres.



Observe the recommendationson maintenance


Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.


Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and ob-
serve the schedule of operations rec-
ommended by the manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.

At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

HY
B
46

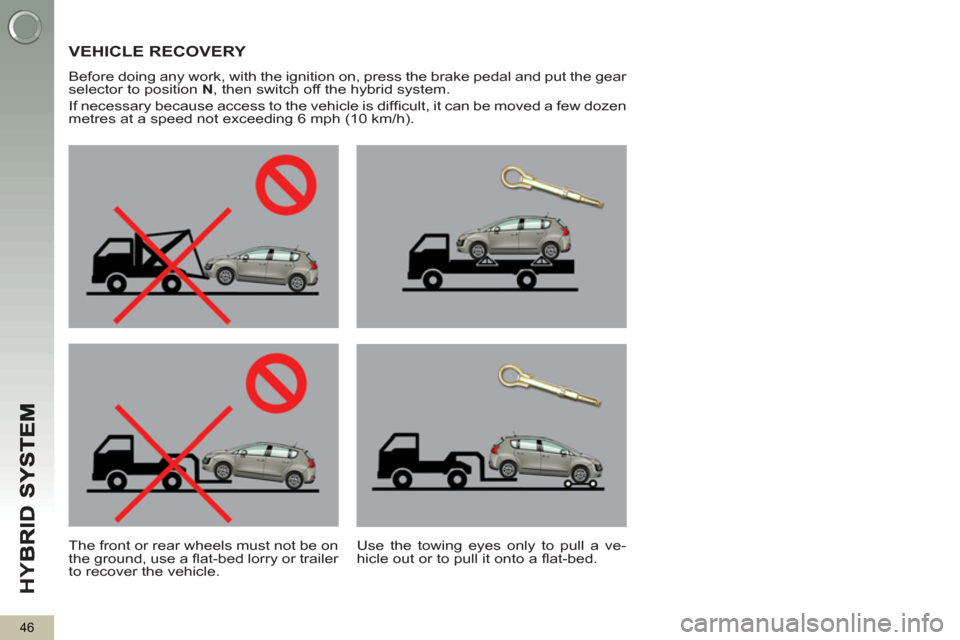

VEHICLE RECOVERY


Before doing any work, with the ignition on, press the brake pedal and put the gear
selector to position N
, then switch off the hybrid system.
If necessary because access to the vehicle is diffi cult, it can be moved a few dozen
metres at a speed not exceeding 6 mph (10 km/h).

The front or rear wheels must not be on
the ground, use a fl at-bed lorry or trailer
to recover the vehicle.
Use the towing eyes only to pull a ve-
hicle out or to pull it onto a fl at-bed.

D
R
I
144

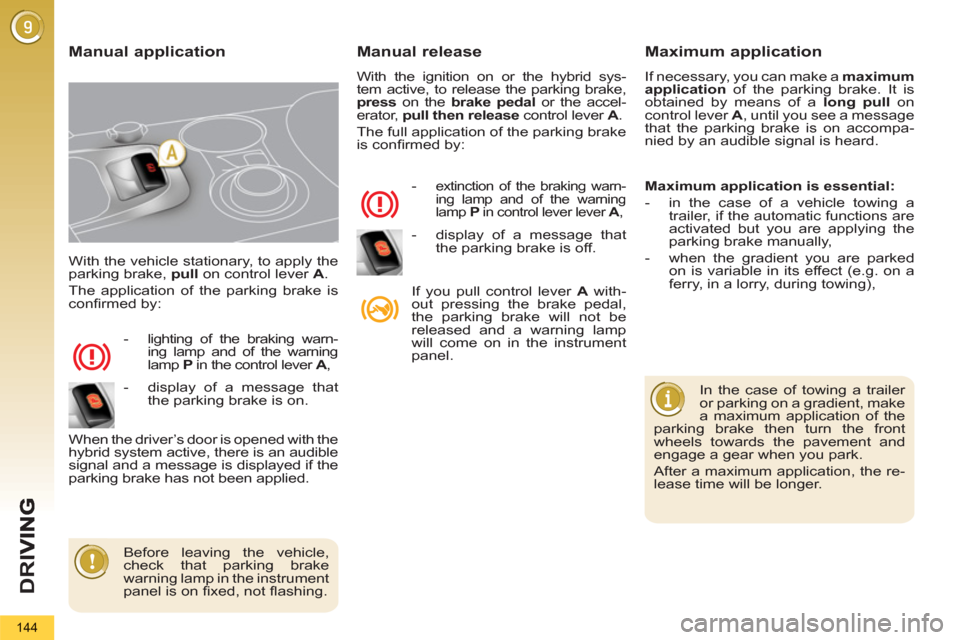

With the vehicle stationary, to apply the
parking brake, pull
on control lever A
.
The application of the parking brake is
confi rmed by:


- lighting of the braking warn-
ing lamp and of the warning
lamp P
in the control lever A
,
When the driver’s door is opened with the
hybrid system active, there is an audible
signal and a message is displayed if the
parking brake has not been applied.
Manual release
With the ignition on or the hybrid sys-
tem active, to release the parking brake,
press
on the brake
pedal
or the accel-
erator, pull then release
control lever A
.
The full application of the parking brake
is confi rmed by:


-
extinction of the braking warn-
ing lamp and of the warning
lamp P
in control lever lever A
,

If you pull control lever A
with-
out pressing the brake pedal,
the parking brake will not be
released and a warning lamp
will come on in the instrument
panel.

Manual application Maximum application

If necessary, you can make a maximum
application
of the parking brake. It is
obtained by means of a long pull
on
control lever A
, until you see a message
that the parking brake is on accompa-
nied by an audible signal is heard.

In the case of towing a trailer
or parking on a gradient, make
a maximum application of the
parking brake then turn the front
wheels towards the pavement and
engage a gear when you park.
After a maximum application, the re-
lease time will be longer.


Before leaving the vehicle,
check that parking brake
warning lamp in the instrument
panel is on fi xed, not fl ashing.

Maximum application is essential:



- in the case of a vehicle towing a
trailer, if the automatic functions are
activated but you are applying the
parking brake manually,

- when the gradient you are parked
on is variable in its effect (e.g. on a
ferry, in a lorry, during towing),

- display of a message that
the parking brake is on.
- display of a message that
the parking brake is off.

D
R
I
162

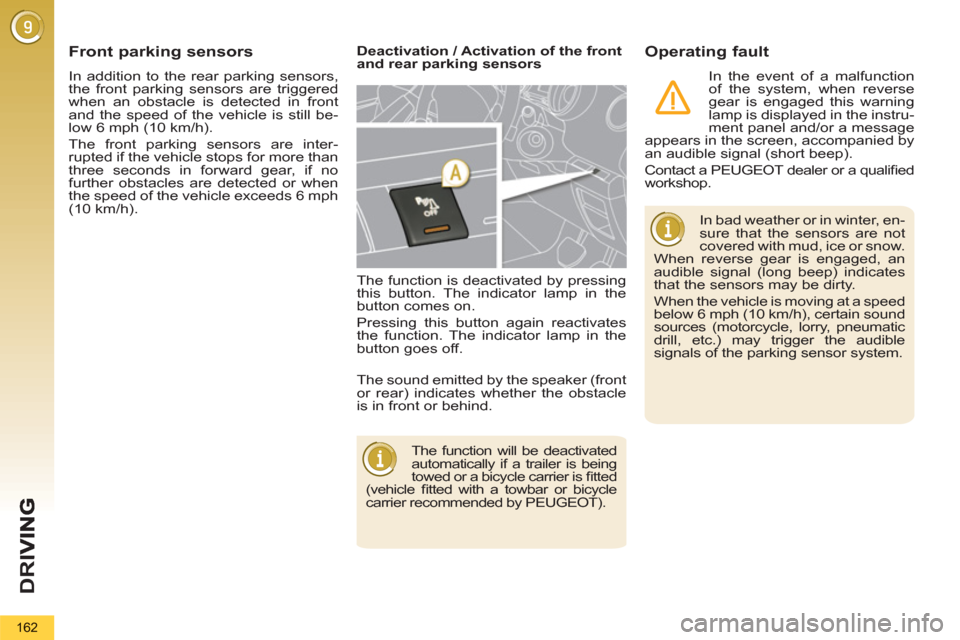

In addition to the rear parking sensors,
the front parking sensors are triggered
when an obstacle is detected in front
and the speed of the vehicle is still be-
low 6 mph (10 km/h).
The front parking sensors are inter-
rupted if the vehicle stops for more than
three seconds in forward gear, if no
further obstacles are detected or when
the speed of the vehicle exceeds 6 mph
(10 km/h).
Front parking sensors
Deactivation / Activation of the front
and rear parking sensors
The function is deactivated by pressing
this button. The indicator lamp in the
button comes on.
Pressing this button again reactivates
the function. The indicator lamp in the
button goes off.


Operating fault



The function will be deactivated
automatically if a trailer is being
towed or a bicycle carrier is fi tted
(vehicle fi tted with a towbar or bicycle
carrier recommended by PEUGEOT).

In bad weather or in winter, en-
sure that the sensors are not
covered with mud, ice or snow.
When reverse gear is engaged, an
audible signal (long beep) indicates
that the sensors may be dirty.
When the vehicle is moving at a speed
below 6 mph (10 km/h), certain sound
sources (motorcycle, lorry, pneumatic
drill, etc.) may trigger the audible
signals of the parking sensor system.
In the event of a malfunction
of the system, when reverse
gear is engaged this warning
lamp is displayed in the instru-
ment panel and/or a message
appears in the screen, accompanied by
an audible signal (short beep).
Contact a PEUGEOT dealer or a qualifi ed
workshop.

The sound emitted by the speaker (front
or rear) indicates whether the obstacle
is in front or behind.

PRACTICAL INFORMATION
185

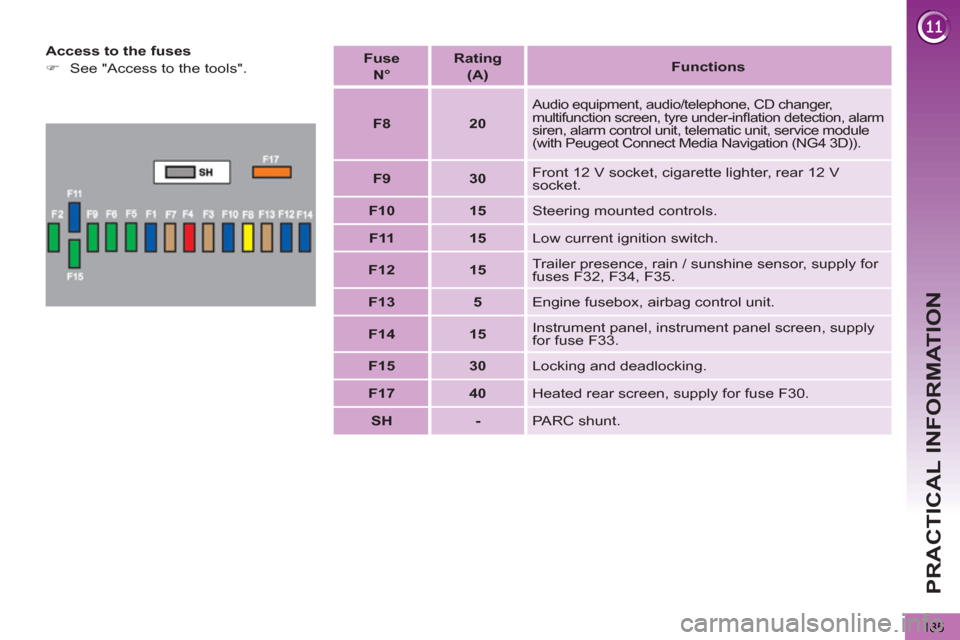

Access to the fuses


)
See "Access to the tools".
Fuse
N°

Rating
(A)

Functions




F8



20



Audio equipment, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection, alarm
siren, alarm control unit, telematic unit, service module
(with Peugeot Connect Media Navigation (NG4 3D)).


F9



30

Front 12 V socket, cigarette lighter, rear 12 V
socket.


F10



15

Steering mounted controls.


F11



15

Low current ignition switch.


F12



15

Trailer presence, rain / sunshine sensor, supply for
fuses F32, F34, F35.


F13



5

Engine fusebox, airbag control unit.


F14



15

Instrument panel, instrument panel screen, supply
for fuse F33.


F15



30

Locking and deadlocking.


F17



40

Heated rear screen, supply for fuse F30.


SH



-

PARC shunt.

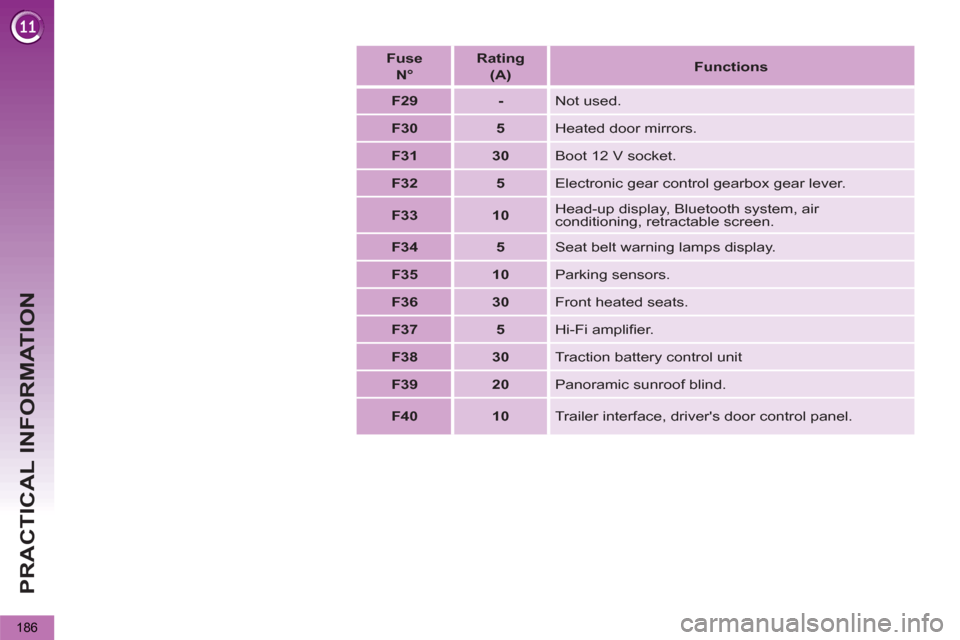

PRACTICAL INFORMATION
186


Fuse
N°



Rating
(A)



Functions




F29



-

Not used.


F30



5

Heated door mirrors.


F31



30

Boot 12 V socket.


F32



5

Electronic gear control gearbox gear lever.


F33



10

Head-up display, Bluetooth system, air
conditioning, retractable screen.


F34



5

Seat belt warning lamps display.


F35



10

Parking sensors.


F36



30

Front heated seats.


F37



5

Hi-Fi amplifi er.


F38



30

Traction battery control unit


F39



20

Panoramic sunroof blind.


F40



10

Trailer interface, driver's door control panel.

PRACTICAL INFORMATION
189

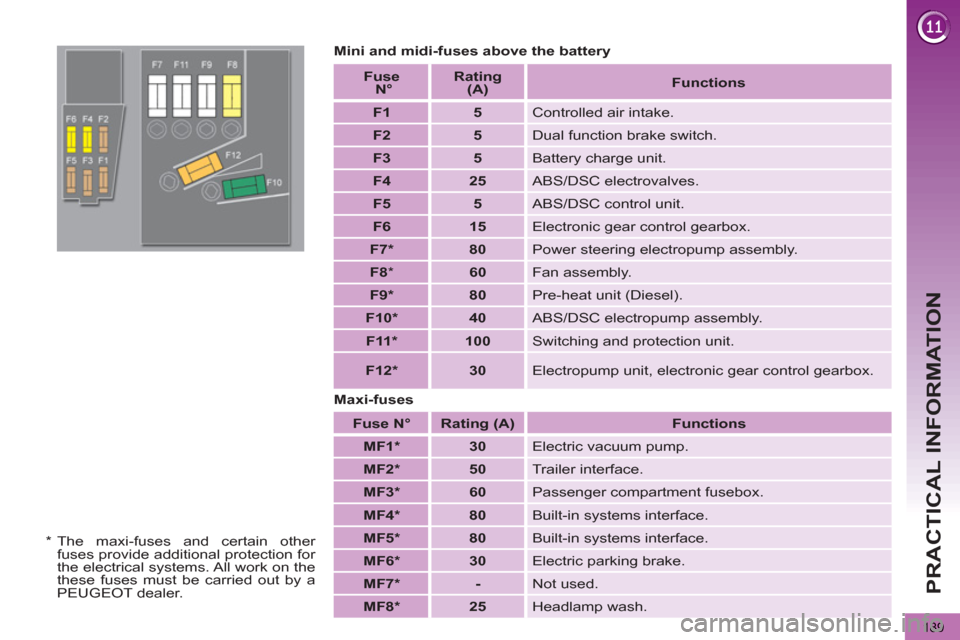

Mini and midi-fuses above the battery

Maxi-fuses

Fuse
N°

Rating

(A)



Functions




MF1 *



30

Electric vacuum pump.


MF2 *



50

Trailer interface.


MF3 *



60

Passenger compartment fusebox.


MF4 *



80

Built-in systems interface.


MF5 *



80

Built-in systems interface.


MF6 *



30

Electric parking brake.


MF7 *



-

Not used.


MF8 *



25

Headlamp wash.
Fuse
N°

Rating
(A)

Functions




F1



5

Controlled air intake.


F2



5

Dual function brake switch.


F3



5

Battery charge unit.


F4



25

ABS/DSC electrovalves.


F5



5

ABS/DSC control unit.


F6



15

Electronic gear control gearbox.


F7 *



80

Power steering electropump assembly.


F8

*


60

Fan assembly.


F9 *



80

Pre-heat unit (Diesel).


F10 *



40

ABS/DSC electropump assembly.


F11 *



100

Switching and protection unit.


F12 *



30

Electropump unit, electronic gear control gearbox.

*
The maxi-fuses and certain other
fuses provide additional protection for
the electrical systems. All work on the
these fuses must be carried out by a
PEUGEOT dealer.

PRACTICAL INFORMATION
194

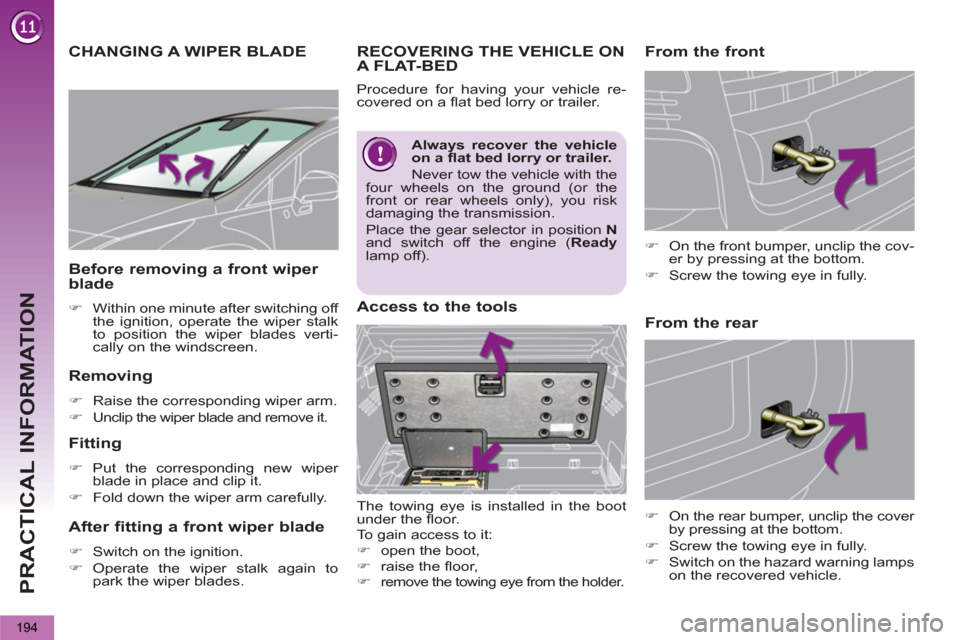

CHANGING A WIPER BLADE

Removing



)
Raise the corresponding wiper arm.

)
Unclip the wiper blade and remove it.



Fitting



)
Put the corresponding new wiper
blade in place and clip it.

)
Fold down the wiper arm carefully.



Before removing a front wiper
blade


)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades verti-
cally on the windscreen.



After fitting a front wiper blade



)
Switch on the ignition.

)
Operate the wiper stalk again to
park the wiper blades.







From the front






Access to the tools

The towing eye is installed in the boot
under the fl oor.
To gain access to it:


)
open the boot,

)
raise the fl oor,

)

remove the towing eye from the holder.



From the rear RECOVERING THE VEHICLE ON
A FLAT-BED

Procedure for having your vehicle re-
covered on a fl at bed lorry or trailer.


Always recover the vehicle
on a fl at bed lorry or trailer.

Never tow the vehicle with the
four wheels on the ground (or the
front or rear wheels only), you risk
damaging the transmission.
Place the gear selector in position N

and switch off the engine ( Ready

lamp off).


)
On the front bumper, unclip the cov-
er by pressing at the bottom.

)
Screw the towing eye in fully.



)
On the rear bumper, unclip the cover
by pressing at the bottom.

)
Screw the towing eye in fully.

)
Switch on the hazard warning lamps
on the recovered vehicle.
