Page 5 of 284
CONTENTS
ALPHABETICAL
INDEX 272-275 DRIVING 139-158
CHECKS 159-165PRACTICAL
INFORMATION 166-195
TECHNICAL
DATA 196-200AUDIO EQUIPMENT
and TELEMATICS 201-271
Electric parking brake ................... 139
Hill start assist .............................. 144
Head-up display ........................... 147
Speed limiter ................................ 149
Cruise control ............................... 151
6-speed electronic gear control
gearbox ...................................... 153
Parking sensors ............................ 157
Bonnet .......................................... 160
Running out of fuel (Diesel).......... 161
Diesel engine ................................ 162
Checking levels ............................ 163
Checks.......................................... 164Temporary puncture repair kit ...... 166
Changing a wheel......................... 172
Changing a bulb ........................... 175
Changing a fuse ........................... 179
12 V Battery.................................. 186
Energy economy mode ................ 189
Changing a wiper blade ............... 190
Recovering the vehicle ................. 190
Towing a trailer ............................. 192
Fitting roof bars ............................ 193
Very cold climate screen .............. 193
Accessories .................................. 194
Electric motor ............................... 196
Diesel engine ................................ 197
Diesel weights .............................. 198
Dimensions ................................... 199
Identification markings .................. 200

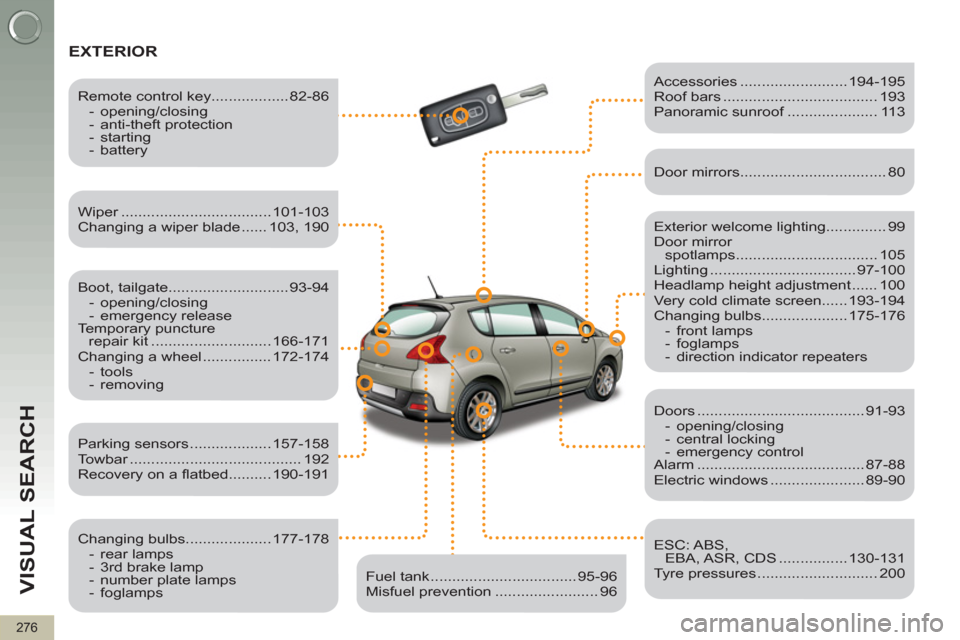

VISUAL
SEARCH 276-280
Emergency or assistance ............. 201
Peugeot Connect Media ............... 205
Peugeot Connect Sound (RD5) ... 249
Page 119 of 284

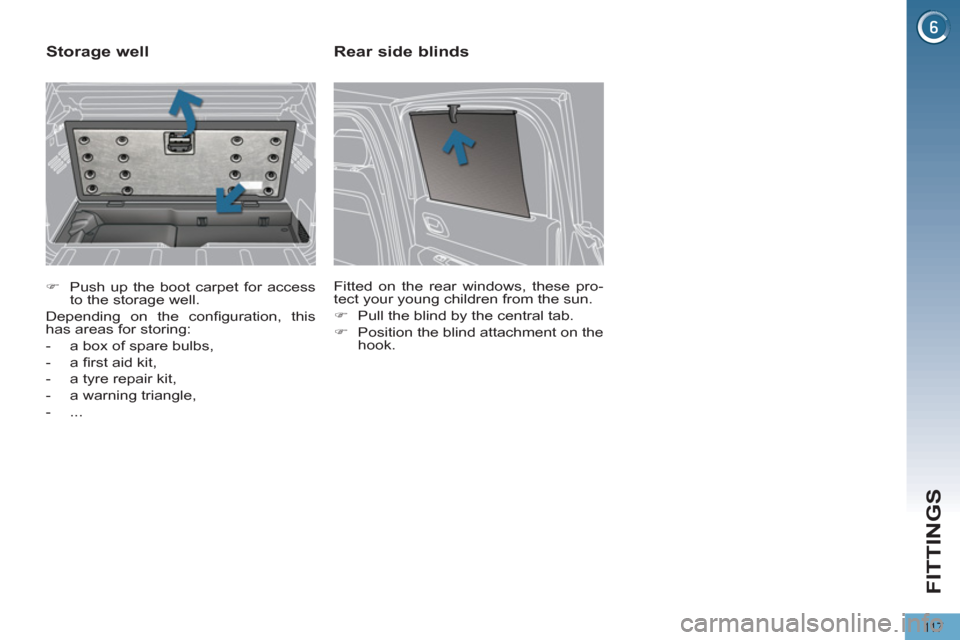

FITTINGS
11 7
)
Push up the boot carpet for access
to the storage well.
Depending on the confi guration, this
has areas for storing:
- a box of spare bulbs,
- a fi rst aid kit,
- a tyre repair kit,
- a warning triangle,
- ...
Storage well
Rear side blinds
Fitted on the rear windows, these pro-
tect your young children from the sun.
)
Pull the blind by the central tab.
)
Position the blind attachment on the
hook.
Page 177 of 284

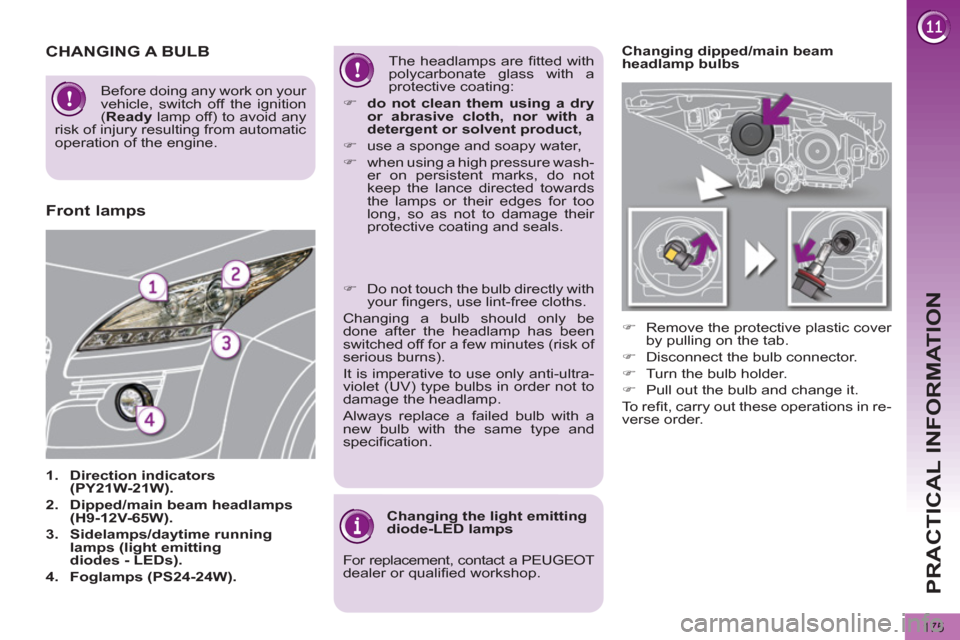

PRACTICAL INFORMATION
175
Changing dipped/main beam
headlamp bulbs
)
Remove the protective plastic cover
by pulling on the tab.
)
Disconnect the bulb connector.
)
Turn the bulb holder.
)
Pull out the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
CHANGING A BULB
1.
Direction indicators
(PY21W-21W).
2.
Dipped/main beam headlamps
(H9-12V-65W).
3.
Sidelamps/daytime running
lamps (light emitting
diodes - LEDs).
4.
Foglamps (PS24-24W).
The headlamps are fi tted with
polycarbonate glass with a
protective coating:
)
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,
)
use a sponge and soapy water,
)
when using a high pressure wash-
er on persistent marks, do not
keep the lance directed towards
the lamps or their edges for too
long, so as not to damage their
protective coating and seals.
Front lamps
)
Do not touch the bulb directly with
your fi ngers, use lint-free cloths.
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk of
serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation.
Changing the light emitting
diode-LED lamps
For replacement, contact a PEUGEOT
dealer or qualifi ed workshop.
Before doing any work on your
vehicle, switch off the ignition
( Ready
lamp off) to avoid any
risk of injury resulting from automatic
operation of the engine.
Page 178 of 284
PRACTICAL INFORMATION
176

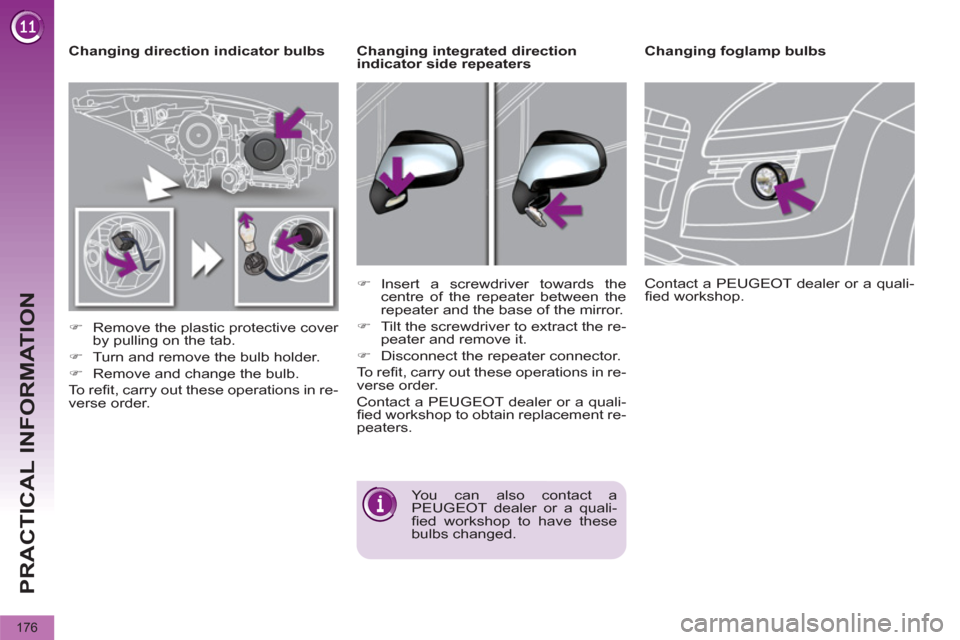

Changing direction indicator bulbs
)
Remove the plastic protective cover
by pulling on the tab.
)
Turn and remove the bulb holder.
)
Remove and change the bulb.
To r efi t, carry out these operations in re-
verse order.
Changing foglamp bulbs
You can also contact a
PEUGEOT dealer or a quali-
fi ed workshop to have these
bulbs changed.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.
)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
)
Tilt the screwdriver to extract the re-
peater and remove it.
)
Disconnect the repeater connector.
To r efi t, carry out these operations in re-
verse order.
Contact a PEUGEOT dealer or a quali-
fi ed workshop to obtain replacement re-
peaters.
Changing integrated direction
indicator side repeaters
Page 179 of 284
PRACTICAL INFORMATION
177

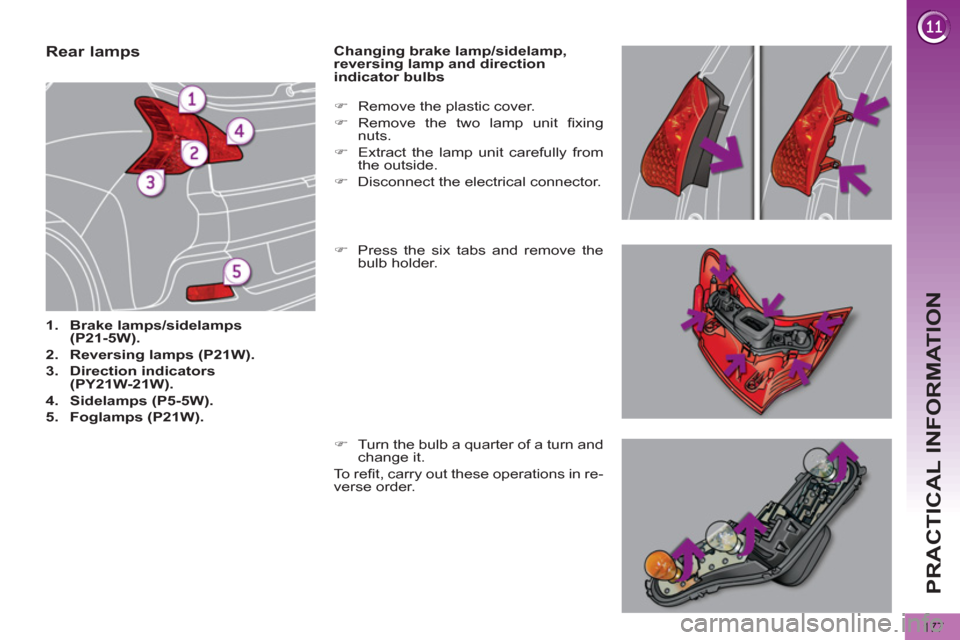

Rear lamps
1.
Brake lamps/sidelamps
(P21-5W).
2.
Reversing lamps (P21W).
3.
Direction indicators
(PY21W-21W).
4.
Sidelamps (P5-5W).
5.
Foglamps (P21W).
Changing brake lamp/sidelamp,
reversing lamp and direction
indicator bulbs
)
Press the six tabs and remove the
bulb holder.
)
Remove the plastic cover.
)
Remove the two lamp unit fi xing
nuts.
)
Extract the lamp unit carefully from
the outside.
)
Disconnect the electrical connector.
)
Turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in re-
verse order.

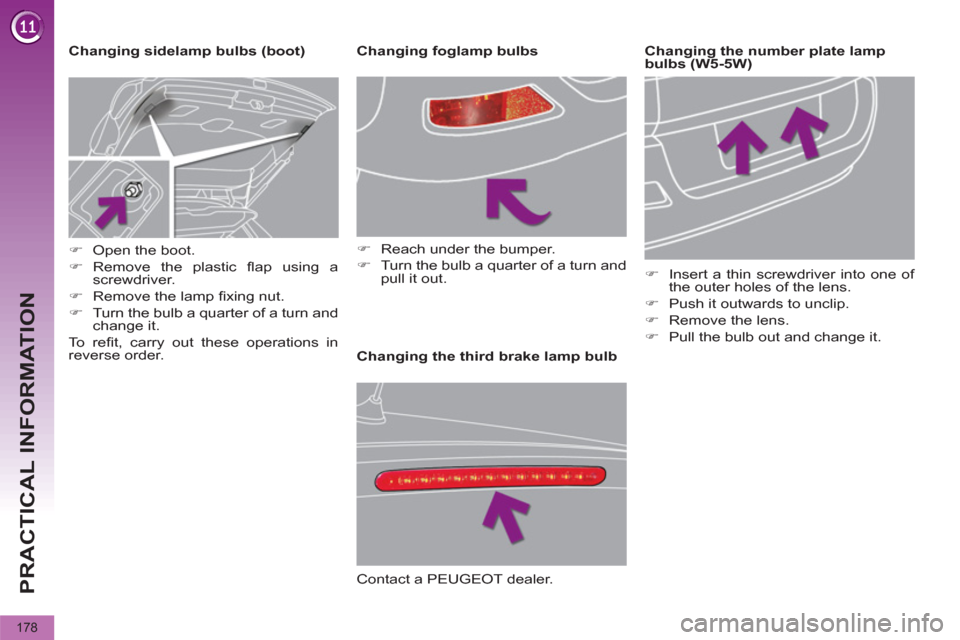

Page 180 of 284
PRACTICAL INFORMATION
178
Changing the third brake lamp bulb
Changing sidelamp bulbs (boot)
Changing foglamp bulbs
)
Open the boot.
)
Remove the plastic fl ap using a
screwdriver.
)
Remove the lamp fi xing nut.
)
Turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in
reverse order.
)
Reach under the bumper.
)
Turn the bulb a quarter of a turn and
pull it out.
Contact a PEUGEOT dealer.
Changing the number plate lamp
bulbs (W5-5W)
)
Insert a thin screwdriver into one of
the outer holes of the lens.
)
Push it outwards to unclip.
)
Remove the lens.
)
Pull the bulb out and change it.
Page 196 of 284
PRACTICAL INFORMATION
194
Removal
)
Pull on the very cold climate screen
using the cut-outs 1
then 2
at the
edges of the screen.
Do not forget to remove the very cold
climate screen:
- when the ambient temperature ex-
ceeds 10° C,
- when towing,
- at speeds above 75 mph (120 km/h).
ACCESSORIES
A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
Installation of radio
communication
transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a PEUGEOT dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).
Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.
The fi tting of electrical equipment or
accessories which are not recom-
mended by PEUGEOT may result in
a failure of your vehicle's electronic
system and excessive electrical con-
sumption.
Please note this precaution. You are
advised to contact a PEUGEOT rep-
resentative to be shown the range
of recommended equipment and ac-
cessories.
Page 274 of 284
ALPHABETICAL INDEX
272
Accessories ........................194, 195
Accessory socket,
12 volt ...................... 107, 109, 115
Adjusting headlamps ..................100
Adjusting head
restraints ....................................75
Adjusting seat belt
height .......................................132
Adjusting the steering
wheel .........................................79
Airbags .........................................53
Airbags, curtain...................137, 138
Airbags, front ......................135, 138
Airbags, lateral....................137, 138
Air conditioning .............................37
Air conditioning, digital............69, 70
Air conditioning, manual ...............69
Air fi lter .......................................164
Air fl ow ..........................................37
Air vents........................................68
Alarm ............................................87
Anti-pinch.............................. 89, 113
Anti-theft .......................................84
Armrest .......................................107
Armrest, front ..............................109
Armrest, rear ............................... 112
Assistance call ............................202
Audible warning ..........................129
Audio/video sockets....................232
Audio streaming
(Bluetooth) ...............................261
Audio systems ..............................64
Automatic illumination
of headlamps .....................97, 100
Automatic operation of hazard
warning lamps .........................129
Automatic rain sensitive
windscreen wipers ...........101, 103
Auxiliary
sockets ................... 232, 256, 258Battery ................... 40, 79, 164, 186
Battery, charging .........................186
Battery, remote control ...........85, 86
Blind for panoramic sunroof........ 113
Blinds .......................................... 117
Bluetooth
(hands-free) ............. 233-235, 259
Bluetooth (telephone) ......... 233-235
Bonnet ........................................160
Bonnet stay.................................160
Boot fl oor, adjustable .................. 115
Boot lamp ...................................106
Boot lid..........................................94
Brake discs .................................165
Brake lamps................................177
Brake pads .................................165
Brakes ........................................165
Capacity, fuel tank ........................95
CD MP3 ......................................255
Central locking ........................83, 92
Changing a bulb ........ 175, 177, 178
Changing a fuse .........................179
Changing a wheel .......................172
Changing a wiper blade ......103, 190
Changing the date ..............238, 263
Changing the remote
control battery ............................85
Changing the time ..............238, 263
Checking levels ..................163, 164
Checking the engine oil level ........57
Checking tyre pressures
(using the kit) ...........................166
Checks....................... 162, 164, 165
Child lock ....................................128
Children ..................... 123, 126, 127
Child seats .......................... 118, 124Child seats, conventional....121, 123
Child seats, Isofi x .......................127
Closing the boot................83, 93, 94
Closing the doors....................83, 91
Cold climate screen ....................193
Colour screen, retractable ......62, 64
Connectors,
audio ............... 108, 109, 256, 258
Control for panoramic
sunroof blind ............................ 113
Coolant level .........................54, 163
Coolant temperature indicator ......54
Courtesy lamps...........................104
Courtesy mirror ...........................108
Cruise control .............................151
Cup holder ..................................107
AB
C
Date (setting) ............. 238, 262, 263
Daytime running lamps .................99
Deactivating ESP ........................131
Deactivating
the passenger airbag ...............135
Deadlocking ..................................83
Defrosting ...............................69, 80
Dials and gauges ..........................44
Diesel............................................36
Diesel additive level ....................164
Dimensions .................................199
Dipped beam ........................97, 175
Dipstick .................................57, 163
Direction indicators .............129, 177
Doors ............................................91
Doors emergency control .............93
Door trays ...................................107
Dynamic emergency braking ......142
Dynamic stability control
(DSC) ...................................49, 52
D
Page 276 of 284
ALPHABETICAL INDEX
274
Main beam ....................................97
Maintenance .................................37
Map reading lamps .....................104
Markings, identifi cation ...............200
Mat.............................................. 110
Menu, main .................................252
Mini fuel level ................................95
Mirror, rear view ............................81
Mirrors, door .................................80
Misfuel prevention ........................96
Motorway function
(direction indicators) ................129
Mountings for ISOFIX seats .......125
MP3 CD ......................................255
Multimedia, rear .......................... 111
Music media players ...................228Oil fi lter .......................................164
Oil level .................................57, 163
Opening the bonnet ....................160
Opening the boot ....................82, 93
Opening the doors ..................82, 91
Opening the panoramic
sunroof blind ............................ 113
Opening the retractable
screen ........................................64
Opening
the tailgate ...........................93, 94
Operation indicator
lamps ...................... 46, 48, 49, 51 Navigation...................................216
Niveau mini carburant...................52
Number plate lamps ...................178
Radio ..................................227, 253
RCA sockets ...............................232
Reading lamps, rear ...................104
Rear foglamp ......................177, 178
Rear screen (demisting) .........69, 80
Recharging the battery ...............186
Reduction of electrical load ........189
Reinitialising the electric windows ...89
Reinitialising the remote control ...85
Remote control .................82, 83, 86
Removable screen
(snow shield) ...........................193
Removing a wheel ......................173
Removing the mat ...................... 110
Repair kit, puncture ....................166
Replacing bulbs ......... 175, 177, 178
Replacing fuses ..........................179
Replacing the air fi lter .................164
Replacing the oil fi lter .................164
Replacing the particle emission fi lter ...165 Level, brake fl uid ........................163
Level, headlamp wash ........102, 163
Level, power steering
fl uid ..........................................163
Levels and checks .............. 162-164
Lighting .......................................106
Lighting, guide-me home ......99, 100
Lighting, interior ..................104, 105
Lighting bulbs
(replacement) ......... 175, 177, 178
Lighting control stalk .....................97
Lighting dimmer ............................58
Loading .................................37, 193
Load reduction mode ..................189
Load space cover ....................... 116
Locating your vehicle ....................83
Locking from the inside.................92
Long objects, transporting .... 76, 112
Luggage retaining strap .............. 114Peugeot Connect Media
Navigation (NG4 3D) ....45, 62, 65,
205, 208, 211, 239
Peugeot Connect Sound
(RD5) ................ 59, 249, 264, 266
PEUGEOT services ....................203
PIN code .....................................236
Player,
CD MP3 ...................................255
POIs (updating) ..........................223
Port, USB................... 109, 256, 258
Priming the fuel
system .....................................161
Protecting
children .....118, 123, 125-127, 135
Puncture .....................................166
MON
R
Paint colour code ........................200
Panoramic glass
sunroof ..................................... 113
Parking brake .............................165
Parking brake, electric ........139, 142
Parking sensors,
front .........................................158
Parking sensors,
rear ..........................................157
Particle emission
fi lter ..................................164, 165
Passenger compartment
fi lter ..........................................164
PEUGEOT call button .................203
P
Page 278 of 284
VISUAL SEARCH
276
EXTERIOR
Exterior welcome lighting.............. 99
Door mirror
spotlamps ................................. 105
Lighting .................................. 97-100
Headlamp height adjustment ...... 100
Very cold climate screen...... 193-194
Changing bulbs.................... 175-176
- front lamps
- foglamps
- direction indicator repeaters
Wiper ................................... 101-103
Changing a wiper blade ...... 103, 190
Boot, tailgate............................ 93-94
- opening/closing
- emergency release
Temporary puncture
repair kit ............................ 166-171
Changing a wheel ................ 172-174
- tools
- removing
Remote control key.................. 82-86
- opening/closing
- anti-theft protection
- starting
- battery
Parking sensors ................... 157-158
Towbar ........................................ 192
Recovery on a fl atbed.......... 190-191
Changing bulbs.................... 177-178
- rear lamps
- 3rd brake lamp
- number plate lamps
- foglamps
Accessories ......................... 194-195
Roof bars .................................... 193
Panoramic sunroof ..................... 113
Fuel tank .................................. 95-96
Misfuel prevention ........................ 96
Door mirrors .................................. 80
Doors ....................................... 91-93
- opening/closing
- central locking
- emergency control
Alarm ....................................... 87-88
Electric windows ...................... 89-90
ESC: ABS,
EBA, ASR, CDS ................ 130-131
Tyre pressures ............................ 200
