Electric parking brake ................... 139
Hill start assist .............................. 144
Head-up display ........................... 147
Speed limiter ................................ 149
Cruise control ............................... 151
6-speed electronic gear control
gearbox ...................................... 153
Parking sensors ............................ 157
Bonnet .......................................... 160
Running out of fuel (Diesel).......... 161
Diesel engine ................................ 162
Checking levels ............................ 163
Checks.......................................... 164Temporary puncture repair kit ...... 166
Changing a wheel......................... 172
Changing a bulb ........................... 175
Changing a fuse ........................... 179
12 V Battery.................................. 186
Energy economy mode ................ 189
Changing a wiper blade ............... 190
Recovering the vehicle ................. 190
Towing a trailer ............................. 192
Fitting roof bars ............................ 193
Very cold climate screen .............. 193
Accessories .................................. 194
Electric motor ............................... 196
Diesel engine ................................ 197
Diesel weights .............................. 198
Dimensions ................................... 199
Identification markings .................. 200
VISUAL
SEARCH 276-280
Emergency or assistance ............. 201
Peugeot Connect Media ............... 205
Peugeot Connect Sound (RD5) ... 249

5
FAMILIARISATION

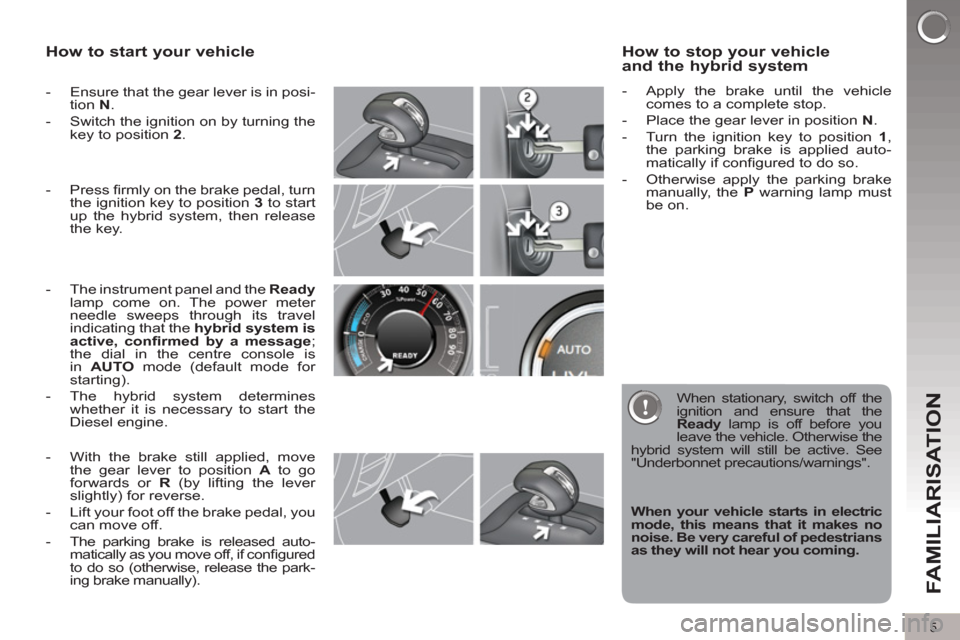

How to start your vehicle



- Ensure that the gear lever is in posi-
tion N
.

- Switch the ignition on by turning the
key to position 2
.


- The instrument panel and the Ready

lamp come on. The power meter
needle sweeps through its travel
indicating that the hybrid system is
active, confi rmed by a message
;
the dial in the centre console is
in AUTO
mode (default mode for
starting).

- The hybrid system determines
whether it is necessary to start the
Diesel engine.


- With the brake still applied, move
the gear lever to position A
to go
forwards or R
(by lifting the lever
slightly) for reverse.

- Lift your foot off the brake pedal, you
can move off.

- The parking brake is released auto-
matically as you move off, if confi gured
to do so (otherwise, release the park-
ing brake manually).



How to stop your vehicle
and the hybrid system


- Apply the brake until the vehicle
comes to a complete stop.

- Place the gear lever in position N
.

- Turn the ignition key to position 1
,
the parking brake is applied auto-
matically if confi gured to do so.

- Otherwise apply the parking brake
manually, the P
warning lamp must
be on.
- Press fi rmly on the brake pedal, turn
the ignition key to position 3
to start
up the hybrid system, then release
the key.

When stationary, switch off the
ignition and ensure that the
Ready
lamp is off before you
leave the vehicle. Otherwise the
hybrid system will still be active. See
"Underbonnet precautions/warnings".


When your vehicle starts in electric
mode, this means that it makes no
noise. Be very careful of pedestrians
as they will not hear you coming.

12
FAMILIARISATION
INTERIOR

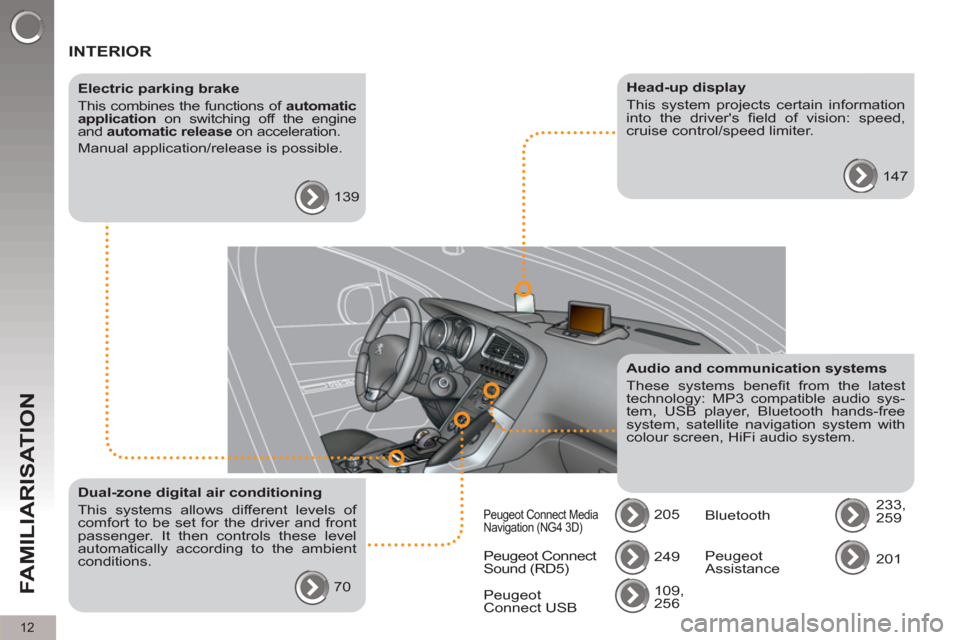

Electric parking brake
This combines the functions of automatic
application
on switching off the engine
and automatic release
on acceleration.
Manual application/release is possible.
139

Audio and communication systems
These systems benefi t from the latest
technology: MP3 compatible audio sys-
tem, USB player, Bluetooth hands-free
system, satellite navigation system with
colour screen, HiFi audio system.
205
Head-up display
This system projects certain information
into the driver's fi eld of vision: speed,
cruise control/speed limiter.
147

Dual-zone digital air conditioning
This systems allows different levels of
comfort to be set for the driver and front
passenger. It then controls these level
automatically according to the ambient
conditions.
70 Peugeot Connect
Sound (RD5) 249
109,
256 Peugeot
Connect USB

Peugeot Connect Media
Navigation (NG4 3D) Bluetooth 233,
259
Peugeot
Assistance 201

13
FAMILIARISATION

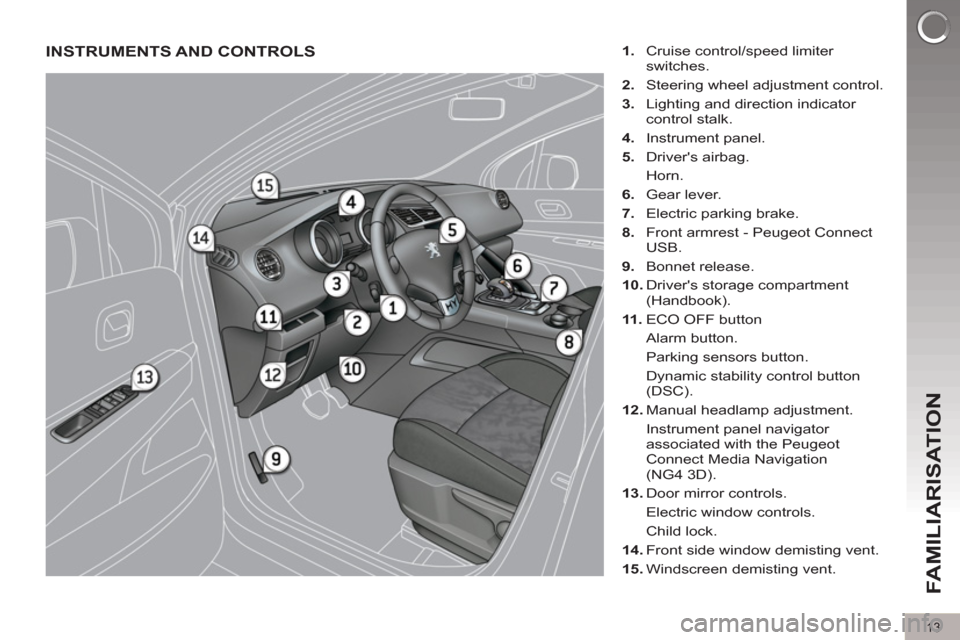

INSTRUMENTS AND CONTROLS


1.
Cruise control/speed limiter
switches.

2.
Steering wheel adjustment control.

3.
Lighting and direction indicator
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Electric parking brake.

8.
Front armrest - Peugeot Connect
USB.

9.
Bonnet release.

10.
Driver's storage compartment
(Handbook).

11 .
ECO OFF button
Alarm button.
Parking sensors button.
Dynamic stability control button
(DSC).

12.
Manual headlamp adjustment.
Instrument panel navigator
associated with the Peugeot
Connect Media Navigation
(NG4 3D).

13.
Door mirror controls.
Electric window controls.
Child lock.

14.
Front side window demisting vent.

15.
Windscreen demisting vent.

22
FAMILIARISATION
DRIVING SAFELY

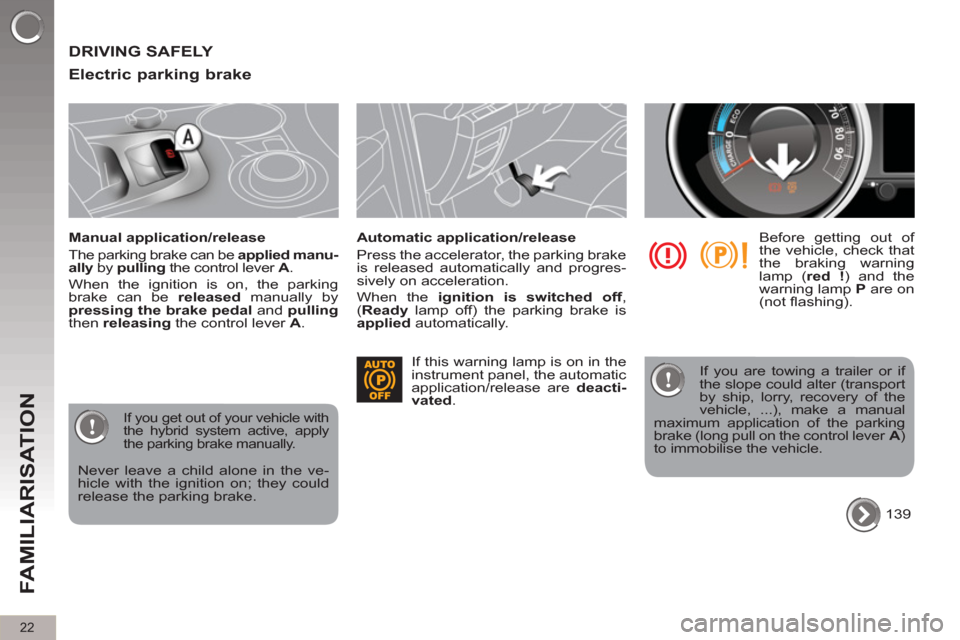

Electric parking brake


Manual application/release
The parking brake can be applied manu-
ally
by pulling
the control lever A
.
When the ignition is on, the parking
brake can be released
manually by
pressing the brake pedal
and pulling

then releasing
the control lever A
.
Automatic application/release
Press the accelerator, the parking brake
is released automatically and progres-
sively on acceleration.
When the ignition is switched off
,
( Ready
lamp off) the parking brake is
applied
automatically.

If you get out of your vehicle with
the hybrid system active, apply
the parking brake manually.

Before getting out of
the vehicle, check that
the braking warning
lamp ( red !
) and the
warning lamp P
are on
(not fl ashing).
Never leave a child alone in the ve-
hicle with the ignition on; they could
release the parking brake.
139 If this warning lamp is on in the
instrument panel, the automatic
application/release are deacti-
vated
.
If you are towing a trailer or if
the slope could alter (transport
by ship, lorry, recovery of the
vehicle, ...), make a manual
maximum application of the parking
brake (long pull on the control lever A
)
to immobilise the vehicle.

HYBRID SYSTEM
29

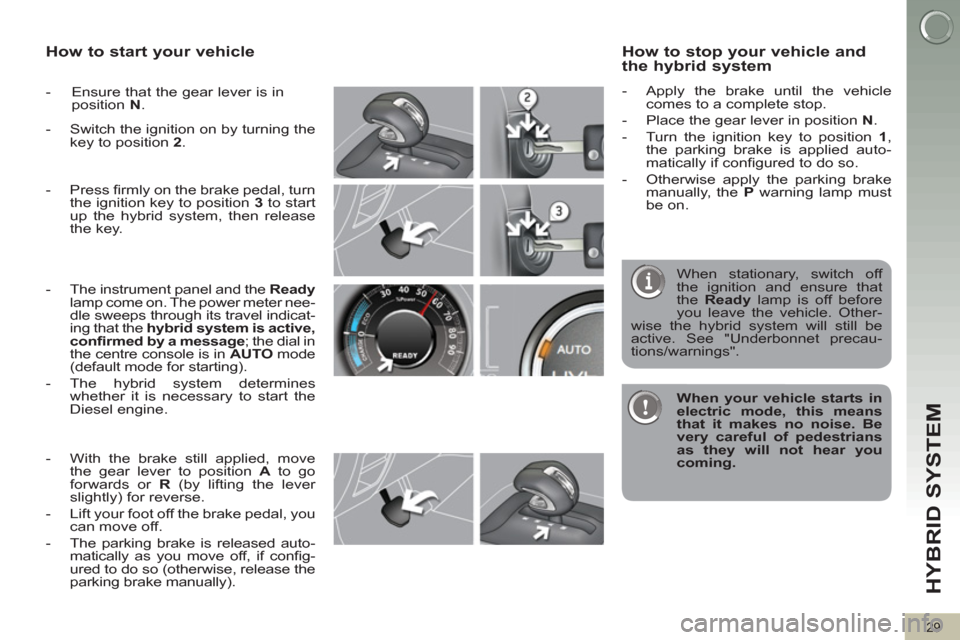

How to start your vehicle



- Ensure that the gear lever is in
position N
.

- Switch the ignition on by turning the
key to position 2
.

- Press fi rmly on the brake pedal, turn
the ignition key to position 3
to start
up the hybrid system, then release
the key.


- The instrument panel and the Ready

lamp come on. The power meter nee-
dle sweeps through its travel indicat-
ing that the hybrid system is active,
confi rmed by a message
; the dial in
the centre console is in AUTO
mode
(default mode for starting).

- The hybrid system determines
whether it is necessary to start the
Diesel engine.


- With the brake still applied, move
the gear lever to position A
to go
forwards or R
(by lifting the lever
slightly) for reverse.

- Lift your foot off the brake pedal, you
can move off.

- The parking brake is released auto-
matically as you move off, if confi g-
ured to do so (otherwise, release the
parking brake manually).



How to stop your vehicle and
the hybrid system


- Apply the brake until the vehicle
comes to a complete stop.

- Place the gear lever in position N
.

- Turn the ignition key to position 1
,
the parking brake is applied auto-
matically if confi gured to do so.

- Otherwise apply the parking brake
manually, the P
warning lamp must
be on.



When your vehicle starts in
electric mode, this means
that it makes no noise. Be
very careful of pedestrians
as they will not hear you
coming.



When stationary, switch off
the ignition and ensure that
the Ready
lamp is off before
you leave the vehicle. Other-
wise the hybrid system will still be
active. See "Underbonnet precau-
tions/warnings".

46
INSTRUMENTS and CONTROLS

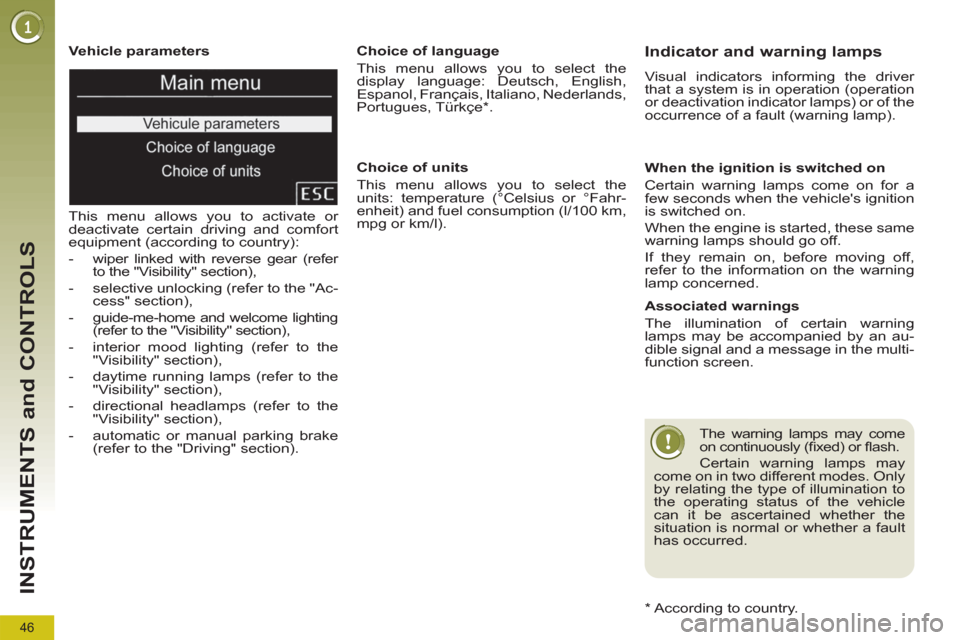

Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment (according to country):


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the "Ac-
cess" section),

- guide-me-home and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section).

Choice of units
This menu allows you to select the
units: temperature (°Celsius or °Fahr-
enheit) and fuel consumption (l/100 km,
mpg or km/l).

Choice of language
This menu allows you to select the
display language: Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Türkçe * .

*
According to country.









Indicator and warning lamps

Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).

When the ignition is switched on
Certain warning lamps come on for a
few seconds when the vehicle's ignition
is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off,
refer to the information on the warning
lamp concerned.

Associated warnings
The illumination of certain warning
lamps may be accompanied by an au-
dible signal and a message in the multi-
function screen.
The warning lamps may come
on continuously (fi xed) or fl ash.
Certain warning lamps may
come on in two different modes. Only
by relating the type of illumination to
the operating status of the vehicle
can it be ascertained whether the
situation is normal or whether a fault
has occurred.

48
INSTRUMENTS and CONTROLS

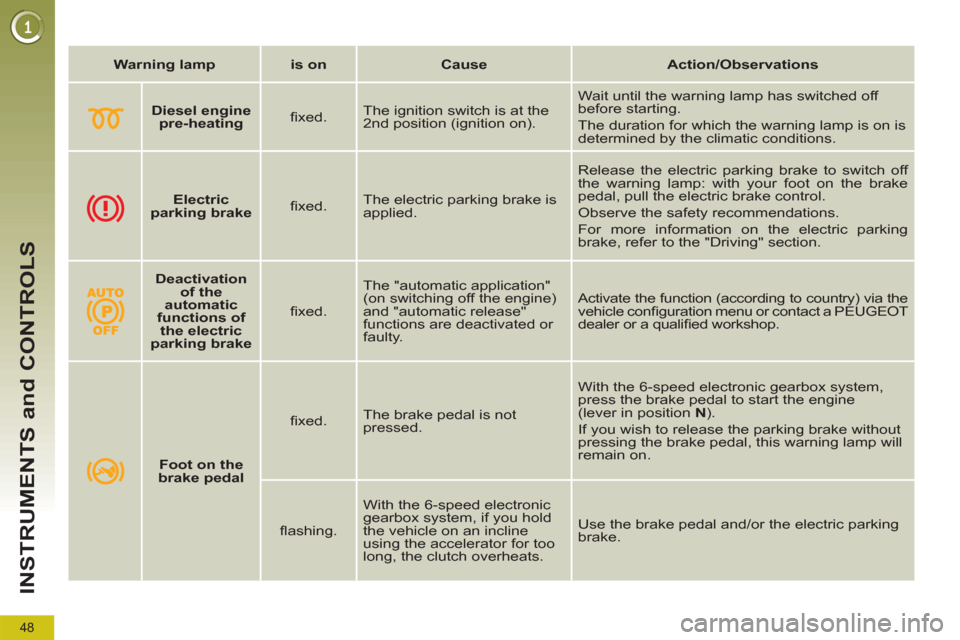

Warning lamp



is on



Cause



Action/Observations






Diesel engine
pre-heating


fi xed. The ignition switch is at the
2nd position (ignition on). Wait until the warning lamp has switched off
before starting.
The duration for which the warning lamp is on is
determined by the climatic conditions.


Electric
parking brake


fi xed. The electric parking brake is
applied. Release the electric parking brake to switch off
the warning lamp: with your foot on the brake
pedal, pull the electric brake control.
Observe the safety recommendations.
For more information on the electric parking
brake, refer to the "Driving" section.


Deactivation
of the
automatic
functions of
the electric
parking brake


fi xed. The "automatic application"
(on switching off the engine)
and "automatic release"
functions are deactivated or
faulty. Activate the function (according to country) via the
vehicle confi guration menu or contact a PEUGEOT
dealer or a qualifi ed workshop.




Foot on the
brake pedal


fi xed. The brake pedal is not
pressed. With the 6-speed electronic gearbox system,
press the brake pedal to start the engine
(lever in position N
).
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.

fl ashing. With the 6-speed electronic
gearbox system, if you hold
the vehicle on an incline
using the accelerator for too
long, the clutch overheats. Use the brake pedal and/or the electric parking
brake.

51
INSTRUMENTS and CONTROLS


Warning lamp



is on



Cause



Action/Observations







Braking


fi xed, associated with
the STOP warning
lamp. The braking system fl uid
level has dropped
signifi cantly.

You must stop as soon as it is safe to do so.

Top up with brake fl uid recommended by
PEUGEOT.
If the problem persists, have the system
checked by a PEUGEOT dealer or a
qualifi ed workshop.

+
fi xed, associated with
the electric parking
brake malfunction
warning lamp, if the
parking brake is
released. The braking system has a
fault.
You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact
a PEUGEOT dealer or a qualifi ed
workshop.

+
fi xed, associated with
the STOP and ABS
warning lamps. The electronic brake force
distribution (EBFD) system
has a fault.
You must stop as soon as it is safe to do so.

Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.



Electric
parking
brake


fl ashing. The application or release
of the electric parking brake
was interrupted.
You must stop as soon as it is safe to do so.

Park on level ground, switch off the
ignition and contact a PEUGEOT dealer
or a qualifi ed workshop.

+

Electric
parking
brake
malfunction


fi xed. The electric parking brake
has a fault. Automatic application/release is no
longer possible.
Contact a PEUGEOT dealer or a
qualifi ed workshop without delay.
The parking brake can be released
manually using the emergency release
procedure.
For more information on the electric
parking brake, refer to the "Driving"
section.

MULTIFUNCTION SCREENS
60

"Trip computer" menu



)
Press the "MENU"
button to gain
access to the general menu.

)
Press the arrows, then the "OK"
but-
ton to select the "Trip computer"

menu.

)
On the "Trip computer"
menu,
select one of the following applica-
tions:


Alert log
This summarises the active warning
messages, displaying them in succes-
sion in the multifunction screen Once this menu has been selected, you
can consult information concerning the
status of the vehicle (alert log, status of
the functions...).

Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment (according to country):


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the
"Access" section),

- guide-me-home lighting (refer to the
"Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section),

- ...

"Personalisation-
Configuration" menu
Once this menu has been selected, you
can gain access to the following func-
tions:


- defi ne the vehicle parameters,

- display confi guration,

- choice of language.


Status of functions
This summarises the active or inactive
status of the functions present on the
vehicle.

Enter the distance to the destination
This allows you to enter an approximate
value for the distance to the fi nal desti-
nation.
