103
104
Familiarisation9
Access
Boot
Opening
After unlocking the vehicle using the remote control or the key, press the handle A and lift the tailgate. Closing
After closing the lower tailgate, pull the
handle B downwards to guide the tailgate.
Lower tailgate
Opening
Push the handle C to the right and tilt the tailgate D .
Closing
Raise the tailgate D , push it fully to close it, check that it is locked correctly.
Page 12 of 378
164
171
245
289
343
350
353
24176
Familiarisation
10
Interior
Electric parking brake
This combines the functions of automatic application on switching off the engine and automatic release on acceleration. Manual application/release is possible.
Audio and communication systems
These systems benefit from the latest technology: MP3 compatible audio system, USB player, Bluetooth hands-free system, satellite navigation system with colour screen, Hi-Fi audio system.
Head-up display
This system projects certain information into the driver's field of vision: speed, cruise control/speed limiter.
Dual-zone digital air conditioning
This systems allows different levels of comfort to be set for the driver and front passenger. It then controls these level automatically according to the ambient conditions. PEUGEOT Connect Navigation (RT6)
PEUGEOT Connect PEUGEOT Connect PEUGEOTSound (RD5)
PEUGEOT Connect Media PEUGEOT Connect Media PEUGEOTNavigation (NG4 3D) PEUGEOT Connect USB PEUGEOT Connect USB PEUGEOT
Bluetooth
PEUGEOT Assistance
Page 13 of 378
.Familiarisation11
Instruments and controls
1. Cruise control / speed limiter switches.
2. Steering wheel adjustment control.
3. Lighting and direction indicator control stalk.
4. Instrument panel.
5. Driver's airbag. Horn.
6. Gear selector.
7. Electric parking brake.
8. Front armrest - PEUGEOT Connect USB.
9. Bonnet release.
10. Driver's storage compartment (Handbook).
11. Alarm button. Dynamic stability control (DSC) button. Parking space sensors button.
12 . Manual headlamp adjustment.
Instrument panel navigator.
13. Door mirror controls. Electric window controls. Child lock.
14 . Front side window demisting vent.
15. Windscreen demisting vent.
Page 14 of 378
Familiarisation
12

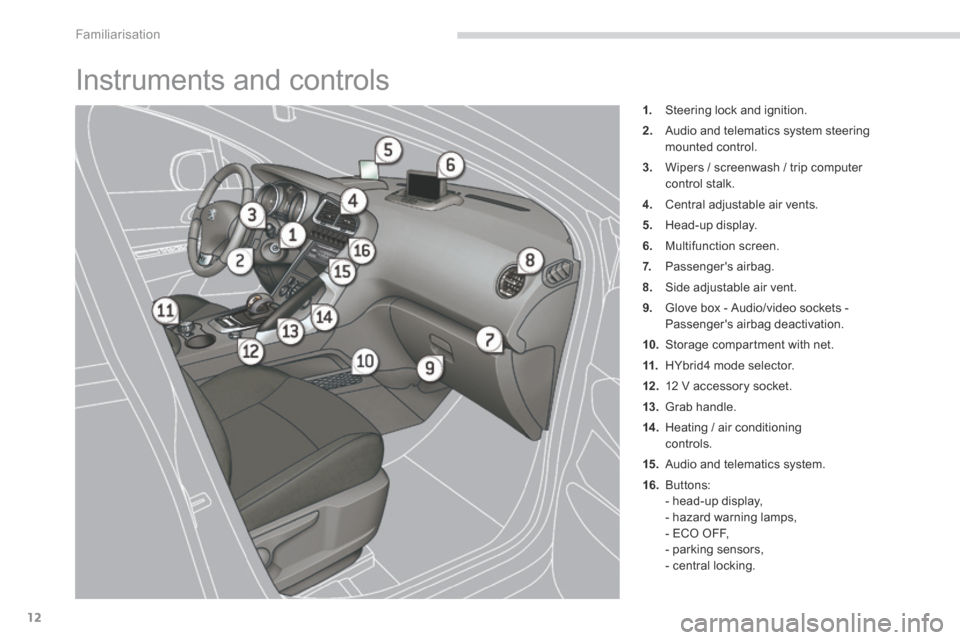

Instruments and controls
1. Steering lock and ignition.
2. Audio and telematics system steering mounted control.
3. Wipers / screenwash / trip computer control stalk.
4. Central adjustable air vents.
5. Head-up display.
6. Multifunction screen.
7. Passenger's airbag.
8. Side adjustable air vent.
9. Glove box - Audio/video sockets - Passenger's airbag deactivation.
10. Storage compartment with net.
11. HYbrid4 mode selector.
12 . 12 V accessory socket.
13. Grab handle.
14 . Heating / air conditioning controls.
15. Audio and telematics system.
16. Buttons: - head-up display, - hazard warning lamps, - ECO OFF, - parking sensors, - central locking.
Page 15 of 378
.
80
81
Familiarisation13
Sitting comfortably
Driver's seat
Forwards-backwards Height
Manual adjustment
Electric adjustment
Seat back angle
Page 16 of 378
82-83
87
126
84
Familiarisation
14
Sitting comfortably
Front seats
Head restraint height and angle
Lumbar
Steering wheel adjustment
1. Release the adjustment mechanism. 2. Adjust for height and reach. 3. Lock the adjustment mechanism.
As a safety precaution, these operations must only be carried out when stationary.
Table position (front
passenger seat)
To place objects on the table or to make the loading of long objects in the vehicle easier.
Front armrest
It contains the PEUGEOT Connect USB port and/or auxiliary JACK socket. PEUGEOT Connect USB port and/or auxiliary JACK socket. PEUGEOT
Page 17 of 378
.
88
89
15789
Familiarisation15
Sitting comfortably
Door mirrors
Adjustment
A. Selection of the mirror to be adjusted. B. Adjustment of the position of the mirror in the four directions.
Rear view mirror
Manual model
1. Selection of the "day" position of the mirror. 2. Adjustment of the mirror.
Automatic day/night model
1. Adjustment of the mirror.
Front seat belts
1. Fastening the buckle.
2. Height adjustment.
Also...C. Folding / Unfolding.
Page 18 of 378
108151
11 6
Familiarisation
16
Seeing clearly
Lighting
Ring A
Lighting off.
Ring B
Sidelamps.
Dipped / main beam headlamps.
Rear foglamp.
or
Front and rear foglamps.
Automatic illumination of headlamps.
Direction indicators
Raise or lower the lighting stalk passing the point of resistance; the corresponding direction indicators will flash for as long as the stalk remains in this position.
"Three fl ashes" function
Press the lighting stalk up or down once, without passing the point of resistance; the corresponding direction indicators will flash three times. This function can be used at any speed, but it is particularly useful when changing lane on high-speed roads.
Wipers
Stalk A: windscreen wipers
Switching on "AUTO"
Press the stalk down and release it.
Switching off "AUTO"
Push the stalk up and return it to position "0" . "0" . "0"
Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.
Page 19 of 378
.
48
183
155
96
186
36
171
151
36
183
50
101
Familiarisation17
Monitoring
Instrument panel
A. With the ignition on, the needle should
indicate the level of fuel remaining. B. With the ignition on, the oil level indicator should display "OIL OK" for a few seconds. If the levels are not correct, top up the levels which are low.
Warning lamps
1. With the ignition on, the orange and red warning lamps come on. 2. With the hybrid system active, these warning lamps should go off. If warning lamps remain on, refer to the section concerned.
Switch panels
Lighting of the indicator lamp indicates the status of the corresponding function.
Lower
Central
A. Visual and audible parking sensors * .
B. ASR /DSC OFF.
C.Interior volumetric protection alarm.
D. Parking space sensors.
E. ECO OFF * .
F. Head-up display.
G. Hazard warning lamps.
H. ECO OFF * .
I. Visual and audible parking assistance * .
J. Central locking. * depending on version.
Page 20 of 378
139, 161
157, 161
150
Familiarisation
18
Passenger safety
Passenger's front airbag
1. Insert the key. 2. Select the position: "OFF" (deactivation), with "rear facing" child seat, "ON" (activation), with front passenger or "for wards facing" child seat. 3. Remove the key keeping the switch in the new position.
Seat belts and passenger's
front airbag
A. Front and/or rear seat belts not fastened / unfastened warning lamp. B. Front left seat belt warning lamp. C. Front right seat belt warning lamp. D. Rear right seat belt warning lamp. E. Rear centre seat belt warning lamp. F. Rear left seat belt warning lamp. G. Passenger's front airbag deactivated warning lamp. H. Passenger's front airbag activated warning lamp.
Child lock
(locking of the rear doors)
Illumination of the indicator lamp indicates the status of the corresponding function.
