wheel Peugeot 306 Break 2002 Owner's Manual

YOUR 306 AT A GLANCE3
1
- Adjustable side vent.
2 - Side window demisting vent.
3 - Passenger airbag*.
4 - Windscreen demisting vents.
5 - Controls:
Lighter Hazard warning lightsRear screen and mirrors demisting.
6 - Heating/Ventilation,
Air conditioning controls*.
7 - Audio equipment*.
8 - Adjustable central vents. 9
- Windscreen wash-wipe
control.
10 - Steering wheel with
airbag*.
11 - Audio remote control*.
12 - Lighting control, fog lamps*
and horn.
13 - Headlamp height adjustment.
- Instrument dials lighting rheostat.
14 - Controls for:
- Electric mirrors*. - Electric windows*.
15 - Control for locking the rear
windows.
16 - Passenger airbag disarm-
ing switch*. 17
- Bonnet opening control.
18 - Fuse box.
19 - Steering lock and ignition.
20 - Fuel filler flap control*.
21 - Handbrake.
22 - Gear lever.
23 - Storage compartment.
24 - Ashtray.
25 - Glove box.
* According to specification.

YOUR 306 AT A GLANCE5
STARTING The 4 positions of the key in the ignition:
ÒSÓ for STOP
The ignition is off.
ÒAÓ for Accessories The ignition
is off but the accessories can be used. ÒMÓ for Running The ignition is
on.
ÒDÕÕ for Starting Operates the
starter. Steering lockBefore starting, unlock the steer-
ing if necessary, by gently turningthe steering wheel at the same
time as you turn the key. It is advisable to press the clutch pedal while operating the starter
to make starting easier.
Starting a petrol engine
Do not press the accelerator.
Operate the starter, without
releasing the key, until the engineturns. Starting a diesel engine Do not press the accel-
erator.
Turn the key to position ÔÔM ÕÕ.
If the engine is warm enough, thepre-heat light does not come on
and you can start immediately. If the pre-heat light comes on, wait for it to go out before operat-
ing the starter. HDI engine special feature If the engine stalls, it is necessary
to return the key to position ÔÔ SÕÕ
before restarting.
Never race a cold engine. Never run the engine in a confined space.
Do not make any modificationsto the steering lock.

YOUR 306 AT A GLANCE7
Automatic wipe The system automatically adjusts the wiper timing to the intensity of the rainfall.
After switching off the ignition or starting in position
1, it is necessary to re-set this
function. This is possible in two ways:
Ð change from 1to 0then
return to 1(displayed by one
wipe),
Ð change from 1to 2then
return to 1(displayed by two
wipes).
91
STEERING WHEEL
STALKS LIGHTING
Front lights (ring A)
Rear
Front/rear fog lamps (ring B)
Front and rear fog lamps on.
Front windscreen wipers 3Rapid wipe
2 Normal wipe
1 Intermittent or automatic wipe
0 Stop
4 Single wipe
Wash-wipe: pullthe stalk towardsyou.
Lights off. Side lights on.
Dipped/main beam headlampson.
90 Fog lamp off.
Front fog lamps on.
3
2
1
0
4
Stop
Intermittent wipe
Wash-wipe
AB

ELECTRIC WINDOWS
1. Driver's electric window Manual mode: press or pull the switch lightly. The window stops as soon
as the switch is released.Automatic mode: press or pull the switch firmly. One touch completely
opens or closes the window. Automatic opening and closing only work when the engine is running.
2. PassengerÕs electric window.
3. Left rear electric window.
4. Right rear electric window.
YOUR 306 AT A GLANCE
8
ADJUSTING THE HEIGHT OF THE STEERING WHEEL Push the handle to unlock the steering wheel. Adjust the steering wheel to the desired height and pull the handleto lock it into position.
101
21
ELECTRIC MIRRORS
Turn the knob
Ato the right or to the left to select the corre-
sponding mirror.
Move the knob in all four directions to adjust the mirror.
34
A
99

MAINTENANCE OF YOUR 30623
PEUGEOT SERVICING LEVELS A AND C
First Level
Operations Description of operations
serviceACIntermediate visit
DRAIN AND REFILL- Engine oil.- Bleed fuel filter (diesel).- Oil filter.- Fuel filter (Petrol).REPLACEMENT- Fuel filter element (Diesel).- Air filter element.- Spark plugs (Petrol).- Engine oil (check + top up).- Manual gearbox oil (check + top up).- Battery (check + top up) if cap is removable.LEVEL- Front/rear windscreen wash (check + top up).- Coolant (check + top up).- Brake fluid (check + top up).- Power steering fluid (check + top up according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers), check for leaks.CHECK- Condition of rubber boots and gaiters.- Brake pad wear. - Play in hubs, rods, ball joints, flexible mountings.- Shock absorbers for leaks.- Rear drum brake lining wear.- Condition and pressure of tyres (including spare wheel).- Emission control check according to current legislation (Petrol).- Smoke opacity (Diesel).- Pollen filter check (according to specification). - Visual check of the whole vehicle by a PEUGEOT dealer.
: All driving conditions : Arduous conditions

101
YOUR 306 IN DETAIL
Adjusting the height of the steering wheel Push the handle to unlock the steer- ing wheel. Adjust the steering wheel to the desired height and pull the handle tolock it into position.1 - Lighting rheostat* Dim or brighten the instru- ment panel lighting by
turning the knob. This only
operates when the exterior lights areon. 2 - Headlamp height
adjustment*
Depending on the vehicleÕsload, it is advisable to adjust
the headlamp beam. 0 - 1 or 2 people in the front seats.
- - 3 people.
1 - 5 people.
2 - 5 people + maximum authorised
load.
3 - Driver + maximum authorised
load.
This adjustment can only be carried out with the lighting stalk in thedipped/main beam headlamps posi-tion. Initial setting: 0.
* According to specification.
1
2

107
DRIVING YOUR 306
Handbrake Application When you have parked the vehicle, pull up the handbrake to apply it.
To ease application and release of the handbrake, press the brake pedal andpull up the handbrake with the enginerunning. Release Press the button before releasing the handbrake.THE ABS ANTI-LOCK BRAKING SYSTEM* In conjunction with tyres of an approved make and in good condi-
tion, the ABS system with electronicbrake force distribution improves thestability and handling of your vehicle,particularly on an uneven or slipperysurface. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
Manual gearbox The positions are indicated on the gear lever knob. Reverse gear can only be engaged from neutral when the vehicle is
stationary, with the engine idling. Special features of the six speedgearbox* Raise the lock ring under theknob beforeengaging reverse. In the event of emergency braking,press very firmly without reducingthe pressure. In some conditions
the normal operation of the ABSmay be felt as vibrations of thebrake pedal.
* According to specification.
Power steering
This is a comfort device which offers the best compromise for parking, andfor driving at high speeds.

108
DRIVING YOUR 306
AIRBAGS* The airbag system has been designed to maximise the safety ofthe occupants in the event of seriouscollisions. It works in conjunction withthe seat belts. The electronic detectors register and analyse any abrupt deceleration of thevehicle; if the triggering threshold isreached the airbags inflate instantlyand come between the occupants andthe vehicle. Immediately after the impact, the
airbags deflate rapidly, so that they donot hinder the visibility of the occu-pants and their exit if necessary fromthe vehicle. The airbags are not deployed in the case of collisions which are notserious, for which the seat belt is suf-ficient to ensure maximum protection.The seriousness of a collisiondepends on the nature of the obstacleand the speed of the vehicle at themoment of the collision. Airbags only operate when the ignition is switched on. Note:the gas escaping from the
cushion can be a minor irritant. FRONT AIRBAGS* These are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.They are deployed simultaneously(except in cases where the airbag isdisarmed), for frontal impacts wherethere is a risk of injury to the head orchest.
DISARMING THE
PASSENGER AIRBAG*
To ensure the safety of your child, it is essential to disarm the pas-senger airbag when you install arearwards-facing child seat on thefront passenger seat.
Remove the ignition key, insert it into the passenger airbag switch
1and
turn it to the Ò OFFÓ position.
One of these two warninglights* on the instrument panel
is lit throughout the disarmingprocedure.
* According to specification.

111
DRIVING YOUR 306

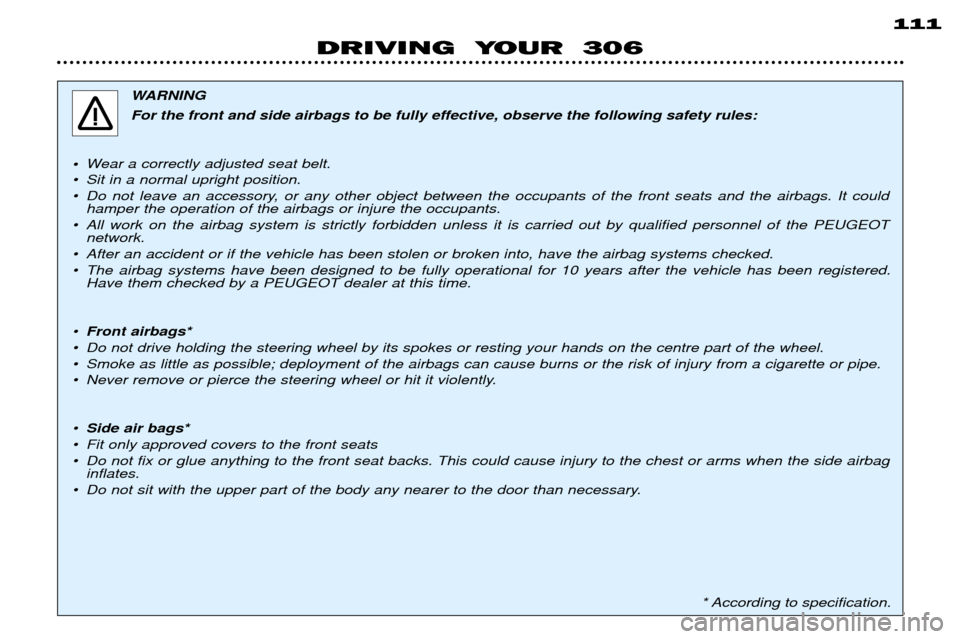

WARNING
For the front and side airbags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave an accessory, or any other object between the occupants of the front seats and the airbags. It could hamper the operation of the airbags or injure the occupants.
¥ All work on the airbag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the airbag systems checked.
¥ The airbag systems have been designed to be fully operational for 10 years after the vehicle has been registered. Have them checked by a PEUGEOT dealer at this time.
¥ Front airbags*
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Smoke as little as possible; deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently. ¥ Side air bags*
¥ Fit only approved covers to the front seats
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side airbag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
* According to specification.

111
DRIVING YOUR 306
WARNING
For the front and side airbags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave an accessory, or any other object between the occupants of the front seats and the airbags. It could hamper the operation of the airbags or injure the occupants.
¥ All work on the airbag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the airbag systems checked.
¥ The airbag systems have been designed to be fully operational for 10 years after the vehicle has been registered. Have them checked by a PEUGEOT dealer at this time.
¥ Front airbags*
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Smoke as little as possible; deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently. ¥ Side air bags*
¥ Fit only approved covers to the front seats
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side airbag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
* According to specification.
