VENTILATION 1.Windscreen de-icing or demisting vents.
2. Front window de-icing or demisting vents.
3. Side vents.
4. Centre vents.
5. Air outlet to front footwells.
6. Air outlet to rear footwells*.
Advice on operation  Place the air flow control at a level sufficient to ensure correct renewal of air in the passenger compartment. The ''OFF'' position cuts off all the air circulation in the passenger compartment.
Note : only use the ''OFF'' position occasionally (risk of condensation).
 For perfectly even air distribution, take care not to obstruct the exterior air intake grilles, the vents and the air ducts und er
the front seats, as well as the air extractor located in the boot. Check that the pollen filter is in good condition.
YOUR 307 IN DETAIL 51

YOUR 307 IN DETAIL
52
HEATING / VENTILATION

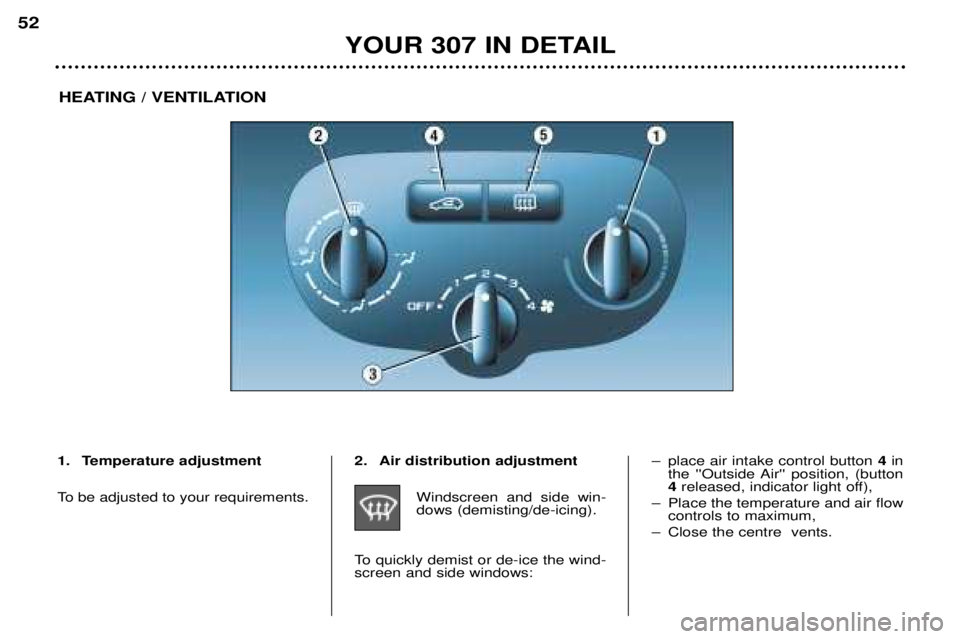

1. Temperature adjustment
To be adjusted to your requirements. 2. Air distribution adjustment
Windscreen and side win- dows (demisting/de-icing).
To quickly demist or de-ice the wind-screen and side windows: Ð place air intake control button
4in
the ''Outside Air'' position, (button4 released, indicator light off),
Ð Place the temperature and air flow controls to maximum,
Ð Close the centre vents.

Windscreen, side windows and footwells. Footwells. Centre and side vents.
3. Air flow adjustment Turn the control from posi- tion 1to position 4to obtain
an air flow sufficient toensure your comfort. 4. Air intake
Pressing button 4permits
recirculation of the interior
air. Recirculation, indicatedby illumination of the indica-tor light, prevents exterior
odours and smoke from entering thepassenger compartment and speedsup the rate at which the passengercompartment can be heated. As soon as possible, place control button 4in the outside air position to
prevent misting of the windows and
deterioration of the air quality. The
indicator light switches off. 5. Rear screen demisting
With the engine running,pressing the button oncedemists the rear screen andthe mirrors*.
This switches off automatically afterapproximately twelve minutes.Pressing again activates demistingfor a further twelve minutes. It is possible to stop demisting by pressing the button again before theend of the twelve minutes.
* According to specification.
YOUR 307 IN DETAIL 53

YOUR 307 IN DETAIL
54
AIR CONDITIONING*
1. Air conditioning The air conditioning is designed to
operate in all seasons. In summer, itenables the temperature to be lowe-
red and in winter, above 0 ¡C, it
increases the effectiveness of thedemisting. Press the switch, the indi-cator light comes on. The air conditioning does not ope-rate while the air flow adjustmentcontrol is in the "OFF" position. Note:It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.
2. Temperature adjustment
To be adjusted to your requirements.

4. Air flow adjustmentTurn the control from posi- tion 1to position 4to obtain
an air flow sufficient toensure your comfort.
5. Air intake Pressing button 5permits
recirculation of the interior
air. Recirculation, indicatedby illumination of the indica-
tor light, prevents exterior odoursand smoke from entering the pas-senger compartment. Used simultaneously with the air conditioning, recirculation enablesheating and cooling performance tobe improved. Used in a humid climate, recircula- tion may result in misting of the win-dows. As soon as possible, place button 5
in the outside air position, to prevent
deterioration of the air quality. The
indicator light switches off.3. Air distribution adjustment
Windscreen and side win- dows (demisting-de-icing).
To quickly demist or de-ice the wind-screen and side windows:
Ð Place the temperature and air flow controls to maximum,
Ð Close the centre and side vents.
Ð Place air intake control 5in the
"Outside Air" position (button 5
released, indicator light off),
Ð Start the air conditioning by pres- sing the AC button.
Windscreen, side windows and footwells.
Footwells.
Centre and side vents. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce cold
air, do not activate it and contact a
PEUGEOT dealer.
6. Rear screen demisting
With the engine running, pressing the button oncedemists the rear screen andthe mirrors*.
This switches off automati-
cally after approximately twelve minutes. Pressing again activatesdemisting for a further twelveminutes. It is possible to stop demisting by pressing the button again before theend of the twelve minutes. Note: it is quite normal that the
condensation created by the air conditioning results in a flow of water
under the vehicle when it is stationary.
* According to specification.
YOUR 307 IN DETAIL 55

YOUR 307 IN DETAIL
56
AUTOMATIC AIR CONDITIONING*
Automatic operation
1. Temperature adjustment The chosen temperature is displayed. Press the upand down arrows to chan-
ge it. A setting around 21 ¡C enables a comfor-table temperature to be
obtained. 2. Automatic comfort
programme
Press the "AUTO" button.The system automaticallyadjusts the atmosphereinside the vehicle in accor-
dance with the chosen temperature.
To do this, it controls the temperatu-
re, the flow, the distribution and theintake of air as well as the air condi-tioning. 3. Automatic visibility
programme
In some cases, the automa-tic comfort programme may
not be sufficient for demis-ting or deicing of the win-
dows (humidity, several passengers,ice...). In this case, select the auto-matic visibility programme to clear
the windows quickly.

Manual operation
If you wish, you can make a different
choice from that offered by the sys-
tem by changing a setting. The otherfunctions will still be controlled auto-
matically. Pressing the "AUTO" but-ton returns the system to completelyautomatic operation.
4. Air conditioningPressing this button
switches off the air conditio-
ning. The symbol "ECO" is
displayed. Automatic ope-
ration of the air conditioning is resu-med when the button is pressed
again. The symbol "A/C" is dis-played. Note: It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary. 5. Air distribution
Pressing this button severaltimes in successionenables the air flow to bedirected in turn towards:
Ð the windscreen (demisting or de- icing),
Ð the windscreen and the footwells,
Ð the footwells,
Ð the centre and side vents and the footwells,
Ð the centre and side vents.
6. Air flow
The flow of air can be increased or reducedby pressing buttons +
or Ð respectively.
7. Air intake Pressing this buttonenables the interior air tobe recirculated. Recircula-
tion, shown on the display,
enables the passenger compartmentto be insulated from exterior odoursand smoke.
Avoid prolonged recirculation of
interior air. To do this, press the but-ton again to resume intake of outside
air. 8. Switching the system off
The "OFF" button enablesthe entire system to be swit-
ched off.
9. Demisting the rear screen Pressing this buttondemists the rear screen andthe mirrors*. Demisting
switches off automatically. It is possible to stop opera-
tion of the demisting before it is swit-
ched off automatically by pressingthe button again. Note: the condensation created by
the air conditioning causes a flow of water under the vehicle when statio-nary which is perfectly normal.
* According to specification.
YOUR 307 IN DETAIL 57

FRONT SEATS

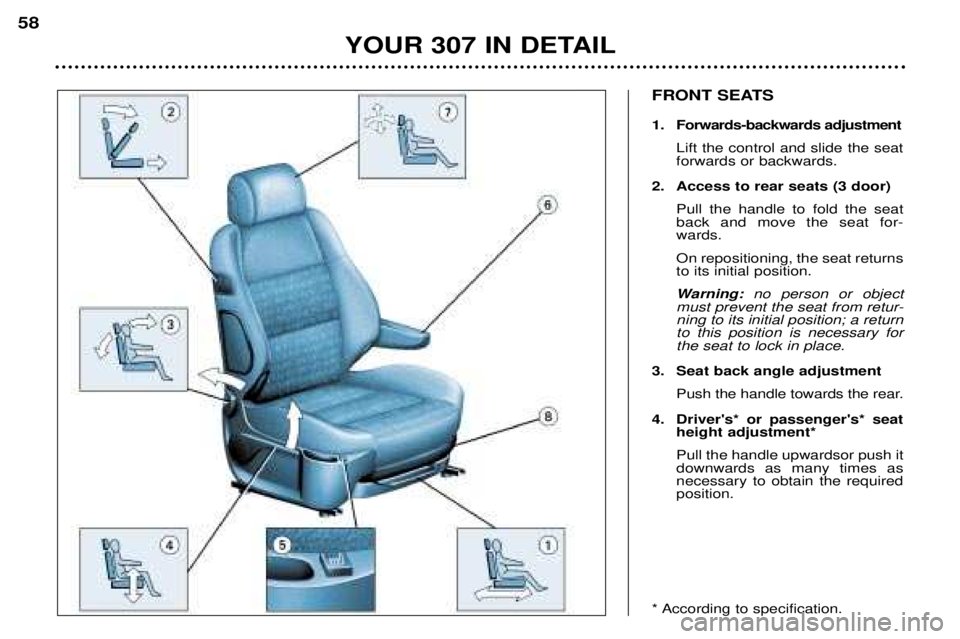

1. Forwards-backwards adjustmentLift the control and slide the seat forwards or backwards.
2. Access to rear seats (3 door) Pull the handle to fold the seatback and move the seat for-wards. On repositioning, the seat returns to its initial position.
Warning: no person or object
must prevent the seat from retur- ning to its initial position; a returnto this position is necessary forthe seat to lock in place.
3. Seat back angle adjustment Push the handle towards the rear.
4. Driver's* or passenger's* seat height adjustment* Pull the handle upwardsor push it downwards as many times asnecessary to obtain the requiredposition.
YOUR 307 IN DETAIL
58
* According to specification.

Never drive with the head restraints remo-ved; they should be inplace and correctlyadjusted.
5. Front heated seats switch*Press the switch. The temperatu-
re is controlled automatically. Pressing the switch again stops operation. Note : the command for activation
of the heating of the seat(s) remains memorised for twominutes after the ignition has been
switched off.
6. Front armrests* These can be folded down andare removable.
To remove the armrest, press the button located between the arm-rest and the side of the seat andpull it.
7. Front head restraint height and angle* adjustment
To raise or lower the restraint, pull it forwards, sliding it at thesame time. The angle of the head restraint can also be adjusted*.
To remove the head restraint, place it in the top position, lift thelug using a coin and pull it for-wards and upwards at the sametime. To put it back in position, locatethe stems of the restraint in theholes, taking care to keep themin line with the seat back.
Active seat back (front seat) This possesses a device to prevent 'whiplash'. When there is an impact from the
rear, the action of the body on theseat back forces the head restraintforwards and upwards, preventingthe head being thrown backwards.
8. Storage drawers* There is a storage drawer under each front seat.
Ð To open it, lift and pull.
Ð To take it out, open it to its full extent, press the ends of the slides
and lift it, then remove it completely.
Do not place heavy objects in thedrawers. Under the seat on the passenger side, the layout of the floor allows forstorage of a first aid kit and a war-ning triangle (small version).
* According to specification. REAR HEAD RESTRAINTS These have a high position for when they are in use and a low position forwhen they are stored.
To lower the head restraints, press the lug. The head restraints are removable.
To remove them, pull upwards as far as the stop then press the lug.
YOUR 307 IN DETAIL
59
The adjustment is correct when the upper edge of thehead restraint is level withthe top of the head.

Never drive with the head restraints remo-ved; they should be inplace and correctlyadjusted.
5. Front heated seats switch*Press the switch. The temperatu-
re is controlled automatically. Pressing the switch again stops operation. Note : the command for activation
of the heating of the seat(s) remains memorised for twominutes after the ignition has been
switched off.
6. Front armrests* These can be folded down andare removable.
To remove the armrest, press the button located between the arm-rest and the side of the seat andpull it.
7. Front head restraint height and angle* adjustment
To raise or lower the restraint, pull it forwards, sliding it at thesame time. The angle of the head restraint can also be adjusted*.
To remove the head restraint, place it in the top position, lift thelug using a coin and pull it for-wards and upwards at the sametime. To put it back in position, locatethe stems of the restraint in theholes, taking care to keep themin line with the seat back.
Active seat back (front seat) This possesses a device to prevent 'whiplash'. When there is an impact from the
rear, the action of the body on theseat back forces the head restraintforwards and upwards, preventingthe head being thrown backwards.
8. Storage drawers* There is a storage drawer under each front seat.
Ð To open it, lift and pull.
Ð To take it out, open it to its full extent, press the ends of the slides
and lift it, then remove it completely.
Do not place heavy objects in thedrawers. Under the seat on the passenger side, the layout of the floor allows forstorage of a first aid kit and a war-ning triangle (small version).
* According to specification. REAR HEAD RESTRAINTS These have a high position for when they are in use and a low position forwhen they are stored.
To lower the head restraints, press the lug. The head restraints are removable.
To remove them, pull upwards as far as the stop then press the lug.
YOUR 307 IN DETAIL
59
The adjustment is correct when the upper edge of thehead restraint is level withthe top of the head.
