audio Peugeot 307 2002 Owner's Manual

3YOUR 307 AT A GLANCE
1. Speaker (tweeter) location.
2. Side window demisting vent.
3. Windscreen demisting vents.
4. Passenger air bag.
5. Brightness sensor.
6. Multifunction display.
7. Alarm button.
8. Central locking button.
9. Hazard warning lights switch.
10. ESP/ASR switch*.
11. Lights and direction indicators stalk.
12. Instrument dials.
13. Steering wheel adjustment control. 14. Windscreen wash/wipe
stalk.
Trip computer stalk.
15. Driver's air bag. Horn.
16. Radio remote control stalk.
17. Headlamp height adjustment.
18. Electric mirror controls. Window controls. Rear window lockingcontrol.
19. Steering lock and ignition.
20. Cruise control switch.
21. 12 V accessories socket
22. Passenger air bag disarming switch.
23. Rubbish container.
24. Cup / can holder.
25. Handbrake. 26. Rear footwell heating vent.
27. Gear lever.
28. Front ash tray.
29. Heating / air conditioning
controls.
30. CD changer.
31. RB3 / RD3 audio equipment.
32. Central adjustable heating / ventilation vent and air flow regulation.
33. Side adjustable heating / ventilation vent and airflow regulation.
34. Fuse box.
35. Glove box.
36. Opening the bonnet.
37. Heated seat controls.
* During the year.

14YOUR 307 AT A GLANCE
AUDIO RB3 AUDIO RD3*
36
38
* The front panel of the RD3 set is supplied as either of the two configurations shown.

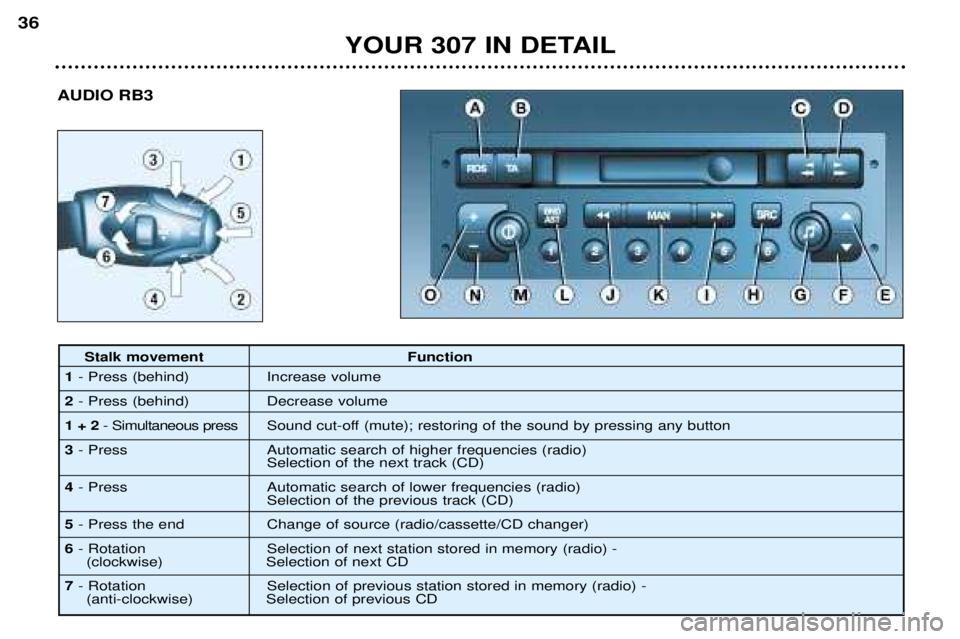

AUDIO RB3
YOUR 307 IN DETAIL
36
Stalk movement Function
1 - Press (behind) Increase volume
2 - Press (behind) Decrease volume
1+ 2 - Simultaneous press Sound cut-off (mute); restoring of the sound by pressing any button
3 - Press Automatic search of higher frequencies (radio)
Selection of the next track (CD)
4 - Press Automatic search of lower frequencies (radio)
Selection of the previous track (CD)
5 - Press the end Change of source (radio/cassette/CD changer)
6 - Rotation Selection of next station stored in memory (radio) -
(clockwise) Selection of next CD
7 - Rotation Selection of previous station stored in memory (radio) -
(anti-clockwise) Selection of previous CD

YOUR 307 IN DETAIL37

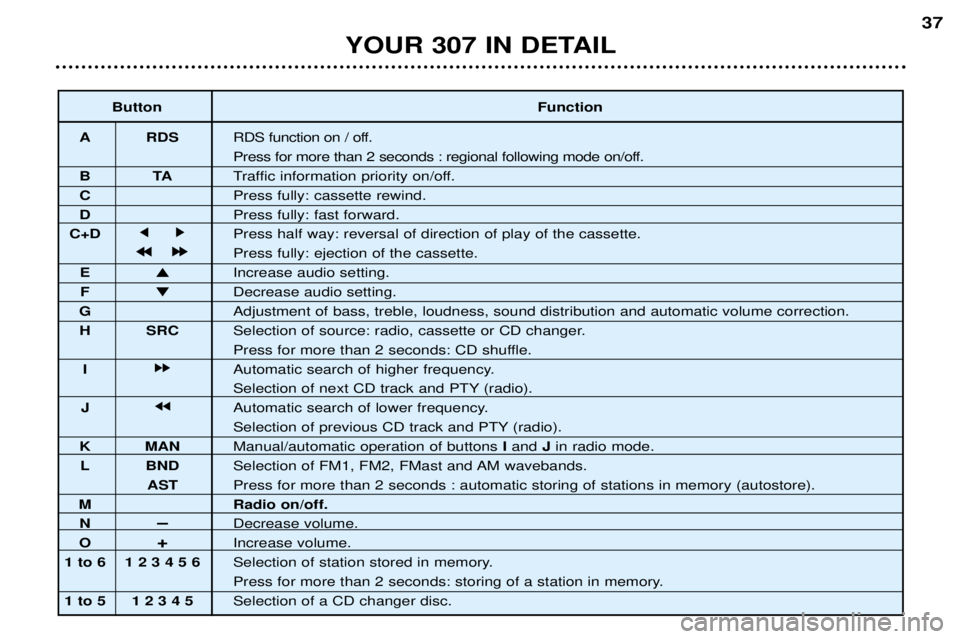

Button
Function
A RDS RDS function on / off.
Press for more than 2 seconds : regional following mode on/off.
BT ATraffic information priority on/off.
C Press fully: cassette rewind.
D Press fully: fast forward.
C+D j
kPress half way: reversal of direction of play of the cassette.
j
jkkPress fully: ejection of the cassette.
E Increase audio setting.
F Decrease audio setting.
G Adjustment of bass, treble, loudness, sound distribution and automatic volume correction.
H SRC Selection of source: radio, cassette or CD changer.
Press for more than 2 seconds: CD shuffle.
I kk Automatic search of higher frequency.
Selection of next CD track and PTY (radio).
J jj Automatic search of lower frequency.
Selection of previous CD track and PTY (radio).
K MAN Manual/automatic operation of buttons Iand Jin radio mode.
L BND Selection of FM1, FM2, FMast and AM wavebands.
AST Press for more than 2 seconds : automatic storing of stations in memory (autostore).
M Radio on/off. N Ð
Decrease volume.
O +Increase volume.
1 to 6 1 2 3 4 5 6 Selection of station stored in memory.
Press for more than 2 seconds: storing of a station in memory.
1 to 5 1 2 3 4 5 Selection of a CD changer disc.

GENERAL FUNCTIONSOn/off With the ignition key in the accessories or ignition position, press button Mto switch the set on or off.
The set can operate for 30 minutes without the vehicle ignition being switched on.
Anti-theft systemThe audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle. The anti-theft system is automatic and requires no action on your part. ADJUSTING THE VOLUME Press button Oto increase the volume or button Nto decrease it.
Continuous pressure on buttons Oand Nallows a gradual adjustment of the volume.
AUDIO SETTINGS Press button Gseveral times in succession to access the bass (BASS), treble (TREB), loudness (LOUD),
fader ( FAD), balance (BAL)and automatic volume correction.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing button G
after configuration of the automatic volume correction. Note : bass and treble settings are specific to each source. It is possible to set them differently for radio,
cassette (RB3), CD (RD3) and CD changer.
YOUR 307 IN DETAIL
40

RADIO Notes on radio reception
Your car radio is subject to phenomena which do not affect domestic radio sets. Both AM (MW/LW) and FM reception are
subject to various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of the
signals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles
(mountains, hills, buildings etc), or of being in an area which is not covered by a transmitter. Selecting radio mode
Audio RB3 :press button"SRC" several times in succession.
Audio RD3 : press button P.
Selecting a waveband Audio RB3 : briefly press button "BND/AST" to select the FM1, FM2, FMast and AM wavebands.
Audio RD3 : briefly press button Pto select the FM1, FM2, FMast and AM wavebands.
Automatic station search Briefly press button Ior Jto search for the station immediately above or below. By continuing to
press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.If the TAtraffic programme is selected, only stations broadcasting this type of programme are
selected.
Searching for a station occurs first in "LO"sensitivity (selection of the most powerful transmitters) during scanning of the
waveband, then in "DX"sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "DX" sensitivity, press button Ior Jtwice.
YOUR 307 IN DETAIL
42

Manual station search Press the"MAN" button.
Briefly press button Ior Jto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required. Press one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory. Automatic storing of FM stations in the memory (autostore)
Audio RB3 : press and hold button "BND/AST"for more than two seconds.
Audio RD3 : press and hold button "P"for more than two seconds.
Your radio automatically stores the 6 stations with the strongest signal in FM. These stations are stored in the FMast wave-
band.
If it is not possible to find 6 stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly press buttons "1" to "6" to recall the corresponding station.
YOUR 307 IN DETAIL 43

CASSETTE: AUDIO RB3 Selecting cassette modeWhen a cassette is inserted, the cassette player will start automatically. If a cassette is already inserted, press button "SRC"several times to select cassette mode.
Note: before inserting the cassette, ensure that the tape is taut.
Ejecting the cassette Fully press buttons Cand Dto eject the cassette from the player.
Direction of play
The player will play sides 1 and 2 of the cassette alternately, by automatically reversing the direction of play at the end of a
side. To manually reverse the direction of play, press the 2 buttons Cand Dhalf way.
Fast forward/rewindFully press one of the buttons Cor Dto fast forward or rewind the cassette. At the end of the fast forward/rewind, the set
plays the current side. Recommendations for using casssettes
- Use good quality cassettes.
- Avoid use of cassettes which play for longer than 90 minutes.
- Never expose the cassettes to heat or the direct rays of the sun.
- Re-tighten the tape if necessary before introducing the cassette in the player.
- Clean the playing head regularly with a damp type cleaning cassette.
YOUR 307 IN DETAIL
46

CD CHANGER* Selecting CD changer modeAudio RB3 : press button " SRC" several times in succession.
Audio RD3 : press button R.
Selecting a disc Press buttons "1"to "5" of the changer or the radio to select the corresponding disc.
Selecting a track Press button Ito select the next track.
Press button Jto return to the start of the current track or to select the previous track.
Accelerated playKeep button Ior Jpressed for forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.
ShuffleWhen the CD changer is selected: - audio RB3 : keep button "SRC" pressed for two seconds;
- audio RD3 : keep button R pressed for two seconds.
The tracks will be played in random sequence. Pressing the button again for two seconds returns you to normal play.
* According to specification
YOUR 307 IN DETAIL
48

YOUR 307 IN DETAIL
38
AUDIO RD3
Stalk movement Function
1 - Press (behind) Increase volume
2 - Press (behind) Decrease volume
1 + 2 - Simultaneous press Sound cut-off (mute); restoring of the sound by pressing any button
3 - Press Automatic search of higher frequencies (radio)
Selection of the next track (CD)
4 - Press Automatic search of lower frequencies (radio)
Selection of the previous track (CD)
5 - Press the end Change of source (radio/cassette/CD changer)
6 - Rotation Selection of next station stored in memory (radio) -
(clockwise) Selection of next CD.
7 - Rotation Selection of previous station stored in memory (radio) -
(anti-clockwise) Selection of previous CD.
