Peugeot 307 CC 2003 Owner's Manual

TECHNICAL DATA157

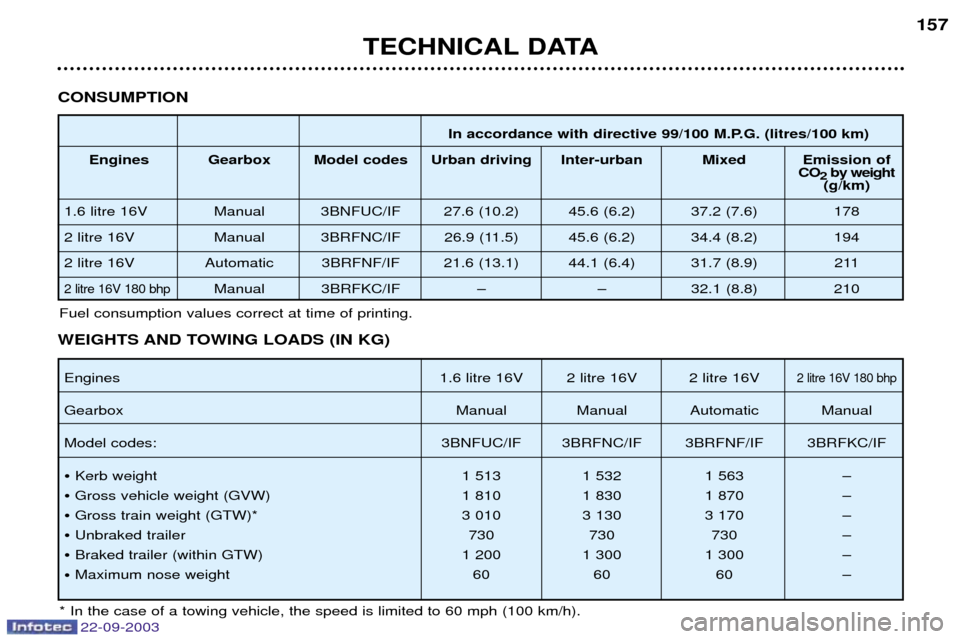

CONSUMPTION
In accordance with directive 99/100 M.P.G. (litres/100 km)
Engines Gearbox Model codes Urban driving Inter-urban Mixed Emission of CO2by weight
(g/km)
1.6 litre 16V Manual 3BNFUC/IF 27.6 (10.2) 45.6 (6.2) 37.2 (7.6) 178
2 litre 16V Manual 3BRFNC/IF 26.9 (11.5) 45.6 (6.2) 34.4 (8.2) 194
2 litre 16V Automatic 3BRFNF/IF 21.6 (13.1) 44.1 (6.4) 31.7 (8.9) 211
2 litre 16V 180 bhpManual 3BRFKC/IF Ð Ð 32.1 (8.8) 210
Engines 1.6 litre 16V 2 litre 16V 2 litre 16V2 litre 16V 180 bhp
Gearbox Manual Manual Automatic Manual
Model codes: 3BNFUC/IF 3BRFNC/IF 3BRFNF/IF 3BRFKC/IF
¥ Kerb weight
1 513 1 532 1 563 Ð
¥ Gross vehicle weight (GVW) 1 810 1 830 1 870 Ð
¥ Gross train weight (GTW)* 3 010 3 130 3 170 Ð
¥ Unbraked trailer
730 730 730 Ð
¥ Braked trailer (within GTW) 1 200 1 300 1 300 Ð
¥ Maximum nose weight 60 60 60 Ð
WEIGHTS AND TOWING LOADS (IN KG)
Fuel consumption values correct at time of printing. * In the case of a towing vehicle, the speed is limited to 60 mph (100 km/h).
22-09-2003

22-09-2003
TECHNICAL DATA

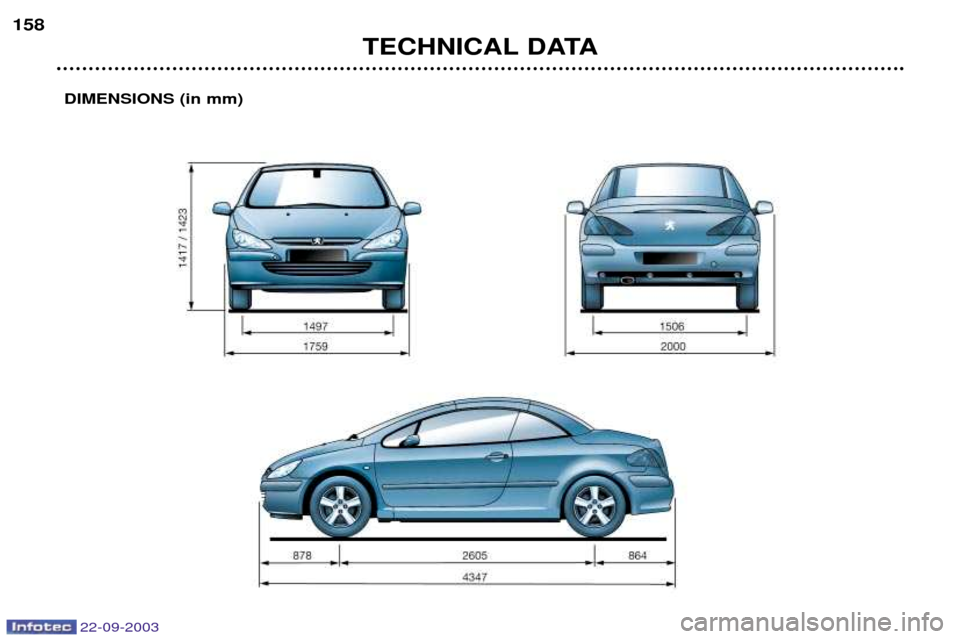

DIMENSIONS (in mm)
158

TECHNICAL DATA159

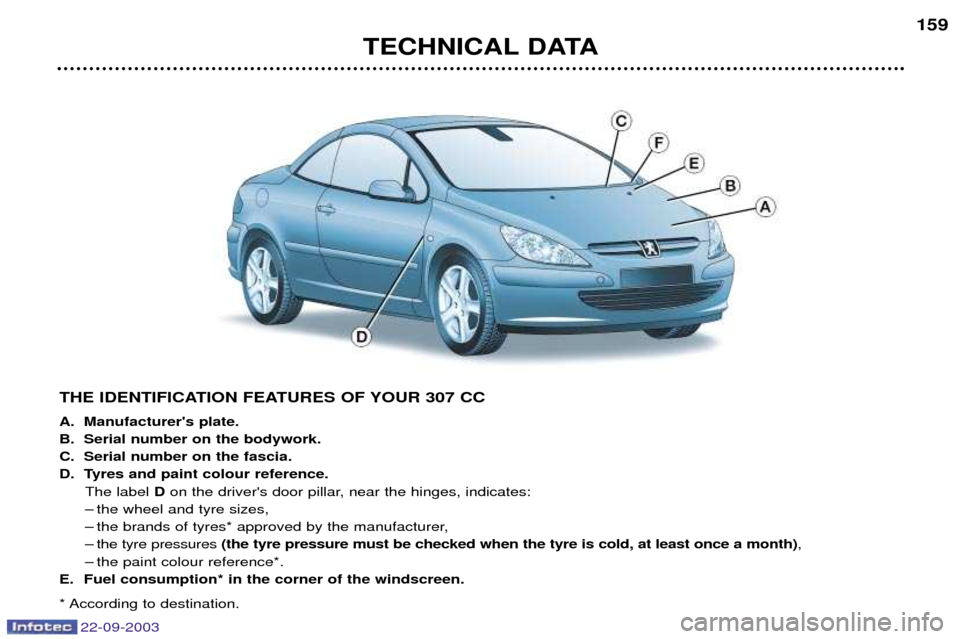

THE IDENTIFICATION FEATURES OF YOUR 307 CC
A. Manufacturer's plate.
B. Serial number on the bodywork.
C. Serial number on the fascia.
D. Tyres and paint colour reference. The label Don the driver's door pillar, near the hinges, indicates:
Ð the wheel and tyre sizes,
Ð the brands of tyres* approved by the manufacturer,
Ð the tyre pressures (the tyre pressure must be checked when the tyre is cold, at least once a month) ,
Ð the paint colour reference*.
E. Fuel consumption* in the corner of the windscreen.
* According to destination.
22-09-2003
