Peugeot 307 CC 2003 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2003, Model line: 307 CC, Model: Peugeot 307 CC 2003Pages: 173, PDF Size: 2.12 MB
Page 141 of 173
22-09-2003

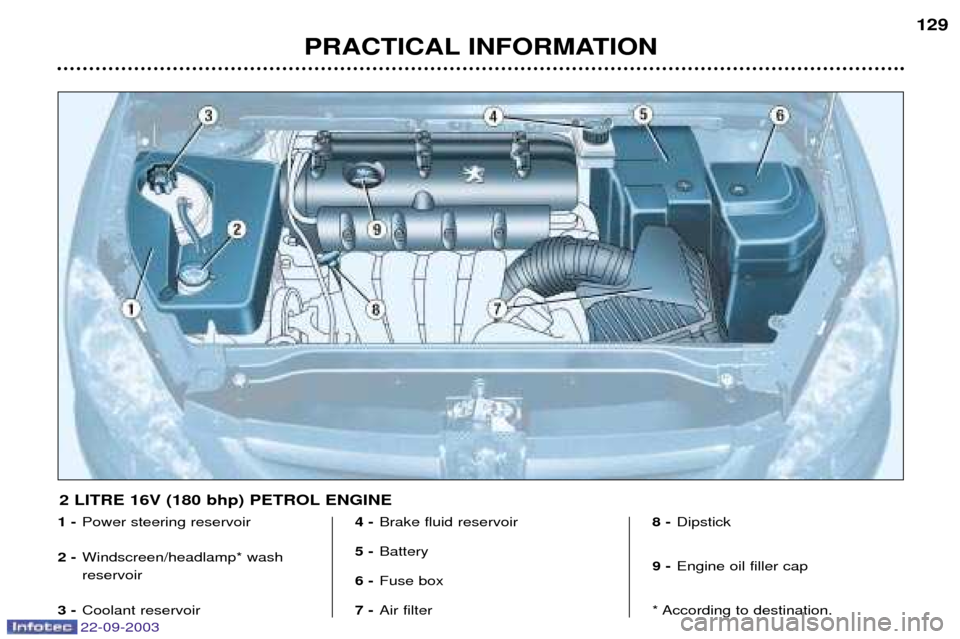

PRACTICAL INFORMATION129
1 -
Power steering reservoir
2 - Windscreen/headlamp* wash reservoir
3 - Coolant reservoir 4 -
Brake fluid reservoir
5 - Battery
6 - Fuse box
7 - Air filter 8 -
Dipstick
9 - Engine oil filler cap
* According to destination.
2 LITRE 16V (180 bhp) PETROL ENGINE
Page 142 of 173
22-09-2003
PRACTICAL INFORMATION
130
CHECKING THE LEVELS Oil level
Check the level regularly and top
up between changes. The maxi-mum consumption is 0.5 l per600 miles (1,000 km). Check the level with the vehicle level, engine cold, using the oil levelgauge on the instrument panel orthe dipstick.
Dipstick There are two marks onthe dipstick: A=maximum
Never fill past this mark
B= minimum
To maintain the reliability of engines and emissioncontrol systems, the useof additives in engine oilis prohibited.
Oil change According to the information given in
"PEUGEOT SERVICING" .
Note: avoid used oil coming into
prolonged contact with the skin. Viscosity selection In all cases, the oil selected must meet the manufacturer's requirements. Brake fluid level:
Ð The level must always be between
the DANGER and MAXIMUM
marks in the reservoir.
Ð If the level drops substantially, contact a PEUGEOT dealer
immediately.
Fluid change:
Ð must be carried out according to the manufacturer's servicing schedule.
Ð use fluids recommended by the manufacturer, which fulfil DOT4standards.
Note: brake fluid is harmful to health
and very corrosive. Avoid all contactwith the skin. Cooling system Use the fluid recommended by the
manufacturer. When the engine is warm, the tem- perature of the coolant is controlled
by the engine fan. As this fan canoperate with the ignition keyremoved and because the coolingsystem is pressurised, wait for atleast one hour after the engine hasstopped before carrying out anywork. Slacken the cap to the first notch torelease the pressure to prevent anyrisk of scalding. When the pressurehas dropped, remove the cap andtop up the level. Note:
the coolant does not need to
be changed. Used oil Do not dispose of used oil, brake fluid or coolant into drains or into theground. Power steering reservoir Open the reservoir, with the engine at ambient temperature.The level should always beabove the MIN. mark and closeto the MAX. mark.
Windscreen and headlamp* wash level For best quality cleaning and for your
safety, we would advise that you use
products recommended by PEUGEOT.
* According to destination.
Page 143 of 173
22-09-2003
PRACTICAL INFORMATION131
CHECKS Battery
At the start of winter, have your bat-
tery checked by a PEUGEOT dealer. Air filter and passenger compartment filter Have the filter elements replaced
regularly.
If you drive in dusty con-
ditions, change them twice asoften. Brake pads Brake pad wear depends on the style of driving, in particular for vehi-cles which are used in town, overshort distances. It may be necessary to check the thickness of the pads, even betweenservices. Handbrake Where the handbrake travel is too great or there is a reduction in theperformance of the system, thehandbrake should be adjusted, evenbetween services. Have the system checked by a
PEUGEOT dealer. Oil filter
Change the filter regularly, in accor- dance with the servicing schedule.
Only use products recom-
mended by PEUGEOT.
To ensure best perfor- mance from components
as important as the power steer-ing and the braking system,PEUGEOT selects and offersquite specific products.
Page 144 of 173
22-09-2003
PRACTICAL INFORMATION
132
CHANGING A WHEEL Parking the vehicle
As far possible, park the vehicle on level, stable and non-slipperyground.
Apply the handbrake, switch offthe ignition and engage first orreverse gear (position Pfor the
automatic gearbox).
Access to the spare wheel and the jack in the boot Place the vehicle in the coupŽ position.
Detach the luggage retaining net.
Lift the boot mat using the handleand attach the cords to the twohooks located under the bootseal. Tools The following tools are located in a holder in the centre of the sparewheel: 1 -
Wheelbrace.
2 - Centralising tool.
3 - Removable chock.
4 - Jack with handle.
5 - Removable towing eye.
6 - Alloy wheel bolt trim remover. Removing the wheel
Place the holder and the chock 3
(or chock 3on its own if neces-
sary) under the wheel diagonally opposite to the one to bechanged.
Remove the trim, using thewheelbrace 1, pulling at the valve
passage hole.
Loosen the wheel bolts (for vehi-cles fitted with alloy wheels,remove the chrome trims first.See paragraph on "Special fea-tures of alloy wheels").
Page 145 of 173
22-09-2003
PRACTICAL INFORMATION133
Place the jack 4in contact with one
of the four locating points Aon the
sub-frame, (the one which is clos- est to the wheel to be changed).
Extend the jack 4until its base is
in contact with the ground.Ensure that the centre line of thebase of the jack is directly belowthe locating point Aused.
Raise the vehicle.
Unscrew the bolts and removethe wheel.
Fitting a wheel Position the wheel using the cen- tralising tool to assist you.
Tighten the bolts by hand andremove the centralising tool.
Partly tighten the bolts using thewheelbrace 1.
Fold the jack 4and remove it.
Fully tighten the bolts using thewheelbrace 1.
Replace the wheel trim, startingby placing the wheel trim notchopposite the valve, and press iton using the palm of the hand.
Put the tools and the wheel backin the boot.
Note: a diagram on the holder indi-
cates the location of the tools.
Tighten the spare wheel securing strap to prevent noise and for yoursafety in the event of impact. For your safety, alwayschange the wheel:
Ð on level, stable, non-slippery ground,
Ð with the handbrake on and the ignition switched off,
Ð with first or reverse gear engaged (position Pfor the
automatic gearbox),
Ð with the vehicle chocked. Never go underneath a vehicle that is supported only by a jack(use a ramp). After changing the wheel:
Ð have the tightening of the bolts and the tyre pressure checked by a PEUGEOT dealer as soonas possible.
Ð have the punctured tyre repaired and refit it to the vehi-cle as soon as possible.
Page 146 of 173
22-09-2003
PRACTICAL INFORMATION
134

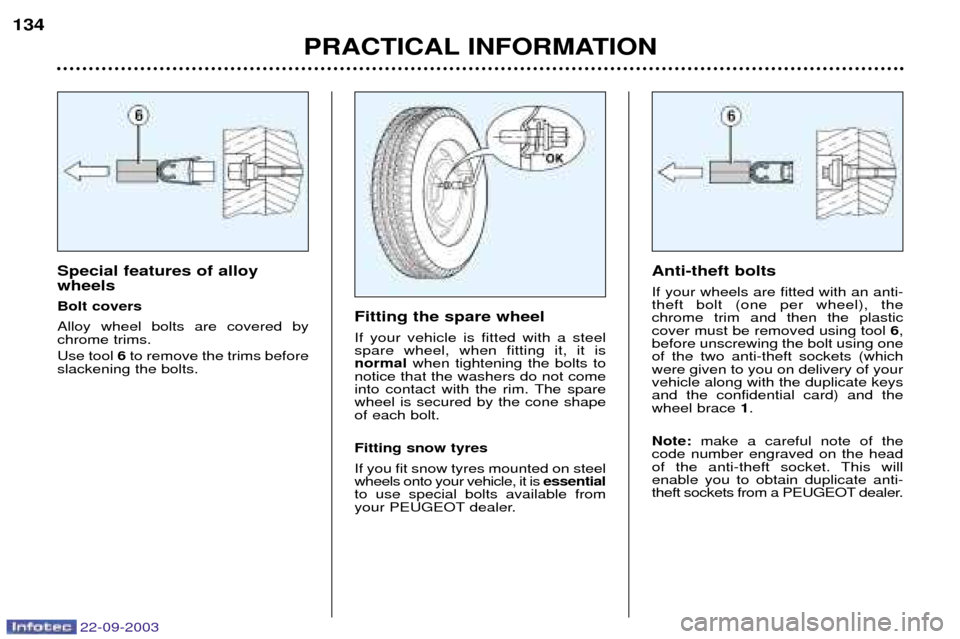

Special features of alloy wheels Bolt coversAlloy wheel bolts are covered by chrome trims. Use tool
6to remove the trims before
slackening the bolts. Fitting the spare wheel If your vehicle is fitted with a steel spare wheel, when fitting it, it isnormal
when tightening the bolts to
notice that the washers do not come
into contact with the rim. The sparewheel is secured by the cone shapeof each bolt. Fitting snow tyres If you fit snow tyres mounted on steel wheels onto your vehicle, it is essential
to use special bolts available from
your PEUGEOT dealer. Anti-theft bolts If your wheels are fitted with an anti- theft bolt (one per wheel), thechrome trim and then the plasticcover must be removed using tool
6,
before unscrewing the bolt using oneof the two anti-theft sockets (whichwere given to you on delivery of yourvehicle along with the duplicate keysand the confidential card) and thewheel brace 1.
Note: make a careful note of the
code number engraved on the head
of the anti-theft socket. This willenable you to obtain duplicate anti-
theft sockets from a PEUGEOT dealer.
Page 147 of 173
22-09-2003
PRACTICAL INFORMATION135
CHANGING A BULB Front lights Note:
on the right-hand side, remove the style cover, fixed
with two plastic screws, to access the bulbs. Handle the bulbs with a dry cloth.
1 - Dipped beam headlamps (H7-55 W).
2 - Main beam headlamps (H1-55 W).
3 - Front fog lamps (H1-55 W). Turn the protective cover corresponding to the faulty
bulb a quarter of a turn and remove it.
Disconnect the connector.
Press the end of the securing clip to free it. Change the bulb. When fitting the new bulb, ensure that the direction notches are positioned correctly and the securing clip
is fixed properly.
Reconnect the connector.
Refit the protective cover, positioning it with the arrowupwards, then turn it a quarter of a turn to the right. The headlamps are fitted with polycarbonate glass with aprotective coating.
Do not clean them with a dry or abra-
sive cloth, nor with a detergent or solvent product .
Use a sponge and soapy water.
4 - Side lights (W 5 W). Pull the socket rearwards, remove the bulb and
change it.
5 - Direction indicators (PY 21 W amber). Turn the bulb holder a quarter of a turn and remove it.
Change the bulb.
Note: In certain climatic conditions (low temperature,
humidity), condensation inside the headlamp glass is
normal ; it disappears a few minutes after the lights are
switched on.
Page 148 of 173
22-09-2003
PRACTICAL INFORMATION
136

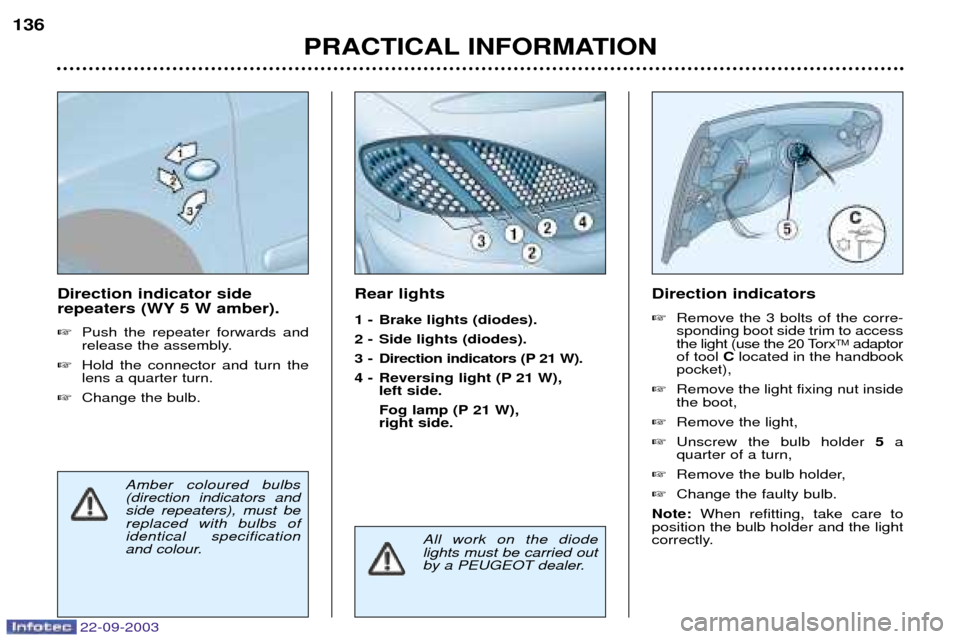

Direction indicator side
repeaters (WY 5 W amber).
Push the repeater forwards and
release the assembly.
Hold the connector and turn thelens a quarter turn.
Change the bulb. Rear lights
1 - Brake lights (diodes).
2 - Side lights (diodes).
3 - Direction indicators (P 21 W).
4 - Reversing light (P 21 W),
left side.
Fog lamp (P 21 W), right side. Direction indicators
Remove the 3 bolts of the corre- sponding boot side trim to access
the light (use the 20 Torx TM
adaptor
of tool Clocated in the handbook
pocket),
Remove the light fixing nut insidethe boot,
Remove the light,
Unscrew the bulb holder 5a
quarter of a turn,
Remove the bulb holder,
Change the faulty bulb.
Note: When refitting, take care to
position the bulb holder and the light
correctly.
Amber coloured bulbs
(direction indicators andside repeaters), must bereplaced with bulbs ofidentical specification
and colour.
All work on the diode lights must be carried out
by a PEUGEOT dealer.
Page 149 of 173
22-09-2003
PRACTICAL INFORMATION
136
Direction indicator side
repeaters (WY 5 W amber).
Push the repeater forwards and
release the assembly.
Hold the connector and turn thelens a quarter turn.
Change the bulb. Rear lights
1 - Brake lights (diodes).
2 - Side lights (diodes).
3 - Direction indicators (P 21 W).
4 - Reversing light (P 21 W),
left side.
Fog lamp (P 21 W), right side. Direction indicators
Remove the 3 bolts of the corre- sponding boot side trim to access
the light (use the 20 Torx TM
adaptor
of tool Clocated in the handbook
pocket),
Remove the light fixing nut insidethe boot,
Remove the light,
Unscrew the bulb holder 5a
quarter of a turn,
Remove the bulb holder,
Change the faulty bulb.
Note: When refitting, take care to
position the bulb holder and the light
correctly.
Amber coloured bulbs
(direction indicators andside repeaters), must bereplaced with bulbs ofidentical specification
and colour.
All work on the diode lights must be carried out
by a PEUGEOT dealer.
Page 150 of 173
22-09-2003
PRACTICAL INFORMATION137

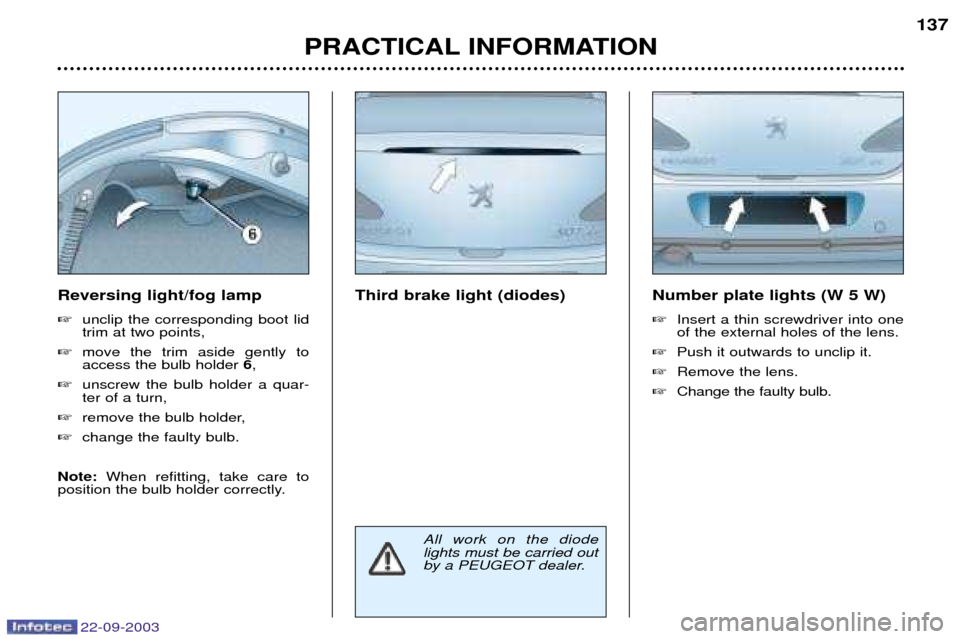

Number plate lights (W 5 W)
Insert a thin screwdriver into one of the external holes of the lens.
Push it outwards to unclip it.
Remove the lens.
Change the faulty bulb.
Third brake light (diodes)
Reversing light/fog lamp unclip the corresponding boot lid trim at two points,
move the trim aside gently toaccess the bulb holder 6,
unscrew the bulb holder a quar-ter of a turn,
remove the bulb holder,
change the faulty bulb.
Note: When refitting, take care to
position the bulb holder correctly.
All work on the diode lights must be carried out
by a PEUGEOT dealer.
