Peugeot 307 CC 2003 Owner's Manual

22-09-2003
YOUR 307 CC AT A GLANCE1
Pages
Seats 84 - 91
Steering wheel controls 102 - 108
Retractable roof 100 - 101
Instrument panels 28 - 29
Ventilation, air conditioning 80 - 83
Pages
Checks 127 - 131
Access 92 - 99
Changing a bulb 135 - 137
Changing a wheel 132 - 134
Fuel filler flap 99
Each model may only be fitted with some of the equipment shown, according to its specification and the technical requirements in the country of first registration of the vehicle.

22-09-2003
2YOUR 307 CC AT A GLANCE

22-09-2003
3YOUR 307 CC AT A GLANCE

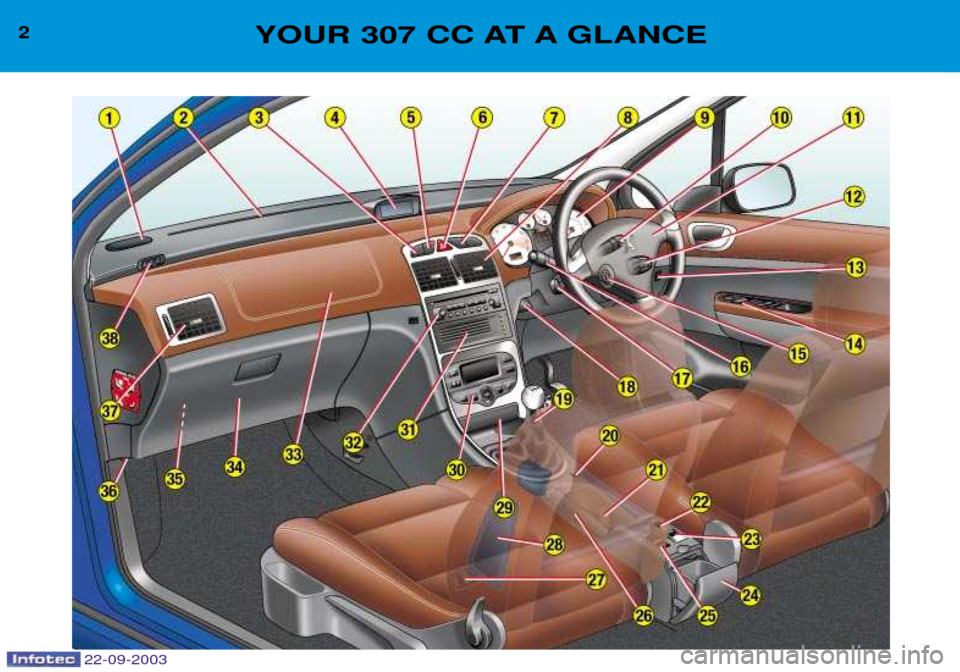

1 -Speaker (tweeter).
2 - Windscreen demisting vents.
3 - Alarm button.
4 - Multi-function display.
5 - Central locking button.
6 - Hazard warning lights switch.
7 - Electronic stability control(ESP/ASR) button.
8 - Central adjustableheating/ventilation ventsand air flow regulation.
9 - Instrument panel.
10 - Windscreen wash-wipe/tripcomputer stalk.
11 - Driver's air bag. Horn.
12 - Audio remote control stalk.
13 - Headlamp height adjustment. 14 -
Electric mirror controls. Window controls.Rear window disarming control.
15 - Steering lock and ignition.
16 - Lights and directionindicators stalk.
17 - Cruise control.
18 - Steering wheel adjustmentcontrol.
19 - Gear lever.
20 - 12 V accessories socket.
21 - Can holder.
22 - Retractable roof control.
23 - Simultaneous control of all4 windows.
24 - Storage compartment.
25 - Coin storage. Passenger air bag disarming switch*.
26 - Handbrake.
27 - Rear footwell heating vent. 28 -
Side air bags.
29 - Front ashtray.
30 - Heating/automatic air conditioning controls.
31 - CD changer.
32 - Audio RD3 or
audio/telephone RT3.
33 - Passenger air bag.
34 - Glove box.
35 - Fuse box.
36 - Bonnet opening control.
37 - Side adjustableheating/ventilation vent andair flow regulation.
38 - Side window demisting vent.
* According to destination.

22-09-2003
92
4YOUR 307 CC AT A GLANCE
THE KEYS The keys allow you to switch on the ignition and operate the pas-senger air bag disarming switchand boot opening button disarm-ing switch as well as to indepen-dently operate the lock on the
driver's door, the fuel filler capand the glove box. The remote control key LockingPress button Ato lock the vehicle.
This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Vehicles fitted withdeadlocking
Deadlocking renders theinternal and externaldoor locking controlsinoperative.
Press button Ato deadlock the
vehicle. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds.
A second press on button Ain
the five seconds following dead- locking, changes deadlocking tonormal locking. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Unlocking Press button Bto unlock the vehi-
cle. This is confirmed by rapid flashing of the direction indicators. Note: if the vehicle is locked and
unlocking is activated inadver-
tently, unless one of the doors orthe boot is opened within 30 sec-onds, the vehicle will lock auto-
matically. Partial opening of the boot Press and hold
button Bto par-
tially open the boot in addition to unlocking the vehicle.
STARTING
STOP position:
The ignition is off.
1st notch, Accessories position:
The ignition is off but the acces-sories can be used. 2nd notch, Running position: The ignition is on. Starting position:
Operates the starter.

22-09-2003
100
5YOUR 307 CC AT A GLANCE
THE RETRACTABLE ROOF Before operating the roof: It is advisable to park the vehi- cle on level ground, it is possi-ble to carry out the operationat a speed below 6 mph
(10 km/h).
 Ensure that the screen 1is
hooked on (no object must beplaced on the screen or on thehinged covers 2; if there is
luggage in the boot, this mustnot push the screen upwards).
 Check that no object has beenplaced on the rear parcelshelf.
 Close the boot correctly.
 Turn the ignition key to the
accessories or running posi-tion (1st or 2nd notch). It isadvisable to carry out the oper-ation with the engine running. Opening the roof
Pull button 3until the roof
opening operation is com- plete, confirmed by an audiblesignal.
Closing the roof  Press button 3until the roof
closing operation is complete, confirmed by an audible signal.
Note: if you continue to pull or
press button 3once the cycle is
complete, the four windows riseagain. When carrying out roofopening or closing opera-tions, to avoid any risk of
injury, ensure that there isno one in the proximity of
the moving parts. Operation of the roof is the sole
responsibility of the driver.
To guarantee correct opera- tion, do not release button 3when the roof is in an interme-diate position (neither com-pletely open nor completely
closed). However, in the event
of danger, release the controlbutton and the operation will
stop instantly. Once the dangerhas been eliminated, completethe operation.

22-09-2003
102104
6YOUR 307 CC AT A GLANCE
Front and rear lights (ring A)Lights off. Side lights.
Dipped/main beam headlamps. Automatic switching onof the lights.
Automatic switchingon of the lights
To activate or deactivate the function, place the key in theaccessories position, the lightsstalk in position 0and press the
end of the lights stalk for morethan four seconds. WINDSCREEN WIPERS
2 Rapid wipe(heavy rain).
1 Normal wipe(moderate rain).
I Intermittent wipe.
or
AUTO Automatic wipe.
0 Off.


Single wipe.
Windscreen wash-wipe: pull the stalk towards you. Automatic wipe In the AUTO position, the wiper
operates automatically and adjusts its speed to the intensityof the rainfall.
Front fog lamps/Rearfog lamp (ring B)
Front fog lamps (first rota-tion of the ring forwards)
Front fog lampsand rear fog lamp(second rotation ofthe ring forwards)
Switching off: rotation of the ringbackwards.
STEERING WHEEL STALKS LIGHTING

84
8YOUR 307 CC AT A GLANCE

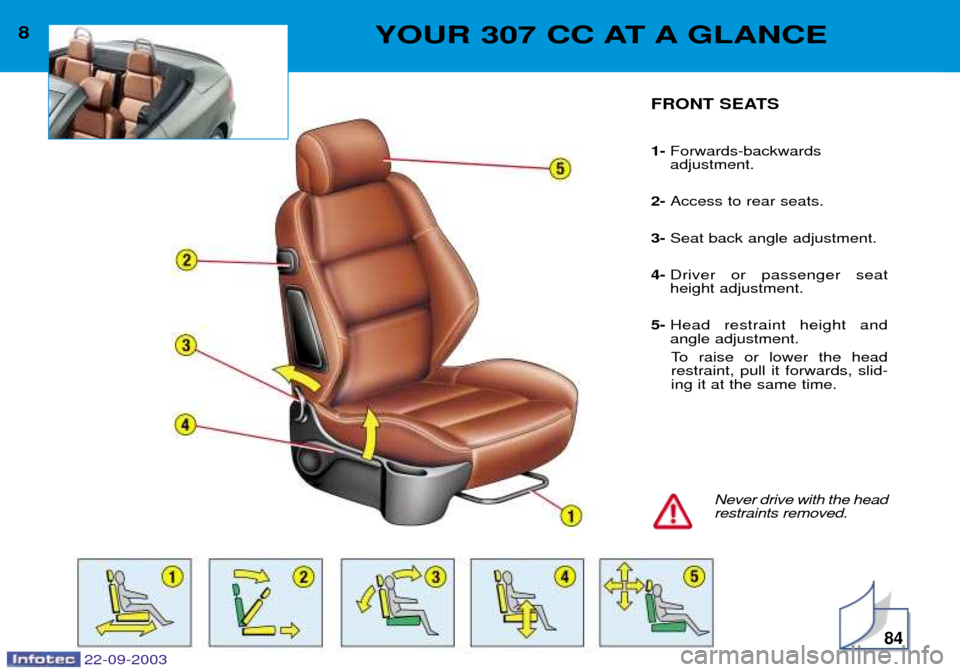

FRONT SEATS 1- Forwards-backwards adjustment.
2- Access to rear seats.
3- Seat back angle adjustment.
4- Driver or passenger seatheight adjustment.
5- Head restraint height andangle adjustment.
To raise or lower the headrestraint, pull it forwards, slid-ing it at the same time.
Never drive with the headrestraints removed.
22-09-2003

22-09-2003
125124
9YOUR 307 CC AT A GLANCE
AIR BAGS The air bag system has been designed to maximise the safetyof the occupants in the event ofserious collisions. It works in con-junction with the force limitingseat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front pas-
senger. They are deployed simul-
taneously, except in cases wherethe passenger air bag is dis-armed. Precautions regarding the passenger air bag disarm the air bag if you install a rear-facing child seat,
 activate the air bag for an
adult passenger. Disarming the passenger air bag*
With the ignition off , insert
the ignition key into the pas- senger air bag slot 1and turn
it to the "OFF"position.
As soon as you remove the childseat, turn the air bag switch to the"ON" position, to activate the air
bag again. Disarming check
With the ignition switchedon (2nd notch), illumina-tion of this warning light,accompanied by an audi-
ble signal and the message"Passenger air bag deactivated"
on the multi-function display, indi-cates that the passenger air bagis disarmed (slot in the "OFF"
position). The warning light remains on throughout the disarming process. Side air bags The side air bags are incorporat- ed into the front seat back frame,on the door side and aredeployed independently of each
other, on whichever side the colli-sion occurs.
* According to destination.

22-09-2003
11 0
7YOUR 307 CC AT A GLANCE
ELECTRIC WINDOWS
1 - Driver's electric window.
2 - Passenger's electric window.
3 - Rear right electric window.
4 - Rear left electric window.5 - Disarming of the rear window switches.6 - Simultaneous control of all four windows. Manual operation: Press or pull the switch gently. The window stops when the switch is released.
Automatic operation:  Press or pull the switch firmly. A single press opens or closes the window
completely.
Front windows safety auto-reverse: when the window rises
and meets an obstacle, it stops and partially lowers. ELECTRIC MIRRORS
Place control 7to the right or
to the left to select the mirror to be adjusted.
 Move control 8in all four
directions to adjust.
 Return control 7to the central
position.
When parking, the mirrors can be
folded electrically, by pulling con-trol 7rearwards or automatically
on locking the vehicle.
109

22-09-2003
11 2123
11YOUR 307 CC AT A GLANCE
STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT When stationary, pull handle A
to unlock the steering wheel.
 Adjust the height and depth of the steering wheel.
 Lock by pushing handle Ain
fully. REAR PARKING ASSISTANCE
This system, installed in the rear bumper, detects any obstacle (person,
vehicle, tree, barrier, etc) behind the vehicle. Activation With the engine running, the system is activated when reverse gear is engaged; a bleep indicates that it is active. The proximity information is given by an audible signal, consisting of bleeps which become faster as the vehicle approaches the obstacle. When the distance between the rear of vehicle and the obstacle is less than thirty centimetres, the audible signal becomes continuous. In neutral, the system becomes inactive again.
