Roof emergency mode
22-09-2003

PRACTICAL INFORMATION
148

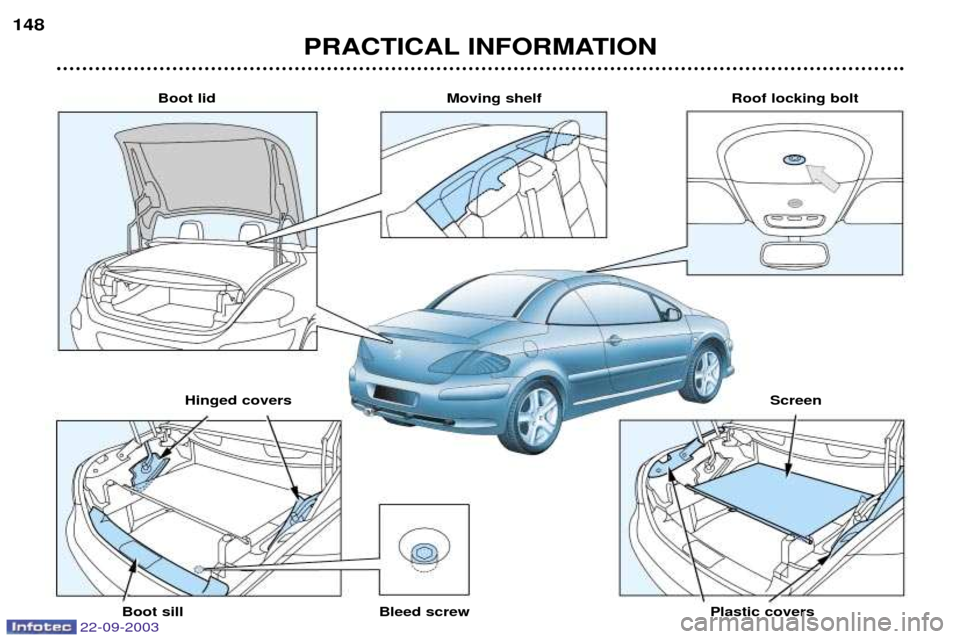

Moving shelf
Boot lid
Hinged covers Screen
Roof locking bolt
Bleed screw
Boot sill Plastic covers
22-09-2003

PRACTICAL INFORMATION149

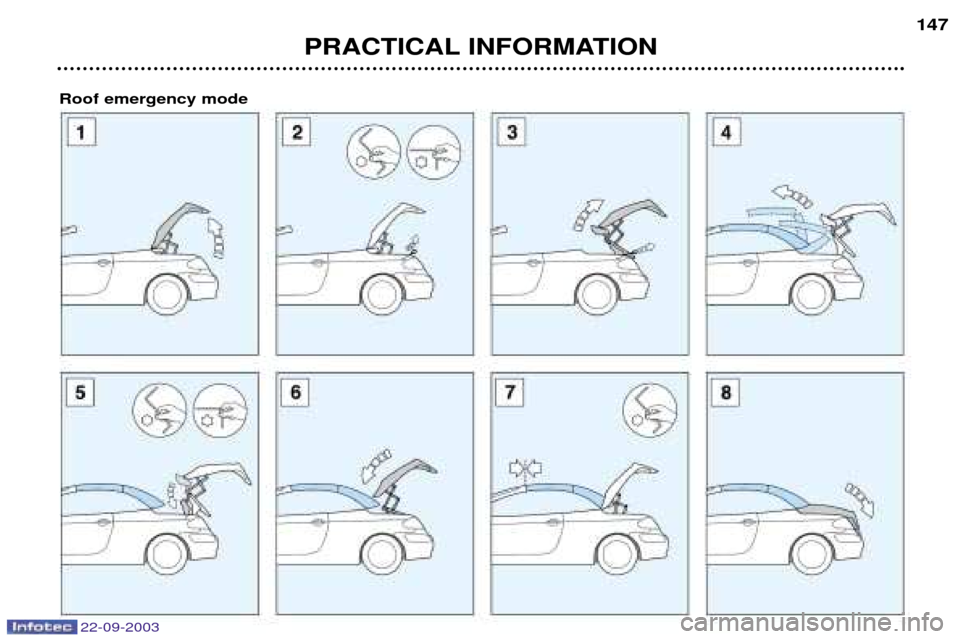

Manual closing of the roof (emergency mode) If the roof opening or closing cycle does not begin or does not function
correctly, check the following points:
ignition key in position acces- sories or running position (1st or2nd notch),
 the screen must be pulled out,
 the boot must be closed,
 the vehicle speed must be below
6 mph (10 km/h),
 the roof fuse must be in good con-dition (see corresponding section),
 the windows must be initialised(see corresponding section),
 the battery voltage must be suffi-cient (the roof control button indi-cator light must be lit),
 the vehicle must not be subject to"Economy mode active" restric-
tions (see corresponding section),
 the exterior temperature must not
be below Ð20 ¡C.
When carrying out the roof closing operation, take carenot to catch your hands inthe mechanisms.
In the event of an electrical or hydraulic roof malfunction, it is
possible to close the roof manually.
Contact a PEUGEOT dealer to have the system checked. This possibility is a breakdown
solution.Following manual closing of the roof, the boot lid hinges will no longer belocked and the boot will no longer besealed.
Two people are required to carry out this operation. Considerable
force is necessary.  Park the vehicle, if possible on level ground.
 Lower the windows.
 Switch off the ignition.
 Apply the handbrake.

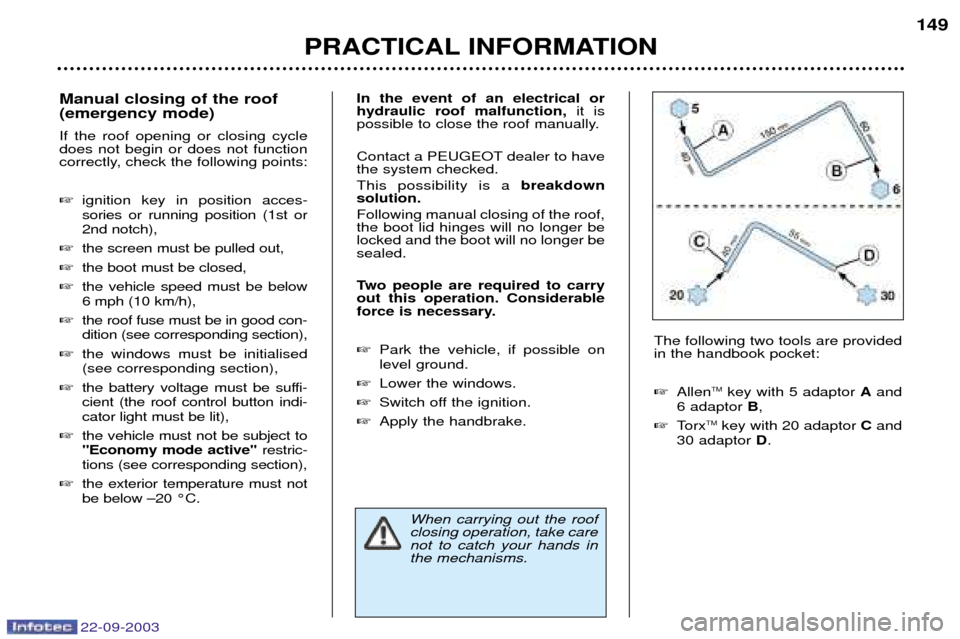

The following two tools are provided in the handbook pocket: Allen TM
key with 5 adaptor Aand
6 adaptor B,
 Torx TM
key with 20 adaptor Cand
30 adaptor D.
22-09-2003

22-09-2003
PRACTICAL INFORMATION
150

Open the boot lid.

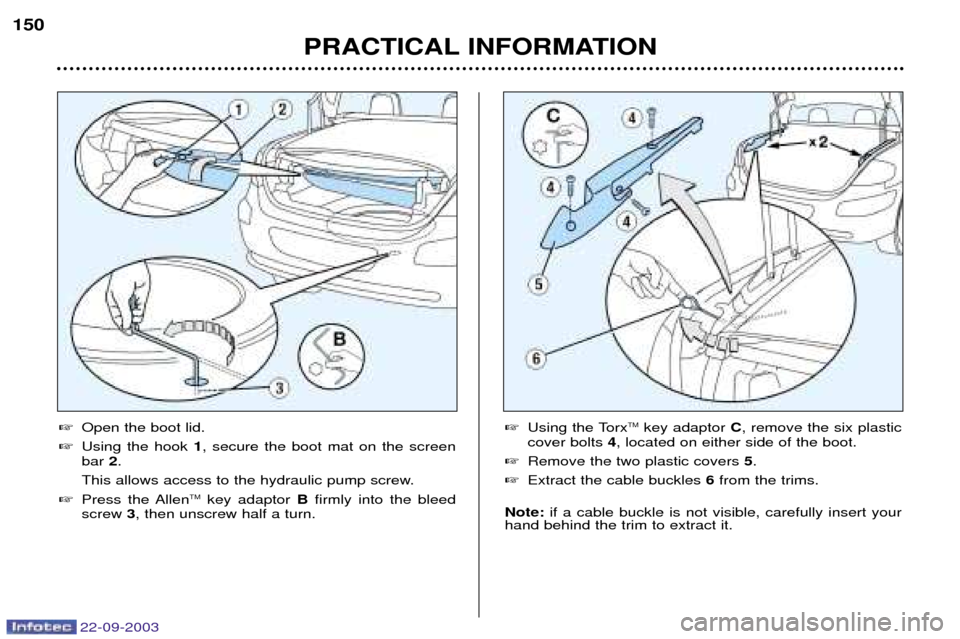

 Using the hook 1, secure the boot mat on the screen
bar 2.
This allows access to the hydraulic pump screw.
 Press the Allen TM
key adaptor Bfirmly into the bleed
screw 3, then unscrew half a turn. Using the Torx TM
key adaptor C, remove the six plastic
cover bolts 4, located on either side of the boot.
 Remove the two plastic covers 5.
 Extract the cable buckles 6from the trims.
Note: if a cable buckle is not visible, carefully insert your
hand behind the trim to extract it.

22-09-2003
PRACTICAL INFORMATION151

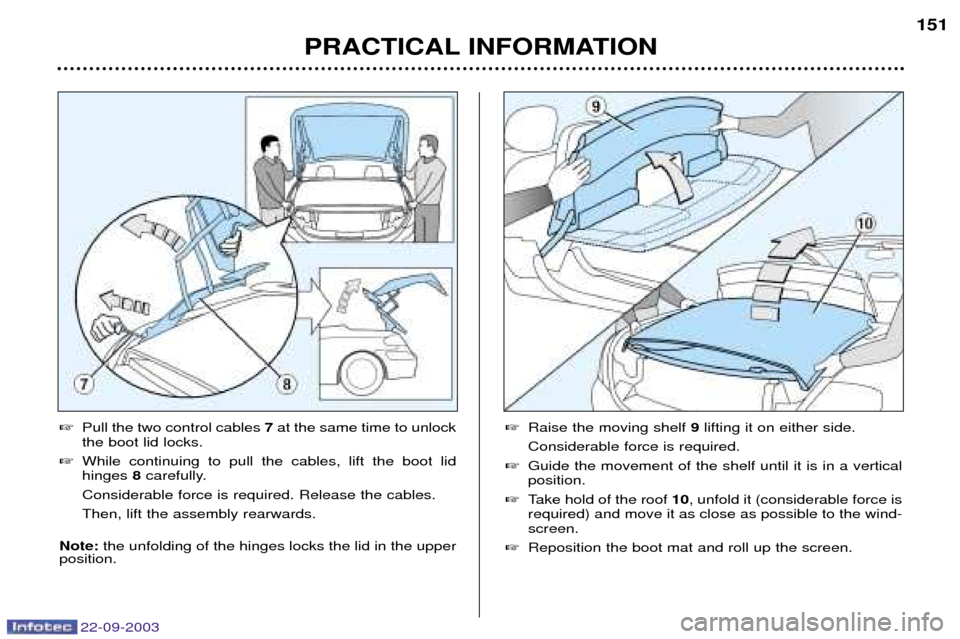

Pull the two control cables 7at the same time to unlock
the boot lid locks.
 While continuing to pull the cables, lift the boot lid hinges 8carefully.
Considerable force is required. Release the cables. Then, lift the assembly rearwards.
Note: the unfolding of the hinges locks the lid in the upper
position. Raise the moving shelf 9lifting it on either side.
Considerable force is required.
 Guide the movement of the shelf until it is in a vertical position.
 Take hold of the roof 10, unfold it (considerable force is
required) and move it as close as possible to the wind-screen.
 Reposition the boot mat and roll up the screen.

22-09-2003
PRACTICAL INFORMATION
152

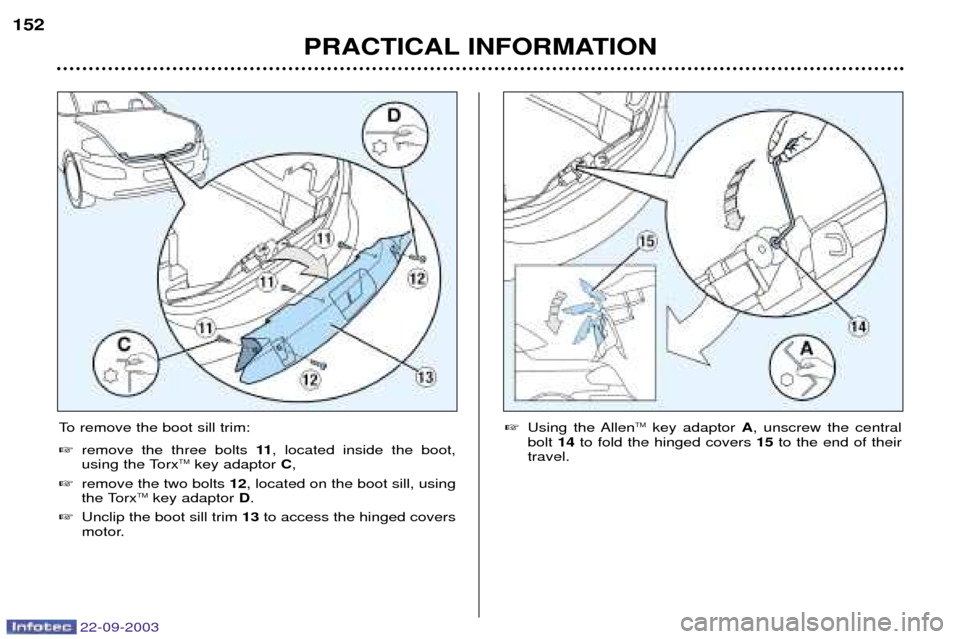

To remove the boot sill trim:
remove the three bolts 11, located inside the boot,
using the Torx TM
key adaptor C,
 remove the two bolts 12, located on the boot sill, using
the Torx TM
key adaptor D.
 Unclip the boot sill trim 13to access the hinged covers
motor. Using the Allen TM
key adaptor A, unscrew the central
bolt 14to fold the hinged covers 15to the end of their
travel.

22-09-2003
PRACTICAL INFORMATION153

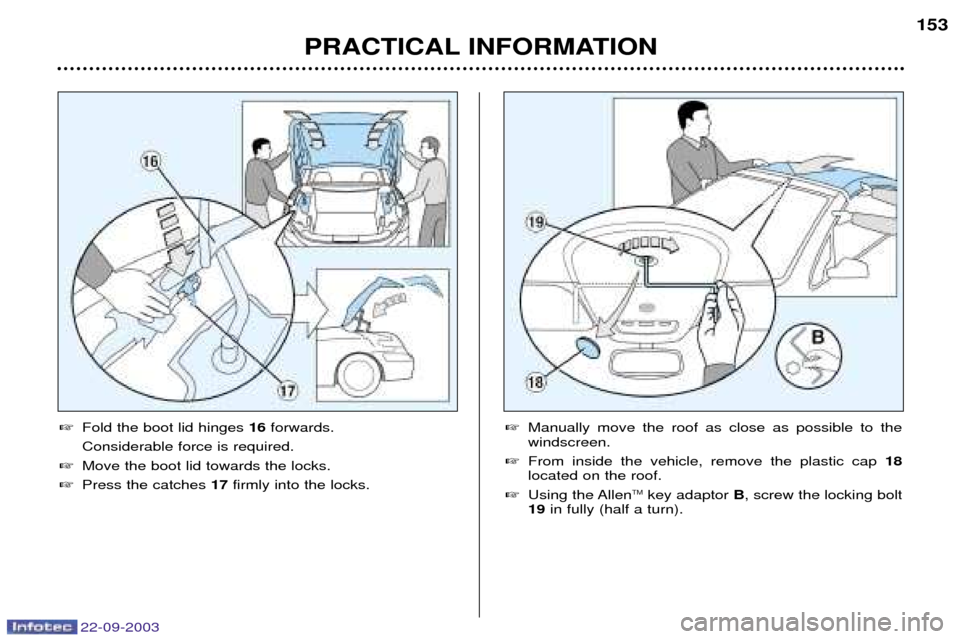

Fold the boot lid hinges 16forwards.
Considerable force is required.
 Move the boot lid towards the locks.
 Press the catches 17firmly into the locks. Manually move the roof as close as possible to the windscreen.

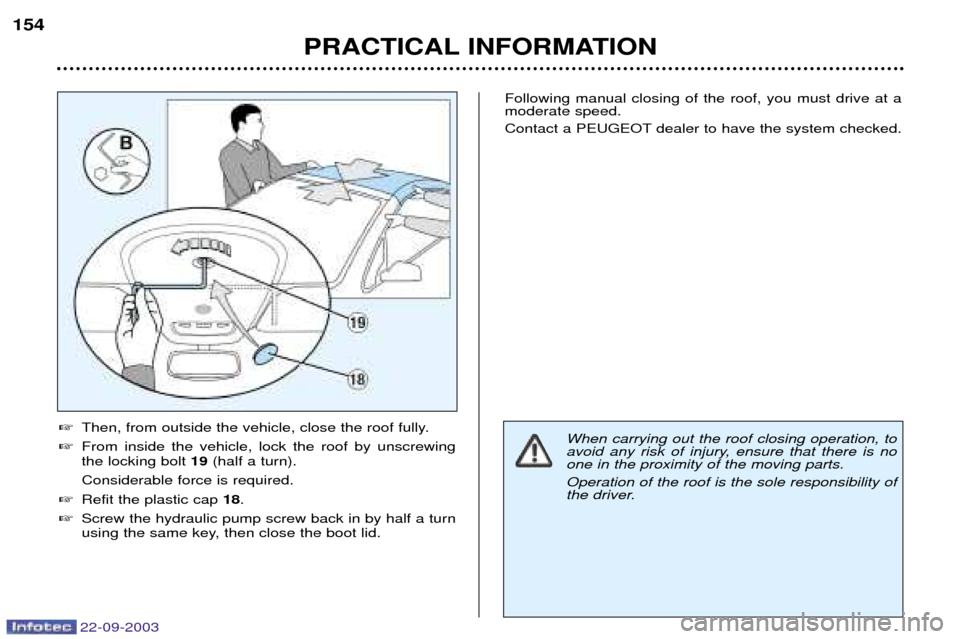

 From inside the vehicle, remove the plastic cap 18
located on the roof.
 Using the Allen TM
key adaptor B, screw the locking bolt
19 in fully (half a turn).

22-09-2003
PRACTICAL INFORMATION
154

Then, from outside the vehicle, close the roof fully.
 From inside the vehicle, lock the roof by unscrewing the locking bolt 19(half a turn).
Considerable force is required.
 Refit the plastic cap 18.
 Screw the hydraulic pump screw back in by half a turn
using the same key, then close the boot lid. Following manual closing of the roof, you must drive at a moderate speed.
Contact a PEUGEOT dealer to have the system checked.When carrying out the roof closing operation, to
avoid any risk of injury, ensure that there is noone in the proximity of the moving parts. Operation of the roof is the sole responsibility of
the driver.

22-09-2003
PRACTICAL INFORMATION155

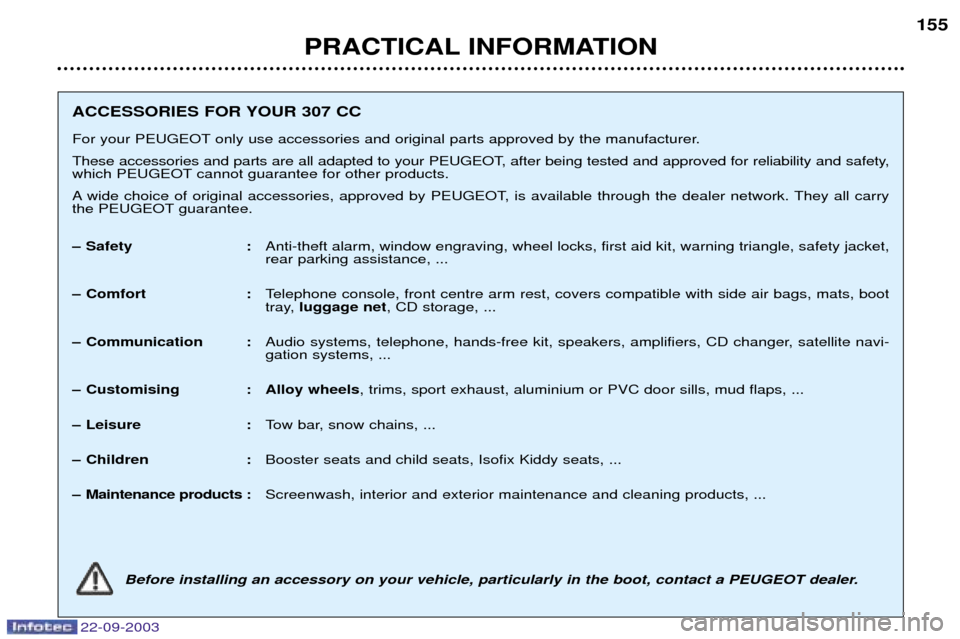

ACCESSORIES FOR YOUR 307 CC
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and safety,
which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry
the PEUGEOT guarantee.
Ð Safety :
Anti-theft alarm, window engraving, wheel locks, first aid kit, warning triangle, safety jacket, rear parking assistance, ...
Ð Comfort : Telephone console, front centre arm rest, covers compatible with side air bags, mats, boot
tray, luggage net , CD storage, ...
Ð Communication : Audio systems, telephone, hands-free kit, speakers, amplifiers, CD changer, satellite navi-gation systems, ...
Ð Customising : Alloy wheels , trims, sport exhaust, aluminium or PVC door sills, mud flaps, ...
Ð Leisure : Tow bar, snow chains, ...
Ð Children : Booster seats and child seats, Isofix Kiddy seats, ...
Ð Maintenance products : Screenwash, interior and exterior maintenance and cleaning products, ...
Before installing an accessory on your vehicle, particularly in the boot, contact a PEUGEOT dealer.

22-09-2003
TECHNICAL DATA
156
ENGINES AND GEARBOXES

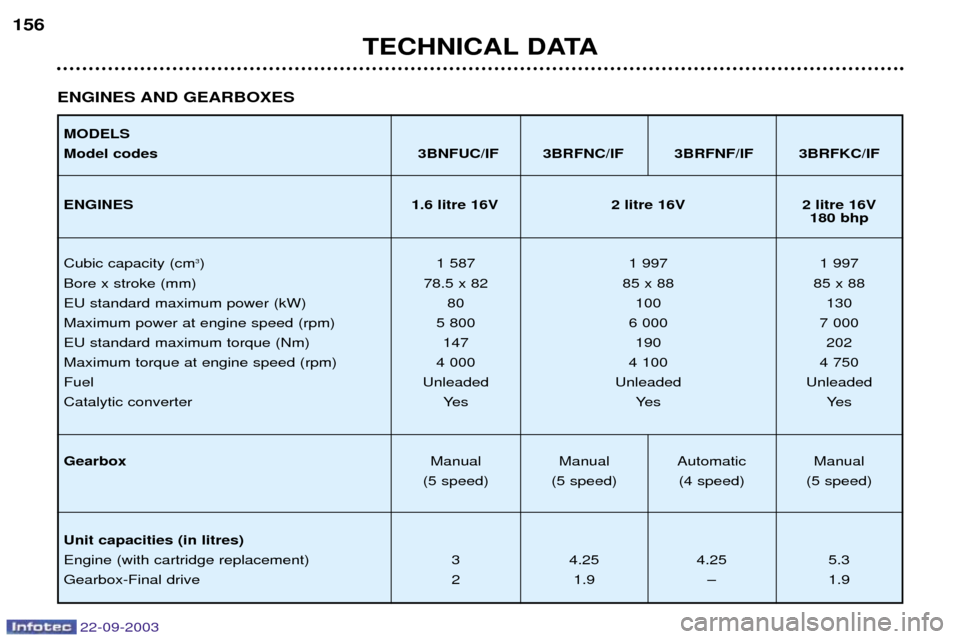

MODELS Model codes 3BNFUC/IF 3BRFNC/IF 3BRFNF/IF 3BRFKC/IF
