Peugeot 307 CC 2003 Owner's Manual

22-09-2003
YOUR 307 CC IN DETAIL121
TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP) These systems are linked and com-
plement the ABS.
The ASR system optimises drive to prevent the wheels skidding, by act-ing on the brakes of the drive wheelsand on the engine. It also allows thedirectional stability of the vehicle tobe improved on acceleration. If there is a variation between the tra- jectory followed by the vehicle and
that required by the driver, the ESPsystem automatically acts on theengine and the brake of one or morewheels, in order to put the vehicleback on course.Disarming the ASR/ESP systems In exceptional conditions (starting a vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may
be advisable to disarm the ASR and
ESP systems, so that the wheels canmove freely and regain grip.
Press the "ESP OFF" switch,
located on the central section of the fascia.
The switch lights up and thewarning light comes on: the
ASR and ESP systems aredisarmed.
These are triggered again:  automatically if the ignition is
switched off,
 automatically above 30 mph
(50 km/h),
 manually by pressing the switchagain.
Operation of the ASR and
ESP systems
The warning light flashes if
the ASR or ESP is activated.Operating check
When a malfunction of the systems occurs, the switchlight flashes and the warninglight comes on, accompa-nied by an audible signal
and the message "ESP/ASR not
functioning" on the multifunction
display.
Contact a PEUGEOT dealer to have the system checked.
The ESP/ASR systems offer exceptional safety innormal driving, but thisshould not encourage thedriver to take extra risks or
drive at high speed. The correct functioning of these systems depends on observationof the manufacturer's recommen-dations regarding the wheels (tyresand rims), the braking components,the electronic components, and thePEUGEOT assembly and opera-tion procedures. After an impact, have the system
checked by a PEUGEOT dealer.

22-09-2003
YOUR 307 CC IN DETAIL
122
CRUISE CONTROL Cruise control enables the vehicle to maintain a steady speed pro-
grammed by the driver, regardless ofthe road characteristics and withoutthe driver having to touch the accel-erator or brake pedals. In order for it to be memorised, the vehicle speed must be greater than25 mph (40 km/h) (manual gearbox)or 40 mph (60 km/h) (automaticgearbox) and fourth gear at leastmust be engaged (second gear forthe automatic gearbox). Operation
Place switch 1in the ONposition.
A speed can be memorised.  Place switch 1in the OFFposi-
tion to cancel.
Memorising a speed As soon as you reach the chosen speed, press button 2or 3. This
memorises the speed, which will be
maintained automatically. Note: It is possible to accelerate and
drive momentarily at a speed greater than the memorised speed. Whenthe accelerator pedal is released, thevehicle will return to the memorisedspeed. Cancelling the memorised speed If you wish to cancel the memorised speed:  press button 4or the brake or
clutch pedal. Recalling the memorised speed After cancellation, press button
4.
Your vehicle will return to the last memorised speed. Changing a memorised speed
To memorise a speed higher than the previous one:  press button 3;
 release it when you have reached the required speed.
To memorise a speed lower than theprevious one:  press button 2;
 release it when you have reached the required speed.
Cancelling the cruise control  Place switch 1in the OFFposi-
tion or switch off the ignition.
Do not use cruise control on slippery roads or inheavy traffic.

22-09-2003
YOUR 307 CC IN DETAIL123
REAR PARKING ASSISTANCE This system consists of four proximi- ty sensors, located in the rear
bumper, and a special speaker. This detects any obstacle (person, vehicle, tree, gate, etc.) behind thevehicle. Nevertheless, it cannotdetect obstacles located just below
the bumper. An object, such as a stake, a road- works cone or any other similarobject may be detected at the begin-ning of the manoeuvre, but may nolonger be detected when the vehiclecomes close to it. Note:
this function will be disarmed
automatically when the vehicle is towing a trailer or when a bicycle car-rier is fitted (vehicle fitted with towingattachment or bicycle carrier recom-mended by PEUGEOT).
In bad or wintry weather, ensure that the sensors are not covered with
mud, frost or snow. Activation The system is activated as soon as reverse gear is engaged; an audiblebleep shows that it is active. The proximity information is given by an audible signal, which becomesmore rapid as the vehicle approach-es the obstacle. When the distance between the rear of the vehicle and the obstacle isless than thirty centimetres, the audi-ble signal becomes continuous.Deactivation
In neutral, the system is again inactive.
Detection zone
If there is an operating fault, the audible signalwill be a short bleep fol-lowed by a long bleepwhen changing to reverse
gear.

22-09-2003
YOUR 307 CC IN DETAIL
124
AIR BAGS The air bags have been designed to maximise the safety of the occupantsin the event of serious collisions.They work in conjunction with the
force-limiting seat belts. The elec-tronic detectors register and analyseany abrupt deceleration of the vehi-cle: if the triggering threshold isreached, the air bags inflate instantlyand protect the occupants of thevehicle. Immediately after the impact, the air bags deflate rapidly so that they donot hinder the visibility of the occu-pants nor their exit if necessary fromthe vehicle. The air bags are not deployed in the case of collisions which are not seri-
ous, for which the seat belt is suffi-cient to ensure maximum protection.The seriousness of a collisiondepends on the nature of the obsta-cle and the speed of the vehicle atthe moment of the collision. Air bags only operate when the ignition is switched on. Note:
the gas escaping from the air
bags can be a minor irritant. FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,except in cases where the passen-ger air bag is disarmed. Front air bag fault
If this warning light comes on, accompanied by anaudible signal and the mes-sage "Air bag fault" on the
multifunction display, con-
tact a PEUGEOT dealer to have thesystem checked. Disarming the passenger air bag*
To ensure the safety of your child, it is essential to disarm the pas-senger air bag when you install arear-facing child seat on the frontpassenger seat. Otherwise, thechild would risk being killed orseriously injured if the air bagwere to inflate.
With the ignition switched off, insert the key into the passengerair bag disarming switch 1, turn it
to the "OFF"position, then
remove the key keeping the slotin this position.
The air bag warning light on theinstrument panel is lit throughout thedisarming process.
* According to destination.

22-09-2003
YOUR 307 CC IN DETAIL125
In the
"OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as the child seat is removed, turn the air bag slot to the"ON" position to re-activate the air
bag and thus ensure the safety ofyour passenger in the event of animpact. Disarming check This is confirmed by an indicator light, accompanied by an audible sig-nal and a message on the multifunc-
tion display.
With the ignition on (2ndnotch), illumination of thiswarning light accompaniedby an audible signal and the
message "Passenger air bag deac-
tivated" on the multifunction display,
indicates that the passenger air bagis disarmed (switch in the "OFF"
position). SIDE AIR BAGS The side air bags are incorporated in the backs of the front seats, on thedoor side. They are deployed independently of
each other, on whichever side thecollision occurs. Operating check This is confirmed by an indicator light, accompanied by an audible sig-nal and a message on the multi-func-
tion display.
If this indicator light comeson, accompanied by anaudible signal and the mes-sage "Air bag fault" on the
multifunction display, con-
tact a PEUGEOT dealer to have thesystem checked.

YOUR 307 CC IN DETAIL
126

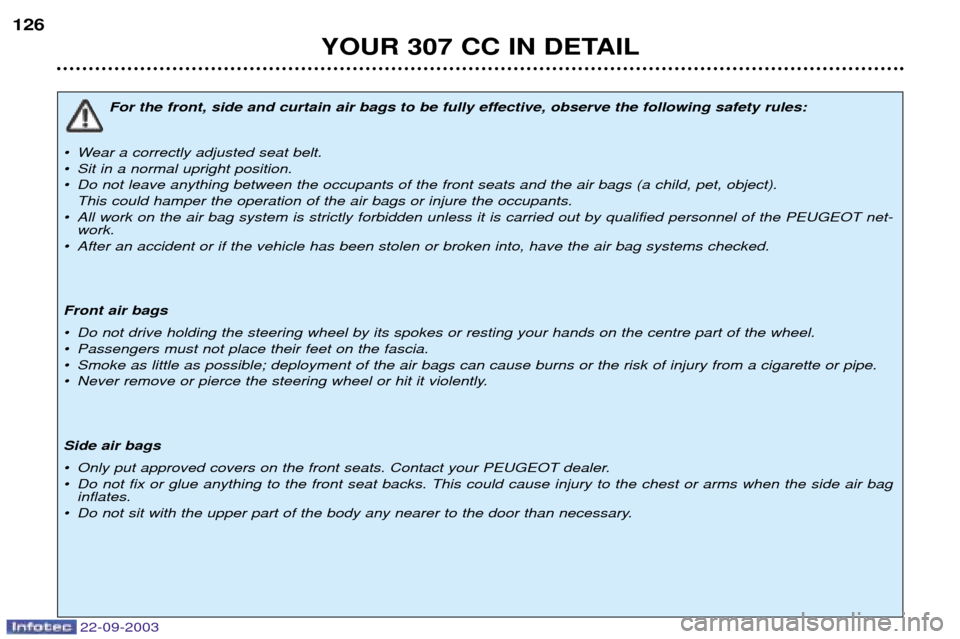

For the front, side and curtain air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT net- work.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked. Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently. Side air bags
¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
22-09-2003

22-09-2003
YOUR 307 CC IN DETAIL125
In the
"OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as the child seat is removed, turn the air bag slot to the"ON" position to re-activate the air
bag and thus ensure the safety ofyour passenger in the event of animpact. Disarming check This is confirmed by an indicator light, accompanied by an audible sig-nal and a message on the multifunc-
tion display.
With the ignition on (2ndnotch), illumination of thiswarning light accompaniedby an audible signal and the
message "Passenger air bag deac-
tivated" on the multifunction display,
indicates that the passenger air bagis disarmed (switch in the "OFF"
position). SIDE AIR BAGS The side air bags are incorporated in the backs of the front seats, on thedoor side. They are deployed independently of
each other, on whichever side thecollision occurs. Operating check This is confirmed by an indicator light, accompanied by an audible sig-nal and a message on the multi-func-
tion display.
If this indicator light comeson, accompanied by anaudible signal and the mes-sage "Air bag fault" on the
multifunction display, con-
tact a PEUGEOT dealer to have thesystem checked.

YOUR 307 CC IN DETAIL
126
For the front, side and curtain air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT net- work.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked. Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently. Side air bags
¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
22-09-2003

22-09-2003
PRACTICAL INFORMATION127

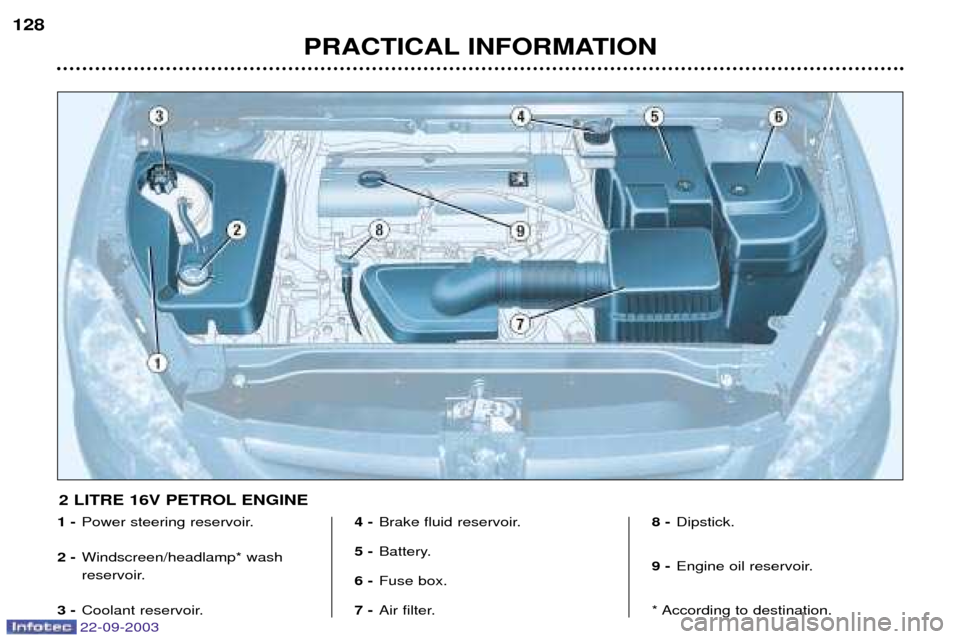

1 -
Power steering reservoir.
2 - Windscreen/headlamp* wash
reservoir.
3 - Coolant reservoir. 4 -
Brake fluid reservoir.
5 - Battery.
6 - Fuse box.
7 - Air filter. 8 -
Dipstick.
9 - Engine oil reservoir.
* According to destination.
1.6 LITRE 16V PETROL ENGINE

22-09-2003
PRACTICAL INFORMATION
128
1 -
Power steering reservoir.
2 - Windscreen/headlamp* wash
reservoir.
3 - Coolant reservoir. 4 -
Brake fluid reservoir.
5 - Battery.
6 - Fuse box.
7 - Air filter. 8 -
Dipstick.
9 - Engine oil reservoir.
* According to destination.
2 LITRE 16V PETROL ENGINE
