Peugeot 307 SW 2002 Owner's Manual

PRACTICAL INFORMATION123
ACCESSORIES FOR YOUR 307 SW
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and
safety, which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry
the PEUGEOT guarantee.
Ð Safety :
Anti-theft alarms, window engraving, wheel locks, first aid kit, warning triangle...
Ð Comfort : Telephone console, front centre arm rest, covers compatible with side air bags, mats, boot
tray, cool box, door deflectors, CD storage, side sun blinds and rear blind, additional seats...
Ð Communication : Audio system, telephone, hands-free kit, speakers, amplifiers, CD changer, navigation sys-tems,
Ð Customising : Alloy wheels, trims, sport exhaust, aluminium or PVC door sills, mud flaps...
Ð Leisure : Tow bar, transverse roof bars, roof box, snow chains, ski carrier, bicycle carrier, rear videoscreen...
Ð Children : Booster seats and child seats...
Ð
Maintenance products: Screenwash, interior and exterior cleaning and maintenance products...
Ð Commercial use : Kit for transformation into a van...
Before installing any electrical accessory on your vehicle, contact a PEUGEOT dealer.

TECHNICAL DATA
124
3HNFUB 3HNFUE 3HRFNC/IF 3HRFNE
Manual Automatic Manual Automatic
(5 speed) (4 speed) (5 speed) (4 speed) PETROL ENGINES
ENGINES
1,6 litre 16V 2 litre 16V
Cubic capacity (cm 3
) 1 587 1 997
Bore x stroke (mm) 78,5 x 82 85 x 88 EU standard maximum power (kW) 80100
Maximum power at engine speed (rpm) 5 8006 000
EU standard maximum torque (Nm)147 190
Maximum torque at engine speed (rpm)4 0004 100
Fuel Unleaded Unleaded
Catalytic converter Yes Yes
UNIT CAPACITIES (in litres)
Engine (with cartridge replacement) 3 3 4,25 4,25
Gearbox-Final drive 2 - 1,9 -
MODELS Model codes GEARBOX

TECHNICAL DATA125

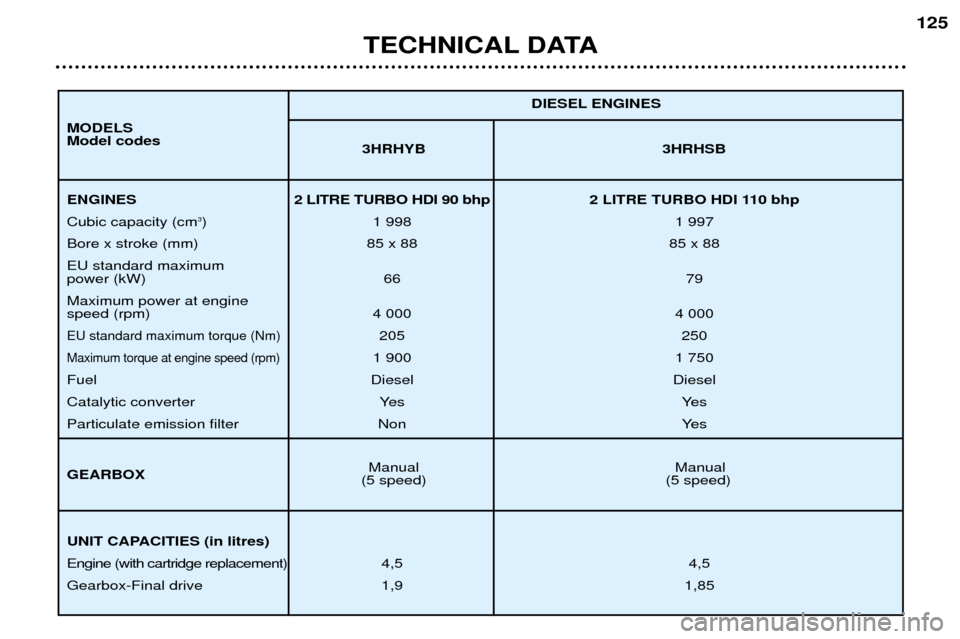

3HRHYB 3HRHSB
Manual Manual
(5 speed) (5 speed) DIESEL ENGINES
ENGINES 2
LITRE TURBO HDI 90 bhp 2 LITRE TURBO HDI 110 bhp
Cubic capacity (cm 3
) 1 998 1 997
Bore x stroke (mm) 85 x 88 85 x 88 EU standard maximum
power (kW) 66 79
Maximum power at engine
speed (rpm) 4 000 4 000
EU standard maximum torque (Nm)205250
Maximum torque at engine speed (rpm)1 9001 750
Fuel Diesel Diesel
Catalytic converter Yes Yes
Particulate emission filter Non Yes
UNIT CAPACITIES (in litres)
Engine (with cartridge replacement) 4,5 4,5
Gearbox-Final drive 1,9 1,85
MODELS Model codes GEARBOX

Consumption In accordance with directive 93/116 [In MPG (litres/100km)]
Engine Gearbox Model Circuit Circuit Circuit Emission of
codes Urban Inter-urban Mixed CO 2by
3C...3A... weight (g/km)
1,6 litre 16V Manual 3HNFUB 28.5 (9.9) 44.8 (6.3) 36.7 (7.7) 178
1,6 litre 16V Automatic 3HNFUE 24.9 (11.2) 44.1 (6.4) 34.0 (8.3) 194
2 litre 16V Manual 3HRFNC/IF 24.6 (11.5) 44.8 (6.3) 24.0 (8.3) 194
2 litre 16V Automatic 3HRFNE 21.6 (13.1) 43.5 (6.5) 32.1 (8.8) 206
2 litre Turbo HDI 90 hpManual3HRHYB 39.8 (7.1) 62.8 (4.5) 52.4 (5.4) 143
2 litre Turbo HDI 110 hpManual3HRHSB 39.3 (7.2) 64.2 (4.4) 52.4 (5.4) 143
TECHNICAL DATA
126
Fuel consumption values correct at time of printing.

PETROL
Engine 1,6 litre 16V 2 litre 16V
Gearbox Manual Automatic Manual Automatic
Model codes : 3HNFUB 3HNFUE 3HRFNC/IF 3HRFNE ¥ Kerb weight 1 399 1 435 1 430 1 466
¥ Gross vehicle weight (GVW) 1 923 1 959 1 941 1 977
¥ Gross train weight (GTW*) 3 023 3 059 3 441 3 477
¥ Unbraked trailer 695 715 715 730
¥ Braked trailer (within GTW) 1 100 1 100 1 500 1 500
TECHNICAL DATA 127
Weights and Towing loads (in kg)
* The speed of a towing vehicle is limited to 60 mph (100 km/h).
DIESEL
Engine 2 litre HDI 90 bhp 2 litre HDI 110 bhp
Gearbox Manual Manual
Model codes : 3HRHYB 3HRHSB
¥ Kerb weight 1 465 1 496
¥ Gross vehicle weight (GVW) 1 984 2 016
¥ Gross train weight (GTW*) 3 484 3 516¥ Unbraked trailer 730 745
¥ Braked trailer (within GTW) 1 500 1 500

TECHNICAL DATA
128
DIMENSIONS (in mm)

TECHNICAL DATA129
IDENTIFICATION FEATURES OF YOUR 307 SW
A. Manufacturer's plate.
B. Serial number on the bodywork.
C. Serial number on the fascia.
D. Tyres and paint colour reference. The label Don the pillar, near the hinges of the driver's door, gives:
Ð the wheel and tyre sizes,
Ð the brands of tyres approved by the manufacturer,
Ð the tyre pressures (the tyre pressure must be checked when the tyre is cold, at least once a month),
Ð the paint colour reference.
E. Engine settings* under the bonnet.
F. Fuel consumption figures* in the corner of the windscreen.
* According to country.
