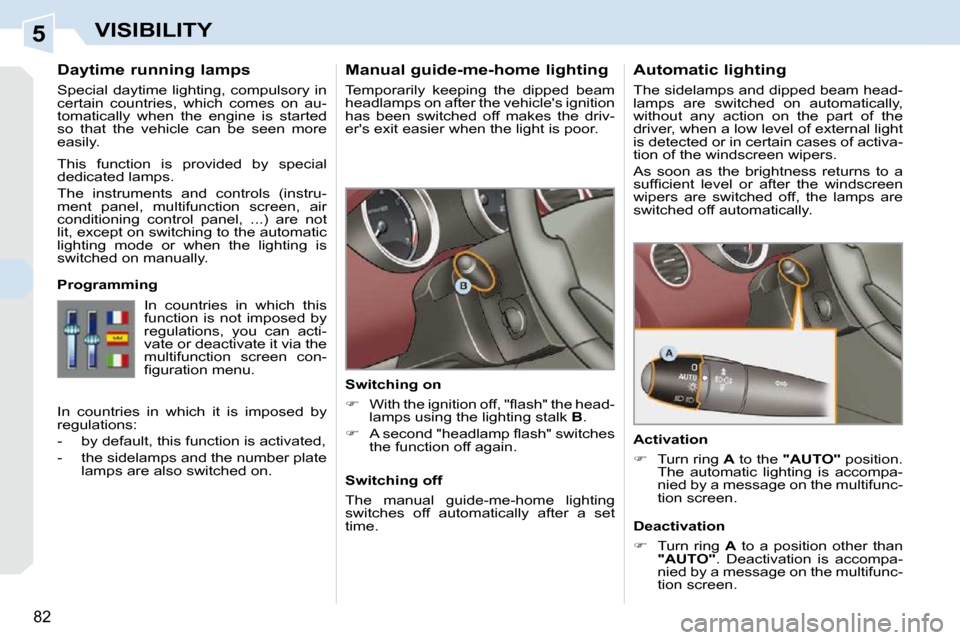

Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition
has been switched off makes the driv-
er's exit easier when the light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e h e a d -
lamps using the lighting stalk B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic lighting
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion screen.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompa-
nied by a message on the multifunc-
tion screen.
Daytime running lamps
Special daytime lighting, compulsory in
certain countries, which comes on au-
tomatically when the engine is started
so that the vehicle can be seen more
easily.
This function is provided by special
dedicated lamps.
The instruments and controls (instru-
ment panel, multifunction screen, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e n o t
lit, except on switching to the automatic
lighting mode or when the lighting is
switched on manually.
Programming
In countries in which this
function is not imposed by
regulations, you can acti-
vate or deactivate it via the
multifunction screen con-
fi g u r a t i o n m e n u .
In countries in which it is imposed by
regulations:
- by default, this function is activated,
- the sidelamps and the number plate lamps are also switched on.
Page 72 of 256
5
!
AUTO
ii
83
VISIBILITY
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the automatic "Guide-
me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:
- selection of the lighting duration of
15, 30 or 60 seconds in the vehi-
cle parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ,
- automatic activation of "guide-me- home" lighting when automatic light-
ing is in operation.
Operating fault In the event of a malfunction
of the brightness sensor, the
lighting comes on, this warning
lamp is displayed on the instru-
ment panel and/or a message appears
on the multifunction screen, accompa-
nied by an audible signal.
Consult a PEUGEOT dealer.
EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing and sidespotlamps makes your
approach to the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
Switching on
Press the open padlock on the re-
mote control.
The dipped beam headlamps and the sidelamps come on, as well as
the sidespotlamps, located in the
exterior mirrors; your vehicle is also
unlocked.
Programming The lighting duration is
selected via the multifunc-
t i o n s c r e e n c o n fi g u r a t i o n
menu.
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting.
MANUAL ADJUSTMENT OF THE HALOGEN HEADLAMPS
Initial setting is position "0".
To avoid dazzling other road users, the
height of the halogen bulb headlamps
must be adjusted according to the load
in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 people.
-. Intermediate setting.
2. 4 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
