engine Peugeot 406 Break 2003 User Guide

17-02-2003

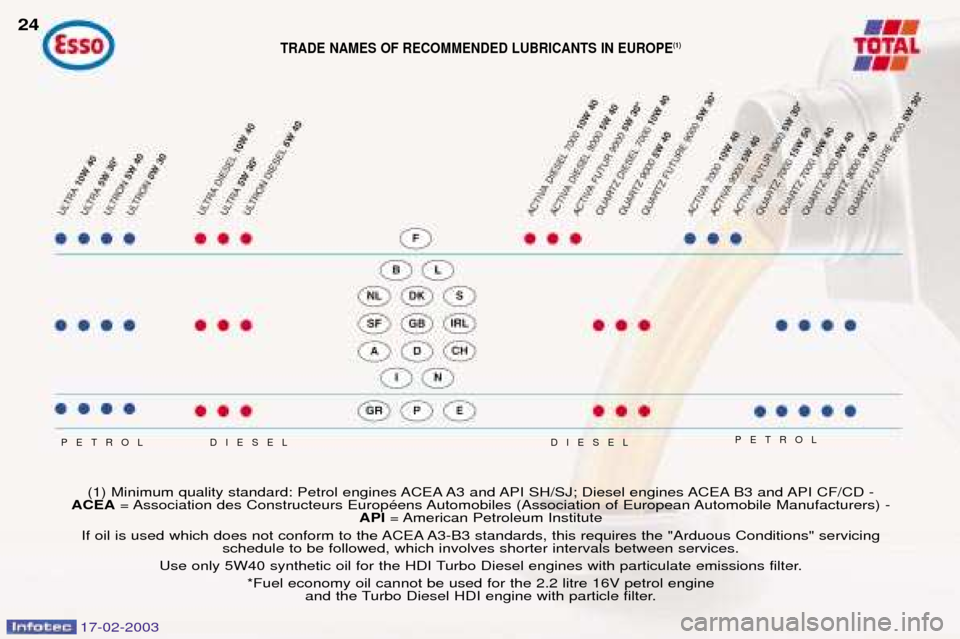

TRADE NAMES OF RECOMMENDED LUBRICANTS IN EUROPE(1)
PETROL
PETROL
24
(1) Minimum quality standard: Petrol engines ACEA A3 and API SH/SJ; Diesel engines ACEA B3 and API CF/CD -
ACEA = Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers) -
API= American Petroleum Institute
If oil is used which does not conform to the ACEA A3-B3 standards, this requires the "Arduous Conditions" servicing schedule to be followed, which involves shorter intervals between services.
Use only 5W40 synthetic oil for the HDI Turbo Diesel engines with particulate emissions filter. *Fuel economy oil cannot be used for the 2.2 litre 16V petrol engineand the Turbo Diesel HDI engine with particle filter.
DIESEL DIESEL

17-02-2003
25
MAINTENANCE OF YOUR 406
Recommendations for recommended lubricants The oils which appear in the table opposite are suitable for most pur-poses. The diagram opposite states the optimum range of viscosity depend-ing on the temperatures at which theoils are to be used. It is also possible to use synthetic oils of 'superior quality'. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ qual-ity (for petrol engines), or CD/CFquality (for diesel engines) may beused by following the 'Arduous Con-ditions' servicing schedule, whichspecifies shorter service intervals. Do not hesitate to ask for advice
from a PEUGEOT dealer to maintaindriving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
ONLY ONLY
Manual Gearbox ESSO GEAR OIL BV TOTAL TRANSMISSION BV 75W80 PR 9736.41 75W80
ONLY
Automatic Gearbox ATF 4HP20-AL4 PR 9736.22
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Power steering FLUIDE DA PR 9730.A1*
Brake circuit PEUGEOT DOT4Cooling circuit
PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000ONLYProtection to minus 35 degrees Celsius
* Only for extremely cold countries. Other recommended products

17-02-2003

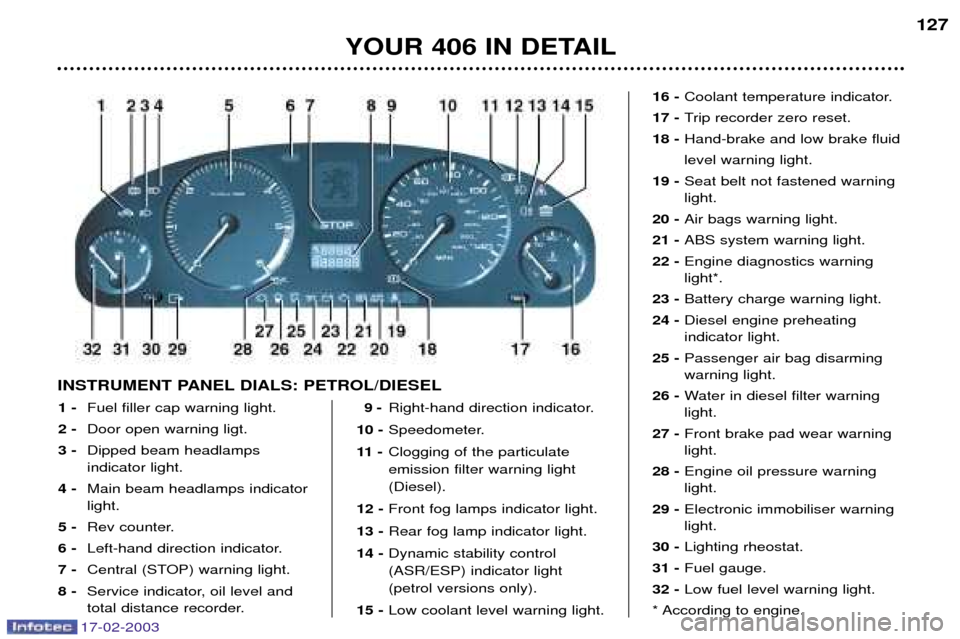

INSTRUMENT PANEL DIALS: PETROL/DIESEL1 - Fuel filler cap warning light.
2 - Door open warning ligt.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicatorlight.
5 - Rev counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Service indicator, oil level and
total distance recorder.
19-Right-hand direction indicator.
10 - Speedometer.
11 - Clogging of the particulate emission filter warning light(Diesel).
12 - Front fog lamps indicator light.
13 - Rear fog lamp indicator light.
14 - Dynamic stability control(ASR/ESP) indicator light(petrol versions only).
15 - Low coolant level warning light.
YOUR 406 IN DETAIL 127
16 -
Coolant temperature indicator.
17 - Trip recorder zero reset.
18 - Hand-brake and low brake fluid level warning light.
19 - Seat belt not fastened warning light.
20 - Air bags warning light.
21 - ABS system warning light.
22 - Engine diagnostics warninglight*.
23 - Battery charge warning light.
24 - Diesel engine preheating indicator light.
25 - Passenger air bag disarmingwarning light.
26 - Water in diesel filter warninglight.
27 - Front brake pad wear warninglight.
28 - Engine oil pressure warninglight.
29 - Electronic immobiliser warninglight.
30 - Lighting rheostat.
31 - Fuel gauge.
32 - Low fuel level warning light.
* According to engine.

17-02-2003

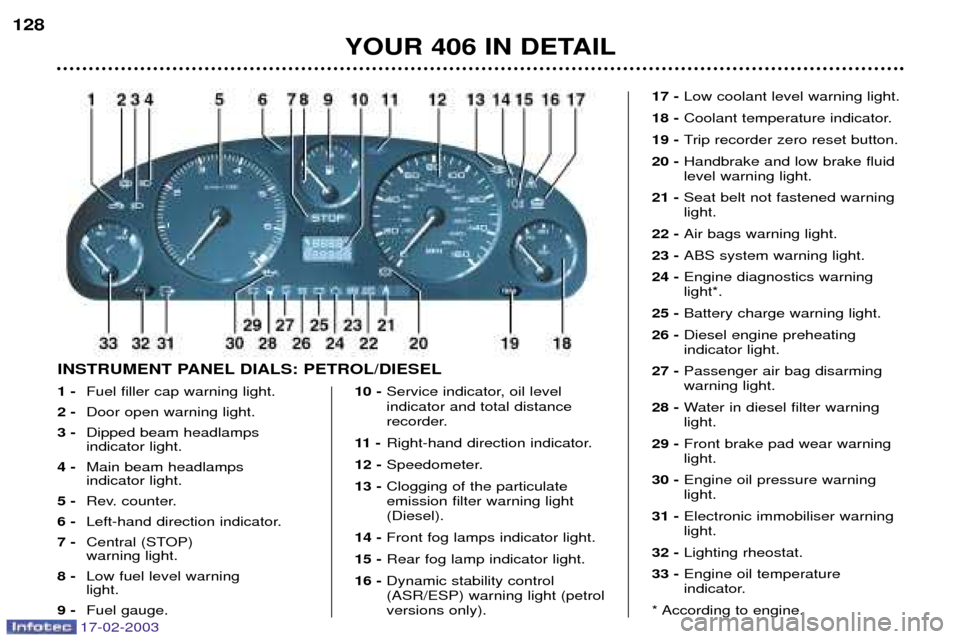

1 -Fuel filler cap warning light.
2 - Door open warning light.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicator light.
5 - Rev. counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Low fuel level warning light.
9 - Fuel gauge. 10 -
Service indicator, oil level indicator and total distance
recorder.
11 - Right-hand direction indicator.
12 - Speedometer.
13 - Clogging of the particulateemission filter warning light(Diesel).
14 - Front fog lamps indicator light.
15 - Rear fog lamp indicator light.
16 - Dynamic stability control(ASR/ESP) warning light (petrolversions only). 17 -
Low coolant level warning light.
18 - Coolant temperature indicator.
19 - Trip recorder zero reset button.
20 - Handbrake and low brake fluid level warning light.
21 - Seat belt not fastened warninglight.
22 - Air bags warning light.
23 - ABS system warning light.
24 - Engine diagnostics warninglight*.
25 - Battery charge warning light.
26 - Diesel engine preheating indicator light.
27 - Passenger air bag disarmingwarning light.
28 - Water in diesel filter warninglight.
29 - Front brake pad wear warninglight.
30 - Engine oil pressure warninglight.
31 - Electronic immobiliser warning light.
32 - Lighting rheostat.
33 - Engine oil temperature
indicator.
* According to engine.
YOUR 406 IN DETAIL
128
INSTRUMENT PANEL DIALS: PETROL/DIESEL

17-02-2003
YOUR 406 IN DETAIL129
1 -
Fuel filler cap warning light.
2 - Door open warning light.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicatorlight.
5 - Rev. counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Low fuel level warning light.
9 - Fuel gauge. 10 -
Service indicator, oil level
and total distance recorder.
11 - Right-hand direction indicator.
12 - Speedometer.
13 - Clogging of the particulateemission filter warning light(Diesel).
14 - Front fog lamp indicator light.
15 - Rear fog lamp indicator light.
16 - Dynamic stability control(ASR/ESP) indicator light(petrol versions only). 17 -
Low coolant level warning light.
18 - Coolant temperature indicator.
19 - Trip recorder zero reset.
20 - Handbrake and low brake fluid level warning light.
21 - Seat belt not fastened warning light.
22 - Air bags warning light.
23 - ABS system warning light.
24 - Engine diagnostics warninglight*.
25 - Battery charge warning light.
26 - Diesel engine pre-heating
indicator light.
27 - Passenger air bag disarmingwarning light.
28 - Water in diesel filter warning
light.
29 - Front brake pad wear warninglight.
30 - Engine oil pressure warninglight.
31 - Operating programmes.
32 - Gear lever position indicator.
33 - Electronic immobiliser warninglight.
34 - Lighting rheostat.
35 - Engine oil temperature.
* According to engine.
INSTRUMENT PANEL DIALS: AUTOMATIC GEARBOX

17-02-2003
WARNING LIGHTS AND INDICATORS
A permanently lit warning light, or flashing with the engine running, is an indication of a malfunction in the relevant unit. Some warning lights may
be linked to buzzers and a message on the multifunction display. Do notignore this warning: contact a PEUGEOT dealer as quickly as possible.
If the Central (STOP) warning light comes on when you are driving, stop your vehicle immediately where it is safe to do so.Central (STOP) warning light Linked to the "engine oil pressure", "the low brake fluid level", "the coolant temperature gauge" and "electronic brake force distributionsystem fault" warning lights.
It comes on each time the ignition is switched on. Stop immediately if it flashes with the engine running.
Contact a PEUGEOT dealer.
Engine oil pressure warning light
Linked to the central (STOP) warning light.Stop immediately if it comes on with the engine running.
It indicates either:
Ð insufficient oil pressure,
Ð lack of oil in the lubrication circuit. Top up the oil level.
Contact a PEUGEOT dealer as soon as possible. Low coolant level warning light
Stop immediately. Allow the engine to cool before top- ping up. The cooling system is pressurised.In the event of a breakdown and to prevent the risk of scalding, turn thecap to the first notch to allow thepressure to drop. Once the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Fuel filler cap warning light This comes on if the fuel cap is not correctly screwed
on or is missing.
YOUR 406 IN DETAIL
130

17-02-2003
Handbrake, low brake fluid level and electronic brake force distribution warning light This comes on each time the ignition is switched on.
It indicates either:
Ð that the handbrake is on or has not been released correctly,
and when coupled with the central (STOP) warning light:
Ð an excessive drop in the brake fluid level (if the light remains on even with the handbrake released),
Ð lit at the same time as the ABS warning light, it indicates a malfunction of the electronic brake force distribution system.
Stop immediately.
Contact a PEUGEOT dealer.
Anti-lock braking system (ABS) warning light This comes on for 3 seconds each time the ignition is switched on.If it comes on at over 8 m.p.h. (12 km/h), it indicates a malfunction of the ABS.
However, the vehicle retains conventional servo-assisted braking.
Contact a PEUGEOT dealer.
Clogging of the particulate emissionfilter warning light(diesel engine)
Display of this warning light is accompanied by an audible signal. The flashing of this light while the engine is running is caused either bythe particulate emission filter beingoverloaded or by the engine runningtoo long at idle (white smoke from
the exhaust). There is a risk of the fil-ter clogging if the same conditions ofoperation are maintained. As soon as possible, drive for at least three minutes at a speedexceeding 37 m.p.h. (60 km/h), if dri-ving conditions allow this. If the light comes on, contact a
PEUGEOT dealer as soon aspossible. Front brake pad wear warning light
For your safety, have the pads replaced as soon as this light comes on.
YOUR 406 IN DETAIL
131
ESP Electronic Stability Programmeoperation indicatorlight
This flashes when the system is operating. It is lit continuously if disarmed or if there is a fault.

17-02-2003
Passenger air bag disarming warninglight Illumination of this warning
light is accompanied by an audible signal and a message on the multi-
function display. If the passenger air bag is disarmed, the indicator light comes on whenthe ignition is switched on andremains on. In all cases, if the warning light flashes,
contact a PEUGEOT dealer.
Air bag warning light The warning light comes on for 6 seconds when the igni-tion is switched on.
Illumination of this warning light, withthe engine running, is accompaniedby an audible signal and a messageon the multifunction display indicatingthe cause of the front or side air bagfault.
Contact a PEUGEOT dealer.
* According to engine.
Water in diesel filter warning light (according to destination)
Contact a PEUGEOT dealer as soon as possible.
There is a risk of damage to the injection system. Diesel pre-heating indicator lightIf the engine is warm enough, the light will not come on and you can start the engine without waiting.
If the light comes on, wait until it goes out before trying the starter. Engine diagnostics warning light* This comes on each time the ignition is switched on. If it is lit continuously with the engine runnning, this indicates a fault in
the emission control system.If it flashes with the engine running, this indicates a malfunction in the injection
or ignition system. There is a risk of damage to the catalytic converter (petrolengine only).
Contact a PEUGEOT dealer as soon as possible. Battery charge warning lightThis comes on each time the ignition is switched on.If it comes on with the engine running it can indicate:
Ð faulty operation of the charging circuit,
Ð loose battery or starter terminals,
Ð a cut or slack alternator belt,
Ð an alternator fault.
Contact a PEUGEOT dealer.
YOUR 406 IN DETAIL
132

17-02-2003
Door open warning light
When the engine is running, the warning light indicatesthat a door has not been
closed properly or that theboot is open.
Electronic immobiliserwarning light This indicates a malfunction
of the electronic immobiliser.
Contact a PEUGEOT dealer.
Low fuel level warning light When this warning light comes on, you have
enough fuel to drive at least 30 miles

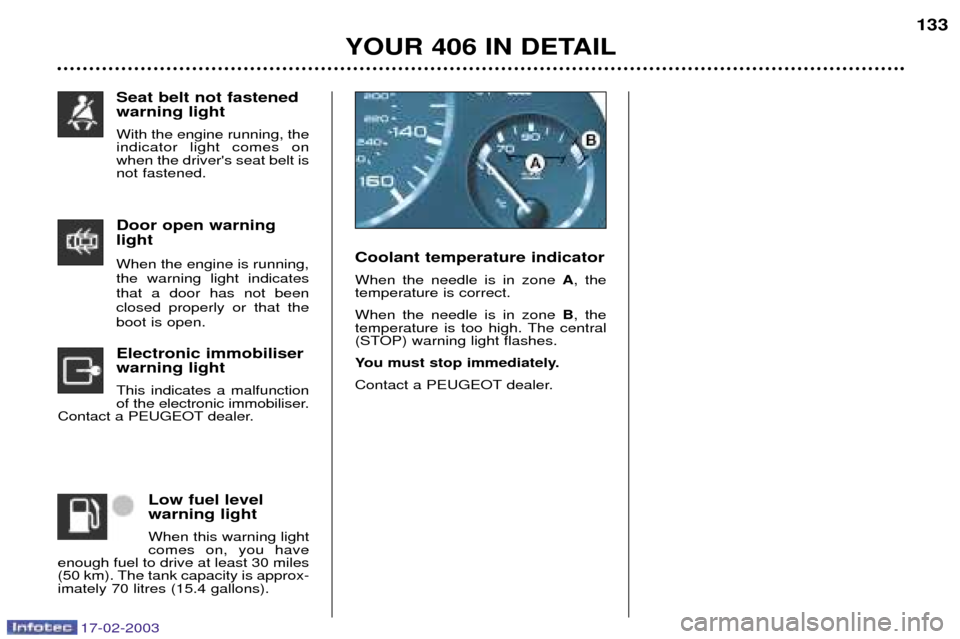

(50 km). The tank capacity is approx-imately 70 litres (15.4 gallons). Coolant temperature indicator When the needle is in zone
A, the
temperature is correct.When the needle is in zone B, the
temperature is too high. The central
(STOP) warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
Seat belt not fastened warning light With the engine running, the indicator light comes onwhen the driver's seat belt isnot fastened. YOUR 406 IN DETAIL
133

17-02-2003
Door open warning light
When the engine is running, the warning light indicatesthat a door has not been
closed properly or that theboot is open.
Electronic immobiliserwarning light This indicates a malfunction
of the electronic immobiliser.
Contact a PEUGEOT dealer.
Low fuel level warning light When this warning light comes on, you have
enough fuel to drive at least 30 miles
(50 km). The tank capacity is approx-imately 70 litres (15.4 gallons). Coolant temperature indicator When the needle is in zone
A, the
temperature is correct.When the needle is in zone B, the
temperature is too high. The central
(STOP) warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
Seat belt not fastened warning light With the engine running, the indicator light comes onwhen the driver's seat belt isnot fastened. YOUR 406 IN DETAIL
