engine Peugeot 406 Break 2003 Owner's Guide

17-02-2003
AUTOMATIC SWITCHING ON OF THE LIGHTS Side lights and dipped beam head- lamps switch on automatically if the
light is poor, or during continuousoperation of the windscreen wipers.
They switch off as soon as the lightbecomes bright enough or the wind-screen wipers stop. This function is active when the vehicle
is supplied to the customer.
To disarm or activate the function: Place the key in the accessories position (1st notch),
 Press the end of the lights stalkfor more than two seconds.
Note: In foggy weather, the bright-
ness sensor can detect sufficientlight. Because of this, the lights do
not come on automatically. Do not cover the brightness sen-
sor connected to the rain sensor,located in the windscreen behind
the mirror. It is used for automaticswitching on of the lights. Operating check Activation Activation of this function is accom- panied by an audible signal and themessage
"Automatic lighting of
the headlamps activated" on the
multifunction display. Note: Always operate the lighting
controls manually where this is pos- sible. Disarming Disarming of the function is accom- panied by an audible signal and themessage "Automatic lighting of
the headlamps deactivated" on the
multifunction display. When driving, if this function is
switched off when the headlampswould switch on in automatic mode,the lights remain on. It is however possible to disarm this
function and switch off the lights by:
Ð manually switching off the lights using the lights stalk,
Ð switching off the engine.
YOUR 406 IN DETAIL 125
If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come on).The driver is alerted by the flashing ofthe ''dipped beam'' warning light on theinstrument panel.
Contact a PEUGEOT dealer to have the system checked. Follow me Home When there is a low level of bright- ness or at night, if you leave yourvehicle, the side lights and thedipped beam lights may remain onfor approximately one minute.
To do this: place the lights stalk in the AUTO
position,
 place the key in the accessories position (first notch),
 press the end of the lights stalk for
more than two seconds,
 place the lights stalk in the 0posi-
tion,
 flash the headlamps,
 get out of the car and lock it.

DRIVING Y0UR 406
148

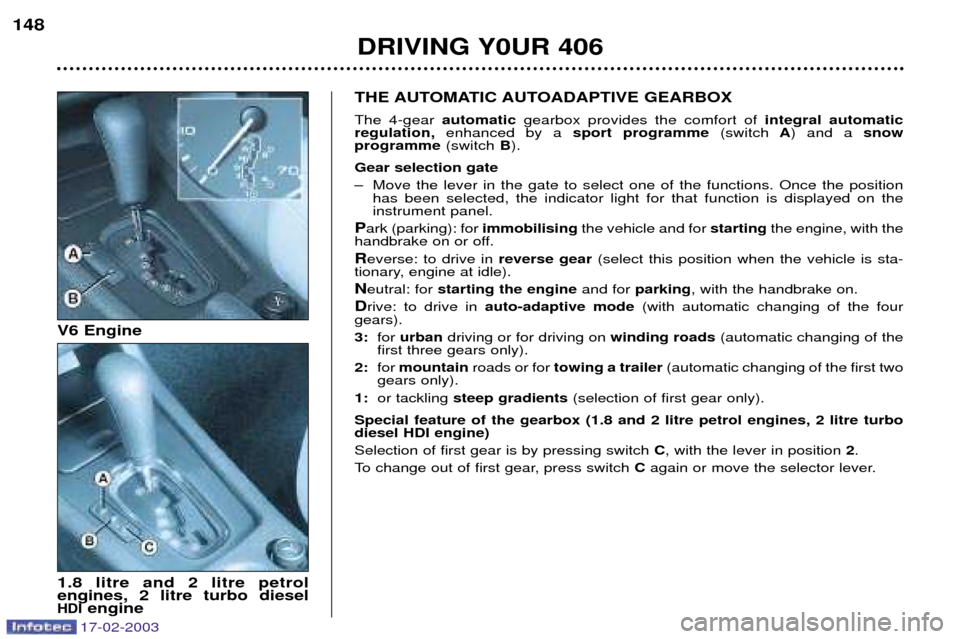

THE AUTOMATIC AUTOADAPTIVE GEARBOX The 4-gear
automaticgearbox provides the comfort of integral automatic
regulation, enhanced by a sport programme (switchA) and a snow
programme (switchB).
Gear selection gate
Ð Move the lever in the gate to select one of the functions. Once the position has been selected, the indicator light for that function is displayed on the instrument panel.
P ark (parking): for immobilisingthe vehicle and for startingthe engine, with the
handbrake on or off. R everse: to drive in reverse gear(select this position when the vehicle is sta-
tionary, engine at idle).N eutral: for starting the engine and forparking , with the handbrake on.
D rive: to drive in auto-adaptive mode (with automatic changing of the four
gears).3: for urban driving or for driving on winding roads(automatic changing of the
first three gears only).
2: for mountain roads or for towing a trailer (automatic changing of the first two
gears only).
1: or tackling steep gradients (selection of first gear only).
Special feature of the gearbox (1.8 and 2 litre petrol engines, 2 litre turbo diesel HDI engine) Selection of first gear is by pressing switch C, with the lever in position 2.
To change out of first gear, press switch Cagain or move the selector lever.
V6 Engine 1.8 litre and 2 litre petrol engines, 2 litre turbo diesel
HDIengine
17-02-2003

17-02-2003
Automatic operation Automatic changing of thefour
gears :
 Select function Din the gate.
The gearbox always selects the most suitable gear on the basis of the fol-lowing parameters:
Ð driving style,
Ð road characteristics,
Ð the vehicle's load.The gearbox operates in auto-
adaptive mode without any action
on your part.
Moving off
With the engine running, to move off with the selector lever in position
P:
 It is essential to press the brakepedal to exit position P (shift
lock),
 Select the required function ( R, D,
3 , 2 or 1) then gradually release
the pressure on the brake pedal;the vehicle will move offimme-
diately.
You can also move off with the se-lector lever in position N:
 Release the handbrake with yourfoot on the brake,
 Select the required function ( R,D ,
3 , 2 or 1) then gradually release
the pressure on the brake pedal;the vehicle will move offimme-
diately.
DRIVING Y0UR 406 149

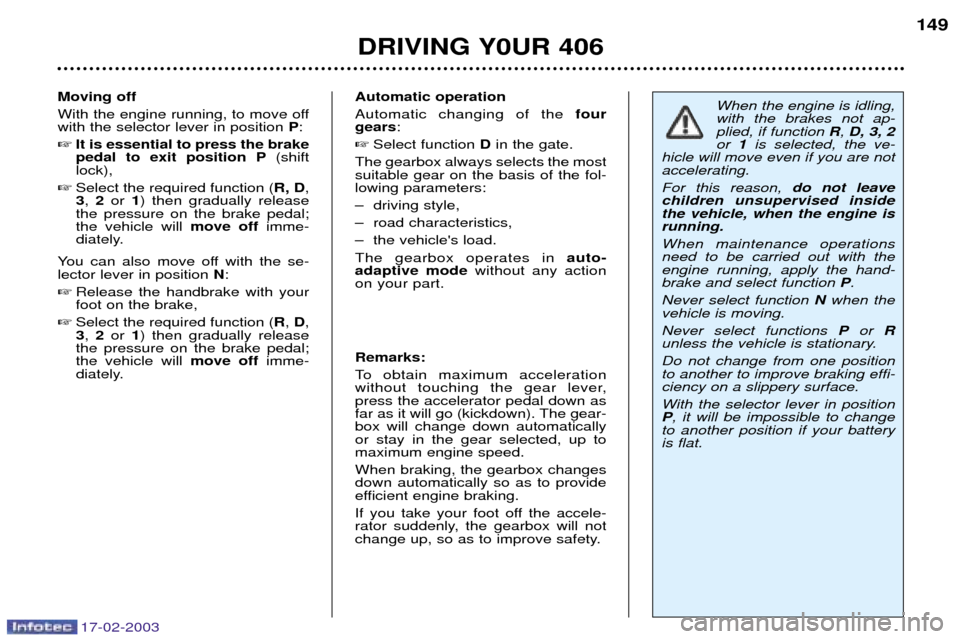

When the engine is idling, with the brakes not ap-plied, if function R,D, 3, 2
or 1is selected, the ve-
hicle will move even if you are notaccelerating. For this reason, do not leave
children unsupervised inside the vehicle, when the engine isrunning. When maintenance operations need to be carried out with theengine running, apply the hand-brake and select function P.
Never select function Nwhen the
vehicle is moving. Never select functions Por R
unless the vehicle is stationary.Do not change from one position to another to improve braking effi-ciency on a slippery surface.
With the selector lever in position P , it will be impossible to change
to another position if your batteryis flat.
Remarks:
To obtain maximum acceleration
without touching the gear lever,press the accelerator pedal down as
far as it will go (kickdown). The gear-box will change down automaticallyor stay in the gear selected, up tomaximum engine speed. When braking, the gearbox changes down automatically so as to provide
efficient engine braking.
If you take your foot off the accele-
rator suddenly, the gearbox will not
change up, so as to improve safety.

17-02-2003
DRIVING Y0UR 406
150
Sport and Snow programmes In addition to the auto-adaptive pro- gramme, you have a choice of two
specific programmes. The pro-gramme selected is displayed on theinstrument panel. Sport Programme Press button S, once the vehicle
has started and function D has
been selected.
The gearbox automatically favours dynamic driving. Snow programme This programme favours starting operations and drive to improvetraction.  Press button , once the vehicle
has started and function Dhas
been selected.
The gearbox adapts to driving on slippery roads. Note:
You can return to the auto-adaptive programme at any time.  Press button Sor again to can-
cel the programme selected. Difficulties in operationAny disruption of the system is sig- nalled by the alternate flashing of theSport and Snow lights on the instru-ment panel. In this case, the gearbox will operate in downgrade mode (locked in 3rd
gear). You may feel a substantialknock when reverse is selected fromP
to Ror from Nto R (without any
risk of damage to the gearbox). Do not exceed 60 m.p.h. (100 km/h), speed restrictions permitting.
Contact a PEUGEOT dealer without
delay.

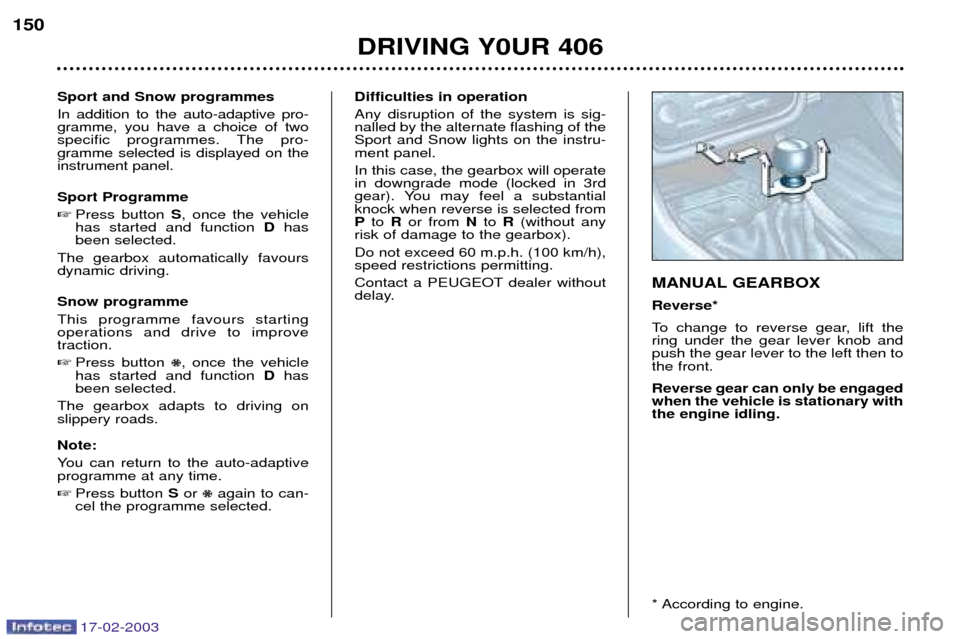

MANUAL GEARBOX Reverse*
To change to reverse gear, lift the ring under the gear lever knob andpush the gear lever to the left then tothe front. Reverse gear can only be engaged when the vehicle is stationary withthe engine idling.
* According to engine.

17-02-2003
DRIVING Y0UR 406
150
Sport and Snow programmes In addition to the auto-adaptive pro- gramme, you have a choice of two
specific programmes. The pro-gramme selected is displayed on theinstrument panel. Sport Programme Press button S, once the vehicle
has started and function D has
been selected.
The gearbox automatically favours dynamic driving. Snow programme This programme favours starting operations and drive to improvetraction.  Press button , once the vehicle
has started and function Dhas
been selected.
The gearbox adapts to driving on slippery roads. Note:
You can return to the auto-adaptive programme at any time.  Press button Sor again to can-
cel the programme selected. Difficulties in operationAny disruption of the system is sig- nalled by the alternate flashing of theSport and Snow lights on the instru-ment panel. In this case, the gearbox will operate in downgrade mode (locked in 3rd
gear). You may feel a substantialknock when reverse is selected fromP
to Ror from Nto R (without any
risk of damage to the gearbox). Do not exceed 60 m.p.h. (100 km/h), speed restrictions permitting.
Contact a PEUGEOT dealer without
delay.
MANUAL GEARBOX Reverse*
To change to reverse gear, lift the ring under the gear lever knob andpush the gear lever to the left then tothe front. Reverse gear can only be engaged when the vehicle is stationary withthe engine idling.
* According to engine.

17-02-2003
The ESP system offers increased safety duringnormal driving, but shouldnot incite the driver to take
risks or to drive at high speed. The operation of the system is assured to the extent to which therecommendations of the manufac-turer regarding the wheels (tyresand wheel rims), the braking com-ponents, the electronic compo-nents and the assembly and repairprocedures within the PEUGEOTnetwork are respected. After an accident or impact, have the system checked by a
PEUGEOT dealer.
DRIVING Y0UR 406
152
TRACTION CONTROL (ASR) AND
DYNAMIC STABILITY CONTROL
CONTROL (ESP) These systems are linked and com-
plement the ABS.
The ASR system optimises drive to prevent the wheels skidding, byacting on the brakes of the drivewheels and on the engine. It alsoallows the directional stability ofthe vehicle to be improved onacceleration. If there is a variation between the tra- jectory followed by the vehicle and
that required by the driver, the ESPsystem automatically acts on theengine and the brake of one or morewheels, in order to put the vehicleback on course.
Operation of the ASR and ESP systems
When one of these two sys-tems is operating, this lightflashes. Handbrake Applying When parking, pull the handbrake toimmobilise your vehicle.
Warning:
when parking on a slope,
direct your wheels towards the pave- ment and apply the handbrake. Releasing Pull the handle and press the buttonto release the handbrake.
Disarming the ESP/ASR systems In certain conditions (vehicle stuck in
mud or snow, or on loose ground...),it could prove useful to disarm theASR system to make the wheelsspin and regain grip.
Press the switch "ESP OFF", si-
tuated to the left of the steering wheel.
The switch lights up and the indicatorlights come on, accompanied by themessage '' ASR/ESP de-activated''
on the multi-function display: the
ESP and ASR systems no longer
affect the operation of the engine orthe brakes. They engage again: automatically when the ignition is
switched off,
 manually by pressing the switchagain.
Operating check When a system malfunctionoccurs, the switch lightflashes and the indicatorlight comes on.
Contact a PEUGEOT dealer tocheck the system.

17-02-2003

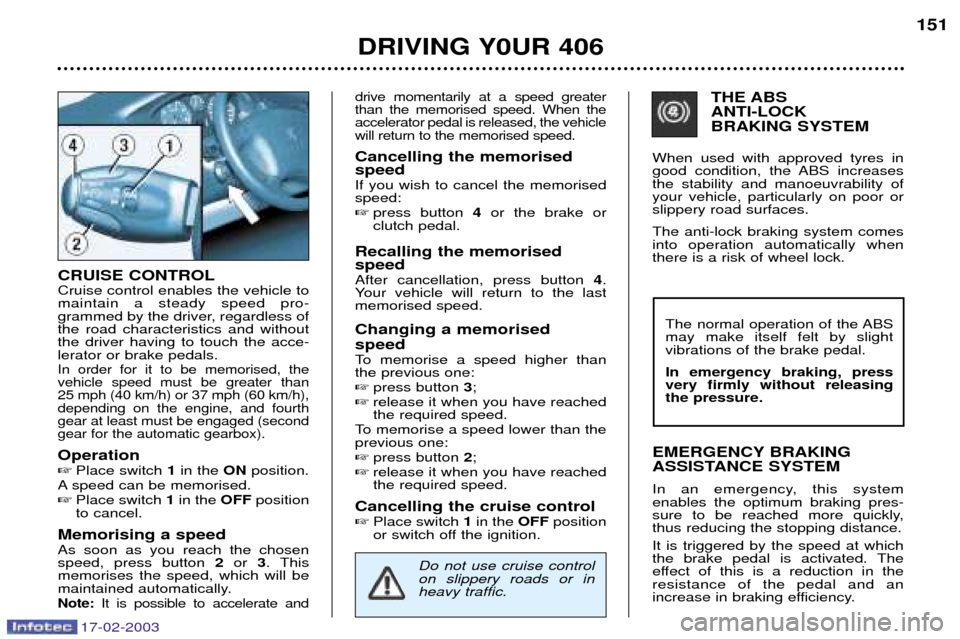

CRUISE CONTROL Cruise control enables the vehicle to maintain a steady speed pro-
grammed by the driver, regardless ofthe road characteristics and withoutthe driver having to touch the acce-lerator or brake pedals.
In order for it to be memorised, thevehicle speed must be greater than
25 mph (40 km/h) or 37 mph (60 km/h),depending on the engine, and fourthgear at least must be engaged (secondgear for the automatic gearbox).
Operation Place switch 1in the ONposition.
A speed can be memorised. Place switch 1in the OFFposition
to cancel.
Memorising a speedAs soon as you reach the chosen speed, press button 2or 3. This
memorises the speed, which will be
maintained automatically.
Note: It is possible to accelerate and drive momentarily at a speed greaterthan the memorised speed. When theaccelerator pedal is released, the vehiclewill return to the memorised speed.
Cancelling the memorisedspeed If you wish to cancel the memorised speed:
press button 4or the brake or
clutch pedal.
Recalling the memorised speed After cancellation, press button 4.
Your vehicle will return to the last memorised speed. Changing a memorised speed
To memorise a speed higher than the previous one:  press button 3;
 release it when you have reached the required speed.
To memorise a speed lower than theprevious one:  press button 2;
 release it when you have reached the required speed.
Cancelling the cruise control  Place switch 1in the OFFposition
or switch off the ignition.
DRIVING Y0UR 406 151
Do not use cruise control on slippery roads or inheavy traffic.
THE ABS ANTI-LOCK BRAKING SYSTEM
When used with approved tyres in
good condition, the ABS increasesthe stability and manoeuvrability ofyour vehicle, particularly on poor orslippery road surfaces. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
EMERGENCY BRAKING
ASSISTANCE SYSTEM
In an emergency, this system enables the optimum braking pres-
sure to be reached more quickly,thus reducing the stopping distance. It is triggered by the speed at which
the brake pedal is activated. The
effect of this is a reduction in theresistance of the pedal and an
increase in braking efficiency. The normal operation of the ABSmay make itself felt by slightvibrations of the brake pedal. In emergency braking, press very firmly without releasingthe pressure.

17-02-2003
MAINTENANCE OF YOUR 406
26
1.8 litre 16V and 2 litre 16V petrol engines 1 -
Power steering.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

17-02-2003
MAINTENANCE OF YOUR 406 27
2 litre 16 valve HPI petrol injection engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

17-02-2003
MAINTENANCE OF YOUR 406
28
2.2 litre 16 valve petrol engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.
