508_en_Chap03_confort_ed02-2014
Boot fittings (Saloon)
1. Retractable hooks
2. Storage pockets
W

ith towing eye, a wheel chock and a
temporary puncture repair kit (according to
destination country and equipment).
3.
S

towing rings
4.
R

etaining straps
5.
B

oot lamp
6.
B

oot floor
F

or access to the storage compartments or
the spare wheel (according to destination
country), raise the floor
7.
A

djustable divider
3
Comfort

80
508_en_Chap03_confort_ed02-2014
Boot fittings (SW)
1. Boot lamps
2. Rear seats folding controls
3.
R

etractable hooks
4.
1

2 V accessor y socket (120 W max)
5.
Sto

rage pockets
W

ith towing eye, a wheel chock and a
temporary puncture repair kit (according to
destination country and equipment).
6.
S

towing rings
7.
L

oad space cover
(

see following page)
8.
B

oot floor
F

or access to the storage compartments or the
spare wheel (according to destination country),
position the floor vertically in its guide.
Comfort

81
508_en_Chap03_confort_ed02-2014
Luggage cover
To reel inTo removeTo install
F gently push on the (PReSS) handle, the
luggage cover reels in automatically.
th

e moving part A can be folded against the
rear bench seat backrest. F
C ompress the control 1 and lift the
luggage cover on the right then on the left
to
remove it.F
P osition the left-hand end of the luggage
cover roller in its location B behind the rear
bench seat.
F

C
ompress the roller control 1 and put the
roller in place in its location C on the right.
F

R
elease the control to secure the luggage
c ove r.
F
u
n
reel it to its fastening on the rear pillar.
(SW)
3
Comfort

82
508_en_Chap03_confort_ed02-2014

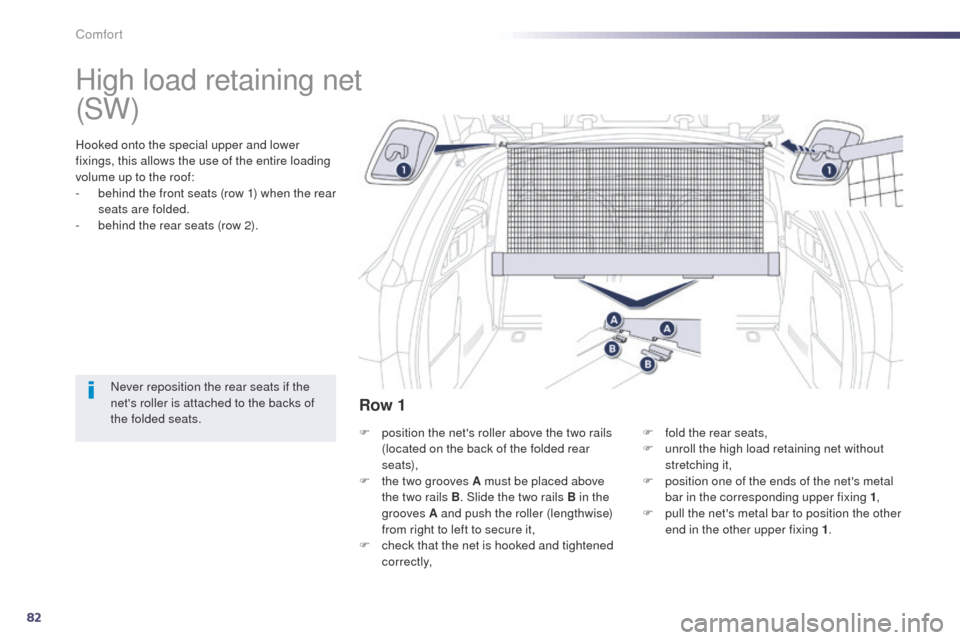

High load retaining net
Hooked onto the special upper and lower
fixings, this allows the use of the entire loading
volume up to the roof:
-
b
ehind the front seats (row 1) when the rear
seats are folded.
-

b
ehind the rear seats (row 2).
Never reposition the rear seats if the
net's roller is attached to the backs of
the folded seats. F

p
osition the net's roller above the two rails
(located on the back of the folded rear
seats),
F

t
he two grooves A must be placed above
the two rails B . Slide the two rails B in the
grooves A and push the roller (lengthwise)
from right to left to secure it,
F

c
heck that the net is hooked and tightened
c o r r e c t l y, F

f
old the rear seats,
F

u
nroll the high load retaining net without
stretching it,
F

p
osition one of the ends of the net's metal
bar in the corresponding upper fixing 1 ,
F

p
ull the net's metal bar to position the other
end in the other upper fixing 1 .
Row 1
(SW)
Comfort

83
508_en_Chap03_confort_ed02-2014
F reel in then remove the load space cover,
F p osition the left hand end of roller 2 in the
load space cover support,
F

p
osition the right hand end of roller 2 in the
load space cover support, then lock the
position (red indicator),
F

f
rom the rear bench seat, unroll the high
load retaining net by pushing to disengage
the retaining hooks, F
p osition one of the ends of the net's metal
bar in the corresponding upper fixing 3 ,
F

p
ull on the net's metal bar to position the
other end in the other upper fixing 3 ,
F

c
heck that the net is hooked and tensioned
c o r r e c t l y.
Row 2
3
Comfort

84
508_en_Chap03_confort_ed02-2014

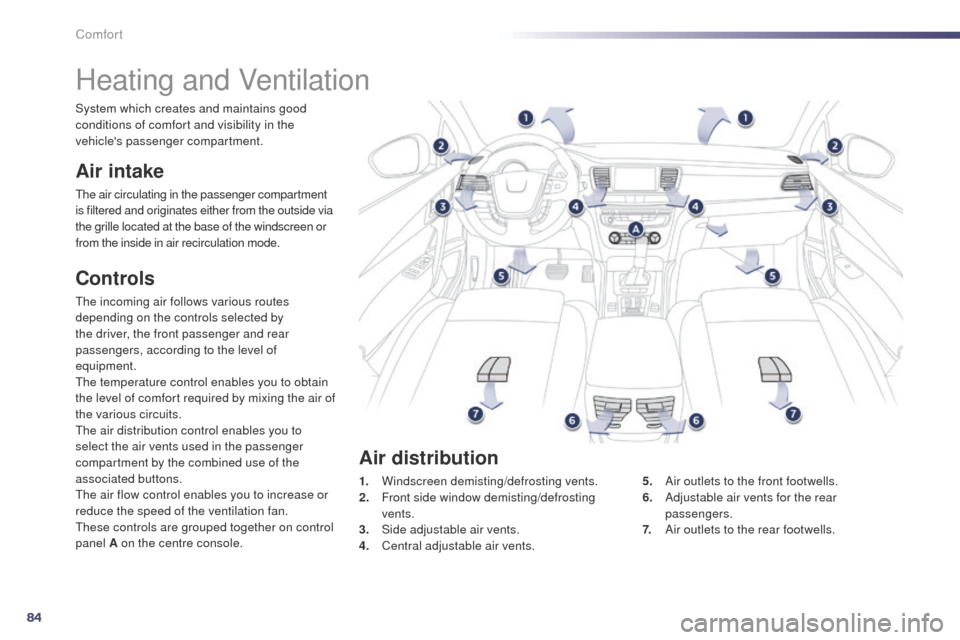

Heating and Ventilation
Air intake
the air circulating in the passenger compartment
is filtered and originates either from the outside via
the grille located at the base of the windscreen or
from the inside in air recirculation mode.
Controls
the incoming air follows various routes
depending on the controls selected by
the driver, the front passenger and rear
passengers, according to the level of
equipment.
th
e temperature control enables you to obtain
the level of comfort required by mixing the air of
the various circuits.
th

e air distribution control enables you to
select the air vents used in the passenger
compartment by the combined use of the
associated buttons.
th

e air flow control enables you to increase or
reduce the speed of the ventilation fan.
th

ese controls are grouped together on control
panel A on the centre console. 1.
W

indscreen demisting/defrosting vents.
2.
F

ront side window demisting/defrosting
vents.
3.
S

ide adjustable air vents.
4.
C

entral adjustable air vents.5.
A

ir outlets to the front footwells.
6.
A

djustable air vents for the rear
passengers.
7.
A

ir outlets to the rear footwells.
Air distribution
System which creates and maintains good
conditions of comfort and visibility in the
vehicle's passenger compartment.
Comfort

85
508_en_Chap03_confort_ed02-2014
Digital air conditioning: use fully automatic operation in preference, by pressing the "AUTO" button.

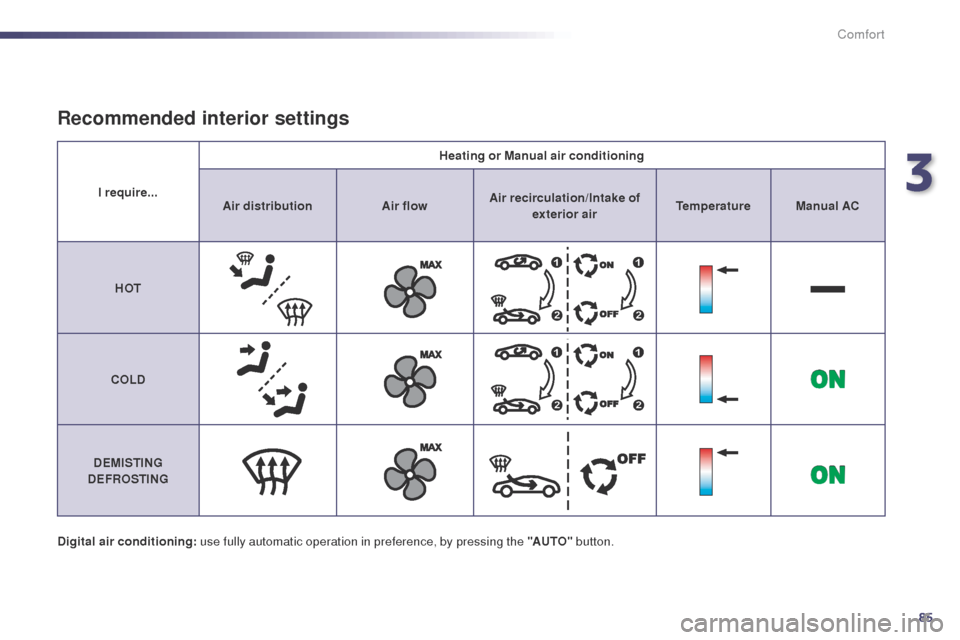

Recommended interior settings
I require...Heating or Manual air conditioning
Air distribution Air flowAir recirculation/Intake of
exterior air Temperature Manual AC
HOT
COLD
DEMISTING
DEFROSTING
3
Comfort

86
508_en_Chap03_confort_ed02-2014
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F
I
f the interior temperature remains very high after the vehicle has been parked in the sun for a
considerable time, first ventilate the passenger compartment for a few minutes.
P

lace the air flow control at a sufficient level to provide an adequate renewal of air in
the passenger compartment.
F
t
o o
btain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F
u
s
e in preference the intake of exterior air as prolonged use of the air recirculation may
cause misting of the windows and side windows.
F

D
o not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the automatic air conditioning system.
F

O
perate the air conditioning system for 5 to 10 minutes, once or twice a month to keep it
in good working order.
F
e
n
sure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly (refer to the "Checks" section).
W

e recommend the use of a combined passenger compartment filter. t
h
anks to its
second special active filter, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F
t
h
e air conditioning uses power from the engine while operating. t
h
is results in an
increase in the vehicle's fuel consumption.
W

hen towing at or near maximum capacity or on steep slopes in high ambient
temperatures, switching off the air conditioning saves engine power and so improves
towing capacity.
C

ondensation created by the air conditioning results in a discharge of water under the
vehicle when stationary, which is per fectly normal.
F
t
o e
nsure correct operation of the air conditioning system, you are also advised to have
it checked regularly.
F

I
f the system does not produce cold air, do not use it and contact a P
e
uge
Ot
dealer or
a qualified workshop.
Recommendations for ventilation and air conditioning
the air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
Comfort

87
508_en_Chap03_confort_ed02-2014
Manual air conditioning
the air conditioning can only operate with the engine running.
1. Temperature adjustment
F turn the dial from left (cold) to right (hot) to adjust
the temperature to your
requirements.
2. Air flow adjustment
F Press the "full fan" button to
increase the air flow.
A

ccording to the value selected,
the associated line of L
eD

s fills
progressively.
F

P
ress the "empty fan"

button to
reduce the air flow.
3. Air distribution adjustment
F Press the corresponding button for:
Windscreen and side windows.
Central and side vents.
Footwells.
Depending on your requirements, you
can combine two distribution buttons
or select the three distribution modes
simultaneously.
3
Comfort

88
508_en_Chap03_confort_ed02-2014
4. Air intake / Air recirculation
F Press this button to recirculate the interior air. th e indicator
lamp comes on to confirm this.
F

P
ress the button again to
permit the intake of exterior air.
th

e indicator lamp goes off to
confirm this.
th

e intake of exterior air prevents the formation
of mist on the windscreen and side windows.
th

e recirculation of interior air isolates the
passenger compartment from exterior odours
and smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the the air quality
and the formation of mist.
5. Air conditioning On / Off
the air conditioning is designed to
operate effectively in all seasons,
with the windows closed.
It enables you to:
-

l

ower the temperature, in summer,
-
i

ncrease the effectiveness of the demisting
in winter, above 3°C.
Switching on
F Press the "A /C " button, its indicator lamp
comes on.
th

e air conditioning does not operate when the
air flow adjustment is set to off.
6. Automatic visibility programme
See "Front demisting - Defrosting".
Switching off
F Press the "A /C " button again, its indicator
lamp goes off.
Switching off may result in some discomfort
(humidity, misting).
to o
btain cool air sooner, you can use
recirculation of the interior air for a few
moments. t
h
en return to the intake of
exterior air.
