Technical data























Identifi cation markings
Various visible markings for the identification and tracing of your vehicle.
A.Vehicle Identification Number (VIN) under the bonnet.
This number is engraved on the bodyworknear the damper suppor t.


The tyre pressures must be checked when the tyres are cold, at least oncea month.


Low tyre pressures increase fuelconsumption.

B.Vehicle identification Number (VIN) on
the windscreen lower crossmember. This number is indicated on a self-adhesive label which is visible through the
windscreen.
C.Manufacturer's label.The VIN is indicated on a self-destroying
label affixed to the door aper ture, on the driver's side.
D.Tyre/paint label.This label is fitted to the middle pillar, on
the driver's side. It bears the
following information:


- the tyre inflation pressures with and without
load,

- the tyre sizes,

- the brands o
f tyre recommended by themanufacturer,

- the inflation pressure of the spare wheel,

- the paint colour code.

The use of snow chains is onlyauthorised on the front wheels.
The selector must be in 4WD mode.

230Technical data

231

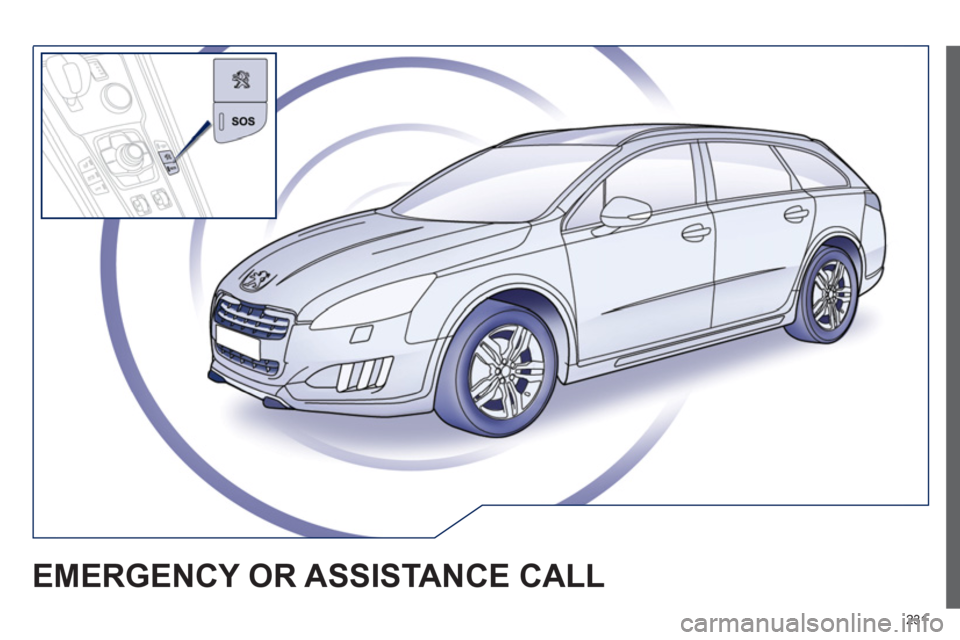

EMERGENCY OR ASSISTANCE CALL

232

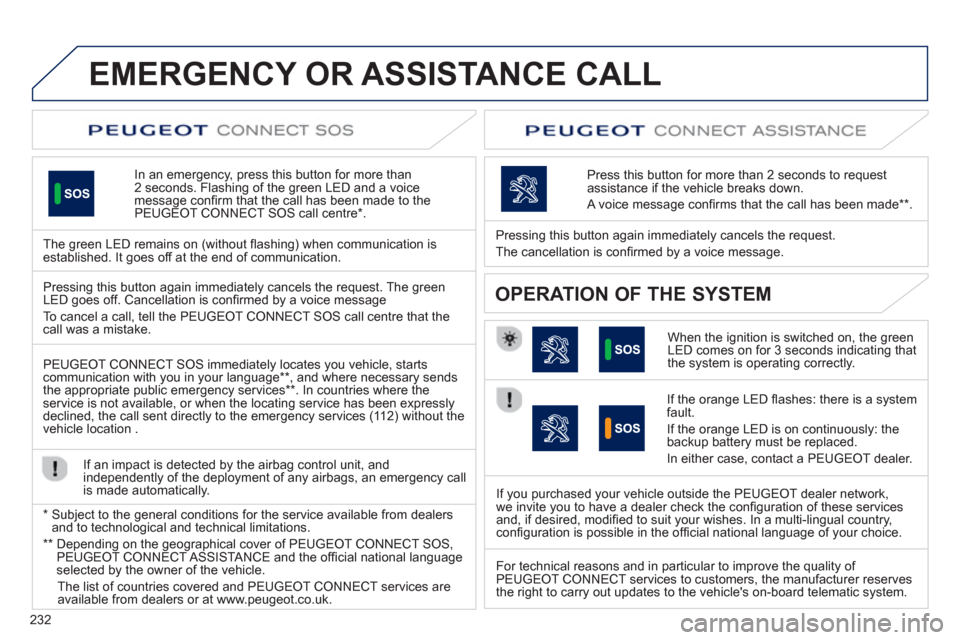

EMERGENCY OR ASSISTANCE CALL
In an emergency, press this button for more than2 seconds. Flashing of the green LED and a voice
message confi rm that the call has been made to the
PEUGEOT CONNECT SOS call centre * .
The
green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.

When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made **
.


OPERATION OF THE SYSTEM Pressing this button again immediately cancels the request. The green LED goes off. Cancellation is confi rmed by a voice message
To cancel a call, tell the PEUGE
OT CONNECT SOS call centre that thecall was a mistake.
PEUGE
OT CONNECT SOS immediately locates you vehicle, starts communication with you in your language ** , and where necessary sends
the appropriate public emergency services ** . In countries where theservice is not available, or when the locating service has been expresslydeclined, the call sent directly to the emergency services (11 2) without the
vehicle location .

If an impact is detected b
y the airbag control unit, and
independently of the deployment of any airbags, an emergency call
is made automatically.
*
Sub
ject to the general conditions for the service available from dealersand to technological and technical limitations.
**

Depending on the geographical cover of PEUGEOT CONNECT SOS,
PEUGEOT CONNECT ASSISTA NCE and the offi cial national languageselected by the owner of the vehicle.
Th
e list of countries covered and PEUGEOT CONNECT services are available from dealers or at www.peugeot.co.uk.
If the oran
ge LED fl ashes: there is a system
fault.
If the oran
ge LED is on continuously: the backup battery must be replaced.
In either case, contact a PEU
GEOT dealer.

I
f you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,confi guration is possible in the offi cial national language of your choice.

For technical reasons and in particular to improve the qualit
y of PEUGEOT CONNECT services to customers, the manufacturer reserves
the right to carry out updates to the vehicle's on-board telematic system.

233

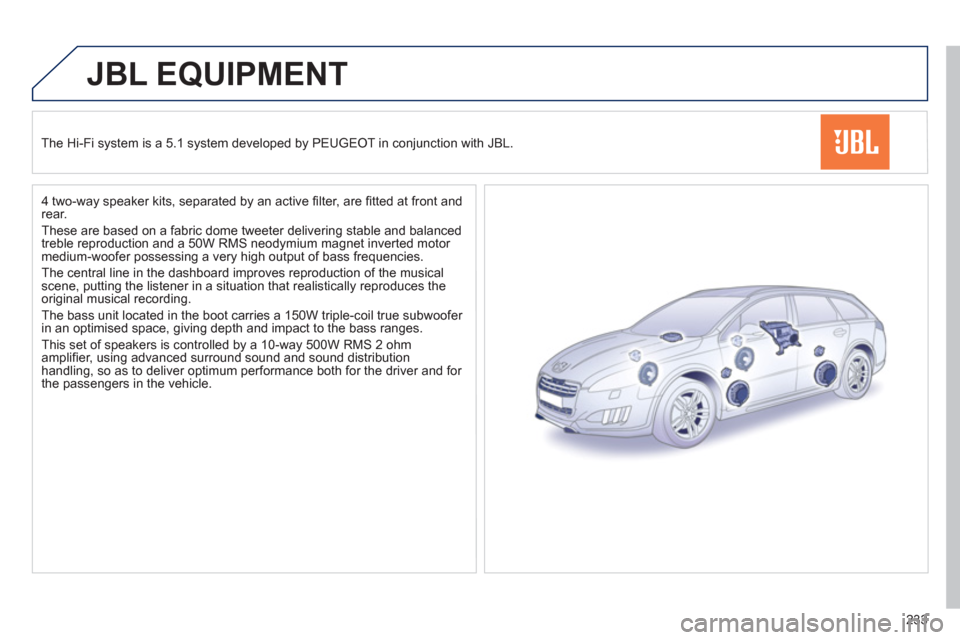

JBL EQUIPMENT
The Hi-Fi system is a 5.1 system developed by PEUGEOT in conjunction with JBL.

4 two-wa
y speaker kits, separated by an active fi lter, are fi tted at front andrear.
These are based on a fabric dome tweeter deliverin
g stable and balanced
treble reproduction and a 50W RMS neodymium magnet inverted motor medium-woofer possessing a very high output of bass frequencies.
The central line in the dashboard improves reproduction o
f the musicalscene, putting the listener in a situation that realistically reproduces theoriginal musical recording.
The bass unit located in the boot carries a 150W tri
ple-coil true subwoofer
in an optimised space, giving depth and impact to the bass ranges.
This set of speakers is controlled b
y a 10-way 500W RMS 2 ohm
amplifi er, using advanced surround sound and sound distribution handling, so as to deliver optimum performance both for the driver and for
the passengers in the vehicle.

234

235

The system is protected in such a way that it will onlyoperate in your vehicle.

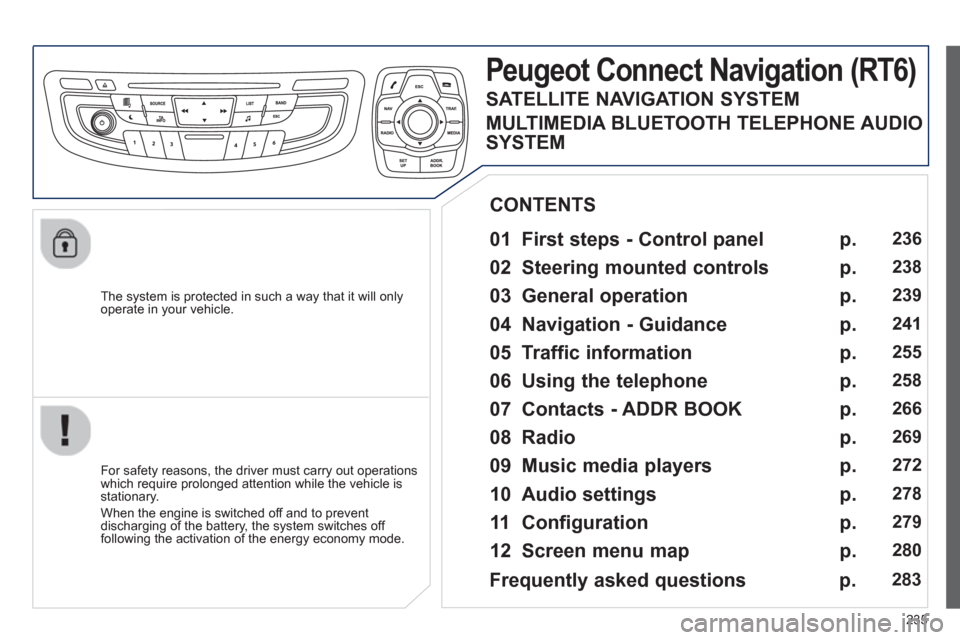

Peugeot Connect Navigation (RT6)


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Contacts - ADDR BOOK

08 Radio

09 Music media players

10 Audio settings

11 Configuration

12 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
236
238
239
241
255
2
58
266
269
272
278
279
280

Frequently asked questions p. 283


SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE AUDIO
SYSTEM

236

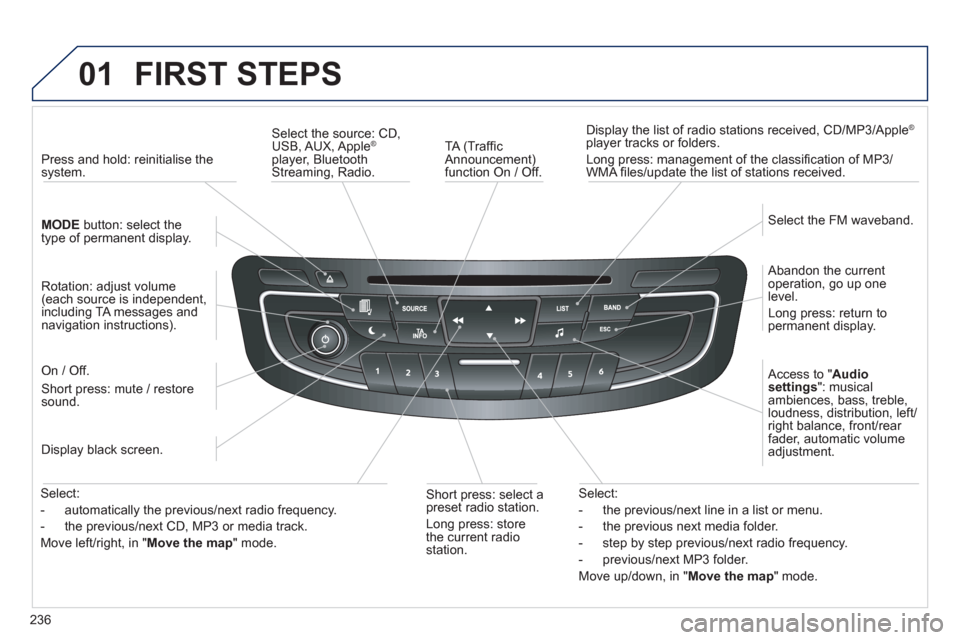

01 FIRST STEPS


TA (Traffi c
Announcement)function On / Off.
Displa
y the list of radio stations received, CD/MP3/Apple Æ
player tracks or folders.
Lon
g press: management of the classifi cation of MP3/WMA fi les/update the list of stations received.
Select the source: CD,USB, AUX, Apple®

player, Bluetooth Streaming, Radio.

Access to " Audio
settings": musicalambiences, bass, treble,loudness, distribution, left/right balance, front/rear fader, automatic volume
adjustment.
Abandon the current
operation, go up one level.
Lon
g press: return topermanent display.
Select the FM waveband.
Displa
y black screen.
MODE button: select thetype of permanent display.
Short
press: mute / restoresound. Pr
ess and hold: reinitialise thesystem.
Short press: select a
preset ra
dio station.
Long press: store
th
e current radiostation.
Select:
- the
previous/next line in a list or menu.
- the previous next media folder.
- step b
y step previous/next radio frequency.
- previous
/next MP3 folder.
Move up
/down, in "Move the map" mode. Rotation: ad
just volume (each source is independent,
including TA messages and
navigation instructions).

Select:


- automaticall
y the previous/next radio frequency.

- the previous/next CD, MP3 or media track.
Move le
ft/right, in " Move the map " mode.
On / Off.

237

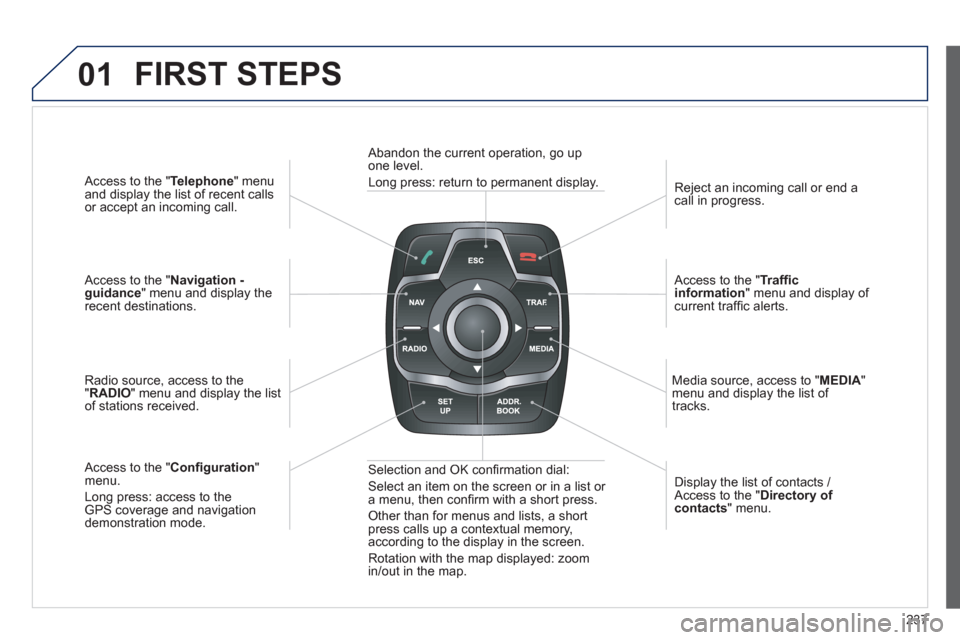

01
Access to the "Telephone " menuand display the list of recent calls
or accept an incoming call.


Access to the "Navigation -guidance" menu and display therecent destinations.
Radio source, access to the
"RADIO
" menu and display the listof stations received.

A
ccess to the "Confi guration"menu.
Long press: access to theGPS coverage and navigationdemonstration mode. Re
ject an incoming call or end a call in progress.

Access to the "Traffi c information
" menu and display of current traffi c alerts.

Media source, access to "MEDI
A" menu and display the list of
tracks.

Abandon the current operation, go upone level.
Long press: return to permanent display.

Selection and OK confi rmation dial:

Select an item on the screen or in a list or
a menu, then confi rm with a short press.

Other than for menus and lists, a short press calls up a contextual memory,
according to the display in the screen.
Rotation with the map displayed: zoom
in
/out in the map.Displa
y the list of contacts / Access to the "Directory of contacts " menu.
FIRST STEPS

238

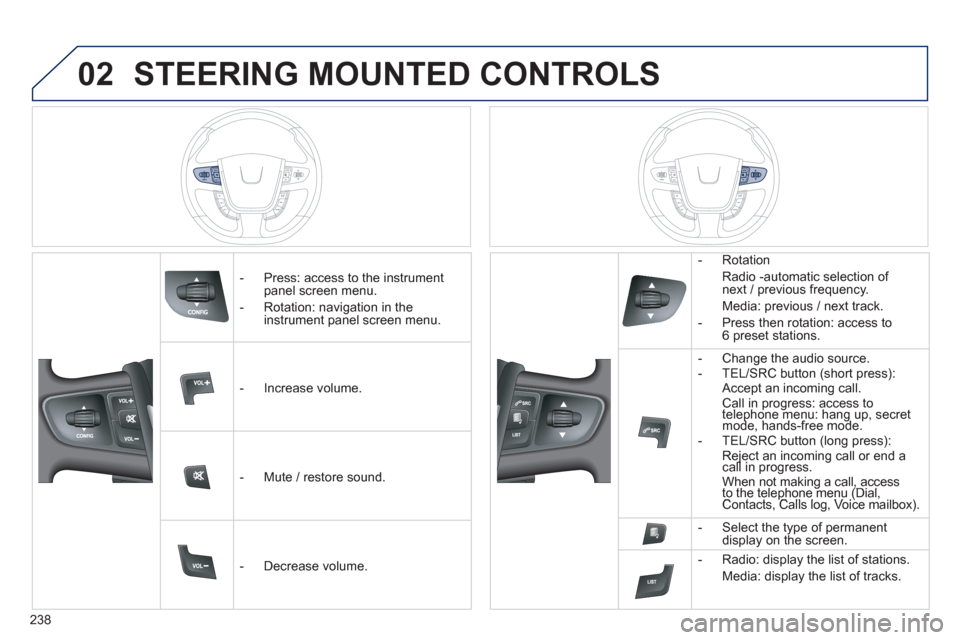

02STEERING MOUNTED CONTROLS


- Press: access to the instrumentpanel screen menu.

-
Rotation: navigation in the instrument panel screen menu.


- In
crease volume.


- Mute
/ restore sound.


-
Decrease volume.

-
Rotation
Radio -automatic selection of next / previous frequency.
Media: previous / next track.

- Pr
ess then rotation: access to 6 preset stations.


-Change the audio source.


- TEL/SRC button (short press):
Accept an incoming call
. Call in progress: access to telephone menu: hang up, secret pgpg
mode, hands-free mode.pgppg



- TEL/SRC button (long press): Reject an incoming call or end a call in progress. jj
When not making a call, access to the telephone menu (Dial,gg
Contacts, Calls log, Voice mailbox). p(p



- Select the type of permanent
display on the screen.


- Radio: displa
y the list of stations.
Media: displa
y the list of tracks.
