Peugeot 508 RXH 2014 User Guide
Manufacturer: PEUGEOT, Model Year: 2014, Model line: 508 RXH, Model: Peugeot 508 RXH 2014Pages: 338, PDF Size: 10.81 MB
Page 11 of 338
9
90
75 131 148117
68, 79, 80 242 15 171
115
140
29
129 179 84
508RXH_en_Chap00b_vue-ensemble_ed01-2014
Illumination of the lamp indicates the state of
the corresponding function.
Switch panels
electric parking brake.
Opening the boot.
Massage.
Alarm.
el
ectric child lock.
Programmable heating warning lamp.
Deactivation of parking sensors.
Inhibition of internal combustion
engine stop.
Head-up display
(on/off, settings).
Peuge
O
t
Connect SOS
Starting/stopping using the electronic
key.
Blind spot monitoring. Deactivation of the DSC system. Opening the fuel filler flap.
Adaptive lighting
.
Over view
Page 12 of 338
10
508RXH_en_Chap00b_vue-ensemble_ed01-2014

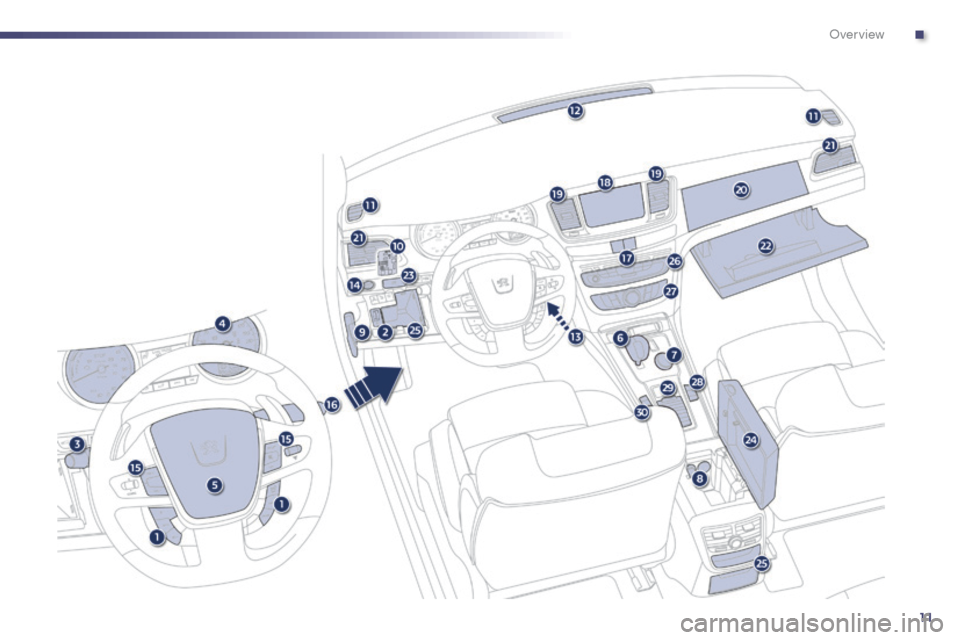

11. Front door window demisting/defrosting vent.
12 .
W
indscreen demisting/defrosting vent.
13.
S
teering lock and starting with the key.
14 .
S
tarting using the electronic key.
15.
A
udio equipment steering wheel controls.
16.
W
iper / screenwash / trip computer stalk.
17.
C
entral locking and hazard warning
buttons.
18.
Screen.
19.
C
entral adjustable air vents.
20.
P
assenger's airbag.
21.
S
ide adjustable air vents.
Instruments and controls
1. Cruise control / speed limiter controls.
2. H eadlamp height adjustment.
3.
L
ighting and direction indicator stalk
4.
I
nstrument panel.
5.
D
river's airbag.
Horn.
6.
g
ea
r selector.
7.
H
Ybrid4 mode selector.
8.
1
2 V accessory socket
u
S
B port / auxiliary socket.
9.
B
onnet release lever.
10.
Fusebox. 22.
gl ove box / Passenger's airbag
deactivation.
23.
e
l
ectric parking brake.
24.
C
entral armrest with storage.
25.
St
orage (according to version).
26.
A
udio system.
2 7.
H
eating / air conditioning controls.
28.
A
larm / Peuge
O
t Connect SOS -
Peuge
O
t Connect Assistance.
29.
Storage.
30.
M
assage / Adaptive lighting / Blind spot
monitoring.
Over view
Page 13 of 338
11
508RXH_en_Chap00b_vue-ensemble_ed01-2014
.
Over view
Page 14 of 338
12
508RXH_en_Chap00c_systeme-hybride_ed01-2014
Presentation
the HYbrid4 technology allows two sources of
energy to be associated in an effective manner:
the Diesel HDi engine, which drives the front
wheels and the electric motor, which drives the
rear wheels.
th
ese two motors can operate alternately or
simultaneously, according to the hybrid mode
selected and the driving conditions.
th
e electric motor alone provides power for
the vehicle in "Z
eV
" (Zero e
m
issions Vehicle)
mode, and in "Auto" mode for running at slow
speed and low load. It also assists the Diesel
engine when moving off, accelerating and
changing gear.
th
e battery that powers the electric motor is
recharged during phases of deceleration and
stores the energy for subsequent use.
1.
D
iesel HDi engine (front wheel drive).
2.
e
l
ectric motor (rear wheel drive).
3.
2
00 V battery.
4.
e
le
ctronic power supervisor.
5.
A
lternator-starter motor (Stop & Start).6.
e
le
ctronic gearbox.
7.
e
le
ctrical flow.
8.
H
Ybrid4 mode selector.
Hybrid system
Page 15 of 338
13
508RXH_en_Chap00c_systeme-hybride_ed01-2014

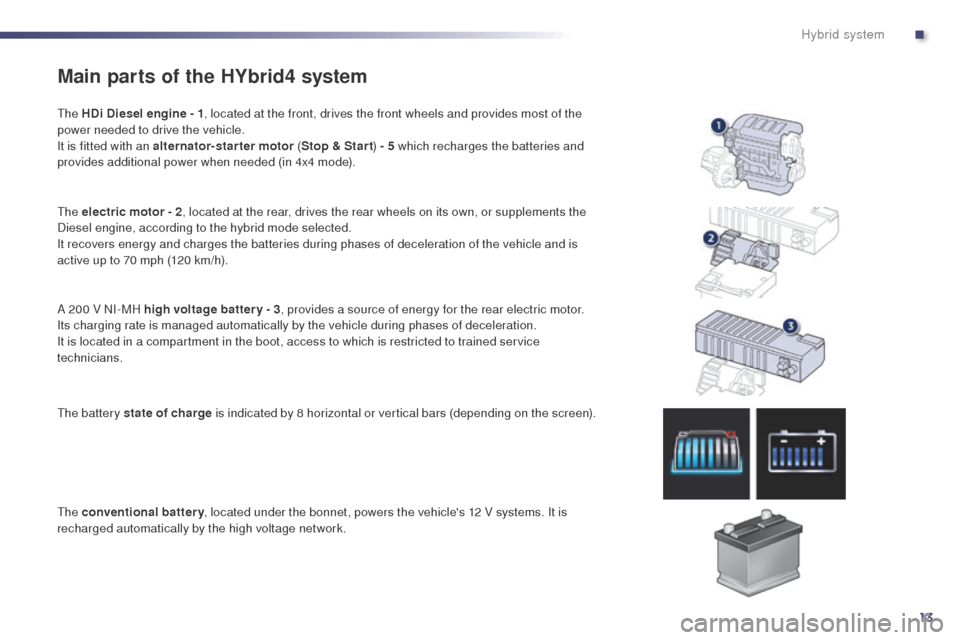

Main parts of the HYbrid4 system
the HDi Diesel engine - 1, located at the front, drives the front wheels and provides most of the
power needed to drive the vehicle.
It is fitted with an alternator-starter motor (Stop & Star t ) - 5 which recharges the batteries and
provides additional power when needed (in 4x4 mode).
th
e electric motor - 2 , located at the rear, drives the rear wheels on its own, or supplements the
Diesel engine, according to the hybrid mode selected.
It recovers energy and charges the batteries during phases of deceleration of the vehicle and is
active up to 70 mph (120 km/h).
A 200 V NI-MH high voltage batter y - 3 , provides a source of energy for the rear electric motor.
Its charging rate is managed automatically by the vehicle during phases of deceleration.
It is located in a compartment in the boot, access to which is restricted to trained service
technicians.
th
e battery state of charge is indicated by 8 horizontal or vertical bars (depending on the screen).
th
e conventional battery , located under the bonnet, powers the vehicle's 12 V systems. It is
recharged automatically by the high voltage network.
.
Hybrid system
Page 16 of 338
14
508RXH_en_Chap00c_systeme-hybride_ed01-2014
the electronic power super visor - 4 automatically manages the operation of the two power units
(Diesel and electric) to provide the lowest consumption.
An inverter and a transformer are needed to manage the electric power.
th
e inverter acts on the torque of the electric motor, by regulating the current coming from the high
voltage battery pack. Its operating range is between 150 and 270 volts.
th
e transformer converts the 200 V of the battery pack to 12 V, to power the vehicle's ancillary
systems.
th
e alternator-starter motor - 5 assures the Stop & Star t function which allows the Diesel
engine to be put into standby during stops (traffic lights, a stop, or in a traffic jam, for example) or
during phases of running in all-electric mode.
th
e stopping and restarting of the Diesel engine is done in a way that is instantaneous and
transparent for the driver.
It also provides additional charging of the batteries (4x4 mode for example or under-charged high
voltage battery).
th
e electronic gearbox - 6 provides, in automatic mode, significant savings in fuel consumption
compared to a conventional manual gearbox, thanks to its electronic control system.
It also offers improved driving pleasure with the possibility at any time of choosing the gear
changing mode: automatic or manual, using the paddles located behind the steering wheel.
Hybrid system
Page 17 of 338
15
508RXH_en_Chap00c_systeme-hybride_ed01-2014

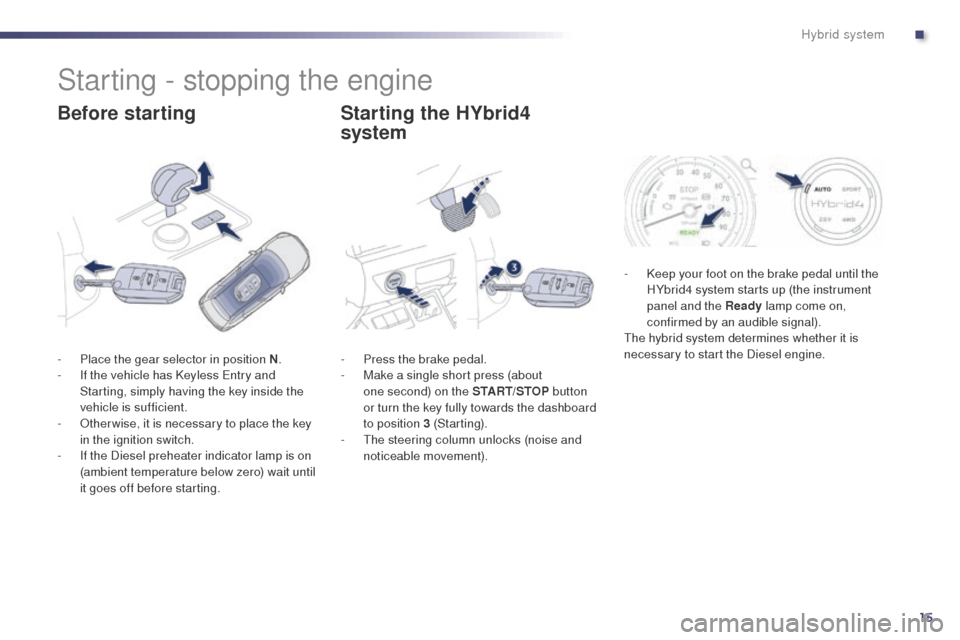

Starting - stopping the engine
Before startingStarting the HYbrid4
system
- Press the brake pedal.
-
M ake a single short press (about
one
second) on the START/STOP button
or turn the key fully towards the dashboard
to position 3 (Starting).
-
t
h
e steering column unlocks (noise and
noticeable movement).
-
P
lace the gear selector in position N
.
-
I
f the vehicle has Keyless
en
try and
Starting, simply having the key inside the
vehicle is sufficient.
-
O
ther wise, it is necessary to place the key
in the ignition switch.
-
I
f the Diesel preheater indicator lamp is on
(ambient temperature below zero) wait until
it goes off before starting. -
K
eep your foot on the brake pedal until the
HYbrid4 system starts up (the instrument
panel and the Ready lamp come on,
confirmed by an audible signal).
th
e hybrid system determines whether it is
necessary to start the Diesel engine.
.
Hybrid system
Page 18 of 338
16
508RXH_en_Chap00c_systeme-hybride_ed01-2014
- Before switching off the HYbrid4 system, place the gear selector in position N .
-
M
ake a short press on the START/STOP
button or turn the key fully off to
position
1 (Stop) then remove the key from
the ignition switch.
-
t
h
e system shuts down and the steering
column locks.
Switching the HYbrid4 system off
For more information, refer to the
"un derbonnet precautions / warnings"
section.
When stationary, ensure that the ignition is
switched off and check that the Ready lamp
is off when you want to leave the vehicle,
other wise the hybrid system will still be active.When your vehicle moves off in
electric mode, it makes no noise. Be
ver y careful of pedestrians as they
will not hear you coming.
Switching off the engine leads to a loss
of braking assistance.
Hybrid system
Page 19 of 338
17
508RXH_en_Chap00c_systeme-hybride_ed01-2014

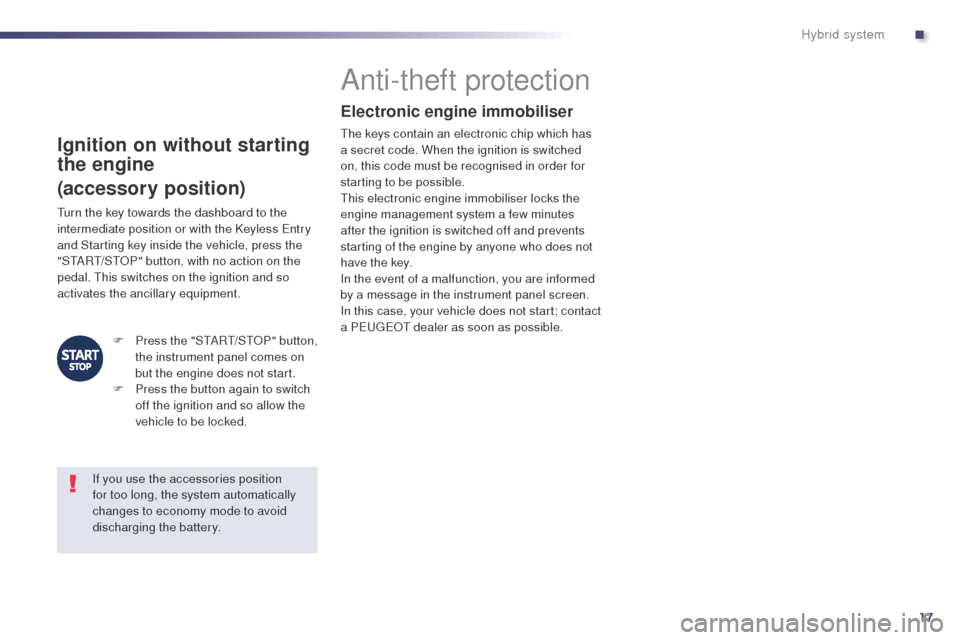

Ignition on without starting
the engine
(accessory position)
Anti-theft protection
Electronic engine immobiliser
the keys contain an electronic chip which has
a secret code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
th
is electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a malfunction, you are informed
by a message in the instrument panel screen.
In this case, your vehicle does not start; contact
a P
e
uge
Ot
dealer as soon as possible.
tu
rn the key towards the dashboard to the
intermediate position or with the Keyless
e
n
try
and Starting key inside the vehicle, press the
"S
tA
R
t/
S
tO
P" button, with no action on the
pedal.
t
h
is switches on the ignition and so
activates the ancillary equipment.
F
P
ress the "S
tA
R
t/
S
tO
P" button,
the instrument panel comes on
but the engine does not start.
F
P
ress the button again to switch
off the ignition and so allow the
vehicle to be locked.
If you use the accessories position
for too long, the system automatically
changes to economy mode to avoid
discharging the battery.
.
Hybrid system
Page 20 of 338
18
508RXH_en_Chap00c_systeme-hybride_ed01-2014
Emergency starting with the
electronic key
When the electronic key is in the recognition
zone and your vehicle does not start after
pressing the "S
tA
R
t/
S
tO
P" button:
F
O
pen the housing below the "S
tA
R
t/
St
OP " button.
F
I
nsert the electronic key in the location A .
F
P
ress the "S
tA
R
t/
S
tO
P" button.
Emergency switch-off using the
electronic key
In the event of an emergency only, the engine
can be switched of without conditions. to d o
this, press and hold the "S
tA
R
t/
S
tO
P" button
for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
If the electronic key is no longer in the
recognition zone when you request switching
off the engine, a message appears in the
instrument panel.
F
P
ress and hold the "S
tA
R
t/
S
tO
P" button
for about 3 seconds if you want to force
switching off the engine (note that restarting
will not be possible without the key).
Electronic key not recognised by
the "Keyless Entry and Starting"
system
If the electronic key is no longer in the
recognition zone when driving or when you
(later) request switching off of the hybrid
system, a message appears in the instrument
panel.
Once the engine has started, you can
remove the electronic key and close the
housing. F
P
ress and hold the "S
tA
R
t/
S
tO
P" button
for about 3 seconds if you want to force
switching off of the hybrid system (note that
restarting will not be possible without the
electronic key in the recognition zone).
th
e electronic key must always remain
inside the vehicle while in use.
Hybrid system
