Peugeot 508 RXH 2014 Owner's Guide
Manufacturer: PEUGEOT, Model Year: 2014, Model line: 508 RXH, Model: Peugeot 508 RXH 2014Pages: 338, PDF Size: 10.81 MB
Page 21 of 338
19
508RXH_en_Chap00c_systeme-hybride_ed01-2014

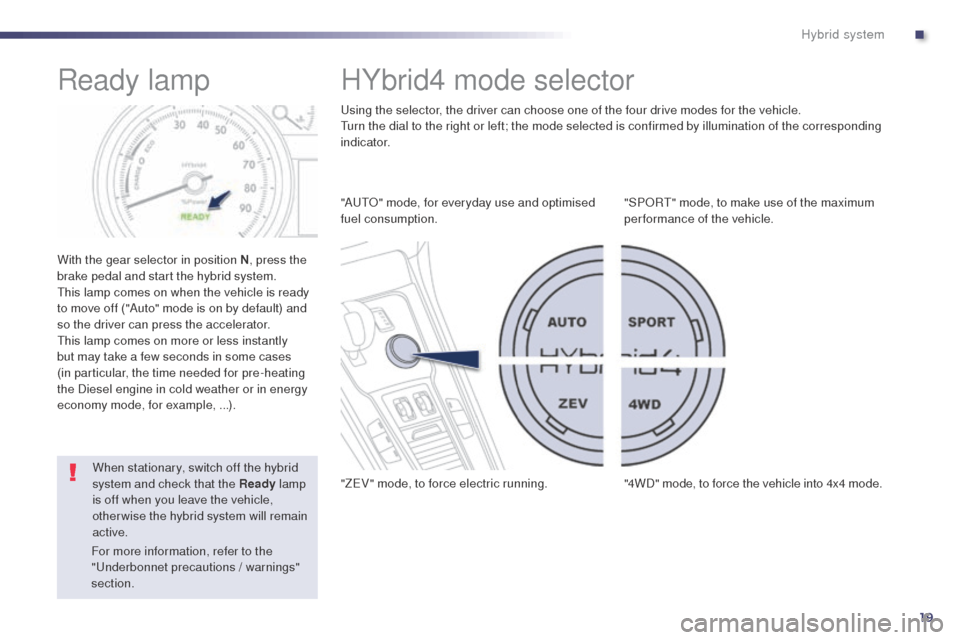

Ready lamp
With the gear selector in position N, press the
brake pedal and start the hybrid system.
th
is lamp comes on when the vehicle is ready
to move off ("Auto" mode is on by default) and
so the driver can press the accelerator.
th
is lamp comes on more or less instantly
but may take a few seconds in some cases
(in particular, the time needed for pre-heating
the Diesel engine in cold weather or in energy
economy mode, for example, ...).
HYbrid4 mode selector
"AutO" mode, for everyday use and optimised
fuel consumption.
"Z
eV
" mode, to force electric running. "SPORt" m
ode, to make use of the maximum
performance of the vehicle.
"4WD" mode, to force the vehicle into 4x4 mode.
When stationary, switch off the hybrid
system and check that the Ready
lamp
is off when you leave the vehicle,
otherwise the hybrid system will remain
active.
us
ing the selector, the driver can choose one of the four drive modes for the vehicle.
tu
rn the dial to the right or left; the mode selected is confirmed by illumination of the corresponding
i n d i c a t o r.
For more information, refer to the
"
un
derbonnet precautions / warnings"
section.
.
Hybrid system
Page 22 of 338
20
508RXH_en_Chap00c_systeme-hybride_ed01-2014
"AUTO" mode
It automatically manages the operation of the
Diesel engine and the electric motor, according
to vehicle parameters, traffic conditions and
driving style so as to optimise the vehicle's
fuel consumption.
th
is mode activates "zero emissions"
electric running when the conditions allow.
In "A
u
t
O
" mode, the electric motor :
-
c
an power the vehicle on its own in "zero
emissions" electric running, depending
on the state of charge of the battery, if the
conditions specific to the vehicle are met
and if acceleration is moderate,
-
s
upplements the Diesel engine when
moving off and changing gear, during
acceleration and when traction from the
front wheels is inadequate (it automatically
adds 4 wheel drive ),
-
C
an be active alone up to 53 mph (85 km/h).
I
t is no longer active above 75 mph (120 km/h).
"ZEV" mode
(all electric)
"Zero emissions vehicle" operation is assured
100 % by electric drive.
th
is mode forces silent running at moderate
speeds. If the conditions do not allow this mode,
the message "electric mode is not currently
available" appears in the screen.
t
h
e Z
eV
w
arning lamp flashes for a few seconds then
goes off and the selector comes on in "A
u
t
O
".
In "Z
eV
" mode:
-
R
ange and acceleration capacity are
limited.
t
h
e maximum speed is around
36 mph (60 km/h).
-
u
n
der high load or a priority requirement
causing the start of the Diesel engine, the
system changes automatically to A
u
t
O
m
ode.us
e in preference
for everyday driving
and optimised fuel consumption.
Activated automatically when starting
the HYbrid4 system.
For more information on the factors
for automatic restarting of the
Diesel engine and when there is NO
access to "Z
eV
" mode", refer to the
corresponding section.
It can be activated when the
required conditions are met,
particularly if the state of
charge of high voltage battery is
sufficient (from 4 bars).
Hybrid system
Page 23 of 338
21
508RXH_en_Chap00c_systeme-hybride_ed01-2014

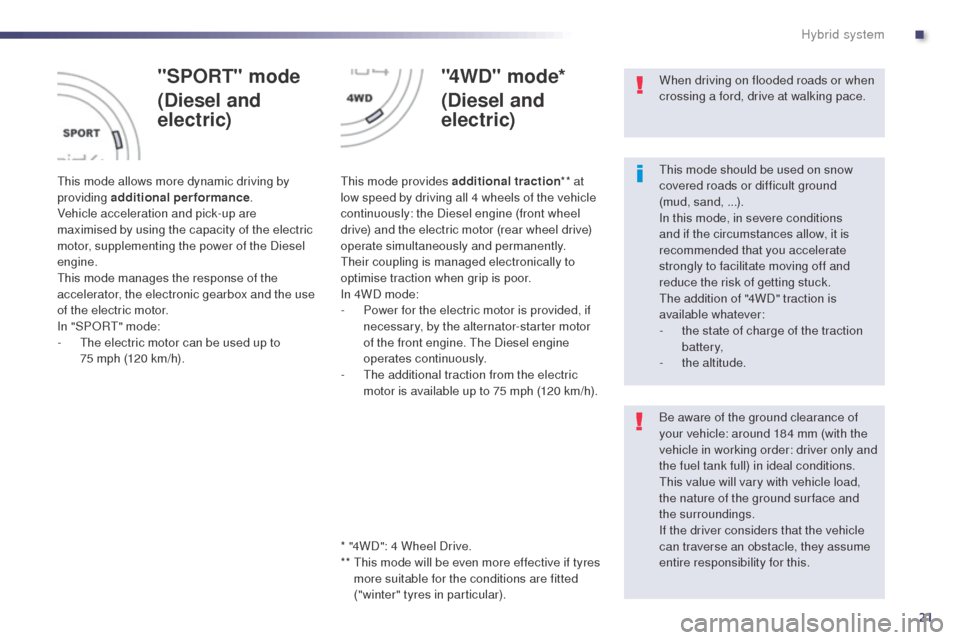

"SPORT" mode
(Diesel and
electric)
this mode allows more dynamic driving by
providing additional performance.
Vehicle acceleration and pick-up are
maximised by using the capacity of the electric
motor, supplementing the power of the Diesel
engine.
th
is mode manages the response of the
accelerator, the electronic gearbox and the use
of the electric motor.
In "SPOR
t" m
ode:
-
t
h
e electric motor can be used up to
75 mph (120 km/h).
"4WD" mode*
(Diesel and
electric)
this mode provides additional traction ** at
low speed by driving all 4 wheels of the vehicle
continuously: the Diesel engine (front wheel
drive) and the electric motor (rear wheel drive)
operate simultaneously and permanently.
th
eir coupling is managed electronically to
optimise traction when grip is poor.
In 4WD mode:
-
P
ower for the electric motor is provided, if
necessary, by the alternator-starter motor
of the front engine.
t
h
e Diesel engine
operates continuously.
-
t
h
e additional traction from the electric
motor is available up to 75 mph (120 km/h).th is mode should be used on snow
covered roads or difficult ground
(mud, sand, ...).
In this mode, in severe conditions
and if the circumstances allow, it is
recommended that you accelerate
strongly to facilitate moving off and
reduce the risk of getting stuck.
th
e addition of "4WD" traction is
available whatever:
-
t
he state of charge of the traction
battery,
-
t
he altitude.
Be aware of the ground clearance of
your vehicle: around 184 mm (with the
vehicle in working order: driver only and
the fuel tank full) in ideal conditions.
th
is value will vary with vehicle load,
the nature of the ground sur face and
the surroundings.
If the driver considers that the vehicle
can traverse an obstacle, they assume
entire responsibility for this.
* "4WD": 4 Wheel Drive.
**
t
h
is mode will be even more effective if tyres
more suitable for the conditions are fitted
("winter" tyres in particular). When driving on flooded roads or when
crossing a ford, drive at walking pace.
.
Hybrid system
Page 24 of 338
22
508RXH_en_Chap00c_systeme-hybride_ed01-2014
energy consumption / generation indicator
the indicator dial provides real time information
on the total power used, combining electric and
Diesel.
It comprises three main zones.
CHARGE zone
Zone which indicates that the vehicle is
in electrical energy recovery phase: on
deceleration, braking (partially or particularly
with your foot off the accelerator, to use
in preference as this gives better energy
rec over y).
th
is allows the high voltage battery to be
recharged using "free" energy which can then
be reused for future energy requirements.
POWER zone
Zone which indicates an increased cumulative
power demand from your hybrid vehicle,
taking account of the combined power available
from the Diesel engine and the electric motor.
Zone which indicates that the vehicle is
optimising its energy consumption , electric,
Diesel or a combination of both.
th
is zone corresponds to phases of electric
running as well as to phases of optimum use of
the Diesel engine, which are easily accessible
with a suitable driving style (smooth
"eco-citizen" driving).ECO zone
Hybrid system
Page 25 of 338
23
508RXH_en_Chap00c_systeme-hybride_ed01-2014

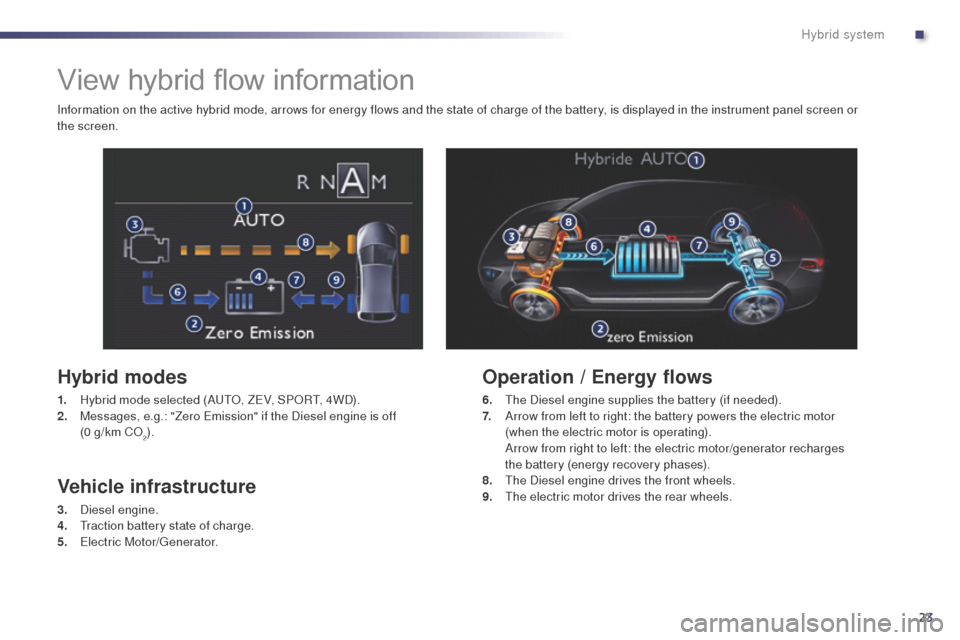

View hybrid flow information
Hybrid modes
1. Hybrid mode selected (AutO , ZeV , SPORt, 4 WD).
2. M essages, e.g.: "Zero em ission" if the Diesel engine is off
(0 g/km CO
2).
Vehicle infrastructure
3. Diesel engine.
4. tr action battery state of charge.
5.
e
l
ectric Motor/
ge
nerator.
Operation / Energy flows
6. the Diesel engine supplies the battery (if needed).
7. A rrow from left to right: the battery powers the electric motor
(when the electric motor is operating).
A
rrow from right to left: the electric motor/generator recharges
the
battery (energy recovery phases).
8.
t
he
Diesel engine drives the front wheels.
9.
t
h
e electric motor drives the rear wheels.
Information on the active hybrid mode, arrows for energy flows and the state of charge of the battery, is displayed in the instrument panel screen or
the
screen.
.
Hybrid system
Page 26 of 338
24
508RXH_en_Chap00c_systeme-hybride_ed01-2014
Examples of displays
On starting and when stationary
there is no flow of energy (the Stop & Start system stops and
restarts the Diesel engine automatically).
Energy recovery
During this phase (deceleration, braking, foot off the
accelerator, … all modes), the battery is recharged by the
electric motor/generator, then being driven by the rear wheels.
You can maximise this energy recovery by taking your foot off
the accelerator pedal, deceleration will then be less marked than
with a conventional vehicle.
100% electric
In all electric running (Au tO o r ZeV m odes), only the electric
motor, powered by the battery, drives the rear wheels.
th
e display of "Zero e
m
ission" indicates that the Diesel engine
is off and the vehicle is producing no CO
2.
Hybrid system
Page 27 of 338
25
508RXH_en_Chap00c_systeme-hybride_ed01-2014

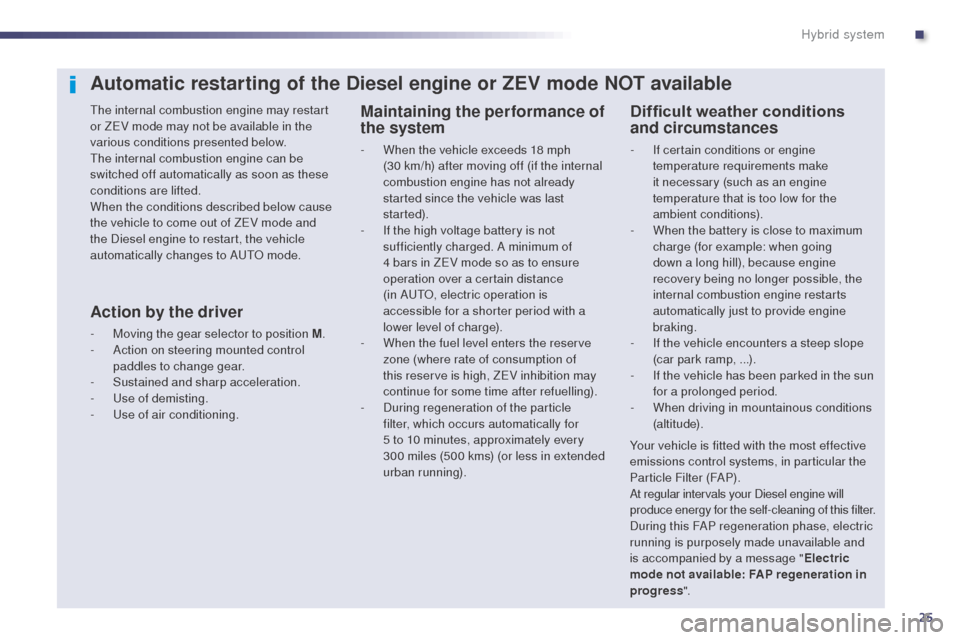

Automatic restarting of the Diesel engine or ZEV mode NOT available
the internal combustion engine may restart
or ZeV mode may not be available in the
various conditions presented below.
th
e internal combustion engine can be
switched off automatically as soon as these
conditions are lifted.
When the conditions described below cause
the vehicle to come out of Z
eV m
ode and
the Diesel engine to restart, the vehicle
automatically changes to A
u
t
O m
ode.Difficult weather conditions
and circumstances
- If certain conditions or engine temperature requirements make
it necessary (such as an engine
temperature that is too low for the
ambient conditions).
-
W
hen the battery is close to maximum
charge (for example: when going
down a long hill), because engine
recovery being no longer possible, the
internal combustion engine restarts
automatically just to provide engine
braking.
-
I
f the vehicle encounters a steep slope
(car park ramp, ...).
-
I
f the vehicle has been parked in the sun
for a prolonged period.
-
W
hen driving in mountainous conditions
(altitude).
Your vehicle is fitted with the most effective
emissions control systems, in particular the
Particle Filter (FAP).
At regular intervals your Diesel engine will
produce energy for the self-cleaning of this filter.
During this FAP regeneration phase, electric
running is purposely made unavailable and
is accompanied by a message " Electric
mode not available: FA P regeneration in
progress ".
Maintaining the performance of
the system
- When the vehicle exceeds 18 mph
(30 km/h) after moving off (if the internal
combustion engine has not already
started since the vehicle was last
star ted).
-
I
f the high voltage battery is not
sufficiently charged. A minimum of
4 bars in Z
eV m
ode so as to ensure
operation over a certain distance
(in A
utO
, electric operation is
accessible for a shorter period with a
lower level of charge).
-
W
hen the fuel level enters the reserve
zone (where rate of consumption of
this reserve is high, Z
eV i
nhibition may
continue for some time after refuelling).
-
D
uring regeneration of the particle
filter, which occurs automatically for
5 to 10
minutes, approximately every
300
miles (500 kms) (or less in extended
urban running).
Action by the driver
- Moving the gear selector to position M .
- A ction on steering mounted control
paddles to change gear.
-
S
ustained and sharp acceleration.
-
u
se
of demisting.
-
u
s
e of air conditioning.
.
Hybrid system
Page 28 of 338
26
508RXH_en_Chap00c_systeme-hybride_ed01-2014
HYbrid4 frequently asked questions
ZEV (Zero Emissions Vehicle) mode
QuestionAnswer
Why is it not always possible for me to put the vehicle
into Z
eV (
Zero
e
m
issions Vehicle) mode even though
the battery is well charged?
th
is situation is temporary.
Certain conditions will occasionally prevent the change to Z
eV m
ode, even if the battery
has sufficient charge, such as, for example, very cold conditions, altitude, demisting, high
demand for heating or air conditioning, regeneration of the particle filter (FAP).
Why do I sometimes see an alert message "
el
ectric
mode not available: FAP regeneration in progress"?
th
is is an message relating to the regeneration of the particle filter (FAP). t
h
is is a
completely normal process that takes place every 240 or 300 miles (400 or 500 km)
(or more frequently in prolonged urban use), as on a conventional HDi vehicle.
th
is process is not generally noticed by the driver.
On the other hand, in the case of a hybrid, this phenomenon may be noticeable (in urban
use) as temporarily the HDi engine will not stop and this message will be displayed at
intervals while regeneration is in progress.
Why is it not possible for me to put the vehicle into
Z
eV m
ode, even though I had just been running
electrically in Auto mode?
th
e management of Z
eV i
s different from Auto mode.
Changing to Z
eV m
ode is only possible with a battery charge of at least 4 bars, in order to
assure sufficient range.
In Auto mode, the system alone manages the conditions for changing temporarily to electric
mode, for shorter periods and with a lower state of charge of the battery.
Why is the range in Z
eV (
Zero e
m
issions Vehicle)
mode lower when climbing?
th
e vehicle needs more energy when climbing than when running on the level.
So it is better to stay in Auto mode, which will favour operation of the Diesel engine.
Why is it that the system makes me come out of Z
eV
(
Zero
e
m
issions Vehicle) mode; it does not return to
Z
eV a
utomatically when the conditions allow? It is not intended to give preference to Z
eV r
unning at any cost, as it is not always the most
economical mode.
So the system returns automatically to Auto mode.
Hybrid system
Page 29 of 338
27
508RXH_en_Chap00c_systeme-hybride_ed01-2014

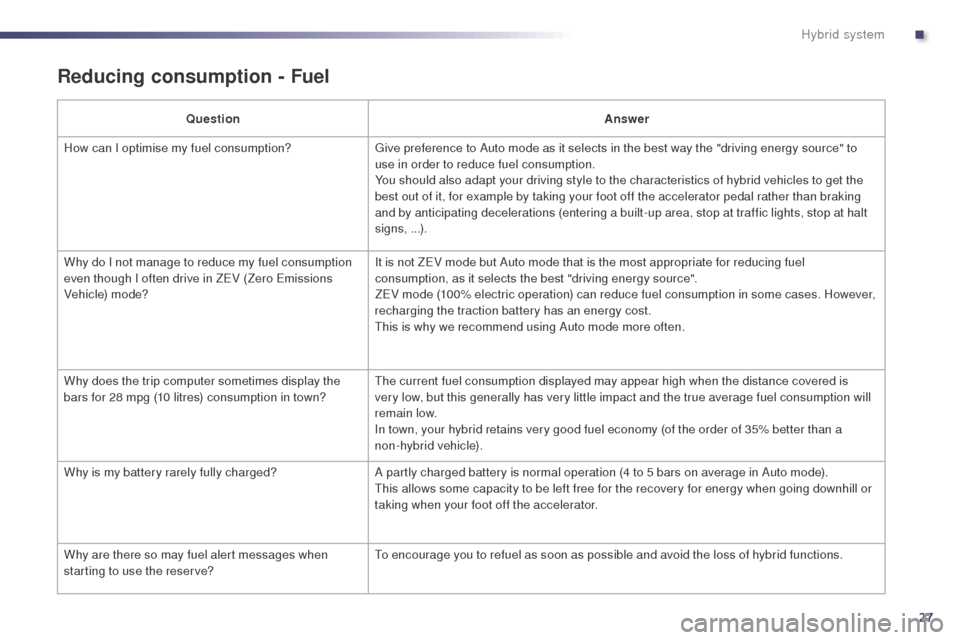

Reducing consumption - Fuel
QuestionAnswer
How can I optimise my fuel consumption?
gi
ve preference to Auto mode as it selects in the best way the "driving energy source" to
use in order to reduce fuel consumption.
You should also adapt your driving style to the characteristics of hybrid vehicles to get the
best out of it, for example by taking your foot off the accelerator pedal rather than braking
and by anticipating decelerations (entering a built-up area, stop at traffic lights, stop at halt
signs, ...).
Why do I not manage to reduce my fuel consumption
even though I often drive in Z
eV (
Zero e
m
issions
Vehicle) mode? It is not Z
eV m
ode but Auto mode that is the most appropriate for reducing fuel
consumption, as it selects the best "driving energy source".
Z
eV m
ode (100% electric operation) can reduce fuel consumption in some cases. However,
recharging the traction battery has an energy cost.
th
is is why we recommend using Auto mode more often.
Why does the trip computer sometimes display the
bars for 28 mpg (10 litres) consumption in town?
th
e current fuel consumption displayed may appear high when the distance covered is
very low, but this generally has very little impact and the true average fuel consumption will
remain low.
In town, your hybrid retains very good fuel economy (of the order of 35% better than a
non-hybrid vehicle).
Why is my battery rarely fully charged? A partly charged battery is normal operation (4 to 5 bars on average in Auto mode).
th
is allows some capacity to be left free for the recovery for energy when going downhill or
taking when your foot off the accelerator.
Why are there so may fuel alert messages when
starting to use the reserve?
to e
ncourage you to refuel as soon as possible and avoid the loss of hybrid functions.
.
Hybrid system
Page 30 of 338
28
508RXH_en_Chap00c_systeme-hybride_ed01-2014
Air conditioning
QuestionAnswer
It seems to me that the vehicle runs less on electric
when the heating or air conditioning is operating, is
that right?
the
demand for heating or air conditioning may require the starting of the Diesel engine
until the desired level of comfort is attained.
Normal hybrid operation is simply put back.
t
h
e period can be longer under low or very high
ambient temperatures.
It seems to me that when it is very hot and the air
conditioning is working, the vehicle runs on electric for
shorter periods. Is that right? When it is hot, the periods when the Diesel engine is put on standby and the vehicle runs on
electric are necessarily restricted in order to limit the difference between the temperature in
the vehicle and the level of comfort selected.
In very hot weather, it is always possible to press the
e
c
o OFF button (which brings the
vehicle out of Z
eV m
ode and prevents electric running or the stopping of the engine) to give
preference to temperature control (keeps the air conditioning running).
Special HYbrid4 features
Question Answer
Can I tow with my hybrid vehicle and how much? A HYbrid4 vehicle can tow between 500 kg and 800 kg (see the "
to
wing" section).
th
is allows a jet ski or two-wheeler on a trailer to be towed, for example.
th
e "technical" reason for the limit is related to maintaining adequate cooling capacity for
the internal combustion engine as well as the hybrid components that are also cooled by the
engine's cooling system.
Why does engine braking seem so strong? When you take your foot off the accelerator, the engine braking results mainly from the
energy recovery by the electric motor.
th
is leads to a higher level of deceleration than a conventional vehicle and so allows the
recovery of free energy.
Hybrid system
