Peugeot Bipper 2014 Owner's Manual

99
4
EASE OF USE and COMFORT



Seats

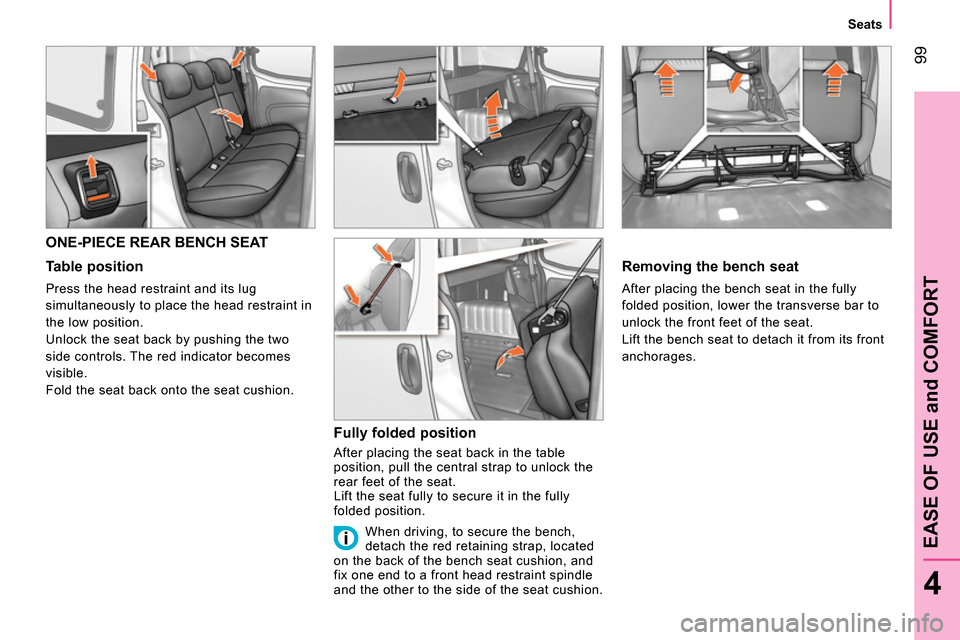

ONE-PIECE REAR BENCH SEAT


Table position

Press the head restraint and its lug
simultaneously to place the head restraint in
the low position.
Unlock the seat back by pushing the two
side controls. The red indicator becomes
visible.
Fold the seat back onto the seat cushion.


Fully folded position

After placing the seat back in the table
position, pull the central strap to unlock the
rear feet of the seat.
Lift the seat fully to secure it in the fully
folded position.

Removing the bench seat

After placing the bench seat in the fully
folded position, lower the transverse bar to
unlock the front feet of the seat.
Lift the bench seat to detach it from its front
anchorages.
When driving, to secure the bench,
detach the red retaining strap, located
on the back of the bench seat cushion, and
fix one end to a front head restraint spindle
and the other to the side of the seat cushion.

100



Seats

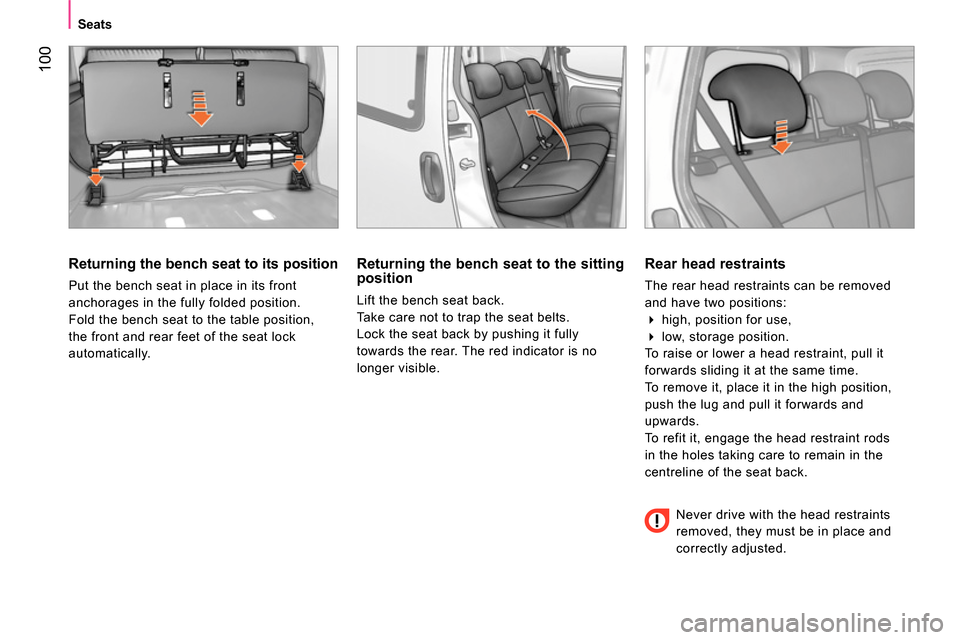

Returning the bench seat to its position

Put the bench seat in place in its front
anchorages in the fully folded position.
Fold the bench seat to the table position,
the front and rear feet of the seat lock
automatically.


Returning the bench seat to the sitting
position
Lift the bench seat back.
Take care not to trap the seat belts.
Lock the seat back by pushing it fully
towards the rear. The red indicator is no
longer visible.


Rear head restraints

The rear head restraints can be removed
and have two positions:

 high, position for use,

 low, storage position.
To raise or lower a head restraint, pull it
forwards sliding it at the same time.
To remove it, place it in the high position,
push the lug and pull it forwards and
upwards.
To refit it, engage the head restraint rods
in the holes taking care to remain in the
centreline of the seat back.

Never drive with the head restraints
removed, they must be in place and
correctly adjusted.

101
4
EASE OF USE and COMFORT



Seats

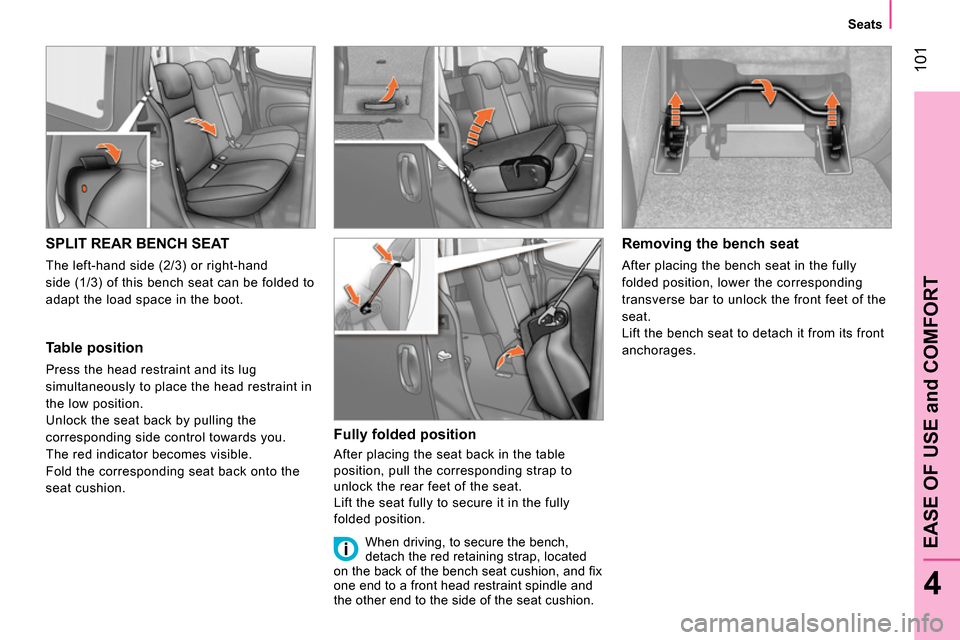

SPLIT REAR BENCH SEAT

The left-hand side (2/3) or right-hand
side (1/3) of this bench seat can be folded to
adapt the load space in the boot.

Table position

Press the head restraint and its lug
simultaneously to place the head restraint in
the low position.
Unlock the seat back by pulling the
corresponding side control towards you.
The red indicator becomes visible.
Fold the corresponding seat back onto the
seat cushion.


Fully folded position

After placing the seat back in the table
position, pull the corresponding strap to
unlock the rear feet of the seat.
Lift the seat fully to secure it in the fully
folded position.

Removing the bench seat

After placing the bench seat in the fully
folded position, lower the corresponding
transverse bar to unlock the front feet of the
seat.
Lift the bench seat to detach it from its front
anchorages.
When driving, to secure the bench,
detach the red retaining strap, located
on the back of the bench seat cushion, and fi x
one end to a front head restraint spindle and
the other end to the side of the seat cushion.

102



Seats

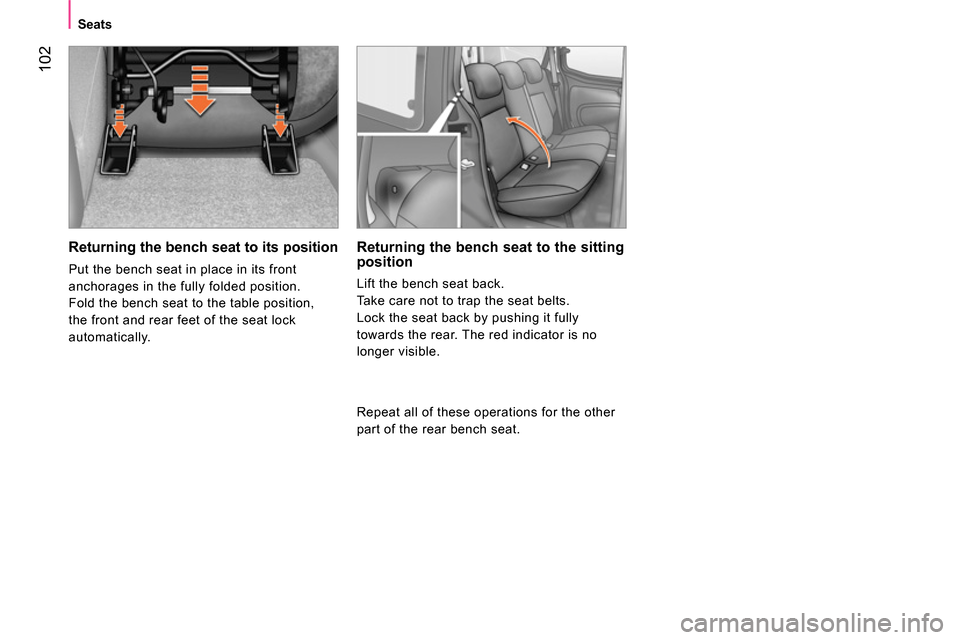

Returning the bench seat to its position

Put the bench seat in place in its front
anchorages in the fully folded position.
Fold the bench seat to the table position,
the front and rear feet of the seat lock
automatically.


Returning the bench seat to the sitting
position
Lift the bench seat back.
Take care not to trap the seat belts.
Lock the seat back by pushing it fully
towards the rear. The red indicator is no
longer visible.
Repeat all of these operations for the other
part of the rear bench seat.

103
4
EASE OF USE and COMFORT


Ventilation

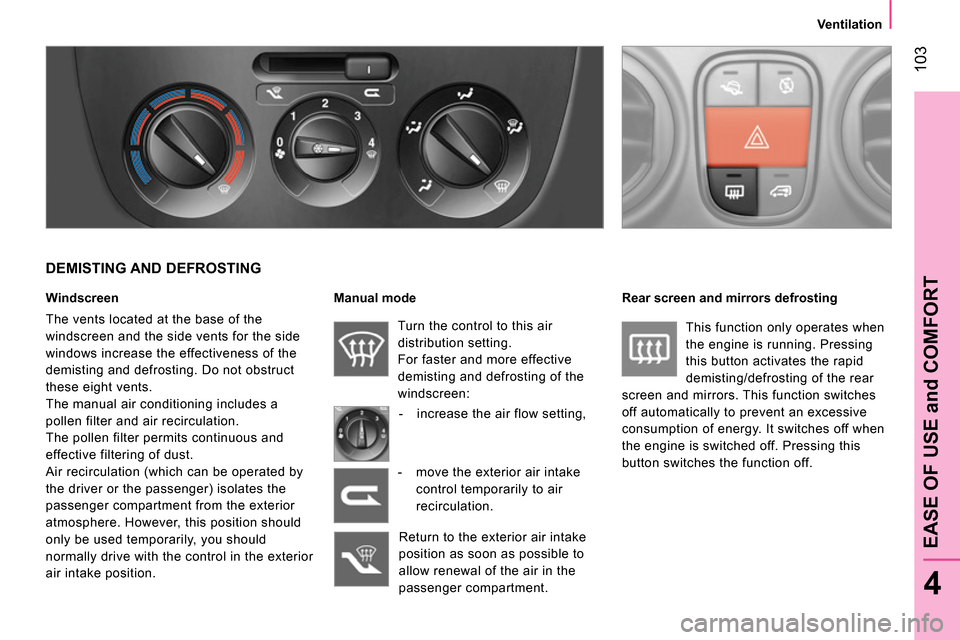

DEMISTING AND DEFROSTING


Windscreen
The vents located at the base of the
windscreen and the side vents for the side
windows increase the effectiveness of the
demisting and defrosting. Do not obstruct
these eight vents.
The manual air conditioning includes a
pollen filter and air recirculation.
The pollen filter permits continuous and
effective filtering of dust.
Air recirculation (which can be operated by
the driver or the passenger) isolates the
passenger compartment from the exterior
atmosphere. However, this position should
only be used temporarily, you should
normally drive with the control in the exterior
air intake position.
Manual mode
Turn the control to this air
distribution setting.
For faster and more effective
demisting and defrosting of the
windscreen:


- increase the air flow setting,
Return to the exterior air intake
position as soon as possible to
allow renewal of the air in the
passenger compartment.
Rear screen and mirrors defrosting
This function only operates when
the engine is running. Pressing
this button activates the rapid
demisting/defrosting of the rear
screen and mirrors. This function switches
off automatically to prevent an excessive
consumption of energy. It switches off when
the engine is switched off. Pressing this
button switches the function off.


- move the exterior air intake
control temporarily to air
recirculation.

104



Ventilation

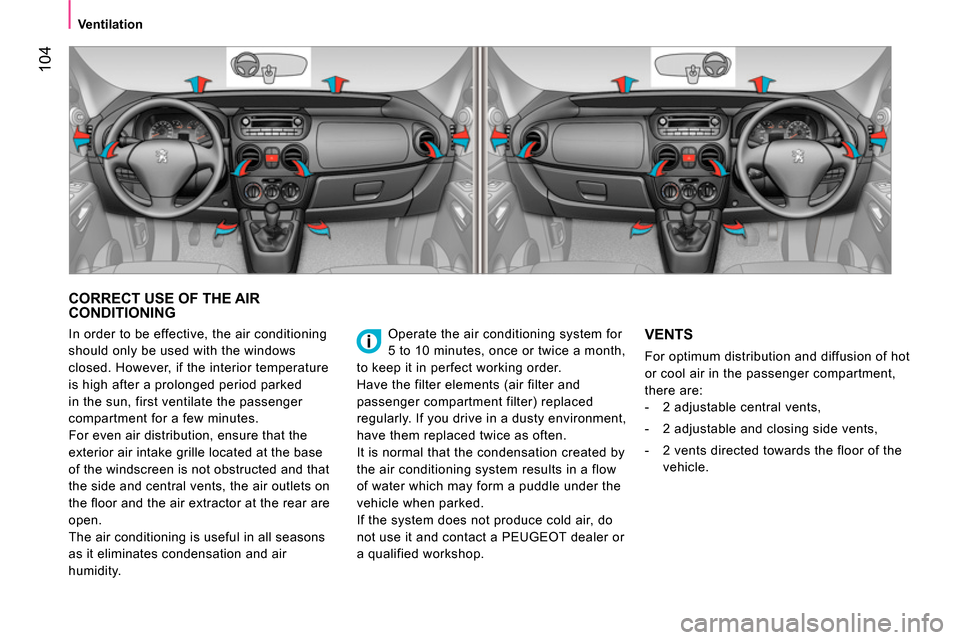

CORRECT USE OF THE AIR
CONDITIONING
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
Have the filter elements (air filter and
passenger compartment filter) replaced
regularly. If you drive in a dusty environment,
have them replaced twice as often.
It is normal that the condensation created by
the air conditioning system results in a flow
of water which may form a puddle under the
vehicle when parked.
If the system does not produce cold air, do
not use it and contact a PEUGEOT dealer or
a qualified workshop.
VENTS

For optimum distribution and diffusion of hot
or cool air in the passenger compartment,
there are:


- 2 adjustable central vents,

- 2 adjustable and closing side vents,

- 2 vents directed towards the floor of the
vehicle.
In order to be effective, the air conditioning
should only be used with the windows
closed. However, if the interior temperature
is high after a prolonged period parked
in the sun, first ventilate the passenger
compartment for a few minutes.
For even air distribution, ensure that the
exterior air intake grille located at the base
of the windscreen is not obstructed and that
the side and central vents, the air outlets on
the fl oor and the air extractor at the rear are
open.
The air conditioning is useful in all seasons
as it eliminates condensation and air
humidity.

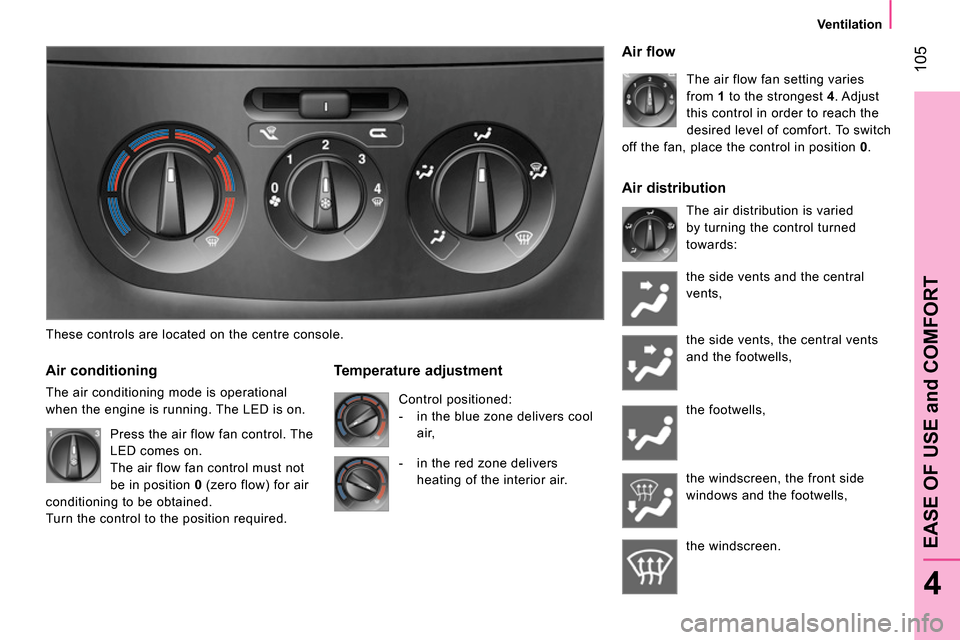

105
4
EASE OF USE and COMFORT


Ventilation



These controls are located on the centre console.


Air conditioning

The air conditioning mode is operational
when the engine is running. The LED is on.

Temperature adjustment

Control positioned:


- in the blue zone delivers cool
air,

Air flow

The air flow fan setting varies
from 1
to the strongest 4
. Adjust
this control in order to reach the
desired level of comfort. To switch
off the fan, place the control in position 0
.
The air distribution is varied
by turning the control turned
towards:
the side vents and the central
vents,
the side vents, the central vents
and the footwells,
the footwells,
the windscreen, the front side
windows and the footwells,
the windscreen. Press the air flow fan control. The
LED comes on.
The air flow fan control must not
be in position 0
(zero flow) for air
conditioning to be obtained.
Turn the control to the position required.
- in the red zone delivers
heating of the interior air.



Air distribution

106



Ventilation

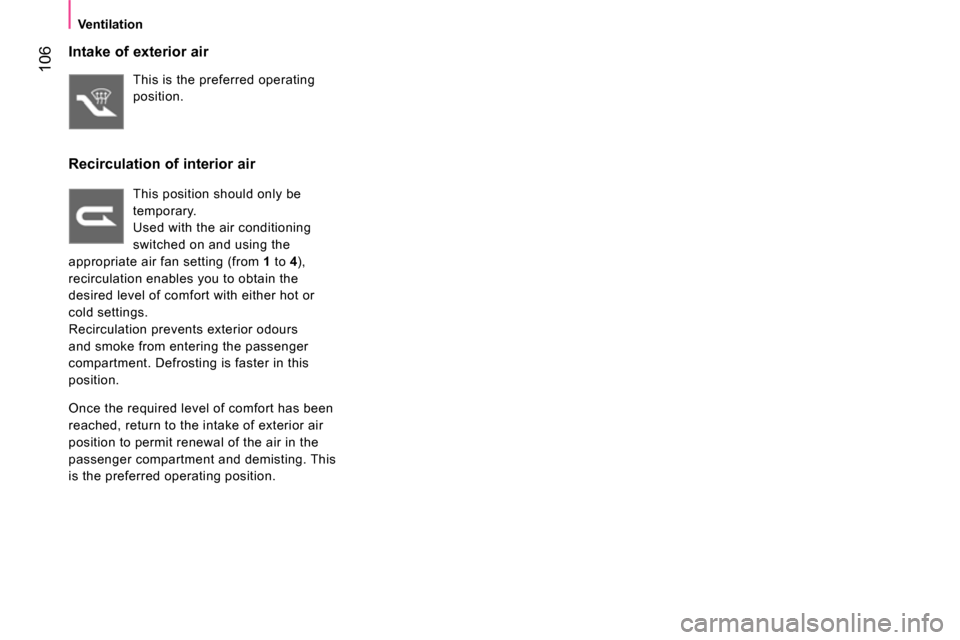

Intake of exterior air

This is the preferred operating
position.


Recirculation of interior air

This position should only be
temporary.
Used with the air conditioning
switched on and using the
appropriate air fan setting (from 1 to 4),
recirculation enables you to obtain the
desired level of comfort with either hot or
cold settings.
Recirculation prevents exterior odours
and smoke from entering the passenger
compartment. Defrosting is faster in this
position.
Once the required level of comfort has been
reached, return to the intake of exterior air
position to permit renewal of the air in the
passenger compartment and demisting. This
is the preferred operating position.

107
4
EASE OF USE and COMFORT



Practical information



Smoker's kit

Located at the base of the centre console,
this consists of a cigarette lighter and an
ashtray.


12 V socket (180 W max)

An accessory socket is provided next to the
cigarette lighter.

FRONT FITTINGS



Folding writing table
(Light van)
This is located in the centre of the
dashboard. In the absence of a table, the
vehicle is fitted with a storage compartment.
The clip can be used to secure A5 format
documents, slips, etc.
Pull the top of the table to unfold it, push to
fold it.


Door pockets

With recess for storing a 1 litre bottle.

108



Practical information

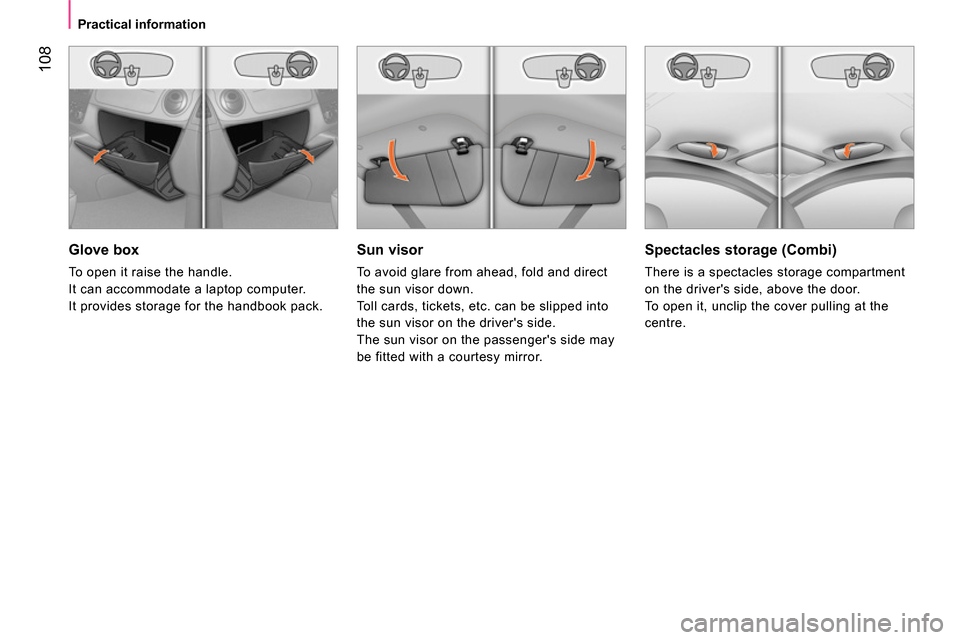

Sun visor

To avoid glare from ahead, fold and direct
the sun visor down.
Toll cards, tickets, etc. can be slipped into
the sun visor on the driver's side.
The sun visor on the passenger's side may
be fitted with a courtesy mirror.


Glove box

To open it raise the handle.
It can accommodate a laptop computer.
It provides storage for the handbook pack.


Spectacles storage (Combi)

There is a spectacles storage compartment
on the driver's side, above the door.
To open it, unclip the cover pulling at the
centre.
