Peugeot Bipper 2014 Owner's Manual

109
4
EASE OF USE and COMFORT



Practical information

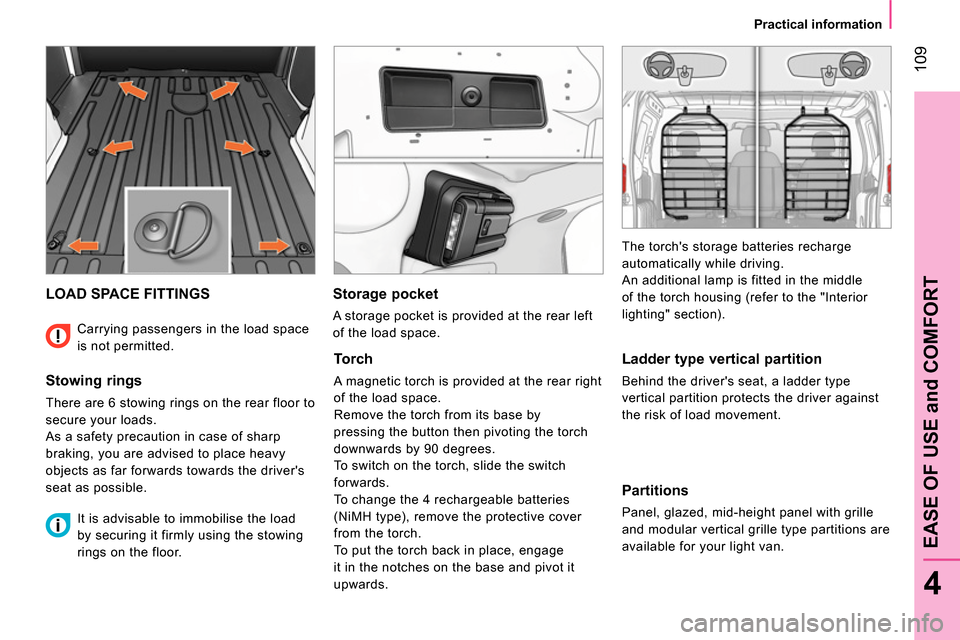

LOAD SPACE FITTINGS


Stowing rings

There are 6 stowing rings on the rear floor to
secure your loads.
As a safety precaution in case of sharp
braking, you are advised to place heavy
objects as far forwards towards the driver's
seat as possible.

Storage pocket

A storage pocket is provided at the rear left
of the load space.


Torch

A magnetic torch is provided at the rear right
of the load space.
Remove the torch from its base by
pressing the button then pivoting the torch
downwards by 90 degrees.
To switch on the torch, slide the switch
forwards.
To change the 4 rechargeable batteries
(NiMH type), remove the protective cover
from the torch.
To put the torch back in place, engage
it in the notches on the base and pivot it
upwards.

Ladder type vertical partition

Behind the driver's seat, a ladder type
vertical partition protects the driver against
the risk of load movement.


Partitions

Panel, glazed, mid-height panel with grille
and modular vertical grille type partitions are
available for your light van.

Carrying passengers in the load space
is not permitted.

It is advisable to immobilise the load
by securing it firmly using the stowing
rings on the floor. The torch's storage batteries recharge
automatically while driving.
An additional lamp is fitted in the middle
of the torch housing (refer to the "Interior
lighting" section).

11 0



Practical information

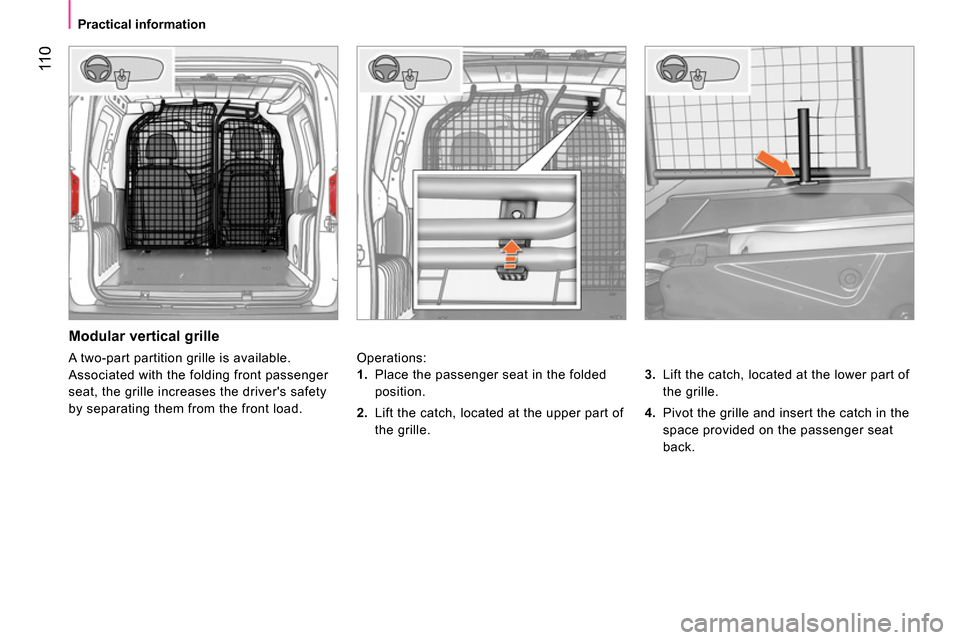

Modular vertical grille

Operations:

3.
Lift the catch, located at the lower part of
the grille.

4.
Pivot the grille and insert the catch in the
space provided on the passenger seat
back.


1.
Place the passenger seat in the folded
position.

2.
Lift the catch, located at the upper part of
the grille. A two-part partition grille is available.
Associated with the folding front passenger
seat, the grille increases the driver's safety
by separating them from the front load.

111
4
EASE OF USE and COMFORT



Practical information

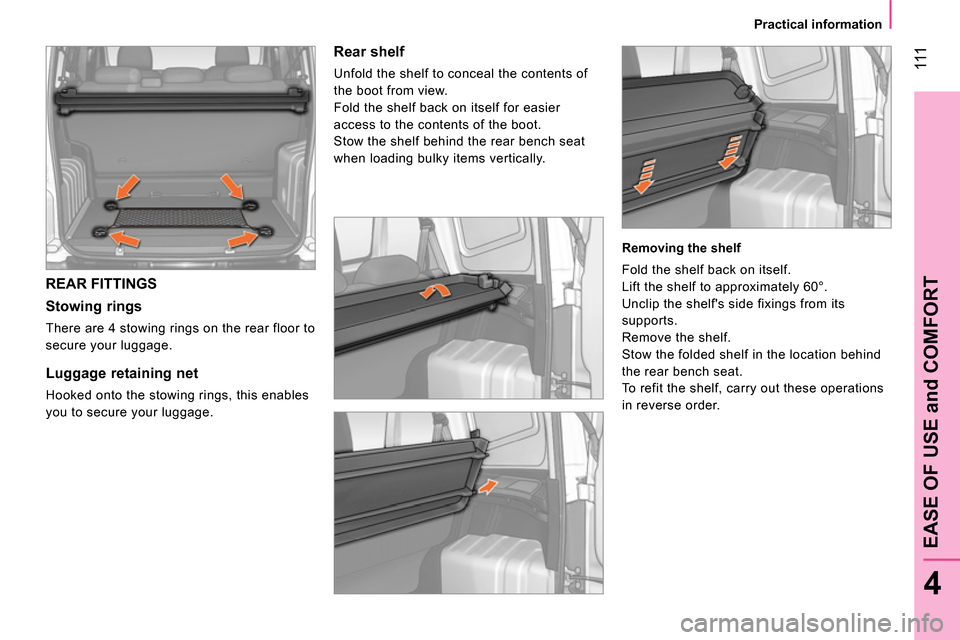

REAR FITTINGS


Stowing rings

There are 4 stowing rings on the rear floor to
secure your luggage.







Luggage retaining net

Hooked onto the stowing rings, this enables
you to secure your luggage.


Rear shelf

Unfold the shelf to conceal the contents of
the boot from view.
Fold the shelf back on itself for easier
access to the contents of the boot.
Stow the shelf behind the rear bench seat
when loading bulky items vertically.

Removing the shelf
Fold the shelf back on itself.
Lift the shelf to approximately 60°.
Unclip the shelf's side fixings from its
supports.
Remove the shelf.
Stow the folded shelf in the location behind
the rear bench seat.
To refit the shelf, carry out these operations
in reverse order.

11 2



Practical information

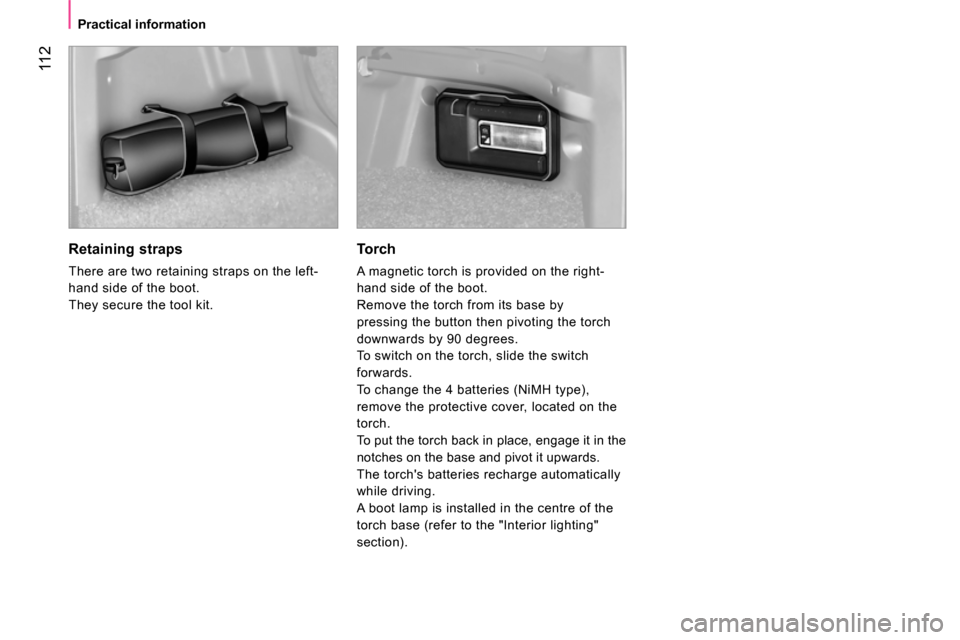

Retaining straps

There are two retaining straps on the left-
hand side of the boot.
They secure the tool kit.


Torch

A magnetic torch is provided on the right-
hand side of the boot.
Remove the torch from its base by
pressing the button then pivoting the torch
downwards by 90 degrees.
To switch on the torch, slide the switch
forwards.
To change the 4 batteries (NiMH type),
remove the protective cover, located on the
torch.
To put the torch back in place, engage it in the
notches on the base and pivot it upwards.
The torch's batteries recharge automatically
while driving.
A boot lamp is installed in the centre of the
torch base (refer to the "Interior lighting"
section).

11 3
4
EASE OF USE and COMFORT



Practical information

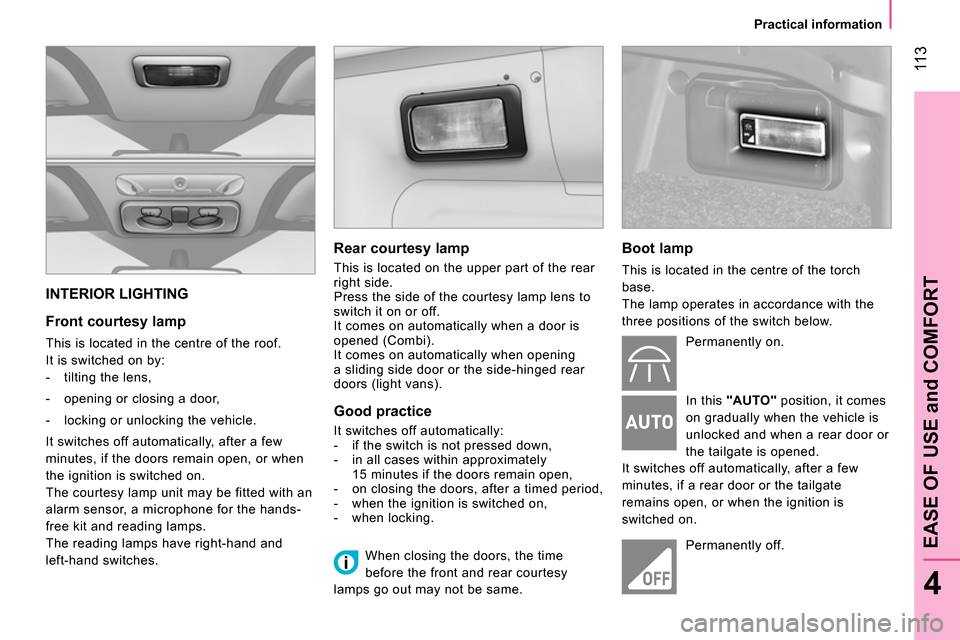

INTERIOR LIGHTING


Front courtesy lamp

This is located in the centre of the roof.
It is switched on by:


- tilting the lens,

- opening or closing a door,

- locking or unlocking the vehicle.
It switches off automatically, after a few
minutes, if the doors remain open, or when
the ignition is switched on.
The courtesy lamp unit may be fitted with an
alarm sensor, a microphone for the hands-
free kit and reading lamps.
The reading lamps have right-hand and
left-hand switches.


Rear courtesy lamp

This is located on the upper part of the rear
right side.
Press the side of the courtesy lamp lens to
switch it on or off.
It comes on automatically when a door is
opened (Combi).
It comes on automatically when opening
a sliding side door or the side-hinged rear
doors (light vans).


Good practice

It switches off automatically:


- if the switch is not pressed down,

- in all cases within approximately
15 minutes if the doors remain open,

- on closing the doors, after a timed period,

- when the ignition is switched on,

- when locking.


Boot lamp

This is located in the centre of the torch
base.
The lamp operates in accordance with the
three positions of the switch below.
Permanently on.
In this "AUTO"
position, it comes
on gradually when the vehicle is
unlocked and when a rear door or
the tailgate is opened.
It switches off automatically, after a few
minutes, if a rear door or the tailgate
remains open, or when the ignition is
switched on.
Permanently off.

When closing the doors, the time
before the front and rear courtesy
lamps go out may not be same.

11 4



Driving safely

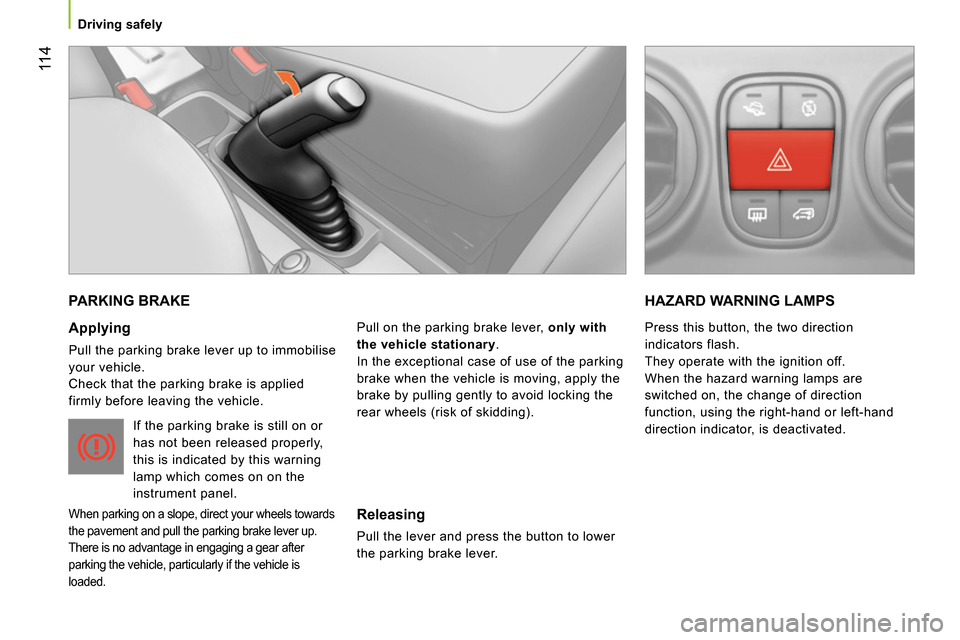

PARKING BRAKE


Applying

Pull the parking brake lever up to immobilise
your vehicle.
Check that the parking brake is applied
firmly before leaving the vehicle.

If the parking brake is still on or
has not been released properly,
this is indicated by this warning
lamp which comes on on the
instrument panel.
When parking on a slope, direct your wheels towards
the pavement and pull the parking brake lever up.
There is no advantage in engaging a gear after
parking the vehicle, particularly if the vehicle is
loaded.

Pull on the parking brake lever, only with
the vehicle stationary
.
In the exceptional case of use of the parking
brake when the vehicle is moving, apply the
brake by pulling gently to avoid locking the
rear wheels (risk of skidding).


HAZARD WARNING LAMPS


Releasing

Pull the lever and press the button to lower
the parking brake lever. Press this button, the two direction
indicators flash.
They operate with the ignition off.
When the hazard warning lamps are
switched on, the change of direction
function, using the right-hand or left-hand
direction indicator, is deactivated.

11 5
5
SAFETY



Driving safely

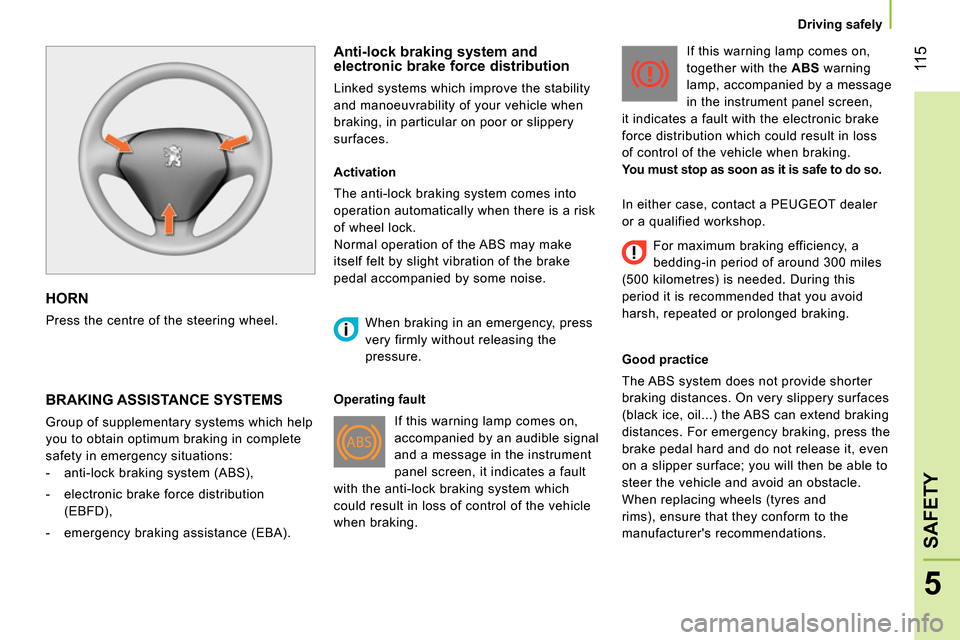

HORN

Press the centre of the steering wheel.


Anti-lock braking system and
electronic brake force distribution
Linked systems which improve the stability
and manoeuvrability of your vehicle when
braking, in particular on poor or slippery
surfaces.

















BRAKING ASSISTANCE SYSTEMS

Group of supplementary systems which help
you to obtain optimum braking in complete
safety in emergency situations:


- anti-lock braking system (ABS),

- electronic brake force distribution
(EBFD),

- emergency braking assistance (EBA).
Activation
The anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal accompanied by some noise.


When braking in an emergency, press
very firmly without releasing the
pressure.

Operating fault
If this warning lamp comes on,
accompanied by an audible signal
and a message in the instrument
panel screen, it indicates a fault
with the anti-lock braking system which
could result in loss of control of the vehicle
when braking. If this warning lamp comes on,
together with the ABS
warning
lamp, accompanied by a message
in the instrument panel screen,
it indicates a fault with the electronic brake
force distribution which could result in loss
of control of the vehicle when braking.

You must stop as soon as it is safe to do so.

Good practice
The ABS system does not provide shorter
braking distances. On very slippery surfaces
(black ice, oil...) the ABS can extend braking
distances. For emergency braking, press the
brake pedal hard and do not release it, even
on a slipper surface; you will then be able to
steer the vehicle and avoid an obstacle.
When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer's recommendations.
In either case, contact a PEUGEOT dealer
or a qualified workshop.
For maximum braking efficiency, a
bedding-in period of around 300 miles
(500 kilometres) is needed. During this
period it is recommended that you avoid
harsh, repeated or prolonged braking.

11 6



Driving safely











Emergency braking assistance *

System which, in an emergency, enables
you to reach the optimum braking pressure
more quickly, thus reducing the stopping
distance. The emergency braking assistance
is an integral part of the ESP system.

Activation
It is brought into play by the speed at which
the brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase in
braking efficiency.
When braking in an emergency, press firmly
without releasing the pressure.

Good practice
This system cannot be deactivated by the
driver.


*
Depending on country of sale.















TRAJECTORY CONTROL SYSTEMS


Electronic stability programme (ESP)


The electronic stability programme acts on
the brake of one or more wheels and on the
engine to keep the vehicle on the trajectory
required by the driver, within the limits of the
laws of physics.

Activation
The ESP system is activated automatically
each time the vehicle is started and cannot
be deactivated.
It comes into operation in the event of a grip
or trajectory problem.
Illumination of this warning lamp
and the warning lamp in the
"ASR OFF"
button, accompanied
by a message in the instrument
panel screen, indicates a fault with the ESP
system, which is deactivated automatically.
Have it checked by a PEUGEOT dealer or a
qualified workshop.



Anti-slip regulation (ASR) and engine
control (MSR)
Anti-slip regulation (also known as traction
control) optimises traction, avoiding wheel
spin by acting on the brakes of the driving
wheels and the engine.
Engine control is an integral part of the ASR
system and intervenes when a sudden gear
change is made or of one of the driving
wheels looses grip, by reducing engine
torque to avoid loss of stability of the
vehicle.

Activation
These systems are activated automatically
every time the vehicle is started.
In the event of a problem od adhesion or
trajectory, these systems come into play.

Deactivation
In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow,
on soft ground...), it may be advisable to
deactivate the ASR system, so that the
wheels can spin freely and regain grip.



Press the "ASR OFF"
button, located in
the middle of the dashboard.
If the button's warning lamp comes
on, accompanied by a message in the
instrument panel screen, this indicates that
the ASR system is deactivated. This is indicated by flashing of this
warning lamp in the instrument
panel.

Operating fault

11 7
5
SAFETY



Driving safely

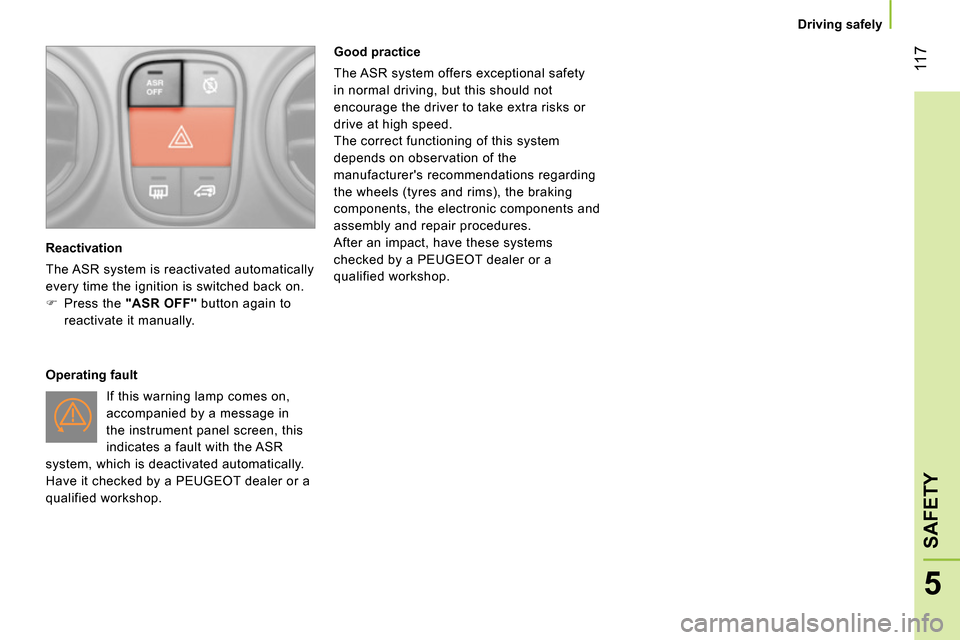

Reactivation
The ASR system is reactivated automatically
every time the ignition is switched back on.



Press the "ASR OFF"
button again to
reactivate it manually.


Operating fault
If this warning lamp comes on,
accompanied by a message in
the instrument panel screen, this
indicates a fault with the ASR
system, which is deactivated automatically.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Good practice
The ASR system offers exceptional safety
in normal driving, but this should not
encourage the driver to take extra risks or
drive at high speed.
The correct functioning of this system
depends on observation of the
manufacturer's recommendations regarding
the wheels (tyres and rims), the braking
components, the electronic components and
assembly and repair procedures.
After an impact, have these systems
checked by a PEUGEOT dealer or a
qualified workshop.

11 8



Driving safely








Intelligent Traction Control

System to improve traction on slippery
surfaces (snow, black ice, mud...)
This system checks for situations of difficult
surface adhesion that could make it difficult
to move off or make progress.
In these situations, Intelligent Traction
Control
takes over from the ASR
system,
by transferring drive to the wheel with the
best grip on the ground to provide the best
traction and trajectory control.
Activation
On starting the vehicle, the system is
deactivated.
Press the button, located on the dashboard,
to activate the system; the warning lamp in
the button comes on.
The system is active up to about 18 mph
(30 km/h).
Once the speed exceed 18 mph (30 km/h),
the system is deactivated automatically, but
the warning lamp in the button comes on.
The system is reactivated automatically
as soon as the speed drops below 18 mph
(30 km/h).
Deactivation
Press the button, located on the dashboard,
to deactivate the system; the warning lamp
in the button goes off and the ASR
system is
active again.

Operating fault
This warning lamp comes on in
the instrument panel if there is a
fault with the system.
