23
Bipper_en_Chap02_eco-conduite_ed02-2014
ECO-DRIVING
eco-driving is a range of everyday practices that allow the motorist to o\
ptimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without
waiting. During acceleration change up early.
With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.
t
he gear shift indicator invites you engage the most suitable gear: as
soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an electronic or automatic gearbox, this
indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively.
t
hese
practices contribute towards a reduction in fuel consumption and CO
2
emissions and also helps reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.
Control the use of your electrical equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light
does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
2
ECO-DRIVING
Motoring & Environment

25
Bipper_en_Chap03_pret-a-partir_ed02-2014
INSTRUMENT PANELS
1. Distance recorder in miles / kilometres.
2. Screen.
3.

Fuel gauge.
4.


Coolant temperature.
5.


Rev counter
.
Instrument panel with level 1 screen Instrument panel with level 2 screen
Instrument panel level 1 screen
- time.
-
Miles / Kilometres travelled.
-

t

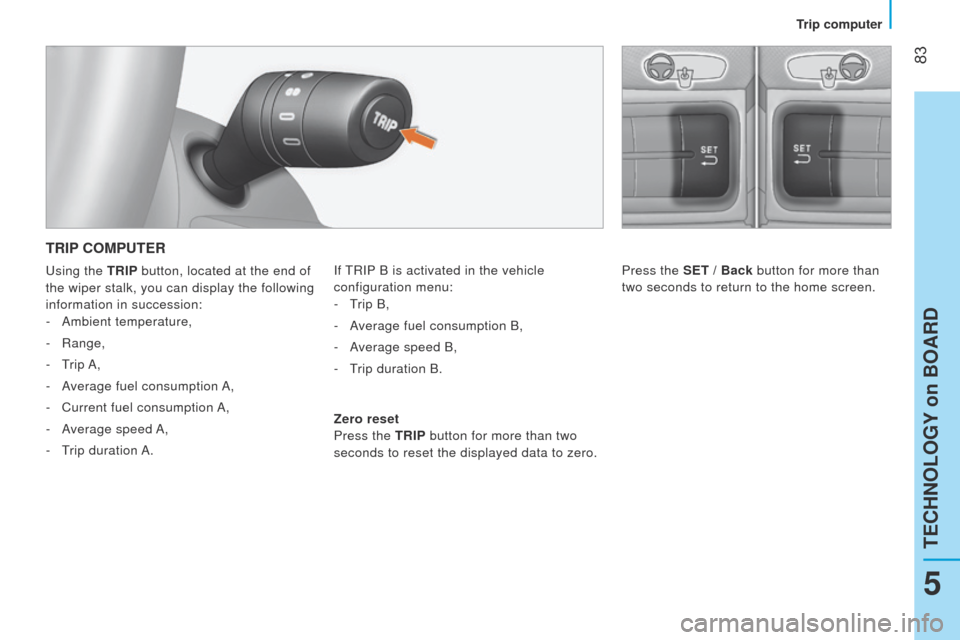

rip computer (range, fuel consumption,

average speed).
-

Headlamp beam height.
-


Programmable overspeed warning.
-

g ear shift indicator.
-

Stop & Start.
-


Activation/ Deactivation of the

passenger's front airbag.
Instrument panel level 2 screen
- time.
-
Date.
-


Radio. -


Miles / Kilometres travelled.
-

Modes and gear engaged on the

electronic gearbox,
- t
rip computer (ambient temperature,

range, fuel consumption, average speed
-
Headlamp beam height,
-

Programmable overspeed warning,
-

Selection of the display language,
-
g ear shift indicator.
-
Stop & Start.
-

Activation/ Deactivation of the

passenger's front airbag.
- State and alert messages for vehicle
functions.
3
READY TO SET OFF
Instruments and controls

33
Bipper_en_Chap03_pret-a-partir_ed02-2014
Displaydisplaysindicates Solution - action
Stop & Start on.
engine S
t
OP
mode
invoked following a stop of
the vehicle. As soon as you want to move off, the
warning lamp goes off and the engine starts
automatically in S
t
ARt mode.
flashes for a few


seconds then goes
off. temporary unavailability
of S
t
OP
mode or
S
t
ARt mode invoked

automatically. Particular case with S
t
OP
mode and S t
ARt
mode.
"Ready to set of

f - Starting and stopping"
section.
g

ear shift indicator the arrow pointing up. a suggested change up. "Ready to set off -
g earbox and steering
wheel" section.
Headlamp beam height adjustment of the
headlamps.a position from 0 to 3
according to the load in
the vehicle. Adjust using the buttons in the side control panel.
"Ready to set off - Steering mounted controls
section".
Ambient temperature
(°C /°F) the temperature, flashing
and accompanied by a
message in the screen.weather conditions which
could result in the presence
of ice on the road.
Be especially vigilant and do not brake sharply.
"Safety - Driving safety" section.
Date (YYYY/MM/DD)
time (HH:MM) a setting:
of the Date.
of

the t
ime.a configuration via the


SET / Back button on the
side control panel. "
t
echnology on board - V
ehicle configuration"
menu.
3
READY TO SET OFF
Instruments and controls

40
Bipper_en_Chap03_pret-a-partir_ed02-2014
ALARM
this provides:
-
exterior perimeter protection by means of

detectors on the doors and bonnet and
on the electrical supply,
-

interior protection,
-


anti-tilt protection,
-


protection against the unauthorised

insertion of a key in the starter.
t

he equipment includes a siren.
Activation of the alarm
First ensure that all of the accesses are
closed correctly.
t
he alarm is activated by pressing
this control, the protection is
active after a few seconds.
While the alarm is monitoring, any
intrusion triggers the siren for approximately
30 seconds, accompanied by illumination of
the direction indicators.
t

he alarm then returns to monitoring mode.
t

he alarm is also triggered following an
electrical supply cut-off, when the supply is
restored.
Deactivation using the remote control
Deactivation using the key
unlock the doors using the key and enter
the vehicle. Switch on the ignition to the
RUNNING position, identification of the key
code will switch off the alarm.
Deactivation of the volumetric and
anti-tilt protection Good practice
to quickly deactivate the siren following

unwanted triggering, unlock the vehicle
using the remote control.
to avoid setting the alarm, before washing


the vehicle for example, lock the vehicle
using the key.
When this button is pressed, the
alarm is deactivated when the
vehicle is unlocked.
Signalling of attempted intrusion
When you return to your vehicle,
flashing of the electronic engine
immobiliser warning lamp or
the appearance of a warning
message in the instrument panel display
indicates an attempted intrusion during your
absence.
to deactivate the volumetric


and anti-tilt protection, press the
button located in the vehicle's
courtesy lamp.
to be ef

fective,
this operation must be repeated every time
the ignition is switched off.
Access

54
Bipper_en_Chap03_pret-a-partir_ed02-2014

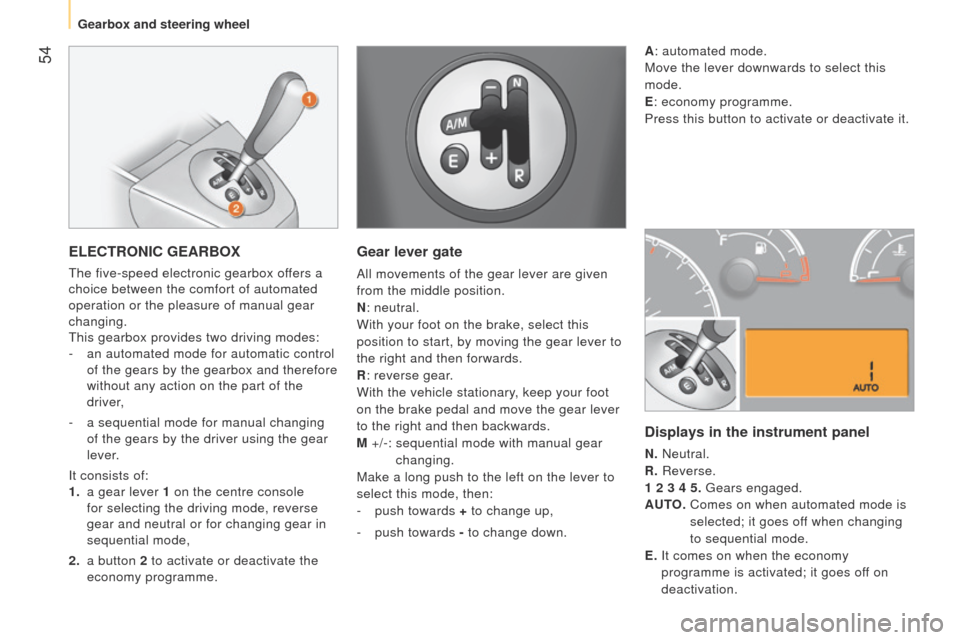

ELECTRONIC GEARBOX
the five-speed electronic gearbox offers a
choice between the comfort of automated
operation or the pleasure of manual gear
changing.
t

his gearbox provides two driving modes:
-

an automated mode for automatic control

of the gears by the gearbox and therefore
without any action on the part of the
driver,
-

a sequential mode for manual changing

of the gears by the driver using the gear
lever.
It consists of:
1.

a gear lever
1 on the centre console
for selecting the driving mode, reverse
gear and neutral or for changing gear in
sequential mode,
2.

a button
2 to activate or deactivate the
economy programme.
Gear lever gate
All movements of the gear lever are given
from the middle position.
N : neutral.
With your foot on the brake, select this
position to start, by moving the gear lever to
the right and then forwards.
R : reverse gear.
With the vehicle stationary, keep your foot
on the brake pedal and move the gear lever
to the right and then backwards.
M +/-:

sequential mode with manual gear

changing.
Make a long push to the left on the lever to
select this mode, then:
-

push towards
+ to change up,
-

push towards
- to change down.
Displays in the instrument panel
N. Neutral.
R. Reverse.
1 2 3 4 5.
g ears engaged.
AUTO.

Comes on when automated mode is

selected; it goes off when changing
to sequential mode.
E.

It comes on when the economy

programme is activated; it goes off on
deactivation.
A
: automated mode.
Move the lever downwards to select this
mode.
E : economy programme.
Press this button to activate or deactivate it.
Gearbox and steering wheel

56
Bipper_en_Chap03_pret-a-partir_ed02-2014
Stopping the vehicle
to switch off the engine, with your foot on
the brake pedal, you should:
-

select first gear or reverse.
-


apply the parking brake to immobilise the

vehicle.
-

switch of
f the ignition.

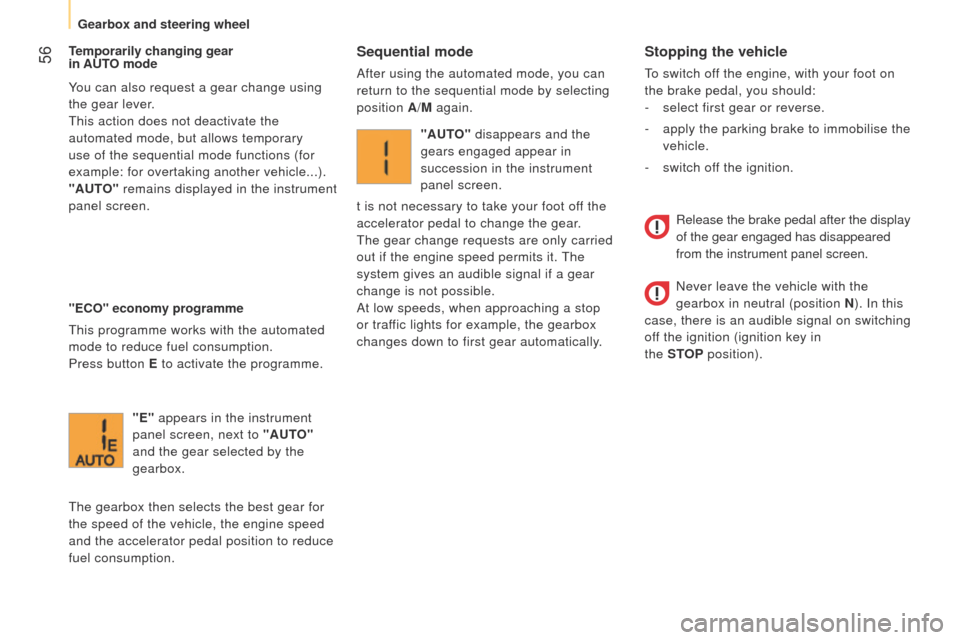

Temporarily changing gear
in AUTO mode
You can also request a gear change using
the gear lever.
t

his action does not deactivate the
automated mode, but allows temporary
use of the sequential mode functions (for
example: for overtaking another vehicle...).
"AUTO" remains displayed in the instrument
panel screen.
"ECO" economy programme
t

his programme works with the automated
mode to reduce fuel consumption.
Press button E to activate the programme.
Sequential mode
After using the automated mode, you can
return to the sequential mode by selecting
position A/M again.
"E" appears in the instrument
panel screen, next to "AUTO"
and the gear selected by the
gearbox.
t

he gearbox then selects the best gear for
the speed of the vehicle, the engine speed
and the accelerator pedal position to reduce
fuel consumption. "AUTO" disappears and the
gears engaged appear in
succession in the instrument
panel screen.
t is not necessary to take your foot off the
accelerator pedal to change the gear.
t

he gear change requests are only carried
out if the engine speed permits it.
t

he
system gives an audible signal if a gear
change is not possible.
At low speeds, when approaching a stop
or traffic lights for example, the gearbox
changes down to first gear automatically.
Release the brake pedal after the display
of the gear engaged has disappeared
from the instrument panel screen.
Never leave the vehicle with the


gearbox in neutral (position N ). In this
case, there is an audible signal on switching
off the ignition (ignition key in
the STOP
position).
Gearbox and steering wheel

58
Bipper_en_Chap03_pret-a-partir_ed02-2014

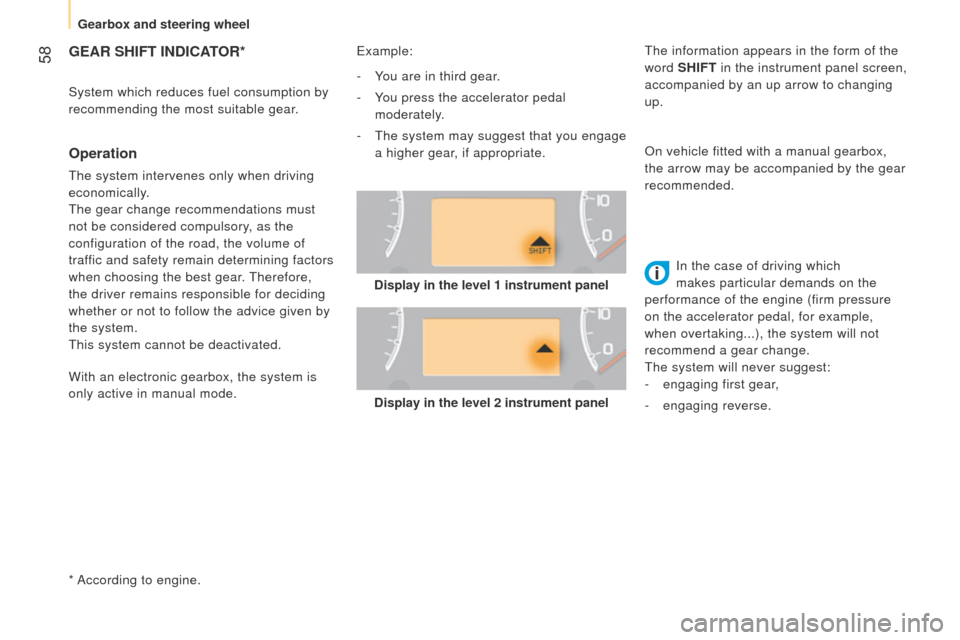

GEAR SHIFT INDICATOR*
* According to engine.
Operation
the system intervenes only when driving
economically .
t

he gear change recommendations must
not be considered compulsory, as the
configuration of the road, the volume of
traffic and safety remain determining factors
when choosing the best gear.
t

herefore,
the driver remains responsible for deciding
whether or not to follow the advice given by
the system.
t

his system cannot be deactivated.
e
xample:
System which reduces fuel consumption by
recommending the most suitable gear.
Display in the level 2 instrument panelIn the case of driving which
makes particular demands on the
performance of the engine (firm pressure
on the accelerator pedal, for example,
when overtaking...), the system will not
recommend a gear change.
t

he system will never suggest:
-

engaging first gear
,
-

engaging reverse.
-


Y
ou are in third gear.
-
Y
ou press the accelerator pedal
moderately.
- t he system may suggest that you engage
a higher gear, if appropriate. On vehicle fitted with a manual gearbox,
the arrow may be accompanied by the gear
recommended.
With an electronic gearbox, the system is
only active in manual mode.
t
he information appears in the form of the
word SHIFT in the instrument panel screen,
accompanied by an up arrow to changing
up.
Display in the level 1 instrument panel
Gearbox and steering wheel

62
Bipper_en_Chap03_pret-a-partir_ed02-2014
Special cases: START invoked
automatically
t
he S t
ARt mode is invoked automatically

when:
-

the vehicle's is free wheeling on a slope,
-


the engine has been stopped for around

3 minutes with Stop & Start,
-

some special conditions (battery charge,

engine temperature, braking assistance,
ambient temperature...) where the engine
is needed to assure control of a system. Good practice
With a manual gearbox in S
t
OP
mode, if a
gear is engaged without fully depressing the
clutch pedal, restarting may not take place.
A warning lamp or message is displayed
in the instrument panel asking you to fully
depress the clutch pedal to allow restarting.
With the engine stopped in S
t
OP
mode,
if the driver unfasten's their seat belt and
opens a front door, the engine can only
be restarted using the ignition key.
t

his is
indicated by an audible signal, accompanied
by flashing of the service warning lamp and
a message in the instrument panel screen.
If following an automatic restart in S
t
ARt
mode, the driver takes no action on the


the vehicle during the next
3 minutes, the
system stops the engine definitively.
t

he
engine can then only be restarted using
the key.
Going into engine START mode
t

he "S" warning lamp goes off and
the engine starts:
-

with a manual gearbox

, depress the
clutch pedal,
-

with an electronic gearbox

:
●

gear lever in position

A or M, release the
brake pedal,
●

or engage rever

se gear. In this case, a message appears
in the instrument panel screen,
accompanied by the "S" warning
lamp, which flashes for a few
seconds, then goes off.
This operation is perfectly normal.
In S
t
OP

mode, moving the gear lever
on an electronic gearbox starts the
engine, in anticipation of moving off.
If the engine stops automatically when
the vehicle is on a slope, as hill start
is only active with the engine running, it is
necessary to restart the engine by engaging
a forward gear and releasing the brake
pedal.
Starting and stopping

83
Bipper_en_Chap05_technologie_ed02-2014
TRIP COMPUTER
If tRIP B is activated in the vehicle
configuration menu: -
t
rip B,
-


A
verage fuel consumption B,
-

A
verage speed B,
-
t
rip duration B.
Zero reset
Press the

TRIP button for more than two
seconds to reset the displayed data to zero.u
sing the TRIP button, located at the end of
the wiper stalk, you can display the following
information in succession: -

Ambient temperature,
-


Range,
-
t
rip A,
-


A

verage fuel consumption A,
-

Current fuel consumption

A,
-

A

verage speed A,
-
t
rip

duration A. Press the SET / Back button for more than
two seconds to return to the home screen.
5
TECHNOLOGY on BOARD
Trip computer

85
Bipper_en_Chap05_technologie_ed02-2014
Menu...Press...Sub-
menu...Press... Select... Confirm
and exitEnables you to...
1 Speed beep ON
Increase
Activate/Deactivate the audible
signal indicating exceeding of the
programmed speed.
Modify the speed setting.
Decrease
OFF
2


Activate
trip
B ON
Activate
Display a second trip,
"
t
rip B".
OFF Deactivate
3


Set
time Hours
Increase
Adjust the clock
Decrease
Format 24 h
Select the display mode for the
clock.
12 h
4 Set date Year /
Month / DayIncrease
Adjust the date.
Decrease
This button enables
you to:
-

access the menus and

sub-menus, This button enables you to:
-
scroll up through a menu,
-

increase a value.
This button enables you to: -

scroll down through a menu,
-

decrease a value.
-


confirm your selections within a menu,
-


exit from the menus.
A
long press enables you to return to the
home screen.
5
TECHNOLOGY on BOARD
Vehicle configuration
