Peugeot Boxer 2002.5 User Guide
Manufacturer: PEUGEOT, Model Year: 2002.5, Model line: Boxer, Model: Peugeot Boxer 2002.5Pages: 182, PDF Size: 2.81 MB
Page 11 of 182
16-09-2002
1111
N° Symbol Function

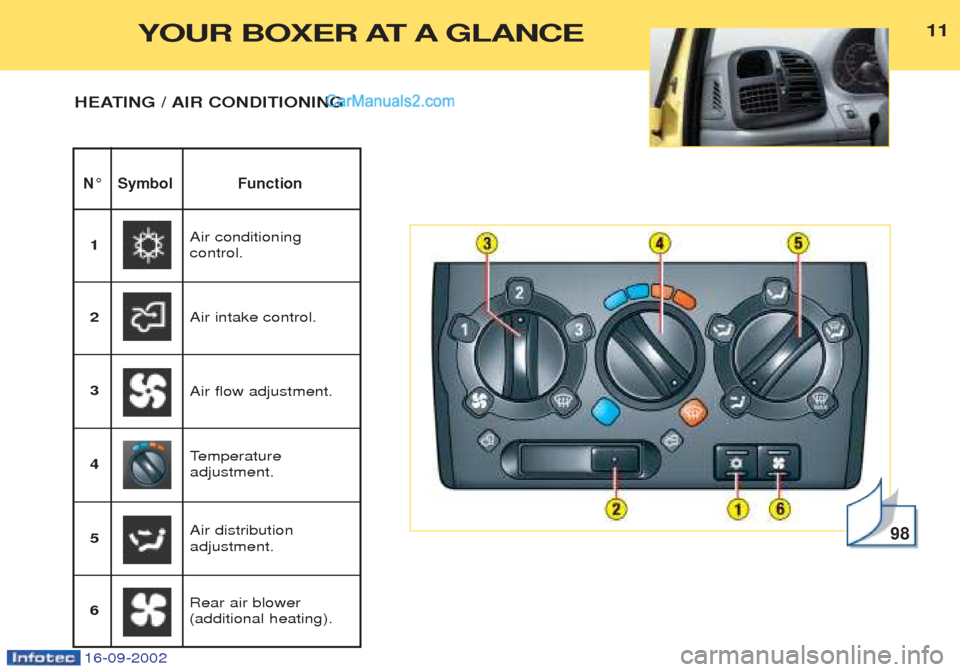

HEATING / AIR CONDITIONING
98
Air conditioning control.
1
Air intake control.
2
Air distribution adjustment.
3
Temperature
adjustment.
4 Air flow adjustment.
5 Rear air blower (additional heating).
6
YOUR BOXER AT A GLANCE
Page 12 of 182
16-09-2002

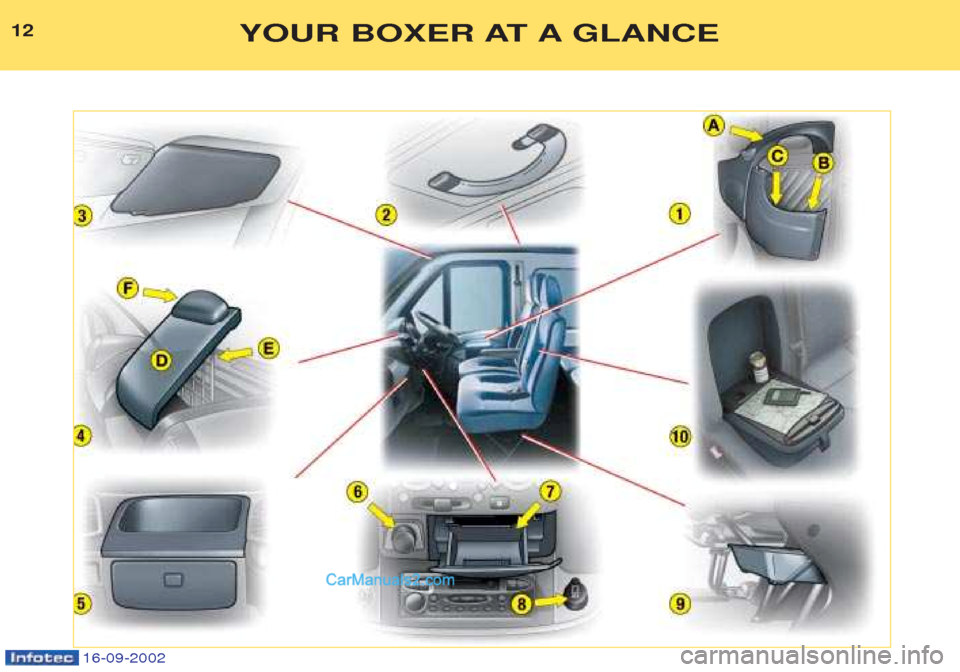

12YOUR BOXER AT A GLANCE
Page 13 of 182
16-09-2002

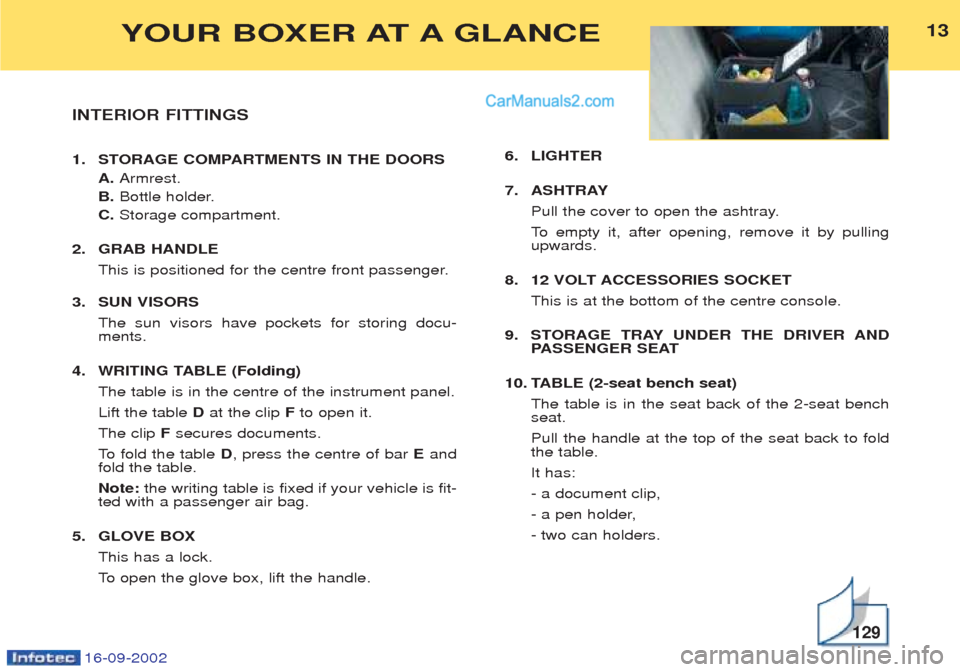

INTERIOR FITTINGS
1. STORAGE COMPARTMENTS IN THE DOORSA. Armrest.
B. Bottle holder.
C. Storage compartment.
2. GRAB HANDLE This is positioned for the centre front passenger.
3. SUN VISORS The sun visors have pockets for storing docu- ments.
4. WRITING TABLE (Folding) The table is in the centre of the instrument panel. Lift the table Dat the clip Fto open it.
The clip Fsecures documents.
To fold the table D, press the centre of bar Eand
fold the table.Note: the writing table is fixed if your vehicle is fit-
ted with a passenger air bag.
5. GLOVE BOX This has a lock.
To open the glove box, lift the handle. 6. LIGHTER
7. ASHTRAY
Pull the cover to open the ashtray.
To empty it, after opening, remove it by pulling
upwards.
8. 12 VOLT ACCESSORIES SOCKET This is at the bottom of the centre console.
9. STORAGE TRAY UNDER THE DRIVER AND PASSENGER SEAT
10. TABLE (2-seat bench seat) The table is in the seat back of the 2-seat bench seat. Pull the handle at the top of the seat back to fold the table. It has:- a document clip,
- a pen holder,- two can holders.
13
129
YOUR BOXER AT A GLANCE
Page 14 of 182
16-09-2002
PEUGEOT SERVICING Your vehicle benefits from extended service intervals.
¥ For petrol engines: every 30,000 km or every two years.
¥ For dual-fuel Petrol or LPG*/UNG** engines: every 30,000 km or every two years. W arning, LPG/UNG checks every 15,000 km or every year.
¥ For direct injection diesel engines: every 20,000 km or every two years.
* Liquid Petroleum Gas. ** Urban Natural Gas.
PEUGEOT SERVICING
18
Page 15 of 182
16-09-2002
The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal. This is why the PEUGEOT network is offering you an intermediate service between regular services.
The date of this visit is not shown by the service indicator. It is to be carried out at least every 15,000 km for petrol engines and dual-fuel petrol or LPG/UNG engines; every 10,000 km for direct injection diesel engines. APeugeot dealer will carry out a quick check and top up the levels if necessary (oil, coolant, windscreen wash up
to 2 litres).If the oil level is too low there is a risk of serious damage to the engine : check the engine oil level at least every 3 000 to 5 000 km, depending on the conditions of use. This extended servicing has been made possible by modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS THAT ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER.
PEUGEOT SERVICING 19
Page 16 of 182
16-09-2002
SERVICE INDICATOR Located on the instrument panel with the total distance recorder (total andtrip distances), this programmes ser-vice intervals depending on the useof the vehicle. Operation Afew moments after the ignition has
been switched on, the spanner sym- bolising a service lights up; the dis-play for the total distance recordertells you (in round figures) the dis-tance remaining before your nextservice. Example: 4 800 km remain before
the next service is due. When the ignition is switched on and for a fewseconds, the display shows: A
few seconds after the ignition is
switched on, the total distance recor-der resumes normal operation andthe display shows the total andor tripdistances. The distance remaining before the next service is less than 1 000 km Each time the ignition is switched on and for a few seocnds, the servicespanner and the distance flash. A few seconds after the ignition is
switched on, the distance recorder resumes normal operation and the
service spanner remains lit. Thisindicates that a service should be
carried out shortly. The service is overdue Each time the ignition is switched on and for a few seconds, the symboland the excess distance flash untilthe service is carried out. A
few seconds after the ignition is
switched on, the distance recorder resumes normal operation and theservice spanner remains lit.
PEUGEOT SERVICING
20
Page 17 of 182
16-09-2002
Zero re-set Your PEUGEOT dealer carries out
this operation after each service.
However, if you carry out the service yourself, the re-set procedure is asfollows: ☞ switch off the ignition,
☞ press and hold the trip recorder re-set button,
☞ switch on the ignition.
The distance remaining to the nextservice flashes. ☞ Press and hold the trip distance recorder zero reset button untilthe display indicates "=0"and
the service spanner disappears.
Important: after this operation, if you
wish to disconnect the battery, lockthe vehicle and wait for at least fiveminutes, otherwise the zero re-setwill not be registered. MAINTENANCE OF PARTS SUBJECT TO WEAR AND A CHECK OF CONSUMABLES Certain essential components on your vehicle are subject to checks at specific frequencies. -
The brake fluid is to be replaced at a maximum of every 60 000 kmor every
two years;
- The coolant is to be replaced at a maximum every 120 000 kmor every 5
years for HDI / TED direct injection Diesel vehicles;
- The pollen filter must be checked at each serviceby a PEUGEOT dealer
(services and intermediate visits) or more often, depending on the environ-
ment (dust, pollution, etc.);
- For HDI turbo diesel engines with particulate emission filter , maintenance
of the filterand topping up of the additive reservoirmust be carried out
every 80 000 km by a PEUGEOT dealer;
- Replacement of the timing belt: contact a PEUGEOT dealer;
- Air bags and pretensioning parts on seat belts must be checked every
10 years ;
- The check on tyre inflation presure must be carried out cold at least once a
month .
PEUGEOT SERVICING 21
Page 18 of 182
16-09-2002
KM 30 000 60 000 90 000

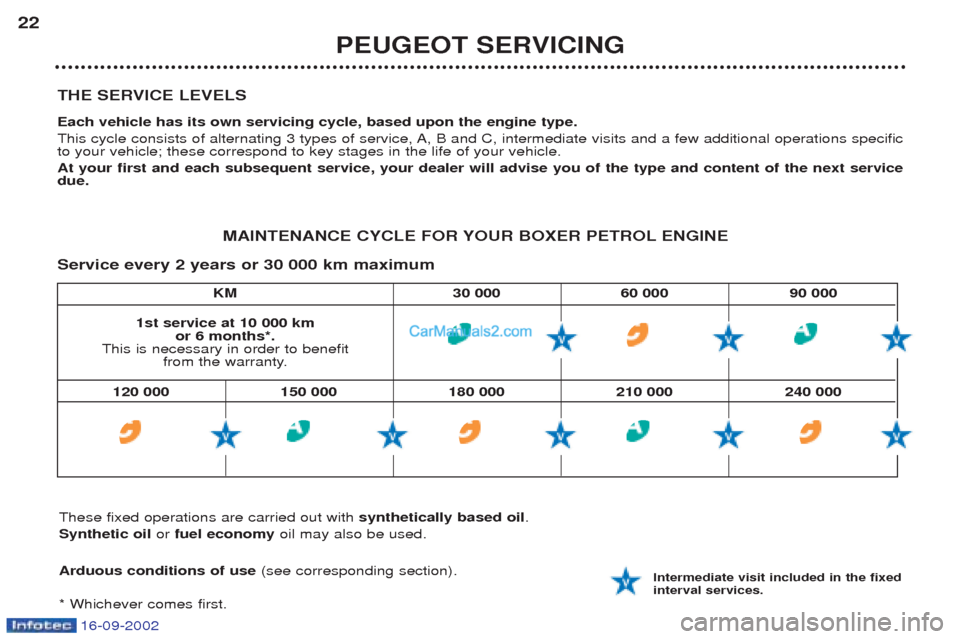

THE SERVICE LEVELS Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating 3 types of service, A, B and C, intermediate visits and a few additional operations specific to your vehicle; these correspond to key stages in the life of your vehicle. At your first and each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
22
MAINTENANCE CYCLE FOR YOUR BOXER PETROL ENGINE
Service every 2 years or 30 000 km maximum
1st service at 10 000 km or 6 months*.
This is necessary in order to benefit from the warranty.
These fixed operations are carried out with synthetically based oil.
Synthetic oil or fuel economy oil may also be used.
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate visit included in the fixed interval services.
120 000 150 000 180 000 210 000 240 000
Page 19 of 182
16-09-2002
PEUGEOT SERVICING23
MAINTENANCE CYCLE FOR YOUR BOXER PETROL/LPG OR UNG ENGINE
Service every 2 years or 30 000 km maximum + LPG/UNG checks every 15 000 km or every year.
LPG/UNG checks: - union sealing check.- LPG/UNG autodiagostics memories check.- adjustment of the pressure relief valve pressures. These fixed operations are carried out with synthetically based oil.
Synthetic oil or fuel economy oil may also be used.
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate visit included in the fixed interval services + LPG/UNG checks.
KM 30 000 60 000 90 000
1st service at 10 000 km
or 6 months*.
This is necessary in order to benefit from the warranty.
120 000 150 000 180 000 210 000 240 000
+ LPG/UNG checks + LPG/UNG checks
+ LPG/UNG solenoid valve filter
replacement + LPG/UNG checks
+ LPG/UNG checks
+ LPG/UNG solenoid valve filter
replacement + LPG/UNG checks
+ LPG/UNG checks
+ LPG/UNG solenoid valve filter
replacement + LPG/UNG checks
+ LPG/UNG checks
+ LPG/UNG solenoid valve filter
replacement
Page 20 of 182
16-09-2002
PEUGEOT SERVICING
24

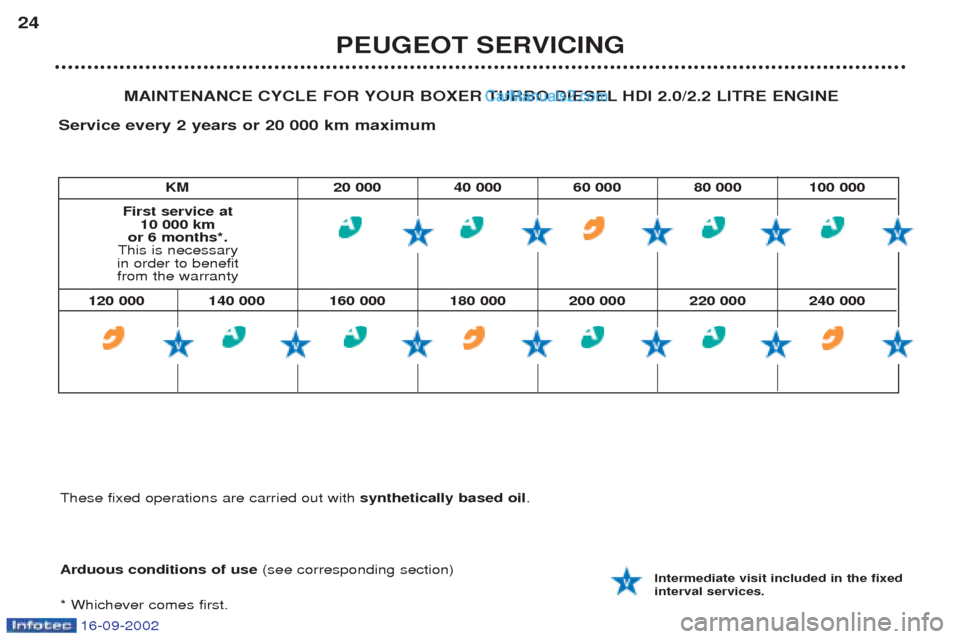

MAINTENANCE CYCLE FOR YOUR BOXER TURBO DIESEL HDI 2.0/2.2 LITRE ENGINE
Service every 2 years or 20 000 km maximum
Arduous conditions of use (see corresponding section)
* Whichever comes first.
Intermediate visit included in the fixed interval services.
KM 20 000 40 000 60 000 80 000 100 000
First service at
10 000 km
or 6 months*.
This is necessary
in order to benefit from the warranty
120 000 140 000 160 000 180 000 200 000 220 000 240 000
These fixed operations are carried out with synthetically based oil.
