Peugeot Boxer 2002.5 Owner's Guide

16-09-2002
PEUGEOT SERVICING25
+ replacement
of air
filter for HDI engine
MAINTENANCE CYCLE FOR YOUR BOXER 2.8 LITRE TURBO DIESEL HDI/TED ENGINE
Service every 2 years or 20 000 km maximum
Arduous conditions of use (see corresponding section)
* Whichever comes first.
Intermediate visit included in the fixed interval services.
These fixed operations are carried out with
synthetically based oilor synthetic oil .
KM 20 000 40 000 60 000 80 000 100 000
First service at
10 000 km or 6 months*. This is necessary
in order to benefit from the warranty
120 000 140 000 160 000 180 000 200 000 220 000 240 000
+ replacement of air
filter for HDI engine + replacement
of air
filter for HDI engine
+ check and adjustment of valve clearances + replacement
of air
filter for HDI engine + check and adjustment
of valve clearances
+ replacement
of air
filter for HDI engine
+ replacement
of air
filter for HDI engine

16-09-2002
ARDUOUS CONDITIONS OF USE
¥ Continuous door-to-door use.
¥ Town use (e.g. taxi).¥ Repeated short journeys, with the engine cold at low temperatures.
¥ A prolonged stay under the following conditions : Ð countries with temperatures often above +30 ¡C,Ð countries with temperatures often below -15 ¡C,Ð countries with a dusty atmosphere,Ð countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an "Arduous Conditions" service schedule which includes special operations and shorter service intervals: ¥ Every 20 000 km or every year for petrol vehicles. ¥ Every 20 000 km or every year for petrol or LPG/UNG dual-fuel vehicles.W arning, LPG/UNG checks every 10 000 km or every 6 months.
¥ Every 15 000 km or every year for Diesel vehicles with HDI / TED direct injection.
PEUGEOT SERVICING
26

16-09-2002
PEUGEOT SERVICING27
A, B AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
: All driving conditions: Arduous conditions * According to country.
1st Level
Operations Description of operation serviceAB C Intermediate
DRAIN/REFILL- Engine oil - Bleed fuel filter (diesel) - Oil filter - Fuel filter* (petrol)REPLACE- Fuel filter element (diesel)- Air filter element- Spark plugs (petrol)- Engine oil (check + top-up) - Manual gearbox oil (check + top-up) - Battery (check + top-up) if cap is removable LEVEL- Screen wash (check + top-up)- Coolant (check + top-up) - Brake fluid (check + top-up) - Power steering fluid (check + top up according to specification) - Operation of lights and indicators - Condition of glass, headlamp and light lenses and mirrors - Horn - Windscreen washer jets - Condition of wiper blades - Condition and tension of the ancillary drive belts - Handbrake and clutch - Condition of hydraulic circuits (hoses and covers) CHECK- Condition of rubber boots and gaiters - Brake pads - Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers- Rear drum brake lining wear- Condition and pressure of tyres (including spare wheel) - Emission control check as per current legislation (petrol) - Smoke opacity (diesel) - Pollen filter (according to specification) - Visual check of the whole vehicle
SERVICE*- Courtesy vehicle
ROAD TEST

16-09-2002
(1) Minimum grade: Petrol engines ACEA A3 and API SH/SJ; Diesel engines ACEA B3 and API CF/CD. ACEA= Association des Constructeurs EuropŽens Automobiles (Association of European Automobile
Manufacturers). API= American Petroleum Institute. If oil is used which does not conform to the ACEA A3-B3 standards, this requires the "Arduous Co nditions"
servicing schedule to be followed, which involves shorter intervals between services. *This Fuel Economy oil can only be used in engines designed for its use.

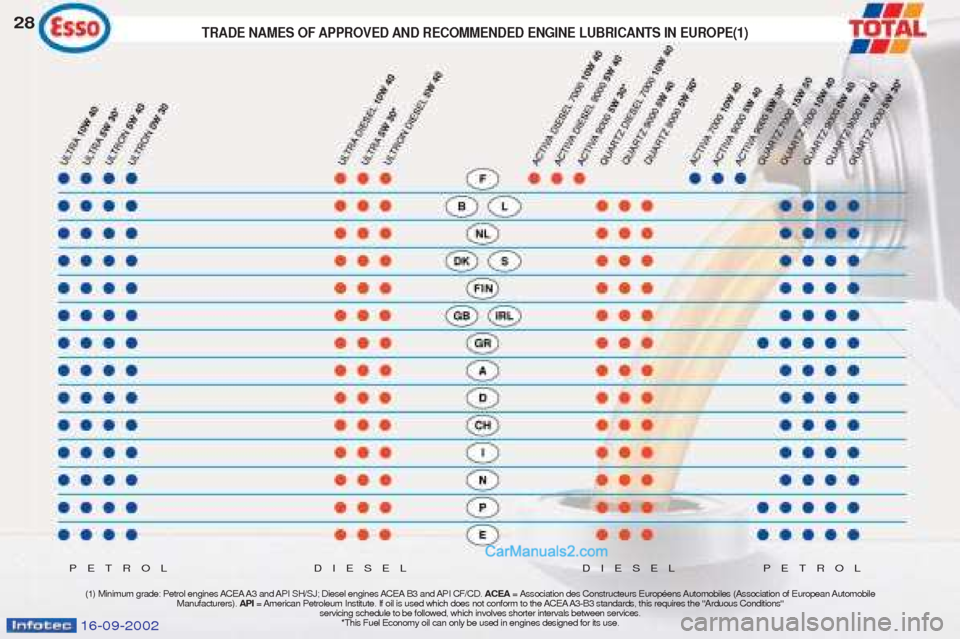

28TRADE NAMES OF APPROVED AND RECOMMENDED ENGINE LUBRICANTS IN EUROPE(1)
PETROL DIESEL DIESEL PETROL

16-09-2002
RECOMMENDATIONS FOR APPROVED LUBRICANTS The oils which appear in the table opposite are suitable for most pur-poses. The diagram opposite states the optimum range of viscosity depen-ding on the temperatures at whichthe oils are to be used. It is also possible to use "superior quality" synthetic oils. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ qua-lity (for petrol engines), or CD/CFquality (for diesel engines) may beused by following the "ArduousConditions" servicing schedule,which specifies shorter intervals. Do not hesitate to ask for advice
from a PEUGEOT dealer to maintaindriving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
PEUGEOT SERVICING29
ONLY ONLY
Manual ESSO Gear Oil BVTO TA L TRANSMISSION BVGearbox 75W80 PR 9736.41 75W80
ONLY
Automatic ATF 4HP20
Gearbox PR 9736.22
Other approved products
Power steering FLUIDE DA PR 9730.A1
Brake fluid PEUGEOT DOT4 Coolant
PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000
ONLYProtection to minus 35C

16-09-2002
1 -Coolant temperature gauge.
2 - Coolant temperature warning light.
3 - Door open warning light.
4 - Speedometer.
5 - Left direction indicator.
6 - Side lights and dippedheadlamps warning light.
7 - Main beam headlamps warning light.
8 - Right direction indicator. 9 -
Rev counter.
10 - Low fuel level warning light.
11 - Fuel gauge.
12 - Brake fluid level warning light.
13 - Traction control (ASR) warning
light.
14 - Passenger air bag disarmed warning light.
15 - Trip distance recorder display
control and zero reset button. 16 -
Front air bags warning light.
17 - Anti-lock braking system (ABS) warning light.
18 - Automatic gearbox temperatureor fault warning light.
19 - Low coolant level warning light.
20 - Service indicator, oil levelgauge, automatic gearbox
display, clock and distance
recorder.
21 - Diesel engine pre-heatingwarning light.
22 - Engine oil pressure warninglight.
23 - Battery charge warning light.
24 - Clock setting button.
25 - Engine autodiagnostics warninglight.
26 - Front brake pads wear warninglight.
27 - Handbrake warning light.
28 - Water in diesel filter warning
light.
29 - Electronic immobiliser keywarning light.
LE CONTRÔLE DE MARCHE
30
PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX
INSTRUMENT PANELS

16-09-2002

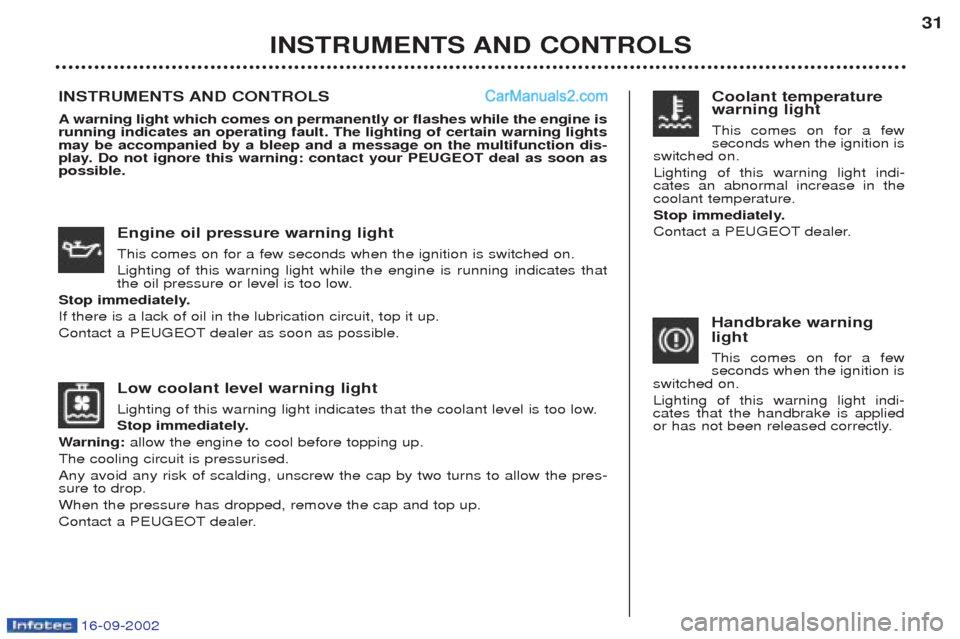

Low coolant level warning light
Lighting of this warning light indicates that the coolant level is too low.
Stop immediately.
W arning: allow the engine to cool before topping up.
The cooling circuit is pressurised.Any avoid any risk of scalding, unscrew the cap by two turns to allow the pres- sure to drop. When the pressure has dropped, remove the cap and top up.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS 31
Engine oil pressure warning light This comes on for a few seconds when the ignition is switched on. Lighting of this warning light while the engine is running indicates that
the oil pressure or level is too low.
Stop immediately. If there is a lack of oil in the lubrication circuit, top it up.
Contact a PEUGEOT dealer as soon as possible.
INSTRUMENTS AND CONTROLS A warning light which comes on permanently or flashes while the engine is
running indicates an operating fault. The lighting of certain warning lights may be accompanied by a bleep and a message on the multifunction dis-
play. Do not ignore this warning: contact your PEUGEOT deal as soon aspossible.
Handbrake warning light This comes on for a few seconds when the ignition is
switched on. Lighting of this warning light indi- cates that the handbrake is applied
or has not been released correctly.Coolant temperature warning light This comes on for a few seconds when the ignition is
switched on. Lighting of this warning light indi- cates an abnormal increase in thecoolant temperature.
Stop immediately.
Contact a PEUGEOT dealer.

16-09-2002
Battery charge warning light This comes on when the ignition is switched on.
Lighting while the engine is runningmay indicate: - faulty operation of the charging cir- cuit,
- slack battery or starter terminals,
-a cut or slack alternator belt,
- an alternator failure.
Contact a PEUGEOT dealer. Anti-lock braking system (ABS) warning light If the warning light remains on or comes on above 12 km/h, this indi-
cates an ABS system fault. Nevertheless, the vehicle retains conventional assisted braking.
Contact a PEUGEOT dealer.
Traction control (ASR) warning light
If the warning light remains on or comes on while the engine is running
and the vehicle is moving, contact a PEUGEOT dealer. It flashes when the system comes into operation and comes on perma-
nently when the system is disarmed.
Diesel engine pre-heating warning light This comes on when the ignition is switched on. Wait until it goes out before operating the starter.
Engine autodiagnostics warning light This comes on when the ignition is switched on. Lighting while the engine is running indicates:
- an emission control system fault,
or
-a particle emission filter fault.
If it flashes while the engine is running, this indicates an injection or ignition sys-
tem fault. There is a risk of destruction of the catalytic converter (petrol engineonly).
Contact a PEUGEOT dealer as soon as possible.
INSTRUMENTS AND CONTROLS
32
Low brake fluid level warning light Lighting of this warning light while the engine is
running indicates that the handbrakeis applied or has not been released
correctly, or that the brake fluid level
is too low.
Simultaneous lighting of the ABS warning light and the low brake fluidlevel warning light indicates a brakeforce distribution system fault.
Stop immediately.
Contact a PEUGEOT dealer.

16-09-2002
Water in diesel filter warning light
This comes on for a few seconds when the ignition is switched on. Lighting of this warning light indicates that there is water in the diesel fil-
ter.
There is a risk of damage to the injection system.
Contact a PEUGEOT dealer as soon as possible.
INSTRUMENTS AND CONTROLS 33
Passenger air bag disarmed warning light This comes on for a few seconds when the ignition is switched on. If the passenger air bag is disarmed, the warning light comes on when the ignition is switched on and stays on.
In all cases, if the warning light flashes, contact a PEUGEOT dealer.
Low fuel level warning light The warning light comes on for a few seconds when the ignition is swit- ched on. Lighting of this warning light while the engine is running indicates that
the fuel level is low.When the warning comes on, you have at least 8 litres of fuelleft.
Air bags warning light The warning light comes on for a few seconds when the ignition is swit- ched on. Lighting of this warning light while the engine is running indicates:
- a front air bags fault, or- a side air bags fault.
Contact a PEUGEOT dealer.
Front brake pad wear warning light Lighting of this warning light while the engine is running
and the vehicle is moving and whenyou press the brake pedal indicatesextreme wear of the front brakepads.
Contact a PEUGEOT dealer as soon as possible.
Electronic immobiliser key warning light This comes on for a few seconds when the ignition is
switched on. Flashing of this warning light, after the ignition has been switched on,
indicates an operating anomaly. If this warning light comes on (per- manently) after the ignition is swit-ched on, check the identification of
the key.
Contact a PEUGEOT dealer as soon as possible.

16-09-2002

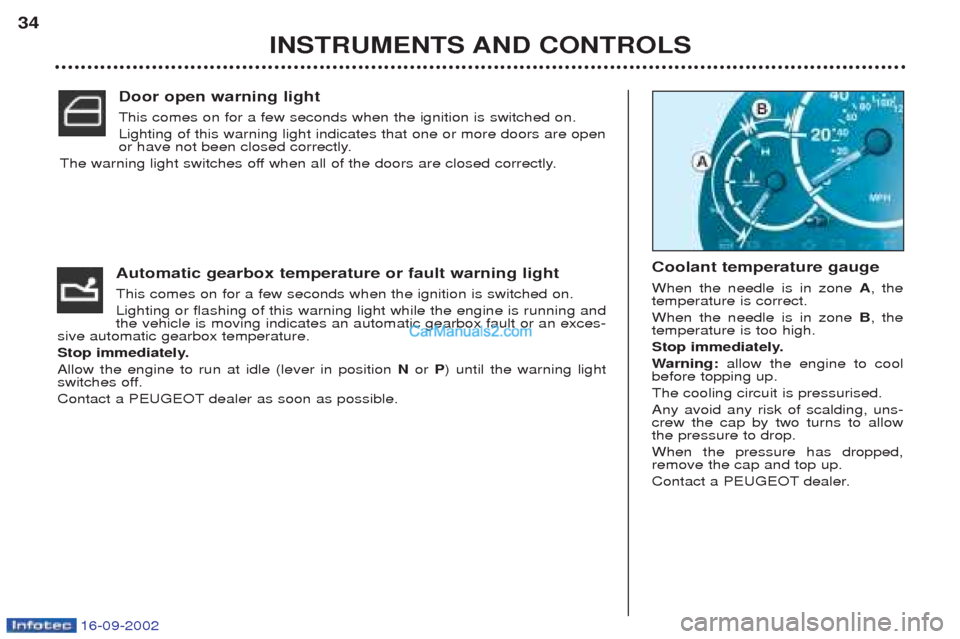

Automatic gearbox temperature or fault warning light This comes on for a few seconds when the ignition is switched on. Lighting or flashing of this warning light while the engine is running and the vehicle is moving indicates an automatic gearbox fault or an exces-
sive automatic gearbox temperature.
Stop immediately.Allow the engine to run at idle (lever in position Nor P) until the warning light
switches off.
Contact a PEUGEOT dealer as soon as possible. Coolant temperature gauge When the needle is in zone
A, the
temperature is correct. When the needle is in zone B, the
temperature is too high.
Stop immediately.W arning: allow the engine to cool
before topping up.The cooling circuit is pressurised.Any avoid any risk of scalding, uns- crew the cap by two turns to allowthe pressure to drop. When the pressure has dropped, remove the cap and top up.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS
34
Door open warning light This comes on for a few seconds when the ignition is switched on. Lighting of this warning light indicates that one or more doors are open
or have not been closed correctly.
The warning light switches off when all of the doors are closed correctly.
