Peugeot Boxer 2002.5 Service Manual
Manufacturer: PEUGEOT, Model Year: 2002.5, Model line: Boxer, Model: Peugeot Boxer 2002.5Pages: 182, PDF Size: 2.81 MB
Page 41 of 182
16-09-2002
YOUR BOXER IN DETAIL47
Adjusting the bass When "BASS" is displayed, press button Jor Lto vary the setting.
- "-6" for a minimum bass setting,
- "0" for a normal setting,
- "+6" for a maximum bass setting.
Adjusting the treble When "TREBLE" is displayed, press button Jor Lto vary the setting.
- "-6" for a minimum treble setting,
- "0" for a normal setting,
- "+6" for a maximum treble setting.
Adjusting the front/rear sound distribution (Fader)When "FADER" is displayed, press button Jor L.
Button Jincreases the volume in the front.
Button Lincreases the volume in the rear.
Adjusting the right/left sound distribution (Balance) When "BALANCE" is displayed, press button Jor L.
Button Jincreases the volume on the right-hand side.
Button Lincreases the volume on the left-hand side.
Activation / Deactivation of the loudness (Loud) This function permits automatic accentuation of the bass and treble. Press button Qfor more than two seconds to activate or deactivate the function.
A confirmation bleep is heard, accompanied by the associated message "LOUD ON"or "LOUD OFF" .
Page 42 of 182
16-09-2002
YOUR BOXER IN DETAIL
48

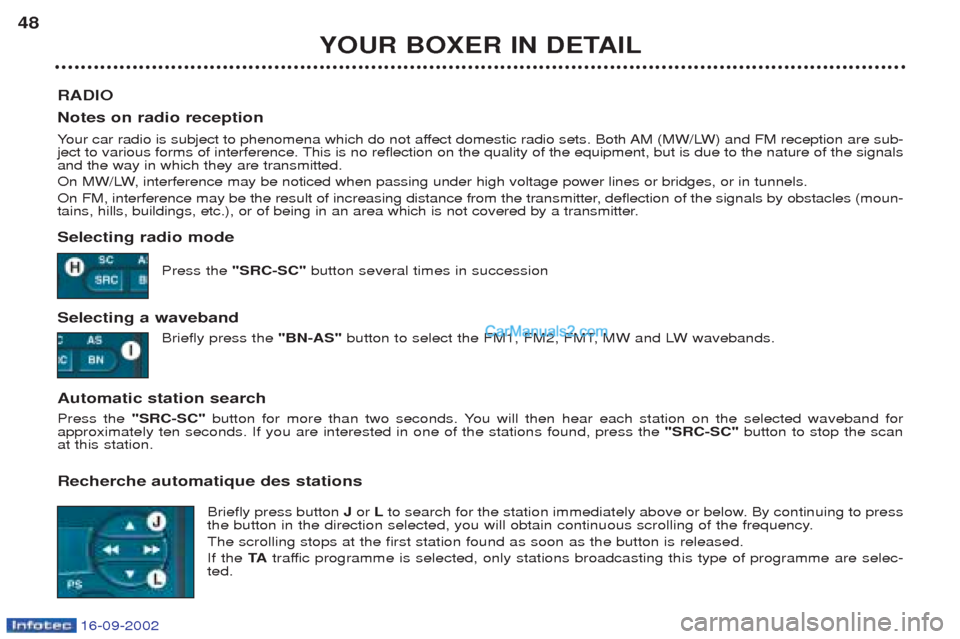

RADIO Notes on radio reception Your car radio is subject to phenomena which do not affect domestic radio sets. Both AM (MW/LW) and FM reception are sub-
ject to various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of the s ignals
and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles (moun -
tains, hills, buildings, etc.), or of being in an area which is not covered by a transmitter. Selecting radio mode
Press the "SRC-SC" button several times in succession
Selecting a waveband Briefly press the "BN-AS"button to select the FM1, FM2, FMT, MW and LW wavebands.
Automatic station search Press the "SRC-SC" button for more than two seconds. You will then hear each station on the selected waveband for
approximately ten seconds. If you are interested in one of the stations found, press the "SRC-SC"button to stop the scan
at this station. Recherche automatique des stations
Briefly press button Jor Lto search for the station immediately above or below. By continuing to press
the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.If the TAtraffic programme is selected, only stations broadcasting this type of programme are selec-
ted.
Page 43 of 182
16-09-2002
YOUR BOXER IN DETAIL49
Searching for a station occurs first in "SENS LO"sensitivity (selection of the most powerful transmitters) during scanning of
the waveband, then in "SENS DX"sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "SENS DX"sensitivity, press button "MENU PS"to access the menu. Then press
button J or Ltwiceto display "SENS LO", the button Kor Mto change the sensitivity.
Manual station search Deactivate the PTYand RDS functions by pressing their respective buttons Dand E, if they are active.
Briefly press button Kor Mrespectively to increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released. Manual storing of stations in the memory
Select the station required. Press one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory.
Automatic storing of FM stations in the memory (autostore)
Press and hold button "BN-AS"for more than two seconds.
Y our radio automatically stores the 6 stations with the strongest signal in FM. These stations are stored in the FMT wave-
band.
If it is not possible to find 6 stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly press buttons "1"to"6" to recall the corresponding station.
Page 44 of 182
16-09-2002
YOUR BOXER IN DETAIL
50
Scanning stored stations Press the "MENU-PS" button for more than two seconds. You will then hear each stored station on the selec-
ted waveband for approximately ten seconds. If you are interested in a stored station, press button "MENU-
PS" to stop the scan at this station.
RDS Using the RDS function on FM The RDS (Radio Data System) allows you to continue listening to the same station, whatever frequency it is using for the region you are going through. Briefly press the "AF-TA"button to switch the function on or off.
The multi-function display wil show:
- "RDS" if the function is selected.
- "RDS" 'greyed out' if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme. T raffic information programme
Press the "AF-TA"button for more than two seconds to switch the function on or off.
The multi-function display will show:
- "TA" if the function is selected,
- "TA greyed out' if the function is selected but not available.
If the station is able to transmit traffic information, the symbol "TP"is displayed when the TAfunction is active.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD). If you wish to interrupt a message, press the "AF-TA"button; this switches the function off.
Note : the volume of traffic information announcements is independent of the volume of normal radio listening. You can adjust it using the volume button. The setting will be stored and will be used when the next messages are broad-cast.
Page 45 of 182
16-09-2002
YOUR BOXER IN DETAIL51
Regional following mode (REG) When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regio- nal following mode you can keep listening to the same programme. Press the "MENU-PS" button gain access to the menu. Press button J or Lto display "REG OFF" , then button Kor Mto
switch the function on or off.
PTY function This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.). With FMselected, press the "PTY"button to switch this function on or off.
To search for a PTYprogramme:
- select the PTYfunction,
- briefly press button Kor Mto scroll down the list of the various types of programmes offered,
- when the programme of your choice is displayed, keep button Kor Mpressed for two seconds to carry
out an automatic search (after an automatic search the PTYfunction is switched off).
In PTY mode the different types of programmes can be stored in the memory. To do this, press the preselection buttons "1"
to "6" for two seconds.
Press the "PTY"button to recall the type of programme stored in the memory.
EON system
This connects stations which are part of the same network. It enables the broadcast of traffic information or of a PTYpro-
gramme, by a station that is part of the same network as the station to which you are listening. This service is available when you have selected the TAtraffic information programme or the PTYfunction.
Press the "PTY"button for more than two seconds to switch this function on or off.
Page 46 of 182
16-09-2002
YOUR BOXER IN DETAIL
52
AUDIO EQUIPMENT MENU FUNCTIONS Press button Nto gain access to the menu.
The word "MENU"appears on the display, then the message "MENU REG-ON" appears.
Press buttons Jand Lto scroll through the menu functions:
- REG (Access to the regional programmes), - EQ SET* (Personalised programming of the equalizer),
- PRESET / USER / CLASSIC / ROCK / JAZZ* (Activation / Deactivation of the equalizer, selection of the equalizer's pre- defined settings),
-H ICUT (Treble decrease),
- PHONE (Telephone volume adjustment),
- RM** (Radio play during cassette winding),
- CD NAME * (Naming of the CD inserted),
- SVC* (Automatique volume adjustment in relation to the vehicle speed),
- SENS DX/LO (Automatic station search sensitivity),
- CD* (Programming of data displayed for a CD).
Then, press buttons Kand Mto apply, cancel or modifiy the setting of the selected function.
* Radio CD only.
** Radio cassette only.
Page 47 of 182
16-09-2002
YOUR BOXER IN DETAIL53

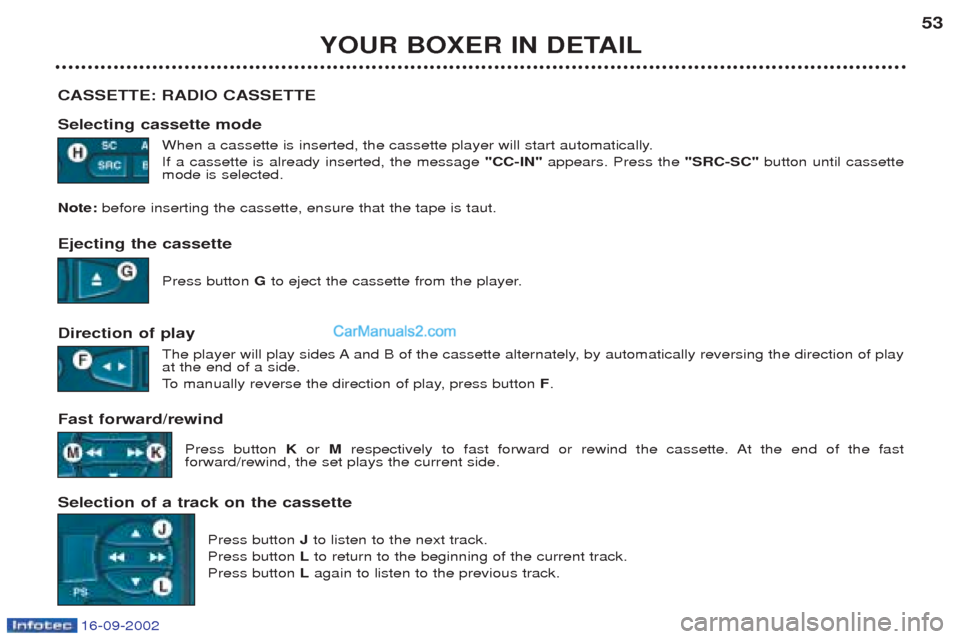

CASSETTE: RADIO CASSETTE Selecting cassette mode When a cassette is inserted, the cassette player will start automatically. If a cassette is already inserted, the message "CC-IN"appears. Press the "SRC-SC"button until cassette
mode is selected.
Note: before inserting the cassette, ensure that the tape is taut.
Ejecting the cassette
Press button Gto eject the cassette from the player.
Direction of play The player will play sides A and B of the cassette alternately, by automatically reversing the direction of play at the end of a side.
To manually reverse the direction of play, press button F.
Fast forward/rewind Press button Kor Mrespectively to fast forward or rewind the cassette. At the end of the fast
forward/rewind, the set plays the current side.
Selection of a track on the cassette Press button Jto listen to the next track.
Press button Lto return to the beginning of the current track.
Press button Lagain to listen to the previous track.
Page 48 of 182
16-09-2002
YOUR BOXER IN DETAIL
54

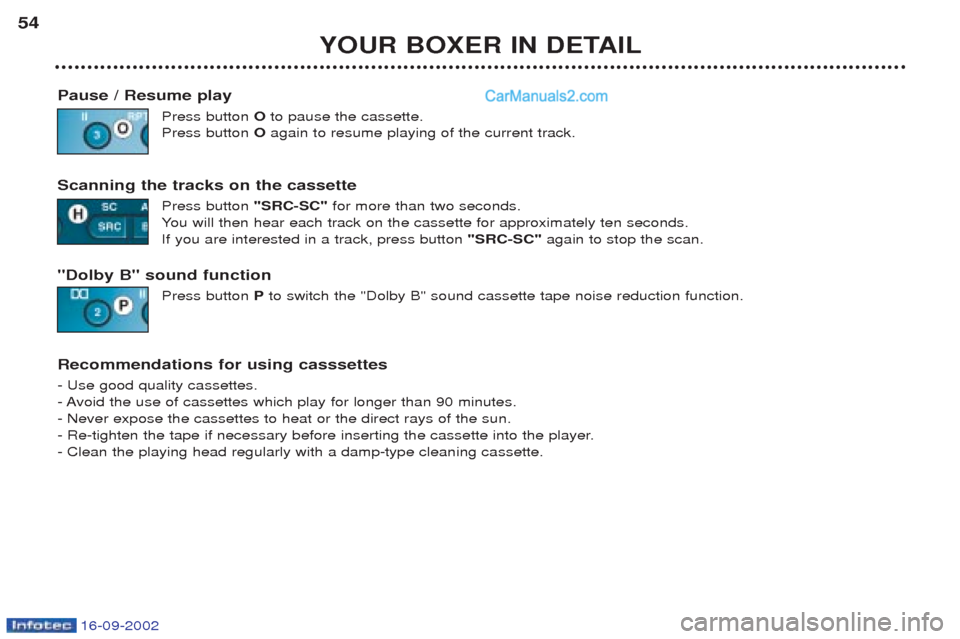

Pause / Resume play Press button Oto pause the cassette.
Press button Oagain to resume playing of the current track.
Scanning the tracks on the cassette Press button "SRC-SC"for more than two seconds.
Y ou will then hear each track on the cassette for approximately ten seconds.
If you are interested in a track, press button "SRC-SC"again to stop the scan.
"Dolby B" sound function Press button Pto switch the "Dolby B" sound cassette tape noise reduction function.
Recommendations for using casssettes - Use good quality cassettes.
- Avoid the use of cassettes which play for longer than 90 minutes.- Never expose the cassettes to heat or the direct rays of the sun.
- Re-tighten the tape if necessary before inserting the cassette into the player.- Clean the playing head regularly with a damp-type cleaning cassette.
Page 49 of 182
16-09-2002
Touche Fonction
A VOL - Diminution du volume.
BO NCoupure / Restauration du son (MUTE). Pression de plus de 2 secondes : m arche/arrêt de l'autoradio.
C VOL + Augmentation du volume.
Stalk movement Function
1 - Press Increase volume.
2 - Press Decrease volume.
3 - Press Sound cut-off (MIUTE); restoring of the sound or by pressing button 1or 2.
4 - Press Change of source (radio/CD).
5 - Press Automatic search of lower frequencies (radio) - Selection of the previous track (CD).
6 - Press Automatic search of higher frequencies (radio) - Selection of the next track (CD).
Button Function
A VOL - Decrease volume.
BO NCut-off / Restoration of the sound (MUTE). Press for more than 2 seconds: audio equipment on/off.
C VOL + Increase volume.
YOUR BOXER IN DETAIL
44
RADIO CD
Page 50 of 182
16-09-2002
Touche Fonction
D AF - TA Marche/arr
Pression de plus de 2 secondes : marche/arr
E PTY Marche/arrPression de plus de 2 secondes : marche/arr
G i
ƒjection du CD.
H SRC SŽlection de la source : radio ou CD.
SC Pression de plus de 2 secondes : balayage des stations (radio) ou des morceaux (CD).
IB NSŽlection des gammes d'ondes FM1, FM2, FMT, MW, LW.
AS Pression de plus de 2 secondes : mŽmorisation automatique des stations (autostore).
J ▲ Recherche automatique frŽquence supŽrieure (radio) - RŽglages audio supŽrieur. SŽlection morceau suivant (CD) - SŽlection fonctions du menu.
K kk Recherche manuelle frŽquence supŽrieure - SŽlection du PTY (radio).Avance rapide (CD) - RŽglages fonctions du menu.
L ▼ Recherche automatique frŽquence infŽrieure (radio) - RŽglages audio infŽrieur.SŽlection morceau prŽcŽdent (CD) - SŽlection fonctions du menu.
M jj Recherche manuelle frŽquence infŽrieure - SŽlection du PTY (radio).Retour rapide (CD) - RŽglages fonctions du menu.
N MENU-PS EntrŽe dans le menu.Pression de plus de 2 secondes : balayage des stations mŽmorisŽes.
OI IPause / Reprise de la lecture du CD.
Q AUD-LD SŽlection des rŽglages audio (graves, aigus, fader, balance).Pression de plus de 2 secondes : activation / neutralisation du loudness.
R MIX Lecture alŽatoire du CD.
S RPT RŽpŽtition dÕun morceau du CD.
TC LR Effacement de la programmation de lecture du CD.
U TPM Programmation de la lecture du CD.
1 à 6 1 2 3 4 5 6 SŽlection de la station mŽmorisŽe. Pression de plus de 2 secondes : mŽmorisation d'une station.

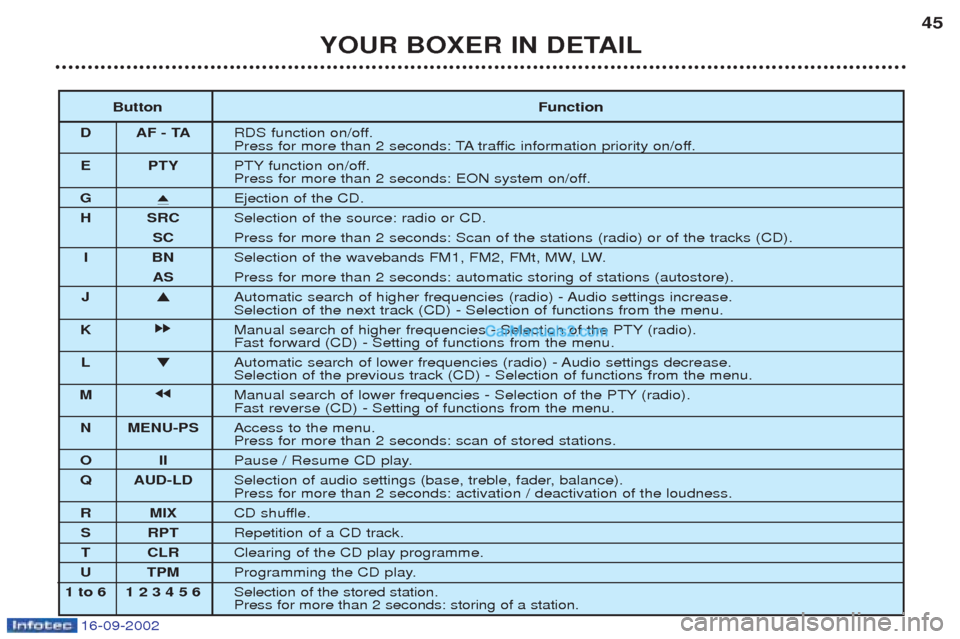

Button Function
D AF - TA RDS function on/off.
Press for more than 2 seconds: TA traffic information priority on/off.
E PTY PTY function on/off.
Press for more than 2 seconds: EON system on/off.
G i
Ejection of the CD.
H SRC Selection of the source: radio or CD.
SC Press for more than 2 seconds: Scan of the stations (radio) or of the tracks (CD).
IB NSelection of the wavebands FM1, FM2, FMt, MW, LW.
AS Press for more than 2 seconds: automatic storing of stations (autostore).
J ▲ Automatic search of higher frequencies (radio) - Audio settings increase. Selection of the next track (CD) - Selection of functions from the menu.
K kk Manual search of higher frequencies - Selection of the PTY (radio).Fast forward (CD) - Setting of functions from the menu.
L ▼ Automatic search of lower frequencies (radio) - Audio settings decrease.Selection of the previous track (CD) - Selection of functions from the menu.
M jj Manual search of lower frequencies - Selection of the PTY (radio).Fast reverse (CD) - Setting of functions from the menu.
N MENU-PS Access to the menu.Press for more than 2 seconds: scan of stored stations.
OI IPause / Resume CD play.
Q AUD-LD Selection of audio settings (base, treble, fader, balance). Press for more than 2 seconds: activation / deactivation of the loudness.
R MIX CD shuffle.
S RPT Repetition of a CD track.
TC LR Clearing of the CD play programme.
U TPM Programming the CD play.
1 to 6 1 2 3 4 5 6 Selection of the stored station. Press for more than 2 seconds: storing of a station.
YOUR BOXER IN DETAIL 45
