DANGER
Since front passenger airbag
triggering and the position
of a rear-facing child seat
are incompatible, it is not
permitted to install such a seat in
this position unless the vehicle is
fitted with an airbag deactivation
device. The child may suffer very
serious injuries if the airbag is
deployed.
The label (on the dashboard) and
the markings (on the sun visor)
remind you of these instructions.
CHILD SAFETY (continued)
Deactivating the front passenger
airbags
(if fitted )
To fit a rear-facing child seat on the
front passenger seat, it is essentialto
deactivate the front passenger seat
additional restraint systems (frontal
and side airbags and lap
pretensioner) and the anti-
submarining airbag (for the three-
door version). To deactivate the airbags:
when the
vehicle is stationary, push and turn
lock 1to the OFF position.
With the ignition on, it is essential
to check that warning light 2,
AIRBAG OFF , is illuminated on the
instrument panel or on centre
display 3 and, depending on the
vehicle, check that the message
“passenger airbag OFF” is
displayed.
This light remains continuously lit
to let you know that you can fit a
child seat.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.41 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
1

NU761_2_G1-FRA.qxd 10/11/05 15:53 Page 1.42
1.42
The passenger airbag
must only be deactivated
or activated when the
vehicle is stationary.
If the lock is moved when the
vehicle is moving, warning lights
åand come on: the
passenger airbag is deactivated.
Switch the ignition off then on
again to reset the airbag in
accordance with the lock.
CHILD SAFETY (continued)
Activating the front passenger
airbags
You should reactivate the airbag as
soon as you remove the child seat
from the front passenger seat, to
ensure the protection of the front
passenger in the event of an impact. Operating faults
It is forbidden to fit a rear-facing
child seat to the front passenger seat
if the airbag activation/deactivation
system is faulty.
Allowing any other passenger to sit
in that seat is not recommended.
Consult your RENAULT Dealer as
soon as possible.

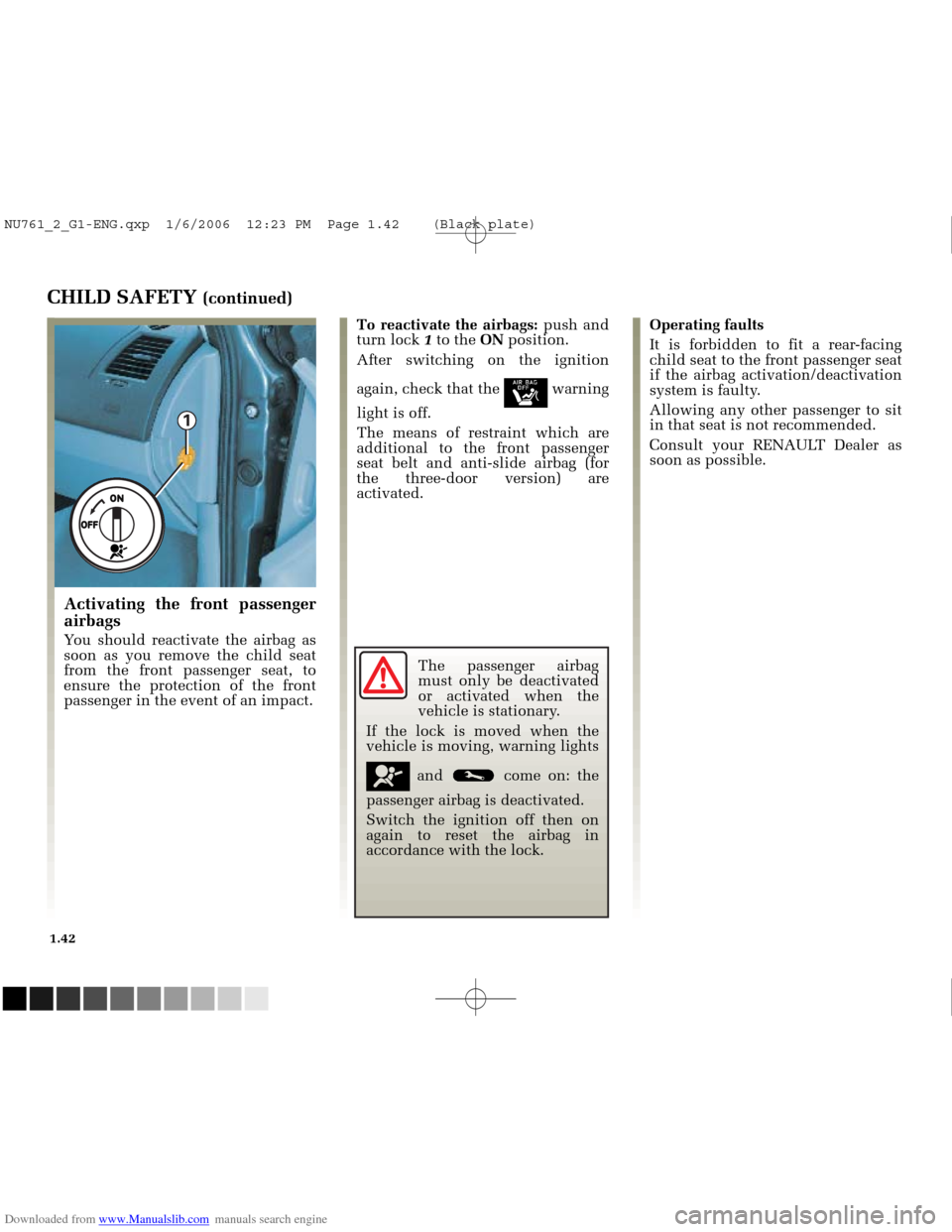

To reactivate the airbags:
push and
turn lock 1to the ON position.
After switching on the ignition
again, check that the
ãwarning
light is off.
The means of restraint which are
additional to the front passenger
seat belt and anti-slide airbag (for
the three-door version) are
activated.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.42 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
1

NU761_2_G1-FRA.qxd 10/11/05 15:53 Page 1.43
1.43
For safety reasons, only
adjust the steering wheel
when the vehicle is
stationary.
STEERING WHEEL
Height and depth adjustment
Pull lever 1and place the steering
wheel in the required position; push
the lever to lock the steering wheel
in place.
Never leave the steering wheel on
full lock when the vehicle is
stationary.
Never switch off the ignition when
travelling downhill, and avoid
doing so in general while driving,
as the power assisted steering and
brake servo will not function.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.43 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
22 21 16 15 14
12 3 4 5 67 8910 11 121320 19 18 17
23
24
25
26

NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.44
1.44
DRIVER’S POSITION, LEFT-HAND DRIVE
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.44 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.45
1.45
DRIVER’S POSITION, LEFT-HAND DRIVE (continued)
The equipment fitted, described below, depends on the version, option an\
d country.
1 Side air vent.
2 Side window demisting outlet.
3 Stalk for:
 direction indicators,
 external lights,
 front fog lights,
 rear fog lights.
4 Instrument panel.
5 Location of Driver’s Airbag and
horn.
6 Radio remote control.
7  Steering column stalk for
windscreen and rear screen
wash/wipe.
 Computer information readout control.
8 Display panel, depending on
vehicle, displaying the time,
temperature, radio and navigation
system information, etc. 9
Central air vents.
10 Air conditioning controls.
11 Location of passenger airbag.
12 Side window demisting outlet.
13 Side air vent.
14 Glove box.
15 Location of radio, navigation
system, etc.
16 Central door locking switch.
17 Hazard warning lights switch.
18 Location for ashtray, cigarette-
lighter and cup holder. 19
Handbrake.
20 Gear lever.
21 RENAULT card reader.
22 Engine Start/Stop button.
23 Storage compartment.
24 Control for adjusting steering
wheel height and depth.
25 Bonnet release.
26 Controls for:
 electric headlight beam adjustment,
 instrument panel lighting dimmer,
 cruise control and speed limiter,
 ASR traction control.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.45 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
12 345 6789101125 24 23 22 21 16 15 14 13 12 20 19 18 17
26

NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.46
1.46
DRIVER’S POSITION, RIGHT-HAND DRIVE
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.46 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.47
1.47
DRIVER’S POSITION, RIGHT-HAND DRIVE (continued)
The equipment fitted, described below, depends on the version, option an\
d country.
1 Side window demisting outlet.
2 Location of passenger airbag.
3 Air conditioning controls.
4 Central air vents.
5 Display panel, depending on
vehicle, displaying the time,
temperature, radio and navigation
system information, etc...
6 Stalk for:
 direction indicators,
 external lights,
 front fog lights,
 rear fog lights.
7 Instrument panel.
8 Radio remote control.
9  Steering column stalk for
windscreen and rear screen
wash/wipe,
 Computer information readout control. 10
Side window demisting outlet.
11 Side air vent.
12 Controls for:
 electric headlight beam adjustment,
 Instrument panel lighting dimmer,
 cruise control and speed limiter,
 ASR traction control.
13 Location of Driver’s Airbag and
horn.
14 Control for adjusting steering
wheel height and depth.
15 Location of radio, navigation
system, etc.
16 Engine Start/Stop button. 17
RENAULT card reader.
18 Location for ashtray, cigarette-
lighter and cup holder.
19 Handbrake.
20 Gear lever.
21 Hazard warning lights switch.
22 Door central locking switches.
23 Storage compartment.
24 Glove box.
25 Bonnet release.
26 Side air vent.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.47 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
A34a4 B
12 11 10 C87

NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.48
1.48
INSTRUMENT PANELVariant 1: zones A, B, C,are detailed on the following pages
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.48 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
A34a4B
12 11 10 D87

NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.49
1.49
INSTRUMENT PANEL (continued)
Variant 2: zones A, B, D,are detailed on the following pages
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.49 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
1234

11 10 9 8 7 6 5
a

NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.50
1.50
INSTRUMENT PANEL (continued)
Variant 1
The presence and operation of the indicator lights described below depen\
d on the vehicle equipment and country.
If the warning light comes on, you should visit a RENAULT Dealer immediately.
If the
ûwarning light comes on, you must stop as soon as traffic conditions allo\
w. If no information appears on the instrument panel,
it is essential to stop as soon as traffic conditions allow.
Some warning lights are accompanied by a message on the instrument panel\
when lit.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.50 (Black plate)
