Page 21 of 93
86A-21
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
DF027
DF028
PRESENT
OR
STOREDCOMPUTER
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–a CD is played in the CD changer.
Special notes:
The CD changer is located under the front left-hand seat and is fitted as an option only
on Scénic II ph2.
The CD changer is only compatible with audio CDs.
Check the condition of the CD and its compatibility with the CD changer.
Replace the CD if not correct.
If the fault is still present, replace the CD changer.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF027/LPN_VC4_DF028
Page 22 of 93
86A-22
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
DF029
PRESENT
OR
STOREDCOMPUTER
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–a CD is played in the CD changer.
Special notes:
The CD changer is located under the front left-hand seat and is fitted as an option only
on Scénic II ph2.
The CD changer is only compatible with audio CDs.
Check that there are no objects that could obstruct the CD changer's ventilation.
Explain to the customer that the CD changer's capacity has been reached (high temperatures).
If the fault is still present, replace the CD changer.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF029
Page 23 of 93
86A-23
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
DF030
PRESENT
COMPUTER CONFIGURATION
1.DEF: Blank or incomplete configuration
NOTESSpecial note:
The screen displays a message: "system not configured, please connect
diagnostic tool".
Check that the system is correctly configured (see Configurations and programming).
After configuration, switch off the ignition, then switch it on again.
If the fault persists, contact your Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF030P
Page 24 of 93
86A-24
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
DF032
PRESENT
OR
STOREDCOMPUTER
1.DEF: System locked
2.DEF: Radio internal overheating
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the multimedia system has been switched on using
the on/off button.
1.DEF
NOTESSpecial note:
The screen displays the immobiliser code entry.
Follow the instructions in Technical Note 5037A, Code
delivery procedure to obtain the immobiliser code.
Check the condition and connection of the connectors on the multiplex connections 133B, 133C of components
645 and 1714.
If the connector(s) are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, W iring: Precautions for repair), repair the connector(s), otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance of the following connections:
●133B between components 645 and 1714,
●133C between components 645 and 1714.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Perform fault finding on the multimedia interface unit (see 86D, Multimedia network interface unit).
If the fault is still present, contact the Techline.
AFTER REPAIRRestart the system.
Carry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF032
Page 25 of 93
86A-25
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF032
CONTINUED
2.DEF
NOTESSpecial note:
The multimedia system no longer emits sound.
This fault may be present after prolonged use at high volume levels.
Check that no objects are obstructing the LPN* radio navigation computer's ventilation.
Explain to the customer that the system's capacity has been reached.
If the fault is still present, contact the Techline.
AFTER REPAIRRestart the system.
Carry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
Page 26 of 93
86A-26
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A

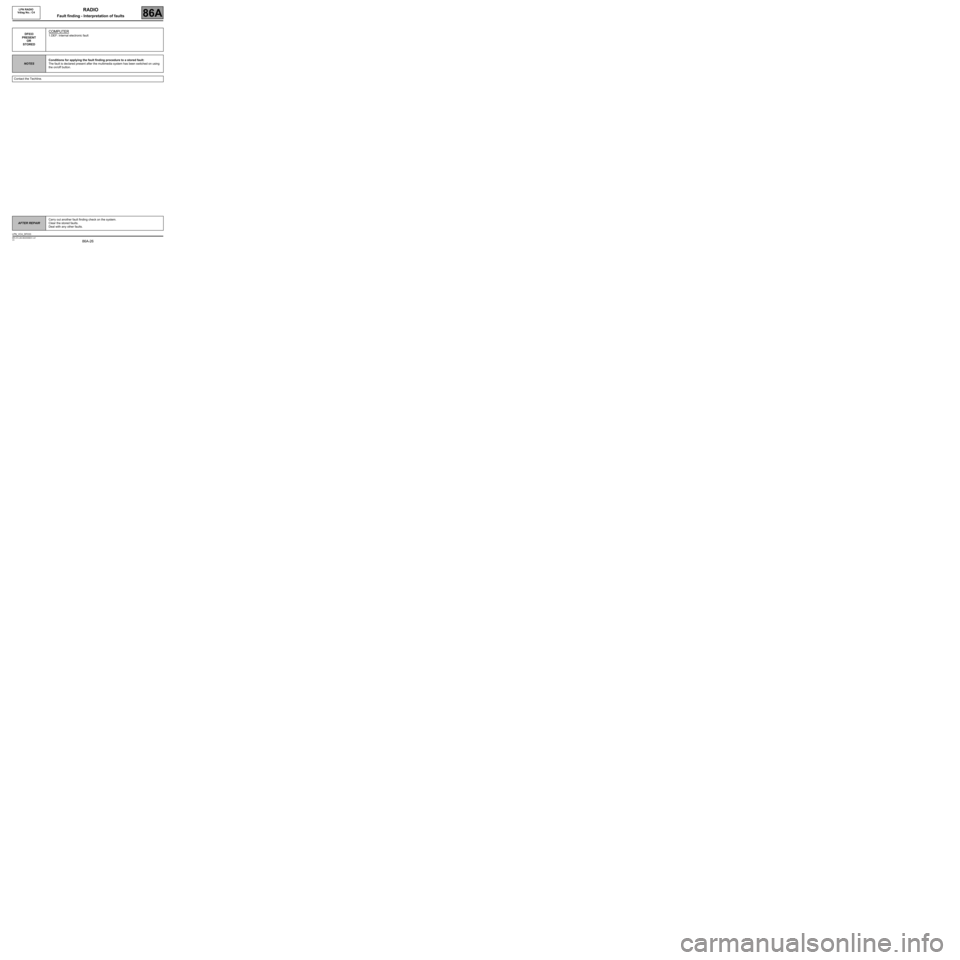

DF033
PRESENT
OR
STOREDCOMPUTER
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the multimedia system has been switched on using
the on/off button.
Contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF033
Page 27 of 93
86A-27
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF034
PRESENT
OR
STORED
COMPUTER
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the multimedia system has been switched on using the on/off button,
–a road test.
Special note:
The gyroscope integrated in the LPN* radio navigation computer gives incorrect
direction and position information.
Contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF034
Page 28 of 93
86A-28
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A

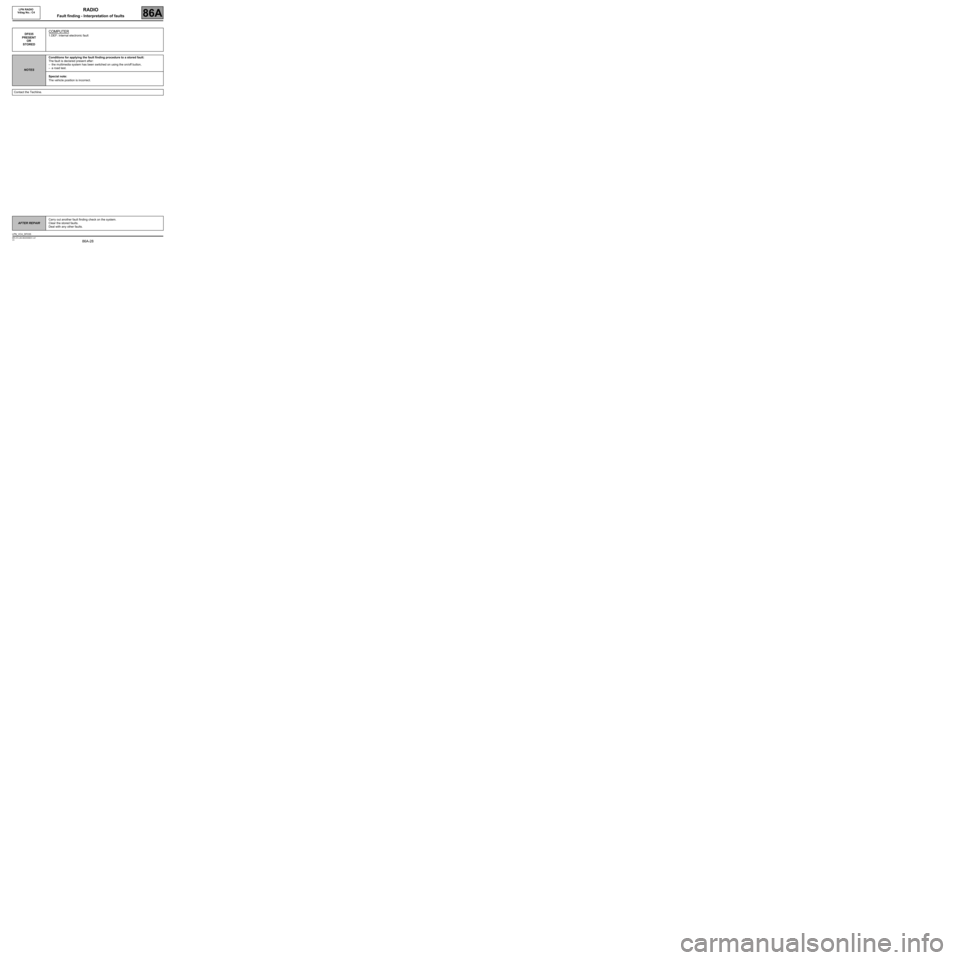

DF035
PRESENT
OR
STOREDCOMPUTER
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the multimedia system has been switched on using the on/off button,
–a road test.
Special note:
The vehicle position is incorrect.
Contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF035
Page 29 of 93
86A-29
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A

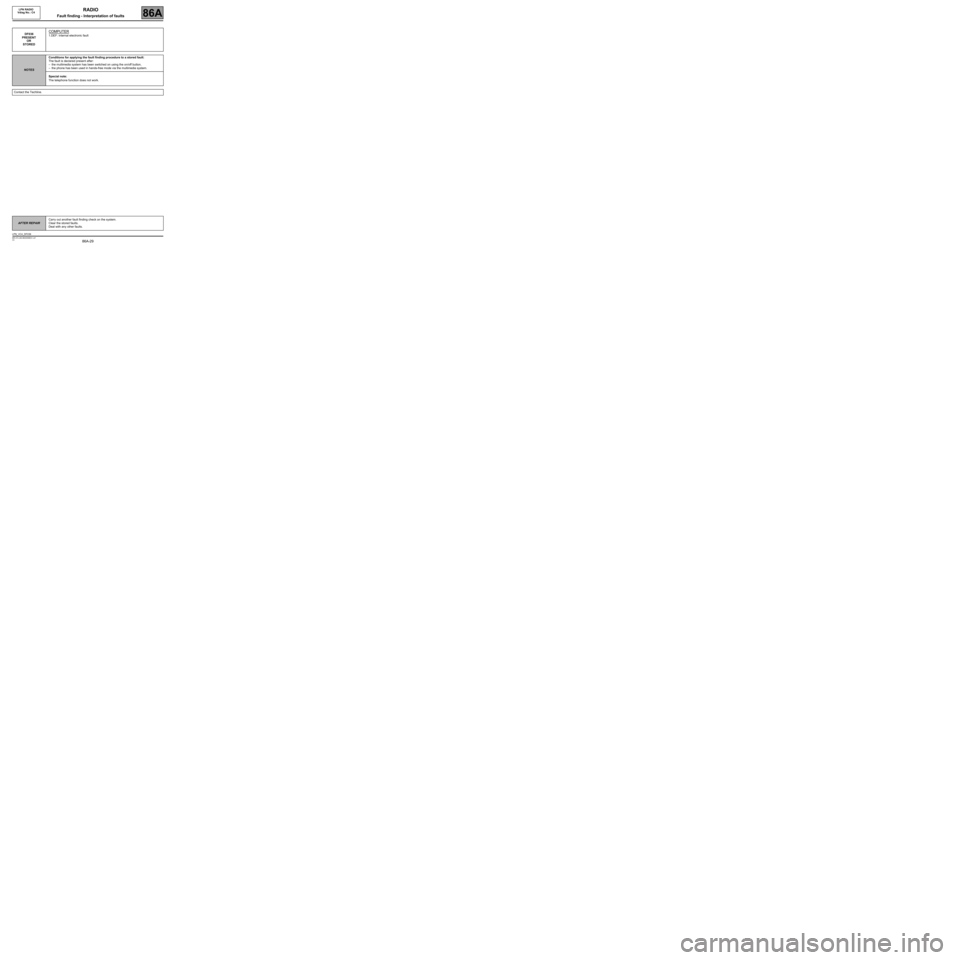

DF036
PRESENT
OR
STOREDCOMPUTER
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the multimedia system has been switched on using the on/off button,
–the phone has been used in hands-free mode via the multimedia system.
Special note:
The telephone function does not work.
Contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF036
Page 30 of 93
86A-30
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
DF037
PRESENT
OR
STOREDCOMPUTER
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the multimedia system has been switched on using the on/off button,
–a road test in an area with no satellite coverage (tunnels, etc.).
Special note:
The vehicle position is incorrect.
Use the wiring diagrams Technical Note for Scénic II ph2, Espace IV ph2, Trafic II
ph2 or Kangoo 2.
Check that the PR010 Vehicle speed wire signal and the multiplex information on the instrument panel
correspond by carrying out a road test.
If both signals are identical but appear incorrect compared to the actual situation, run fault finding on the speed,
ABS or ABS/ESP computer depending on the equipment level (see 38G, Vehicle speed computer or 38C, Anti-
lock braking system).
Look for any damage to the wiring harness, and check the condition and connection of the connectors for
components 261 and 1094, 118 or 953 (depending on the equipment level).
Manipulate the wiring harness in order to observe a change in the fault status (present → stored).
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, W iring: Precautions for repair), repair the connector(s), otherwise replace the wiring.
Check the continuity, insulation and the absence of interference resistance on the following connection:
–Connection code 47F between components 261 and 1094, 118 or 953 depending on the equipment level.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring. Otherwise replace the wiring.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF037
