RENAULT SCENIC 2008 J84 / 2.G LPN Radio Repair Manual
Manufacturer: RENAULT, Model Year: 2008, Model line: SCENIC, Model: RENAULT SCENIC 2008 J84 / 2.GPages: 93, PDF Size: 0.25 MB
Page 51 of 93
86A-51
MR-372-J84-86A050$590.mif
V3
LPN RADIO
Vdiag No: C4RADIO
Fault finding - Conformity check86A
SUB-FUNCTION: AUDIO
NOTESOnly check the conformity after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Application conditions: engine stopped, ignition on.
FunctionParameter, Status
checked or ActionDisplay and notes Fault finding
Vehicle speedPR010:Vehicle speedUnit: km/hIn the event of a fault, consult the
interpretation of parameter
PR010 Vehicle speed.
Power supplyPR011:Battery voltage11 V < PR011 < 14 VIn the event of a fault, refer to the
interpretation of parameter
PR011 Battery voltage.
Auxiliary sourceET056:Auxiliary inputACTIVE
INACTIVEIn the event of a fault, refer to
ALP 23 Auxiliary source fault.
Power supplyET057:Activation signalACTIVE
INACTIVEIn the event of a fault, run fault
finding on the multimedia network
interface unit (see 86D,
Multimedia network
interface unit).
Page 52 of 93
86A-52
MR-372-J84-86A050$649.mif
V3
86A
RADIO
Fault finding - Status summary table
Tool status Diagnostic tool title
ET003Right directional button
ET004Left directional button
ET009CD eject button
ET010Radio preselection button 1
ET011Radio preselection button 2
ET012Radio preselection button 3
ET013Radio preselection button 4
ET014Radio preselection button 5
ET015Radio preselection button 6
ET018Audio button
ET036Wheel press on/off
ET037Navigation button
ET038"MAP" button
ET039"TEL" button
ET040"SET" button
ET041"BACK" button
ET042Repeat button
ET043Wheel left turn
ET044Wheel right turn
ET056Auxiliary input
ET057Activation signal
ET058Central wheel left turn
ET059Central wheel right turn
MR-372-J84-86A050$649.mif
LPN RADIO
Vdiag No: C4
Page 53 of 93
86A-53
MR-372-J84-86A050$708.mif
V3
86A
RADIO

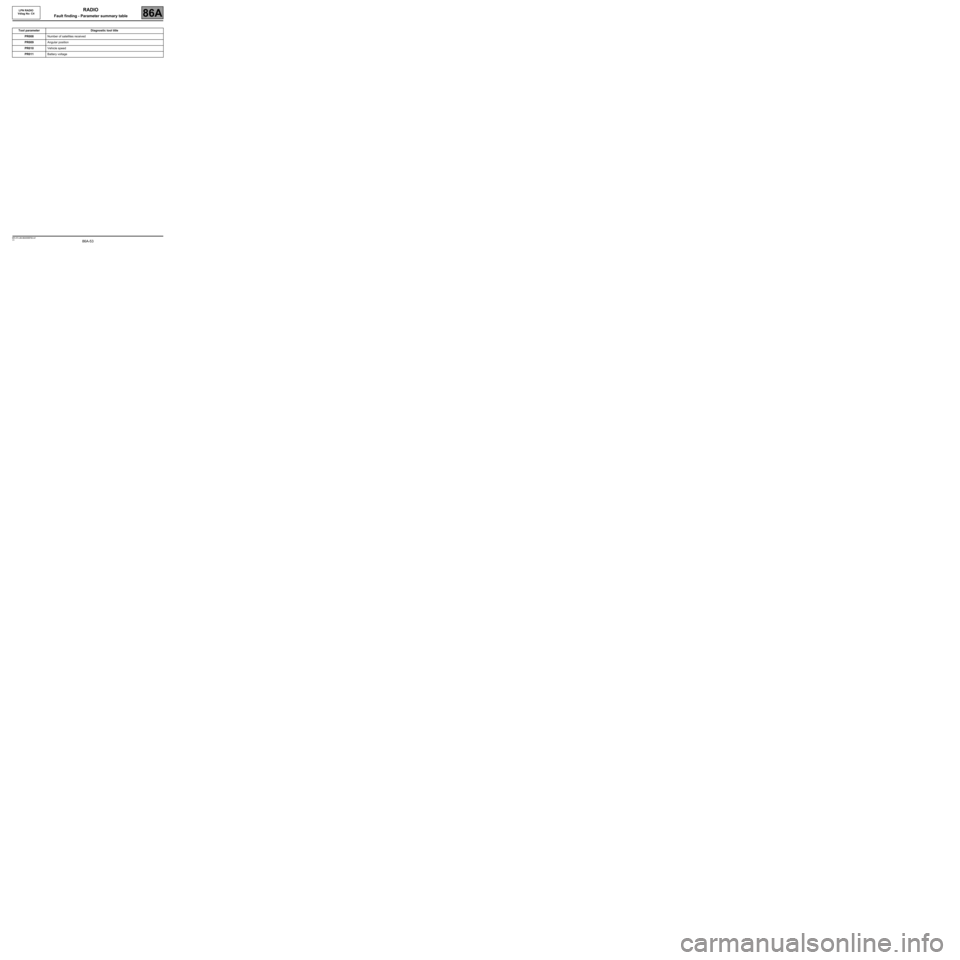

Fault finding - Parameter summary table
Tool parameter Diagnostic tool title
PR008Number of satellites received
PR009Angular position
PR010Vehicle speed
PR011Battery voltage
MR-372-J84-86A050$708.mif
LPN RADIO
Vdiag No: C4
Page 54 of 93
86A-54
MR-372-J84-86A050$767.mif
V3
86A
RADIO
Fault finding - Interpretation of parameters
PR008
NUMBER OF SATELLITES RECEIVED
NOTESThere must be no present or stored faults.
Position the vehicle, with the engine running, in an open area with no interference.
Avoid tunnels and underground car parks.
Use the wiring diagrams Technical Note for Scénic II ph2, Espace IV ph2, Trafic II
ph2 or Kangoo 2.
Check the condition and connection of the GPS coaxial connector on the following components (bent pins, bad
contacts, etc.):
–Scénic II ph2 and Kangoo 2: 886 and 261.
–Espace IV ph2 and Trafic II ph2: 261 and 1551.
If the connector is faulty and if there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Disconnect the GPS coaxial cable at the rear of component 261 and measure the resistance between the coaxial
cable signal connection and its shielding.
If the resistance is less than 30 Ω, disconnect the GPS coaxial cable from the cut-off plate at the rear and check
the insulation, continuity and absence of interference resistance on the GPS coaxial cable at the rear of
component 261.
If the connections are not correct, replace the coaxial cable.
If the connections are correct, replace the GPS aerial.
–Scénic II ph2 (see MR 370, Mechanical, 83C, On-board telematics system, Radio aerial: Removal -
Refitting)
–Trafic II ph2 (see MR 408, Mechanical, 83C, On-board telematics system, Navigation aerial: Removal -
Refitting)
–Espace IV ph2 (see MR 405, Mechanical, 83C, On-board telematics system, Navigation aerial: Removal -
Refitting)
–Kangoo 2 (see MR 417, Mechanical, 83C, On-board telematics system, Aerial: Removal - Refitting)
AFTER REPAIRRepeat the conformity check from the start.
LPN_VC4_PR008
MR-372-J84-86A050$767.mif
LPN RADIO
Vdiag No.: C4
Page 55 of 93
86A-55
MR-372-J84-86A050$767.mif
V3
RADIO
Fault finding - Interpretation of parameters
LPN RADIO
Vdiag No.: C4
86A

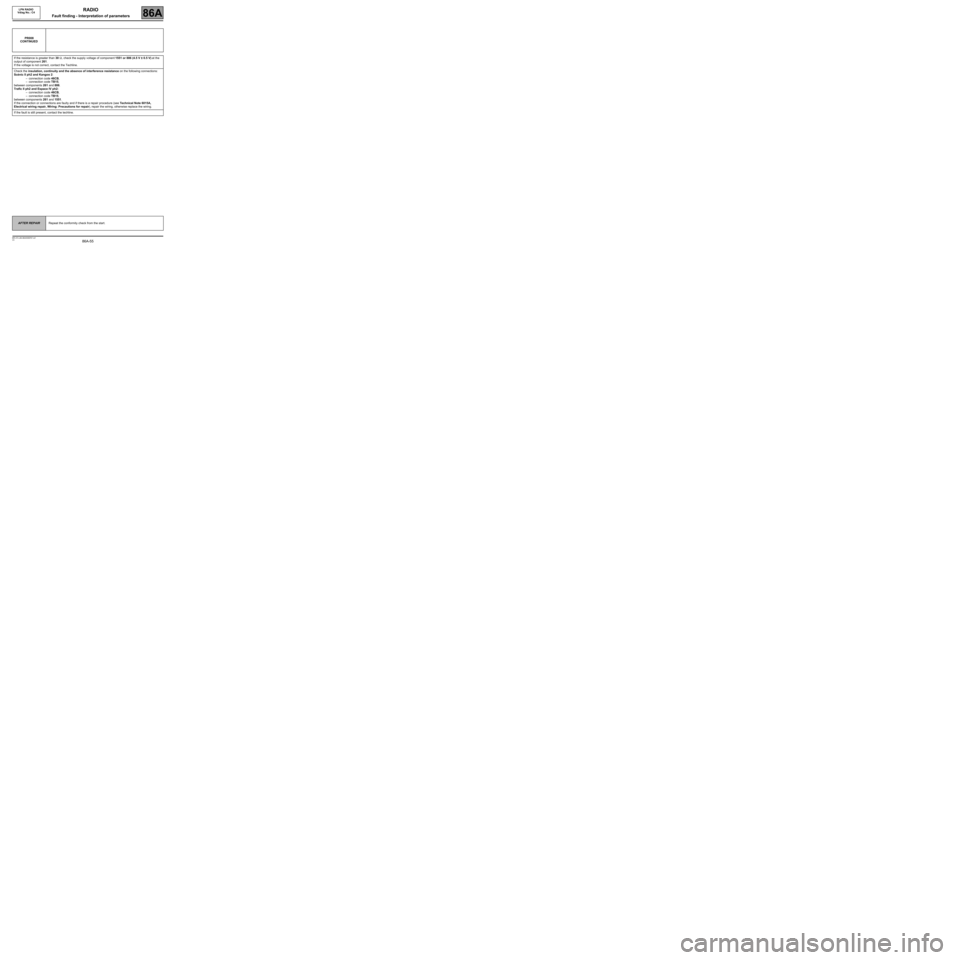

PR008
CONTINUED
If the resistance is greater than 30 Ω, check the supply voltage of component 1551 or 886 (4.5 V ± 0.5 V) at the
output of component 261.
If the voltage is not correct, contact the Techline.
Check the insulation, continuity and the absence of interference resistance on the following connections:
Scénic II ph2 and Kangoo 2:
–connection code 46CB,
–connection code TB15,
between components 261 and 886.
Trafic II ph2 and Espace IV ph2:
–connection code 46CB,
–connection code TB15,
between components 261 and 1551.
If the connection or connections are faulty and if there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, contact the techline.
AFTER REPAIRRepeat the conformity check from the start.
Page 56 of 93
86A-56
MR-372-J84-86A050$767.mif
V3
RADIO
Fault finding - Interpretation of parameters
LPN RADIO
Vdiag No.: C4
86A
˚/s: degrees per second
*LPN: Low Price NavigationPR009
ANGULAR POSITION
NOTESThere must be no present or stored faults.
Engine stopped, ignition on.
Remove component 261 without disconnecting the connectors.
Shake the LPN* radio navigation computer vigorously; parameter PR009 should be above or equal to 1˚/s.
Each time the LPN* radio navigation computer is stationary, PR009 should be very close to 0˚/s.
If the parameter does not change, contact the Techline.
AFTER REPAIRRepeat the conformity check from the start.
LPN_VC4_PR009
Page 57 of 93
86A-57
MR-372-J84-86A050$767.mif
V3
RADIO
Fault finding - Interpretation of parameters
LPN RADIO
Vdiag No.: C4
86A
PR010
VEHICLE SPEED
NOTESThere must be no present or stored faults.
Use the wiring diagrams Technical Note for Scénic II ph2, Espace IV ph2, Trafic II
ph2 or Kangoo 2.
Run fault finding on the ABS or ABS/ESP system, or on the vehicle speed computer depending on the equipment
level (see 38G, Vehicle speed computer or 38C, Anti-lock braking system).
If there are no faults on the ABS or ABS/ESP system, or on the vehicle speed computer, check the insulation,
continuity and the absence of interference resistance on the following connection:
–connection code 47F between components 261 and 118, 1094 or 953 depending on the equipment level.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring. Otherwise replace the wiring.
If the fault is still present, contact the techline.
AFTER REPAIRRepeat the conformity check from the start.
LPN_VC4_PR010
Page 58 of 93
86A-58
MR-372-J84-86A050$767.mif
V3
RADIO
Fault finding - Interpretation of parameters
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationPR011
BATTERY VOLTAGE
NOTESThere must be no present or stored faults.
Use the wiring diagrams Technical Note for Scénic II ph2, Espace IV ph2, Trafic II
ph2 or Kangoo 2.
Check the permanent + supply fuse of component 261.
If the voltage is at minimum:
Check the battery and the charge circuit (see Technical Note 6014A Checking the charge circuit).
If the voltage is at maximum:
Check that the charging voltage is correct with and without electrical consumers switched on.
Check the insulation, continuity and the absence of interference resistance on the following connections:
Scénic II ph2:
–connection code BCP3 between components 261 and 260.
–connection code MT between component 261 and earth MT.
Espace IV ph2:
–connection code BCP4 between components 261 and 710.
–connection code MV between component 261 and earth MV.
Trafic II ph2:
–connection code BP26 between component 261 and the component supplying the LPN* radio
navigation computer.
–connection code MT between component 261 and earth MT.
Kangoo 2:
–connection code BP26 between components 261 and 260.
–connection code MT between component 261 and earth MT.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
AFTER REPAIRRepeat the conformity check from the start.
LPN_VC4_PR011
Page 59 of 93
86A-59
MR-372-J84-86A050$826.mif
V3
86A
RADIO
Fault finding - Command summary table
*LPN: Low Price NavigationNote:
To restart an activation session without switching the system off, run command RZ001 "Test parameters".
Tool command Diagnostic tool title Comments
RZ001Test parametersThis command is used to restart an
activation session without having to switch
off the system.
RZ003Fault memoryThis command is used to clear faults
stored in the navigation computer.
AC004Test right front speaker line
These commands are used to run a
listening test on each speaker and its
associated tweeter speaker (depending on
equipment level). AC005Test left front speaker line
AC006Test right rear speaker line
AC007Test left rear speaker line
AC009Screen test: colour barsThis command is used to check that the
video display is operating correctly.
Three colours are displayed on the screen:
Red, green and blue, and a black mosaic
on a white background.
AC010Microphone testThis command is used to check the
microphone connection.
The speakers transmit a tone and the
LPN* system checks the microphone input
signal.
AC011Detect Bluetooth space
AC013Eject CDThis command is used to eject the CD in
the LPN* radio navigation system.
VP001Write VIN
VP003Write After-Sales service date.
VP005Calib. and commission computer
MR-372-J84-86A050$826.mif
LPN RADIO
Vdiag No: C4
Page 60 of 93
86A-60
MR-372-J84-86A050$885.mif
V3
86A
RADIO

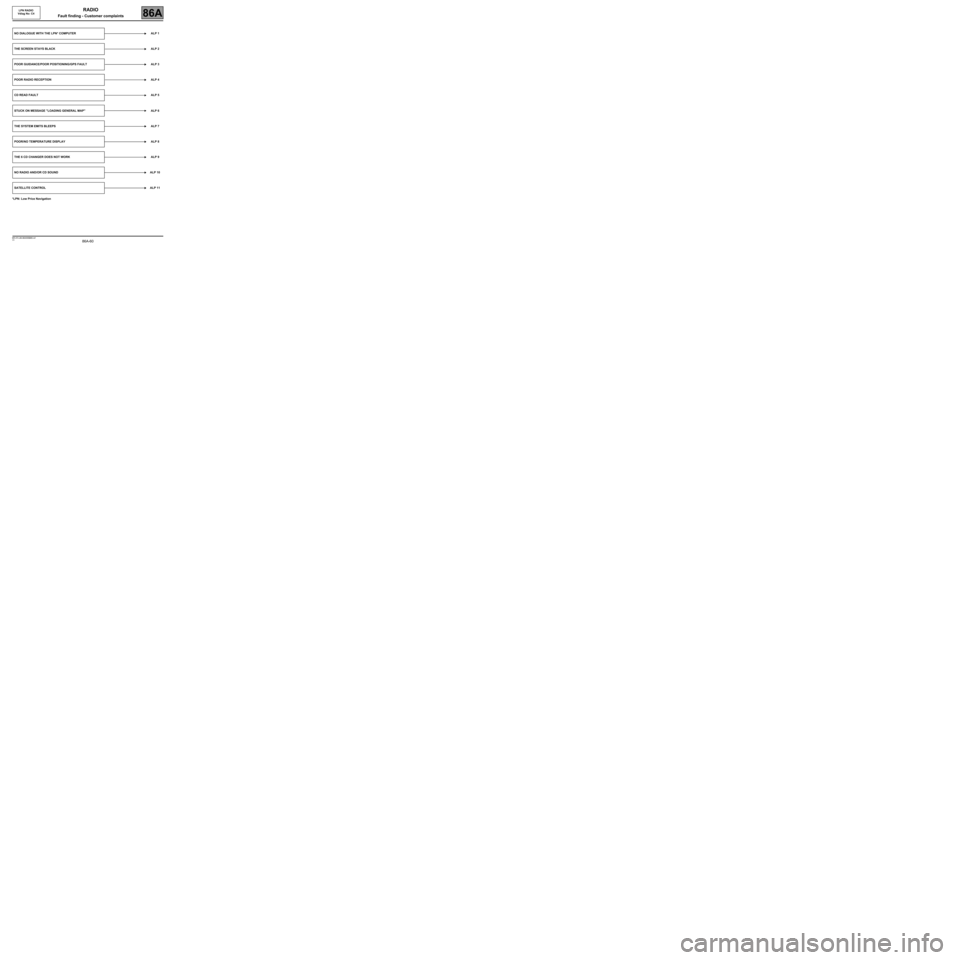

Fault finding - Customer complaints
*LPN: Low Price NavigationNO DIALOGUE WITH THE LPN* COMPUTER ALP 1
THE SCREEN STAYS BLACKALP 2
POOR GUIDANCE/POOR POSITIONING/GPS FAULT ALP 3
POOR RADIO RECEPTIONALP 4
CD READ FAULTALP 5
STUCK ON MESSAGE "LOADING GENERAL MAP" ALP 6
THE SYSTEM EMITS BLEEPSALP 7
POOR/NO TEMPERATURE DISPLAY ALP 8
THE 6 CD CHANGER DOES NOT WORK ALP 9
NO RADIO AND/OR CD SOUND ALP 10
SATELLITE CONTROLALP 11
MR-372-J84-86A050$885.mif
LPN RADIO
Vdiag No: C4
