RENAULT SCENIC 2009 J84 / 2.G Automatic Transmission AJ0 BVA Service Manual
Manufacturer: RENAULT, Model Year: 2009, Model line: SCENIC, Model: RENAULT SCENIC 2009 J84 / 2.GPages: 162
Page 41 of 162

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A - 41V3 MR-372-J84-23A000$405.mif
AJ0 BVA
Vdiag No.: 04, 05
DF086
PRESENT
OR
STOREDEVS2 SEQUENCE SOLENOID VALVE CIRCUIT
CO.1: Short circuit or open circuit to + 12 V
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after:
–in the event of short circuit+:
Lever in "Drive" position, gear engaged = 2, 3, 4, 5, 6,
and Inconsistency between the solenoid valve control status and the control voltage.
–in the event of open circuit:
Lever in "Drive" position, lock-up closed, gear engaged = 2, 3, 4, 5, 6,
and Inconsistency between the solenoid valve control status and the control voltage.
–in the event of short circuit-:
Lever in "Drive" position, lock-up open, gear engaged = 1, 2, 3, 4, 5, 6,
OR Gear 1 with engine braking,
and Inconsistency between the solenoid valve control status and the control voltage.
OR
Running command AC002 "Shift solenoid 2".
Effect on system:
–in the event of short circuit+:
If the fault appears with the lock-up closed, gear engaged in "Drive" position = 2, 3, 4,
5, 6, automatic transmission is locked.
–in the event of open circuit:
No effect.
–in the event of short circuit-:
Risk of stalling in 1st with engine braking.
Customer complaint:
If the fault occurs while driving, the transmission engages fixed 5th gear.
Restarting is in 3rd gear.
Fault warning light comes on.
Use the Wiring Diagrams Technical Note, SCENIC II ph2.
Look for any damage to the harness and check the condition and connection of the automatic transmission
computer and automatic transmission connectors.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check for + after ignition feed on connection 5LW of component 754.
If + after ignition feed is present, move on to step 1.
If + after ignition feed is not present, move on to step 8.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition, wait 1 minute and carry out a road test followed by another
check with the diagnostic tool.
AJ0_V04_DF086/AJ0_V05_DF086
Page 42 of 162

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A - 42V3 MR-372-J84-23A000$405.mif
AJ0 BVA
Vdiag No.: 04, 05
DF086
CONTINUED 1
Step 1:
Disconnect the connector from component 119, measure the resistance of sequence solenoid valve 2
(on the connector of component 119) between the following connections:
●Connection code 5CY.
●Connection code 5LW.
The resistance must be 28 ΩΩ Ω Ω
± 2.8 ΩΩ Ω Ω
at 20 ˚C.
Is the resistance correct?
If YES, contact the Techline.
If NO, move on to step 2.
Step 2:
Disconnect connector R22 and check continuity and insulation of the following connections:
–Connection code 5CY.
–Connection code 5LW.
Between components 119 and R22.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Are the continuity and insulation correct?
If YES, move on to step 3.
If NO, replace the external wiring harness on the automatic transmission.
Stage 3:
Measure the resistance of sequence solenoid valve 2 (on connector R22) between the following connections:
●Connection code 5CY.
●Connection code 5LW.
The resistance must be 28 ΩΩ Ω Ω
± 2.8 ΩΩ Ω Ω
at 20 ˚C.
Is the resistance correct?
If YES, and if the fault is still present, contact the Techline.
If NO, move on to step 4.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition, wait 1 minute and carry out a road test followed by another
check with the diagnostic tool.
Page 43 of 162

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A - 43V3 MR-372-J84-23A000$405.mif
AJ0 BVA
Vdiag No.: 04, 05
DF086
CONTINUED 2
Stage 4:
Drain the automatic transmission (see, MR 370, Mechanical, 23A Automatic transmission, Oil change)
and remove the transmission housing (see, MR 370, Mechanical, 23A Automatic transmission, Hydraulic
distributor).
Disconnect the connector from component 754, measure the resistance of sequence solenoid valve 2
(on the connector of the internal wiring harness of the transmission) between the following connections:
●Connection code 5CY.
●Connection code 5LW.
The resistance must be 28 ΩΩ Ω Ω
± 2.8 ΩΩ Ω Ω
at 20 ˚C.
Is the resistance correct?
If YES, move on to step 5.
If NO, move on to step 6.
Stage 5:
Measure the continuity and insulation of the following connections:
●Connection code 5CY.
●Connection code 5LW.
Between components R22 and the internal connector in the transmission.
Are the continuity and insulation correct?
If YES, contact the Techline.
If NO, replace the intermediate wiring harness between connector R22 and the internal connector in the
transmission.
Stage 6:
Disconnect the connector from sequence solenoid valve 2, measure the resistance of sequence solenoid
valve 2 between the following connections:
●Connection code 5CY.
●Connection code 5LW.
The resistance must be 28 ΩΩ Ω Ω
± 2.8 ΩΩ Ω Ω
at 20 ˚C.
Is the resistance correct?
If YES, move on to step 7.
If NO, replace the hydraulic distributor.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition, wait 1 minute and carry out a road test followed by another
check with the diagnostic tool.
Page 44 of 162

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A - 44V3 MR-372-J84-23A000$405.mif
AJ0 BVA
Vdiag No.: 04, 05
DF086
CONTINUED 3
Step 7:
Measure the continuity and insulation of the following connections:
●Connection code 5CY.
●Connection code 5LW.
Between sequence solenoid valve 2 and the internal connector on the transmission.
Are the continuity and insulation correct?
If YES, contact the Techline.
If NO, replace the internal wiring harness on the automatic transmission.
Step 8:
Check the continuity and insulation of the following connection:
●Connection code 5LW between components 119 and 754.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If + after ignition feed is not present after checking the feeds and earths on the transmission computer, contact
the Techline.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition, wait 1 minute and carry out a road test followed by another
check with the diagnostic tool.
Page 45 of 162

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A - 45V3 MR-372-J84-23A000$405.mif
AJ0 BVA
Vdiag No.: 04, 05
DF091
PRESENT
OR
STORED"LS" PRESSURE REGULATION SOLENOID VALVE CIRCUIT
1.DEF: Open circuit or short circuit
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after:
–in the event of short circuit+ or short circuit-:
difference between current measured and solenoid valve control.
–in the event of open circuit:
Current setpoint > 625 mA.
OR
Running command AC086 ""LS" pressure regulation solenoid valve".
Effect on system:
–in the event of short circuit+:
The line pressure is at its minimum value.
lock-up open.
–in the event of open circuit:
No effect
–in the event of short circuit-:
The line pressure is at its maximum value.
Customer complaint:
–in the event of short circuit+:
Fault warning light comes on.
–in the event of open circuit or short circuit-:
Possible increase in fuel consumption.
Possible jolting during gear changes.
Fault warning light comes on.
Use the Wiring Diagrams Technical Note, SCENIC II ph2.
Look for any damage to the harness and check the condition and connection of the automatic transmission
computer and automatic transmission connectors.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check for + after ignition feed on connection 5LW of component 754.
If + after ignition feed is present, move on to step 1.
If + after ignition feed is not present, move on to step 8.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition, wait 1 minute and carry out a road test followed by another
check with the diagnostic tool.
AJ0_V04_DF091//AJ0_V05_DF091

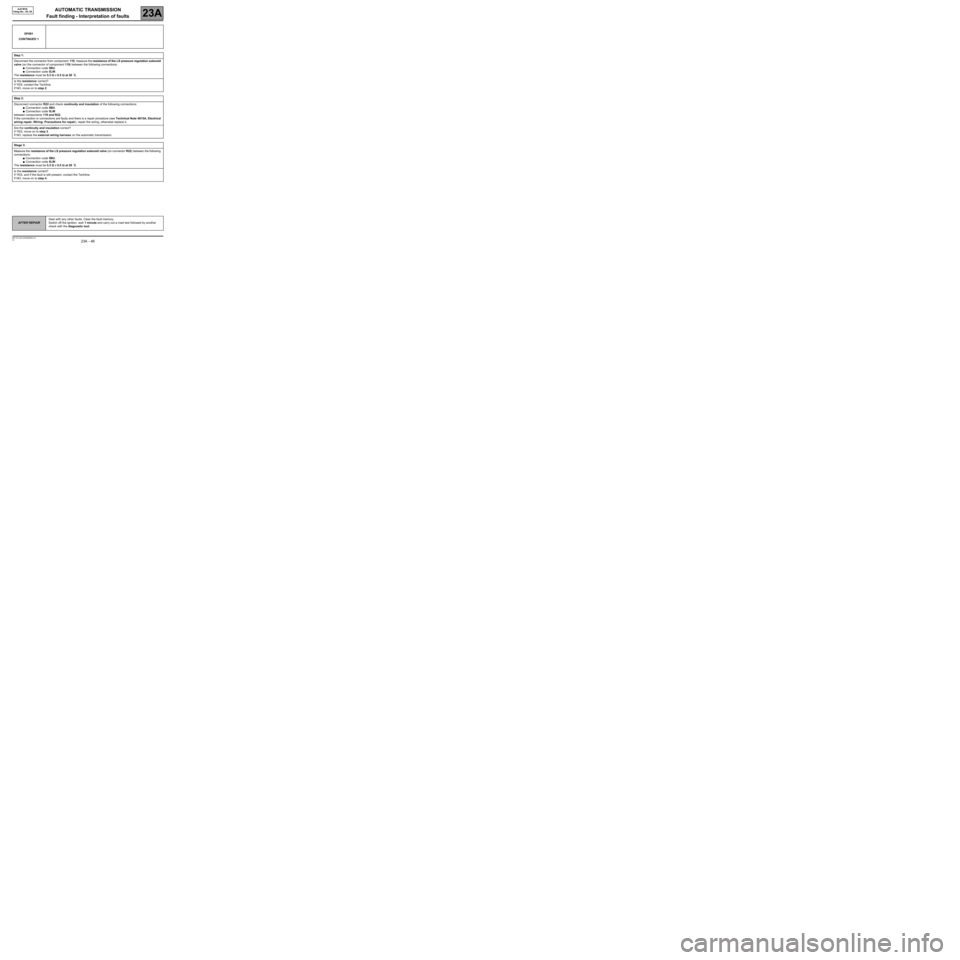

Page 46 of 162

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A - 46V3 MR-372-J84-23A000$405.mif
AJ0 BVA
Vdiag No.: 04, 05
DF091
CONTINUED 1
Step 1:
Disconnect the connector from component 119, measure the resistance of the LS pressure regulation solenoid
valve (on the connector of component 119) between the following connections:
●Connection code 5BU.
●Connection code 5LW.
The resistance must be 5.3 ΩΩ Ω Ω
± 0.5 ΩΩ Ω Ω
at 20 ˚C.
Is the resistance correct?
If YES, contact the Techline.
If NO, move on to step 2.
Step 2:
Disconnect connector R22 and check continuity and insulation of the following connections:
●Connection code 5BU.
●Connection code 5LW.
between components 119 and R22.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Are the continuity and insulation correct?
If YES, move on to step 3.
If NO, replace the external wiring harness on the automatic transmission.
Stage 3:
Measure the resistance of the LS pressure regulation solenoid valve (on connector R22) between the following
connections:
●Connection code 5BU.
●Connection code 5LW.
The resistance must be 5.3 ΩΩ Ω Ω
± 0.5 ΩΩ Ω Ω
at 20 ˚C.
Is the resistance correct?
If YES, and if the fault is still present, contact the Techline.
If NO, move on to step 4.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition, wait 1 minute and carry out a road test followed by another
check with the diagnostic tool.
Page 47 of 162

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A - 47V3 MR-372-J84-23A000$405.mif
AJ0 BVA
Vdiag No.: 04, 05
DF091
CONTINUED 2
Stage 4:
Drain the automatic transmission (see, MR 370, Mechanical, 23A Automatic transmission, Oil change) and
remove the transmission housing (see, MR 370, Mechanical, 23A Automatic transmission, Hydraulic
distributor).
Disconnect the connector from component 754, measure the resistance of the LS pressure regulation solenoid
valve (on the connector of the internal wiring harness of the transmission) between the following connections:
●Connection code 5BU.
●Connection code 5LW.
The resistance must be 5.3 ΩΩ Ω Ω
± 0.5 ΩΩ Ω Ω
at 20 ˚C.
Is the resistance correct?
If YES, move on to step 5.
If NO, move on to step 6.
Stage 5:
Measure the continuity and insulation of the following connections:
●Connection code 5BU.
●Connection code 5LW.
Between components R22 and the internal connector in the transmission.
Are the continuity and insulation correct?
If YES, contact the Techline.
If NO, replace the intermediate wiring harness between connector R22 and the internal connector in the
transmission.
Stage 6:
Disconnect the connector from resistance of the LS pressure regulation solenoid valve measure the LS
pressure regulation solenoid valve between the following connections:
●Connection code 5BU.
●Connection code 5LW.
The resistance must be 5.3 ΩΩ Ω Ω
± 0.5 ΩΩ Ω Ω
at 20 ˚C.
Is the resistance correct?
If YES, move on to step 7.
If NO, replace the hydraulic distributor.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition, wait 1 minute and carry out a road test followed by another
check with the diagnostic tool.
Page 48 of 162

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A - 48V3 MR-372-J84-23A000$405.mif
AJ0 BVA
Vdiag No.: 04, 05
DF091
CONTINUED 3
Step 7:
Measure the continuity and insulation of the following connections:
●Connection code 5BU.
●Connection code 5LW.
Between LS pressure regulation solenoid valve and the internal connector on the transmission.
Are the continuity and insulation correct?
If YES, contact the Techline.
If NO, replace the internal wiring harness on the automatic transmission.
Step 8:
Check the continuity and insulation of the following connection:
●Connection code 5LW between components 119 and 754.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If + after ignition feed is not present after checking feeds and earths of the transmission computer, contact the
Techline.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition, wait 1 minute and carry out a road test followed by another
check with the diagnostic tool.
Page 49 of 162

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A - 49V3 MR-372-J84-23A000$405.mif
AJ0 BVA
Vdiag No.: 04, 05
DF093
PRESENT
OR
STOREDMANUAL SEQUENTIAL CONTROLS CIRCUIT
CC.0 : Short circuit to earth
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after:
Lever in position "P", "R" or "N".
Gear lever in position "M+" or "M-".
Effect on system:
Impulse mode inhibited.
Customer complaint:
Impulse mode inhibited.
"Drive" position displayed on the instrument panel.
Use the Wiring Diagrams Technical Note, SCENIC II ph2.
Look for any damage to the harness and check the condition and connection of the connectors on the automatic
transmission computer and on the shift pattern control.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check for earth on connection N+ of component 129.
Check the continuity and insulation against earth of the following connections:
●Connection code 5H.
●Connection code 5FM.
Between components 119 and 129.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
In the event of a fault, replace the shift pattern control.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition, wait 1 minute and carry out a road test followed by another
check with the diagnostic tool.
AJ0_V04_DF093/AJ0_V05_DF093
Page 50 of 162

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of faults
23A
23A - 50V3 MR-372-J84-23A000$405.mif
AJ0 BVA
Vdiag No.: 04, 05
DF095
PRESENT
OR
STOREDSELECTOR LEVER LOCK ELECTROMAGNET CIRCUIT
1.DEF: Open circuit or short circuit
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after:
Lever in position "P" (without pressing the brake pedal), "R", "N", "D" or "M".
Customer complaint:
–in the event of open circuit or short circuit+:
The shift-lock solenoid valve cannot be activated: therefore the lever is placed in
position "P", blocking it. Unlocking is a manual operation.
–in the event of a CCM:
The shift-lock solenoid valve is always activated: therefore, no locking of lever.
Use the Wiring Diagrams Technical Note, SCENIC II ph2.
Look for any damage to the harness and check the condition and connection of the connectors on the automatic
transmission computer and on the shift pattern control.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check for + after ignition feed on connection AP* of component 129.
Check for earth on connection N+ of component 129.
Check the insulation to earth and continuity of the following connection:
●Connection code 5DU, between components 119 and 129.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
In the event of a fault, replace the shift pattern control.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition, wait 1 minute and carry out a road test followed by another
check with the diagnostic tool.
AJ0_V04_DF095/AJ0_V05_DF095
